0603 Resistor Power Rating: Wattage, Derating and Limits

August 7th, 2026

The 0603 resistor power rating is commonly around 0.1 W, or 100 mW, for many general-purpose thick-film resistors. That figure is a useful reference, but it is not a universal limit for every 0603 component. The usable wattage depends on the resistor series, construction, resistance value, maximum working voltage, temperature, pulse conditions, and PCB thermal environment.

A reliable design therefore requires more than checking whether a simple power calculation falls below 0.1 W. The 0603 resistor power rating must be considered together with temperature derating, working-voltage limits, pulse capability, and design margin. This article explains how to make those checks and when a standard 0603 should be replaced with a higher-power part, a larger package, or a resistor network.

0603 Resistor Power Rating, https://www.bestpcbs.com/blog/2026/08/0603-resistor-power-rating/

What Is the Typical Power Rating of a 0603 Resistor?

For many general-purpose thick-film products, the typical 0603 resistor power rating is approximately 0.1 W, equal to 100 mW or 1/10 watt. However, 0603 identifies the package size rather than a fixed electrical rating.

An imperial 0603 resistor has nominal dimensions of about 0.06 × 0.03 inch, corresponding to roughly 1.6 × 0.8 mm. Different resistor technologies can occupy the same footprint while carrying different wattage ratings.

0603 Resistor Type	Typical Power Rating
General-purpose thick film	Around 0.1 W
Precision thin film	0.063–0.1 W
Lower-power series	0.063–0.075 W
Enhanced-power 0603	0.125 W or higher
High-power 0603	0.15–0.2 W or higher
Current-sense 0603	Series-dependent
Pulse-resistant 0603	Series-dependent

The exact 0603 resistor power rating must come from the selected component datasheet because package size alone does not define wattage.

0603 resistor, https://www.bestpcbs.com/blog/2026/08/0603-resistor-power-rating/

Why Do Different 0603 Resistors Have Different Power Ratings?

Two 0603 resistors can have the same external dimensions and very different continuous power capabilities. The difference comes mainly from how the resistive element generates, spreads, and transfers heat.

The main factors are:

Resistive material: Thick-film, thin-film, metal-element, and other technologies have different thermal behavior and allowable element temperatures.
Element geometry: The shape and thickness of the resistive path influence current density and local hot spots.
Ceramic substrate: The substrate helps move heat from the resistive element toward the terminations.
Termination construction: End terminations provide a major thermal path from the component into the solder pads and PCB copper.
Maximum element temperature: Different product families are designed to tolerate different internal temperatures.
Qualification conditions: Published power can depend on specified pad dimensions, PCB construction, copper area, ambient temperature, or terminal temperature.

This matters when one resistor is substituted for another. Two parts listed as 10 kΩ, 1%, 0603 may fit the same footprint but still differ in wattage, voltage capability, temperature behavior, and pulse performance.

For a power-sensitive position, compare the 0603 resistor power rating, maximum working voltage, derating characteristics, pulse capability, operating-temperature range, and TCR before approving a substitute.

How Do You Read a 0603 Resistor Power Rating from a Datasheet?

A datasheet should be treated as an operating envelope, not as a single wattage number. Seeing “0.1 W” in a specification table is only the first step.

Datasheet Parameter	Technical Significance
Rated Power	Continuous allowable dissipation
Reference Temperature	Temperature at which full rated power applies
Derating Curve	Reduction in allowable power at elevated temperature
Maximum Working Voltage	Highest permitted continuous voltage
Overload Voltage	Short-duration electrical stress limit
Operating Temperature	Permitted operating temperature range
Pulse Specification	Allowable pulse power or energy
TCR	Resistance variation with temperature

First, confirm that the value belongs to the 0603 package or metric 1608 equivalent. Datasheets often place 0402, 0603, 0805, and 1206 values next to one another, so using the wrong row can lead to an incorrect design limit.

Next, identify the thermal condition associated with the published 0603 resistor power rating. A resistor may support full rated power only up to a specified ambient or terminal temperature. Above that point, the available wattage falls according to the derating curve.

Then check the maximum working voltage separately. A high-resistance 0603 resistor can dissipate relatively little power while still exceeding its allowable continuous voltage.

Before approving the part, verify:

Rated power at the actual operating temperature
Maximum continuous working voltage
Short-duration overload limits
Pulse or surge capability
Operating-temperature range
Any mounting conditions stated in the datasheet

The component is suitable only when all applicable limits are satisfied at the same time.

How Do You Calculate Power Dissipation for a 0603 Resistor?

The electrical load should be calculated before comparing the circuit with the 0603 resistor power rating.

The standard relationships are:

P = V × I

P = I² × R

P = V² ÷ R

where:

P = power in watts
V = voltage across the resistor
I = current through the resistor
R = resistance in ohms

Consider a 1 kΩ resistor with 5 V across it:

P = 5² ÷ 1000 = 0.025 W

The resistor dissipates 25 mW. For a resistor nominally rated at 0.1 W, that is 25% of the nominal rating before temperature derating is applied.

Now place 10 V across the same 1 kΩ resistor:

P = 10² ÷ 1000 = 0.1 W

The dissipation rises to 100 mW, equal to the nominal rating of many standard 0603 resistors.

The key relationship is that, with a fixed resistance, power rises with the square of voltage. Doubling the voltage from 5 V to 10 V increases resistor dissipation by four times.

A practical calculation should include:

Maximum supply voltage: Use the highest credible operating voltage, not just the nominal rail value.
Resistance tolerance: Select the tolerance extreme that produces the highest stress in the actual circuit.
Maximum continuous current: Typical current may underestimate thermal load.
Startup and shutdown conditions: Some circuits expose resistors to higher stress before steady-state operation begins.
Fault conditions: Include abnormal states when the resistor is expected to survive them.
Duty cycle: Switched loads require both peak and average power to be considered.

After calculating the worst-case value, compare it with the temperature-derated 0603 resistor power rating, not only the room-temperature value.

0603 resistor power dissipation, https://www.bestpcbs.com/blog/2026/08/0603-resistor-power-rating/

How Do Resistance Value and Maximum Working Voltage Limit 0603 Resistor Power?

Power and voltage limits are related, but they are not interchangeable. A resistor can remain below its thermal limit while already exceeding its permitted working voltage.

For a given resistance and power, the theoretical voltage is:

V = √(P × R)

Using a nominal 0.1 W power limit:

Resistance	Voltage at 0.1 W
100 Ω	3.16 V
1 kΩ	10 V
10 kΩ	31.6 V
100 kΩ	100 V
1 MΩ	316 V

These are mathematical power values, not guaranteed safe working voltages.

For example, a 1 MΩ resistor mathematically reaches 0.1 W at approximately 316 V. If the selected 0603 series has a maximum working voltage far below 316 V, the voltage specification becomes the limiting factor long before the 0603 resistor power rating is reached.

In practice:

Low-resistance values: Current and thermal dissipation are more likely to become limiting factors.
High-resistance values: Maximum working voltage may become the dominant constraint.

This distinction matters in high-voltage dividers, DC bus sensing, capacitor discharge networks, battery monitoring, high-impedance measurement paths, and power-supply feedback circuits.

If one resistor cannot meet the required voltage and wattage simultaneously, a series network can distribute both voltage and dissipation. PCB creepage and clearance still have to meet the total circuit-voltage requirements.

How Does Temperature Derating Affect the 0603 Resistor Power Rating?

The nominal 0603 resistor power rating normally applies only within a defined temperature range. Above the manufacturer’s reference temperature, the allowable continuous power decreases.

This reduction is called power derating.

Suppose, purely as an example, that a 0.1 W resistor permits full power up to 70°C and then derates linearly to zero at 155°C.

At 100°C:

Remaining power ratio = (155 − 100) ÷ (155 − 70) = 64.7%

The allowable continuous dissipation would be:

0.1 W × 64.7% = 64.7 mW

The temperatures in this example are illustrative rather than universal. The correct values must come from the selected resistor series.

The practical lesson is simple: a nominal 100 mW resistor may no longer support 100 mW once the PCB becomes hot.

Local temperature can rise because of:

MOSFETs and regulators: Heat spreads through nearby PCB copper.
Power inductors and transformers: Magnetic components often create concentrated hot areas.
High-power LEDs: Their thermal load can raise the surrounding board temperature.
Closely spaced loaded resistors: Several moderate heat sources can combine into one local hot spot.
Sealed enclosures: Restricted convection increases internal PCB temperature.
Elevated ambient conditions: Outdoor, automotive, industrial, and enclosed electronics may operate far above room temperature.

When the 0603 resistor power rating is being used close to its limit, base derating on the temperature seen by the resistor during real operation, not simply on room temperature.

How Do PCB Layout and Thermal Conditions Affect 0603 Resistor Power Handling?

A surface-mount resistor transfers much of its heat through the end terminations and solder joints into the PCB. That makes the board part of the resistor’s thermal environment.

Several layout choices can influence operating temperature:

Pad geometry: A suitable land pattern provides a predictable electrical, mechanical, and thermal connection.
Connected copper area: Wider copper regions can spread heat more effectively than narrow traces.
Copper thickness: Additional copper can improve local heat spreading where the circuit permits it.
Thermal vias: In suitable layouts, vias can transfer heat toward internal planes or the opposite side of the board.
Component spacing: Separating loaded resistors from MOSFETs, regulators, inductors, and LEDs reduces thermal coupling.
Airflow: Natural or forced airflow changes how quickly heat leaves the PCB surface.
Internal copper planes: Large connected copper areas can alter the local thermal path and board temperature.

One issue that is easy to miss is thermal accumulation. A single resistor dissipating moderate power may remain within limits. Put ten similarly loaded resistors into the same small area, however, and the surrounding PCB can become considerably warmer.

Thermal testing deserves particular attention when:

Several resistors dissipate meaningful continuous power
The PCB operates inside a sealed enclosure
Power semiconductors are located nearby
The calculated load approaches the derated limit
Prototype temperatures differ from thermal estimates

PCB layout can help control temperature, but it should not be used to redefine the manufacturer’s 0603 resistor power rating.

How Much Power Margin Should You Use for a 0603 Resistor?

There is no universal rule requiring every 0603 resistor to operate at exactly 50%, 60%, or another fixed percentage of its rating.

A useful margin depends on the worst-case load, actual temperature, component tolerances, transient conditions, and required service life.

For example, a 0.1 W resistor dissipating 40 mW uses 40% of its nominal rating. A resistor dissipating 80 mW uses 80%. That comparison is meaningful only before temperature derating is applied.

If the actual PCB temperature reduces the allowable wattage to 65 mW, then an 80 mW load is already outside the permitted range even though it is below the nominal 100 mW value.

When deciding how much margin is enough, consider:

Worst-case continuous dissipation: Base the calculation on the highest credible normal voltage or current.
Derated allowable power: Compare the actual load with the rating available at the real operating temperature.
Supply tolerance: A modest increase in voltage can create a much larger increase in resistor power.
Resistance tolerance: Component variation can affect current and dissipation depending on the circuit.
Startup and transient behavior: Short periods of additional loading should not be ignored.
Local temperature: Heat from neighboring components can reduce the remaining margin.
Expected operating life: Continuous high temperature leaves less room for aging and long-term drift.

Some designs use 50% of nominal power as an internal derating target, but that is a project rule rather than a universal standard.

A better rule is to keep worst-case continuous dissipation comfortably below the temperature-derated 0603 resistor power rating under actual operating conditions.

How Much Pulse or Surge Power Can a 0603 Resistor Handle?

A short pulse can sometimes exceed the continuous 0603 resistor power rating because the event ends before the entire resistor reaches thermal equilibrium.

That does not mean pulse capability can be estimated by multiplying the continuous wattage by an arbitrary factor.

Four variables are especially important:

Pulse duration: A 10 µs event and a 100 ms event at the same peak power create very different thermal stresses.
Peak voltage and current: Instantaneous electrical stress must remain within the applicable pulse limits.
Pulse energy: Energy deposited during the event influences localized heating and element damage.
Repetition rate: Frequent pulses may not leave enough cooling time between events.

For repetitive pulses, average power also matters:

Average power = energy per pulse × pulse repetition frequency

A resistor may therefore survive a single startup event but fail when the same pulse occurs hundreds or thousands of times per second.

Pulse capability deserves close attention in gate-drive circuits, snubber networks, capacitor charging and discharge paths, inrush circuits, switching converters, surge-sensing networks, and motor-control electronics.

A standard 0.1 W resistor and a pulse-resistant 0.1 W resistor can behave very differently under short overloads. For pulsed operation, check the pulse-load curve, overload specification, or energy limit for the exact resistor series rather than relying on the continuous 0603 resistor power rating.

How Do Standard and High-Power 0603 Resistors Differ?

A high-power 0603 resistor is intended to provide more continuous dissipation within approximately the same 1.6 × 0.8 mm footprint.

That makes it attractive when PCB space is tight, but higher wattage does not automatically make it the better part for every application.

Parameter	Standard 0603	High-Power 0603
Continuous Power	Usually lower	Higher
Package Size	0603	0603
Thermal Capability	Conventional	Enhanced
Working Voltage	Series-dependent	Series-dependent
Pulse Capability	Series-dependent	Series-dependent
Tolerance / TCR	Product-dependent	Product-dependent
Cost	Usually lower	Often higher

A high-power version is most useful when:

Board area cannot increase, but more continuous power margin is required.
Normal operating dissipation is too close to the derated limit of a standard part.
The PCB runs warm, and a resistor series with a more suitable thermal specification is available.
The higher-power part still meets the required resistance, tolerance, TCR, voltage, and availability requirements.

It is less helpful when another parameter is causing the problem:

Excess working voltage: Higher wattage does not automatically mean a higher voltage rating.
Severe pulses: A dedicated pulse-resistant resistor may be the better choice.
Precision requirements: Higher rated power does not guarantee lower TCR, lower noise, or better long-term stability.
Environmental requirements: Automotive, anti-sulfur, humidity, and other qualifications remain independent specifications.

The 0603 resistor power rating is only one part of the selection decision. Identify the real limiting parameter before paying for a higher-power component.

How Does 0603 Power Rating Compare with 0402, 0805 and 1206 Resistors?

Larger resistor packages usually support more conventional continuous power because they provide a larger body and thermal path into the PCB.

Package	Approx. Metric Size	Common General-Purpose Power
0402	1.0 × 0.5 mm	Around 0.063 W
0603	1.6 × 0.8 mm	Around 0.1 W
0805	2.0 × 1.25 mm	Around 0.125 W
1206	3.2 × 1.6 mm	Around 0.25 W

These values are representative rather than guaranteed ratings. Specialized resistor families can differ substantially.

The package choice affects more than wattage:

0402: Useful where board density is critical and resistor dissipation is very low.
0603: Offers a practical balance of compact size, availability, assembly handling, and moderate power.
0805: Provides more thermal headroom with only a moderate increase in board area.
1206: Offers significantly more physical area where higher dissipation is required and space is available.

The 0603 vs 0805 power rating decision becomes particularly relevant when a standard 0603 is already close to its usable thermal limit. In that situation, moving to an 0805 may be simpler and more robust than operating a specialized 0603 near its maximum 0603 resistor power rating.

Working voltage and pulse ratings should still be checked separately because package size alone does not define every electrical limit.

0603 Resistors, https://www.bestpcbs.com/blog/2026/08/0603-resistor-power-rating/

When Should You Replace a 0603 Resistor with a Larger Package or Multiple Resistors?

A 0603 resistor deserves reconsideration when its electrical and thermal margins become narrow under worst-case conditions.

Moving to 0805 or 1206 is often the simplest option when:

Continuous dissipation approaches the derated 0603 limit.
The PCB remains hot during normal operation.
Long service life favors a lower component temperature.
Available 0603 products do not provide enough working-voltage capability.
Pulse conditions exceed the capability of suitable 0603 resistor families.
Several limits are being approached at the same time.

A resistor network is another option.

Series resistors are useful when voltage is the primary constraint. They divide the total resistance, voltage, and power across several components.

Parallel resistors can distribute current and thermal dissipation when one component would otherwise carry too much load.

That approach introduces its own design considerations:

Resistance tolerance: Electrical stress may not divide exactly as expected.
TCR variation: Sharing can change as individual resistors heat.
Unequal PCB temperature: Two nominally identical parts can operate differently when one sits closer to a heat source.
Copper geometry: Layout affects both current distribution and temperature.
Additional solder joints: More parts mean more placements and interconnections.

The best solution may be a high-power 0603, an 0805 or 1206 resistor, a series network, or a parallel network. The choice should follow the actual limiting parameter and the required 0603 resistor power rating margin rather than package preference alone.

What Causes a 0603 Resistor to Overheat, Drift or Fail on a PCB?

An overloaded resistor does not always burn or go open-circuit immediately. Prolonged electrical or thermal stress may first appear as resistance drift, unstable readings, discoloration, localized heating, or intermittent operation.

Common causes include:

Excess continuous power: Higher-than-expected voltage or current can push dissipation above the allowable 0603 resistor power rating. Measure the real voltage across the component and calculate its actual load.
Insufficient temperature derating: A resistor that works at room temperature may become overstressed once the PCB heats up. Check the local operating temperature, not only ambient room temperature.
Excess working voltage: High-value resistors can exceed their voltage limit while still dissipating relatively little power.
Pulse or surge overload: Switching circuits may expose the resistor to short but severe electrical stress. Examine pulse width, peak voltage, peak current, energy, and repetition rate.
Thermal accumulation: Several loaded resistors or nearby power components can raise the temperature of the same PCB area.
Incorrect resistor value: A BOM error or incorrect substitute can change circuit current enough to raise dissipation dramatically.
Poor solder joints or excessive rework: Damaged terminations or weak joints can affect both electrical reliability and heat transfer.
PCB flexure: Mechanical bending can crack the ceramic body, damage terminations, or weaken solder joints.
Unsuitable environmental rating: Moisture, corrosive gases, sulfur compounds, contamination, and thermal cycling can gradually affect a resistor that was not selected for those conditions.

When a 0603 resistor repeatedly runs hot or fails, replacing it with the same part is not a root-cause fix. Measure the real electrical load and local temperature first, then compare those values with the resistor’s voltage, pulse, and derated power limits.

FAQs About 0603 Resistor Power Rating

Q1: Is a 0603 resistor the same as a 1608 resistor?

A1: Yes. Imperial 0603 corresponds approximately to metric 1608, which represents a body size near 1.6 × 0.8 mm. The two naming systems use different numbering conventions, so package codes should not be interpreted in the same way. Confirm the actual dimensions when selecting a footprint or substitute.

Q2: Are 0603 resistors polarized?

A2: No. A conventional 0603 chip resistor is non-polarized, so either electrical orientation provides the same basic resistance function. Production may still standardize orientation for inspection consistency or documentation, but reversing the component does not reverse its electrical behavior.

Q3: Can a 0603 resistor be used in an AC circuit?

A3: Yes, provided the resistor remains within its RMS power, peak-voltage, and frequency-related limits. For a sinusoidal waveform, heating is normally evaluated using RMS voltage or current. Higher-frequency circuits may require additional consideration of parasitic impedance.

Q4: Does frequency affect the resistance of a 0603 resistor?

A4: At low frequencies, a chip resistor behaves close to its nominal resistance. At higher frequencies, parasitic inductance and capacitance affect impedance. RF, microwave, and high-speed applications may therefore require resistor families with specified high-frequency performance.

Q5: Can a 0603 resistor be used as a fuse?

A5: A standard 0603 resistor should not be assumed to provide controlled fuse behavior. Its failure mode, opening time, and overload response are not defined like those of a purpose-designed fuse or fusible resistor. If predictable circuit protection is required, use a component specifically rated for that function.

Q6: What resistance values are available in the 0603 package?

A6: The available range depends on resistor technology and product family. General-purpose 0603 products cover a very broad resistance range, while precision, current-sense, high-value, or specialized parts may cover narrower ranges. The exact range should be confirmed for the selected series.

Q7: Do 0603 resistors have printed resistance codes?

A7: Many modern 0603 resistors have no readable top marking because the package is very small. Some product families may use abbreviated markings, but these are not enough to identify every electrical specification. The manufacturer part number and BOM remain the reliable references.

Q8: Can a multimeter measure a 0603 resistor while it is still on the PCB?

A8: It can, but an in-circuit reading may be influenced by parallel resistive paths, semiconductor junctions, capacitors, or other connected components. If the measured value does not match expectations, lifting one terminal or removing the resistor may be required for an accurate standalone measurement.

Q9: Can 0603 resistors be mounted on either side of a PCB?

A9: Yes. They can be assembled on the top or bottom side provided the PCB assembly process supports the selected placement and reflow sequence. Placement should still consider clearance, inspection access, nearby components, and the board’s mechanical environment.

Q10: Are 0603 resistors suitable for automated SMT assembly?

A10: Yes. The 0603 package is widely used in automated pick-and-place and reflow assembly. Proper land patterns, solder paste deposition, placement accuracy, and reflow control help maintain consistent solder joints and reduce defects such as tombstoning.

Q11: Can a 0603 resistor be used as a pull-up or pull-down resistor?

A11: Yes. Pull-up and pull-down functions generally dissipate relatively little power, making the 0603 package suitable for many digital circuits. The resistance value should be selected according to logic level, leakage current, switching speed, and required bias current rather than wattage alone.

Q12: What resistor tolerances are commonly available in 0603 packages?

A12: Common 0603 resistor families are available in tolerances such as 5%, 1%, 0.5%, 0.1%, and tighter values depending on the technology. Tighter tolerance does not automatically mean a higher 0603 resistor power rating; precision and power capability are separate specifications.

Q13: Is a 0603 resistor electrically different from a 0603 capacitor?

A13: Yes. The shared “0603” designation refers only to the approximate package dimensions. A resistor provides resistance, while a capacitor stores electrical charge and has capacitance, voltage, dielectric, and frequency characteristics. Identical package codes do not indicate equivalent electrical functions.

The 0603 resistor power rating is commonly around 0.1 W, but reliable component selection requires more than matching a resistor to that single number. The finished design must keep the component within its continuous power, working-voltage, temperature-derating, and pulse limits under the actual PCB operating conditions.

Calculate worst-case dissipation first, then check the result against the resistor’s usable power at the expected temperature. When the available 0603 resistor power rating margin becomes narrow, a high-power 0603, larger 0805 or 1206 package, or properly designed resistor network can provide a more robust solution than running a standard part close to its limit.

If your project involves power-sensitive resistor networks, high-voltage sensing, compact PCB layouts, prototype development, or PCB assembly, we can support PCB fabrication and PCBA production from prototype through volume manufacturing.

Send your Gerber files, BOM, assembly requirements, and order quantity to EBest Circuit sales@bestpcbs.com to request a technical review and PCB/PCBA quotation.

FPGA Vendors: Selection Guide for PCB and PCBA Projects

August 6th, 2026

Choosing FPGA vendors are not simply a comparison of logic cells, speed, and unit price. The selected platform also determines the toolchain, IP licenses, package, power rails, BGA fanout, PCB layer count, sourcing options, and production-test method.

A device may meet the functional specification yet still increase PCB cost or create a supply problem. Before fixing the part number, compare the exact device, package, lifecycle, purchasing channel, and manufacturing impact.

Which Major FPGA Vendors Should Be Shortlisted?

The right shortlist depends on the application. A high-speed networking project, compact industrial controller, low-power sensor, and long-life aerospace product will not use the same selection logic.

FPGA vendor	Typical fit	PCB concern
AMD	Broad portfolio, high-speed and adaptive computing	Dense BGA, power rails, transceivers
Altera	Industrial, embedded and high-performance platforms	Tool edition, package and bank planning
Lattice	Compact, low-power control and edge applications	I/O capacity and package limits
Microchip	Industrial, security and long-lifecycle projects	Programming and device availability
Achronix	High-bandwidth acceleration and networking	Power, memory and high-speed routing
Efinix	Vision, edge and compact embedded systems	Fine-pitch BGA and HDI risk
GOWIN	Cost-sensitive embedded applications	Tool support and approved sourcing

A practical shortlist normally contains two or three exact devices. Comparing every vendor adds work without improving the final decision.

Which FPGA Vendor Selection Criteria Prevent a PCB Redesign?

Start with mandatory requirements. A device that fails one essential condition should be removed before PCB design begins.

Check:

Logic, DSP and RAM capacity
Required speed and temperature grade
Available user I/O
I/O-bank voltage compatibility
Memory and transceiver support
Package size and ball pitch
Power rails and sequencing
Tool and IP availability
Lifecycle status
Approved purchasing channels
Programming and test method

Leave design margin. A device that appears adequate before synthesis may become too small after timing closure, debugging logic, interface changes, and future feature additions.

The exact package matters as much as the FPGA family. Two devices with similar resources may require very different PCB structures because of their ball pitch, number of rows, power-ball distribution, and transceiver placement.

What Should an FPGA Vendor Comparison Table Include?

Compare exact manufacturer part numbers rather than vendor names alone.

A useful comparison should include:

FPGA family and exact part number
Package and ball pitch
Logic, RAM and DSP utilization
User I/O by bank
Transceiver count and speed
Required power rails
Tool and IP license requirements
Lifecycle status
Lead time and approved suppliers
Estimated PCB layer and via requirements
Programming method
Test requirements

Classify each candidate as:

Pass: no unresolved issue
Conditional: acceptable after one defined action
Fail: requires an unacceptable compromise or redesign

This format prevents a low device price from hiding additional costs in PCB fabrication, licensing, regulators, or assembly.

Why Can FPGA Vendors Market Share Mislead Buyers?

FPGA vendor market share can indicate ecosystem size, but it does not identify the best device for a specific product.

Published market-share reports may include different categories, such as:

Traditional FPGAs
SoC FPGAs
CPLDs
Accelerator cards
Embedded FPGA IP
Aerospace devices
Data-center products

A large installed base can mean more engineers, IP, documentation, and reference designs. However, it does not guarantee that the selected package is available, affordable, easy to route, or suitable for long-term production.

Use market share as background information. The final decision should be based on the exact device, package, toolchain, supply route, lifecycle, and PCB impact.

What Key Features Should You Look for in an FPGA Vendor?

Toolchain support

Confirm that the selected family is supported by the required tool version and license. Check synthesis, simulation, timing analysis, command-line automation, and project migration.

Usable IP

Verify that the required USB, PCIe, Ethernet, DDR, MIPI, or other IP supports the selected family and speed grade. Review production licensing before the design depends on it.

Lifecycle information

Check the lifecycle of the exact ordering code, not only the FPGA family. Package, temperature grade, and speed grade may have different availability.

Programming support

Define how the FPGA and configuration memory will be programmed during prototypes and volume production. Security features may require controlled files, keys, or dedicated fixtures.

Technical documentation

Pinout files, power guides, reference schematics, package drawings, IBIS models, and migration information should be available before schematic release.

Are the Best FPGA Vendors Always the Lowest-Risk Choice?

The best FPGA vendor is not always the company with the fastest device or largest market share. It is the platform that leaves the fewest unresolved project risks.

Total platform risk includes:

Device capacity risk
Tool and IP risk
Supply risk
PCB fabrication risk
BGA assembly risk
Thermal risk
Test risk

A low-cost FPGA can become expensive when it requires:

Two extra PCB layers
Laser-drilled microvias
Filled via-in-pad
More voltage regulators
A larger heat sink
Paid protocol IP
Another prototype revision

An established platform may cost more per device but reduce development time when the engineering team already has verified IP, constraints, programming tools, and test procedures.

Evaluate total project cost rather than FPGA unit price alone.

When Should You Use FPGA Board Vendors for Prototyping?

FPGA development boards are useful for validating the platform before designing a custom PCB.

They can help verify:

Toolchain operation
RTL and timing constraints
Interface IP
Embedded software
USB, Ethernet, PCIe, or memory functions
Preliminary performance
Programming flow

However, a development board does not prove:

Final PCB layer count
Production power integrity
BGA escape feasibility
Thermal performance inside the enclosure
EMI or EMC compliance
Final BOM availability
Volume assembly yield

Before moving to a custom FPGA PCB, freeze the exact part number, package, pin assignments, bank voltages, power architecture, memory topology, clocks, configuration method, and test access.

How Does an FPGA BGA Package Increase PCB Layer Count?

The BGA package can determine whether the PCB uses conventional through vias or HDI structures.

BGA pitch	Early PCB assessment
1.0 mm	Conventional fanout may be practical
0.8 mm	Smaller drills or tighter routing may be required
0.65 mm	Review microvias and via-in-pad
0.5 mm or below	HDI is often required

Pitch alone does not determine the layer count. Engineers must also review:

Number of populated ball rows
Signal location inside the package
DDR bus width
Transceiver count
Differential-pair routing
Reference-plane requirements
Power-plane allocation
PCB fabrication limits

A preliminary BGA fanout should be completed before the BOM is approved. Otherwise, the selected FPGA may force a more expensive stack-up after layout has started.

What FPGA PCB Design Changes Follow a Vendor Switch?

Changing FPGA vendors usually means more than replacing the footprint.

Review:

BGA ball map
I/O-bank arrangement
Bank voltages
Core and auxiliary rails
Power sequencing
Decoupling layout
Configuration memory
JTAG connections
Clock inputs
DDR topology
High-speed interfaces
Thermal requirements

Even when two devices provide similar resources, their pins may be distributed across different banks. This can change connector placement, power planes, differential-pair routing, and regulator selection.

Treat a vendor switch as a controlled redesign unless package, pin, and electrical compatibility have been confirmed.

How Was a 6-Layer FPGA USB PCB Prepared for 10-Day Delivery?

A customer ordered 1,000 FPGA USB PCBs plus one spare board with controlled impedance, documented testing, and delivery within ten days after EQ approval.

PCB specifications

6-layer high-Tg 170 FR-4
Finished thickness: 1.6 mm ±10%
Outer copper: 1 oz
Inner copper: 0.5 oz
Red solder mask and white silkscreen
ENIG: 1 µin gold
RoHS and IPC Class 2
Panelized delivery

Impedance requirements

50 Ω single-ended traces on L1, L3, and L4
100 Ω differential pairs on L1, L3, L4, and L6

Before production, the engineering review covered the stack-up, reference planes, dielectric thickness, trace geometry, copper compensation, panel design, and impedance coupons.

Every board received electrical testing before shipment. The customer received:

Electrical test report
Impedance report
Production traceability

The project shows our ability to manufacture FPGA USB boards with multilayer construction, mixed impedance requirements, documented testing, and schedule-controlled volume production.

The FPGA model, pin assignment, RTL, and firmware remained customer-defined. Our role was to convert the released files into a repeatable PCB manufacturing process.

What Files Are Required Before FPGA Assembly?

A complete manufacturing package reduces engineering questions and prevents assembly delays.

PCB files

Gerber or ODB++
Drill files
Fabrication drawing
Stack-up
Impedance requirements
Panel instructions

Assembly files

BOM with manufacturer part numbers
Pick-and-place file
Assembly drawing
Polarity notes
Approved alternates

Programming files

Released bitstream
FPGA and memory part numbers
Programming interface
Checksum or verification method
Security instructions

Test files

Power-up sequence
Current limits
Functional-test steps
Expected results
Pass/fail criteria

Best Technology supports DFM review, component sourcing, multilayer PCB fabrication, BGA assembly, X-ray inspection, programming, and customer-defined testing. FPGA selection, RTL, firmware, system architecture, and final certification remain the customer’s responsibility.

Preparing an FPGA PCB or PCBA project? Send your Gerber files, BOM, FPGA part number, stack-up, assembly data, and test requirements to sales@bestpcbs.com. Our engineering team will review the BGA fanout, controlled impedance, material availability, component sourcing, assembly access, and test plan before production.

Mylar Capacitor Guide: Values, Polarity and PCBA Checks

August 5th, 2026

A mylar capacitor may look like a low-risk line item in a BOM, but it can still delay production when the value marking, voltage rating, lead spacing, body size, or approved alternate is not clear. In real PCBA work, a part listed as “0.1 uF Mylar capacitor” may be electrically close, but still cause sourcing delay, footprint mismatch, enclosure interference, polarity confusion, or rework if the details are not checked before assembly.

EBest Circuit (Best Technology) supports PCB and PCBA projects with BOM review, component sourcing, DFM checking, SMT assembly, inspection, testing coordination, and small-batch production under one workflow. With about 20 years of PCB/PCBA manufacturing experience, our team can help engineers review Mylar capacitors, polyester film capacitors, unclear markings, approved alternates, footprint fit, and assembly notes before production starts. If your BOM includes capacitor replacement risks or unclear component specifications, please send your Gerber files, BOM, CPL, assembly drawing, and project notes to sales@bestpcbs.com for engineering review.

What Is a Mylar Capacitor?

A mylar capacitor is a film capacitor that uses polyester film as the dielectric material. In electronics, "Mylar" is often used as a common name for polyester film capacitors, although Mylar itself is a brand name for a type of polyester film.

Mylar capacitors are widely used because they are stable, affordable, non-polarized in most cases, and suitable for many general electronic circuits. They are often found in signal coupling, filtering, timing circuits, audio circuits, consumer electronics, power adapters, and control boards.

For PCB and PCBA projects, the important point is not only the capacitor value. The assembly team also needs to confirm the package, lead spacing, voltage rating, body size, tolerance, temperature rating, and approved part number.

Mylar Capacitors vs Polyester Capacitors

In most practical electronics discussions, mylar capacitors and polyester capacitors refer to the same general capacitor type. Both usually mean a capacitor made with polyester film dielectric.

The naming difference often appears in BOMs, datasheets, supplier catalogs, or older maintenance documents.

Term	Practical Meaning
Mylar capacitor	Common name used in many BOMs and repair documents
Polyester capacitor	More material-specific term
PET film capacitor	Technical material description
Metallized polyester capacitor	Polyester film capacitor with metallized electrode structure

For purchasing and PCBA assembly, the safer approach is to confirm the manufacturer part number instead of relying only on the words "Mylar" or "polyester." Two capacitors may have the same capacitance value but different voltage ratings, tolerances, lead spacing, body sizes, and temperature performance.

Mylar Film Capacitor Structure and Lead Style

A mylar film capacitor usually has thin polyester film as the dielectric layer. Depending on the construction, the electrode may use foil or metallized film. The capacitor body is commonly dipped, boxed, or wrapped, with radial leads for through-hole PCB assembly.

Important physical details include:

capacitance value
voltage rating
tolerance
lead spacing
body length
body height
body thickness
lead diameter
coating or case type
temperature rating

For PCBA assembly, lead spacing is especially important. If the BOM lists the correct capacitance but the selected capacitor does not fit the PCB footprint, the assembly may need rework or part replacement before production can continue.

How to Read Mylar Capacitor Values Correctly?

Mylar capacitor values may be printed in several ways. Some use direct capacitance values such as 0.1 uF, 100 nF, or 10 nF. Others use a three-digit code.

A common code format works like this:

Marking	Meaning
104	100,000 pF = 100 nF = 0.1 uF
103	10,000 pF = 10 nF = 0.01 uF
472	4,700 pF = 4.7 nF
224	220,000 pF = 220 nF = 0.22 uF

The first two digits are significant numbers. The third digit tells how many zeros to add in picofarads.

This is where mistakes often happen. A buyer may read "104" as 104 pF, but in capacitor coding it usually means 100,000 pF. For PCBA projects, the BOM should not rely only on a short printed code. A clear BOM should include the full capacitance value, voltage rating, tolerance, package type, and approved part number.

104 Mylar Capacitor and 0.1 uF Mylar Capacitor

A 104 Mylar capacitor is commonly a 0.1 uF Mylar capacitor. It may also be written as 100 nF or 100,000 pF.

These values are equivalent:

Marking	Equivalent Value
104	0.1 uF
104	100 nF
104	100,000 pF

A 0.1 uF Mylar capacitor may be used for filtering, coupling, bypassing, timing, or general signal circuits, depending on the circuit design.

However, replacement should not be based on capacitance alone. The voltage rating, tolerance, lead spacing, body size, temperature rating, and application environment should also be checked. A capacitor with the same 0.1 uF value may still be unsuitable if it cannot fit the PCB or meet the circuit requirement.

Are Mylar Capacitors Polarized?

Most Mylar capacitors are not polarized. This means they usually do not have a fixed positive or negative lead like many electrolytic capacitors.

That is one reason Mylar capacitors are useful in AC signal paths, coupling circuits, filtering circuits, and other applications where polarity may change.

Even so, the assembly team should still check the actual datasheet and BOM requirement. Some film capacitor packages may have markings related to outside foil, shielding, tolerance, series, or voltage, and these markings should not be confused with polarity marks.

For PCBA inspection, the key point is simple: do not assume polarity based only on capacitor appearance. Confirm the capacitor type, datasheet, and assembly drawing before production.

What Are Mylar Capacitors Used For?

Mylar capacitors are used in many electronic products because they offer stable performance for general circuit needs.

Common uses include:

signal coupling
audio circuits
timing circuits
filtering
bypassing
control boards
consumer electronics
lighting products
power adapters
small industrial modules

In PCB manufacturing and assembly, the application affects what needs to be checked. A capacitor used in a low-voltage signal circuit may have different requirements from one used near heat, high voltage, vibration, or a crowded enclosure.

That is why a BOM should provide more than "Mylar capacitor." It should define the exact electrical and mechanical requirements so the selected part can be purchased and assembled correctly.

Film Capacitor vs Ceramic Capacitor in Replacement

A film capacitor and a ceramic capacitor may sometimes have the same capacitance value, but they are not always interchangeable.

Item	Film Capacitor	Ceramic Capacitor
Dielectric	Plastic film	Ceramic material
Polarity	Usually non-polarized	Usually non-polarized
Stability	Often good for signal use	Depends on dielectric type
Size	Often larger	Often smaller
Mounting	Often through-hole or box type	Often SMD
Replacement risk	Footprint and body size	Voltage bias and dielectric behavior

For replacement, the question is not only "Can I match the capacitance?" The better question is whether the capacitor still meets the circuit function, voltage requirement, temperature condition, PCB footprint, assembly method, and reliability expectation.

EBest Circuit does not replace the customer's circuit design team. The final capacitor type should come from the customer's engineering approval. Our role is to help check whether the approved component information matches the PCB footprint, BOM, sourcing plan, and assembly process.

How to Test Mylar Capacitor Before PCBA?

A Mylar capacitor can be checked before PCBA when the project requires component verification or when the part comes from an alternate source.

Possible checks include:

capacitance measurement
visual inspection
lead spacing check
body size check
voltage rating confirmation
part marking review
BOM and datasheet comparison
approved alternate confirmation

For normal production, component testing depends on the project requirement, part source, and quality control plan. In many cases, the first step is not advanced testing. It is making sure the BOM, datasheet, package, and PCB footprint all agree before SMT or through-hole assembly starts.

If a capacitor-heavy board has unclear markings or mixed replacement parts, early review can prevent assembly delays and unnecessary rework.

Why EBest Circuit Checks Capacitor Details Before PCBA

Capacitor issues may look small on paper, but they can stop production quickly. A wrong value, wrong voltage rating, wrong package, wrong lead spacing, or unavailable part can delay sourcing, assembly, testing, and shipment.

EBest Circuit can help review:

BOM value consistency
MFD, uF, nF, and pF value conversion
capacitor voltage and package information
approved part number and alternates
PCB footprint and lead spacing
polarity or non-polarity notes
SMT or through-hole assembly method
tall component clearance
inspection and packing notes

This support is useful when a project includes legacy BOM formats, mixed capacitor naming, old drawings, customer-supplied components, or replacement parts. Instead of finding the issue after assembly starts, the better path is to catch it during BOM and DFM review.

FAQs About Mylar Capacitor

1. Is a Mylar capacitor the same as a polyester capacitor?

In most practical electronics use, yes. A Mylar capacitor usually refers to a polyester film capacitor.

2. Are Mylar capacitors polarized?

Most Mylar capacitors are not polarized. However, the datasheet should still be checked before assembly.

3. What does 104 mean on a Mylar capacitor?

104 usually means 100,000 pF, which equals 100 nF or 0.1 uF.

4. Can I replace a Mylar capacitor with a ceramic capacitor?

Not always. The capacitance may match, but voltage rating, dielectric behavior, size, footprint, and circuit function must be checked.

5. How should I specify a Mylar capacitor in a BOM?

A good BOM should include capacitance, tolerance, voltage rating, capacitor type, package, lead spacing, manufacturer part number, and approved alternates.

All in all, a mylar capacitor is a small component, but it can still affect sourcing, assembly, testing, and delivery if the specification is incomplete. If your project includes Mylar capacitors, polyester film capacitors, unclear markings, or capacitor replacement risks, please send your Gerber files, BOM, CPL, assembly drawing, and project notes to sales@bestpcbs.com. EBest Circuit can help review the PCB and PCBA manufacturing path before production starts.

Alternative Electronic Components for Safer PCBA Builds

August 4th, 2026

alternative electronic components are replacement parts considered when the original BOM item is unavailable, expensive, obsolete, long-lead, or unsuitable for production. For buyers, the real question is not only “Can we find another part?” The real question is “Can this alternative be approved, sourced, assembled, inspected, and tested without creating new PCBA risks?”

In PCB and PCBA projects, a substitute component can affect footprint fit, pinout, package height, soldering quality, electrical performance, lifecycle risk, certification requirements, and final product reliability. EBest Circuit (Best Technology) supports component sourcing, BOM review, PCB manufacturing, PCBA assembly, DFM review, and testing support for engineers and buyers who need practical help before production. For BOM review or PCBA project support, contact sales@bestpcbs.com.

What Are Alternative Electronic Components?

Alternative electronic components are parts that may replace the original component listed in a BOM after technical and sourcing review. They may come from another manufacturer, use a slightly different package, have a different tolerance, or offer similar electrical performance under the project’s required conditions.

They are often considered when the original part has one of these problems:

Long lead time
High price
End-of-life status
Low distributor stock
Minimum order quantity issue
Import or supply chain limitation
Unstable availability for mass production
Prototype BOM needing faster sourcing

For a PCBA buyer, an alternative part is not automatically safe just because it has the same value or similar function. A 10k resistor from another brand may be simple to approve, but an IC, connector, MOSFET, regulator, relay, transformer, sensor, or RF part may require much deeper review.

Buyer-focused rule:

A good alternative component should protect schedule and cost without creating assembly, testing, or field reliability problems.

Alternative Electronic Components vs Equivalent Parts

The terms alternative component, equivalent part, alternate part, and drop-in replacement are often used together, but they do not always mean the same thing.

Term	Practical meaning	Buyer risk level
Alternative component	A possible replacement after review	Medium to high
Equivalent part	Similar function and specifications	Medium
Drop-in replacement	Same footprint, pinout, and usable function	Lower, but still needs approval
Alternate part	A second approved option in the BOM or AVL	Lower when pre-approved
Substitute component	Any replacement proposed for the original part	Depends on review depth

A true drop-in replacement should match the original component closely enough that the PCB layout, footprint, assembly process, and product function do not need major changes. But even then, buyers should confirm datasheet details, tolerance, temperature range, package drawing, lifecycle status, and test results.

A part can be electrically similar but mechanically wrong. Another part can fit the footprint but fail under thermal, current, EMI, or endurance requirements. This is why component alternatives should be reviewed by both sourcing and engineering teams before procurement.

How to Find Alternative Electronic Components When Supply Is Limited?

When supply is limited, many buyers search for alternatives through distributor platforms, cross-reference tools, old BOM records, manufacturer recommendations, or supplier suggestions. These tools are useful, but they should be treated as the first step, not the final approval.

Key checks include:

Confirm the original MPN and manufacturer.
Check whether the part is active, NRND, EOL, or obsolete.
Compare authorized distributor stock and lead time.
Search for same-value and same-package options.
Review manufacturer cross-reference suggestions carefully.
Ask the PCBA supplier whether the alternative affects assembly.
Get customer approval before purchasing substituted parts.

For example, a buyer may find an alternative voltage regulator with the same output voltage and package name. That still does not confirm the pinout, thermal pad size, dropout voltage, output current, stability with existing capacitors, or layout requirements. If the board has already been designed, those details can decide whether the substitute is usable or dangerous.

A practical way to reduce risk is to divide the search into two stages:

Stage	Goal	What to avoid
Sourcing search	Find available candidates	Choosing only by price or stock
Engineering review	Confirm fit for PCBA production	Approving without datasheet comparison

When buyers send the BOM to EBest Circuit for review, our team can help check sourcing availability, identify possible supply risks, and coordinate review points before PCBA production.

When Should Buyers Consider Electronic Component Alternatives?

Buyers should consider electronic component alternatives when the original BOM creates a clear business or production risk. The goal is not to change parts casually. The goal is to keep the project moving while protecting quality.

Common situations include:

The original part has a lead time of several months.
A prototype needs to be built quickly for validation.
The quoted component cost is too high for production.
The original part is obsolete or close to EOL.
The distributor stock cannot support repeat orders.
The project needs a second source for supply stability.
The first PCBA batch finds a sourcing or soldering issue.

A low-risk case might be a passive component with matching value, tolerance, package size, voltage rating, and temperature range. A high-risk case might be an MCU, power IC, RF part, connector, display module, sensor, transformer, relay, or safety-related component.

A safer decision path is:

Use alternatives early during prototype review.
Keep approved alternates in the BOM or AVL.
Avoid last-minute substitution after PCB fabrication.
Confirm whether the substitute changes assembly or test requirements.
Record the approved MPN before purchasing parts.

This makes the BOM easier to quote, easier to source, and easier to repeat in later production.

What Should Be Checked Before Approving Alternative Electronic Components?

Before approving alternative electronic components, buyers should check more than the first line of the datasheet. The approval should connect sourcing, PCB layout, assembly, inspection, and product performance.

Review item	What to check	Why buyers care
Electrical rating	Voltage, current, power, tolerance	Prevent overheating or wrong performance
Package	Size, height, pin count, body shape	Avoid assembly and enclosure mismatch
Footprint	Pad size, pitch, thermal pad	Prevent solder defects or non-fit
Pinout	Pin order and function	Avoid board failure or damage
Lifecycle	Active, NRND, EOL, obsolete	Support repeat production
Source	Authorized supplier, traceability	Reduce counterfeit risk
Assembly	SMT/THT process, reflow limit	Prevent soldering defects
Testing	ICT, AOI, functional test	Confirm board-level result

For PCBA buyers, the most dangerous replacements are not always the most expensive parts. Sometimes the risky part is a small connector, diode, capacitor, switch, or transistor that looks simple but has a different footprint, polarity, height, or derating requirement.

Approval documents should include:

Original BOM with MPN
Proposed alternative MPN
Datasheets for both parts
PCB footprint or package drawing
Customer approval record
Special assembly notes
Test requirements after substitution

Without these details, the supplier may be forced to pause the quote, ask repeated questions, or proceed with unclear risk. Clear approval saves time before production.

Alternative Components for BOM Review and PCBA Production

Alternative components should be reviewed before the BOM is released for procurement. If the buyer waits until after the PCB is already fabricated, the substitute may require a board revision, manual rework, or delayed assembly.

In PCBA production, BOM substitution usually affects five practical areas:

Quotation accuracy
PCB footprint fit
Assembly process
Inspection method
Repeat production

If the BOM contains obsolete, unclear, or single-source parts, the quotation may look fine at first but fail during procurement. A BOM review can flag these items before the buyer commits to schedule.

A substitute may have the same function but a different pad layout. Even a small package difference can cause tombstoning, insufficient solder, bridging, or poor inspection access.

Some alternatives need different soldering temperatures, handling requirements, moisture sensitivity control, or manual assembly steps. AOI can check markings, orientation, and visible solder joints, but hidden pins, BGAs, bottom-terminated parts, or shielded areas may need X-ray or functional testing.

A one-time shortage fix is different from a stable second-source strategy. If the project will repeat, the approved alternative should be documented in the AVL or BOM notes.

EBest Circuit supports component sourcing together with PCB fabrication and PCB assembly, so buyers can review BOM risk before the project enters production.

Low-Cost Alternatives for High-Demand Electronic Components

Low-cost alternatives for high-demand electronic components can reduce project cost, but they should never be approved by price alone. A cheaper component is only useful if it still meets the electrical, mechanical, assembly, and reliability needs of the product.

A low-cost alternative may be reasonable when:

The part is passive and specifications match clearly.
The package and footprint are the same.
The part has stable supply from reliable channels.
The application is not safety-critical or high-stress.
The buyer has approved the datasheet comparison.
Functional testing confirms board-level performance.

A low-cost alternative is risky when:

The original part handles power, heat, signal integrity, or protection.
The substitute has a different tolerance or derating curve.
The package height affects enclosure fit.
The part marking or source is unclear.
The manufacturer has limited traceability.
The change may affect certification or customer approval.

For example, replacing a common resistor may be straightforward. Replacing a DC-DC converter, MOSFET, crystal, optocoupler, connector, or sensor needs more caution. The wrong choice can save a few cents on the BOM but create failed testing, rework, delayed shipment, or field failure.

Better buyer question:

Do not only ask “Is this cheaper?” Ask “Will this alternative still pass assembly, inspection, testing, and repeat production?”

Alternative Component Sourcing for Obsolete and Hard-to-Find Parts

Obsolete and hard-to-find electronic parts create a different kind of risk. The issue is not only finding stock. The issue is confirming whether the stock is reliable, traceable, and suitable for the PCBA build.

When a part is obsolete or EOL, buyers usually have three choices:

Option	When it works	Main risk
Buy remaining stock	Short-term repair or small batch	Counterfeit or aging inventory
Approve an alternative	Prototype or production continuation	Requires technical review
Redesign the circuit or PCB layout	Long-term product lifecycle	Higher engineering time and cost

For BestPCBS customers, the most practical route depends on the project stage. If the board is still in prototype, it may be easier to approve a better alternative before layout is locked. If the board is already in production, the team needs to protect footprint compatibility and testing reliability.

Important review points include:

Is the original part officially obsolete or only temporarily out of stock?
Can the current PCB footprint accept the proposed alternative?
Does the substitute require firmware, calibration, or circuit changes?
Is the source traceable enough for the product’s quality requirement?
Should the buyer approve more than one alternate part for future builds?

EBest Circuit can help buyers review BOM shortage issues and coordinate sourcing options, but the final approval should remain clear between the customer and the engineering requirements of the product.

PCBA assembly and testing checks after using alternative components:

After an alternative component is approved, the PCBA process should still be checked. A substitute may pass BOM review but create assembly or testing differences on the production line.

PCBA checks should include:

Confirm the approved MPN is used in purchasing.
Check package size and feeder suitability.
Confirm polarity and pin 1 direction.
Review stencil opening if solder volume may change.
Check whether manual soldering is required.
Inspect part marking and lot traceability.
Run AOI, visual inspection, X-ray, or functional testing as needed.
Record the substitution in production documents.

A common production issue is that the buyer approves a new part but the BOM file, purchase order, assembly drawing, or test instruction still shows the old part. That mismatch can slow down procurement or create confusion during incoming inspection.

For prototype and small-batch PCBA, one practical solution is first-article confirmation. The supplier builds and checks the first board or first panel before continuing with the full batch. This can catch wrong orientation, wrong package height, poor solder joints, or unexpected functional behavior before more boards are assembled.

For production orders, the better approach is controlled documentation. The approved alternative should be clearly listed in the BOM, and any special test requirement should be included before assembly starts.

How EBest Circuit Supports Alternative Electronic Components for PCB and PCBA Projects

EBest Circuit (Best Technology) supports buyers who need alternative electronic components as part of PCB and PCBA projects. Our role is not to make unapproved design decisions for the customer. Our role is to help review manufacturability, sourcing, assembly, and test risks so the customer can approve the right choice with clearer information.

EBest Circuit supports PCB and PCBA projects with:

BOM review and component sourcing support
Alternative MPN comparison before procurement
DFM review for PCB manufacturability
PCB layout manufacturability review
PCB fabrication
SMT assembly
Through-hole and mixed PCBA assembly
Incoming material inspection
Functional testing support
Prototype, small-batch, and production support

For engineers, this can reduce back-and-forth during quotation. For buyers, it helps control sourcing risk before money is spent on the wrong parts. For project managers, it keeps BOM, PCB, assembly, and testing decisions connected instead of scattered across different suppliers.

Project example:

A North American industrial controller customer needed 120 PCBAs for a pilot build. The original BOM included a DC-DC converter with a 16-week lead time. A lower-cost alternative was available, but the first datasheet review showed a different recommended input capacitor range and a slightly different thermal performance curve.

Instead of approving the substitute only by output voltage, the review focused on the real PCBA risks:

Input voltage range under customer operating conditions
Output current and derating at expected enclosure temperature
Pin compatibility with the existing PCB footprint
Package height under the metal housing
Reflow profile and moisture sensitivity
Functional test points after assembly

The customer approved a different second-source part after reviewing the data. The pilot batch moved forward without changing the PCB layout, and the test plan added a load check for the power rail. For the buyer, the value was not just finding a cheaper part. The value was avoiding a late-stage PCBA failure caused by an incomplete substitution review.

If your project has shortage, EOL, long-lead, or BOM cost pressure, send your BOM, Gerber files, assembly drawing, and test requirements to sales@bestpcbs.com for review.

FAQs About Alternative Electronic Components

Are alternative electronic components always safe to use?

No. Alternative electronic components are only safe after technical review and customer approval. The buyer should confirm datasheet specifications, footprint, pinout, package size, lifecycle, sourcing channel, assembly process, and testing requirements before production.

What is the difference between an alternative component and an equivalent part?

An equivalent part usually means a component with very similar specifications and function. An alternative component is broader. It may be a possible replacement, but it still needs review before it can be used in a PCB or PCBA project.

Can a PCBA supplier choose substitute components directly?

A PCBA supplier can suggest possible substitutes and explain sourcing or assembly risks, but the final approval should be confirmed by the customer. This is especially important for ICs, power parts, connectors, sensors, RF parts, safety-related components, and certified products.

What files should I send for alternative component review?

Send the BOM, original MPN, proposed alternative MPN if available, Gerber files, pick-and-place file, assembly drawing, datasheets, special test requirements, and any enclosure or mechanical restrictions that may affect component height or placement.

How can EBest Circuit help with alternative component sourcing?

EBest Circuit can help review BOM availability, compare possible alternatives, check PCB and PCBA manufacturability risk, coordinate component sourcing, assemble PCBAs, and support inspection and functional testing. For project review, contact sales@bestpcbs.com.

In Conclusion, alternative electronic components can help buyers solve shortage, cost, and obsolete-part problems, but only when the substitute is reviewed before PCBA production. A good approval process checks more than price and stock. It confirms footprint, pinout, package, datasheet limits, sourcing reliability, assembly process, inspection, and functional testing. EBest Circuit (Best Technology) helps engineers and buyers connect BOM review, component sourcing, PCB manufacturing, PCBA assembly, and testing support so alternative parts can be used with better control and fewer production surprises.

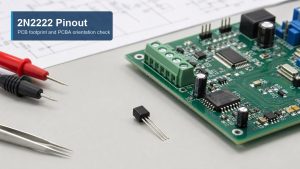

2N2222 Pinout Guide for PCB Layout and PCBA Assembly

August 3rd, 2026

2N2222 pinout looks like a small three-pin detail, but it can decide whether a transistor footprint, BOM substitute, and assembled PCBA work correctly after production. For PCB buyers and engineers, the main risk is not knowing that the same transistor name may appear in different packages, views, or supplier drawings.

Before PCB fabrication or PCBA assembly, the emitter, base, and collector must match the exact datasheet, package outline, PCB footprint, silkscreen mark, and assembly direction. A wrong pin order can pass a quick visual check but fail during functional testing, rework, or field use.

EBest Circuit (Best Technology) supports PCB fabrication, PCB layout manufacturability review, component sourcing coordination, PCBA assembly, inspection, and testing support for transistor-based control boards. If you need help checking a 2N2222 transistor footprint or assembly file before production, contact sales@bestpcbs.com.

What Is the 2N2222 Pinout?

The 2N2222 pinout is the pin assignment for the three terminals of a 2N2222 NPN bipolar junction transistor. The terminals are emitter, base, and collector.

The simple explanation is:

Emitter: current exits the transistor in typical NPN switching circuits.
Base: receives the control signal through a suitable resistor.
Collector: connects to the load side in many low-power switching designs.

That sounds simple, but it is not enough for production. The pin order depends on the exact part number, package, manufacturer datasheet, and how the transistor is viewed. A TO-92 part shown from the flat face may not match a metal-can package or an SMD package. Even similar names such as 2N2222A, PN2222A, and P2N2222A should be checked against the selected manufacturer datasheet.

For a PCB or PCBA order, the safest wording is not “2N2222 is always E-B-C.” The safer production instruction is: confirm the manufacturer part number, package, pin view, PCB footprint, and assembly orientation before release.

2N2222 Transistor Pinout and Pin Functions

A 2N2222 transistor is commonly used as a small-signal NPN transistor for switching and amplification. In many PCB products, it may drive LEDs, relays, buzzers, small motors, signal lines, or interface circuits.

Buyers usually need to confirm these pin functions before PCBA:

Pin Function	What to Check in Production Files	Risk if Wrong
Emitter	Connected to the correct reference or return path.	The transistor may not switch correctly.
Base	Controlled through the correct resistor network.	The transistor may stay off, overheat, or behave unstably.
Collector	Matched to the load side and current path.	The load may fail to operate or the part may be damaged.

For assembly teams, the pin function is only useful when it is tied to the physical footprint. A schematic may be correct, but the PCB symbol-to-footprint mapping can still be wrong. This is why transistor pinout checks should include the schematic symbol, PCB footprint pads, BOM manufacturer part number, and placement drawing.

2N2222 Pin Configuration by Package Type

The phrase “2N2222 pin configuration” often creates confusion because users may be looking at different package types. A TO-92 plastic package, TO-18 metal can, and SMD transistor package cannot be treated as one fixed layout.

Common package review points include:

TO-92: confirm whether the drawing is viewed from the flat face or lead side.
TO-18 metal can: confirm the bottom-view or top-view reference in the datasheet.
SOT-23 or other SMD substitutes: confirm the exact substitute part and footprint.
PN2222A or P2N2222A: do not assume the same pin order as another supplier’s 2N2222.

In real sourcing work, the project may start with “2N2222” in the BOM, but the available part may be a manufacturer-specific 2N2222A, PN2222A, P2N2222A, or SMD equivalent. The electrical replacement may look acceptable, but the footprint and pin order still need a separate check.

2N2222 Pin Diagram Mistakes Before PCB Layout

A 2N2222 pin diagram can be correct on its own but still cause a wrong PCB if the view direction is misunderstood. Many drawings show the package from a specific side, and that side is easy to reverse during footprint creation.

Common mistakes before layout include:

Reading a bottom-view drawing as a top-view drawing.
Copying a generic internet pinout without checking the chosen manufacturer.
Using a TO-92 footprint for a different lead order.
Replacing a through-hole part with an SMD part without footprint review.
Leaving the flat-side mark unclear on the silkscreen.
Letting the BOM name and assembly drawing describe different packages.

For a single prototype, one wrong footprint may be repaired by cutting traces or bending leads. For a batch build, the same error can stop assembly, delay shipment, and create extra component and labor cost.

A practical DFM review should ask one direct question: if an operator looks at the PCB, BOM, and placement drawing, can they install the transistor in only one correct orientation?

2N2222A Pinout and PN2222A Pinout Differences

2N2222A and PN2222A are often discussed together because both are common NPN transistor options. However, their pinout should not be judged only by the name. The package and manufacturer matter.

For BOM substitution, check these items before approval:

Full manufacturer part number
Package code and drawing
Pin assignment and view direction
Collector current and voltage rating
Power dissipation and thermal condition
Gain range or hFE grouping
Lead forming or tape packaging requirement
Footprint compatibility with the PCB

From the buyer’s side, this is where component sourcing and assembly review should work together. A purchasing team may find an available substitute, but the engineering review must confirm whether it can be assembled on the same PCB without changing the footprint or circuit behavior.

EBest Circuit can help flag these sourcing-related manufacturing risks before production. The final electrical approval should still come from the customer’s engineering team, especially when the transistor is used near its voltage, current, gain, or thermal limits.

How to Check the 2N2222 Datasheet Before PCB Footprint Selection

The datasheet is the authority for footprint selection. Search results and quick diagrams can help explain the topic, but they should not replace the selected manufacturer’s datasheet in a production build.

A datasheet check should confirm:

Exact package outline
Lead order and view direction
Recommended mounting style
Lead diameter or pad geometry
Body size and height
Thermal limits
Electrical rating margin
Storage and soldering conditions

For through-hole designs, the footprint must match lead spacing, hole size, annular ring, soldering method, and component height. For SMD alternatives, the pad size, solder mask opening, stencil opening, and placement rotation must be reviewed.

This is also a good place to check whether the board will use FR4 PCB, high-current copper requirements, special soldering conditions, or mechanical constraints around the transistor body. The transistor may be small, but its placement can affect test access, repair access, heat concentration, and enclosure clearance.

PCB Layout Checks for a 2N2222 Transistor

PCB layout checks for a 2N2222 transistor should focus on the physical connection between schematic intent and manufacturable board data. A correct circuit on paper can still fail if the footprint, routing, or silkscreen creates assembly ambiguity.

Layout checks should include:

Pin mapping between schematic symbol and PCB footprint
Clear emitter, base, and collector pad assignment
Readable silkscreen orientation mark
Correct base resistor placement and routing
Load current path and copper width
Thermal spacing from heat-sensitive components
Test point access for important signals
Enough clearance for hand insertion or AOI review
No conflict between the BOM package and footprint package

For low-current signal switching, the copper requirement may be modest. For relay drive, LED arrays, motor control, or solenoid-related circuits, the current path and heat condition deserve closer attention. The PCB supplier should not redesign the circuit, but can flag layout and manufacturing issues that may affect assembly quality or repeatability.

PCBA Assembly Checks for 2N2222 Pinout and Orientation

During PCBA assembly, the 2N2222 transistor must be placed in the correct orientation and soldered with a stable process. The assembly drawing should show the package direction clearly enough that operators and inspectors do not need to guess.

Assembly checks should cover:

Correct transistor part number loaded for production
Package match between BOM and PCB footprint
Lead forming direction for through-hole parts
Placement rotation for SMD parts
Polarity or orientation mark on silkscreen
Solder joint quality after reflow, wave soldering, or hand soldering
AOI or visual inspection access
Functional test coverage after assembly

For through-hole assembly, the main concerns are lead spacing, hole fit, solder fill, component height, and post-solder inspection. For SMT assembly, the main concerns are rotation, pad size, stencil opening, component availability, and AOI recognition.

A small transistor can be difficult to inspect after it is surrounded by taller components, connectors, heatsinks, or enclosure hardware. Good layout and assembly planning make inspection and rework easier before the board reaches the final product stage.

2N2222 Pinout Project Example for a Small Control PCB

A practical 2N2222-related PCBA project may begin with a very simple request: “Please assemble this control board.” The real manufacturing risk appears when the BOM, footprint, and component supply are checked together.

A customer developing a small industrial control PCB needed a 2N2222-family transistor to drive a buzzer and an indicator output. The first sample quantity was 50 pieces for functional validation, followed by a planned small batch after enclosure testing. The board used FR4 material, mixed SMT and through-hole parts, terminal blocks, LEDs, and several discrete components.

Project details:

Application: compact industrial control module
Quantity: 50 prototype PCBAs before small-batch production
Board type: FR4 PCB with mixed assembly
Main component concern: 2N2222-family transistor availability and orientation
Assembly needs: SMT placement, through-hole assembly, visual inspection, and functional test support
Delivery focus: quick prototype build for circuit and enclosure validation

During file review, the schematic symbol looked correct, but the BOM used a supplier-specific 2N2222A part while the footprint appeared to be copied from another TO-92 transistor. The customer also allowed substitute parts if the original part was unavailable. That created a real risk: a substitute could meet the electrical requirement but use a different pin order or package drawing.

Main checks before production:

Matched the BOM part number against the selected package drawing.
Checked emitter, base, and collector mapping against the PCB pads.
Flagged substitute approval as an engineering review item, not only a purchasing item.
Confirmed the transistor orientation mark on the assembly drawing.
Added functional test attention for the buzzer and indicator output.

This type of review does not change the customer’s circuit design. It protects the manufacturing result by making sure the approved design data, purchased component, PCB footprint, and assembly process all describe the same physical part.

For buyers, the value is practical: fewer assembly surprises, fewer emergency footprint corrections, and fewer delays between prototype validation and small-batch production.

FAQs About 2N2222 Pinout

Is the 2N2222 pinout always the same?
No. The pinout depends on the exact part number, package, manufacturer datasheet, and view direction. Always confirm the selected datasheet before PCB footprint release.

What are the three pins of a 2N2222 transistor?
The three terminals are emitter, base, and collector. Their physical order must be checked against the exact package drawing.

Is 2N2222A the same as PN2222A?
They are related NPN transistor options, but buyers should not assume identical package, pin order, or manufacturer specifications without datasheet review.

Can a wrong 2N2222 footprint cause PCBA failure?
Yes. A wrong footprint or reversed pin mapping can stop the transistor from switching correctly and may require rework or PCB revision.

Can EBest Circuit check 2N2222 orientation before assembly?
Yes. EBest Circuit can support PCB layout manufacturability review, BOM and footprint checks, PCBA assembly, inspection, and functional testing support based on customer-approved files.

In Conclusion, 2N2222 pinout affects more than a symbol on the schematic. It affects footprint selection, BOM substitution, silkscreen direction, soldering quality, inspection, and functional test results. Before PCB fabrication or PCBA assembly, confirm the exact datasheet, package, pin view, and assembly orientation.

EBest Circuit (Best Technology) supports PCB fabrication, PCB layout manufacturability review, component sourcing coordination, PCBA assembly, inspection, and testing support for transistor-based boards. For project review, send Gerber files, BOM, pick-and-place file, assembly drawing, and test requirements to sales@bestpcbs.com.

PLCC Package: PCB Footprint, Soldering, and Assembly Guide

July 31st, 2026

A PLCC package is a plastic leaded chip carrier with J-shaped leads folded under the package body. It can be mounted in a socket or soldered directly to a printed circuit board. That flexibility made PLCC devices common in memory, controllers, processors, programmable logic, and many long-life industrial products.

For a PCB assembly buyer, however, recognizing the package name is only the beginning. The exact manufacturer part number, pin count, body dimensions, land pattern, Pin 1 orientation, component supply condition, soldering process, and inspection method must all agree. A PLCC component that looks correct can still be the wrong ordering code or a poor match for the released footprint.

This guide explains the package from a PCB and PCBA manufacturing perspective. It shows what engineers and buyers should confirm before component sourcing, stencil release, assembly, inspection, rework, and repeat production.

What Is a PLCC Package?

PLCC means plastic leaded chip carrier. The package usually has leads on four sides, with each lead curling inward beneath the molded body in a J shape. Unlike a leadless chip carrier, a PLCC has formed metal leads. Unlike a typical QFP, its leads do not extend outward as long gull-wing terminals.

Many PLCC families use a 1.27 mm lead pitch, but the package name alone does not establish the complete mechanical specification. Different devices can have different pin counts, body sizes, heights, tolerances, ordering codes, moisture-handling requirements, and manufacturer-recommended footprints. The current component datasheet and package drawing must control the build.

PLCC devices may be directly soldered to the PCB or installed in a matching socket. A socket makes component removal or replacement easier, but it also adds height, cost, contacts, and another mechanical interface. Direct soldering creates a lower-profile assembly but makes replacement more dependent on controlled rework.

If an incoming part must be identified from its body markings, use the marking, BOM, manufacturer documentation, package dimensions, and board records together. The PCB components identification guide explains why one visible code is not enough to approve a component for production.

How Does a PLCC Package Connect to a PCB?

A directly soldered PLCC sits over perimeter pads on the PCB. Solder paste is printed on the lands, the component is placed with the correct orientation, and the assembly passes through the approved reflow process. The solder joints form around the exposed lower portions of the J-leads.

The inward lead shape saves board area, but it also changes what can be seen after soldering. Part of each termination is close to or under the package body. This means a board can look generally acceptable from above while still requiring closer inspection of lead wetting, alignment, bridging, insufficient solder, or lifted leads.

A socketed build follows a different path. The PCB is assembled with the PLCC socket, and the IC is inserted later. The socket footprint, socket orientation, insertion method, retention, overall height, and access for removal all become part of the assembly review.

Before choosing the mounting method, confirm:

whether the released BOM calls for the IC alone or an IC-and-socket combination;
whether field replacement or programming access requires a removable device;
whether the enclosure allows the added socket height;
whether vibration, contact resistance, thermal cycling, or handling affects the product requirement;
whether the production quantity and test flow support manual insertion after reflow.

The customer’s product team remains responsible for the electrical and system-level choice. EBest Circuit (Best Technology) can review the released PCB, BOM, CPL, assembly drawing, and process notes for manufacturing conflicts before PCBA production.

PLCC Package Sizes, Pin Counts, and Footprints

PLCC is a package family, not one universal outline. Common devices include square and rectangular bodies with different pin counts. Manufacturer drawings also define body dimensions, lead pitch, lead width, seating details, tolerances, and the Pin 1 index area.

The risk appears when a BOM uses only a generic description such as “PLCC-44” while the PCB library was created from a different device or socket drawing. The pin count may match, but the body, lead geometry, courtyard, socket requirements, or recommended land pattern may not.

Use this identification chain before approving the footprint:

complete manufacturer part number and ordering code;
manufacturer and current datasheet revision;
package name, pin count, pitch, and drawing code;
body width, body length, and maximum seated height;
terminal dimensions and recommended PCB land pattern;
Pin 1 marking and pin-numbering direction;
tube, tray, tape, or other delivery format needed for assembly.

For example, Microchip publishes separate PLCC package outline drawings, while NXP lists package-specific dimensions and mounting details for PLCC families. These sources illustrate why a generic package label should never replace the exact component drawing.

The existing guide to part number width specifications provides a broader method for reconciling ordering codes, package drawings, tolerances, land patterns, and incoming parts.

Socketed vs Soldered PLCC Assembly

Decision	Socketed PLCC	Directly soldered PLCC
Replacement	Easier device removal	Requires controlled rework
Assembly height	Higher	Lower
Interfaces	Socket plus IC contacts	Solder joints to PCB
Production steps	Socket assembly and IC insertion	Placement and reflow

A socket is useful when the component must be removed for programming, service, configuration, or replacement. It can also protect the IC from the primary soldering process when the released product plan requires later insertion.

But a socket is not automatically the safer manufacturing option. A mismatched socket, reversed socket, bent contact, incomplete insertion, or excessive insertion force can stop the board at test. Added height may also interfere with an enclosure or neighboring hardware.

Direct soldering eliminates the socket interface and supports automated SMT assembly. The process must still match the component’s approved storage, handling, placement, and reflow requirements. Old or separately sourced PLCC stock should not be released to the line only because the part number appears correct.

For repeat builds, record the approved part, socket if used, footprint revision, orientation image, insertion step, inspection criteria, and any programming sequence. These records reduce the risk of the next lot being built from an incomplete purchasing description.

How Should a PLCC Footprint Be Reviewed?

A footprint review does not redesign the circuit. It compares the released component data with the PCB land pattern and the needs of fabrication, assembly, inspection, and rework.

Key review points include:

Land geometry. Compare pad length, width, pitch, and location with the current manufacturer recommendation or the customer-approved library standard.
Pin 1 control. The PCB, silkscreen, assembly drawing, CPL rotation, and component marking must communicate the same orientation.
Solder mask and paste. Openings must support the released pad and stencil strategy without creating avoidable bridging or insufficient solder risk.
Courtyard and access. Nearby components, sockets, connectors, enclosure parts, and rework tools need adequate clearance.
Board support. Large packages and sockets should not sit in areas where panel handling, depaneling, or board flex creates unnecessary mechanical stress.
Inspection visibility. The layout should allow the planned inspection method to view the relevant lead areas.

A common failure scenario is a correct IC placed on a footprint copied from an unrelated PLCC library entry. The board reaches SMT, but the land geometry or orientation convention does not match the released part. Production then stops for engineering clarification, stencil revision, PCB rework, or a new board revision.

Sending the exact package drawing with the Gerber or ODB++, BOM, CPL, and assembly drawing lets the PCBA supplier raise this conflict before materials and schedules are committed.

Common PLCC Soldering and Assembly Problems

PLCC assembly problems are usually not caused by the package name itself. They come from mismatched data, uncontrolled materials, or a process that does not account for the J-lead geometry.

Wrong orientation. If the CPL rotation, silkscreen mark, drawing, and package index are inconsistent, a correctly sourced component can be placed 90 or 180 degrees from the intended orientation. Clear Pin 1 documentation and first-article confirmation reduce this risk.

Solder bridging. Excess paste, poor alignment, inappropriate stencil openings, contamination, or lead damage can connect adjacent terminations. The consequence may be an immediate electrical short or a board that fails powered testing.

Insufficient solder or poor wetting. Storage condition, surface contamination, lead finish, paste transfer, land geometry, or reflow conditions can leave a weak or incomplete joint. A simple top view may not show the full condition around the J-lead.

Lifted or damaged leads. Improper handling, unsuitable packaging, or uncontrolled rework can deform a lead. The component may still sit on the board while one termination does not contact the land correctly.

Package-to-footprint mismatch. A buyer approves an alternate with the same function and pin count, but the package drawing is different. This can cause placement, soldering, clearance, or inspection problems even before electrical compatibility is considered.

Uncontrolled legacy stock. A part may be obsolete, aged, repacked, or supplied without enough traceability and handling information. The sourcing decision should be completed before the SMT schedule is fixed. See the BestPCBS component sourcing resources for the BOM information buyers should prepare.

How Are PLCC Solder Joints Inspected?

Inspection should answer a defined risk question. It should not be added as a generic line in the quotation without clear coverage.

Visual inspection can check orientation, body damage, obvious offset, exposed lead condition, and visible solder quality. AOI can support repeatable checks for placement, polarity, bridging, and other visible conditions when the package and board geometry provide a usable camera view.

However, AOI cannot prove component function, and the inward J-lead shape limits visibility compared with a long outward gull-wing lead. If the acceptance requirement depends on an area that is not adequately visible, the customer and supplier should agree on another suitable method rather than claiming that AOI proves every joint.

Electrical or functional testing addresses a different question: whether the assembled board behaves according to the customer’s defined test plan. Testing requires suitable test points, firmware or programming files when applicable, fixtures or connection instructions, limits, and pass/fail criteria.

The AOI in PCB manufacturing guide explains how AOI differs from SPI, X-ray, electrical checks, and functional testing.

PLCC vs QFP and BGA Packages

Package	Connection style	Manufacturing consideration
PLCC	J-leads under body edge	Socket option and partial joint visibility
QFP	Gull-wing leads extend outward	Lead coplanarity and fine-pitch handling
BGA	Solder balls under package	Hidden joints and X-ray planning

PLCC, QFP, and BGA describe different mechanical connection systems. They should not be treated as interchangeable simply because two devices offer similar electronic functions.

A QFP usually provides more visible solder joints, but its outward leads increase the package footprint and can be vulnerable to handling damage. A BGA supports a high connection count beneath the body, but its joints are hidden and require a different land pattern, stencil strategy, reflow process, and inspection plan.

The package choice belongs to the customer’s electronic and product design team. From the manufacturing side, the important task is to build the released package correctly and identify when the BOM, footprint, placement data, inspection access, and replacement plan do not agree.

What Should You Send for a PLCC PCBA Quote?

A quotation based only on board size, layer count, and the phrase “PLCC assembly” leaves too many assumptions open. A useful RFQ connects the component, PCB, assembly process, inspection, testing, and delivery requirement.

Send these files and decisions:

Gerber or ODB++ files, NC drill data, and fabrication drawing;
complete BOM with exact manufacturer part numbers and approved alternates;
CPL or centroid file with designators, coordinates, side, and rotation;
assembly drawing with Pin 1, polarity, no-fit, and special handling notes;
PLCC manufacturer datasheet and package drawing;
socket manufacturer part number and insertion instructions, if applicable;
customer-supplied versus supplier-sourced component responsibility;
inspection, programming, functional test, acceptance, and packing requirements;
prototype and production quantities plus the requested delivery schedule.

A realistic production example. A buyer requests 100 controller PCBAs using a legacy 44-lead PLCC. The BOM lists a shortened part number, while the PCB library name only says “PLCC44.” One supplier quotes immediately. Another supplier asks for the complete ordering code and package drawing, then finds that the proposed substitute and the released land pattern do not share the same approved mechanical details.

The second supplier has not redesigned the product. It has prevented an unapproved assumption from reaching purchasing and SMT. The buyer can now confirm the exact component, approve a documented alternate, or revise the released footprint before ordering boards and material.

When delivery is urgent, the same principle applies. The fast PCB assembly guide explains why BOM and DFM review should happen before an accelerated schedule is promised.

EBest Circuit (Best Technology) can support PCB manufacturability review, PCB fabrication, BOM sourcing, SMT and mixed PCBA, inspection, and testing assistance based on customer-provided specifications. Send the files above to sales@bestpcbs.com for a quotation review.

FAQs About PLCC Packages

What does PLCC mean?

PLCC means plastic leaded chip carrier. It is an IC package family commonly identified by J-shaped leads along the package sides.

Can a PLCC package be soldered directly to a PCB?

Yes. Many PLCC devices can be directly soldered to an approved PCB land pattern. The exact component datasheet, footprint, handling, and assembly requirements must be followed.

Can every PLCC device use a socket?

No. The device pin count, outline, socket specification, orientation, height, and product requirements must match. A generic PLCC description does not prove socket compatibility.

Is a PLCC footprint determined only by pin count?

No. Pin count is only one identifier. Confirm the complete ordering code, pitch, body dimensions, terminal geometry, package drawing, recommended land pattern, and Pin 1 convention.

Can EBest Circuit help assemble boards with PLCC components?

Yes, when the released PCB and assembly package is complete. EBest Circuit can support manufacturability review, PCB fabrication, BOM sourcing, PCBA, inspection, and agreed testing assistance. The customer remains responsible for component selection and electrical design approval.

If your next PLCC package project needs PCB fabrication, component sourcing, assembly review, inspection planning, or a build quotation, send your Gerber or ODB++ files, BOM, CPL, package drawing, quantities, and test requirements to sales@bestpcbs.com.

PCB Transformer Guide for Layout and PCBA Assembly

July 31st, 2026

A pcb transformer can mean different things in electronics manufacturing. In most PCB and PCBA projects, it refers to a transformer mounted on a printed circuit board, or a transformer structure that is integrated into the board design for voltage conversion, isolation, signal coupling, or power regulation.

For engineers and buyers, the real question is not only “what transformer should I use?” The bigger production question is whether the PCB layout, copper design, clearance, creepage, soldering process, mechanical support, BOM, and inspection plan can support the transformer safely and repeatably.

EBest Circuit (Best Technology) supports PCB fabrication, BOM review, component sourcing, SMT assembly, through-hole assembly, mixed PCBA production, inspection, and testing coordination for transformer-related PCB and PCBA projects. If your project includes PCB-mounted transformers, planar transformers, isolation transformers, or power transformer circuits, our team can review the manufacturing files and assembly requirements before production.

What Is a PCB Transformer?

A PCB transformer is usually a transformer used on a printed circuit board. It may be a discrete PCB mount transformer soldered onto the board, or a transformer structure created with copper windings, magnetic cores, and insulation features in the PCB design.

In this article, PCB means printed circuit board. It does not refer to PCB chemicals in transformer oil, disposal, contamination, or environmental regulations.

In electronics, a PCB transformer is commonly used for:

Voltage step-down or step-up
Electrical isolation between input and output circuits
Signal coupling
Noise reduction
Impedance matching
Power conversion in compact products
Safety separation in control and power boards

A PCB transformer can appear in power adapters, industrial controllers, LED drivers, communication equipment, medical electronics, automotive modules, energy storage devices, and other products where controlled power transfer or isolation is required.

For production teams, the transformer is not only a component on the BOM. It affects the board layout, copper thickness, thermal behavior, assembly method, solder joint strength, inspection plan, and final test requirements.

PCB Mount Transformer vs Transformer Built Into a PCB

A PCB mount transformer and a transformer built into a PCB are related, but they are not the same manufacturing situation.

Type	What It Means	Main Manufacturing Focus
PCB mount transformer	A finished transformer component soldered onto the PCB	Footprint, pin fit, soldering, height, clearance, mechanical support
Through-hole transformer	A larger transformer with pins inserted through plated holes	Hole size, annular ring, solder fill, board support, wave or hand soldering
SMT transformer	A surface-mount transformer placed by SMT process	Pad design, solder paste, reflow profile, coplanarity, AOI limits
Planar transformer PCB	Windings are formed by PCB copper layers	Stackup, copper thickness, insulation, alignment, thermal path
Transformer circuit board	A board that carries transformer-related power or isolation circuits	Creepage, clearance, copper width, slots, testing, safety documentation

A PCB mount transformer is usually easier for buyers to source because it is a standard component. The customer provides the transformer part number, datasheet, BOM, Gerber files, and assembly drawing. The PCBA supplier then checks whether the footprint, soldering process, and board design are manufacturable.

A planar transformer PCB is more demanding. The PCB itself becomes part of the magnetic structure, so copper thickness, layer registration, dielectric thickness, insulation spacing, and process tolerance become more critical.

For EBest Circuit, the correct role is manufacturing and assembly support. We can review whether the PCB and PCBA files are suitable for production, but the customer’s engineering team should define the transformer electrical design, safety standard, magnetic design, and approved component specification.

How Does a Transformer on Circuit Board Work?

A transformer on circuit board works by electromagnetic induction. The primary side receives an AC or switching signal. The changing current creates magnetic flux, and the secondary side receives induced voltage through magnetic coupling.

In practical PCB projects, the transformer may work in different ways depending on the circuit:

In an AC-DC power board, it may step down voltage and provide isolation.
In a flyback converter, it may store and transfer energy between switching cycles.
In a signal isolation circuit, it may transfer signals while separating grounds.
In a communication circuit, it may support impedance matching and noise control.
In a current sensing design, it may help measure current without direct electrical connection.

The PCB layout around the transformer matters because high voltage, high current, switching noise, and heat can all concentrate in the same area.

Key production-related risks include:

Primary and secondary spacing is too small.
Copper width is not enough for current.
Thermal relief affects soldering or heat flow.
Transformer body blocks nearby inspection points.
Tall components interfere with enclosure clearance.
Pin pitch does not match the actual transformer datasheet.
Silkscreen or polarity marks are unclear.
Slots, cutouts, or keepout zones are missing.

A transformer can be electrically correct in the schematic but difficult to build if the PCB and assembly details are not controlled early.

PCB Transformer Board Requirements Before Production

Before a PCB transformer board enters production, the PCB supplier should not only look at board size, layers, and quantity. The board needs a manufacturing review around power, isolation, heat, and assembly risk.

Key files to prepare before quotation:

Gerber files
NC drill file
PCB stackup
Finished copper thickness
Board thickness
Surface finish
BOM
Pick-and-place file
Assembly drawing
Transformer datasheet
Safety or creepage requirements if applicable
Test procedure if PCBA testing is required

For transformer-related PCB boards, several areas deserve special attention.

Clearance and creepage

Clearance is the direct air distance between conductive parts. Creepage is the distance along the board surface. Transformer circuits may require larger spacing between primary and secondary sides, especially when the board handles AC input, high voltage, or safety isolation.

If the design needs slots, isolation grooves, wider spacing, or special coating, these requirements should be shown clearly in the fabrication notes.

Copper width and copper weight

Transformer circuits often carry higher current than small signal circuits. Copper width, copper thickness, via count, and thermal path should match the current and heat requirement. If copper is too narrow, the board may pass initial testing but run hot during long operation.

Hole and pad reliability

For through-hole transformers, plated through holes need proper hole size, annular ring, solderability, and mechanical strength. Large transformer pins, thick leads, or heavy bodies can create stress during insertion, soldering, transportation, or product use.

Board material and thickness

Most transformer carrier boards use FR4, but high-temperature, high-current, or compact power designs may need higher Tg material, heavier copper, or special stackup review. For planar transformer PCBs, dielectric thickness and copper layer structure become part of the design result.

Marking and orientation

Transformer direction, pin 1, primary side, secondary side, and polarity marks should be visible on the silkscreen or assembly drawing. Ambiguous marking can cause assembly mistakes, especially in mixed SMT and through-hole production.

How to Control PCB Transformer Assembly and Inspection Quality?

PCB transformer assembly quality depends on the transformer package, weight, pin type, soldering method, and how the board will be used after shipment.

For SMT transformers, the main risks are solder paste volume, pad design, component shift, reflow profile, and hidden solder joint defects. For through-hole transformers, the main risks are hole fit, solder fill, pin wetting, flux residue, and mechanical stress.

Important assembly checks include:

Confirm transformer part number against BOM and datasheet.
Check package size, pin pitch, and mounting direction.
Verify polarity and primary/secondary orientation.
Review solder paste opening for SMT transformer pads.
Confirm through-hole pin insertion and solder fill.
Inspect heavy transformer body support.
Check clearance around heat-sensitive plastic parts.
Review wave soldering or selective soldering feasibility.
Confirm AOI visibility and manual inspection points.
Add functional testing when the customer provides test procedures.

A transformer may be too tall or too heavy for a weak board support area. If the product will face vibration, transportation shock, or repeated plug-in force nearby, mechanical review is important. In some projects, adhesive, extra fixture support, conformal coating, or mechanical fasteners may be needed, depending on customer drawings and product requirements.

For PCBA inspection, AOI is helpful but not enough for every transformer assembly. Large bodies can block solder joints. Through-hole solder joints may require visual inspection from both sides. Functional testing is often more useful when the board includes voltage conversion, isolation, or power output requirements.

EBest Circuit can support inspection planning based on customer files, including AOI, visual inspection, X-ray when applicable, and functional testing coordination when test instructions and fixtures are provided.

Planar Transformer PCB Requirements for High-Frequency Power Boards

A planar transformer PCB is different from a normal board carrying a transformer component. In a planar transformer design, the PCB copper layers form transformer windings. This makes PCB fabrication quality directly affect electrical behavior.

Planar transformer PCB projects are commonly used in high-frequency power supplies, compact DC-DC converters, telecom power modules, EV-related electronics, industrial power boards, and other products where space, efficiency, and repeatability matter.

Planar transformer PCB requirements often include:

Controlled PCB stackup
Stable dielectric thickness
Accurate layer registration
Suitable copper thickness
Clear winding geometry
Reliable via structure
Consistent insulation spacing
Good thermal path
Clean routing between primary and secondary areas
Clear fabrication notes

The manufacturing risk is higher because small changes in copper geometry, dielectric spacing, or layer alignment can affect performance. The PCB supplier should review whether line width, spacing, copper thickness, drilling, lamination, plating, and routing requirements match the actual manufacturing capability.

For buyers, the RFQ should not only say “planar transformer PCB.” It should include stackup, copper weight, material, insulation requirement if needed, working voltage, board thickness, surface finish, and any special acceptance criteria.

EBest Circuit can review planar transformer PCB fabrication files from a manufacturability perspective and advise whether the structure fits available PCB process capability.

Power Transformer PCB Risks Buyers Should Confirm Before RFQ

A power transformer PCB is often part of a product where heat, current, safety, and reliability are more important than simple board cost.

Buyers should confirm several practical risks before sending an RFQ.

Project requirements:

Input and output voltage range
Current and power rating
Transformer part number or approved alternatives
PCB copper thickness
Minimum clearance and creepage
Board material and Tg requirement
Thermal management requirement
Assembly method
Inspection standard
Functional test requirement
Coating or potting requirement
Delivery schedule and quantity

Common quotation problems:

Transformer datasheet is missing.
BOM part number does not match the footprint.
Gerber files do not show enough isolation spacing.
Copper thickness is not specified.
Assembly drawing does not show transformer direction.
High-current nets are not clearly marked.
Testing requirement is discussed only after assembly.
Coating or potting is requested after quotation.
Packaging requirements are not defined for tall components.

For production, these details affect cost and lead time. A board with a large through-hole transformer may need different soldering control than a compact SMT board. A power board with high current may need thicker copper or wider traces. A board with safety isolation may need larger spacing, slots, or clearer documentation.

A good supplier should help identify these manufacturing risks before production, not after the first batch fails inspection.

How EBest Circuit Supports PCB Transformer Projects

EBest Circuit (Best Technology) supports PCB transformer projects from PCB fabrication to PCBA assembly when customers provide the approved design files, BOM, transformer specifications, and production requirements.

EBest Circuit supports transformer-related PCB and PCBA projects with:

PCB fabrication for FR4, multilayer, heavy copper, high Tg, and special PCB requirements
DFM review for manufacturability before production
BOM review and component sourcing support
SMT assembly for surface-mount transformer and related components
Through-hole assembly for larger PCB mount transformers
Mixed assembly for power boards with SMT and THT components
AOI and visual inspection
X-ray inspection when applicable
Functional testing coordination based on customer test instructions
Prototype, small-batch, and production support

For transformer-related boards, our engineering review can help check whether the PCB layout, hole size, copper thickness, soldering process, component spacing, and assembly notes are clear enough for production.

EBest Circuit does not replace the customer’s electrical design team. The customer should define the transformer electrical specification, magnetic design, safety standard, and final performance targets. Our value is helping turn approved design files into reliable PCB and PCBA production with practical manufacturing control.

If your PCB or PCBA project includes PCB-mounted transformers, planar transformer structures, high-current power sections, or isolation circuits, send your files to sales@bestpcbs.com for engineering review and quotation.

PCB Transformer Case Example for a Power Control Board

A European industrial equipment customer prepared a small-batch power control board for a 24 V control system. The board included a through-hole PCB mount transformer, relays, terminal blocks, fuses, electrolytic capacitors, and mixed SMT control components.

Project requirements:

Country: Germany
Quantity: 120 pcs pilot run
Application: industrial control power module
Board type: FR4 multilayer PCB with mixed SMT and through-hole assembly
Key component: through-hole PCB mount transformer
Delivery requirement: pilot batch for functional validation

The first concern was not whether the transformer could be purchased. The real production issue was whether the board could be assembled and inspected reliably.

Main challenges:

The transformer body was tall and heavier than surrounding components.
Primary and secondary areas needed clear separation.
The transformer pins required stable solder fill.
The BOM had one alternate transformer with slightly different pin dimensions.
The assembly drawing did not clearly mark the transformer orientation.
The customer needed functional testing after assembly.

During DFM and assembly review, EBest Circuit checked the transformer footprint, pin hole size, soldering method, component keepout area, and inspection accessibility. The BOM was reviewed against the transformer datasheet, and the alternate part was flagged for confirmation before sourcing.

EBest Circuit solution:

Confirmed transformer footprint and pin spacing before production
Reviewed hole size and annular ring for through-hole soldering
Checked spacing around transformer primary and secondary areas
Recommended clearer assembly marking for transformer orientation
Coordinated SMT and through-hole assembly sequence
Added manual inspection for transformer solder joints
Followed customer-provided functional test steps after assembly
Packed the boards with protection for tall components

This type of project shows why a PCB transformer board should not be treated like a simple bare PCB order. The transformer affects fabrication, assembly, inspection, testing, and packaging. When those details are reviewed before production, buyers have fewer surprises during pilot build and batch delivery.

FAQs About PCB Transformer

What is a PCB transformer?

A PCB transformer is a transformer used on or built into a printed circuit board. It may be a PCB mount transformer component or a transformer structure created with PCB copper windings and magnetic core materials.

Is a PCB transformer the same as PCB transformer oil?

No. In electronics manufacturing, PCB means printed circuit board. PCB transformer oil usually refers to polychlorinated biphenyl contamination or environmental disposal topics, which are not the same as PCB and PCBA manufacturing.

Can EBest Circuit manufacture transformer components?

EBest Circuit supports PCB fabrication, component sourcing, PCBA assembly, inspection, and testing coordination. We do not claim to design or manufacture transformer magnetic components themselves. Customers should provide approved transformer part numbers, datasheets, and design requirements.

What files are needed for a PCB transformer PCBA quote?

Please provide Gerber files, NC drill files, BOM, pick-and-place file, assembly drawing, transformer datasheet, quantity, surface finish, copper thickness, testing requirements, and delivery target.

Why is clearance and creepage important on a PCB transformer board?

Transformer circuits may separate high-voltage and low-voltage areas. Proper clearance and creepage help reduce arcing, leakage, and insulation risk. The required spacing depends on the product standard, voltage, environment, and design requirement.

In Conclusion, a pcb transformer project should be reviewed as a complete PCB and PCBA manufacturing task, not only as a transformer component selection issue. The transformer affects layout spacing, copper design, thermal behavior, soldering, inspection, testing, and packaging.

EBest Circuit (Best Technology) supports PCB fabrication, DFM review, component sourcing, PCBA assembly, inspection, and testing coordination for transformer-related PCB projects. To review your Gerber files, BOM, transformer datasheet, assembly drawing, and production requirements, contact sales@bestpcbs.com.

Practical HDMI RF Modulator Component Guide for PCBA Projects

July 30th, 2026

HDMI RF modulator component projects are used when HDMI video and audio need to be converted into an RF signal that can travel through coaxial cable to TVs, distribution systems, test equipment, or RF-based video networks. For buyers, the search is often about finding the right product or module. For engineers, the more practical question is whether the HDMI input, RF output, power circuit, shielding, connectors, and assembly process can work together reliably on a real PCB or PCBA.

EBest Circuit (Best Technology) supports PCB fabrication, component sourcing, SMT assembly, through-hole assembly, DFM review, inspection, testing coordination, and small-batch PCBA production for RF-related electronic products. If your HDMI RF modulator project already has Gerber files, BOM, CPL, stackup notes, connector drawings, or testing requirements, you can send them to sales@bestpcbs.com for an engineering review before production.

What Is an HDMI RF Modulator Component?

An HDMI RF modulator component is part of a circuit or module that helps convert an HDMI input signal into an RF output signal. In finished products, this function may appear inside an HDMI RF modulator box, an HDMI-to-coax converter, a video distribution device, or a custom RF video board.

In simple terms, the signal path usually starts from an HDMI input and ends at an RF output connector. Between these two points, the board may include video processing, modulation, clock control, power regulation, RF filtering, amplification, shielding, and output matching.

A typical HDMI RF modulator-related board may include:

HDMI input connector
ESD protection components
HDMI receiver or video processing IC
RF modulator IC or module
Crystal or oscillator
Power management circuit
RF amplifier stage
Filter network
Shielding structure
Coaxial, F-type, or SMA connector
Test points and programming interface

For PCB and PCBA work, the component itself is only one part of the project. The surrounding layout, stackup, grounding, impedance, connector mounting, soldering quality, and final testing often decide whether the assembled board works reliably.

How Does an HDMI to RF Modulator Component Work?

An HDMI to RF modulator component helps change a digital HDMI signal into an RF signal that can be distributed through coaxial cable.

Stage	Main Function
HDMI input	Receives video and audio
Processing IC	Handles signal conversion
Modulator	Creates RF output format
RF stage	Filters or amplifies signal
Output connector	Sends signal to coax system

In a commercial HDMI RF modulator product, the circuit may support different output standards, channel settings, resolutions, or control functions. Those functions depend on the customer’s electronic design and selected chipset.

For EBest Circuit, the role is not to redefine the HDMI or RF design. The customer’s engineering team should define the circuit function, IC selection, modulation requirement, firmware, and RF performance target. Our role is to help confirm whether the approved PCB files, BOM, materials, assembly notes, and testing requirements can move into manufacturing with fewer avoidable risks.

This distinction matters. A circuit may be correct in theory, but problems can still appear during PCB fabrication or PCBA assembly if the connector footprint, RF trace, shielding pad, solder mask opening, grounding, or component package is not handled correctly.

Main Components Inside an HDMI RF Modulator Board

An HDMI RF modulator board usually combines digital video circuitry and RF circuitry on one assembly. That makes the manufacturing review more sensitive than a simple low-speed control board.

Key component groups usually include:

HDMI interface parts: HDMI connector, ESD diodes, common-mode filters, input protection.
Processing and modulation parts: HDMI receiver, video processing IC, RF modulator IC, memory, clock source.
RF output parts: RF amplifier, filter, matching network, coax connector, SMA connector, or F-type connector.
Power parts: DC input connector, regulators, inductors, capacitors, ferrite beads, power filtering.
Mechanical and shielding parts: shielding cans, connector shells, screws, mounting holes, enclosure contacts.
Testing and control parts: test pads, programming pads, switches, LEDs, headers, communication interface.

The BOM should make critical choices clear:

Exact HDMI connector model
RF connector type and drawing
IC package and footprint
Substitute rules for RF components
Impedance or RF path notes
Shielding parts and soldering method
Inspection and test requirements

If an HDMI connector or RF connector is changed during sourcing, the PCB footprint and assembly method may also need to be reviewed. A similar connector is not always a safe substitute.

RF HDMI Modulator Component PCB Layout and Signal Path

An RF HDMI modulator component project usually has two different signal worlds on the same PCB: high-speed digital HDMI signals and RF output signals.

The HDMI side may need controlled routing, ESD protection, short signal paths, and stable reference planes. The RF side may need 50 ohm routing, clean grounding, short matching paths, shielding, and a stable connector transition.

For manufacturing review, several areas deserve attention:

HDMI connector footprint and soldering strength
ESD component placement near the input
RF output connector footprint
Ground pad and via stitching around RF path
Solder mask opening near RF pads
Shielding can pad design
Distance between noisy power circuits and RF path
Board edge tolerance for edge or coax connectors
Test point access after assembly

The PCB manufacturer should not change the customer’s RF layout without approval. However, the manufacturer should check whether the design files are clear enough for production.

For example, if the RF connector drawing requires a specific board thickness, plating area, solder mask clearance, or mechanical keepout, those details should be visible before fabrication starts. If the shielding can needs solderable pads, those pads must match the real component and assembly process.

50 Ohm Routing for HDMI RF Modulator Component Boards

Many HDMI RF modulator component boards require 50 ohm control on the RF output path. The actual requirement should come from the customer’s RF design file, impedance note, or connector/module datasheet.

Factor	Why It Matters
Trace width	Affects impedance
Dielectric thickness	Changes RF field geometry
Copper thickness	Affects finished trace
Reference plane	Provides return path
Solder mask	May affect RF trace slightly
Connector launch	Affects transition quality
Ground vias	Help stabilize RF return

For lower-frequency or less sensitive products, carefully controlled FR4 may be acceptable. For higher-frequency, low-loss, or more demanding RF products, the material may need closer review. Some projects may require RF laminate, high-Tg FR4, hybrid stackup, or tighter impedance confirmation.

EBest Circuit can review stackup, copper thickness, material, impedance notes, and RF connector area before production. If the customer requires an impedance coupon or impedance test report, that should be planned before fabrication, not added after the board is already made.

4K HDMI to RF Modulator Component Manufacturing Checks

A 4K HDMI to RF modulator component board usually has tighter expectations than a basic video converter. Even when the PCB manufacturer is not responsible for the video algorithm or product design, the board still needs stable fabrication and assembly control.

For a 4K modulator related project, customers may care about signal stability, heat control, HDMI connector reliability, RF output consistency, shielding effectiveness, power noise reduction, firmware access, production repeatability, and final functional test method.

Important manufacturing questions include:

Is the HDMI connector footprint correct?
Are fine-pitch ICs suitable for the SMT process?
Are QFN, BGA, or exposed-pad components handled correctly?
Is the RF output path protected from unnecessary process variation?
Is the board thickness suitable for connectors and enclosure?
Are shielding cans, thermal pads, and test points accessible?
Are programming and functional testing steps defined before shipment?

A 4K product can fail for many reasons, including firmware, chipset selection, signal standard, or system-level compatibility. PCB and PCBA problems should not be added to that risk. Clean files, controlled fabrication, accurate SMT, and practical testing help make the first build easier to evaluate.

8 Channel HDMI RF Modulator Component PCB and PCBA Needs

An 8 channel HDMI RF modulator component project may involve more connectors, more heat, more RF paths, and more assembly risk than a single-channel board.

Compared with a one-channel design, an 8-channel board may need stronger attention to:

Connector spacing
Channel-to-channel isolation
Shielding arrangement
Power distribution
Thermal spreading
RF output routing
Enclosure alignment
Test coverage
Labeling and packing

The board may include multiple HDMI inputs, multiple processing sections, RF output circuits, and control interfaces. Even if the circuit is modular, the PCBA still needs stable production handling.

For this type of project, panelization and inspection planning become important. A larger or denser board should be reviewed for warpage, connector stress, SMT support, and test access. If the product uses many HDMI connectors or coax connectors, mechanical strength and solder joint reliability should be checked carefully.

For small-batch production, customers often need more than bare PCB fabrication. They may need component sourcing, SMT assembly, manual soldering, connector assembly, testing, packing, and documentation under one workflow. That is where a one-stop PCB and PCBA supplier can reduce communication gaps.

BOM Sourcing and SMT Assembly for HDMI RF Modulator Components

BOM sourcing is often one of the biggest risks in HDMI RF modulator component projects. Some parts may have similar names but different packages, footprints, frequency ranges, temperature ratings, or mounting requirements.

Before SMT, the BOM should confirm:

Exact HDMI connector model
Exact RF connector model
Modulator IC or module part number
Crystal or oscillator specification
Regulator current rating
RF filter and matching parts
Shielding can model
Package size for all fine-pitch parts
Approved alternate components
Customer-supplied or supplier-sourced parts
Testing and programming notes

SMT assembly also needs practical attention. HDMI connectors, QFN packages, RF shields, exposed-pad ICs, small passives, and coax connectors may require different process controls.

Typical PCBA checks include:

Solder paste printing
SPI
Pick-and-place accuracy
Reflow profile
AOI inspection
X-Ray when needed
Manual soldering for selected connectors
Cleaning requirements
Functional test coordination
Final packing protection

EBest Circuit supports both PCB fabrication and PCBA assembly, so the same project notes can stay visible from file review to shipment. This is useful when a board includes mixed requirements such as HDMI interface, RF path, shielding, SMT, through-hole connectors, and functional testing.

HDMI RF Modulator Component Manufacturing Case Study

A European customer needed a small-batch PCBA build for an HDMI-to-RF video distribution module used in a commercial display system. The project was not a simple bare PCB order. It included HDMI input, RF output, fine-pitch components, shielding requirements, connector assembly, and functional test notes.

Project background:

Customer region: Europe
Application: commercial video distribution module
Build type: PCB fabrication, component sourcing, and PCBA assembly
Quantity: 80 pcs pilot batch
PCB type: 4-layer FR4 PCB
Surface finish: ENIG
Key areas: HDMI input connector, RF output connector, shielding can area, power section
Assembly: SMT plus selected manual connector soldering
Testing: visual inspection, AOI, connector inspection, basic power-on and signal-path test coordination

Main manufacturing risks:

HDMI connector solder joints needed stable mechanical strength.
RF output path required controlled layout and clean grounding.
Shielding pads had to be solderable and accessible.
Several components had similar package options, so BOM confirmation was important.
The customer needed pilot-build feedback before moving to the next batch.

EBest Circuit support:

Reviewed Gerber, BOM, CPL, stackup, and assembly drawing together.
Checked HDMI and RF connector footprints against the supplied drawings.
Confirmed RF path notes, ground pads, shielding pads, and solder mask openings.
Reviewed BOM availability and suggested confirmation on risky component alternatives.
Arranged SMT assembly and connector-related process control.
Kept testing and packing notes visible until final shipment.

Result:

The customer received a pilot batch ready for engineering validation. The value of the project was not only that the boards were assembled. The value was that connector mounting, RF path handling, BOM sourcing, SMT assembly, inspection, and testing notes were managed together before the customer started system-level evaluation.

For HDMI RF modulator products, this kind of coordination can reduce avoidable delays between prototype build, debugging, customer approval, and small-batch production.

FAQs About HDMI RF Modulator Component

1. What is an HDMI RF modulator component?
An HDMI RF modulator component is a part, module, or circuit section that helps convert HDMI video/audio signals into RF output for coaxial distribution or RF-based video systems.

2. Is an HDMI RF modulator component the same as an HDMI RF modulator box?
No. An HDMI RF modulator box is a finished product. An HDMI RF modulator component may be one part of the internal circuit, module, or PCBA used inside that product.

3. Does an HDMI RF modulator component board need 50 ohm routing?
Many RF output paths need 50 ohm routing, but the exact requirement should come from the customer’s RF design, module datasheet, or impedance note.

4. Can EBest Circuit design the HDMI RF modulator circuit?
EBest Circuit focuses on PCB fabrication, PCB layout manufacturability review, component sourcing, PCBA assembly, inspection, and testing support. The HDMI/RF circuit design, chipset selection, and firmware logic should come from the customer’s design team.

5. What files are needed for HDMI RF modulator component PCBA production?
Useful files include Gerber or ODB++, BOM, CPL, stackup, assembly drawing, connector drawings, impedance notes, shielding notes, testing requirements, and packing instructions.

All in all, an HDMI RF modulator component project is not only about selecting one electronic part. The real production risk is whether the HDMI input, RF output, PCB stackup, connectors, BOM, SMT assembly, shielding, and testing steps can work together. If you are preparing an HDMI RF modulator board or PCBA project, please send your Gerber files, BOM, CPL, connector drawings, and project notes to sales@bestpcbs.com. EBest Circuit can help review the manufacturing path before production begins.

MFD Capacitor Guide: Microfarad Meaning, MFD vs uF and PCBA

July 24th, 2026

MFD capacitor markings are not always consistent. One capacitor may be labeled 10 MFD, another 10 µF, while a bill of materials may specify 10 uF. Do these markings represent three different capacitance values?

In most capacitor-related contexts, 10 MFD, 10 µF, and 10 uF all refer to 10 microfarads. MFD is an older, non-SI abbreviation, µF is the modern unit symbol for microfarad, and uF is its keyboard-friendly alternative. Knowing the difference helps engineers correctly interpret legacy schematics, select replacement capacitors, prepare accurate BOMs, and avoid errors during full turnkey PCB assembly.

This MFD capacitor guide explains what MFD means on a capacitor, the differences between MFD, µF, and uF, how to convert capacitance units, how to choose a suitable replacement, and what engineers should verify before a capacitor enters PCBA production.

What Is an MFD Capacitor?

An MFD capacitor is usually a capacitor whose value is marked in microfarads using the older abbreviation MFD.

It may be:

an aluminum electrolytic capacitor
a film capacitor
a motor start capacitor
a motor run capacitor
a power supply filtering capacitor
a through-hole capacitor on a PCB
an SMD capacitor listed in a BOM as a uF value

So, “MFD capacitor” describes the capacitance marking, not one single construction type.

For example, a 10 MFD capacitor and a 10 uF capacitor may have the same capacitance value, but they may still be completely different parts if their voltage, dielectric, polarity, ESR, package, or application is different.

What Does MFD Mean on a Capacitor?

On many older capacitors, motor capacitors, appliance parts, and legacy schematics, MFD means microfarad. A microfarad is one-millionth of a farad:

1 microfarad = 1 µF = 1 uF = 0.000001 F = 10⁻⁶ F

For example:

1 MFD normally means 1 µF
10 MFD normally means 10 µF
40 MFD normally means 40 µF
100 MFD normally means 100 µF

The farad, symbolized by F, is the SI unit of capacitance. The prefix micro, symbolized by the Greek letter µ, means 10⁻⁶. Therefore, the preferred modern notation is µF.

The abbreviation MFD remains common because older documents and component markings often used “MF,” “MFD,” or “mfd” when the µ character was difficult to print or type.

Important: In legacy capacitor markings, MFD usually means microfarad. In modern SI notation, however, mF means millifarad, which is 1,000 times larger than a microfarad. Always check the component, schematic, and manufacturer datasheet before making a replacement.

MFD vs µF vs uF: Are They the Same?

For the capacitor values normally seen in maintenance manuals and electronic component listings:

Marking	Typical meaning	Status
MFD or mfd	Microfarad in legacy capacitor notation	Older, non-SI notation
µF	Microfarad	Correct modern SI-style symbol
uF	Microfarad	Plain-text substitute for µF
mF	Millifarad	Different unit; 1 mF = 1,000 µF

Thus:

20 MFD = 20 µF = 20 uF

But:

20 mF = 20,000 µF

Capitalization matters. Confusing MFD with mF can result in selecting a capacitor with a drastically different value. In a professional BOM, drawing, or component database, using µF or uF is clearer than using MFD.

What Is a Microfarad?

A microfarad is a unit used to express capacitance. Capacitance describes how much electric charge a capacitor can store for a given voltage.

In simplified form:

C = Q / V

where:

C is capacitance in farads
Q is electric charge in coulombs
V is voltage in volts

Capacitors with microfarad values are widely used for:

power-supply filtering
bulk energy storage
voltage smoothing
signal coupling
timing circuits
motor starting and running
audio crossover networks
local power decoupling

The required value depends on the circuit. A 0.1 µF ceramic capacitor may suppress high-frequency noise near an IC, while a 100 µF electrolytic capacitor may handle lower-frequency ripple on a power rail. Capacitance alone does not define whether two capacitors are interchangeable.

Microfarad Conversion Chart

Capacitance may be shown in farads, millifarads, microfarads, nanofarads, or picofarads.

Unit	Symbol	Equivalent value
Farad	F	1 F
Millifarad	mF	10⁻³ F
Microfarad	µF or uF	10⁻⁶ F
Nanofarad	nF	10⁻⁹ F
Picofarad	pF	10⁻¹² F

Useful conversions include:

1 F = 1,000,000 µF
1 mF = 1,000 µF
1 µF = 1,000 nF
1 µF = 1,000,000 pF
1 nF = 1,000 pF

Common capacitor value conversions

Microfarads	Nanofarads	Picofarads
0.001 µF	1 nF	1,000 pF
0.01 µF	10 nF	10,000 pF
0.1 µF	100 nF	100,000 pF
1 µF	1,000 nF	1,000,000 pF
10 µF	10,000 nF	10,000,000 pF

For example, a component marked 104 usually represents 100,000 pF, which equals 100 nF or 0.1 µF. The first two digits are significant figures, and the third digit indicates the number of zeros in picofarads.

How to Read an MFD Capacitor

A capacitor label may include more than its capacitance. Depending on the capacitor type, look for:

Capacitance: such as 10 MFD, 10 µF, or 10 uF
Rated voltage: such as 16 VDC, 50 VDC, or 450 VAC
Tolerance: such as ±5%, ±10%, or ±20%
Polarity: a stripe, plus sign, or minus sign on polarized capacitors
Temperature rating: such as 85°C or 105°C
Series or manufacturer code
Safety or approval markings

Consider a capacitor marked:

100 µF 25 V ±20% 105°C

This indicates a nominal capacitance of 100 microfarads, a maximum rated DC voltage of 25 volts under specified conditions, a capacitance tolerance of ±20%, and a maximum category temperature of 105°C.

The voltage rating is not the capacitor’s operating voltage or a value that the capacitor forces into the circuit. It is a limit that must not be exceeded.

Common MFD Capacitor Values and Applications

Some MFD values appear frequently in electronics, power supplies, motors, appliances, and PCB assemblies.

Value	Common Use
0.1 uF / 0.1 MFD	Noise filtering, local decoupling
1 uF / 1 MFD	Signal coupling, timing, filtering
10 uF / 10 MFD	Power rail filtering, small bulk storage
47 uF / 47 MFD	Power smoothing, DC circuits
100 uF / 100 MFD	Bulk capacitance, ripple reduction
470 uF / 470 MFD	Power input filtering
35 MFD or 45 MFD	Often seen in motor capacitor applications
45/5 MFD	Dual-value motor run capacitor marking

In PCB and PCBA projects, EBest Circuit does not decide the circuit value for the customer. The capacitance value should come from the customer’s schematic, BOM, approved AVL, or engineering specification. Our role is to help check whether the selected part matches the manufacturing and assembly files.

Can You Replace an MFD Capacitor With a uF Capacitor?

Yes—if MFD is being used to mean microfarad, a capacitor marked in uF can replace it. However, matching the capacitance notation is only the beginning.

Before replacing a capacitor, verify the following parameters.

1. Capacitance

Use the capacitance specified by the circuit designer or equipment manufacturer. A replacement should normally have the same nominal µF value unless the manufacturer explicitly allows a range.

Changing capacitance may affect ripple, timing, resonance, motor torque, cutoff frequency, or control-loop stability. Do not assume that “close enough” is safe in every application.

2. Voltage rating

The replacement capacitor’s voltage rating must be equal to or higher than the original requirement. Never substitute a lower voltage rating.

A higher voltage rating may be electrically acceptable, but it can increase component size, cost, and lead spacing. Confirm that it fits the PCB and suits the application.

3. Capacitor type and dielectric

An aluminum electrolytic, polymer, film, tantalum, and multilayer ceramic capacitor can have the same nominal capacitance while behaving differently.

Check characteristics such as:

equivalent series resistance (ESR)
ripple-current rating
leakage current
dielectric behavior
frequency response
temperature range
expected service life
failure mode

For example, replacing an electrolytic capacitor with an MLCC purely because both are labeled 10 µF may not provide the same effective capacitance under DC bias.

4. Polarity

Many aluminum electrolytic and tantalum capacitors are polarized. Reversing polarity can cause excessive leakage, heating, venting, or failure.

Non-polarized film and ceramic capacitors do not have the same orientation requirement. Never infer polarity from capacitance value alone.

5. Package and dimensions

Confirm:

SMD or through-hole construction
case size
height limit
lead pitch
terminal style
PCB footprint
polarity-mark orientation
clearance from nearby parts

A part may be electrically suitable but mechanically incompatible with the board.

6. Operating environment

Review temperature, vibration, humidity, expected lifetime, surge conditions, and applicable safety requirements. Motor-run, motor-start, EMI suppression, and general-purpose PCB capacitors are not automatically interchangeable.

How to Test an MFD Capacitor With a Multimeter?

Many digital multimeters include a capacitance test function. If the meter supports capacitance measurement, it can help check whether a capacitor is close to its rated MFD value.

A basic test process may include:

Turn off power and discharge the capacitor safely.
Remove the capacitor from the circuit if the surrounding circuit affects measurement.
Set the multimeter to capacitance mode.
Connect the probes to the capacitor terminals.
Read the measured value.
Compare the result with the rated MFD/uF value and tolerance.

For example, a 100 uF ±20% capacitor may be acceptable within a broad range, depending on its specification and application.

Testing limitations:

In-circuit measurement may be inaccurate.
ESR problems may not appear in a simple capacitance test.
Leakage current may require other test equipment.
A capacitor can measure close to the rated value but still fail under voltage, heat, or ripple current.
Motor capacitors and high-voltage capacitors require proper safety handling.

For PCBA projects, capacitor testing may be part of incoming inspection, functional testing, troubleshooting, or failure analysis, depending on customer requirements.

MFD Capacitor Polarity, Voltage, and Installation Checks

Capacitance does not determine polarity. Some capacitors are polarized; others are not.

Common polarized capacitors:

aluminum electrolytic capacitors
tantalum capacitors
some polymer capacitors

Common non-polarized capacitors:

ceramic capacitors
many film capacitors
some motor capacitors

Polarity errors can cause leakage, overheating, venting, poor function, or board failure. During PCBA assembly, capacitor polarity should be checked across several files:

schematic
BOM
PCB footprint
silkscreen
centroid file
assembly drawing
component datasheet
actual component marking

One common risk is that different capacitor types mark polarity differently. Many aluminum electrolytic capacitors mark the negative side, while some tantalum capacitors mark the positive side. The exact datasheet should be used as the final reference.

Voltage rating also needs attention. A replacement capacitor should not have a lower voltage rating than required. A higher voltage rating may be acceptable, but the part may become larger, more expensive, or incompatible with the PCB footprint.

MFD Capacitors in PCB and PCBA Manufacturing

The term “MFD capacitor” is most often a marking convention, not a special capacitor construction. In a PCBA project, engineers should translate legacy notation into a precise, orderable component specification.

Instead of entering only 10 MFD in the BOM, define the actual requirements, for example:

10 µF, ±20%, 25 V, aluminum electrolytic, SMD, 105°C, specified ESR and ripple current, defined case size

This reduces ambiguity during component sourcing, engineering review, and assembly.

BOM normalization

Use one capacitance format consistently. For a modern BOM, µF is preferred, while uF is acceptable when the software cannot display the µ character.

Avoid mixing:

MFD and µF for the same unit
mF and MFD
decimal values and three-digit codes without explanation
generic descriptions and manufacturer part numbers that disagree

Automated BOM checks should compare the normalized capacitance, voltage, tolerance, package, and polarity—not only the text in the value field.

Footprint and polarity checks

For polarized capacitors, confirm that the schematic symbol, PCB footprint, silkscreen, centroid data, assembly drawing, and component marking all agree.

Polarity conventions can be especially confusing because an aluminum electrolytic capacitor commonly marks its negative terminal, while some tantalum capacitors mark the positive terminal. The safest process is to verify the datasheet for the exact manufacturer part number.

Reflow compatibility

Not every capacitor is compatible with every soldering process. Surface-mount aluminum electrolytic capacitors require a qualified reflow profile within the manufacturer’s limits. Radial leaded parts may require wave soldering, selective soldering, or hand-soldering conditions instead.

The PCBA manufacturer should check:

peak package temperature
time above liquidus
preheat and temperature-rise limits
number of permitted reflow cycles
moisture or storage requirements
component-specific soldering instructions

Using a generic oven profile without checking the capacitor datasheet can shorten component life or damage the seal.

Inspection and quality control

During PCBA inspection, capacitor-related checks may include:

correct part number and capacitance
correct polarity and orientation
solder-joint quality
lifted or skewed components
case swelling, leakage, or physical damage
adequate clearance around vents
compliance with the approved BOM and AVL

Automated optical inspection can verify presence, position, and visible polarity marks, but the inspection program must be built around the actual package and marking style.

Common Mistakes With MFD and Microfarad Values

Mistake 1: Treating mF and MFD as identical

In formal SI notation, lowercase m means milli, or 10⁻³. The legacy abbreviation MFD usually means microfarad, or 10⁻⁶. These values differ by a factor of 1,000.

Mistake 2: Selecting by capacitance alone

Two capacitors with the same µF value may have different voltage ratings, ESR, ripple-current capability, temperature ratings, polarity, packages, and lifetimes.

Mistake 3: Assuming a higher voltage rating always makes a perfect replacement

A higher voltage rating may be acceptable, but physical size, lead pitch, ESR, cost, and application-specific performance still need review.

Mistake 4: Ignoring effective capacitance

Some ceramic capacitors lose a significant portion of their nominal capacitance under DC bias. Evaluate the manufacturer’s performance curves at the actual operating voltage.

Mistake 5: Reversing a polarized capacitor

Footprint and component marking conventions must be verified during design, assembly, and inspection. Do not rely on appearance alone.

How to Specify a Capacitor for PCBA Manufacturing

For PCBA manufacturing, a BOM entry such as 10 MFD capacitor is not enough. The supplier needs to know the exact electrical, mechanical, sourcing, and assembly requirements before production starts.

A useful capacitor specification should answer these questions:

What nominal capacitance is required?
What tolerance is acceptable?
What voltage rating and voltage margin are needed?
Is the capacitor polarized?
Which capacitor type or dielectric is required?
What ESR and ripple-current limits apply, if important?
What temperature and lifetime ratings are needed?
What package, case size, and footprint are approved?
Is the part compatible with the planned soldering process?
Are approved alternates allowed, and under what rules?

A clearer BOM entry would look like this:

10 uF, +/-20%, 25 V, aluminum electrolytic, SMD, 105 C, case size 6.3 x 5.4 mm, specified MPN

This is much safer than writing only 10 MFD. It gives the purchasing, engineering, and SMT teams enough information to check the component before production.

For capacitor-heavy assemblies, the review should also include:

tall capacitor clearance
polarity visibility after placement
reflow temperature limits
wave soldering or hand soldering notes
vibration or adhesive requirements
spacing from heat sources
packing protection after assembly

Providing this information helps the PCBA supplier identify BOM conflicts before production and prevents an ambiguous MFD entry from becoming a sourcing, footprint, or assembly error.

Why EBest Circuit Checks Capacitor Details Before PCBA

Capacitor issues often look small in a BOM, but they can become expensive after SMT assembly. A wrong value, wrong polarity, wrong package, or unavailable part can delay production, cause rework, or stop the first build from working.

Before PCBA production, EBest Circuit can help review:

MFD vs uF value consistency
capacitor voltage and package information
approved part numbers and alternates
PCB footprint and lead spacing
polarity marks in silkscreen and assembly files
SMT placement orientation
soldering compatibility
inspection and packing notes

For customers using legacy capacitor markings, mixed BOM formats, or replacement parts, this review helps find capacitor-related issues before the board enters production.

FAQs About MFD Capacitor

What does MFD stand for on a capacitor?

On older capacitor labels and schematics, MFD usually stands for microfarad. The modern symbol for microfarad is µF.

Is MFD the same as uF?

In legacy capacitor notation, yes. A value of 10 MFD normally means the same capacitance as 10 uF or 10 µF. Confirm the original documentation because MFD is not a formal SI symbol.

What is the difference between MFD and µF?

They usually describe the same capacitance unit in capacitor-related contexts. MFD is an older abbreviation, while µF is the modern symbol for microfarad.

Is uF the same as µF?

Yes. The letter “u” is commonly used as a plain-text replacement for the Greek letter µ. Therefore, 1 uF equals 1 µF.

Is mF the same as MFD?

No. In modern SI notation, mF means millifarad. One millifarad equals 1,000 microfarads. Legacy MFD markings usually mean microfarad, so the two notations should not be treated as equivalent.

Can I replace a 40 MFD capacitor with a 40 uF capacitor?

The capacitance values are normally equivalent. The replacement must also meet the required voltage rating, tolerance, capacitor type, polarity, ESR, ripple current, temperature rating, dimensions, and application requirements.

Can I use a higher-MFD capacitor?

Only when the circuit or equipment manufacturer allows it. Increasing capacitance can change timing, inrush current, motor behavior, ripple, resonance, or power-supply performance.

How do I convert MFD to nF?

When MFD means microfarad, multiply the value by 1,000. For example, 0.1 MFD equals 0.1 µF, which equals 100 nF.

Does a microfarad capacitor have polarity?

The unit does not determine polarity. Aluminum electrolytic and tantalum capacitors are commonly polarized, while many ceramic and film capacitors are non-polarized. Check the exact component datasheet.

In conclusion, for most legacy capacitor markings, MFD means microfarad, so MFD, µF, and uF normally describe the same capacitance value. However, lowercase mF means millifarad and is 1,000 times larger than µF. In PCBA manufacturing, accurate capacitance, voltage, polarity, footprint, and soldering information is essential for preventing incorrect component substitutions and assembly failures.

For PCB and PCBA projects, the real risk is not only understanding the unit. A capacitor must also match the required voltage rating, tolerance, polarity, package, footprint, temperature rating, ESR, ripple current, and soldering process. EBest Circuit (Best Technology) helps customers review capacitor information during BOM sourcing, PCB fabrication, SMT assembly, inspection, and production preparation.

If your project includes capacitor value questions, legacy MFD markings, BOM substitutions, polarity concerns, or PCBA assembly requirements, you can send your Gerber files, BOM, CPL, assembly drawing, or project notes to sales@bestpcbs.com. EBest Circuit’s engineering team can review the manufacturing and assembly details before production, so capacitor-related issues are found earlier instead of after SMT.

What Does an Inverter Do? DC-to-AC Conversion Explained

July 23rd, 2026

What does an inverter do? Its primary job is to convert direct current from a battery, solar array, fuel cell, or DC bus into alternating current with the voltage, frequency, and waveform required by the load. Modern inverters can also regulate motor speed, synchronize with the grid, manage battery power, monitor faults, and protect the connected system.

What Does an Inverter Do?

An inverter reverses the function associated with a rectifier. A rectifier changes AC into DC, while an inverter synthesizes AC from a DC source. The output may be fixed at 120 V/60 Hz or 230 V/50 Hz, synchronized to a utility grid, or continuously adjusted to control the speed and torque of an AC motor.

The conversion is electronic rather than mechanical. Semiconductor switches repeatedly connect the DC source to the output in opposite polarities. Control electronics determine the switching sequence, while filters and magnetics shape the pulses into a usable AC waveform.

How Does an Inverter Work?

A basic full-bridge inverter uses four power switches arranged around the load. One diagonal pair conducts to apply positive voltage; the opposite pair conducts to apply negative voltage. Alternating between those states changes the direction of current and creates an AC output from a unidirectional DC input.

Practical units add a controller, gate drivers, current and voltage sensing, dead-time control, protection, and an output filter. The controller compares measured output with its target and changes the switching pattern to regulate amplitude, frequency, or motor torque.

How an inverter switches a DC bus into alternating current

What Parts Are Inside an Inverter?

The power path and control path have different electrical and layout requirements. The main functional blocks are:

DC input and protection: connectors, fuses, reverse-polarity control, surge suppression, and pre-charge circuitry.
DC-link stage: capacitors that supply pulse current and limit bus ripple.
Power bridge: MOSFETs, IGBTs, or SiC devices that switch the DC bus.
Gate drivers: circuits that deliver controlled drive current and isolation to the power switches.
Controller: MCU, DSP, or dedicated control IC that generates PWM and manages protection.
Sensing: current, bus-voltage, output-voltage, and temperature feedback.
Output network: inductors, capacitors, transformers, or motor windings that shape or use the switched waveform.

How Does PWM Create an AC Waveform?

Pulse-width modulation changes how long each power switch remains on during every switching cycle. A sequence of narrow and wide pulses has an average value that follows a sine-wave reference. An LC filter or the inductance of a motor suppresses the high-frequency switching components, leaving the required low-frequency AC current.

Higher switching frequency can reduce filter size and improve waveform control, but it also increases switching loss, gate-drive demand, EMI, and PCB layout sensitivity. The final frequency is therefore a system trade-off involving semiconductor technology, power level, thermal limits, acoustic noise, and EMC targets.

PWM pulses filtered into an inverter sine wave output

What Output Waveforms Can an Inverter Produce?

Waveform	Construction	Typical behavior	Design limitation
Square wave	Direct polarity reversal	Simple and inexpensive	High harmonic content; unsuitable for many loads
Modified sine wave	Stepped positive, zero, and negative levels	Acceptable for some resistive loads	Can increase motor heating, hum, and power-supply stress
Pure sine wave	High-frequency PWM plus filtering	Closest to utility AC and compatible with sensitive loads	More control, filtering, and thermal complexity

Waveform labels alone do not define quality. Total harmonic distortion, regulation, transient response, common-mode noise, and load compatibility should also be checked.

What Types of Inverters Are Common?

Inverters can be classified by circuit topology or by system role. Voltage-source inverters operate from a relatively stiff DC-link voltage; current-source inverters control current through a DC-link inductor. Single-phase and three-phase bridges serve different loads, while isolated topologies add a transformer where safety, voltage conversion, or ground separation requires it.

System labels include string, central, micro, hybrid, grid-following, grid-forming, off-grid, motor-drive, and UPS inverters. These names describe installation and control behavior rather than one universal power stage.

Where Are Inverters Used?

Solar systems use inverters to convert panel DC into grid-compatible AC. Battery storage and UPS systems use them to supply AC during normal operation or an outage. EV traction inverters convert pack DC into controlled three-phase current for the motor and may reverse power flow during regenerative braking.

Motor drives vary output voltage and frequency to control pumps, fans, compressors, elevators, and factory equipment. Smaller inverter circuits appear in induction heating, microwave ovens, lighting ballasts, portable power stations, and other products that require controlled high-frequency or AC power.

For inverter, storage, and EV electronics, a new energy PCB must support the required current, isolation, thermal path, and control circuitry rather than being selected from application name alone.

How Efficient Is an Inverter?

Efficiency is output power divided by input power. Losses occur in semiconductor conduction, switching transitions, magnetics, capacitors, gate drivers, control circuits, and interconnects. Efficiency changes with input voltage, load, switching frequency, temperature, and power factor.

A unit rated at high peak efficiency may perform differently at light load or near its thermal limit. The loss calculation must use the intended operating point because every watt of loss becomes heat that the PCB, busbars, enclosure, and cooling system must remove.

What Is the Difference Between an Inverter and a Converter?

Inverter usually means DC-to-AC conversion. Converter is the broader term and may describe DC-to-DC, AC-to-DC, AC-to-AC, or DC-to-AC power conversion. A complete motor drive may contain an AC-to-DC rectifier, a DC link, and a DC-to-AC inverter in one enclosure.

A logic inverter is different again: it is a digital NOT gate that reverses a logic state, not a power stage designed to supply an AC load.

How Does PCB Design Affect Inverter Reliability?

High-current loops should be short and wide, and the DC-link capacitor must sit close to the switching bridge to reduce parasitic inductance. Gate-drive loops need controlled return paths and separation from high dv/dt nodes. Creepage, clearance, isolation slots, copper thickness, via arrays, current sensing, and thermal interfaces must match the voltage and fault environment.

Inverter PCB power stage gate drive and control layout

A heavy copper PCB for power electronics can reduce conductor loss where current and board geometry justify it. Assembly must also control solder voiding, thermal-pad coverage, device coplanarity, press-fit or bolted connections, and insulation cleanliness. EBest Circuit (Best Technology) supports PCB fabrication and PCB assembly for power-electronics projects, including engineering review of stack-up, copper, thermal features, and assembly constraints.

FAQ About What an Inverter Does

What does a power inverter do?

A power inverter converts DC into AC at the voltage and frequency required by the connected load. Depending on the design, it may also regulate power, charge a battery, control a motor, or synchronize with the grid.

Can an inverter work without a battery?

Yes. A grid-tied solar inverter can operate from a photovoltaic DC source, and an industrial drive can operate from a rectified AC supply. Off-grid systems need a sufficiently stable DC source, which is often a battery.

How long will a 12 V battery last with an inverter?

Runtime depends on battery watt-hours, allowable depth of discharge, inverter efficiency, and load power. A first estimate is usable battery watt-hours multiplied by inverter efficiency, divided by load watts.

Does an inverter increase voltage?

Some designs include a transformer or DC-to-DC stage that raises voltage before or during inversion. Voltage increase is not automatic; it depends on topology and the required output.

Does an inverter use power when no load is connected?

Yes. Control electronics, gate drivers, sensing, fans, and magnetics create standby loss. Low-power sleep modes reduce this consumption in battery-operated systems.

Conclusion

What does an inverter do? It switches a DC source into a controlled AC waveform and, in advanced systems, also manages motors, batteries, grid interaction, monitoring, and protection. Reliable performance depends on the switching topology, control method, waveform, operating point, thermal design, and physical PCB current paths.

For inverter PCB fabrication or assembly support, contact EBest Circuit (Best Technology) at sales@bestpcbs.com.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

What Is the Typical Power Rating of a 0603 Resistor?

Why Do Different 0603 Resistors Have Different Power Ratings?

How Do You Read a 0603 Resistor Power Rating from a Datasheet?

How Do You Calculate Power Dissipation for a 0603 Resistor?

How Do Resistance Value and Maximum Working Voltage Limit 0603 Resistor Power?

How Does Temperature Derating Affect the 0603 Resistor Power Rating?

How Do PCB Layout and Thermal Conditions Affect 0603 Resistor Power Handling?

How Much Power Margin Should You Use for a 0603 Resistor?

How Much Pulse or Surge Power Can a 0603 Resistor Handle?

How Do Standard and High-Power 0603 Resistors Differ?

How Does 0603 Power Rating Compare with 0402, 0805 and 1206 Resistors?

When Should You Replace a 0603 Resistor with a Larger Package or Multiple Resistors?

What Causes a 0603 Resistor to Overheat, Drift or Fail on a PCB?

FAQs About 0603 Resistor Power Rating

You may also like

Which Major FPGA Vendors Should Be Shortlisted?

Which FPGA Vendor Selection Criteria Prevent a PCB Redesign?

What Should an FPGA Vendor Comparison Table Include?

Why Can FPGA Vendors Market Share Mislead Buyers?

What Key Features Should You Look for in an FPGA Vendor?

Are the Best FPGA Vendors Always the Lowest-Risk Choice?

When Should You Use FPGA Board Vendors for Prototyping?

How Does an FPGA BGA Package Increase PCB Layer Count?

What FPGA PCB Design Changes Follow a Vendor Switch?

How Was a 6-Layer FPGA USB PCB Prepared for 10-Day Delivery?

What Files Are Required Before FPGA Assembly?

You may also like

What Is a Mylar Capacitor?

Mylar Capacitors vs Polyester Capacitors

Mylar Film Capacitor Structure and Lead Style

How to Read Mylar Capacitor Values Correctly?

104 Mylar Capacitor and 0.1 uF Mylar Capacitor

Are Mylar Capacitors Polarized?

What Are Mylar Capacitors Used For?

Film Capacitor vs Ceramic Capacitor in Replacement

How to Test Mylar Capacitor Before PCBA?

Why EBest Circuit Checks Capacitor Details Before PCBA

FAQs About Mylar Capacitor

You may also like

What Are Alternative Electronic Components?

Alternative Electronic Components vs Equivalent Parts

How to Find Alternative Electronic Components When Supply Is Limited?

When Should Buyers Consider Electronic Component Alternatives?

What Should Be Checked Before Approving Alternative Electronic Components?

Alternative Components for BOM Review and PCBA Production

Low-Cost Alternatives for High-Demand Electronic Components

Alternative Component Sourcing for Obsolete and Hard-to-Find Parts

How EBest Circuit Supports Alternative Electronic Components for PCB and PCBA Projects

FAQs About Alternative Electronic Components

You may also like

What Is the 2N2222 Pinout?

2N2222 Transistor Pinout and Pin Functions

2N2222 Pin Configuration by Package Type

2N2222 Pin Diagram Mistakes Before PCB Layout

2N2222A Pinout and PN2222A Pinout Differences

How to Check the 2N2222 Datasheet Before PCB Footprint Selection

PCB Layout Checks for a 2N2222 Transistor

PCBA Assembly Checks for 2N2222 Pinout and Orientation

2N2222 Pinout Project Example for a Small Control PCB

FAQs About 2N2222 Pinout

You may also like

What Is a PLCC Package?

How Does a PLCC Package Connect to a PCB?

PLCC Package Sizes, Pin Counts, and Footprints

Socketed vs Soldered PLCC Assembly

How Should a PLCC Footprint Be Reviewed?

Common PLCC Soldering and Assembly Problems

How Are PLCC Solder Joints Inspected?

PLCC vs QFP and BGA Packages

What Should You Send for a PLCC PCBA Quote?

FAQs About PLCC Packages

You may also like

What Is a PCB Transformer?

PCB Mount Transformer vs Transformer Built Into a PCB

How Does a Transformer on Circuit Board Work?

PCB Transformer Board Requirements Before Production

How to Control PCB Transformer Assembly and Inspection Quality?

Planar Transformer PCB Requirements for High-Frequency Power Boards

Power Transformer PCB Risks Buyers Should Confirm Before RFQ

How EBest Circuit Supports PCB Transformer Projects
