Ceramic PCB China: How Do You Choose the Right Manufacturer?

June 10th, 2026

Ceramic PCB China has become a practical search topic for engineers, product developers, and sourcing teams that need circuit boards for high-heat, high-power, compact, or high-reliability electronics. The goal is usually clear: find a manufacturer that can provide stable ceramic PCB quality, suitable process advice, prototype support, and reliable communication before production begins.

Ceramic PCB China: How Do You Choose the Right Manufacturer?

EBest Circuit supports ceramic PCB and PCBA solutions, including DPC, DBC/DCB, AMB, LTCC, HTCC, and thick-film ceramic boards. Its service scope covers design review, prototype production, ceramic circuit board manufacturing, assembly support, and quality control for applications such as medical equipment, automotive electronics, power supply, industrial control, instrumentation, radar communication, and frequency conversion braking systems.

What Is a Ceramic PCB?

A ceramic PCB is a printed circuit board made with a ceramic base instead of a fiberglass epoxy laminate. The ceramic substrate supports the circuit pattern and helps manage heat, insulation, and mechanical stability. Common ceramic materials include alumina, aluminum nitride, and silicon nitride. Each material has different thermal, electrical, and mechanical properties.

The main reason for using a ceramic PCB is heat dissipation. In power electronics, LED modules, laser devices, RF circuits, and compact control systems, heat must move away from components quickly. A ceramic base can transfer heat more efficiently than standard FR4, which helps protect components and improve product stability.

Different ceramic PCB technologies are used for different purposes. DPC ceramic PCB is often used for fine circuits and plated copper structures. DBC/DCB ceramic PCB is common in high-current power modules. AMB ceramic PCB is used where copper bonding strength and thermal cycling performance are important. Thick-film ceramic PCB is made by printing conductive paste on ceramic. LTCC and HTCC are used for multilayer ceramic circuits and compact electronic modules.

Ceramic PCB Type	Common Feature	Typical Use
DPC ceramic PCB	Plated copper, fine circuit pattern	LED, sensors, medical modules, RF devices
DBC/DCB ceramic PCB	Direct bonded copper	IGBT, MOSFET, power modules, EV systems
AMB ceramic PCB	Active metal bonding, strong adhesion	Automotive power modules, new energy systems
Thick-film ceramic PCB	Printed conductor paste	Sensors, heaters, hybrid circuits
LTCC ceramic PCB	Low-temperature co-fired multilayer structure	RF modules, microwave circuits, compact devices
HTCC ceramic PCB	High-temperature co-fired ceramic structure	High-reliability packages and harsh environments

A suitable ceramic PCB design should match the material, copper thickness, circuit structure, surface finish, and assembly process with the product’s real operating conditions. This is why early engineering review is important.

Why Do Customers Source Ceramic PCB from China?

Customers source ceramic PCB from China because China has a broad ceramic PCB manufacturing base, flexible prototype capability, and established supply chains for both fabrication and assembly. Many buyers also choose China ceramic PCB suppliers because they can support different ceramic technologies within one procurement channel.

Cost is one factor, but it is not the only reason. In ceramic PCB projects, process experience, production stability, inspection control, and engineering feedback often matter more than the lowest unit price. A low-cost board that does not match the design requirement can create delays during testing or assembly.

China ceramic PCB manufacturers can often support prototype, small batch, and mass production. This is useful when a customer needs to test a design before committing to volume manufacturing. A prototype can verify thermal behavior, solderability, copper adhesion, circuit accuracy, and dimensional fit.

Customers often source China ceramic PCB for several practical reasons:

Access to DPC, DBC/DCB, AMB, LTCC, HTCC, and thick-film ceramic technologies
Prototype support before mass production
Flexible production quantities for development projects
Ceramic PCB assembly service China for one-stop delivery
Engineering review before fabrication
Competitive production cost for complex ceramic circuits

EBest Circuit supports no MOQ limit, design challenge review, prototype confirmation, and strict quality control. This type of support is useful for customers that need samples first, especially when the board will be used in medical, automotive, industrial, or power-related products.

What Is a China Ceramic PCB Manufacturer?

A China ceramic PCB manufacturer is a company that produces ceramic circuit boards or controls the core manufacturing process directly. Its work may include substrate preparation, laser processing, metallization, copper plating, etching, printing, firing, surface treatment, inspection, and assembly coordination.

A qualified ceramic PCB manufacturer China should understand both ceramic materials and circuit requirements. Ceramic is harder and more brittle than FR4, so manufacturing rules are different. Hole size, edge clearance, conductor thickness, cutting method, surface finish, and assembly temperature all need careful review.

A manufacturer should also help customers choose the correct ceramic PCB process. For example, a high-current power module may be more suitable for DBC or AMB. A fine-line LED or sensor board may use DPC. A hybrid control circuit may use thick-film ceramic. A compact RF module may require LTCC.

EBest Circuit manufactures ceramic circuit boards and supports multiple ceramic PCB technologies, including DPC, DBC/DCB, AMB, LTCC, HTCC, and thick-film ceramic PCB. This range is helpful for customers who need to compare different ceramic base PCB solutions before finalizing a design.

What Is the Difference Between a Ceramic PCB Supplier and a Ceramic PCB Factory?

A ceramic PCB supplier and a ceramic PCB factory may both provide boards, but their roles can be different. A supplier may coordinate manufacturing, assembly, sourcing, and logistics. A factory usually focuses on direct production.

If a customer only needs bare ceramic PCBs and already has complete files, a direct China ceramic PCB factory may be suitable. If the project includes fabrication, BOM review, component sourcing, SMT assembly, testing, and export coordination, a ceramic PCB supplier China with engineering capability may be more efficient.

A supplier should not be judged only by whether it owns a factory. The important point is whether it can control quality, communicate with the production team, check technical details, and take responsibility for delivery. A factory should not be judged only by price. The key is whether it has the right process, equipment, quality system, and experience with the customer’s ceramic PCB type.

Comparison Point	Ceramic PCB Supplier	Ceramic PCB Factory
Main Function	Coordinates production, service, and support	Manufactures ceramic circuit boards directly
Suitable For	Projects needing sourcing, assembly, and logistics support	Projects needing direct fabrication control
Technical Value	Depends on engineering and factory access	Depends on production process capability
Assembly Support	Often available through one-stop service	May be limited if focused only on bare boards
Buyer’s Main Check	Quality control, engineering depth, communication	Equipment, process range, tolerance, inspection

EBest Circuit works as a ceramic PCB and PCBA solution provider, supporting both ceramic circuit board manufacturing and ceramic PCB assembly. This makes it suitable for customers who need more than bare board production, especially when prototype verification and assembly coordination are part of the project.

Can China Ceramic PCB Factories Make Prototypes?

Yes. Many China ceramic PCB factories can make prototypes, but the lead time and feasibility depend on the ceramic type, structure, tolerance, and material. A ceramic PCB prototype helps customers verify the design before mass production.

Prototype production is especially important for ceramic PCBs because these boards are often used in high-value or performance-sensitive products. A sample can help test thermal performance, solderability, dimensional accuracy, copper adhesion, surface finish, and mechanical fit.

For DPC ceramic PCB prototypes, the process may include ceramic cleaning, laser drilling, seed layer deposition, copper plating, imaging, etching, surface treatment, and final inspection. For DBC/DCB or AMB prototypes, copper bonding and ceramic preparation are more important. For LTCC and HTCC, the process may involve ceramic layers, conductor printing, stacking, lamination, and co-firing.

A prototype also gives the customer a chance to check the supplier’s communication and quality control. If the manufacturer asks clear questions, confirms key parameters, and explains process limits early, the later production stage is usually easier to manage.

EBest Circuit supports proof production before mass production. Its team confirms important values with the customer, makes samples, sends them for testing, and moves to volume production after approval. This approach helps reduce production risk and gives the customer a practical basis for decision-making.

How Is a China Ceramic PCB Prototype Made?

A China ceramic PCB prototype starts with file review. The manufacturer checks the Gerber files, drill files, fabrication drawing, material requirement, board thickness, copper thickness, surface finish, tolerance, and application notes. If assembly is required, the BOM and pick-and-place file should also be reviewed.

After the review, the manufacturer chooses the suitable process. The route may be DPC, DBC/DCB, AMB, LTCC, HTCC, or thick-film ceramic PCB. Each method has its own production flow and design limits.

A typical ceramic PCB prototype process includes:

Technical review of design files
Ceramic material selection
Process selection based on application and structure
Substrate preparation and circuit formation
Copper plating, bonding, printing, or firing according to the process
Surface finish and outline processing
Electrical, dimensional, and visual inspection
Sample delivery for customer testing
Feedback review before mass production

For DPC ceramic PCB, the circuit is usually made through copper deposition, plating, imaging, and etching. For thick-film ceramic PCB, conductive paste is printed and fired. For DBC/DCB ceramic PCB, copper is bonded directly to the ceramic. For AMB ceramic PCB, active metal bonding improves adhesion between copper and ceramic. For LTCC and HTCC, multilayer ceramic structures are formed through ceramic layer processing and co-firing.

EBest Circuit confirms line width, board thickness, conductor material, layer count, silkscreen, glass glaze, conductive layer material, and related values before proofing. This information helps the prototype match the design requirement more closely.

Can China Ceramic PCB Manufacturers Make Multilayer Ceramic PCBs?

Yes. China ceramic PCB manufacturers can make multilayer ceramic PCBs, but not every factory can support every structure. Multilayer ceramic PCB production requires specific equipment, material control, conductor systems, firing control, and inspection capability.

LTCC and HTCC are common methods for multilayer ceramic circuits. LTCC is used for compact modules, RF circuits, microwave devices, filters, antennas, and embedded structures. HTCC is used for high-reliability ceramic packages and circuits that need strong heat and environment resistance.

Some DPC ceramic PCB designs can also support double-sided or multilayer structures, depending on the manufacturer’s process. However, customers should confirm minimum line width, spacing, via structure, copper thickness, ceramic thickness, tolerance, and available surface finish before placing an order.

Multilayer Ceramic Type	Main Feature	Common Application
LTCC ceramic PCB	Low-temperature co-fired multilayer structure	RF, microwave, compact modules
HTCC ceramic PCB	High-temperature co-fired ceramic structure	High-reliability packages, harsh environments
Multilayer DPC ceramic PCB	Plated copper structure with fine circuit capability	LED, sensor, medical, RF-related modules
Thick-film multilayer ceramic PCB	Printed and fired conductor layers	Hybrid circuits, sensors, control modules

EBest Circuit offers LTCC and HTCC ceramic PCB solutions, along with DPC, DBC/DCB, AMB, and thick-film ceramic PCB. This allows customers to compare several ceramic technologies before choosing the most suitable structure.

What Applications Use Ceramic PCBs from China?

Ceramic PCBs from China are used in applications that require heat dissipation, electrical insulation, dimensional stability, and long-term reliability. The application depends on the ceramic material and production process.

In LED products, ceramic PCBs are used for high-power LEDs, UV LEDs, laser LEDs, and compact lighting modules. The ceramic base helps move heat away from the light source and supports stable light output.

In power electronics, ceramic PCBs are used in IGBT modules, MOSFET modules, rectifiers, inverters, DC-DC converters, power supplies, and EV-related systems. DBC/DCB and AMB ceramic PCBs are common in these areas because they support high current and efficient heat transfer.

In medical electronics, ceramic PCBs are used in diagnostic equipment, monitoring systems, imaging equipment, sensors, and precision control modules. These products often require stable quality, clean assembly, and traceable production.

In automotive electronics, ceramic PCBs are used in battery management systems, charging modules, LED headlights, power control units, motor control systems, and sensors. Thermal cycling performance and long service life are important in these applications.

Other common application areas include industrial control, instrumentation, radar communication, frequency conversion braking, aerospace-related electronics, semiconductor equipment, and laser modules. EBest Circuit supports several of these industries, including medical equipment, automotive electronics, industrial control, power supply, instrumentation, radar communication, and frequency conversion braking.

What Should Customers Check Before Ordering Ceramic PCB China?

Before ordering ceramic PCB China, customers should check technical capability, material selection, process match, tolerance control, inspection methods, and assembly support. Price should be reviewed after these technical points are clear.

The first point is ceramic material. Alumina is widely used because it offers balanced performance and cost. Aluminum nitride provides higher thermal conductivity and is used in high-power and high-heat applications. Silicon nitride is often used in AMB ceramic PCB because of its mechanical strength and thermal cycling performance.

The second point is the conductor structure. DPC uses plated copper and supports fine circuits. DBC/DCB and AMB can support thicker copper for power applications. Thick-film ceramic uses printed conductor paste. LTCC and HTCC use co-fired conductor systems.

Customers should confirm the following before ordering:

Ceramic material and thickness
Copper thickness or conductor material
Minimum line width and spacing
Hole size, slot size, and outline tolerance
Surface finish
Working voltage and current load
Thermal requirement
Assembly method and soldering profile
Testing and inspection requirements
Prototype lead time and production capacity
Traceability and quality documentation

A capable China ceramic PCB supplier should ask technical questions before production. This is a sign of process control, not a complication. EBest Circuit confirms key values before sample production, then supports prototype testing and mass production after approval.

What Files Should You Send to a Ceramic PCB Manufacturer China?

To receive an accurate quotation from a ceramic PCB manufacturer China, customers should send complete production files. A simple drawing or screenshot is usually not enough for ceramic PCB pricing because material, tolerance, copper thickness, and process route strongly affect cost and feasibility.

The basic file package should include Gerber files, drill files, and a fabrication drawing. The Gerber files show circuit layers, solder mask, silkscreen, paste layer, and outline. Drill files show holes, slots, and vias. The fabrication drawing should define board size, material, thickness, copper thickness, tolerance, surface finish, quantity, and special notes.

For China multilayer ceramic PCB, a stack-up drawing is also needed. It should show layer order, ceramic thickness, conductor layers, via structures, and material requirements. For ceramic PCB assembly service China, the customer should also send a BOM, pick-and-place file, and assembly drawing.

A complete quotation package usually includes:

Gerber files
Drill files
Fabrication drawing
Stack-up drawing for multilayer ceramic PCB
BOM for assembly
Pick-and-place file
Assembly drawing
Test requirement
Packaging or labeling requirements

Complete files help the manufacturer provide more accurate pricing, better lead time estimation, and more useful DFM feedback. They also help avoid changes after production has started.

How Does Ceramic PCB Manufacturing Work in China?

Ceramic PCB manufacturing in China begins with engineering review. The manufacturer checks whether the design matches the selected ceramic material and production process. This step helps identify issues related to copper thickness, line spacing, hole design, board shape, surface finish, or assembly compatibility.

After review, the production process is selected. DPC ceramic PCB may involve ceramic cleaning, laser drilling, seed layer deposition, electroplating, imaging, etching, stripping, surface finishing, forming, and inspection. DBC/DCB ceramic PCB uses direct copper bonding to create a high-current structure. AMB ceramic PCB uses active metal bonding to improve copper-to-ceramic adhesion.

Thick-film ceramic PCB uses screen printing and high-temperature firing. Conductive paste, resistor paste, glass glaze, or protective layers may be printed depending on the design. LTCC and HTCC use ceramic layers that are processed, printed, stacked, laminated, and co-fired to create multilayer structures.

Inspection is required throughout production. Common checks include substrate quality, copper adhesion, conductor width and spacing, hole position, board outline, surface finish, electrical continuity, and appearance. For assembly projects, inspection may also include solder paste inspection, AOI, X-ray, first article inspection, ICT, or functional testing.

EBest Circuit combines ceramic PCB manufacturing with prototype confirmation and assembly support. Its production control process is designed to support rapid production, quality stability, short lead time, and fast delivery for ceramic circuit board projects.

What Is Included in Ceramic PCB Assembly Service China?

Ceramic PCB assembly service China usually includes ceramic PCB fabrication, component sourcing support, solder paste printing, SMT placement, reflow soldering, inspection, testing, cleaning, packaging, and shipment. Some projects may also require manual soldering, wire bonding, die attach, conformal coating, heat sink mounting, or functional testing.

Assembly on ceramic PCB needs controlled process settings. Ceramic substrates conduct heat differently from FR4 and can be more brittle during handling. The assembly team should review solder paste type, stencil design, reflow profile, component package, fixture support, and thermal mass before production.

A one-stop ceramic PCB assembly supplier can reduce communication work for the customer. When the same team reviews fabrication and assembly, it is easier to confirm pad design, surface finish, solderability, component placement, test points, and packaging requirements.

For ceramic PCB assembly, customers should check whether the supplier can support BOM review, component verification, SMT assembly, AOI inspection, X-ray inspection for hidden solder joints, electrical testing, functional testing, final inspection, and traceability documentation. These points are especially important for medical, automotive, industrial, power, and communication products.

EBest Circuit provides ceramic circuit board assembly and related solutions, covering ceramic PCB design, manufacturing, prototype verification, and production support. Its ceramic PCB capability includes thick-film, AMB, DPC, DBC/DCB, LTCC, and HTCC technologies.

In summary, choosing the right ceramic PCB China partner means checking material knowledge, process capability, prototype support, assembly experience, inspection control, and engineering communication. A suitable manufacturer should help confirm the correct ceramic PCB technology, review important design values, produce testable samples, and support stable production after approval.

For ceramic PCB manufacturing, China ceramic PCB prototype, China multilayer ceramic PCB, or ceramic PCB assembly service China, contact EBest Circuit at sales@bestpcbs.com.

Automotive Ceramic PCB: Materials, Types, Applications, and Supplier Selection Guide

June 9th, 2026

Automotive ceramic PCB technology is used when a vehicle electronic module needs stronger heat dissipation, better insulation, lower thermal expansion, and more stable performance than standard FR4 can provide. In electric vehicles, ADAS systems, LED headlights, battery control units, power modules, sensors, and high-current automotive PCB components, the circuit board is no longer just a connection carrier. It becomes part of the thermal path, electrical insulation system, and long-term reliability structure.

Automotive Ceramic PCB: Materials, Types, Applications, and Supplier Selection Guide

What Is an Automotive Ceramic PCB?

An automotive ceramic PCB is a printed circuit board that uses a ceramic substrate instead of conventional fiberglass-reinforced epoxy laminate. Common substrate materials include alumina, aluminum nitride, and silicon nitride. Copper circuitry is formed on the ceramic surface through processes such as DPC, DBC, AMB, thick film, or thin film manufacturing.

In automotive electronics, ceramic PCB is mainly used in modules exposed to heat, high power density, voltage stress, or repeated temperature changes. Typical examples include LED headlight boards, EV power conversion modules, battery-related control circuits, motor drive substrates, sensor modules, ignition-related electronics, and compact power control units.

Unlike FR4 PCB, ceramic PCB does not rely on organic resin as the main insulation base. This gives it better dimensional stability at high temperature, stronger thermal conductivity, and a coefficient of thermal expansion closer to many semiconductor materials. That is why many automotive PCB manufacturers use ceramic substrates for mission-critical thermal designs.

Why Are Ceramic PCBs Important in Automotive Electronics?

Modern vehicles contain more electronics than ever. EV platforms, hybrid systems, radar modules, high-brightness lighting, power converters, inverters, charging systems, and smart control units all create heat. At the same time, automotive modules must survive vibration, humidity, temperature cycling, current load, and long service life expectations.

Ceramic PCB helps solve several common automotive design problems:

It moves heat away from power devices more efficiently.
It provides stable electrical insulation under high voltage.
It reduces thermal expansion mismatch between chips, copper, solder, and substrate.
It supports compact layouts where heat sinks and thick FR4 structures are not enough.
It improves reliability in modules that face repeated heating and cooling.

For buyers, this matters because thermal failure is often expensive. A board that works in a bench test may fail after months of real vehicle use if the substrate, copper thickness, solder joint, and thermal path were not designed together.

How Does an Automotive Ceramic PCB Work?

An automotive ceramic PCB works by combining electrical connection, insulation, and heat transfer in one structure. The ceramic substrate acts as an insulating but thermally conductive base. Copper traces or copper layers carry current and signals. Heat generated by power chips, LEDs, MOSFETs, IGBTs, resistors, or driver ICs is transferred through the copper and ceramic into the heat sink, housing, or cooling system.

The simplified thermal path is:

Heat Source	Transfer Layer	Main Function
LED, MOSFET, IGBT, driver IC, resistor	Copper circuit layer	Current path and first heat-spreading layer
Ceramic substrate	Alumina, AlN, or Si3N4	Electrical insulation and heat transfer
Interface material	Solder, sintered silver, thermal pad, or grease	Reduces thermal resistance
Heat sink or housing	Aluminum, copper, or module body	Final heat dissipation structure

The performance depends on the whole stack, not only the ceramic material. A high-thermal-conductivity substrate cannot fully solve the problem if the copper is too thin, the solder layer has voids, the board is warped, or the heat sink contact is poor.

Main Automotive Ceramic PCB Types

Different automotive applications need different ceramic PCB structures. The most common options are DPC, DBC, AMB, thick film, thin film, HTCC, and LTCC.

Type	Best Used For	Main Strength	Typical Limitation
DPC ceramic PCB	Fine circuits, sensors, LEDs, compact modules	Good circuit precision and plating control	Not ideal for very thick copper power modules
DBC ceramic PCB	Power electronics, EV modules, high-current circuits	Strong copper thickness and thermal path	Less suitable for very fine traces
AMB ceramic PCB	EV power modules, Si3N4 substrates, high thermal cycling	Strong bonding and mechanical reliability	Higher cost and stricter process control
Thick film ceramic PCB	Resistor networks, sensors, hybrid circuits	Stable functional films and mature process	Limited fine-line capability
Thin film ceramic PCB	RF, precision sensors, high-frequency modules	Excellent precision and signal stability	Higher cost for mass production
HTCC	Harsh-temperature and sealed packages	Strong high-temperature structure	Process cycle is longer
LTCC	RF, antenna, sensor, multilayer ceramic modules	Good integration and miniaturization	Material and process matching are critical

For automotive ceramic PCB selection, DBC and AMB are often considered for power modules, while DPC is more common for LED, sensor, and fine-circuit ceramic boards. Thick film and thin film ceramic PCB are chosen when functional resistive layers, precise metallization, or signal behavior matter.

Ceramic PCB Materials Used in Automotive Applications

Material choice is one of the most important decisions in ceramic PCB design. The substrate affects heat transfer, mechanical strength, cost, thermal expansion, process compatibility, and long-term reliability.

Material	Typical Thermal Conductivity	Typical Use in Automotive Electronics	Selection Note
Alumina ceramic	About 20–30 W/m·K	LED modules, sensors, moderate-power control boards	Cost-effective and widely used
Aluminum nitride	Often 170 W/m·K or higher	High-power LEDs, EV power modules, laser drivers, compact power boards	Strong thermal performance, higher material cost
Silicon nitride	Usually lower than AlN but mechanically strong	AMB power substrates, EV power cycling modules	Excellent strength and thermal shock resistance
Beryllium oxide	High thermal conductivity	Special high-performance uses	Limited by safety and processing concerns

Alumina is often the practical starting point when cost control matters and the heat load is moderate. Aluminum nitride is preferred when thermal resistance must be reduced in a small space. Silicon nitride is valuable when mechanical robustness, thermal cycling, and copper bonding strength are more important than maximum thermal conductivity alone.

A good ceramic PCB manufacturer should not recommend the most expensive ceramic by default. The better approach is to match the substrate with junction temperature targets, voltage requirements, copper thickness, mounting method, and production volume.

Key Features and Benefits of Automotive Ceramic PCB

Automotive ceramic PCB offers several clear advantages when used in the right place.

Benefit	Why It Matters in Vehicles
High thermal conductivity	Helps control LED brightness decay, MOSFET heating, and power module temperature
Electrical insulation	Supports compact high-voltage and high-current designs
Low thermal expansion	Reduces stress between chips, copper, solder, and substrate
High temperature resistance	Performs better than organic boards in hot zones
Good dimensional stability	Supports accurate assembly and stable module geometry
Strong corrosion resistance	Useful in sealed or harsh-environment electronics
Compact structure	Helps reduce module size in EV and smart vehicle systems

The biggest benefit is not only heat dissipation. It is reliability under combined stress. Automotive modules rarely face just one stress factor. They often face heat, vibration, current load, humidity, and assembly pressure at the same time. Ceramic PCB can provide a stronger base for these demanding conditions.

Limitations and Risks You Should Know Before Selection

Ceramic PCB is powerful, but it is not suitable for every automotive board. FR4 is still the better option for many low-power control circuits, infotainment boards, general signal boards, and cost-sensitive modules.

Common limitations include:

Higher material and manufacturing cost than FR4
Brittleness during handling, routing, assembly, and module mounting
Design restrictions for board size, panel utilization, and mechanical holes
Longer production cycle for special materials or custom copper thickness
Higher requirement for soldering profile, fixture design, and packaging protection
Potential copper delamination if material, process, or thermal cycling is poorly controlled

The main mistake is using ceramic PCB as a direct FR4 replacement without redesigning the mechanical and thermal structure. Ceramic boards need careful attention to edge clearance, mounting pressure, copper balance, warpage, solder voids, and thermal interface contact.

Ceramic PCB vs FR4 for Automotive Electronics

Ceramic PCB vs FR4 is one of the most common comparison topics for automotive engineers and buyers. The correct answer depends on the heat load, voltage level, reliability target, cost range, and application zone.

Item	Ceramic PCB	FR4 PCB
Base material	Alumina, AlN, Si3N4, or other ceramic	Fiberglass-reinforced epoxy laminate
Thermal performance	Much higher	Limited
Electrical insulation	Strong	Good for standard applications
High-temperature stability	Strong	Depends on Tg and resin system
Mechanical toughness	Brittle, needs careful handling	Better flexibility and toughness
Fine multilayer routing	Possible but costlier	Mature and cost-effective
Cost	Higher	Lower
Best fit	Power, LED, EV, sensor, high-heat modules	General control, communication, logic, low-power boards

Use ceramic PCB when heat, insulation, or thermal cycling is the core reliability issue. Use FR4 when the board mainly handles low-power signals, standard control logic, or cost-sensitive assembly. In many automotive products, both materials can appear in the same system. A power section may use ceramic PCB, while the control section remains FR4.

Where Are Automotive Ceramic PCBs Used?

Automotive ceramic PCB is used across several high-value vehicle electronics areas.

EV power electronics
Ceramic substrates are used in inverters, DC-DC converters, onboard chargers, power modules, and current control circuits. These applications need strong insulation and heat transfer.

LED headlights and lighting modules
High-power LED headlights generate concentrated heat. Ceramic PCB helps keep LED junction temperature under control and supports long-term brightness stability.

Battery management and high-voltage control
Some battery-related circuits need insulation stability, heat resistance, and reliable current handling. Ceramic boards can support compact layouts near high-power zones.

ADAS sensors and radar-related modules
Sensor modules may require stable dimensions, low signal loss, and thermal stability. Thin film or LTCC ceramic solutions may be considered in selected high-frequency or sensor packaging designs.

Engine and transmission control environments
Near-engine electronics face heat and vibration. Ceramic PCB can be used where standard boards may struggle with temperature cycling.

Automotive power resistors and hybrid circuits
Thick film ceramic PCB is useful for resistor networks, hybrid circuits, and compact modules requiring printed resistive elements.

Practical Automotive Case Examples

A useful way to understand ceramic PCB is to look at realistic engineering scenarios.

Case	Original Problem	Ceramic PCB Solution	Result
LED headlight module	FR4 board caused high LED temperature and faster lumen decay	Alumina or AlN ceramic PCB with optimized copper area	Better heat spreading and more stable lighting performance
EV power module	High current created hot spots and solder fatigue risk	DBC or AMB ceramic substrate with thick copper	Lower thermal resistance and stronger power cycling reliability
Sensor module	Signal drift appeared after repeated temperature exposure	Thin film or precision ceramic substrate	Improved dimensional and electrical stability
Compact DC-DC board	Limited space made metal heat sink design difficult	AlN ceramic PCB integrated into heat path	Higher power density in a smaller module
High-temperature hybrid circuit	Organic substrate could not support operating zone	Thick film ceramic circuit	More stable long-term operation

These cases show one important point: ceramic PCB is selected to solve a specific bottleneck. It should be introduced when the thermal path, insulation demand, or environmental stress makes standard PCB materials less suitable.

Design Guidelines for Automotive Ceramic PCB

A strong automotive ceramic PCB starts with design decisions made before manufacturing. Engineers should not treat ceramic as only a material upgrade. The layout, copper geometry, substrate thickness, component placement, and mechanical mounting all affect reliability.

Key design points include:

Place high-heat components close to the main thermal path.
Avoid sharp copper corners where stress can concentrate.
Keep copper distribution balanced to reduce warpage.
Reserve safe edge clearance because ceramic edges are more fragile than FR4.
Control hole placement and avoid unnecessary mechanical stress points.
Match copper thickness with current load and heat-spreading needs.
Review solder pad size carefully to control voiding and wetting.
Define voltage clearance based on working voltage and pollution environment.
Confirm mounting torque, screw position, and support structure early.
Use DFM review before prototype production.

For automotive projects, the drawing should clearly specify substrate material, copper thickness, board thickness, surface finish, tolerance, flatness, test requirements, and packaging method. Missing details can create serious problems when the project moves from sample development to batch production.

Manufacturing Process Considerations

Automotive ceramic PCB manufacturing requires tighter process control than standard FR4 PCB. The right process depends on the required copper thickness, line width, substrate type, and reliability target.

DPC process usually involves ceramic cleaning, seed layer deposition, imaging, copper plating, etching, solder mask or protective layer, surface finish, profiling, and final testing. It is suitable for fine circuits and medium copper thickness.

DBC process bonds copper directly to ceramic under high temperature. It is often used for power substrates with thicker copper and strong thermal transfer.

AMB process uses active brazing material to bond copper and ceramic, especially for silicon nitride substrates. It is suitable for high-reliability power modules and harsh thermal cycling conditions.

Thick film process prints conductive, resistive, or dielectric paste on ceramic and fires it at high temperature. It is useful for hybrid circuits and functional layers.

Thin film process uses vacuum deposition and photolithography for very precise circuits. It is common in high-frequency, sensor, and precision electronic modules.

Manufacturing quality depends on ceramic surface preparation, copper adhesion, plating uniformity, sintering or bonding control, etching accuracy, flatness, edge quality, and final cleaning. For automotive applications, process stability is often more important than a single impressive parameter.

Testing Methods and Quality Control

Automotive ceramic PCB quality control should cover electrical, thermal, mechanical, and visual reliability. A simple open-short test is not enough for critical vehicle modules.

Common testing and inspection items include:

Test or Inspection	Purpose
Electrical open-short test	Confirms basic circuit continuity and isolation
Hi-pot test	Checks insulation under high voltage
AOI	Detects line defects, scratches, contamination, and pattern issues
X-ray inspection	Reviews voids, bonding, or internal defects in selected assemblies
Thermal cycling test	Evaluates stress under repeated temperature changes
Copper adhesion test	Checks bonding strength between copper and ceramic
Warpage and flatness measurement	Supports stable assembly and heat sink contact
Microsection analysis	Reviews copper thickness, plating quality, and interface structure
Ionic contamination test	Helps reduce corrosion and leakage risk
Final visual inspection	Checks edge cracks, chipping, stains, and surface defects

For automotive PCB suppliers, quality control should also include lot traceability, material certificates, process records, inspection reports, and controlled packaging. This is especially important for OEM, ODM, and batch production projects where repeatability matters more than one successful prototype.

Common Failure Modes and Factory-Level Prevention

Automotive ceramic PCB failures usually come from the interaction of material, design, assembly, and operating stress.

Failure Mode	Common Cause	Prevention Method
Ceramic cracking	Excess mounting force, poor fixture support, edge impact	Control torque, improve panel handling, add support structure
Copper delamination	Weak bonding, thermal shock, poor material match	Select proper DBC/AMB/DPC process and verify adhesion
Solder joint fatigue	CTE mismatch and repeated thermal cycling	Optimize pad design, solder profile, and component placement
Hot spots	Poor thermal path or insufficient copper area	Improve copper spreading, substrate selection, and heat sink contact
Insulation breakdown	Contamination, insufficient clearance, high voltage stress	Improve cleaning, spacing, coating, and hi-pot testing
Warpage	Unbalanced copper, process stress, thin substrate	Balance copper and control firing/bonding process
Surface contamination	Poor cleaning or packaging	Add cleanliness inspection and vacuum or dry packaging

A strong ceramic PCB manufacturer should be able to discuss these failure modes before production, not only after defects appear. For automotive projects, prevention is always cheaper than field failure analysis.

Cost Factors in Automotive Ceramic PCB

Automotive ceramic PCB cost is affected by material, board size, copper thickness, process type, tolerance, surface finish, test requirements, and order volume.

Main cost drivers include:

Ceramic material: AlN and Si3N4 usually cost more than alumina.
Process type: AMB and thin film are generally more expensive than basic alumina DPC.
Copper thickness: thicker copper increases material and processing difficulty.
Circuit precision: fine lines and tight spacing require stricter control.
Board size: larger ceramic panels are harder to process and protect.
Surface finish: ENIG, ENEPIG, silver, and other finishes affect cost.
Testing level: thermal cycling, hi-pot, cross-section, and reliability tests add cost.
Yield risk: complex structures and tight tolerances may reduce production yield.
Packaging: automotive ceramic boards need stronger protection during shipping.

The best cost strategy is not to choose the cheapest substrate. It is to define the real working conditions and avoid over-specification. For example, alumina may be enough for a moderate-power LED board, while AlN may be necessary for a compact high-power module. Using AlN where alumina is sufficient increases cost without adding meaningful value.

How to Choose a Ceramic PCB Manufacturer for Automotive Projects?

Choosing a ceramic PCB manufacturer is not only about unit price. Automotive projects need engineering support, process stability, documentation, and repeatable quality.

A qualified supplier should be able to support:

Alumina, aluminum nitride, and selected silicon nitride ceramic substrates
DPC, DBC, AMB, thick film, or other suitable manufacturing processes
Prototype development and batch production transfer
Material traceability and incoming inspection
Copper thickness verification and adhesion testing
Hi-pot, AOI, dimensional, and flatness inspection
Engineering DFM review before production
Controlled packaging for fragile ceramic substrates
Clear communication on tolerances, lead time, and process limits
OEM and ODM custom project support
Global shipping from a real China source factory without false local claims

For overseas buyers, especially in North America and Europe, the supplier should understand compliance documentation, automotive quality expectations, RoHS/REACH material control, and long-term repeat orders. For Southeast Asian and emerging markets, flexible MOQ, stable lead time, and cost-performance balance may be more important. In both cases, transparent engineering communication is more valuable than a low quotation with unclear process details.

RFQ Checklist Before Placing an Order

Before requesting a quotation, prepare a complete technical package. This helps the supplier give a more accurate price and reduces sample risk.

RFQ Item	Why It Matters
Gerber files	Defines circuit pattern
BOM and assembly drawing if PCBA is needed	Helps review component and soldering requirements
Substrate material	Determines thermal and mechanical performance
Ceramic thickness	Affects strength, insulation, and heat transfer
Copper thickness	Affects current capacity and heat spreading
Surface finish	Affects solderability, bonding, and storage life
Working voltage and current	Helps define clearance, insulation, and copper design
Operating temperature range	Supports thermal reliability review
Thermal target or power loss	Helps select alumina, AlN, or Si3N4
Quantity and forecast	Affects process planning and cost
Test requirements	Clarifies quality control level
Packaging requirement	Prevents ceramic damage during shipment

If your project is still in early development, share the application environment and expected power level first. A responsible ceramic PCB supplier can help narrow the material and process direction before the final drawing is frozen.

Frequently Asked Questions About Automotive Ceramic PCB

What is an automotive ceramic PCB used for?
An automotive ceramic PCB is used in vehicle electronic modules that need strong heat dissipation, electrical insulation, and long-term reliability. Common applications include EV power modules, LED headlights, DC-DC converters, battery-related circuits, sensors, high-power control boards, and hybrid electronic modules.

Is ceramic PCB better than FR4 for automotive electronics?
Ceramic PCB is better when the main challenge is heat, high voltage, thermal cycling, or compact power density. FR4 is still better for many low-power signal and control boards because it is lower cost, easier to process, and more flexible for multilayer routing.

Which ceramic material is best for automotive PCB?
There is no single best material for every automotive project. Alumina is cost-effective for moderate heat. Aluminum nitride is better for high thermal conductivity. Silicon nitride is useful when mechanical strength and thermal shock resistance are critical, especially in demanding power modules.

What is the difference between DPC and DBC ceramic PCB?
DPC ceramic PCB is better for fine circuits, plated copper control, and compact modules. DBC ceramic PCB is better for thicker copper and high-power thermal paths. For automotive power electronics, DBC is often considered when current and heat load are higher.

When should I choose AMB ceramic PCB?
AMB ceramic PCB is often selected for high-reliability power modules, especially when silicon nitride substrates are used. It offers strong bonding performance and good thermal cycling resistance, making it suitable for EV power modules and harsh automotive environments.

Can ceramic PCB be used for automotive LED headlights?
Yes. Ceramic PCB is widely used in high-power automotive LED lighting because it helps transfer heat away from LED chips. Better thermal control can support stable brightness, longer service life, and more compact headlight module design.

Why is automotive ceramic PCB more expensive than FR4?
Ceramic substrates cost more than FR4 laminates, and the manufacturing process is more specialized. Cost also increases with AlN or Si3N4 material, thick copper, fine lines, tight tolerances, surface finish requirements, and automotive-level testing.

Does ceramic PCB crack easily?
Ceramic PCB is more brittle than FR4, so it needs careful handling, proper packaging, controlled mounting force, and good fixture design. With correct mechanical design and production control, ceramic boards can perform reliably in demanding automotive applications.

What tests are important for automotive ceramic PCB?
Important tests include open-short testing, hi-pot insulation testing, AOI, copper adhesion testing, flatness measurement, thermal cycling, dimensional inspection, and microsection analysis when needed. For high-reliability modules, test requirements should be confirmed before production.

Can ceramic PCB support high-current automotive components?
Yes, especially when DBC or AMB structures with thicker copper are used. Current capability depends on copper thickness, trace width, substrate material, thermal path, operating temperature, and heat sink design. The board should be reviewed together with the full module structure.

How do I choose between alumina and aluminum nitride?
Choose alumina when cost control matters and the heat load is moderate. Choose aluminum nitride when the design needs much better thermal conductivity in a compact space. The decision should be based on power loss, junction temperature target, board size, and total thermal resistance.

What information should I send to a ceramic PCB supplier?
Send Gerber files, substrate material, copper thickness, ceramic thickness, surface finish, working voltage, current load, operating temperature, quantity, testing needs, and application details. If the design is not finalized, share the thermal and mechanical requirements first.

Can a China ceramic PCB manufacturer support global automotive projects?
Yes, if the manufacturer has real ceramic PCB production capability, material traceability, engineering review, quality documentation, stable process control, and global shipping experience. Buyers should verify capabilities instead of relying only on price or generic supplier claims.

What is the biggest design mistake with automotive ceramic PCB?
The biggest mistake is replacing FR4 with ceramic without redesigning the thermal and mechanical structure. Ceramic PCB requires proper copper balance, edge clearance, mounting support, soldering control, and heat sink contact. Material selection alone cannot guarantee reliability.

Conclusion:

Automotive ceramic PCB is not a universal replacement for FR4, but it is one of the most effective solutions for vehicle modules where heat, high voltage, compact power density, and thermal cycling are the main design challenges. Alumina offers a practical cost-performance balance. Aluminum nitride supports stronger heat dissipation. Silicon nitride and AMB structures are valuable for demanding power cycling environments.

For engineering selection, start from the application conditions: power loss, operating temperature, voltage, available space, mounting structure, reliability target, and expected production volume. For procurement, focus on process capability, quality control, testing support, traceability, and whether the supplier can transfer prototypes into stable batch production.

As a China source factory and global ceramic PCB manufacturer, EBest Circuit（Best Technology） supports custom ceramic PCB development, OEM manufacturing, ODM production, prototype builds, and batch production for automotive and industrial electronics projects. If you need technical support, material selection advice, cost evaluation, or a quotation for your automotive ceramic PCB project, please contact our engineering team at sales@bestpcbs.com.

PCB Heatsink Design Guide for Reliable Thermal Control

June 1st, 2026

A PCB heatsink helps move heat away from high-power components, copper areas, and the circuit board structure so the electronic product can operate within a safe temperature range. In real projects, it is not only a metal part attached to a board. It is part of a complete thermal path that may include copper planes, thermal vias, metal cores, copper coins, thermal interface materials, airflow, enclosure design, and assembly control.

For engineers, the main goal is stable junction temperature. For buyers, the main goal is a manufacturable, repeatable, and cost-controlled thermal solution. A well-designed PCB heatsink can improve reliability in LED lighting, power supplies, motor drives, automotive electronics, telecom modules, industrial control systems, medical electronics, and high-current battery equipment.

What Is a PCB Heatsink?

A PCB heatsink is a thermal management structure used to transfer heat from hot components or hot PCB areas into the surrounding environment. It may be a separate aluminum or copper heatsink mounted on the board, or it may be integrated into the PCB through metal core material, thick copper, embedded copper coin, copper base, thermal vias, or bonded heat-conducting plates.

The heat source is usually a power device, LED, MOSFET, diode, regulator, amplifier, processor, resistor, or high-current copper area. When the component generates heat, the PCB heatsink system provides a lower-resistance path for heat to leave the device. Most designs rely on conduction first, then convection, and sometimes radiation.

A simple heatsink may solve moderate heating. A high-power design often needs a combined structure: component pad, thermal via array, copper plane, thermal interface material, heatsink body, screw or clip pressure, and controlled airflow.

Why Does PCB Heatsink Design Matter?

Heat affects electrical performance, component life, solder joint reliability, insulation stability, and enclosure safety. In compact electronics, the board area is smaller while current density and power density continue to rise. This makes thermal planning an early design task, not a final assembly correction.

Poor thermal control may cause LED lumen decay, MOSFET overheating, regulator shutdown, BGA solder fatigue, ceramic capacitor stress, connector discoloration, or local PCB delamination. In high-reliability products, even a small hot spot can shorten service life.

IPC design guidance treats thermal management as part of printed board design considerations, together with material selection, layout, conductor spacing, and manufacturability. IPC-A-610 is also commonly used as an acceptance reference for electronic assemblies, especially when inspecting soldering and assembly workmanship.

How Does a PCB Heatsink Work?

A PCB heatsink works by creating a controlled heat-transfer path.

Heat Transfer Stage	What Happens	Design Focus
Heat generation	Component converts electrical energy into heat	Power loss, current, junction temperature
Heat spreading	Heat moves through pads, copper, vias, or substrate	Copper area, via density, metal core, copper coin
Heat transfer	Heat enters heatsink through direct contact or TIM	Flatness, pressure, thermal interface material
Heat dissipation	Heat leaves the heatsink into air or enclosure	Fin area, airflow, orientation, surface treatment
System stabilization	Temperature reaches a working balance	Thermal test, simulation, load condition

A heatsink normally relies on conduction from the component to the heatsink body, then convection from the heatsink surface to air. Forced airflow improves heat removal, but many industrial and sealed products must use passive cooling. In those designs, the PCB material, copper structure, enclosure metalwork, and external mounting surface become more important.

What Are the Main Types of PCB Heatsink Solutions?

PCB heatsink design has several practical forms. The best choice depends on power loss, board size, available height, airflow, insulation needs, cost target, and production volume.

Type	Typical Structure	Best Used For
Surface-mounted heatsink	Aluminum or copper part attached above a component	Regulators, processors, MOSFETs, power ICs
Through-hole or clip-mounted heatsink	Mechanically fixed heatsink with pins, clips, or screws	Higher vibration or heavier thermal parts

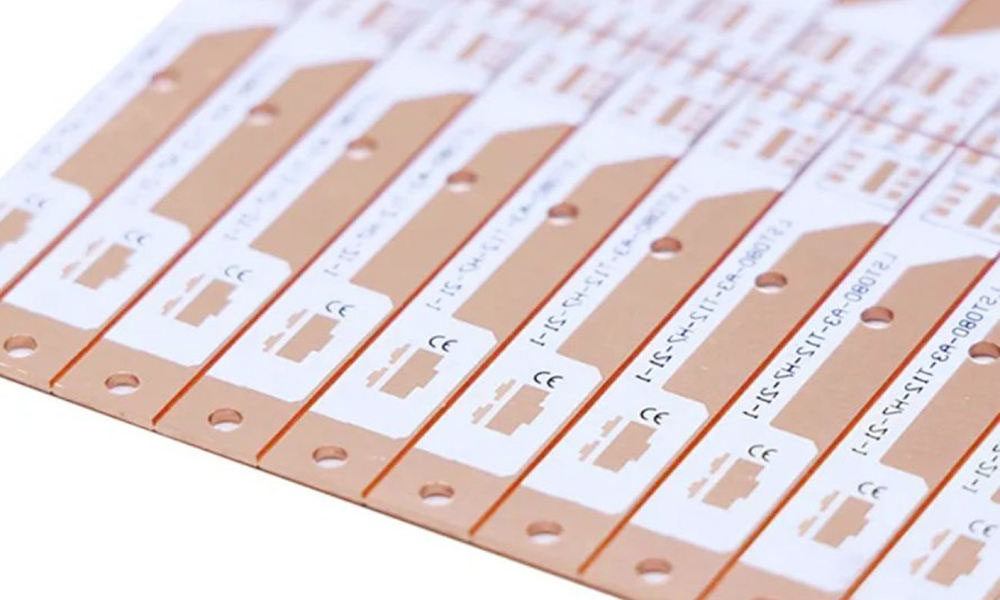

Metal core PCB	Aluminum or copper substrate under dielectric and copper circuit	LED boards, power modules, lighting products
Heavy copper PCB	Increased copper thickness for current and heat spreading	High-current power boards
Thermal via PCB	Via array under hot pad connected to copper planes	Compact SMT thermal designs
Copper coin PCB	Solid copper insert under high-power component	Local high-heat flux applications

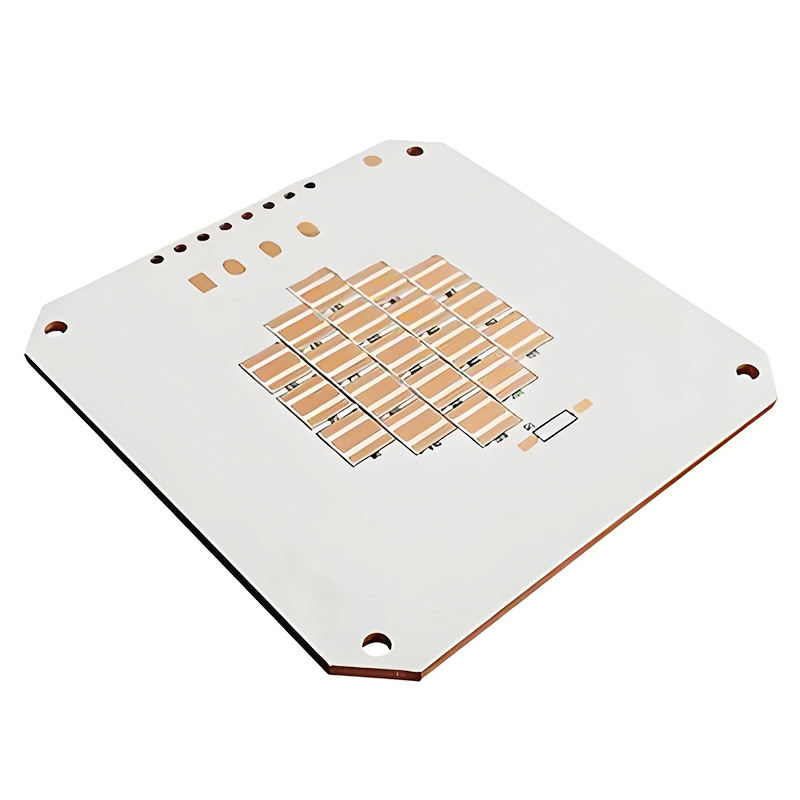

Copper base PCB	Copper substrate supports stronger thermal transfer	High-power LED, power conversion, automotive lighting
Bonded heatsink PCB	Metal heat plate bonded to PCB	Industrial power and high-temperature assemblies

A surface heatsink is easier to source and assemble, but it needs board space and mechanical clearance. A metal core or copper base PCB gives better board-level heat spreading, but fabrication control and dielectric selection become more critical. Copper coin technology is useful when heat must move vertically from a small hot component area into a larger thermal mass. Recent industry discussions also highlight embedded copper structures as a strong option for high heat-density boards.

What Materials Are Used for PCB Heatsinks?

The common heatsink materials are aluminum and copper. Aluminum is widely used because it is lightweight, easy to machine or extrude, cost-effective, and suitable for many commercial and industrial designs. Copper has higher thermal conductivity and is useful for compact, high-heat areas, but it is heavier and more expensive.

Material	Strengths	Common Use
Aluminum 6061	Good machinability, balanced strength, common industrial use	CNC heatsinks, custom brackets, power electronics
Aluminum 6063	Good extrusion performance and surface finish	Extruded fins, LED heatsinks
Copper	Strong thermal conductivity, good local heat spreading	Copper coin, copper base, high-power hotspot control
Aluminum nitride ceramic	Electrical insulation with high thermal performance	Ceramic PCB and power module substrates
Alumina ceramic	Stable insulation and moderate thermal performance	LED, sensor, and hybrid circuit applications
Thermal interface pad	Fills air gaps and supports insulation	Heatsink-to-component or board-to-case contact
Thermal grease	Low interface resistance when pressure is controlled	High-performance contact surfaces

Material choice should not rely on thermal conductivity alone. The full thermal stack includes dielectric thickness, copper thickness, contact resistance, mounting force, surface flatness, and airflow. A high-conductivity heatsink will not perform well if the interface gap is poorly controlled.

PCB Heatsink vs Thermal Vias vs Metal Core PCB

Many buyers ask whether they need a separate heatsink, thermal vias, or a metal core PCB. These options solve related problems, but they are not interchangeable.

Solution	Main Function	Advantage	Limitation
Separate PCB heatsink	Adds external heat-dissipation area	Flexible, replaceable, suitable for many components	Needs space, mounting control, TIM
Thermal vias	Move heat from top layer to inner/bottom copper	Low profile and PCB-integrated	Limited by via structure and copper area
Heavy copper	Spreads heat and carries current	Useful for power circuits	Higher fabrication cost and etching control needed
Metal core PCB	Transfers heat through board substrate	Good for LED and power boards	Usually less flexible for complex multilayer routing
Copper coin PCB	Direct vertical heat path under component	Strong local heat transfer	Requires advanced fabrication control
Copper base PCB	Stronger thermal base than aluminum	Excellent for high-power applications	Higher material and machining cost

For low to moderate power, thermal vias and copper planes may be enough. For LED modules, aluminum PCB or copper substrate may be more practical. For high-current or high-power density devices, copper coin, copper base, or external heatsink structures may be needed.

What Design Parameters Should Be Checked First?

PCB heatsink selection should begin with thermal and mechanical data, not only with a product photo. The following items should be reviewed before choosing the structure.

Parameter	Why It Matters
Power dissipation	Determines heat load that must be removed
Maximum junction temperature	Defines safe component operating limit
Ambient temperature	Affects final steady-state temperature
Board material	Controls heat spreading and insulation performance
Copper thickness	Influences current capacity and heat distribution
Available board area	Limits heatsink footprint and copper spreading area
Component height clearance	Controls heatsink shape and enclosure fit
Airflow condition	Separates passive design from forced-air design
Electrical insulation	Decides whether insulated pad or dielectric layer is needed
Vibration condition	Affects mounting style, screw design, and adhesive choice
Assembly process	Impacts soldering, cleaning, TIM application, and inspection
Certification target	May affect material, flammability, traceability, and documentation

Thermal simulation can help at the design stage, but prototype testing is still important. Real products may have heat from nearby components, limited enclosure ventilation, cable obstruction, dust, coating, or uneven mounting pressure.

How to Choose the Right PCB Heatsink Structure?

A practical selection process begins with the heat source and ends with manufacturability.

First, identify the main heat-generating components and calculate their power loss. For MOSFETs, check conduction loss and switching loss. For LEDs, review forward current, voltage, and junction-to-board thermal resistance. For regulators, check input-output voltage difference and output current.

Second, define the thermal path. Heat may move from the component pad into copper planes, through thermal vias, into a bottom-side heatsink, or through a metal substrate into the product housing.

Third, confirm mechanical space. A heatsink that performs well in theory may be unsuitable if it blocks connectors, test points, optical paths, shielding covers, or enclosure screws.

Fourth, review production volume. CNC machining is flexible for prototypes and small batches. Extrusion is efficient for repeated profiles. Die casting may fit high-volume enclosure-linked thermal structures. Stamped or skived fins can be suitable where weight, height, or surface area is critical.

Finally, match the heatsink design with quality control. A custom part must have dimensional tolerance, surface treatment, flatness, burr control, plating or anodizing requirements, and packing protection clearly defined.

What Industries Use PCB Heatsinks?

PCB heatsinks are used wherever electronic assemblies generate concentrated heat.

Industry	Common Heat Source	Typical Thermal Solution
LED lighting	High-power LED array	Aluminum PCB, copper substrate, external heatsink
Automotive electronics	LED headlights, motor drivers, radar modules	MCPCB, copper base PCB, thermal pads
Industrial control	Power supply, inverter, relay driver, IGBT/MOSFET	Heavy copper, heatsink, thermal vias
Telecommunications	RF amplifier, power module, base station electronics	Copper coin, metal-backed PCB, machined heatsink
Medical electronics	Power control, imaging, monitoring modules	Controlled materials, tested assembly, traceability
Aerospace and UAV	Motor control, power distribution, RF modules	Lightweight heatsink, high-reliability assembly
New energy	BMS, charger, inverter, energy storage control	Heavy copper, copper base, thermal interface control
Robotics	Servo drives, compact control boards	Thermal vias, board-to-case heat transfer

In LED products, the board and heatsink often form one thermal system. In power electronics, the board may need both current-carrying copper and a direct path to chassis or case metal. In RF and telecom designs, the thermal solution must also consider signal integrity, grounding, and shielding.

Practical PCB Heatsink Case Examples

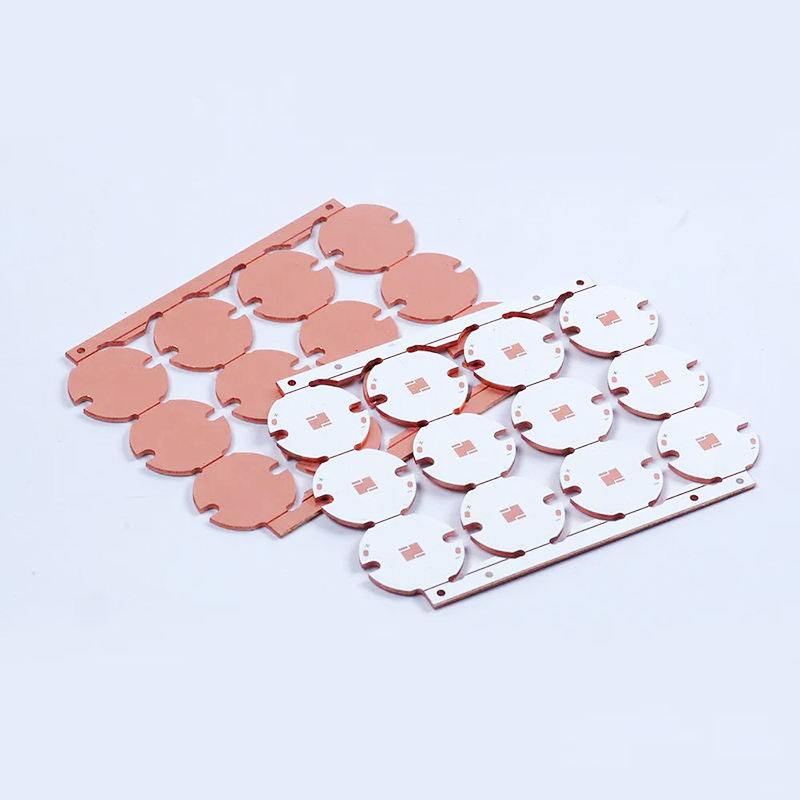

High-Power LED Module

A customer designing an industrial LED light may use an aluminum PCB for cost control. If the current increases or the LED junction temperature remains high, a copper substrate or direct thermal path structure may be considered. The key checks include dielectric thermal conductivity, LED pad flatness, solder voids, screw pressure, and contact quality between the PCB and housing.

Motor Control Board

A motor driver board often uses MOSFETs, shunt resistors, and high-current copper traces. The design may combine heavy copper, large drain copper areas, thermal vias, and a bottom-side heatsink. If vibration is present, screw locking, spacer height, and silicone support should be reviewed.

Telecom RF Power Board

An RF amplifier may need local hotspot control without disturbing impedance-sensitive areas. Copper coin or copper-filled structures can help transfer heat vertically, while the layout must still preserve RF performance. The supplier should review both thermal and electrical design rules before fabrication.

Sealed Industrial Controller

A sealed controller cannot depend on a fan. The board may need to transfer heat into the enclosure through thermal pads or metal standoffs. In this case, the enclosure becomes part of the heatsink. Compression, pad thickness, surface cleanliness, and long-term material stability matter.

Common PCB Heatsink Failure Modes

Thermal problems often appear after assembly, field use, or environmental testing. Many failures come from small process details.

Failure Mode	Likely Cause	Prevention Method
Hot component still overheats	Thermal path not continuous	Review pad, via, copper, TIM, and heatsink contact
Heatsink becomes loose	Weak adhesive or poor mechanical fixing	Use screws, clips, staking, or qualified adhesive
Solder joint fatigue	Thermal cycling and mechanical stress	Improve heat spreading and reduce heatsink weight load
PCB discoloration	Local temperature too high	Increase copper area, use better substrate, improve airflow
Poor insulation	Wrong thermal pad or damaged dielectric	Confirm voltage rating and pad placement
High temperature variation	Uneven pressure or warped surface	Control flatness, screw torque, and pad compression
Corrosion or oxidation	Unsuitable surface finish or environment	Select proper anodizing, plating, coating, or sealing
Assembly interference	Heatsink blocks components or test access	Check 3D model before tooling

For Class 2 and Class 3 products, inspection requirements and workmanship control should be defined before production. IPC-A-610 is widely referenced for assembly acceptance criteria, while UL 94 is often considered when evaluating material flammability behavior in electronic products.

What Affects PCB Heatsink Cost?

PCB heatsink cost is influenced by both the metal part and the PCB thermal design.

Cost Factor	Impact
Material	Copper costs more than aluminum; ceramic substrates cost more than FR4
Manufacturing process	Extrusion, CNC, die casting, skiving, stamping, and bonding have different tooling needs
Tolerance	Tight flatness, hole position, and surface finish increase process control
Surface treatment	Anodizing, plating, passivation, or coating adds cost
Volume	Tooling can reduce unit cost when quantity is stable
Assembly method	Screws, clips, pads, grease, adhesive, and manual work affect labor cost
Testing	Thermal testing, X-ray, electrical test, and reliability testing add value and cost
Documentation	Traceability, inspection reports, and compliance files require extra control

The lowest-cost design is not always the best-value design. A slightly higher substrate cost may reduce heatsink size. A better interface pad may improve repeatability. A clearer mechanical design may reduce assembly labor and rework. Cost should be reviewed at system level, not only part level.

How Is PCB Heatsink Quality Controlled?

Quality control should cover design review, incoming material inspection, fabrication, assembly, and final testing.

For PCB fabrication, important checks include copper thickness, dielectric thickness, drill quality, plating integrity, solder mask registration, surface finish, and electrical test. For heatsink parts, checks include dimension, flatness, hole position, burrs, surface treatment, cleanliness, and packing.

For assembly, operators should control thermal pad placement, grease amount, screw torque, clip pressure, adhesive curing, and component clearance. For high-power products, thermal testing under load is strongly recommended. X-ray inspection may be used to check solder voids under thermal pads, BGAs, power packages, or large bottom-terminated components.

RoHS compliance may also be required for products entering regulated markets because the EU RoHS Directive restricts hazardous substances in electrical and electronic equipment.

How to Choose a PCB Heatsink Supplier?

A reliable supplier should understand both PCB manufacturing and thermal assembly. A metal heatsink supplier may know machining, but may not understand PCB stack-up, copper balance, soldering limits, creepage, insulation, and SMT assembly. A PCB factory may understand board fabrication, but may not always support mechanical heatsink integration.

For B2B buyers, the better choice is often a manufacturer that can review Gerber files, BOM, PCB stack-up, mechanical drawings, thermal drawings, and assembly requirements together.

Before placing an order, check whether the supplier can support:

Supplier Capability	Why It Matters
DFM review	Finds thermal, mechanical, and assembly risks early
PCB fabrication	Controls copper, dielectric, vias, and stack-up
PCBA assembly	Ensures heatsink does not conflict with SMT/THT process
Component sourcing	Helps match thermal package and availability
Mechanical part support	Coordinates heatsink drawing, tolerance, and surface finish
Testing	Verifies electrical and thermal performance
Traceability	Supports regulated and long-life products
Prototype to mass production	Reduces design transfer risk

A China-based source factory can be a strong option for custom PCB heatsink projects when the buyer needs engineering communication, flexible customization, prototype support, batch production, and global shipment without unnecessary trading layers. The key is to verify real manufacturing capability, not only a product catalog.

What Should Be Checked Before Ordering?

Before sending RFQ, prepare a complete technical package. This reduces back-and-forth communication and improves quotation accuracy.

File or Requirement	Recommended Detail
Gerber files	Final PCB production data
BOM	Component part numbers, package, power rating
Pick-and-place file	Coordinates and rotation for assembly
Stack-up requirement	Material, thickness, copper weight, dielectric
Mechanical drawing	Heatsink size, holes, height, tolerance
Thermal target	Power dissipation, ambient temperature, max surface temperature
Interface material	Pad, grease, adhesive, insulation requirement
Surface finish	ENIG, HASL, OSP, immersion silver, or others
Compliance	RoHS, UL, IPC class, customer-specific standard
Testing plan	E-test, AOI, X-ray, functional test, thermal test
Quantity and schedule	Prototype, pilot run, mass production
Packing requirement	Anti-static, scratch protection, export packing

A strong supplier will not only quote the price. They should also ask about temperature rise, airflow, enclosure contact, insulation, and assembly method when the design has obvious thermal risk.

FAQ About PCB Heatsink

What is the purpose of a PCB heatsink?
A PCB heatsink removes heat from components or hot board areas and transfers it to air, enclosure metal, or another cooling surface. It helps maintain safe operating temperature, improve component life, and reduce field failures caused by overheating.

Is a PCB heatsink always required?
No. Some boards can control heat through copper planes, thermal vias, component spacing, or airflow. A heatsink becomes necessary when these methods cannot keep components within the required temperature limit during real operating conditions.

Which is better for PCB heatsink, aluminum or copper?
Copper offers stronger thermal conductivity, while aluminum is lighter, easier to process, and more cost-effective. Aluminum is common for external heatsinks. Copper is often selected for copper coins, copper base PCBs, and compact high-heat areas.

Can FR4 PCB use a heatsink?
Yes. FR4 boards can use surface-mounted or mechanically fixed heatsinks. However, FR4 has limited thermal conductivity compared with metal core or ceramic substrates, so thermal vias, copper planes, and interface materials should be carefully designed.

What is the difference between MCPCB and PCB heatsink?
An MCPCB uses a metal core as part of the board structure, while a PCB heatsink may be an external metal part attached to a standard or special PCB. Many LED and power products use both concepts together.

What is a copper coin PCB?
A copper coin PCB uses a solid copper insert under a high-power component to create a direct heat path through the board. It is useful for localized hotspots where normal vias and copper planes may not remove heat fast enough.

Do thermal vias replace a heatsink?
Thermal vias can reduce local temperature by transferring heat between layers, but they do not always replace a heatsink. If total power is high or airflow is weak, the design may still need an external heatsink or metal base.

What thermal interface material should be used?
Thermal pads are useful when insulation, gap filling, and easier assembly are needed. Thermal grease can provide strong contact performance but requires controlled application. The choice depends on voltage, pressure, surface flatness, and rework needs.

How do you test PCB heatsink performance?
Testing usually includes temperature measurement under rated load, thermal camera review, thermocouple placement, functional testing, and sometimes chamber testing. The product should be tested in its real enclosure or a setup close to final use.

Why does a heatsink still fail after installation?
Common causes include poor contact, insufficient mounting pressure, wrong pad thickness, warped surfaces, blocked airflow, solder voids, or underestimated power loss. The full heat path must be checked instead of only increasing heatsink size.

Can a PCB heatsink be customized?
Yes. Custom PCB heatsinks can be designed by material, size, fin shape, hole position, surface treatment, and mounting style. Customization is common in power electronics, LED lighting, automotive modules, and industrial control equipment.

What information is needed for a PCB heatsink quotation?
A supplier usually needs PCB files, BOM, mechanical drawings, power data, target temperature, operating environment, quantity, surface finish, compliance requirements, and assembly method. More complete data leads to a more accurate quotation.

Conclusion：

A PCB heatsink should be selected as part of the complete thermal system, not as an isolated metal accessory. The right design depends on power loss, board material, copper structure, component package, airflow, enclosure contact, insulation, assembly pressure, and production volume.

For general projects, aluminum heatsinks, thermal vias, and copper planes may provide a practical balance of cost and performance. For higher power density, copper base PCB, heavy copper PCB, copper coin structures, metal core PCB, ceramic PCB, or board-to-case thermal transfer may be more suitable.

At EBest Circuit (Best Technology), we support PCB fabrication, PCBA assembly, DFM review, component sourcing, thermal design optimization, testing, and custom engineering solutions for prototype and mass production projects.

If you are working on a PCB heatsink, metal core PCB, copper base PCB, high-power LED PCB, power electronics board, or custom thermal management project, our engineering team can help review your design and provide practical manufacturing suggestions. Email: sales@bestpcbs.com

Telecom PCB Manufacturing Services for High-Speed Communication Equipment

June 1st, 2026

Are you looking for telecom pcb manufacturing services that deliver reliable quality and on-time delivery for high-speed communication projects? Many procurement teams face delays, unstable product performance, or unclear supplier capabilities when sourcing communication PCBs.

EBest provides complete telecom pcb manufacturing services, covering prototypes, batch production, component sourcing, assembly, and urgent orders. With a wide PCB portfolio and proven manufacturing experience, EBest helps buyers simplify sourcing, reduce project risk, and keep delivery schedules under control.

What Are Telecom PCB Manufacturing Services and What Do They Include?

Telecom PCB manufacturing services encompass the full production process for printed circuit boards used in communication equipment. This typically includes PCB design review, material selection, prototyping, mass production, component sourcing, PCB assembly, inspection, testing, packaging, and delivery.

These services are not just about producing boards. They ensure that each PCB meets the required performance, reliability, and delivery standards. A competent supplier verifies board structure, material choice, copper thickness, surface finish, and manufacturing tolerances before production begins to prevent potential issues later.

A trusted telecom circuit board manufacturing partner also accommodates different project stages. Whether a project requires fast prototypes for validation or stable batch production for long-term supply, EBest supports the entire workflow, helping projects move smoothly from initial testing to full-scale production with minimal risk and clear communication.

Where Are Telecom PCBs Used in High-Speed Communication Equipment?

Telecom PCBs are used in communication devices that handle signal transmission, data processing, power control, and network connection. They help equipment maintain stable performance in high-speed and long-term operation.

5G Base Stations
Used in RF units, control boards, and signal processing modules to support stable wireless transmission.

Routers and Network Switches
Used for data routing, network control, and high-speed signal transmission.

Optical Communication Equipment
Used in optical modules, fiber optic devices, and transmission systems to support low-loss communication.

Wireless Communication Devices
Used in gateways, repeaters, terminals, and wireless modules for signal receiving and transmitting.

Network Servers and Data Systems
Used in servers, storage equipment, and data communication systems that require stable high-speed performance.

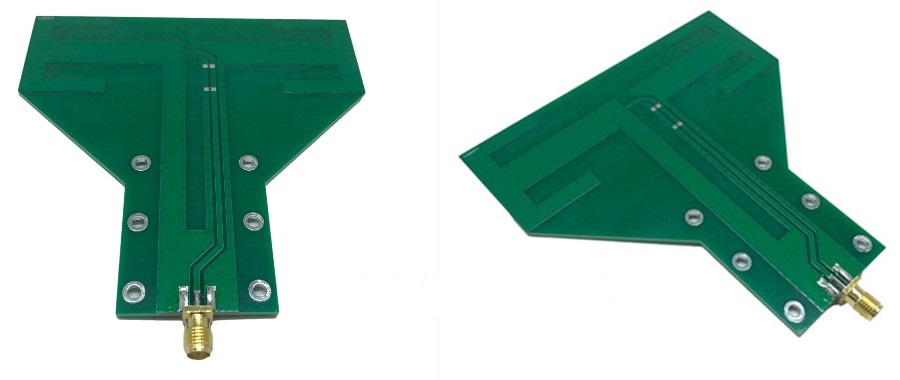

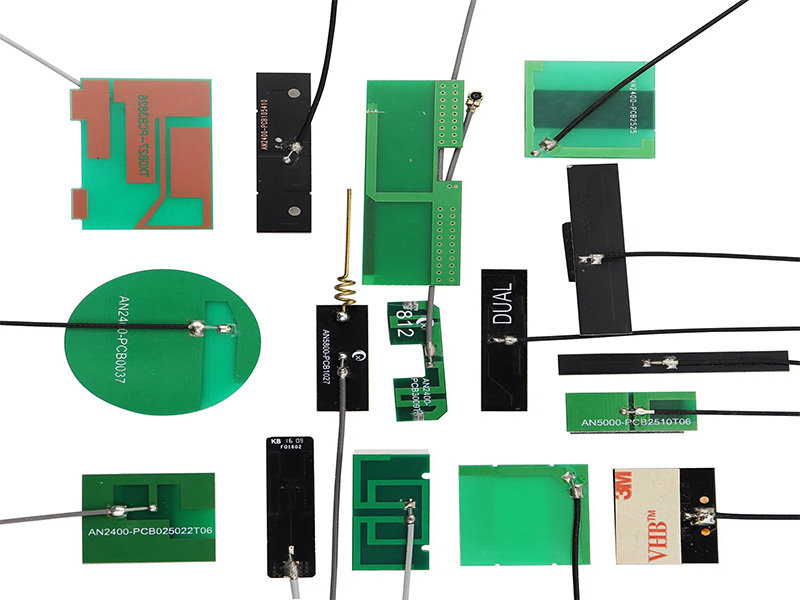

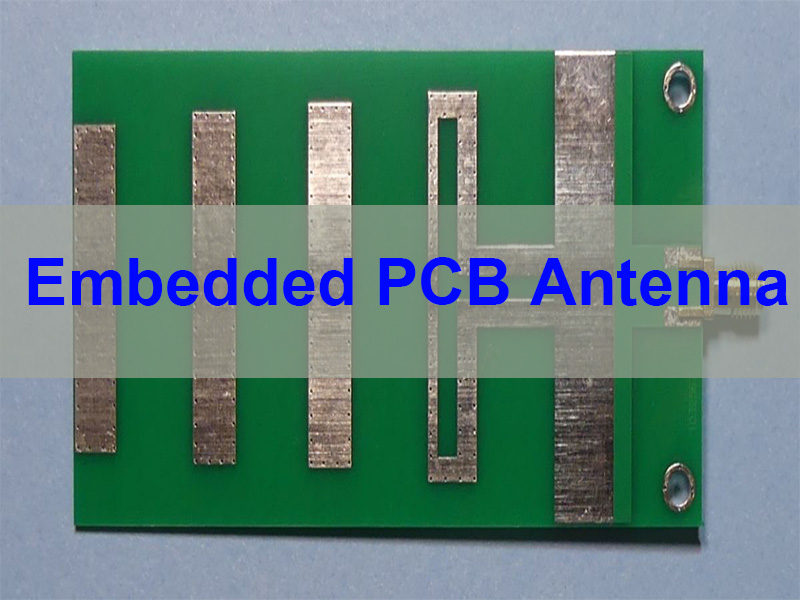

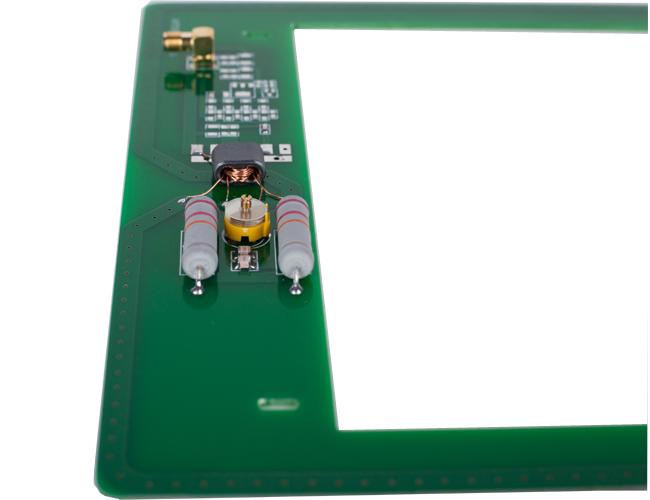

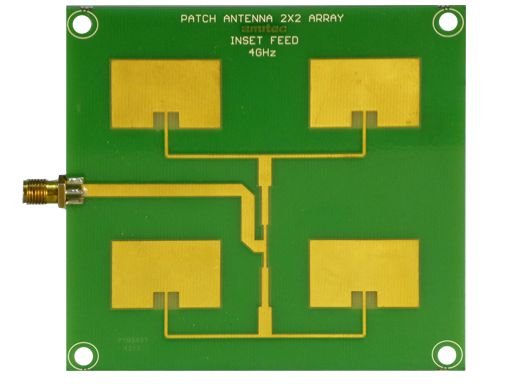

Antenna and RF Modules
Used in RF systems where impedance control, material stability, and low signal loss are important.

Industrial Communication Equipment
Used in industrial gateways, controllers, and remote monitoring devices for reliable network communication.

Why Do Telecom PCBs Require High Reliability and Signal Stability?

Telecom PCBs are essential for high-speed communication systems where even small signal interruptions can affect overall performance. Boards must maintain consistent electrical characteristics to ensure fast, accurate data transmission.

Precise impedance control, consistent layer alignment, and uniform material properties are critical. Variations in copper thickness, surface finish, or board structure can lead to signal degradation, crosstalk, or electromagnetic interference, impacting device performance.

These PCBs often operate continuously under demanding conditions including high temperatures and electrical load. Reliability ensures the board performs consistently over time without failure.

High reliability and signal stability allow communication equipment such as base stations, routers, optical modules, and RF devices to function efficiently, deliver accurate data, and maintain network integrity across all operating conditions.

What Technical Requirements Should Be Confirmed Before Telecom PCB Production?

Before starting production, key technical requirements should be clearly defined to ensure signal performance, reliability, and accurate assembly for telecom PCBs. For telecom pcb manufacturing services, these details help confirm whether the board can meet high-speed communication requirements before production begins.

Technical Requirement	Typical Values
PCB Layer Count	2, 4, 6, 8, 10, 12 layers
Base Material	FR4 Tg 130°C, FR4 Tg 170°C, Rogers 4350B, PTFE
Board Thickness	0.4 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.6 mm
Copper Thickness	1 oz/ft² 35 μm, 2 oz/ft² 70 μm, 3 oz/ft² 105 μm
Impedance Control	50 Ω ±5%, 75 Ω ±5%, 100 Ω differential ±10%
Line Width / Spacing	Minimum 3 mil / 3 mil, 4 mil / 4 mil, 5 mil / 5 mil
Hole Size / Via	0.2 mm to 1.0 mm, through-hole, blind via, buried via, microvia
Surface Finish	HASL, ENIG, OSP, immersion silver, immersion tin
Solder Mask	15 to 20 μm thickness, green, blue, or black
Silkscreen	0.1 mm line width, white or black ink
Assembly Method	SMT, through-hole, mixed technology
Testing Requirements	Flying probe, ICT, AOI, impedance test, functional test
Production Quantity	Prototype: 1 to 10 pcs, small batch: 10 to 500 pcs, mass production: over 500 pcs
Delivery Lead Time	Prototype: 1 to 3 weeks, small batch: 2 to 4 weeks, mass production: 4 to 8 weeks

What Standards Should Telecom PCB Manufacturing Services Follow?

Telecom PCB manufacturing requires adherence to recognized quality, safety, and environmental standards to ensure reliable performance and long-term stability.

ISO 9001:2015
Focuses on overall quality management, ensuring consistent production processes and documentation control.

IPC Standards
Standards such as IPC-A-600, IPC-6012, and IPC-A-610 define PCB acceptability, performance requirements, and assembly quality, ensuring consistent manufacturing results.

UL Certification
Verifies product safety and material reliability, supporting compliance with international safety regulations.

RoHS Compliance
Limits the use of hazardous substances in PCBs, ensuring environmentally safe production for global markets.

REACH Compliance
Controls the use of chemical substances, promoting environmentally responsible PCB manufacturing.

IATF 16949
A standard primarily used for automotive-related PCBs. It ensures rigorous process control, traceability, and defect prevention.

ISO 13485
Applies to medical device-related PCBs. It emphasizes consistent production quality, risk management, and regulatory compliance.

AS9100D
Used in aerospace and defense PCB production. It focuses on process reliability, risk management, and quality control for high-performance applications.

What Challenges Are Common in Telecom PCB Manufacturing?

Telecom PCB manufacturing is more demanding than standard PCB production because communication equipment must handle fast signals, long operating hours, and stable data transmission. Even small process variations can affect signal quality, assembly reliability, or final product performance.

Signal Loss
High-speed signals can weaken during transmission if the material, stack-up, or trace design is not properly controlled. Low-loss materials and stable production processes help reduce this risk.

Impedance Control
Telecom PCBs often require controlled impedance, such as 50 Ω single-ended or 100 Ω differential impedance. If impedance values are not stable, signal reflection and transmission errors may occur.

Multilayer Alignment
Many telecom PCBs use multilayer structures to support complex routing and compact product design. Accurate layer alignment is important for stable connections, reliable vias, and consistent electrical performance.

High-Density Routing
Communication boards often include fine traces, small spacing, and dense component areas. This requires precise manufacturing capability to avoid short circuits, open circuits, and yield loss.

Thermal Management
Telecom equipment may work continuously under high load. Good heat control helps prevent material deformation, component stress, and long-term reliability issues.

Assembly Reliability
Fine-pitch components, BGAs, connectors, and RF modules require accurate placement and stable soldering. Poor assembly control can lead to weak solder joints, hidden defects, or unstable operation.

Testing Consistency
Telecom PCBs often require electrical testing, impedance testing, AOI, X-ray inspection, or functional testing. Consistent testing helps confirm board quality before shipment and reduces project risk.

How Does the Telecom PCB Manufacturing Process Work?

Telecom PCB production requires a controlled process because these boards are often used in high-speed, high-frequency, and long-term operating communication equipment. Each step must support stable signal transmission, accurate layer structure, reliable assembly, and consistent product quality.

Step 1: Production File Review
Production starts with checking Gerber files, drill files, stack-up, impedance requirements, material specifications, copper thickness, and surface finish. This step confirms whether the design is suitable for telecom PCB manufacturing before materials are prepared.

Step 2: Material Preparation
The required laminate, copper foil, prepreg, and core materials are prepared according to the project specifications. For telecom PCBs, material stability is important because it affects signal loss, impedance control, heat resistance, and long-term reliability.

Step 3: Inner Layer Imaging and Etching
For multilayer telecom PCBs, the inner circuit layers are first transferred onto copper-clad laminates. After imaging and etching, the inner layer circuits are inspected to ensure correct trace width, spacing, and pattern accuracy.

Step 4: Layer Lamination
The inner layers, prepreg, and copper foil are stacked and pressed together under controlled temperature and pressure. Accurate lamination helps maintain board thickness, layer alignment, and electrical stability.

Step 5: Drilling and Via Formation
Mechanical drilling or laser drilling is used to create through holes, blind vias, buried vias, or microvias. These vias build electrical connections between different layers and are especially important for dense telecom PCB designs.

Step 6: Copper Plating
After drilling, copper is deposited inside the holes and on the board surface. Good plating quality ensures reliable layer-to-layer connection, stable current flow, and long-term board durability.

Step 7: Outer Layer Circuit Formation
The outer layer circuit pattern is created through imaging, plating, and etching. For telecom PCBs, line width, spacing, and copper uniformity must be carefully controlled to support signal stability and production consistency.

Step 8: Solder Mask Application
Solder mask is applied to protect copper traces, prevent oxidation, and reduce the risk of solder bridging during assembly. Accurate solder mask openings are important for fine-pitch components and high-density communication boards.

Step 9: Surface Finish Treatment
Surface finishes such as ENIG, HASL, OSP, immersion silver, or immersion tin are applied to protect exposed copper and improve solderability. The right finish depends on assembly requirements, storage time, and product reliability needs.

Step 10: Electrical Test and Impedance Test
Telecom PCBs are tested for open circuits, short circuits, and electrical continuity. If controlled impedance is required, impedance testing is also performed to verify whether the board meets the target values.

Step 11: PCB Assembly if Required
When the project includes assembly, the process continues with component sourcing, solder paste printing, SMT placement, reflow soldering, through-hole assembly, AOI inspection, X-ray inspection, and functional testing.

Step 12: Final Inspection and Packaging
Before delivery, the finished boards are checked for appearance, dimensions, markings, cleanliness, and packaging requirements. Proper packaging helps protect telecom PCBs from moisture, contamination, and handling damage during shipment.

What Telecom PCB Manufacturing Services Does EBest Offer?

EBest provides one-stop telecom pcb manufacturing services for communication equipment projects, covering PCB fabrication, assembly support, component sourcing, testing, and delivery coordination. These services help simplify project management from prototype to mass production.

PCB Design Support
EBest can support file review, DFM checking, stack-up discussion, and production feasibility confirmation before manufacturing begins.

PCB Prototype Production
Prototype service helps verify board structure, material selection, assembly fit, and basic performance before moving to larger production quantities.

Mass PCB Production
EBest supports stable batch production for telecom PCB orders that require consistent quality, repeatable processes, and long-term supply support.

Component Sourcing
For assembly projects, EBest can help source components according to the BOM, reducing coordination work and improving project efficiency.

PCB Assembly
EBest provides PCB assembly services, including SMT assembly, through-hole assembly, mixed assembly, inspection, and testing support.

High-Speed and RF PCB Manufacturing
EBest supports PCB projects that require high-speed materials, RF performance, impedance control, multilayer structures, and stable signal transmission.

HDI and Multilayer PCB Production
For compact communication equipment, EBest can support HDI and multilayer PCB production with fine routing, small vias, and dense circuit structures.

Testing and Inspection Support
Testing support can include electrical testing, AOI, X-ray inspection, impedance testing, functional testing, and other project-specific quality checks.

Expedited PCB Service
For urgent projects, EBest can support expedited production when files, materials, and production conditions are confirmed.

One-Stop Project Coordination
EBest helps coordinate PCB production, assembly, testing, packaging, and delivery through one supplier, reducing communication gaps and improving project control.

How Does EBest Control Quality in Telecom PCB Manufacturing?

EBest controls quality from the first review stage, not only at final inspection. For telecom pcb manufacturing services, our team checks Gerber files, stack up, impedance requirements, material selection, copper thickness, surface finish, and assembly details before production starts. This helps reduce hidden risks before the order enters manufacturing.

During production, EBest manages each key process carefully, including drilling, plating, lamination, imaging, solder mask, surface finish, routing, and assembly. For telecom PCBs, stable process control is essential because small variations may affect signal transmission, impedance consistency, and long term reliability.

Quality inspection is carried out through multiple steps according to project needs. Common checks include electrical testing, AOI inspection, impedance testing, visual inspection, dimensional inspection, X-ray inspection for assembled boards, and functional testing. These checks help confirm that each board meets the required specifications before shipment.

EBest also follows strict quality and compliance requirements for demanding PCB projects. With controlled production, inspection records, material traceability, and reliable testing support, EBest helps customers receive telecom PCBs with stable quality, lower rework risk, and stronger confidence for future repeat orders.

How Does EBest Ensure On-Time Delivery for Telecom PCB Orders?

EBest improves delivery reliability by confirming project details clearly before production starts. Gerber files, BOM, materials, copper thickness, surface finish, assembly needs, testing requirements, quantity, and target delivery date are reviewed in advance. Clear confirmation helps prevent delays caused by missing or unclear information.

Our integrated service also helps shorten the project cycle. EBest can coordinate PCB fabrication, component sourcing, PCB assembly, testing, packaging, and delivery in one workflow. This reduces communication gaps and keeps the project schedule easier to manage.

Production planning is arranged according to order urgency, material availability, process complexity, and testing requirements. Whether the project is a prototype, small batch, or repeat order, EBest works to keep each step moving smoothly while maintaining stable production quality.

For urgent telecom PCB projects, EBest can provide expedited service when files, materials, and production conditions are confirmed. Some urgent boards can be shipped within 24 hours, helping customers respond faster to sample approval, project deadlines, or unexpected production needs.

Why Choose EBest for Telecom PCB Manufacturing Services?

Choosing EBest for telecom pcb manufacturing services means working with a PCB manufacturing partner that helps reduce project risk, improve quality stability, and keep telecom PCB orders on schedule. For communication equipment projects, customers need reliable production, certified quality systems, strong process capability, and responsive project support.

Certified Quality Systems
EBest supports ISO 9001:2015, IATF 16949, ISO 13485:2016, AS9100D, UL, RoHS, and REACH. These certifications help customers reduce supplier evaluation risk and build confidence in long-term cooperation.

Strong Process Capability
Telecom PCBs may require multilayer structures, impedance control, high-speed signals, RF performance, HDI design, fine lines, and small vias. EBest supports these requirements for both standard and complex communication PCB projects.

One-Stop Service Support
EBest provides PCB design support, prototyping, mass production, component sourcing, PCB assembly, testing, packaging, and delivery coordination. This helps reduce communication errors and saves time compared with managing multiple suppliers.

Reliable Delivery Control
EBest supports standard production and expedited service for urgent orders. When files, materials, and production conditions are ready, urgent telecom PCB orders can move quickly to support tight project schedules.

Stable Quality from Sample to Batch Production
EBest focuses on material confirmation, process control, electrical testing, AOI inspection, impedance testing, X-ray inspection, and functional testing. This helps maintain consistent quality from prototypes to mass production.

Wide PCB Capability
EBest supports FR4 PCB, high Tg PCB, RF PCB, high-speed PCB, HDI PCB, multilayer PCB, metal core PCB, ceramic PCB, flexible PCB, rigid-flex PCB, heavy copper PCB, extra thin PCB, and impedance control PCB for different telecom applications.

Practical Cost Control
EBest helps customers choose suitable materials, processes, surface finishes, and testing methods based on actual project needs. This avoids unnecessary over-specification while keeping the required quality and reliability.

Responsive Communication
EBest provides clear feedback on manufacturability, material options, assembly needs, testing requirements, and delivery feasibility. This helps customers make faster decisions and move orders forward with greater confidence.

FAQs About Telecom PCB Manufacturing Services

Q1: What information is needed for a telecom PCB quotation?
A1: Please provide Gerber files, BOM, PCB specifications, material requirements, quantity, surface finish, testing needs, and expected delivery time. If assembly is required, placement files and component details should also be included.

Q2: Can telecom PCB production support both prototypes and mass production?
A2: Yes. A reliable telecom PCB supplier should support prototype validation, small batch production, and stable mass production. This helps projects move smoothly from sample testing to long-term supply.

Q3: What makes telecom PCBs different from standard PCBs?
A3: Telecom PCBs usually require better signal stability, impedance control, multilayer alignment, material stability, and testing accuracy. These requirements help support high-speed communication and long-term equipment operation.

Q4: What PCB types are commonly used in telecom equipment?
A4: Common options include multilayer PCB, high-speed PCB, RF PCB, HDI PCB, impedance control PCB, high Tg PCB, rigid-flex PCB, and metal core PCB. The right choice depends on signal speed, frequency, heat load, and product structure.

Q5: Does EBest provide PCB assembly for telecom projects?
A5: Yes. EBest supports PCB fabrication, component sourcing, SMT assembly, through-hole assembly, mixed assembly, inspection, testing, and delivery coordination. This helps simplify the full project process.

Q6: How does EBest help reduce telecom PCB project risk?
A6: EBest reviews files, materials, stack-up, impedance, assembly needs, and testing requirements before production. This helps identify risks early, reduce rework, and improve production stability.

Q7: Can EBest support urgent telecom PCB orders?
A7: Yes. EBest supports expedited production when files, materials, and production conditions are confirmed. This helps urgent prototypes or time-sensitive telecom PCB orders move forward faster.

How Can You Start Your Telecom PCB Project with EBest?

Starting your telecom PCB project with EBest is easy. Send your Gerber files, BOM, quantity, material requirements, surface finish, testing needs, assembly requirements, and target delivery time to sales@bestpcbs.com.

For reliable telecom pcb manufacturing services, EBest will review your project details, confirm production feasibility, and provide a clear quotation. Whether you need prototypes, batch production, PCB assembly, or urgent delivery, our team can help you move your telecom PCB project forward with reliable quality and professional support.

HDMI Modulation RF PCB Assembly for HDMI RF Modulator Manufacturers

May 19th, 2026

Need HDMI modulation RF products to send stable video signals through coaxial cable? A reliable HDMI RF modulator needs more than a good product design. It also needs a well-made PCB and a stable PCBA process. These devices convert HDMI video into RF signals. Then, the signal can travel through coaxial cable to TVs or receivers. They are often used in hotels, schools, CCTV systems, CATV networks, and commercial AV systems. However, the circuit board inside the product is not simple. It may include HDMI circuits, RF circuits, power parts, shielding parts, and many connectors. Therefore, good PCB fabrication and PCBA assembly can help improve signal quality, product life, and production stability.

What Is HDMI Modulation RF in Video Transmission Equipment?

HDMI modulation RF means changing an HDMI signal into an RF signal. After that, the RF signal can move through coaxial cable. This makes video distribution easier in many buildings and systems.

For example, a hotel may need to send the same video source to many rooms. A school may need to send video to different classrooms. A CCTV system may need to send camera video through an existing coaxial line. In these cases, HDMI to RF modulation can be a practical choice.

The product may be called an HDMI RF modulator, HDMI to RF modulator, HDMI RF modulator box, or HDMI to coax RF modulator. These names are different. Still, the main job is similar.

Inside the device, there is usually a PCB assembly. It may include HDMI input parts, RF output parts, tuners, filters, oscillators, power circuits, HDMI connectors, and RF connectors. Because of this, the board needs careful design and stable production.

Why Does HDMI RF Modulator Performance Depend on PCB and PCBA Quality?

An HDMI RF modulator handles two types of signals. One is a high-speed HDMI signal. The other is an RF output signal. Both signals need a stable PCB structure.

If the PCB is poorly made, the product may have weak signal output. It may also show noise, heat issues, or unstable video. In some cases, connector problems may appear after repeated cable use.

Good PCB and PCBA quality help control these risks.

Area	Why It Matters
HDMI signal lines	Help keep video input stable
RF traces	Help send clean RF output
Ground planes	Help reduce noise and EMI
Power circuits	Give stable power to key chips
HDMI connectors	Support strong cable connection
RF connectors	Help keep output signal stable
Shielding parts	Reduce signal interference
Solder joints	Improve long-term reliability

In short, a strong design still needs good production. Therefore, HDMI modulation RF products need a PCB assembly partner with high-speed and RF experience.

What PCB Types Are Used in HDMI to RF Modulator Devices?

Different HDMI to RF modulator devices may use different PCBs. The choice depends on signal speed, RF output, product size, cost, and quality needs. However, many products need multilayer PCBs.

Multilayer FR4 PCB

Many HDMI RF modulator products use 4-layer or 6-layer FR4 PCBs. This gives more room for signal lines, power layers, and ground layers. As a result, the board can support cleaner routing.

High-Speed PCB

The HDMI input section needs controlled routing. The signal pairs should be balanced. Also, the trace length and spacing should be checked. This helps protect the HDMI signal.

RF PCB

The RF section needs a clean signal path. It may also need controlled impedance. Therefore, the PCB factory must control copper thickness, trace width, and layer spacing.

Mixed-Signal PCB

Many boards include digital, RF, analog, and power circuits. These areas should be arranged well. Otherwise, noise may move from one area to another.

Impedance-Controlled PCB

HDMI lines and RF traces often need impedance control. So, the PCB stackup should match the design needs.

PCBA with Shielding Parts

Some products use metal shielding covers. These covers help reduce EMI. They also protect sensitive RF sections. During assembly, the shielding parts must fit well and solder properly.

Overall, the PCB type should match the product’s real use. A simple product may use a cost-friendly PCB. However, a commercial RF video device often needs better control.

How Does PCB Stackup Affect HDMI Modulation RF Signal Stability?

PCB stackup is very important in HDMI modulation RF products. It decides where the signal, ground, and power layers are placed. It also affects impedance, noise, and heat.

Controlled Impedance

HDMI signal lines often need controlled impedance. RF traces may also need a set impedance value, such as 50 ohms. To reach this value, the PCB factory must control trace width, copper thickness, and dielectric thickness.

Stable Ground Plane

A solid ground plane helps signals return cleanly. It also helps reduce EMI. If the ground under key traces is broken, the signal may become less stable.

Better Layer Separation

The PCB may include digital circuits, RF circuits, and power circuits. These areas can affect each other. A good stackup helps separate noisy circuits from sensitive circuits.

Heat Support

Some chips and power parts can become hot during use. Copper planes and thermal vias can help move heat away from these parts.

Stackup Factor	Why It Matters
Layer count	Gives more space for routing
Ground layer	Helps reduce signal noise
Dielectric thickness	Affects impedance
Copper thickness	Affects signal and current flow
Via design	Helps grounding and signal transfer
Layer balance	Helps reduce board warpage

Because of this, stackup review should happen before production. It helps avoid signal and manufacturing issues later.

What Are the Key PCBA Challenges in HDMI RF Modulator Manufacturing?

HDMI RF modulator PCBAs may include many small and sensitive parts. Therefore, the assembly process must be controlled well.

HDMI Connector Assembly

HDMI connectors have many pins. They also face cable stress during use. So, soldering quality is very important. Good solder joints help the connector stay stable.

RF Connector Soldering

RF connectors must align well with the PCB. The signal path from the PCB trace to the connector should be smooth. This helps reduce signal loss.

Fine-Pitch IC Placement

Many products use QFN, QFP, BGA, or other small packages. These parts need accurate placement. They also need a proper reflow process.

Shielding Cover Assembly

RF products often use shielding covers. These parts must be placed correctly. Also, the soldering process should avoid bridges or poor contact.

Mixed SMT and Through-Hole Assembly

Some boards use both SMT parts and through-hole parts. For example, HDMI ports, RF ports, switches, or DC jacks may need different soldering steps. A clear process flow helps keep quality stable.

For these reasons, DFM review is useful. It can find many risks before production starts.

How to Control EMI, Crosstalk, and Heat in HDMI Modulation RF PCB Assembly?

HDMI modulation RF products are sensitive to noise. They may work in hotels, AV racks, CCTV systems, or industrial rooms. Therefore, EMI, crosstalk, and heat need careful control.

EMI Control

EMI control starts with good PCB layout. Ground planes, shielding covers, via stitching, and connector grounding can help. In addition, proper assembly makes the shielding design work better.

Crosstalk Control

HDMI lines and RF traces should keep a safe distance from noisy circuits. Long parallel routes should be avoided when possible. Also, a strong ground reference helps reduce unwanted coupling.

Power Noise Control

HDMI chips and RF ICs need clean power. Decoupling capacitors should be placed close to the power pins. In addition, switching power parts should stay away from sensitive RF areas.

Heat Control

Some chips, regulators, and RF parts can create heat. Thermal vias and copper areas help move heat away. As a result, the product can work more steadily.

A good production review should check:

HDMI signal routing
RF trace path
Ground stitching
Shielding cover design
Connector pad strength
Thermal via placement
Power filtering
Component spacing
Test point position

Moreover, the assembly process should match the product design. Good solder paste printing, accurate placement, and correct reflow settings all help improve quality.

What Testing Is Needed for HDMI RF Modulator PCB Assembly?

Testing helps confirm PCBA quality before shipment. For HDMI RF modulator PCB assembly, testing may include standard inspection and product-specific tests.

AOI Inspection

AOI checks visible solder joints and component placement. It can find missing parts, wrong polarity, skewed parts, and solder bridges.

X-Ray Inspection

X-ray inspection is useful for BGA, QFN, and hidden solder joints. It helps find problems that cannot be seen by eye.

Electrical Testing

Electrical testing checks for shorts, opens, and basic circuit issues. For bare PCB production, e-test can confirm the circuit before assembly.

First Article Inspection

First article inspection checks the first finished board. It confirms the BOM, component direction, placement, and soldering quality. After that, the full batch can move forward.

Functional Testing Support

Functional testing depends on the customer’s product. It may include HDMI input test, RF output test, power-on test, channel setting, or firmware check. In many cases, customers provide test steps, fixtures, or software.

Impedance Testing

For impedance-controlled PCBs, impedance testing can confirm whether the board meets the required value. This is useful for HDMI and RF signal paths.

Testing should be planned early. Then, the factory can prepare test points, fixtures, labels, and packing steps more smoothly.

How to Choose a PCB Assembly Manufacturer for HDMI Modulation RF Products?

Choosing a PCB assembly manufacturer should not depend only on price. HDMI modulation RF products include high-speed signals, RF circuits, connectors, shielding, and power circuits. So, the supplier needs both PCB and PCBA experience.

RF and High-Speed PCB Experience

The supplier should understand impedance control, RF traces, HDMI signal pairs, grounding, and multilayer stackup. This helps reduce production risks.

DFM Review Ability

Before production, the factory should review Gerber files, BOM, stackup, pick-and-place files, and assembly drawings. As a result, many risks can be found early.

Component Sourcing Support

HDMI RF modulator PCBAs may use HDMI chips, RF ICs, filters, oscillators, connectors, and shielding parts. A strong sourcing team can help check lead time and part availability.

Stable SMT Process

Fine-pitch ICs, QFN, BGA, connectors, and shielding covers need stable SMT assembly. The factory should control solder paste, placement, reflow, and inspection.

Testing Support

A good PCBA partner should support AOI, X-ray, e-test, first article inspection, and functional testing. This helps improve production confidence.

Prototype to Mass Production Support

Many projects start with prototypes. Then, they move to small batches and mass production. Therefore, the supplier should support every stage.

In the end, the right supplier is not only an assembly vendor. It should help make the product easier to build, test, and scale.

Why Choose EBest Circuit (Best Technology) for HDMI Modulation RF PCB Assembly?

EBest Circuit (Best Technology) provides PCB fabrication, PCBA assembly, component sourcing, DFM review, BOM optimization, testing support, and production support. For HDMI modulation RF products, we focus on the PCB and PCBA inside the device. We support manufacturers of HDMI RF modulators, RF video distribution devices, CATV equipment, QAM/ATSC systems, CCTV transmission products, and related RF electronics.

RF and High-Speed PCB Manufacturing Support

HDMI RF modulator boards need good control of HDMI signal lines, RF paths, grounding, shielding, and power circuits. Therefore, EBest Circuit supports multilayer PCB manufacturing, impedance-controlled PCB production, high-speed PCB fabrication, RF PCB manufacturing, and mixed-signal PCB production.

One-Stop PCB and PCBA Service

Customers can work with us for PCB manufacturing, component sourcing, SMT assembly, through-hole assembly, testing, and packaging support. As a result, they can reduce supplier management work and move projects forward faster.

DFM Review Before Production

Before production, our team can review Gerber files, BOM, pick-and-place files, assembly drawings, stackup, panelization, connector areas, shielding cover design, and soldering risks. This is helpful for HDMI RF modulator PCBAs because they often include fine-pitch ICs, HDMI connectors, RF connectors, oscillators, and sensitive grounding areas.

Component Sourcing and BOM Optimization

HDMI modulation RF products may use HDMI chips, RF ICs, tuners, filters, oscillators, power parts, connectors, and shielding parts. Some parts may also have long lead times. Therefore, EBest Circuit can help check sourcing options and support BOM optimization based on customer approval.

SMT Assembly for Complex Boards

Our PCBA service supports fine-pitch parts, QFN, BGA, connectors, shielding covers, and mixed SMT/THT processes. In addition, we support prototype, small-batch, and volume assembly for RF video equipment.

Testing and Quality Control Support

EBest Circuit supports AOI inspection, X-ray inspection, electrical testing, first article inspection, visual inspection, and functional testing support when customers provide test steps or fixtures. This helps customers build HDMI modulation RF products with better process control.

With engineering support and one-stop manufacturing service, EBest Circuit helps customers reduce production risk and improve assembly consistency.

To conclude, HDMI modulation RF products are used to convert HDMI video into RF signals for coaxial cable distribution. However, their performance depends greatly on the PCB and PCBA inside the device. HDMI circuits, RF paths, grounding, shielding, connectors, power circuits, and heat control all need careful production.

Therefore, HDMI RF modulator manufacturers need a PCB assembly partner with RF, high-speed, sourcing, assembly, and testing support. EBest Circuit (Best Technology) helps customers move from prototype to mass production with PCB fabrication, PCBA assembly, component sourcing, DFM review, and quality control support.

To request a quotation for HDMI modulation RF PCB or PCBA manufacturing, please send your project files to sales@bestpcbs.com.

FAQs About HDMI Modulation RF

1. Can EBest Circuit manufacture PCBs for HDMI RF modulator devices?

Yes. EBest Circuit supports PCB fabrication for HDMI RF modulator devices, HDMI to RF converter products, CATV equipment, QAM/ATSC systems, CCTV transmission products, and RF video distribution electronics.

2. Do HDMI modulation RF products need impedance-controlled PCB?

In many cases, yes. HDMI signal lines and RF output traces often need controlled impedance. The exact value depends on the customer’s design.

3. Can you support SMT assembly for HDMI RF modulator PCBAs?

Yes. We support SMT assembly, through-hole assembly, connector assembly, fine-pitch IC placement, QFN, BGA, shielding cover assembly, and mixed assembly processes.

4. What files are needed for an HDMI modulation RF PCB assembly quote?

Please provide Gerber files, BOM, pick-and-place files, PCB stackup, assembly drawings, testing needs, quantity, and special notes. These notes may include connectors, shielding parts, firmware, programming, or packaging.

5. Can EBest Circuit help with DFM review before production?

Yes. Our team can review PCB structure, component placement, soldering risks, connector areas, panelization, stackup, and assembly details before production.

6. Does EBest Circuit sell finished HDMI RF modulator products?

No. EBest Circuit focuses on PCB fabrication, PCBA assembly, component sourcing, DFM support, testing support, and production-quality manufacturing. We support companies that develop HDMI RF modulator products.

7. Can you support prototype and small-batch production?

Yes. We support prototype, small-batch, and volume production. This helps customers test the design first and then scale production later.

8. Can you help source components for HDMI RF modulator PCB assembly?

Yes. We can source parts according to the customer’s BOM. We can also help check lead time, availability, and possible alternatives for customer approval.

9. How do I request a quote for HDMI modulation RF PCB assembly?

You can send Gerber files, BOM, pick-and-place files, quantity, and testing needs to sales@bestpcbs.com. Our team will review your files and provide PCB fabrication and PCBA assembly support.

What Are Circuit Boards Applications Uses in Electronic Devices?

April 21st, 2026

Circuit boards applications uses electronics devices refers to how Printed Circuit Boards support, connect, and control the functions of modern electronic products across consumer, industrial, medical, automotive, and other advanced sectors. This article explains where PCBs are used, how they work, which board types and materials fit different scenarios, and how to choose the right PCB partner for reliable results.

What problems do customers usually face when selecting PCBs for electronic devices?

The device works in theory, but the PCB fails in real operating conditions.
The board is too bulky for compact product design.
Heat, moisture, or vibration shortens product life.
Material choice is unclear, especially for RF, power, or harsh environments.
A supplier can build boards, but cannot support application-driven optimization.

A capable PCB manufacturer solves these issues by matching the board to the real application environment.

Use application-specific PCB structures and stackups.
Reduce board size through HDI and optimized layout support.
Improve durability with thermal and environmental design controls.
Recommend the right substrate for signal, power, and reliability needs.
Provide engineering support from DFM review to mass production.

EBest Circuit (Best Technology) is a professional PCB and PCBA manufacturer serving customers across consumer electronics, industrial control, medical devices, automotive electronics, RF products, LED systems, and high-reliability applications. We support projects with engineering review, material selection, PCB fabrication, component sourcing, SMT assembly, testing, and fast communication throughout the process. For project support, pls feel free to contact us via sales@bestpcbs.com.

Circuit Boards Applications Uses Electronics Devices

What Are Circuit Boards Applications Uses in Electronic Devices?

When people search for Applications of circuit boards in electronic devices or Circuit board applications in electronics, they are usually asking a practical question: where are PCBs used, and what do they actually do inside a product? A PCB is not just a mounting platform. It is the electrical foundation that links components, manages signals, distributes power, and helps a device operate as one complete system.

At the application level, PCBs serve several core functions:

Electrical connection: link ICs, resistors, capacitors, connectors, and sensors
Signal routing: guide analog, digital, RF, and high-speed signals through controlled paths
Power distribution: deliver stable voltage and current to all functional blocks
Mechanical support: hold components in fixed positions for reliable assembly
Thermal assistance: help move heat away from power devices and LEDs
System integration: combine control, sensing, communication, and power modules on one board

A quick application view looks like this:

PCB Role	What It Does in a Device
Connection	Links all electronic parts
Control	Supports processing and logic
Power	Feeds current to subsystems
Communication	Carries data and RF signals
Thermal support	Helps reduce hot spots
Structure	Supports assembly and compact design

In short, circuit boards uses applications electronics devices is really about how PCBs make modern electronics possible. Without them, devices would be larger, less reliable, harder to manufacture, and far more expensive to integrate.

Why Are Circuit Boards Essential in Modern Electronic Devices?

Modern electronics demand more than simple connectivity. Devices now combine processors, wireless modules, displays, sensors, batteries, cameras, and power circuits in very limited space. PCBs are essential because they organize this complexity into a manufacturable, repeatable, and scalable platform.

Their importance becomes even clearer when products must meet commercial targets such as lower size, faster speed, stable performance, and long service life. A good PCB design improves both engineering performance and business outcomes.

Key reasons PCBs are essential include:

They enable compact integration
Multilayer PCBs allow many circuits to fit into a small area.
They improve electrical consistency
Controlled traces and reference planes help stabilize signal behavior.
They support mass production
Standardized fabrication and assembly make large-scale manufacturing possible.
They increase product reliability
Well-designed PCBs reduce loose wiring, assembly errors, and connection failure.
They help optimize cost
Integrating more functions into one board can reduce cable, connector, and labor costs.
They support modern interfaces
Bluetooth, Wi-Fi, GPS, USB, CAN, Ethernet, and RF systems all rely on PCB design quality.

For many products, PCB quality directly affects user experience. A smartphone with poor board design may overheat. A medical monitor with unstable signal routing may lose data accuracy. An automotive controller with weak vibration resistance may fail early.

So when discussing circuit board applications in electronics, the real point is not only where the board is used, but why it is indispensable to modern product architecture.

What Types of Electronic Devices Use Circuit Boards Today?

PCBs appear in almost every category of electronic equipment. Some devices use a basic single-sided board. Others rely on complex HDI, rigid-flex, RF, ceramic, or metal-core designs. The device category usually determines the PCB structure, material system, thermal requirement, and assembly complexity.

Here are the main device groups using PCBs today:

Consumer electronics: smartphones, tablets, laptops, smartwatches, TVs, headphones
Home appliances: refrigerators, washing machines, coffee makers, air conditioners
Industrial equipment: PLCs, drives, inverters, HMI panels, robotic controls
Medical devices: monitoring systems, imaging units, infusion pumps, portable diagnostics
Automotive electronics: ECUs, lighting modules, BMS units, infotainment systems, sensors
Telecom and RF devices: routers, base stations, antenna units, GPS modules
Security devices: cameras, alarm systems, smart locks, motion sensors
Energy systems: solar inverters, battery storage controllers, smart meters, charging systems

A simple way to view this is by application demand:

Device Type	Typical PCB Need
Smartphone	HDI, multilayer, compact layout
LED light	Thermal management, MCPCB
Automotive ECU	High reliability, vibration resistance
Medical monitor	Stable signals, compliance support
Router / RF unit	Controlled impedance, low-loss material
Industrial controller	Durability, long service life

This wide adoption explains why Applications of circuit boards in electronic devices is such a strong topic. It covers both daily-use electronics and critical systems that must operate under far more demanding conditions.

What Are the Most Common Circuit Board Applications in Electronics?

Although PCBs are used almost everywhere, certain applications appear far more often in search behavior and purchasing demand. These common uses create the best bridge between SEO traffic and practical buyer intent.

The most common PCB applications in electronics include the following:

Signal control boards
Used in logic control, processing, and communication modules.

Power conversion boards
Used in chargers, power supplies, inverters, and motor drives.

Interface boards
Used for display control, user input, connectors, and external communication.

Sensor boards
Used in wearables, automotive systems, industrial monitoring, and IoT products.

RF and wireless boards
Used in Bluetooth, Wi-Fi, GPS, and antenna-linked systems.

LED and lighting boards
Used in home lighting, automotive lights, indicators, and medical illumination.

Embedded controller boards
Used in smart appliances, industrial machines, and automotive modules.

A compact comparison is helpful here:

Application	Typical Product Examples
Signal processing	Phones, tablets, computers
Power management	Chargers, inverters, adapters
Sensing	Smartwatches, industrial meters
Wireless communication	Routers, GPS units, IoT modules
Lighting	LED lamps, dashboard lighting
Automation control	PLCs, robotic controllers

These are the everyday realities behind circuit boards applications uses electronics devices. The board may be hidden, but its role is central in nearly every function the user sees.

In summary, the most common applications combine control, power, communication, sensing, and interface management. That is why PCB demand remains broad across nearly all electronics markets.

How Do Circuit Boards Function Inside Electronic Devices?

Inside an electronic device, a PCB works as a coordinated electrical platform. It does not “think” by itself, but it allows processors, memory, sensors, connectors, and power devices to exchange energy and information in a controlled way.

A PCB functions through several structural elements:

Copper traces carry electrical signals and current
Pads create solderable connection points for components
Vias connect different copper layers
Planes provide stable ground and power reference areas
Solder mask protects copper and controls solder bridging
Silkscreen supports identification and assembly
Substrate provides insulation and mechanical strength

A simplified function path inside a device often follows this logic:

Power enters the board through a connector or battery terminal.
Power circuits regulate voltage for each subsystem.
A controller or processor receives input data.
Signals move through traces to memory, sensors, or output modules.
The board sends commands to motors, displays, communication chips, or LEDs.

For high-speed or RF devices, PCB function also depends on electrical design rules such as:

controlled impedance
return path continuity
trace length balance
isolation between noise-sensitive circuits
reference plane integrity

A commonly used signal principle is:

This reminds designers that transmission line impedance depends on inductance and capacitance per unit length. In practical PCB design, trace width, dielectric thickness, and material properties all affect signal quality.

So, in real product operation, a PCB is the controlled environment that allows electronic components to behave correctly, safely, and repeatedly.

What Types of Circuit Boards Are Used in Different Applications?

Different applications need different board structures. A low-cost toy and a medical control unit should not use the same PCB strategy. The board type must fit the device’s electrical, thermal, mechanical, and cost requirements.

The most common PCB types include:

Single-sided PCB
Used in simple, low-cost electronics with limited circuitry.

Double-sided PCB
Used where moderate circuit density is required.

Multilayer PCB
Used in smartphones, computers, telecom, and industrial controls with complex routing needs.

HDI PCB
Used in compact, high-performance devices that need fine lines, microvias, and dense interconnection.

Flexible PCB
Used where bending, folding, or space-saving interconnect is required.

Rigid-flex PCB
Used in medical, military, aerospace, and premium compact devices.

Metal Core PCB
Used mainly in LED and power applications for better heat transfer.

A selection summary:

PCB Type	Best Fit
Single-sided	Basic consumer products
Double-sided	General electronics control
Multilayer	Computing, telecom, industrial
HDI	Smartphones, wearables
Flex	Cameras, foldable interconnect
Rigid-flex	Medical, aerospace, compact systems
MCPCB	LED, power modules

Choosing the correct board type improves not only function, but also assembly yield, product lifetime, and cost efficiency. That is why board type selection should always follow actual application conditions, not habit alone.

What Materials Are Used in Circuit Boards for Different Applications?

PCB material selection has a direct impact on electrical performance, thermal stability, durability, manufacturability, and cost. Many buyers begin with FR4, but not every application should stay there.

The most common PCB materials are:

FR4: the standard choice for general electronics
High-Tg FR4: better for higher thermal stress and lead-free assembly
Aluminum base: strong heat transfer for LED and power boards
Copper base: excellent heat spreading for demanding thermal designs
Rogers / PTFE materials: used in RF and microwave circuits
Ceramic substrates: used in high-temperature, high-power, or high-reliability electronics
Polyimide: common in flexible and rigid-flex PCB construction

Material comparison:

Material	Typical Use
FR4	General electronics
High-Tg FR4	Industrial and automotive control
Aluminum	LED lighting, power modules
Rogers	RF, antenna, microwave
Ceramic	Power, aerospace, high-heat environments
Polyimide	Flex and rigid-flex boards

Two important parameters often influence material choice:

Dielectric constant (Dk): affects signal speed and impedance
Thermal conductivity: affects heat transfer ability

For example, an RF design may prioritize low and stable Dk. An LED board may prioritize thermal conductivity. A compact wearable may prioritize thin profile and flex endurance.

In short, materials should be selected by application physics, not by default preference. That is one of the most overlooked but most valuable parts of Circuit board applications in electronics.

How Do Circuit Boards Differ Across Industries Like Medical, Automotive, and Aerospace?

A PCB used in a Bluetooth speaker is very different from one used in a medical monitor or flight-related control module. Industry differences shape design rules, material selection, testing methods, certification expectations, and documentation depth.

Here is how industry priorities differ:

Medical electronics
Focus on precision, long-term stability, traceability, and strict process control.

Automotive electronics
Focus on vibration resistance, thermal cycling, long life, and high reliability.

Aerospace electronics
Focus on extreme durability, low weight, performance consistency, and rigorous compliance.

Industrial electronics
Focus on robustness, uptime, electrical isolation, and long service life.

Consumer electronics
Focus on compactness, speed, appearance, and cost-sensitive manufacturing.

A compact view:

Industry	Main PCB Priority
Medical	Accuracy and reliability
Automotive	Heat and vibration resistance
Aerospace	Harsh-environment performance
Industrial	Durability and stability
Consumer	Miniaturization and cost control

This matters because the same “PCB” cannot be optimized for every field in the same way. Application-driven design is what separates commodity production from real engineering support.

For buyers, this means supplier capability should be judged by industry understanding, not only by quoted price.

How Do Thermal Management and Environmental Conditions Affect PCB Performance?

Thermal load and environmental stress are two of the most common reasons a PCB underperforms in real-world use. A board may pass an electrical test on the bench and still fail later in field operation because heat buildup, humidity, contamination, shock, or vibration were underestimated.

Common environmental stress factors include:

High temperature
Thermal cycling
Humidity and condensation
Dust and contamination
Mechanical vibration
Chemical exposure
Outdoor UV and weathering

Thermal and environmental design responses include:

Use higher-Tg or specialty substrates.
Add thermal vias and copper balance.
Choose aluminum or copper core when needed.
Apply conformal coating for moisture or contamination risk.
Reinforce assembly for vibration-sensitive environments.
Optimize spacing for high-voltage or high-heat regions.

For power devices, heat generation can be estimated by:

This simple relationship shows why current load and resistance matter so much in trace heating, connector temperature rise, and power device stress.

A brief design matrix:

Condition	Typical PCB Response
High heat	MCPCB, thermal vias, thicker copper
Humidity	Conformal coating, sealed design
Vibration	Rigid support, stronger assembly
RF heat + signal	Low-loss laminate + thermal design
Outdoor use	Protective finish and weather resistance

In practical terms, good PCB performance is never only about schematic correctness. It is also about surviving the environment where the product will actually live.

How Is High-Density Interconnect (HDI) Used in Advanced Electronic Devices?

HDI PCB technology is one of the main reasons modern electronics can be thinner, lighter, and more powerful. It allows more electrical connections in less space, which is essential for advanced electronic devices.

HDI typically involves:

finer trace and space
microvias
blind and buried vias
higher pad density
tighter component pitch support

HDI is widely used in:

smartphones
tablets
smartwatches
compact medical devices
camera modules
advanced communication devices

Why HDI matters:

Smaller footprint for dense circuit integration
Shorter signal paths for better performance
More routing freedom in compact products
Support for finer-pitch components such as BGAs and chip-scale packages
Improved electrical efficiency in dense digital systems

A simple comparison:

Standard Multilayer PCB	HDI PCB
Moderate density	Very high density
Larger vias	Microvias possible
More board area needed	Smaller area possible
Standard routing	Fine-pitch routing support

For companies building portable electronics, HDI often shifts from “nice to have” to “necessary to compete.” It is one of the clearest examples of how PCB technology directly shapes product form and function.

How to Choose the Right Circuit Board for Electronic Devices?

Choosing the right PCB starts with the application, not the fabrication method alone. Many selection problems happen because teams begin with a familiar board type instead of asking what the device actually demands.

A practical PCB selection path includes these questions:

What is the product environment?
Indoor, outdoor, medical, industrial, automotive, or RF?
How much space is available?
Does the product need HDI, flex, or rigid-flex?
How much heat will it generate?
Is FR4 enough, or is MCPCB or ceramic better?
What signal type is involved?
Low-speed control, high-speed digital, RF, or power?
What reliability level is required?
Consumer-grade, industrial-grade, or mission-critical?
What volume and budget are expected?
Prototype, low-volume, or mass production?
What assembly and test support is needed?
SMT, THT, X-ray, ICT, functional test, coating?

A fast decision guide:

Design Need	Better PCB Direction
Lowest cost	Single or double-sided FR4
High function density	Multilayer or HDI
Heat dissipation	Aluminum, copper core, ceramic
Bending / compact packaging	Flex or rigid-flex
RF performance	Rogers or other low-loss laminate
Harsh conditions	High-Tg, coating, reinforced design

This is where a strong supplier adds value. The right manufacturer should not only build to print, but also help refine stackup, manufacturability, thermal strategy, assembly method, and risk control before production begins.

Why Choose a Professional PCB Manufacturer for Your Electronic Device Applications?

A professional PCB manufacturer brings more than factory capacity. The real value is application understanding, engineering coordination, process control, and consistency from prototype through volume production.

For electronic device projects, the supplier should help with:

material selection
stackup recommendation
DFM and DFA review
impedance and thermal considerations
prototype-to-production transition
assembly quality and testing
traceability and communication

Why customers work with EBest Circuit (Best Technology):

One-stop service from PCB fabrication to PCBA and testing
Support for diverse industries including medical, industrial, automotive, RF, and LED
Engineering-first communication for manufacturability and cost balance
Flexible production support from prototypes to volume orders
Fast response and practical project coordination

A good manufacturer helps reduce redesign loops, lower risk, and shorten time to market. That matters even more when the product is compact, thermally sensitive, or expected to work under demanding field conditions.

If your project involves Applications of circuit boards in electronic devices, working with a capable manufacturing partner can determine whether the product merely functions, or performs reliably in the real world.

For support on PCB and PCBA projects, contact sales@bestpcbs.com.

To sum up, circuit boards applications uses electronics devices describes the many ways PCBs enable connection, control, power delivery, signal transmission, and product integration across modern electronics. From consumer products to medical systems, automotive electronics, industrial equipment, and RF devices, the right PCB structure, material, and manufacturing strategy directly affect performance, reliability, and cost.

EBest Circuit (Best Technology) provides professional PCB and PCBA solutions for a wide range of electronic device applications, with practical engineering support, stable manufacturing quality, and responsive service for both prototypes and production orders. To discuss your project, contact sales@bestpcbs.com.

FAQs About Circuit Boards Applications Uses in Electronic Devices

What is the main use of a circuit board?
The main use of a circuit board is to electrically connect and support components so the device can process signals, distribute power, and perform its intended function.

Which electronic devices use circuit boards the most?
Smartphones, computers, TVs, industrial controllers, automotive systems, medical devices, and communication equipment all use PCBs extensively.

Are circuit boards used in all electronic devices?
Almost all modern electronic devices use some form of PCB, although the board type and complexity vary by product function and size.

What industries rely most on circuit boards?
Consumer electronics, automotive, medical, industrial automation, telecom, aerospace, energy, and security sectors all rely heavily on PCBs.

What materials are commonly used in PCBs?
FR4 is the most common. Aluminum, copper core, Rogers, ceramic, and polyimide are also widely used for specialized applications.

How do environmental factors affect PCB performance?
Heat, humidity, vibration, dust, chemicals, and outdoor exposure can shorten PCB life or reduce performance if the design and material choice are not matched to the environment.

What is HDI PCB and where is it used?
HDI PCB is a high-density interconnect board using finer features and microvias. It is commonly used in smartphones, wearables, compact medical devices, and other advanced electronics.

How to select the right PCB for a specific application?
Selection should be based on electrical performance, thermal demand, size constraints, reliability target, operating environment, and manufacturing volume.

What Is a Relay Circuit Board and How Does It Work in PCB Systems?

April 20th, 2026

A relay circuit board is a specialized printed circuit board designed to mount, connect, and control electromechanical or solid-state relays within electronic systems, enabling low-power signals to safely switch high-power loads. This article explores what a relay circuit board is, how it functions in PCB systems, common types, testing methods, soldering techniques, and practical applications.

Are you facing difficulties with unreliable switching, damaged components, or confusing relay layouts on your boards?

Unstable switching behavior causing intermittent device failures
Overheating or burnt contacts due to incorrect relay selection
Difficulty identifying relay pins and understanding what a relay looks like on a circuit board
Poor soldering joints leading to loose connections or shorts
Troubleshooting complexity when trying to test or replace a faulty relay on a circuit board

To address these pain points effectively, manufacturers must adopt reliable design and assembly practices that ensure performance and serviceability.

Use properly rated power relay modules matched to load requirements
Design clear silkscreen markings to identify relay pinouts and orientation
Apply controlled soldering profiles to prevent thermal damage during assembly
Provide accessible test points for easy testing of relays on a circuit board
Offer modular relay sockets or through-hole designs to simplify removal and replacement

EBest Circuit (Best Technology) is a professional PCB and PCBA manufacturer based in China, specializing in high-reliability printed circuit board relays, power relay modules, and custom relay board circuits. With advanced SMT lines, rigorous quality control, and engineering support, we deliver robust solutions for industrial automation, automotive, and smart lighting systems. For inquiries, pls feel free to contact us at sales@bestpcbs.com.

What Is a Relay Circuit Board and How Does It Work?

A relay circuit board integrates one or more relays into a PCB layout to control electrical loads safely and efficiently. It acts as an interface between low-voltage control circuits (like microcontrollers) and high-voltage/high-current devices (such as motors, lights, or HVAC systems).

How It Works in PCB Systems:

Control Signal Input – A low-voltage signal (e.g., 3.3V or 5V from an MCU) activates the relay coil.
Electromagnetic Induction – The energized coil creates a magnetic field that pulls the armature.
Contact Switching – Mechanical movement closes or opens the high-power contacts.
Load Control – The switched contacts complete or break the circuit powering the external device.
Isolation – Electrical isolation between control and load sides prevents back EMF damage.

Component	Function
Relay Coil	Converts electrical signal into magnetic force
Contacts (NO/NC/COM)	Switch high-current paths
Diode (Flyback)	Suppresses voltage spikes
PCB Traces	Route signals and power safely

This architecture allows a 12V relay circuit board or 8 channel relay board circuit to manage multiple loads independently while protecting sensitive logic components.

What Does a Relay Look Like on a Circuit Board?

On a circuit board relay, you’ll typically see a rectangular plastic housing with visible metal terminals or pins. Common forms include:

Through-hole relays: Large, vertically mounted with clearly labeled pins (Coil, NO, NC, COM)
Surface-mount relays: Smaller, flat packages suitable for compact PCB relay designs
Socketed relays: Plug-in types for easy removal and replacement
Multi-channel modules: Arrays like 16 channel relay board circuit diagrams showing grouped relays

Silkscreen labels often indicate pin functions, making it easier to identify and test a relay on a circuit board.

What Types of Relays Are Used on PCB Relay Boards?

Different applications require different relay technologies. Below are common types used in relay board circuits:

Relay Type	Key Features	Typical Use Case
Electromechanical Relay (EMR)	Mechanical contacts, audible click	General-purpose switching, lighting relay
Solid-State Relay (SSR)	No moving parts, silent operation	High-speed switching, industrial controls
Reed Relay	Fast switching, small size	Test equipment, signal routing
Latching Relay	Maintains state without continuous power	Energy-saving systems
Automotive Relay	High vibration resistance	2014 Honda Accord relay circuit board, 2016 Civic relay board

Choosing the right type ensures compatibility with your power relay requirements and environmental conditions.

How to Test a Relay on a Circuit Board (Step-by-Step Guide)

Testing a circuit board relay helps diagnose faults before replacing components. Follow these steps:

Visual Inspection – Look for burnt marks, cracked housings, or lifted pads.
Check Coil Resistance – Use a multimeter; typical values range from 50Ω to 500Ω.
Test Contact Continuity – Measure between COM and NO/NC terminals in energized/de-energized states.
Apply Control Voltage – Power the coil and listen for a click (EMR) or verify LED indicator (SSR).
Verify Load Switching – Confirm the connected device turns on/off correctly.

These steps apply whether you’re troubleshooting a Chevy Express circuit board relay or a custom 2 channel relay board circuit diagram.

How to Solder and Replace a Relay on a Circuit Board Safely

Proper technique prevents damage during installation or repair.

Soldering Tips:

Preheat the board to reduce thermal shock
Use rosin-core solder and avoid excess heat
Align pins correctly before fixing in place
For how to solder a relay on a circuit board, ensure full pin penetration and clean joints

Replacement Steps:

Desolder old relay using wick or vacuum pump
Clean pads thoroughly
Insert new relay matching orientation
Solder all pins securely
Test functionality before final assembly

This process works for replacing a relay on a circuit board in both consumer and automotive applications.

How to Remove a Relay from a Circuit Board Without Damage

To remove a relay from a circuit board safely:

Heat each pin evenly using a soldering iron
Use desoldering braid or suction tool to clear holes
Gently lift the relay once all solder is removed
Avoid pulling forcefully to prevent pad delamination
Inspect pads for damage before installing a new unit

This method minimizes risk when performing relay board circuit repairs.

What Are Common Relay Circuit Board Applications?

Relay circuit boards are widely used across industries:

Automotive: Engine control, lighting, and accessory management (2015 Honda Accord relay circuit board)
Home Automation: Smart lighting, garage doors, security systems
Industrial Equipment: Motor starters, PLC interfaces
HVAC Systems: Compressor and fan control
Consumer Electronics: Appliances, power strips with remote control

From 4 channel relay board circuits to complex 8 channel relay board circuit diagram PDFs, these boards enable safe high-power control.

How to Choose the Right Relay Circuit Board for Your Project?

Selecting the correct relay for circuit board integration depends on several factors:

Voltage & Current Rating – Match load requirements (e.g., 12V, 24V, 120V AC)
Number of Channels – Single vs multi-channel (16 channel relay board circuit diagram)
Form Factor – Through-hole vs SMT based on space constraints
Switching Speed – EMR vs SSR depending on frequency
Environmental Conditions – Temperature, humidity, vibration resistance

Consulting with an experienced PCBA partner ensures optimal relay board circuit design.

To sum up, a relay circuit board is a critical component in modern electronics, allowing low-voltage control systems to safely manage high-power devices through isolated switching. This guide covered what a relay circuit board is, how it works in PCB systems, identification, testing, soldering, removal, and application selection.

EBest Circuit (Best Technology) provides expert PCBA services including printed circuit board relays, power relay modules, and custom relay board circuits for diverse industries. Our engineering team ensures reliable performance and compliance with international standards. For professional support and manufacturing, pls feel free to reach out to us at sales@bestpcbs.com.

FAQs About Relay Circuit Board

Q: What does a relay look like on a circuit board?

A: Usually a rectangular component with visible pins, often labeled with coil and contact terminals.

Q: Can I test a relay without removing it?

A: Yes, using a multimeter to check coil resistance and contact continuity.

Q: Is soldering a relay difficult?

A: Not if proper tools and techniques are used—avoid overheating.

Q: Why use a relay instead of a transistor?

A: Relays provide galvanic isolation and handle higher currents.

Q: Where can I get a custom relay circuit board made?

A: Contact EBest Circuit at sales@bestpcbs.com for tailored solutions.

What Is a PCB Motor and How Does It Work?

April 20th, 2026

PCB motor refers to a motor-related system where printed circuit boards play a critical role in enabling motion control, power delivery, and system integration in modern electronic devices. This article explains what a PCB motor is, how it works, the types used in today’s electronics, and how motor control PCBs, layout optimization, and system integration impact performance and reliability.

Do these PCB motor challenges sound familiar?

It is difficult to clearly understand what a PCB motor means in real projects.
Selecting the right motor control PCB or motor driver PCB often feels confusing.
Poor PCB layout can lead to overheating, EMI, or unstable motor behavior.
Integrating motor control with embedded systems creates signal and power challenges.
Troubleshooting motor failures on a PCB takes time and often lacks clear direction.

A professional PCBA partner can turn these challenges into a structured engineering solution.

Define the correct PCB motor architecture based on application needs.
Select suitable motor control and driver solutions for stable operation.
Optimize PCB layout to improve current flow, thermal performance, and EMI control.
Design reliable interfaces between motor controllers and embedded systems.
Apply systematic debugging methods to quickly locate and resolve faults.

EBest Circuit (Best Technology) is a professional PCB and PCBA manufacturer with strong experience in motor control PCB production, multilayer PCB fabrication, component sourcing, and assembly services. We support projects from engineering review to mass production with a focus on reliability and manufacturability. Pls feel free to contact us at sales@bestpcbs.com.

What Is a PCB Motor and How Does It Work?

A PCB motor is a broad engineering term that may refer to either a motor built using PCB-based structures or a motor system controlled and supported by a dedicated PCB assembly. In both cases, the PCB is not just a passive platform. It becomes an active part of motion control.

At its core, a motor converts electrical energy into mechanical motion through electromagnetic interaction. In PCB motor systems, the PCB enables:

Electrical signal routing
Power switching and control
Integration of sensors and feedback
Compact system design

The working principle follows a simple chain:

Power is supplied to the system
The control circuit defines switching logic
Driver components regulate current flow
Magnetic interaction generates motion
Feedback ensures stable operation

Typical PCB motor system structure:

Module	Function
Power Stage	Supplies electrical energy
Control Circuit	Defines operation logic
Driver Stage	Controls current to motor
Feedback System	Monitors speed/position
Protection Circuit	Prevents faults

In modern electronics, PCB motors are increasingly used in compact, integrated, and high-efficiency applications where space and control precision are critical.

What Types of PCB Motors Are Used in Modern Electronics?

PCB motor systems come in several forms depending on application requirements. Some use PCB as part of the motor structure, while others rely on PCB-based control systems.

Common types include:

PCB Stator Motors
Copper traces on the PCB act as motor windings, enabling compact and flat designs.
Axial Flux PCB Motors
These motors use axial magnetic flux and are known for high efficiency and thin form factors.
Micro PCB Motors
Designed for small devices requiring low power and minimal size.
Linear PCB Motors
Provide straight-line motion instead of rotation, useful in precision systems.
BLDC Motor PCB Systems
Use a dedicated BLDC motor PCB or controller for efficient electronic commutation.
Motor Control PCB Systems
The most common in industry, where the PCB controls an external motor.

Type	Feature	Application
PCB Stator Motor	Flat winding	Compact devices
Axial Flux PCB Motor	Thin structure	High-efficiency systems
Micro PCB Motor	Small size	Portable electronics
Linear PCB Motor	Linear motion	Precision control
BLDC Motor PCB	Electronic commutation	Fans, drones
Motor Control PCB	External motor drive	Industrial systems

Understanding these categories helps engineers select the right architecture for their product.

How Does a Motor Control PCB Drive and Regulate Motors?

A motor control PCB is responsible for managing motor behavior, including speed, direction, and stability. It acts as the central control platform in most PCB motor systems.

The control process includes:

Receiving input signals
Generating control logic
Driving switching components
Regulating current flow
Monitoring feedback signals

Key control functions:

Speed control through PWM
Direction control via switching sequence
Torque control through current regulation
Protection against overcurrent and overheating

Core system structure:

Section	Role
MCU / Controller	Logic processing
Gate Driver	Signal amplification
MOSFET Stage	Power switching
Feedback Circuit	Monitoring
Protection Circuit	Safety

A well-designed motor control PCB ensures stable and efficient operation under different load conditions.

What Components Are Used in a Motor Driver PCB Design?

A motor driver PCB design integrates multiple components that work together to deliver controlled power to the motor.

Key components include:

Controller IC / MCU – Executes control algorithms
Gate Driver IC – Drives power switches
MOSFETs / Power Devices – Handle current switching
Current Sensors – Monitor load conditions
Power Management Components – Stabilize voltage
Protection Circuits – Prevent system damage
Connectors – Provide electrical interfaces

Component	Function
MCU	Control logic
Gate Driver	Switch control
MOSFET	Power handling
Sensor	Feedback
Protection	Safety
Connector	Interface

The combination of these components defines the performance, efficiency, and reliability of the system.

How to Optimize PCB Layout for BLDC Motor Control?

PCB layout plays a critical role in motor performance, especially for BLDC systems where switching speed and current levels are high.

Key layout strategies:

Minimize Current Loop Area
Reduces EMI and improves efficiency.
Separate Power and Signal Paths
Prevents noise interference.
Optimize Grounding Structure
Ensures stable reference and signal integrity.
Improve Thermal Management
Use copper pours and thermal vias.
Shorten Critical Signal Paths
Enhances control accuracy.
Use Proper Trace Width
Supports high current without overheating.
Plan Component Placement Carefully
Reduces switching losses and improves reliability.

Layout Factor	Impact
Loop Area	EMI reduction
Grounding	Stability
Thermal Design	Heat control
Trace Width	Current capacity
Placement	Efficiency

Proper PCB layout directly improves system reliability and extends product lifespan.

How to Integrate a PCB Motor Controller with Embedded Systems?

Integration with embedded systems is essential for modern motor applications.

Key integration areas:

Power Interface – Stable voltage supply
Signal Interface – PWM, UART, SPI, CAN
Feedback System – Sensors and monitoring
Protection Coordination – Fault handling
Mechanical Integration – Connectors and layout

Interface	Purpose
PWM	Speed control
UART	Communication
CAN	Networking
Sensor Input	Feedback

A well-integrated system ensures smooth communication and reliable motor operation.

What Are Common PCB Motor Failures and How to Troubleshoot Them?

Common failures include:

Power stage damage
Thermal issues
Signal interference
Feedback errors
Layout-related instability

Troubleshooting steps:

Check power input
Inspect switching devices
Verify signals
Analyze thermal performance
Review PCB layout

Symptom	Possible Cause
No motion	Power failure
Instability	Signal issue
Overheating	Poor layout
Noise	EMI problem

A structured troubleshooting approach helps reduce downtime and improve reliability.

How to Choose the Right Motor Control PCB for Your Application?

Selecting the right PCB depends on multiple factors:

Motor type
Voltage and current requirements
Control precision
Environmental conditions
System integration needs
Space constraints
Production volume

Factor	Importance
Motor Type	Control method
Power Level	Design complexity
Environment	Reliability
Size	Layout density
Volume	Cost

Choosing the right PCB ensures long-term performance and manufacturability.

In closing, PCB motor is a practical term describing motor systems where printed circuit boards play a central role in control, integration, and performance optimization. This article has explained how PCB motors work, their types, design considerations, and how motor control PCBs influence overall system behavior.

EBest Circuit (Best Technology) provides reliable PCB manufacturing, PCBA assembly, and engineering support for motor control applications. With strong experience in layout optimization, high-current design, and system integration, we help customers achieve stable and scalable production. For your next motor control project, pls feel free to contact us via sales@bestpcbs.com.

FAQs About PCB Motor

1. Is a PCB motor the same as a motor control PCB?
No. A PCB motor may refer to a motor structure that uses PCB-based windings or integration, while a motor control PCB is used to drive and regulate a motor. The two are related but serve different roles.

2. What are the main advantages of using a PCB motor system?
PCB motor systems offer compact design, high integration, improved consistency, and easier assembly compared to traditional motor and wiring setups.

3. Can a PCB motor be used in high-power applications?
Yes, but it depends on the design. For higher power, most systems use a motor control PCB to drive external motors rather than relying on PCB-based windings alone.

4. What should be considered when designing a PCB motor system?
Key factors include current capacity, thermal management, PCB layout, control method, and system integration to ensure stable and efficient operation.

Custom MCPCB: Fast Turnaround & High-Reliability Solutions for High-Power Electronics

April 7th, 2026

Need Custom MCPCB? Choose EBest – Your Trusted Partner for High-Performance Thermal Management

Stop wasting time on inconsistent Custom MCPCB suppliers. EBest delivers the reliability, speed, and customization you need to keep your projects on track.

Custom MCPCB

Why EBest is your top choice for Custom MCPCB manufacturing:

On-Time Delivery: 3–5 days for prototypes and 7–10 days for mass production – guaranteed, no delays.
Uncompromising Quality: 100% electrical and thermal testing, zero-defect production, and strict process control.
Authorized Certifications: IPC Class 2/3, ISO 9001, UL, RoHS, AEC-Q200 compatibility, and ISO 13485 for medical applications.
Cost-Saving Support: Free DFM reports to avoid production flaws and low MOQ for prototypes to reduce development risk.
Dedicated Service: 24/7 engineering support, personalized project management, and end-to-end design assistance.

Our Custom MCPCB Services – Tailored to Your Exact Needs

Single-sided, double-sided, and multilayer Custom MCPCB fabrication (2–6 layers).
Aluminum (5052/6061) and copper base material options for diverse thermal requirements.
High-thermal-conductivity dielectric layers (1–5 W/m·K) for optimal heat dissipation.
Thick copper circuitry (1–400μm) for high-current applications in industrial and automotive fields.
Advanced surface finishes: HASL, ENIG, immersion silver, and immersion tin.
Quick-turn prototyping and scalable mass production for all project stages.
Full PCBA assembly for turnkey Custom MCPCB solutions.
Support customization on demand + free DFM reports for every project.

Our Quality Certifications – Proof of Reliability

IPC-A-600 Class 2 & Class 3 – meeting strict industry standards for PCB quality.
ISO 9001:2015 – a certified quality management system for consistent production.
UL Recognized (E475000) – ensuring safety for global markets.
RoHS & REACH Compliant – adhering to environmental regulations worldwide.
AEC-Q200 Compatible – suitable for automotive electronic applications.
ISO 13485 – certified for medical electronic Custom MCPCB production.
IPC-6012E – complying with rigid PCB performance standards.

Our Custom MCPCB Manufacturing Capabilities

Parameter	Specification
Base Material	Aluminum 5052/6061, Copper
Dielectric Thermal Conductivity	1.0, 2.0, 3.0, 5.0 W/m·K
Copper Thickness	1–400μm (1–12 oz)
Board Thickness	0.4–6.0 mm
Minimum Trace Width	0.1 mm (4 mil)
Minimum Drill Size	0.2 mm (8 mil)
Maximum Panel Size	500 × 600 mm
Surface Finishes	HASL, ENIG, ImAg, Immersion Tin
Testing	100% Electrical Test, Thermal Impedance Verification

We Solve Your Custom MCPCB Challenges – Here’s How

High-power designs often struggle with overheating, warping, delamination, and production delays. These issues derail timelines, reduce product lifespan, and damage brand reputation.

Overheating components? Our high-thermal-conductivity dielectrics and metal substrates lower component temperatures by 15–20°C, extending product life by up to 40%.

Manufacturing flaws? Our free DFM reports identify design issues (such as improper trace width or drill size) before production, boosting yield and avoiding costly reworks.

Inconsistent quality? Our strict process control and 100% testing ensure every Custom MCPCB meets your specifications, even in extreme temperature environments (-40°C to +150°C).

Warping or delamination? Our advanced lamination technology ensures strong bonding between layers, preventing failure in high-vibration applications.

For reliable, high-performance Custom MCPCB that solves your biggest challenges, choose EBest. Support customization on demand + free DFM reports – we turn your design into a durable, efficient solution.

What Is Custom MCPCB & When Do You Need It?

Custom MCPCB (Metal Core Printed Circuit Board) uses a metal base (aluminum or copper) instead of FR4 to deliver superior thermal management. It is essential for high-power components that generate significant heat.

You need Custom MCPCB if your application has a power density above 1W/cm² – this is where FR4 fails to dissipate heat effectively, leading to component failure.

It is ideal for high-power LEDs, automotive electronics, industrial power devices, and medical equipment where reliability and thermal stability are critical.

Custom MCPCB vs. FR4 vs. Ceramic PCB – Which Is Better?

Feature	FR4 PCB	Custom MCPCB	Ceramic PCB
Thermal Conductivity	~0.3–0.4 W/m·K	1–5 W/m·K (dielectric) + 200 W/m·K (aluminum) / 400 W/m·K (copper)	20–200 W/m·K
Heat Dissipation	Poor (fails at >1W/cm²)	Excellent (ideal for 1–3W/cm²)	Outstanding (for >3W/cm²)
Mechanical Stability	Good	High (rigid, vibration-resistant)	Brittle (easily damaged)
Best Applications	Low-power electronics, signal boards	LEDs, automotive, industrial power	Aerospace, high-end RF devices

Which Custom MCPCB Material Is Right for You: Aluminum or Copper?

Aluminum Custom MCPCB

Aluminum is the most cost-effective option for most Custom MCPCB applications. It offers good thermal conductivity and is lightweight, making it easy to machine.

It is ideal for LED lighting, consumer electronics, and general power devices where balanced performance and affordability are key.

Copper Custom MCPCB

Copper delivers superior thermal conductivity (3–5 W/m·K) and better heat spreading, making it perfect for extreme heat loads.

It is ideal for automotive electronics, industrial drives, and high-power converters where thermal stability is critical.

Custom MCPCB Industry Applications – Real-World Cases

LED/Lighting

We supplied Custom MCPCB for high-bay LED fixtures. Our design reduced the LED junction temperature by 17°C, preventing lumen decay and extending the fixture life by 40%.

Automotive Electronics

Our AEC-Q200 compatible Custom MCPCB is used in EV DC-DC converters. It withstands temperatures from -40°C to +150°C, ensuring stable performance in harsh automotive environments.

Industrial Control/Automation

For a frequency converter manufacturer, we designed thick-copper Custom MCPCB to handle high currents. It eliminated overheating issues and reduced downtime by 35%.

Medical Electronics

Our ISO 13485 certified Custom MCPCB is used in patient monitoring devices. It provides consistent thermal performance, ensuring reliable operation for critical medical equipment.

How to Design Custom MCPCB for Optimal Performance?

Thermal Layout Tips

Position high-power components to distribute heat evenly. Maximize the copper area under heat-generating parts and use thermal vias to transfer heat to the metal core.

Manufacturability Guidelines

Follow trace and spacing rules (minimum 0.1mm trace width) and optimize drill paths to avoid tool wear. Use our free DFM reports to check design compatibility with our processes.

FAQ: Common Custom MCPCB Questions Answered

What’s the difference between Custom MCPCB and standard FR4 PCB?

Custom MCPCB uses a metal base for superior thermal conductivity (1–5 W/m·K vs. ~0.3 W/m·K for FR4). It is essential for high-power applications where FR4 fails to dissipate heat.

When should I choose copper Custom MCPCB over aluminum?

Choose copper for extreme thermal demands (3–5 W/m·K), high-current applications, or harsh environments. Aluminum works for most lighting and consumer applications.

How fast can I get Custom MCPCB prototypes?

Prototypes are delivered in 3–5 days. Standard mass production takes 7–10 days, with rush options available for urgent projects.

Do you provide free DFM reports for Custom MCPCB?

Yes, we offer free DFM reports for all Custom MCPCB projects. These reports identify design flaws before production, saving time and reducing rework costs.

Are your Custom MCPCB certified for automotive or medical use?

Yes. Our Custom MCPCB is AEC-Q200 compatible for automotive applications and ISO 13485 certified for medical devices, meeting global industry standards.

Can you assemble components on Custom MCPCB?

Yes, we offer full PCBA assembly for Custom MCPCB, with reflow profiles optimized for metal substrates to ensure strong, reliable solder joints.

Choose EBest for Your Custom MCPCB Needs

We provide high-reliability Custom MCPCB solutions tailored to your industry and application. Our team of engineers delivers expert support, from design to production.

Support customization on demand + free DFM reports. We ensure your Custom MCPCB meets your exact specifications, on time and with zero defects.

We provide Custom MCPCB products. For orders or inquiries, please email us at sales@bestpcbs.com. EBest – Your Trusted Custom MCPCB Partner.

Factors to Consider When Choosing Ceramic Substrates

March 18th, 2026

Understanding factors to consider when choosing ceramic substrates is critical for device performance and reliability. This guide covers all essential factors to consider when choosing ceramic substrates for professional engineering applications.

Ceramic Substrates

What are the key factors to consider when choosing ceramic substrates?

The most important factors include thermal, electrical, mechanical, material, and application compatibility.

These elements directly decide performance, stability, and service life.

Selecting correctly avoids failures in high‑demand environments.

Thermal conductivity and thermal expansion
Dielectric constant and insulation performance
Mechanical strength and structural stability
Material type and manufacturing compatibility
Quality, supply chain, and delivery

How do material properties affect ceramic substrate selection?

Material properties form the foundation of ceramic substrate performance.

Mismatched properties lead to overheating, signal loss, or mechanical breakage.

Each parameter must align with your application needs.

Thermal conductivity requirements

Higher thermal conductivity improves heat dissipation for high‑power devices.

It keeps components cool and extends service life.

This is non‑negotiable for power and automotive electronics.

Dielectric and insulation performance

Dielectric constant impacts signal integrity.

High insulation prevents leakage in high‑voltage systems.

Low dielectric loss improves energy efficiency.

Which thermal factors matter most for ceramic substrates?

Thermal performance ensures long‑term stability under load and temperature cycles.

Poor thermal design causes cracking, warping, and early failure.

Thermal matching is vital for reliable assembly.

Coefficient of thermal expansion (CTE) matching
Thermal cycling stability
High temperature resistance
Heat dissipation path design
Compatibility with thermal interface materials

How to match electrical requirements for ceramic substrates?

Electrical properties protect circuits and ensure signal quality.

They prevent interference and breakdown in demanding environments.

Correct values keep systems safe and stable.

Insulation resistance

High insulation resistance supports high‑voltage applications.

It reduces risk of short circuits and electrical failures.

Critical for power electronics and industrial controls.

Dielectric loss

Low dielectric loss improves efficiency in high‑frequency devices.

It reduces heat from signal transmission.

Ideal for communication and server equipment.

What mechanical standards should ceramic substrates meet?

Mechanical strength prevents breakage during production and use.

It supports handling, assembly, and harsh environments.

Strong substrates maintain dimensional stability.

Bending strength
Fracture toughness
Hardness and wear resistance
Dimensional accuracy
Thermal shock resistance

How to compare common ceramic substrate materials

How to compare common ceramic substrate materials?

The table below helps you choose based on performance and application.

Material	Thermal Conductivity (W/m·K)	Dielectric Constant	Typical Applications
Alumina (Al₂O₃)	20–30	9.8	Consumer electronics, LED
Aluminum Nitride (AlN)	170–230	8.8	Automotive, power electronics
Silicon Nitride (Si₃N₄)	20–90	7.0	High‑power devices
Zirconia (ZrO₂)	2–3	25.0	Medical devices, sensors

Which industries use ceramic substrates most widely?

Ceramic substrates perform best in four high‑growth industries.

Automotive electronics

AlN substrates handle heat in EV power modules.

They withstand vibration and extreme temperatures.

Ensure stable performance in motor controls.

Medical electronics

High‑purity alumina offers biocompatibility and insulation.

It meets strict medical standards for monitoring devices.

Safe for long‑term implantable and diagnostic tools.

LED & power electronics

Ceramic substrates improve heat dissipation for LEDs.

They extend lifespan and boost brightness.

Widely used in industrial and outdoor lighting.

Aerospace & industrial control

Special ceramics resist extreme temperatures and corrosion.

They meet aerospace reliability standards.

Stable in automation and harsh factory environments.

How to ensure processing compatibility of ceramic substrates?

Processing compatibility lowers production difficulty and cost.

Good metallization and bonding support strong assembly.

Stable processing ensures consistent yields.

Machinability
Metal layer adhesion
Solderability and bonding strength
Compatibility with standard PCB processes
Tolerance control

How to judge ceramic substrate quality and reliability?

Quality control prevents inconsistent performance and failures.

Certified materials and testing ensure long service life.

Reliable substrates reduce maintenance and replacement cost.

Raw material purity
Dimensional accuracy
Thermal cycle testing
Insulation and voltage testing
Compliance with international standards

Why supply chain & delivery matter for ceramic substrates?

Stable supply avoids production delays and shortages.

On‑time delivery keeps projects on schedule.

Consistent quality supports mass production.

Steady raw material supply
On‑time delivery capability
Full quality traceability
Professional technical support
Mass production capacity

Can ceramic substrates be customized for special uses?

Customization meets unique design and performance needs.

Tailored materials, sizes, and structures fit special equipment.

Custom solutions improve overall device efficiency.

Custom material formulas
Special thickness and shape
Modified thermal or electrical properties
Application‑specific metallization
Unique packaging requirements

FAQ: Top questions about factors to consider when choosing ceramic substrates

What factors to consider when choosing ceramic substrates?

Key factors include thermal performance, electrical properties, mechanical strength, material type, quality, supply chain, and application compatibility.

Which ceramic substrate is best for high power?

Aluminum nitride (AlN) is best for high power due to ultra‑high thermal conductivity.

How to ensure thermal reliability of ceramic substrates?

Match thermal expansion coefficients and use high‑thermal‑conductivity materials.

What is the difference between AlN and alumina substrates?

AlN has much higher thermal conductivity; alumina offers cost‑effective general use.

Can ceramic substrates be used in medical devices?

Yes, high‑purity alumina is widely used for biocompatibility and stability.

How to select a reliable ceramic substrate supplier?

Check quality system, delivery stability, technical support, and supply chain.

Are ceramic substrates customizable for special applications?

Yes, materials, dimensions, and performance can be customized for specific needs.

Conclusion

All factors to consider when choosing ceramic substrates must be evaluated together.

The right choice improves performance, reliability, and product stability.

Professional selection supports long‑term success in high‑end electronics.

EBest provides premium ceramic substrates with stable supply, strict quality control, and professional support. For orders and inquiries, contact us at: sales@bestpcbs.com

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

What Is a Ceramic PCB?

Why Do Customers Source Ceramic PCB from China?

What Is a China Ceramic PCB Manufacturer?

What Is the Difference Between a Ceramic PCB Supplier and a Ceramic PCB Factory?

Can China Ceramic PCB Factories Make Prototypes?

How Is a China Ceramic PCB Prototype Made?

Can China Ceramic PCB Manufacturers Make Multilayer Ceramic PCBs?

What Applications Use Ceramic PCBs from China?

What Should Customers Check Before Ordering Ceramic PCB China?

What Files Should You Send to a Ceramic PCB Manufacturer China?

How Does Ceramic PCB Manufacturing Work in China?

What Is Included in Ceramic PCB Assembly Service China?

You may also like

What Is an Automotive Ceramic PCB?

Why Are Ceramic PCBs Important in Automotive Electronics?

How Does an Automotive Ceramic PCB Work?

Main Automotive Ceramic PCB Types

Ceramic PCB Materials Used in Automotive Applications

Key Features and Benefits of Automotive Ceramic PCB

Limitations and Risks You Should Know Before Selection

Ceramic PCB vs FR4 for Automotive Electronics

Where Are Automotive Ceramic PCBs Used?

Practical Automotive Case Examples

Design Guidelines for Automotive Ceramic PCB

Manufacturing Process Considerations

Testing Methods and Quality Control

Common Failure Modes and Factory-Level Prevention

Cost Factors in Automotive Ceramic PCB

How to Choose a Ceramic PCB Manufacturer for Automotive Projects?

RFQ Checklist Before Placing an Order

Frequently Asked Questions About Automotive Ceramic PCB

You may also like

What Is a PCB Heatsink?

Why Does PCB Heatsink Design Matter?

How Does a PCB Heatsink Work?

What Are the Main Types of PCB Heatsink Solutions?

What Materials Are Used for PCB Heatsinks?

PCB Heatsink vs Thermal Vias vs Metal Core PCB

What Design Parameters Should Be Checked First?

How to Choose the Right PCB Heatsink Structure?

What Industries Use PCB Heatsinks?

Practical PCB Heatsink Case Examples

Common PCB Heatsink Failure Modes

What Affects PCB Heatsink Cost?

How Is PCB Heatsink Quality Controlled?

How to Choose a PCB Heatsink Supplier?

What Should Be Checked Before Ordering?

FAQ About PCB Heatsink

You may also like

What Are Telecom PCB Manufacturing Services and What Do They Include?

Where Are Telecom PCBs Used in High-Speed Communication Equipment?

Why Do Telecom PCBs Require High Reliability and Signal Stability?

What Technical Requirements Should Be Confirmed Before Telecom PCB Production?

What Standards Should Telecom PCB Manufacturing Services Follow?

What Challenges Are Common in Telecom PCB Manufacturing?

How Does the Telecom PCB Manufacturing Process Work?

What Telecom PCB Manufacturing Services Does EBest Offer?

How Does EBest Control Quality in Telecom PCB Manufacturing?

How Does EBest Ensure On-Time Delivery for Telecom PCB Orders?

Why Choose EBest for Telecom PCB Manufacturing Services?

FAQs About Telecom PCB Manufacturing Services

How Can You Start Your Telecom PCB Project with EBest?

You may also like

What Is HDMI Modulation RF in Video Transmission Equipment?

Why Does HDMI RF Modulator Performance Depend on PCB and PCBA Quality?

What PCB Types Are Used in HDMI to RF Modulator Devices?

How Does PCB Stackup Affect HDMI Modulation RF Signal Stability?

What Are the Key PCBA Challenges in HDMI RF Modulator Manufacturing?

How to Control EMI, Crosstalk, and Heat in HDMI Modulation RF PCB Assembly?

What Testing Is Needed for HDMI RF Modulator PCB Assembly?

How to Choose a PCB Assembly Manufacturer for HDMI Modulation RF Products?

Why Choose EBest Circuit (Best Technology) for HDMI Modulation RF PCB Assembly?

FAQs About HDMI Modulation RF

You may also like

What Are Circuit Boards Applications Uses in Electronic Devices?

Why Are Circuit Boards Essential in Modern Electronic Devices?

What Types of Electronic Devices Use Circuit Boards Today?

What Are the Most Common Circuit Board Applications in Electronics?

How Do Circuit Boards Function Inside Electronic Devices?

What Types of Circuit Boards Are Used in Different Applications?
