Practical 2 Layer PCB Stackup Guide for Manufacturing

August 6th, 2026

An 2 layer PCB stackup looks simple, but it still affects board thickness, copper weight, routing space, grounding, impedance expectations, assembly yield, and final product fit. For engineers and buyers, the practical question is not only whether a board has two copper layers. It is whether the finished PCB can match the drawing, connector, enclosure, soldering process, and test requirement without avoidable rework.

EBest Circuit (Best Technology) supports 2 layer FR4 PCB fabrication, stackup review, copper thickness confirmation, surface finish selection, SMT assembly, inspection, testing coordination, and small-batch production. If your project already has Gerber files, ODB++, stackup notes, BOM, CPL, drawings, or assembly requirements, please send them to sales@bestpcbs.com for engineering review before production.

2 layer PCB stackup
A 2 layer PCB stackup should be reviewed together with board thickness, copper weight, routing, and assembly needs.

What Is a 2 Layer PCB Stackup?

A 2 layer PCB stackup is the layer structure of a printed circuit board with one copper layer on the top side and one copper layer on the bottom side. Between the copper layers, the board normally uses an insulating core material such as FR4. Solder mask, silkscreen, and surface finish are then added according to the production requirement.

In everyday quoting, buyers may also call this a double sided PCB, two layer PCB, or 2 layer circuit board. These terms are closely related, but the stackup is the part that tells the manufacturer how the board thickness, copper, dielectric material, and layer arrangement should be built.

A useful 2 layer PCB stackup should make these points clear:

  • finished board thickness, such as 1.6 mm +/-10%;
  • top and bottom copper weight, such as 1 oz or 2 oz;
  • FR4 grade, high-Tg material, or other laminate requirement;
  • surface finish, such as HASL, lead-free HASL, ENIG, OSP, or immersion silver;
  • solder mask color and silkscreen requirement;
  • controlled impedance or special routing notes, if required;
  • SMT, through-hole, panelization, and test requirements.

Standard 2 Layer PCB Stackup Structure

A standard 2 layer PCB stackup is usually built with copper on both sides of an FR4 PCB core. The top layer may carry components, signals, power traces, and local ground copper. The bottom layer may provide additional routing, ground return paths, power routing, and connector connections.

2 layer PCB stackup
A 2 layer PCB usually includes top copper, an FR4 core, and bottom copper, with solder mask and surface finish added during production.
LayerPractical Role
Top solder maskProtects copper and defines solderable openings
Top copperComponents, signals, power, or ground copper
FR4 coreInsulation and mechanical support
Bottom copperRouting, return paths, connectors, or ground copper
Bottom solder maskCopper protection and solder control

The stackup may be simple, but the production result still depends on material availability, copper thickness, finished board thickness, drilling, solder mask registration, surface finish, and panelization. A two layer board should not be treated as a board with no engineering risk.

1.6mm 2 Layer PCB Stackup and Copper Weight

Many 2 layer PCB projects use a 1.6 mm finished board thickness because it is widely supported, mechanically stable, and compatible with many connectors and enclosures. However, 1.6 mm should refer to the finished board thickness, not only the raw laminate thickness.

2 layer PCB stackup
Finished board thickness is measured from the top surface to the bottom surface; copper weight is a separate specification.

Copper weight is a different requirement. For example, 1 oz copper describes the copper thickness or copper weight used on the conductive layers. It does not mean the whole board is 1 oz thick. This distinction matters when a drawing includes both board thickness and copper thickness.

Before production, confirm these thickness-related details:

  • finished board thickness and tolerance;
  • top and bottom copper weight;
  • whether copper is base copper or finished copper;
  • surface finish requirement;
  • connector or enclosure thickness limits;
  • whether impedance or current capacity depends on the stackup.

2 Layer PCB Stackup for Signal, Power, and Ground Routing

A 2 layer PCB gives less routing freedom than a 4 layer board, so the signal, power, and ground strategy must be practical. If the board has simple low-speed signals, connectors, LEDs, sensors, or basic control circuits, a two layer structure may be enough. If the board has high-speed interfaces, dense BGAs, strict EMI requirements, or multiple power domains, the project may need more review.

2 layer PCB stackup
Signal, power, and ground routing should be planned early on a 2 layer PCB because routing space is limited.

For many 2 layer boards, production review focuses on:

  • return path continuity for important signals;
  • wide enough power traces for current paths;
  • clear ground copper and via stitching where needed;
  • connector orientation and pin mapping;
  • thermal relief, copper balance, and solderability;
  • test points and inspection access after assembly.

The PCB manufacturer should not change the customer’s circuit intent. EBest Circuit can review whether the approved files are manufacturable and whether the stackup, copper, drilling, solder mask, and assembly notes are clear enough before production.

2 Layer PCB Stackup vs 4 Layer PCB Stackup

A 2 layer PCB stackup is often a good choice when the project needs a lower-cost board, simple routing, fast prototype validation, or a compact control board without strict high-speed requirements. A 4 layer stackup is usually considered when the board needs better power distribution, cleaner ground reference, controlled impedance, denser routing, or improved EMI behavior.

Item2 Layer PCB4 Layer PCB
Layer structureTop and bottom copperTwo outer layers plus inner planes
Routing spaceLimited but cost-effectiveMore routing freedom
Ground referenceDepends on copper planningUsually stronger with inner plane
CostLowerHigher
Best fitSimple to moderate circuitsDense, faster, or noise-sensitive boards

The right choice depends on the product, not only the layer count. If the 2 layer board can meet routing, grounding, thermal, and assembly needs, it may be the better commercial choice. If the board is already crowded or unstable, moving to 4 layers may save debugging time later.

Manufacturing Checks Before 2 Layer PCB Fabrication

A 2 layer PCB may be easier to manufacture than a high-layer-count board, but file review still matters. A small missing note can lead to wrong thickness, wrong surface finish, solder mask mismatch, connector fit problems, or assembly delay.

EBest Circuit typically checks:

  • Gerber or ODB++ file completeness;
  • drill file and plated-through-hole requirements;
  • finished board thickness and tolerance;
  • copper weight and current-related traces;
  • minimum line width, spacing, annular ring, and solder mask opening;
  • surface finish and solderability requirement;
  • panelization, tooling holes, fiducials, and breakaway method;
  • test requirement and outgoing inspection notes.

This review is useful because the buyer receives a finished PCB, not a file screenshot. The file must be translated into a real board that can be drilled, plated, etched, solder-masked, finished, tested, packed, and assembled.

SMT and PCBA Risks on 2 Layer PCB Boards

If the 2 layer PCB also needs SMT assembly, the stackup should be reviewed together with assembly data. Board thickness, panel size, component placement, solder mask openings, fiducials, and connector positions can all affect SMT yield. If the project also includes component sourcing, the BOM should be checked before SMT scheduling.

Before assembly, the useful files include:

  • Gerber or ODB++ files;
  • BOM with approved part numbers;
  • CPL or pick-and-place file;
  • assembly drawing;
  • polarity and orientation notes;
  • panelization drawing;
  • testing and packing requirements.

For prototype and small-batch PCBA projects, EBest Circuit can review PCB fabrication and SMT assembly together. This helps keep board thickness, panelization, component sourcing, soldering, inspection, and packing notes visible under one workflow. This is especially useful when the project is still in prototype PCB assembly validation.

EBest Circuit 2 Layer PCB Stackup Manufacturing Capabilities

EBest Circuit supports 2 layer FR4 PCB projects from prototype to small-batch and production runs. The practical value is not only making a bare board, but helping the customer confirm the production path before the order moves forward.

RequirementEBest Circuit Support
Board type2 layer FR4 PCB and double sided PCB
Thickness reviewFinished thickness and tolerance confirmation
Copper optionsCommon 1 oz or higher copper review by project
Surface finishHASL, lead-free HASL, ENIG, OSP, and other options
AssemblySMT, through-hole, mixed assembly, and inspection
DocumentsDFM notes, stackup confirmation, test reports when required

EBest Circuit (Best Technology) has worked in PCB and PCBA manufacturing since 2006 and serves customers in more than 40 countries and regions. For customers comparing suppliers, stable engineering communication is often as important as the quote itself, especially when the project needs both PCB fabrication and assembly.

2 Layer PCB Stackup Case Study for a Prototype Build

A USA customer needed a small-batch 2 layer PCB prototype for a compact control board. The board looked simple at first, but the project still had several details that could affect assembly and validation.

Project snapshot:

  • Customer region: USA;
  • Application: compact control and sensor interface board;
  • Quantity: 50 pcs prototype build;
  • PCB type: 2 layer FR4 PCB;
  • Finished thickness: 1.6 mm +/-10%;
  • Copper: 1 oz top and bottom copper;
  • Surface finish: lead-free HASL;
  • Assembly: SMT after PCB fabrication;
  • Delivery focus: prototype validation before the next small batch.

What EBest Circuit reviewed before production:

  • stackup, copper weight, board thickness, and solder mask notes;
  • panelization method for SMT handling;
  • BOM availability and approved part numbers;
  • component polarity, connector direction, and placement data;
  • electrical test before assembly and visual inspection after SMT;
  • single-board packing after assembly to reduce handling damage.

The useful result for the customer was a clearer prototype path. The order quantity was small, but the board still moved through file review, PCB fabrication, SMT preparation, inspection, and packing as one controlled project. That is the kind of support that helps engineering teams validate a 2 layer PCB before scaling the design.

FAQs About 2 Layer PCB Stackup

1. Is a 2 layer PCB stackup the same as a double sided PCB?
In most PCB manufacturing contexts, yes. A double sided PCB usually means a 2 layer PCB with copper on both the top and bottom sides.

2. What is the standard thickness for a 2 layer PCB?
Many 2 layer FR4 boards use 1.6 mm finished thickness, but 0.8 mm, 1.0 mm, 1.2 mm, and other thicknesses may also be used depending on the product.

3. Is 1 oz copper the same as 1.6 mm PCB thickness?
No. 1 oz copper describes the copper layer weight or thickness. 1.6 mm describes the finished board thickness from the top surface to the bottom surface.

4. Can a 2 layer PCB stackup support controlled impedance?
Some 2 layer boards can support impedance requirements, but the stackup, trace width, dielectric thickness, copper thickness, and test requirement should be reviewed before fabrication.

5. What files should I send for a 2 layer PCB quotation?
Send Gerber or ODB++ files, drill files, stackup or thickness notes, BOM, CPL, assembly drawing, surface finish requirement, quantity, test notes, and packing requirements.

All in all, a 2 layer PCB stackup should be clear before production begins. If your project needs 2 layer FR4 PCB fabrication, thickness review, copper confirmation, SMT assembly, or prototype-to-small-batch support, please send your Gerber files, BOM, CPL, drawings, and project notes to sales@bestpcbs.com. EBest Circuit can help review the manufacturing and assembly path before your boards move into production.

You may also like

Tags: , ,
Posted in best pcb, bestpcb, PCB, pcb manufacturing news | No Comments »

Low Loss PCB Supplier: How to Qualify Fabrication Before You Order

July 31st, 2026

Choosing a low loss PCB supplier is not only a material-sourcing decision. A supplier may recognize the laminate name but still miss the fabrication details that affect repeatability: material availability, pressed dielectric thickness, copper profile, impedance tolerance, registration, surface finish, and the inspection records required with the shipment.

For a buyer, the real question is simple: can this supplier manufacture the released files consistently, explain every quotation assumption, and provide evidence that the finished boards match the agreed specification? This guide shows what to verify before sending a prototype or production order.

low loss pcb supplier
A low-loss PCB supplier should review the manufacturing package before quotation, not after production starts.

What Should You Verify Before Choosing a Low Loss PCB Supplier?

A supplier website can list Rogers, Taconic, Isola, Panasonic, or other laminate families. That list does not prove that the supplier can build your particular board.

Start with the details that directly affect the order:

  • Material control. Ask whether the quoted laminate, prepreg, copper type, and thickness are based on available production material. If an alternative is proposed, it should be identified before the purchase order. “Equivalent material” is not enough when your released design depends on a particular Dk, Df, glass style, copper profile, or thermal characteristic.
  • Stack-up confirmation. The fabrication stack-up should show the layer order, dielectric construction, finished copper, target thickness, and impedance-related dimensions. Any change from the customer reference stack-up should be raised as an engineering question, not silently absorbed into production.
  • Process fit. Line width and spacing, annular ring, via type, aspect ratio, copper balance, registration, surface finish, and solder mask clearance must fit the intended process. A low-loss material does not remove ordinary manufacturability risks.
  • Verification plan. Confirm which outputs will accompany the boards. Depending on the order, these may include a certificate of conformance, material identification, impedance coupon results, microsection records, electrical test records, dimensional inspection, or customer-defined test coordination.

A useful supplier response is specific. It states what is included, what requires customer confirmation, and what is outside the quotation.

How Does a Supplier Confirm Your Specified Low Loss PCB Materials?

Low-loss materials are selected by the customer or product-design team according to the electrical, mechanical, thermal, cost, and compliance requirements of the project. The PCB supplier’s role is to confirm manufacturability and sourcing against that released requirement.

Before ordering material, the supplier should reconcile:

  • laminate and prepreg manufacturer and product family;
  • core and prepreg construction or acceptable glass styles;
  • copper weight and any specified copper profile;
  • finished board thickness and tolerance;
  • required Dk or Df reference conditions, if stated by the customer;
  • surface finish, solder mask, and other process requirements;
  • approved substitutions and the approval route for any deviation.

The commercial risk appears when a quotation assumes a substitute that the buyer did not approve. The price may look attractive, but the order can stop during engineering review or require a requote after material availability is checked.

Customers who are still comparing material families can use the existing low-Dk PCB materials guide as background. For an actual RFQ, however, the quotation should be tied to the customer’s specified or approved construction.

How Do Stack-Up and Impedance Controls Affect Low Loss PCB Performance?

A material data sheet alone does not define the finished PCB. Pressed dielectric thickness, trace geometry, finished copper, solder mask, and manufacturing tolerances all influence the realized impedance and loss behavior.

Before release to production, confirm these stack-up and impedance details:

  • Controlled-impedance inputs. Identify the impedance type, target value, tolerance, routing layer, reference layer, trace width, differential spacing where applicable, and coupon requirement.
  • Manufacturing feasibility. The supplier can review the proposed construction, calculate or verify production geometry using the agreed inputs, and raise an engineering question when the required geometry conflicts with fabrication limits.
  • Design responsibility. The customer retains responsibility for electrical targets. The supplier should make the approved design buildable and document any authorized manufacturing adjustment—not redesign the RF architecture.

For additional production-oriented details, see the PCB stack-up and impedance control guidelines.

Which Fabrication Risks Can Increase Signal Loss?

Low-loss PCB performance can drift even when the correct laminate name appears on the traveler.

Ask how the supplier controls the manufacturing variables connected to the released specification:

  • Unapproved material changes. A different core, prepreg, glass style, resin content, or copper option can change the actual construction. The supplier should request approval before substitution.
  • Pressed thickness variation. Prepreg flow, copper distribution, and lamination conditions influence the finished dielectric thickness. That affects impedance geometry and may require a revised production stack-up.
  • Copper profile and plating variation. Copper characteristics and finished conductor geometry matter more as frequency and loss targets become tighter. The quotation and fabrication notes should reflect any customer-controlled copper requirement.
  • Etch and registration capability. Fine lines, narrow spacing, multilayer alignment, and annular-ring requirements must be reviewed together. A design at the edge of the supplier’s process window needs an explicit engineering discussion.
  • Mixed-material lamination. Hybrid constructions introduce different material behavior during lamination and drilling. The supplier should confirm that the proposed combination fits its qualified process before accepting the order.
  • Incomplete test instructions. “100% electrical test” does not automatically include impedance, insertion-loss characterization, or a customer-specific RF test. Every required output must be named in the RFQ.

Which Quality Records Should You Request With Your Boards?

Request records according to project risk, customer requirements, and order stage. A prototype qualification lot may require different documentation from a repeat production order.
Record What It Helps Confirm
Material identification The laminate or material used matches the approved order requirement.
Impedance coupon result The agreed coupon and target were checked using the stated method.
Microsection record Selected internal features can be reviewed against the agreed criteria.
Electrical test record Opens and shorts were checked under the quoted test scope.
Dimensional inspection Specified mechanical dimensions were sampled or verified as agreed.
Certificate of conformance The shipment is linked to the purchase order and stated requirements.
Do not request every possible document by default. Extra inspection, coupons, third-party reports, or customer-specific testing can affect price and lead time. State what is required at the quotation stage so both suppliers are pricing the same scope.

What Files Are Needed for an Accurate Low Loss PCB Quote?

A board size, layer count, and quantity are not enough for a dependable quotation.

A useful RFQ package should include the files and notes that determine material, construction, process, inspection, and delivery:

  • Gerber or ODB++ fabrication data;
  • NC drill files and a fabrication drawing;
  • reference or approved stack-up;
  • specified laminate, prepreg, copper, and acceptable alternatives;
  • finished thickness, copper weight, and surface finish;
  • controlled-impedance targets, tolerances, layers, and coupon notes;
  • special dimensional or registration requirements;
  • inspection records and test outputs required with the shipment;
  • prototype and production quantities;
  • requested delivery date and packaging notes.

If assembly is also required, add the BOM, pick-and-place file, assembly drawing, component-sourcing rules, approved alternates, and customer-defined test instructions. EBest Circuit (Best Technology) can coordinate PCB fabrication, BOM sourcing, SMT and through-hole assembly, inspection, and agreed testing support, but the quotation must clearly define the requested scope.

low loss pcb supplier
Clear fabrication inputs reduce assumptions, requotes, and production delays.

How Can You Compare Low Loss PCB Suppliers Beyond Unit Price?

Two quotations can show the same quantity and very different prices because they do not include the same assumptions.

Compare the complete manufacturing scope before choosing a supplier:

  • Compare the material line. Is the exact specified material quoted? Are alternatives identified? Are material lead time and minimum purchasing conditions clear?
  • Compare the stack-up. Does the quotation follow the same construction? A lower price based on a different dielectric or copper construction is not an equivalent offer.
  • Compare inspection and testing. Confirm whether impedance coupons, electrical testing, microsections, dimensional reports, or special test coordination are included.
  • Compare engineering questions. A supplier that identifies a real manufacturability conflict before order placement may be reducing risk, even if another quotation arrives faster.
  • Compare the path to repeat production. Ask how approved material, stack-up, inspection criteria, and engineering changes will be controlled for the next lot.

A realistic sourcing example. Consider a buyer requesting a low-loss multilayer prototype with controlled impedance.

  • Supplier A quotes from board size and layer count without confirming the stack-up or coupon.
  • Supplier B identifies that the requested material construction is unavailable in the stated thickness, proposes an available construction for customer review, and separates the coupon requirement in the quotation.

Supplier A initially appears cheaper. Supplier B gives the buyer enough information to compare risk, lead time, and evidence before issuing the purchase order. This is the difference between a fast price and a usable quotation.

The same comparison approach applies to broader RF PCB manufacturing projects and high-frequency industrial boards. The supplier should convert released engineering requirements into a controlled manufacturing plan, not invent product requirements.

low loss pcb supplier
Compare the assumptions behind each quotation, not only the unit price.

Why Choose EBest Circuit for Low Loss PCB Manufacturing?

EBest Circuit (Best Technology) supports customers who need a practical handoff from released PCB data to fabrication and assembly. The team can review Gerber data, drill files, the customer stack-up, specified materials, copper requirements, impedance notes, surface finish, inspection requirements, and order quantity before production.

Support can include:

  • PCB layout manufacturability and fabrication-file review;
  • material availability and approved-alternative confirmation;
  • stack-up and controlled-impedance manufacturing review;
  • prototype and production PCB fabrication;
  • BOM sourcing and PCBA when included in the RFQ;
  • AOI, X-ray, electrical test, and customer-defined test coordination where applicable;
  • clear engineering questions when released requirements conflict with the manufacturing process.
This support does not replace the customer’s RF architecture, system design, or product-validation responsibilities. It gives buyers a clearer route from approved design data to a manufacturable PCB and, when required, assembled PCBA. For a quotation review, send the available fabrication package, material and stack-up requirements, impedance table, quantities, inspection needs, and target date to sales@bestpcbs.com. If any information is missing, identify it as “to be confirmed” so the quotation assumptions remain visible.

FAQs About Low Loss PCB Suppliers

What is the first document I should send to a low loss PCB supplier?
Send the complete fabrication data together with the fabrication drawing and reference stack-up. A board outline or material name alone is not enough for a reliable manufacturability review.

Can a supplier replace the specified low-loss laminate with an equivalent?
Only through the approval process defined by the customer. The supplier should identify the proposed material and construction before the order is released, because similar product descriptions do not guarantee identical electrical or processing characteristics.

Does controlled-impedance testing prove low insertion loss?
No. An impedance coupon checks the agreed impedance condition under the stated method. Insertion-loss characterization is a different requirement and must be defined separately if the project needs it.

Why do two low loss PCB quotes differ so much?
The suppliers may be quoting different materials, stack-ups, purchasing quantities, inspection records, coupon plans, surface finishes, lead times, or yield assumptions. Compare these items before comparing unit price.

Can EBest Circuit assemble the boards after fabrication?
Yes, when PCBA is included in the RFQ. EBest Circuit (Best Technology) can support BOM sourcing, SMT and through-hole assembly, inspection, and agreed testing assistance. Send the BOM, placement data, assembly drawings, approved-alternative rules, and test instructions with the PCB files.

To review your next low loss PCB supplier RFQ, email the fabrication package and purchasing requirements to sales@bestpcbs.com.

You may also like

Tags: , ,
Posted in PCB, pcb manufacturing, pcb manufacturing news | No Comments »

SMA Terminal PCB Guide for RF Connector Mounting and PCBA

July 27th, 2026

An SMA terminal PCB is used when an RF signal needs to move between a printed circuit board and an external coaxial cable, antenna, test instrument, or RF module. For engineers and buyers, the question is usually not only “Which SMA connector should I buy?” but “Can this connector be mounted, soldered, grounded, inspected, and assembled reliably on my PCB?”

That is where PCB and PCBA manufacturing review becomes important. The SMA terminal area may involve PCB thickness, connector drawing, footprint accuracy, 50 ohm signal routing, ground pads, edge plating, soldering method, mechanical stress, and final inspection. EBest Circuit (Best Technology) supports RF-related PCB fabrication, component sourcing, SMT assembly, through-hole soldering, inspection, and small-batch PCBA projects where connector reliability matters. If your project includes SMA connectors, RF terminals, antenna interfaces, or connector-sensitive PCBA requirements, please send your Gerber files, BOM, stackup, connector drawing, and assembly notes to sales@bestpcbs.com for engineering review before production.

sma terminal pcb

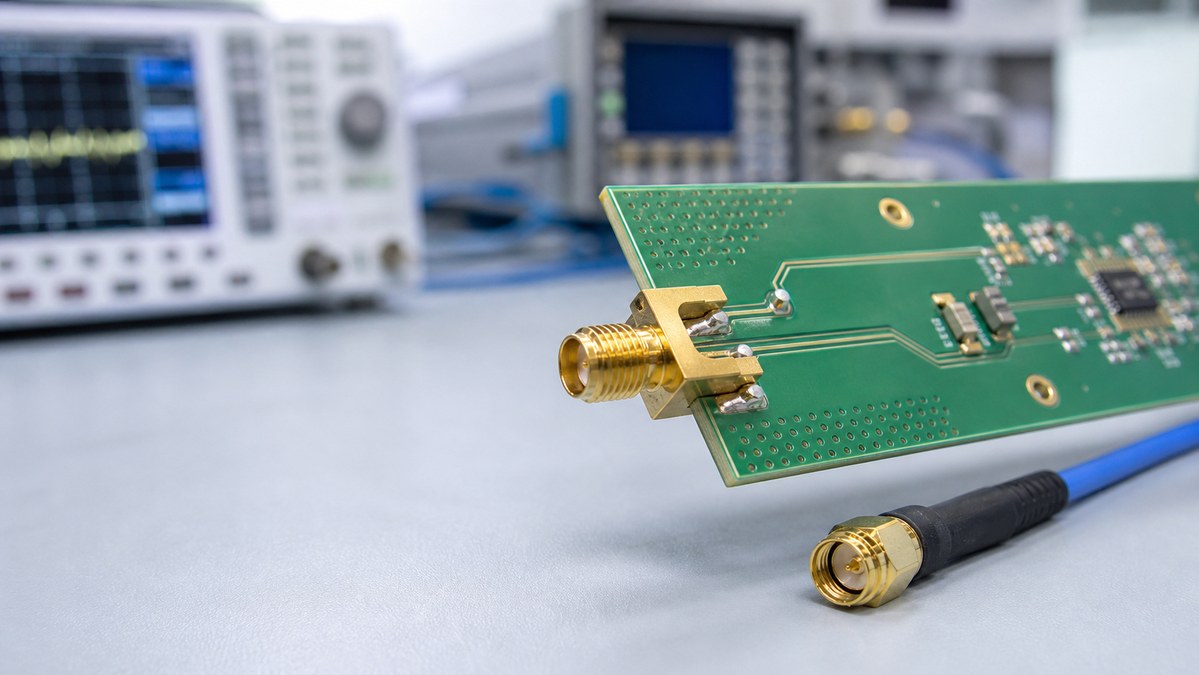

SMA terminal PCB manufacturing review for RF connector mounting and PCBA reliability.

What Is an SMA Terminal PCB?

An SMA terminal PCB is a printed circuit board designed with an SMA connector or SMA terminal interface. SMA connectors are widely used for RF signals because they provide a compact coaxial connection between the PCB and external RF equipment.

Term Common Meaning
SMA terminal PCB Board with an SMA terminal or connector interface
PCB SMA connector SMA connector mounted on a PCB
SMA connector PCB PCB designed for SMA connector installation
RF SMA connector SMA connector used for RF signal transfer
SMA connector receptacle Female SMA connector interface
SMA panel mount connector SMA connector mounted through a panel or enclosure

In real projects, the SMA terminal is not only a mechanical connector. It affects the RF transition, grounding path, soldering process, connector strength, cable access, and final inspection.

SMA Terminal PCB vs PCB SMA Connector

An SMA terminal PCB and a PCB SMA connector are closely related, but they do not mean exactly the same thing. The connector is the component. The PCB is the manufactured board that must support the connector correctly.

Item SMA Terminal PCB PCB SMA Connector
Main focus Board and connector integration Connector component
Checked by PCB/PCBA manufacturer Connector supplier and customer
Key details Footprint, board thickness, RF path, soldering Gender, frequency, impedance, mounting style
Risk Wrong layout or weak assembly Wrong connector type or unavailable part

If the project uses an SMA connector PCB, the connector drawing, PCB footprint, stackup, board thickness, and assembly notes should be checked together. A correct connector part number alone does not guarantee reliable PCBA assembly.

RF SMA Connector Types for PCB Mounting

Different RF SMA connector types require different PCB and assembly checks. The right choice depends on the customer design, enclosure structure, RF path, cable direction, and mechanical requirement.

SMA Type Typical Use
Edge launch SMA connector RF signal enters from board edge
Surface mount SMA connector Compact SMT-friendly boards
Through-hole SMA connector Stronger mechanical mounting
Right-angle SMA connector Cable exits parallel to the PCB
SMA flange connector Panel or enclosure mounting
SMA female panel mount connector External cable access through housing

For PCB manufacturing, the connector type affects pad shape, drill holes, solder mask opening, edge clearance, plating, panelization, and inspection. For PCBA, it affects soldering method, fixture support, cleaning, and packing.

sma terminal pcb

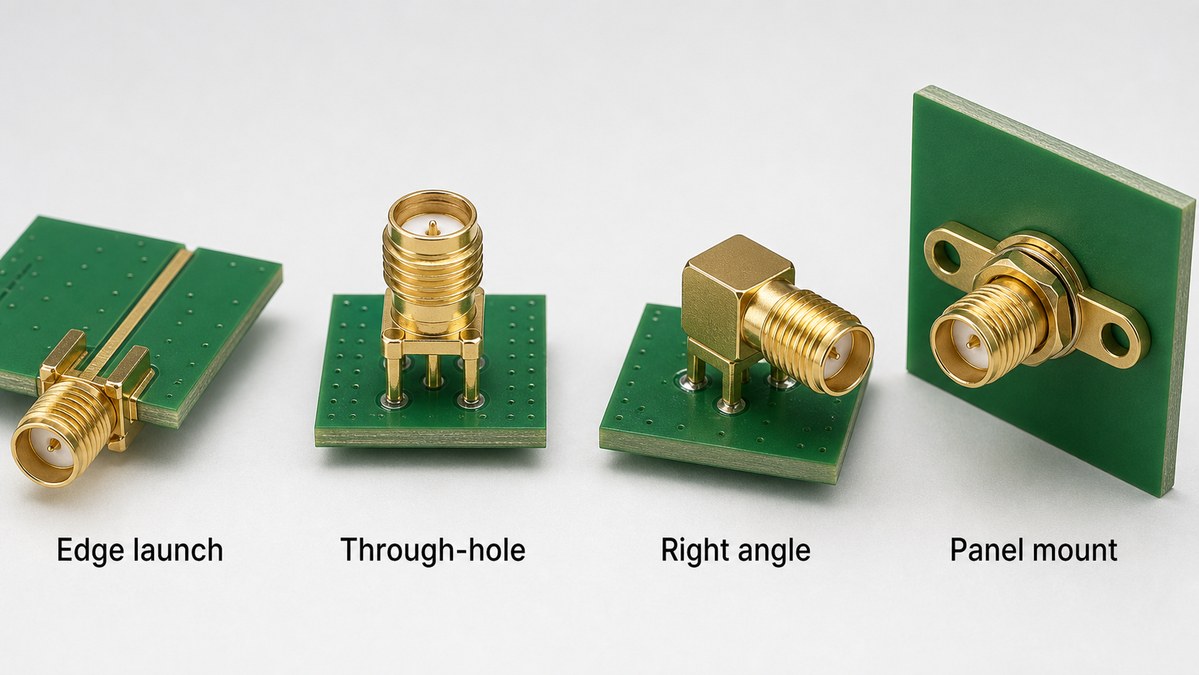

Common SMA connector mounting styles used in PCB and PCBA projects.

Edge Launch SMA Connector for RF PCB Applications

An edge launch SMA connector is mounted at the edge of the PCB. It is common in RF test boards, antenna boards, wireless modules, high-frequency boards, and measurement interfaces.

Important manufacturing checks include:

  • Finished PCB thickness must match the connector drawing.
  • The board edge should support the connector body correctly.
  • The signal trace should transition cleanly into the connector pin.
  • Ground pads and vias should follow the approved RF layout.
  • Solder mask opening should not interfere with contact or soldering.
  • Panelization should protect the board edge and connector area.

For an edge launch SMA terminal PCB, the board thickness is especially important. Many edge launch connectors are designed for specific PCB thickness ranges. If the finished PCB is too thick or too thin, the connector may not sit correctly, and the RF transition may become unreliable.

For high-frequency projects, the SMA terminal area is often reviewed together with RF PCB manufacturer requirements such as material, copper thickness, impedance, surface finish, and ground continuity.

SMA Flange Connector and Panel Mount Options

An SMA flange connector or SMA panel mount connector is useful when the connector must be fixed to an enclosure, bracket, panel, or mechanical structure. This can reduce stress on the PCB when the cable is connected or disconnected repeatedly.

These projects should check:

  • mounting hole diameter and tolerance
  • connector body clearance
  • panel thickness and connector thread length
  • board-to-panel alignment
  • soldering or cable connection method
  • mechanical stress on the solder joint
  • packing protection for protruding connectors

If the SMA connector is fixed to the panel but also connected to the PCB, the mechanical stack should be confirmed before assembly. A small mismatch between PCB, enclosure, and connector can create stress during final product assembly.

SMA Connector Receptacle and Terminal Structure

An SMA connector receptacle is usually the female SMA interface. For PCB and PCBA review, the important point is how the connector terminals contact the board.

Center pin: The center pin carries the RF signal. Its pad, trace width, transition shape, and soldering condition affect signal performance.

Ground terminals: The outer conductor and ground terminals provide the return path and shielding reference. Ground pad design, via placement, copper connection, and soldering quality should follow the approved RF layout.

Mounting structure: Some SMA connectors rely on SMT pads, some use through-hole legs, and some require screws or flange mounting. The PCB drawing and assembly notes should make this clear before production.

SMA Connector Drawing, Footprint, and PCB Thickness Checks

The SMA connector drawing is one of the most important documents for an SMA terminal PCB project. A small footprint mismatch can cause soldering defects, poor connector seating, weak mechanical support, or unusable RF performance.

Before PCB fabrication and assembly, EBest Circuit checks whether the customer files clearly define:

  • exact connector part number
  • manufacturer drawing
  • PCB land pattern
  • drill size and hole plating
  • board thickness requirement
  • edge clearance
  • solder mask opening
  • surface finish
  • connector orientation
  • SMT or through-hole process notes

The SMA connector PCB footprint should be checked against the datasheet, not copied from a similar connector without confirmation. Similar-looking SMA connectors may have different pin dimensions, mounting holes, body height, or recommended board thickness.

sma terminal pcb

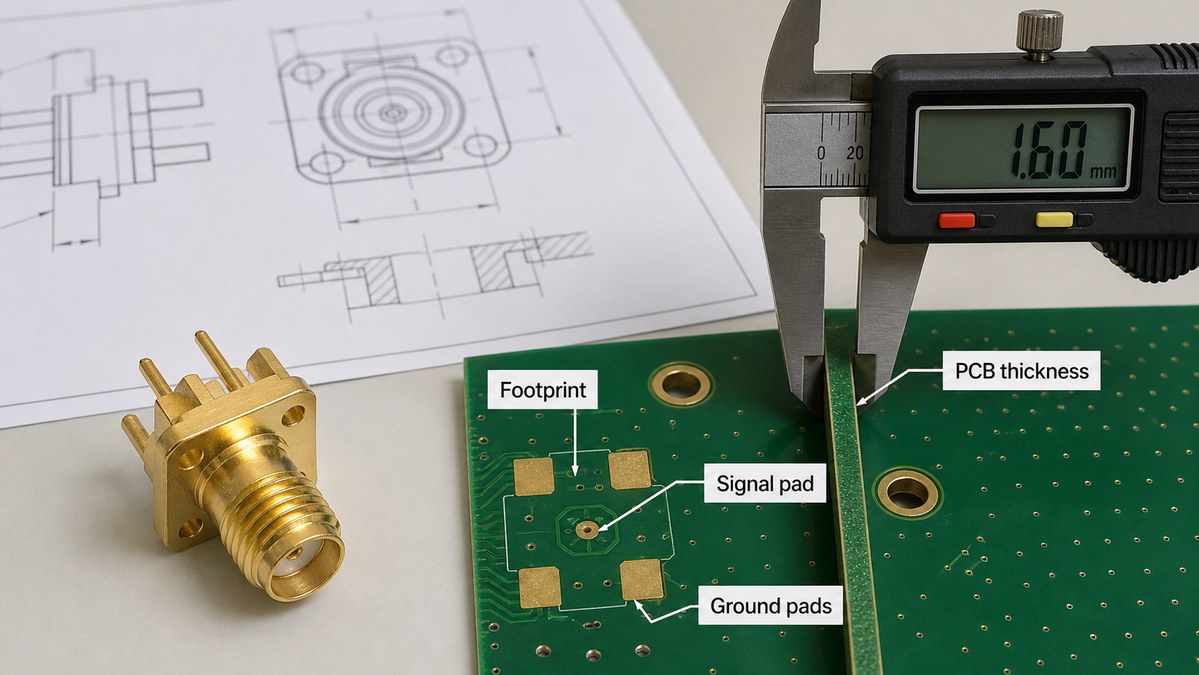

PCB thickness, edge clearance, and footprint should match the approved SMA connector drawing.

50 Ohm SMA PCB Layout and Grounding Review

Many SMA terminal PCB projects involve 50 ohm RF signal routing. The customer usually defines the circuit and RF design requirements. The PCB manufacturer should not change the RF structure without approval, but it should check whether the files are manufacturable.

Manufacturing review often focuses on:

  • stackup and dielectric thickness
  • copper thickness
  • trace width and spacing
  • reference ground layer
  • ground via placement near the SMA area
  • solder mask opening around RF pads
  • surface finish selection
  • impedance coupon and test report requirements

For RF boards, the SMA terminal should be reviewed together with the whole signal path. If the board also includes an antenna section, RF module, or coaxial interface, the RF transition should stay consistent with the approved customer design. This is also why RF antenna PCB projects often need early stackup and impedance review.

sma terminal pcb

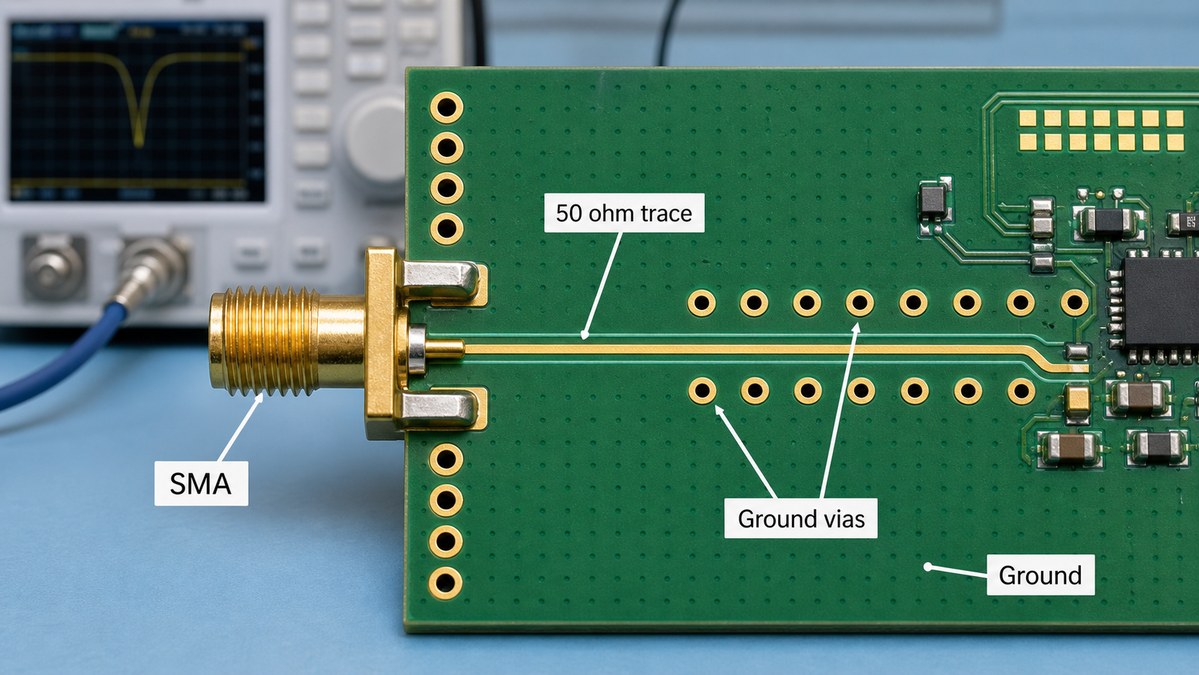

50 ohm SMA PCB routing depends on trace geometry, reference ground, and connector grounding.

SMA Connector Soldering and PCBA Assembly Risks

SMA connectors can create assembly risk because they are both electrical parts and mechanical interfaces. A connector may pass visual inspection at first but fail later if soldering, alignment, or mechanical support is weak.

Assembly Point Why It Matters
Connector orientation Prevents wrong cable direction
Soldering method SMT and through-hole require different control
Stencil opening Affects solder volume for SMT connectors
Manual solder notes Reduces inconsistent workmanship
Visual inspection Checks connector position and solder fillet
Cleaning requirement Controls flux residue near RF area
Packing method Protects protruding connectors

For prototype and small volume PCB assembly, the connector area deserves special attention because debugging often depends on stable cable connection, clean signal transfer, and repeatable test setup.

SMA Terminal PCB Manufacturing Case Study

A USA customer needed a prototype RF interface board for a wireless test module. The board used SMA terminal connections for RF signal input and output, so the customer cared about connector seating, board thickness, soldering strength, 50 ohm signal transition, and test reliability.

Project requirements

  • Customer region: USA
  • Application: wireless RF test module
  • Quantity: 20 pcs prototype and pilot build
  • PCB type: 4-layer FR4 PCB
  • Material: FR4 Tg130
  • Copper: 1oz outer copper, 0.5oz inner copper
  • Finished thickness: 1.60mm +/-10%
  • Surface finish: ENIG 1u”
  • Solder mask and silkscreen: green solder mask, white silkscreen
  • Assembly: component sourcing by EBest Circuit, SMT and connector assembly
  • Delivery: single-unit packing after assembly
  • Production control: production files confirmed before fabrication

Customer concerns

  • The SMA connector had to sit correctly on the board edge.
  • The RF path needed stable 50 ohm transition from connector to PCB trace.
  • The connector area could not be damaged during depaneling or packing.
  • The prototype quantity was small, but the test setup depended on repeatable connector quality.

EBest Circuit solution

  • Reviewed the connector drawing, footprint, and finished PCB thickness before fabrication.
  • Checked stackup, copper thickness, and RF trace area for manufacturability.
  • Confirmed solder mask opening and connector orientation before SMT.
  • Arranged component sourcing and assembly under one workflow.
  • Used ENIG for stable solderability and surface protection.
  • Checked connector soldering and board cleanliness before single-unit packing.

Result: The customer received a small-batch RF prototype that matched the SMA terminal mounting requirement, PCB thickness target, surface finish, and assembly notes. The value of the project was not only producing 20 boards. It was reducing the risk that an RF test module would fail because of a connector footprint, board-edge, soldering, or packing issue.

sma terminal pcb

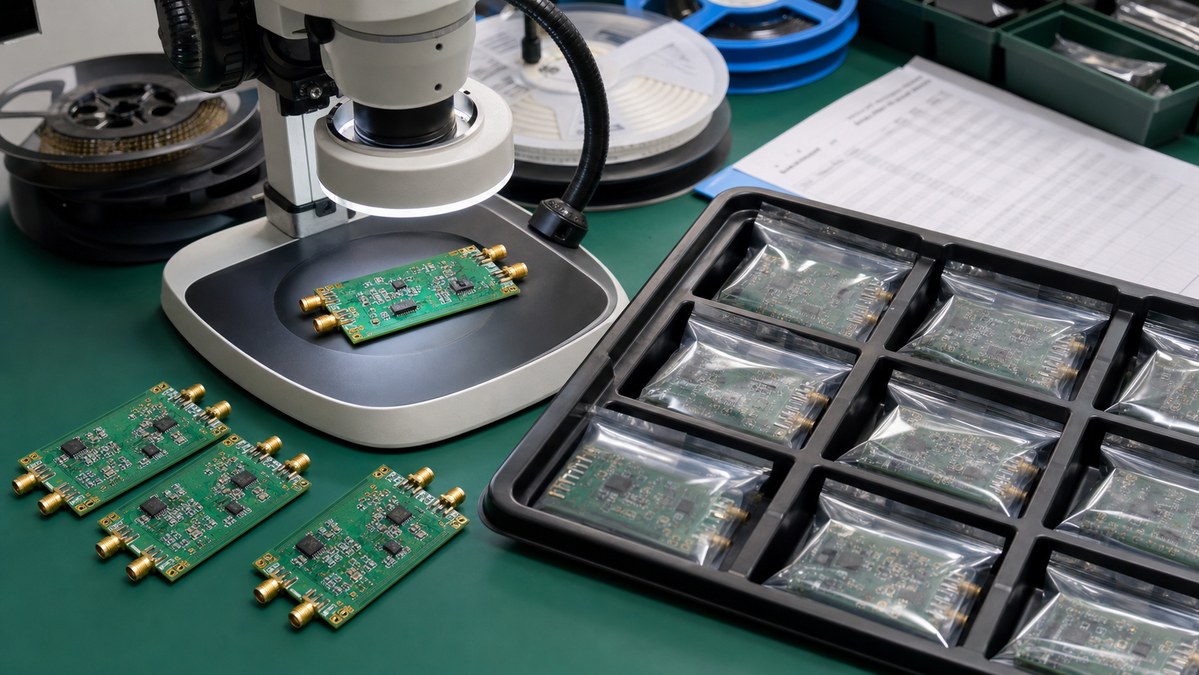

Example workflow for an SMA terminal PCB prototype with RF connector, PCB fabrication, and PCBA checks.

Why Choose EBest Circuit for SMA Terminal PCB and PCBA Projects?

EBest Circuit is suitable for SMA terminal PCB and PCBA projects when connector reliability, RF signal routing, and manufacturing review must be controlled together.

Useful support includes:

  • RF-related PCB fabrication
  • FR4, high-frequency, metal core, ceramic, flex, and rigid-flex PCB support
  • stackup and impedance review when required
  • connector drawing and footprint review
  • BOM sourcing and approved component preparation
  • SMT, through-hole, and mixed assembly
  • inspection, testing coordination, and packing support
  • prototype, pilot run, and small-batch production

EBest Circuit has worked in PCB and PCBA manufacturing since 2006. The company supports customers in more than 40 countries and regions, with major export markets including the USA, Germany, and Israel. Quality support includes ISO9001, ISO13485, IATF16949, AS9100D, RoHS, REACH, and UL-related documentation.

For connector-sensitive projects, stable communication also matters. Many engineers, quality managers, production leaders, and sales members at EBest Circuit have worked in the company for more than 10 years. That experience helps keep connector drawings, stackup notes, BOM changes, assembly requirements, and packing details visible from file review to delivery.

FAQs About SMA Terminal PCB

1. What is an SMA terminal PCB?

An SMA terminal PCB is a printed circuit board designed with an SMA connector or terminal interface for RF signal connection to coaxial cable, antenna, RF module, or test equipment.

2. Is an SMA terminal PCB the same as an SMA connector PCB?

They are closely related. An SMA connector PCB usually refers to a PCB designed for SMA connector installation. An SMA terminal PCB emphasizes the connector interface area and how it is manufactured and assembled.

3. What PCB thickness is used for SMA edge launch connectors?

It depends on the connector drawing. Many edge launch SMA connectors are designed for specific board thicknesses, so the datasheet and finished PCB thickness tolerance should be confirmed before production.

4. Does an SMA terminal PCB need 50 ohm impedance control?

Many RF SMA connector projects require 50 ohm routing, but the exact requirement should come from the customer’s RF design. The PCB manufacturer can help review stackup, trace geometry, copper thickness, and impedance report requirements.

5. Can EBest Circuit help choose the SMA connector?

EBest Circuit can help review connector availability, footprint, assembly method, and manufacturability. The final connector model and RF performance decision should be confirmed by the customer’s engineering team.

All in all, an SMA terminal PCB project is not only about placing a connector on a board. It is about making sure the connector drawing, footprint, PCB thickness, RF path, grounding, soldering, inspection, and packing method work together before production starts. If your project includes SMA connectors, RF terminals, antenna interfaces, or connector-sensitive PCBA requirements, please send your Gerber files, BOM, stackup, connector drawing, and assembly notes to sales@bestpcbs.com. EBest Circuit’s engineering team can review the manufacturing path before your boards move into production.

You may also like

Tags: , ,
Posted in best pcb, bestpcb, PCB, pcb manufacturing, pcb manufacturing news, RF PCB | Comments Closed
