PCB design constraints turn electrical, mechanical, fabrication, and assembly requirements into limits that the layout team can apply and check before release. Well-defined PCB layout constraints also give the designer, buyer, and manufacturer the same reference when a stackup or process decision changes. The objective is not to use the smallest values a supplier advertises. It is to create a buildable rule set for the actual materials, copper weight, stackup, board geometry, component package, and production volume.
PCB design constraints reviewed before fabrication release.
What Are PCB Design Constraints?
PCB design constraints are measurable rules that control how a board is placed, routed, fabricated, and assembled. They connect product requirements to the physical PCB files that a manufacturer receives.
A constraint may define a minimum clearance, an allowed trace-width range, a finished-hole requirement, a differential-pair geometry, a component keepout, or a maximum board dimension. Some constraints protect electrical performance. Others prevent fabrication or assembly defects. Many affect both.
The costly mistake is treating all constraints as software defaults. A design-rule file can confirm that the layout follows the values entered into the ECAD tool, but it cannot prove those values match the selected PCB process. Before release, the project team should connect every critical rule to one of three sources:
An electrical or product requirement approved by the customer
A mechanical or assembly requirement from the released design
A fabrication capability or stackup confirmed by the PCB supplier
This distinction keeps responsibility clear. The customer owns circuit function, component selection, electrical targets, safety and EMC decisions, and the approved design files. The manufacturer confirms whether the released geometry can be produced consistently within the quoted process.
Types of PCB Design Constraints
Missing one constraint category can create a failure outside the area the designer checked. Effective constraint management therefore connects electrical, mechanical, fabrication, assembly, and documentation limits instead of reviewing each group in isolation. A trace may satisfy current requirements but violate fabrication spacing. A component may fit the PCB outline but block an enclosure wall or prevent automated assembly inspection.
Fabrication constraints: Trace and space, drill size, annular ring, copper-to-edge clearance, solder mask features, copper weight, layer count, and material choices
Electrical constraints: Controlled impedance, net length, differential-pair geometry, clearance for the applied voltage, current capacity, return paths, and sensitive-net separation
Assembly constraints: Component spacing, orientation, polarity, pad geometry, fiducials, tooling clearance, rework access, and inspection visibility
Documentation constraints: Stackup revision, impedance table, drill information, drawing notes, Gerber or ODB++ revision, BOM revision, and approved exceptions
These groups should not be managed independently. Changing copper weight may affect trace geometry. Changing the stackup may affect impedance. Moving a connector may affect both mechanical fit and assembly access. A release review should therefore check the complete constraint set against one controlled file revision.
PCB Design Rules That Match Fabrication Capability
Generic PCB design rules can prevent obvious layout errors, but they do not automatically match a particular supplier, material system, copper construction, or production target. Using an aggressive default may produce a board that is technically possible but harder to yield consistently. Using an unnecessarily conservative rule may increase size, layer count, or cost.
Before routing, ask the intended manufacturer to confirm the relevant capability for the proposed construction. The review should cover the values that materially affect the quote and build, including:
Finished copper weight and the trace/space that applies after plating and etching
Minimum finished hole and the required pad or annular ring
Layer count, board thickness, material family, and proposed stackup
Solder mask clearance, solder mask dam expectations, and exposed-copper features
Board-edge, slot, routing, scoring, and panelization limitations
Controlled-impedance requirements and the data needed for calculation
Special processes such as via filling, capped vias, sequential lamination, heavy copper, or rigid-flex construction
Do not copy one supplier’s smallest published number into every net class. Confirm which values are standard, which require a special process, and which should be avoided for a stable production release. The output should be an approved rule set or capability record that the designer can reference when running the final checks.
PCB Trace Width and Spacing Limits
An incorrect trace-width or spacing rule can lead to open circuits, shorts, overheating, impedance deviation, or a quotation that changes after CAM review. The correct value depends on more than a generic minimum.
Trace width may be controlled by current, allowed temperature rise, copper thickness, voltage drop, impedance, and manufacturability. Spacing may be controlled by voltage, safety requirements, signal coupling, copper weight, etching tolerance, and the selected fabrication class.
For release, separate these decisions instead of applying one global rule:
Use electrical analysis to define current-carrying and voltage-clearance needs.
Use the approved stackup to define impedance-related geometry.
Use supplier capability to confirm manufacturable trace and spacing limits for the actual copper construction.
Use net classes to keep power, high-speed, sensitive analog, and ordinary signals under the correct rules.
Record any intentional exception and obtain approval before fabrication.
The manufacturer can review whether the geometry fits the quoted process, but it should not invent the product’s current, voltage, timing, safety, or signal-integrity requirements. Those inputs must come from the customer engineering team.
Via, Hole, and Pad Constraints
Vias and holes often pass a visual layout check while still creating fabrication or reliability risk. Problems may appear as insufficient annular ring, an impractical aspect ratio, copper breakout, plating difficulty, solder loss through via-in-pad features, or mechanical interference around mounting holes.
The released data should distinguish plated through holes, non-plated holes, blind or buried vias, microvias, filled vias, capped vias, and mechanical slots. For each critical feature, confirm:
Finished hole size rather than drill-tool size alone
Pad diameter and required annular ring
Hole-to-copper and hole-to-board-edge clearance
Board thickness and the resulting via aspect-ratio demand
Whether via filling, plugging, capping, or tenting is required
Whether via-in-pad features affect soldering or component coplanarity
Whether mounting hardware needs copper, mask, or component keepouts
A supplier may propose a larger pad, different drill, or alternative via structure when the original geometry is risky. The customer should approve the change because it may affect routing density, impedance, thermal behavior, component escape, and the controlled design revision.
Via, hole, and pad constraints checked against manufacturing capability.
Impedance Constraints and Signal Integrity Risks
An impedance note such as “50 ohms” is not a complete manufacturing instruction. The target depends on whether the structure is single-ended or differential, which layers are used, what tolerance is acceptable, and which reference planes, materials, and finished copper values apply.
Before requesting controlled impedance, provide a controlled impedance table or drawing that identifies:
Target impedance and allowed tolerance
Relevant nets or impedance classes
Signal layer and reference layer
Preferred trace width and spacing, if electrically fixed
Stackup or material restrictions that cannot be changed
Coupon and test-report expectations
The PCB manufacturer can calculate a manufacturable geometry for an agreed stackup and can coordinate impedance testing when specified. The customer remains responsible for the electrical target, topology, timing, return-path strategy, simulation assumptions, and final signal-integrity acceptance.
This boundary prevents a common late-stage conflict: the designer fixes a trace width before the production stackup is confirmed, while the supplier later needs a different geometry to reach the target. Align the stackup and impedance model before final routing whenever the design schedule allows.
Component Placement Constraints for Assembly
Components can be electrically correct and still create assembly loss. Parts placed too close to the board edge, tall components, connectors, tooling areas, test points, heat sources, or each other may interfere with printing, placement, soldering, inspection, depanelization, enclosure fit, or rework.
The placement review should include:
Component-to-board-edge and component-to-cutout clearance
Connector position, insertion direction, and mating access
Polarity and orientation consistency
Spacing around tall, heavy, heat-sensitive, or hand-soldered components
Fiducial, tooling-hole, rail, and panelization needs
Access for automated optical inspection, test probes, and rework tools
Pad and paste decisions for thermal pads, fine-pitch parts, BGAs, and bottom-terminated components
Component-height restrictions and mechanical keepout areas
Assembly constraints should be checked against the PCB, BOM, centroid data, assembly drawing, enclosure information, and any agreed panel requirement. EBest Circuit (Best Technology) can review PCB manufacturability and assembly-related risks within the supplied data, support PCB fabrication, component sourcing, PCBA, inspection, and coordinated testing. The customer must approve component choice, circuit function, mechanical envelope, and released files.
Component placement constraints reviewed for PCB assembly access and inspection.
PCB Design Rule Check Before Release
A clean PCB design rule check is useful evidence, but it only proves compliance with the rules configured in the software. It does not prove that the rules are complete, that the stackup is current, or that the fabrication drawing and layout use the same revision.
Before release, combine automated DRC with a controlled handoff review:
Confirm that the rule set matches the selected supplier capability and approved stackup.
Resolve or formally waive every critical violation.
Compare the PCB outline, cutouts, mounting holes, and connector locations with the mechanical source.
Verify that impedance classes, drill information, copper weight, and drawing notes agree.
Check that the BOM, centroid file, assembly drawing, and PCB data share one revision.
Remove obsolete files from the release package.
Identify intentional deviations instead of expecting CAM engineers to guess.
Send the supplier the complete release package before expecting a production-ready quotation. If an important decision is still open, label it clearly and request a DFM response against that specific point.
A PCB Design Constraints Example for DFM Review
Consider a compact multilayer controller board with controlled-impedance signals, a fine-pitch component, several mounting holes, and connectors positioned against an enclosure opening. The layout team completes routing using an internal rule template and sends Gerbers for quotation.
During review, the proposed stackup requires a different impedance geometry, one via structure is difficult for the selected board thickness, copper sits too close to a routed slot, and a connector body reduces access around a nearby component. These are among the most common PCB design mistakes that escape a rule check built around incomplete supplier or assembly inputs. None of these issues means the product concept is wrong, but each can delay the release or force a revision.
A controlled DFM response would separate the decisions:
The supplier proposes a manufacturable stackup and impedance geometry.
The designer confirms whether the revised geometry still meets electrical requirements.
The supplier identifies the via and copper-clearance risks.
The customer approves layout changes and updates the controlled PCB revision.
The assembly review checks connector access, placement clearance, polarity, and inspection needs.
The final package is reissued with aligned fabrication, assembly, drill, and BOM data.
The avoided loss is not merely one CAM question. It is the accumulation of quote revisions, purchasing delays, unapproved shop-floor changes, and uncertainty about which files represent the product. Clear PCB design constraints move those decisions before production.
FAQs About PCB Design Constraints
When should PCB design constraints be defined?
Define product and electrical requirements before layout, then align fabrication and assembly limits with the intended supplier before final routing. Recheck them whenever the stackup, copper weight, board thickness, component package, or mechanical design changes.
Are PCB design rules and PCB design constraints the same?
They are closely related, but a design rule is often a specific check implemented in software, while a constraint can also be an electrical, mechanical, fabrication, assembly, or documentation limit that requires engineering review.
Does a clean DRC mean the PCB is ready for fabrication?
No. A clean DRC only confirms that the layout follows the configured rules. The team must still verify supplier capability, stackup, impedance data, drills, outline, drawings, assembly files, and revision consistency.
Who should approve a change suggested during PCB DFM?
The supplier can explain the manufacturing risk and propose an alternative. The customer should approve changes that may affect electrical performance, mechanical fit, component placement, reliability, or the released design revision.
Provide the controlled PCB fabrication data, fabrication drawing, drill information, approved stackup or stackup requirements, impedance table when applicable, BOM, centroid data, assembly drawing, mechanical information, and a list of approved exceptions. To discuss a project with EBest Circuit (Best Technology), contact sales@bestpcbs.com with the current release package and the constraints that still need confirmation.
A machine vision board must acquire every required frame, preserve trigger timing, process the image within the cycle time, and deliver a valid result under sustained industrial load. That outcome depends on the complete path: camera interface, FPGA/GPU/NPU partitioning, DDR buffering, PCIe or network transfer, power, heat, PCB construction, assembly, and functional test.
What Is a Machine Vision Board for Industrial Image Processing?
A machine vision board is the deterministic hardware path between image capture and a machine decision. It accepts one or more camera streams, associates frames with triggers or timestamps, performs preprocessing or inference, and sends results to a host, PLC, robot controller, or motion system.
The board may be a PCIe frame grabber, an embedded controller, or a custom PCBA inside an inspection machine. Its functional boundary is wider than a camera PCB module, which mainly supports the sensor and local imaging electronics, and different from an IP camera PCB, which is organized around network video capture and delivery. A machine vision board commonly owns frame buffering, deterministic I/O, image processing, diagnostics, and host communication.
For AOI, robotic guidance, metrology, sorting, and multi-camera inspection, image quality is only one acceptance item. The specification must also define maximum trigger-to-result latency, permitted camera skew, dropped-frame behavior, recovery time, operating temperature, output safety state, and the exact revision of firmware and AI models used for acceptance.
How Should You Choose FPGA, GPU, or NPU Processing for a Machine Vision Board?
Select compute by assigning each pipeline stage to the device that can meet its worst-case latency, throughput, power, and software-support requirement. Peak TOPS does not prove that a board can ingest every camera, move intermediate data through memory, and return a decision before the machine cycle expires.
FPGA-based image processing is useful when parallel, data-heavy front-end operations must run with stable latency. A practical hybrid design can perform debayering, region extraction, line buffering, or geometric correction in FPGA logic and send only the required frames or features to a GPU or NPU. This reduces downstream traffic, but it also creates a new verification boundary: the design must prove how metadata, timestamps, frame IDs, and error flags move with the processed data.
Before fixing the processor, benchmark the intended pipeline with the actual resolution, bit depth, camera count, model, precision mode, and temperature target. Record average and worst-case latency, memory usage, accelerator utilization, and throttling behavior. If a required AI operator is unsupported, model conversion changes accuracy, or performance collapses after thermal saturation, the board architecture is not ready for release.
Which Camera Interfaces Belong on an Industrial Machine Vision Board?
Use MIPI CSI-2 for nearby embedded sensors, GigE Vision for distributed industrial cameras, and USB3 Vision for high-throughput host-connected cameras where cable routing and service access are controlled. The choice must follow physical placement, sustained payload, synchronization method, connector life, field replacement, and the software ecosystem.
Interface
Suitable architecture
PCB priority
Acceptance focus
MIPI CSI-2
Image sensor mounted on the same assembly or connected through a short controlled interconnect
Continuous reference planes, controlled differential geometry, short lane transitions, and correct sensor rail sequencing
Lane mapping, bit depth, frame start/end integrity, clock behavior, and error counters
GigE Vision
Remote or distributed cameras that benefit from Ethernet infrastructure and field-serviceable cabling
PHY and magnetics placement, return-path isolation, connector shielding, surge/ESD strategy, and network power planning when applicable
High-data-rate cameras located near the host or embedded controller
SuperSpeed channel loss, connector footprint, ESD parasitics, power integrity, and cable retention
Enumeration, sustained transfer, reconnect recovery, host-controller loading, and dropped-frame counters
Do not treat a common software layer as proof that the electrical links are interchangeable. Each interface needs its own impedance plan, connector model, protection components, power budget, compliance test, and error-injection method. If one board supports several camera types, isolate their clock and bandwidth domains and define which device owns triggers, timestamps, buffers, and recovery.
How Do Pixel Rate, DDR Bandwidth, and PCIe Traffic Shape the Board Architecture?
Calculate sustained traffic separately for camera input, every DDR read/write pass, accelerator transfer, and host output. The basic raw payload is active width x active height x frame rate x bits per pixel x camera count. Add protocol, alignment, blanking, metadata, and retry allowances only after the raw stream is visible.
As an illustrative calculation, a 1920 x 1080 stream at 60 frames per second and 10 bits per pixel carries 1,244,160,000 raw bits per second, or 155.52 MB/s before overhead. Four such cameras produce 622.08 MB/s. If the pipeline writes raw frames to DDR, reads them for processing, writes an intermediate result, reads it again for inference, and sends the output to a host, total memory traffic can be several times the incoming payload.
Build a bandwidth worksheet with one row for each transfer, its direction, payload, burst size, duty cycle, and simultaneous operating condition. Size DDR from the sum of competing reads and writes, not the camera stream alone. Size frame buffers from the longest permitted backpressure or recovery interval, then define what happens when the buffer fills: block acquisition, drop the newest frame, drop the oldest frame, or flag the inspection cycle invalid.
PCIe lane rate is not application payload. Encoding, packets, transaction size, DMA descriptors, cache behavior, host contention, and software scheduling reduce usable throughput. The acceptance test should therefore measure sustained end-to-end traffic with all cameras active and retain margin for bursts, temperature-related throttling, error recovery, and future firmware growth.
What PCB Layout Risks Threaten High-Speed Image Data Integrity?
The dominant risks are discontinuities in impedance and return current, not simply long traces. A nominally matched differential pair can still fail at a connector breakout, layer transition, via stub, split reference plane, oversized ESD pad, or noisy receiver reference.
Lock the stack-up: obtain the fabricator’s dielectric thicknesses, copper weights, material family, and impedance geometry before high-speed placement is frozen.
Preserve return paths: keep each lane over a continuous reference plane and place nearby return vias when signals change reference layers.
Control transitions: include connector fields, AC-coupling pads, ESD devices, test points, and BGA escape vias in the channel model.
Separate noise sources: keep switch nodes, motor or strobe currents, high-current connector returns, and fast clocks away from camera analog rails and sensitive references.
Verify the real channel: use the transmitter, receiver, connector, via, and material models required by the component vendors; do not apply one universal length or skew limit to every interface.
Dense FPGA, processor, or DDR fan-out may require an HDI PCB structure, but microvias cannot correct a poor topology. Review via-in-pad requirements, capture-pad size, sequential lamination, escape layers, reference changes, and inspection access together. Where margin is limited, run pre-layout and post-layout signal-integrity checks against the actual stack-up.
How Should Power Integrity, Heat, and Mechanical Constraints Be Reviewed?
Power, thermal, and mechanical reviews must use the same worst-case operating mode because rail droop, throttling, and board strain can produce identical intermittent image faults. Create a rail budget for every processor, FPGA bank, DDR rail, camera supply, PHY, illumination control, and auxiliary I/O.
Define rail behavior: record nominal voltage, tolerance, steady current, transient current, sequencing, soft-start, reset relationship, monitoring, and shutdown state.
Design the PDN: select bulk and high-frequency decoupling from the device impedance target and package model, then check plane spreading and via inductance.
Test sustained heat: run the maximum camera count and processing load until temperatures stabilize; observe junction estimates, regulator temperatures, clock reduction, and frame latency.
Close mechanical clearances: check heat-sink attachment, connector mating space, cable bend and retention, mounting-hole stress, enclosure airflow, and probe access.
A thermal solution is acceptable only if the board meets timing and image-throughput limits at the specified enclosure temperature. Likewise, a mechanical drawing is incomplete if it omits connector keep-outs, camera harness direction, heat-sink loading, or the tolerance stack between the PCB, standoffs, enclosure, and optical assembly.
How Is a Machine Vision Board Manufactured and Assembled?
Manufacturing should begin with a stack-up and assembly-risk review tied to the exact board revision. High-speed routing, fine-pitch BGA escape, blind or buried vias, heavy connectors, and thermal pads affect fabrication, solder-paste design, inspection, rework, and test-fixture access.
The following values come from EBest Circuit’s current English FR-4 capability workbook. General values are starting points for review; special-process values require confirmation against the final stack-up, panel, copper distribution, via structure, and reliability requirements.
FR-4 layer count: the general capability is 1-10 layers, with high-Tg material required for 8 layers and above. Designs from 10-32 layers require special-process review.
Laser blind or buried vias: the general capability is 0.10 mm. The final review must confirm capture pads, via fill, and the sequential-lamination structure.
Minimum finished hole: the general capability is 0.20 mm. A 0.15 mm finished hole requires special-process review.
Through-hole aspect ratio: the general capability is 8:1. A ratio up to 10:1 requires special-process review.
1 oz line and space: the general capability for inner or outer layers is 4/4 mil. A 3/3 mil design requires special-process review.
ENIG thickness: the listed range is 0.025-0.125 um for gold and 3-8 um for nickel. Wear, contact, or bonding requirements must be confirmed separately.
Before assembly, classify bottom-terminated components, fine-pitch BGAs, large exposed pads, moisture-sensitive packages, press-fit parts, high-mass connectors, and devices that require programming. Paste apertures and reflow profiling should address voiding and thermal imbalance without creating solder starvation. AOI verifies visible placement, polarity, and joints; X-ray supports hidden-joint inspection. Neither replaces electrical and functional testing of the image path.
How Should Trigger, Synchronization, and Functional Testing Be Validated?
Validation must correlate the commanded trigger, actual frame, hardware timestamp, processed result, and system output under sustained load. A live image proves only that part of the path is operating; it does not prove that the correct frame belongs to the correct machine event.
Verify power and boot: test cold starts, warm restarts, brownouts, and maximum-load transitions. Record rail timing, reset release, clocks, boot logs, and current profiles; boot loops, unstable links, corrupted configuration, or abnormal current are failures.
Confirm image acquisition: run known camera patterns through every supported format, bit depth, and lane configuration. Check frame IDs, line length, pixel order, and link-error counters for lane swaps, truncation, corrupted lines, color errors, or missing frames.
Measure trigger and synchronization: apply timed trigger and encoder patterns while all required cameras are active. Compare trigger-to-exposure latency, inter-camera skew, hardware timestamps, and missed-event counts; drifting skew, duplicate events, lost triggers, or incorrect frame association must fail.
Stress sustained processing: operate at the maximum camera count, frame rate, algorithm load, and host-transfer rate until temperature stabilizes. Monitor latency distribution, buffer level, DMA counters, temperature, and throttling; backlog growth, dropped frames, timeouts, or stale results show insufficient margin.
Challenge fault recovery: introduce controlled cable interruptions, invalid packets, camera resets, and host restarts. Verify the reported error, safe output state, recovery time, restored counters, and log record; silent corruption, unsafe outputs, mixed frame IDs, or manual-only recovery are unacceptable.
Control production testing: use a fixture that generates repeatable inputs and reads machine-verifiable outputs. Lock firmware and model versions, camera or pattern-generator settings, instrument setup, numeric limits, timeout rules, and failure codes, then retain results by unit serial number. Golden samples can monitor fixture stability but do not replace calibrated limits and revision control.
What DFM Checks Are Required Before Machine Vision Board Production?
A release-ready DFM review closes fabrication, assembly, test, and configuration risks against one controlled data package. The output should be an issue list with an owner, disposition, affected revision, and evidence that the approved change reached the final files.
Stack-up and impedance: confirm material family, finished thickness, copper weights, controlled structures, coupons, and tolerance assumptions.
Drill and via plan: check finished holes, aspect ratios, blind/buried-via spans, via fill, backdrill when required, annular rings, and sequential lamination.
Assembly access: review paste apertures, thermal pads, polarity, component spacing, rework access, support tooling, press-fit loads, and selective-solder constraints.
Mechanical closure: match the PCB outline, connector mating direction, keep-outs, mounting holes, heat sink, enclosure, and cable drawings.
Test coverage: provide accessible points for rails, resets, clocks, trigger I/O, programming, debug, boundary scan, and functional fixtures.
Configuration control: freeze manufacturer part numbers, approved substitutes, firmware, FPGA images, AI models, programming instructions, and acceptance limits by revision.
The production package should include Gerber or ODB++, drill and stack-up data, schematic PDF, BOM, centroid data, assembly drawings, impedance requirements, mechanical files, programming files, and test instructions. Missing information should remain an open issue; it should not be replaced with an assumed factory default.
Why Choose EBest Circuit for Machine Vision Board Manufacturing?
Choose EBest Circuit to turn a complex machine vision board design into a clearer, lower-risk manufacturing release. Instead of treating fabrication, assembly, component sourcing, programming, and testing as separate activities, the review connects them around the camera-to-result data path that your equipment must sustain.
Find production risks earlier: high-speed stack-up, BGA escape, DDR and PCIe routing, thermal pads, connector loads, and test access can be reviewed before tooling and component purchasing make changes more costly.
Reduce avoidable revision cycles: fabrication data, BOM, placement files, mechanical constraints, firmware, and acceptance limits are checked as one controlled package, helping prevent mismatched revisions and missing production instructions.
Protect schedule and sourcing decisions: special-process features and component constraints are identified for engineering confirmation before they become late quotation, material, assembly, or test surprises.
Make quality requirements measurable: camera formats, frame rates, trigger timing, operating temperature, programming steps, and functional limits can be translated into inspection and test requirements for the finished PCBA.
Send your Gerber or ODB++, schematic, BOM, stack-up target, impedance requirements, assembly files, camera specifications, firmware, and test limits. EBest Circuit can use that package to prepare a more relevant manufacturing review and quotation for your machine vision board, with special-process items clearly identified for confirmation.
FAQs About Machine Vision Boards
Q1: What Does a Frame Grabber Do in a Machine Vision System?
A1: A frame grabber receives camera data and presents complete, identified frames to a host or processing pipeline. Depending on the design, it can also control triggers, buffer bursts, convert formats, timestamp events, and move data through DMA.
Q2: How Does Machine Vision Work in an Industrial Inspection System?
A2: Repeatable optics, timing, and part presentation are required while the system controls lighting and exposure, acquires an image, applies a defined inspection pipeline, and sends a result to the machine controller.
Q3: Are FPGAs Still Relevant to Industrial Machine Vision?
A3: Yes, particularly for deterministic acquisition and parallel preprocessing. An FPGA is optional when another device can meet every interface, latency, trigger, power, and software requirement without it.
Q4: What Are Hardware Timestamps Used for in Machine Vision?
A4: Hardware timestamps correlate frames, triggers, encoders, lighting pulses, and motion in a defined clock domain without relying solely on nondeterministic software time.
Q5: What Causes Dropped Frames in a Machine Vision Pipeline?
A5: Frame IDs, buffer levels, timestamps, and boundary-specific error counters locate the failing stage. Causes can include signal errors, insufficient buffers, blocked DMA, host contention, trigger faults, or thermal throttling.
Q6: What Does AOI Test on an Assembled Machine Vision PCB?
A6: AOI checks visible component presence, polarity, placement, and accessible solder joints. It does not verify hidden BGA joints or functional image processing, so X-ray, electrical test, and functional test address different risks.
Q7: What Does PCB Functional Testing Verify?
A7: Functional testing applies controlled inputs and checks defined electrical and system outputs. For a vision board, it can cover boot, rails, clocks, acquisition, memory traffic, host transfer, trigger timing, error reporting, and recovery.
Q8: What Types of Machine Vision Systems Use Custom Processing Boards?
A8: Custom boards suit systems with requirements that commercial hardware cannot meet. Compare form factor, interface mix, latency, environmental limits, machine I/O, development, certification, fixture, lifecycle, and maintenance costs.
Q9: What Are the Main Stages of Machine Vision Processing?
A9: The main stages are acquisition, preprocessing, feature extraction or inference, decision logic, and result communication. Buffering, timestamps, diagnostics, and recovery keep those stages traceable during production use.
Q10: Is Machine Vision the Same as Artificial Intelligence?
A10: No. Machine vision is the complete industrial imaging system, while AI is one possible processing method. Many inspection tasks use geometry, filtering, matching, measurement, or deterministic rules without a neural network.
Conclusion
A reliable machine vision board is specified and verified as one data, timing, power, thermal, manufacturing, and test system. Interface speed or accelerator performance alone cannot guarantee deterministic inspection. The board must sustain every active stream, preserve frame identity, control triggers, tolerate real operating temperature, and produce observable pass/fail evidence.
To request a machine vision board review, email sales@bestpcbs.com with Gerber or ODB++, schematic, BOM, quantity, stack-up and impedance requirements, assembly files, camera formats, bandwidth calculations, trigger specification, mechanical constraints, firmware or programming files, and functional-test limits.
BNC is usually the better choice for fast cable changes, accessible test connections, and 75-ohm video systems, while SMA is usually better when compact size, threaded retention, or higher-frequency performance matters. That quick rule is useful, but it is not enough to specify a connector. The correct choice must also match impedance, cable type, mating frequency, PCB launch geometry, mechanical load, and the performance stated for the exact part number.
An effective BNC vs SMA comparison therefore begins with the whole signal path rather than the connector name alone. A well-rated connector can still perform poorly when it is attached to the wrong cable, launched into an uncontrolled PCB trace, or mixed with an incompatible interface.
What Are the Core Differences Between BNC and SMA Connectors?
BNC prioritizes quick bayonet coupling, while SMA prioritizes compact size and higher-frequency threaded performance. The table below covers the distinctions that affect specification; the exact ordering code still controls final limits.
Engineering criterion
BNC
SMA
Selection implication
Coupling
Push-and-turn bayonet
1/4-36 threaded coupling
BNC is faster for frequent access; SMA needs controlled tightening for repeatable contact.
Nominal impedance
50 ohms or 75 ohms, depending on part
50 ohms
Match source, cable, connector, adapter, PCB trace, and load impedance.
Published family range
Standard 50-ohm designs commonly reach DC–4 GHz; qualified extended or 12G-SDI designs can reach DC–12 GHz
Common designs reach DC–18 GHz; precision extended designs can reach 26.5 GHz
Never use the family maximum in place of the exact part-number rating.
Panel density
Larger mated interface; standard BNC outer diameter is approximately 14.5 mm
Smaller interface with a 0.312-inch coupling hex commonly used for wrench access
Check connector spacing, finger or wrench clearance, and cable bend radius.
Typical mating life
Many qualified product lines specify 500 or more cycles
Common product lines specify up to 500 cycles when correctly torqued
Use the exact mechanical-life specification and inspect frequently serviced ports.
Mechanical behavior
Fast positive lock and easy visual confirmation
Threaded retention resists accidental release but can be damaged by cross-threading or over-torque
Support the cable so neither connector transfers bending load into PCB solder joints.
Typical best fit
Bench instruments, patching, timing, 50-ohm RF, and 75-ohm video
Compact RF modules, antennas, wireless equipment, and microwave paths
Impedance, frequency, power, environment, and launch geometry decide the final part.
How Does Operating Frequency Affect the BNC vs SMA Choice?
Use the lowest connector frequency rating in the complete assembly as the real limit. The connector body, cable, adapter, PCB launch, and installation quality form one transmission path. A connector advertised for a high frequency cannot compensate for a poor transition or a lower-rated cable.
Standard BNC products commonly reach 4 GHz, while common SMA products reach 18 GHz and selected designs reach 26.5 GHz. Specialized 75-ohm 12G-SDI BNC products can also reach 12 GHz. These are product-family examples, not automatic ratings for every connector; verify the operating band, VSWR or return loss, and cable combination for the exact part.
Frequency also changes how strongly small discontinuities matter. At higher frequencies, excess center-pin length, a large exposed pad, a gap in the ground return, a via stub, or an abrupt trace-width change can create measurable reflection. The shorter wavelengths make the physical launch geometry electrically larger. This is why an SMA connector may be the right interface yet still fail a return-loss target when its PCB footprint is copied without stackup-specific modeling.
Set the required band before selecting the connector. Include the highest fundamental, required harmonics, modulation bandwidth, and measurement margin. Then compare insertion loss and return loss across that entire band, using the manufacturer’s stated cable, fixture, and reference plane as the qualification boundary.
Should You Choose BNC or SMA for Frequent Connections and Vibration?
Choose BNC when fast, repeated hand connection is the priority; choose SMA when compact threaded retention is more important. A BNC plug can be pushed and locked with a short turn, making it convenient on laboratory instruments and frequently reconfigured test setups. An SMA interface takes longer to mate, but the threaded coupling resists accidental release and fits densely packed equipment.
Neither family is suitable for unlimited mating cycles. Many BNC and SMA product lines specify about 500 cycles, but plating, cleanliness, alignment, and handling determine whether that rating is achieved. For measurement-grade SMA connections, use the part or instrument manufacturer’s torque value; 5 in-lb (56 N-cm) is documented for certain Keysight SMA test interfaces, not as a universal setting.
Design the cable support before approving the connector. A rigid or heavy cable hanging from a board-mounted connector transfers bending force into solder joints, pads, and laminate. Use strain relief, a bulkhead interface, or a supported cable route, then verify shock and vibration qualification for the exact part and intended environment.
Should You Choose 50-Ohm BNC, 75-Ohm BNC, or 50-Ohm SMA?
Use 50-ohm BNC or SMA for a 50-ohm RF path, and use 75-ohm BNC only for a specified 75-ohm system. Fifty-ohm interfaces are standard in RF transmitters, receivers, antennas, test equipment, and many data-conversion systems. Seventy-five-ohm BNC is used in broadcast video and other 75-ohm distribution paths. Standard SMA is a 50-ohm interface.
Mechanical mating does not prove electrical compatibility. Some 50-ohm and 75-ohm BNC products can engage physically, but their internal conductor and dielectric geometry targets different characteristic impedances. Mixing them creates an impedance discontinuity that can increase reflection, disturb amplitude flatness, and reduce measurement accuracy. Confirm cross-mating and contact safety from the exact manufacturers and part numbers, especially when legacy connector designs are involved.
Treat impedance as a BOM-controlled requirement, not a visual choice. A mismatch becomes more damaging as frequency rises, electrical length increases, or the return-loss limit tightens. It might be tolerated in a short, low-frequency monitoring connection, but it can invalidate calibrated RF measurements, broadband digital edges, precision video, or a tuned antenna feed. State the impedance in the schematic, BOM, cable specification, and connector drawing.
Treat adapters as part of the RF path, not as simple mechanical hardware. A BNC-to-SMA adapter must match nominal impedance and be rated for the required frequency, return loss, insertion loss, power, and gender combination. It cannot exceed the weakest component in the path, and stacked adapters add discontinuities and leverage. Use a direct cable assembly for permanent builds when practical. Also distinguish standard SMA from RP-SMA: the shell gender can look familiar while the center-contact polarity is reversed.
Which BNC or SMA Mounting Style Fits Your PCB?
Select the mounting style from mechanical access, signal-launch direction, enclosure geometry, and expected cable load. Common options include edge-mount, through-hole, surface-mount, vertical, right-angle, and bulkhead connectors. Each style changes the RF transition and the way force enters the board.
Mounting style
Useful when
Main check
Edge-mount
The connector exits directly from the board edge
Board thickness and coplanar launch geometry
Vertical PCB mount
The cable approaches perpendicular to the board
Height, keepout, and mechanical leverage
Right-angle PCB mount
The cable must run parallel to the board
Internal transition and enclosure clearance
Through-hole
Mechanical anchoring is important
Hole tolerance, solder access, and ground pins
Surface-mount
Automated assembly and compact layout are needed
Pad design, coplanarity, and strain relief
Bulkhead or panel mount
The enclosure should carry cable force
Panel thickness and cable-to-PCB connection
For an edge-mount SMA, confirm the permitted PCB thickness and whether the footprint expects grounded coplanar waveguide, microstrip, or another structure. The connector’s ground tabs must sit against the intended copper surfaces without forcing the center pin out of alignment. For a BNC attached to a PCB, its larger body and cable leverage often justify through-hole ground legs, enclosure support, or a panel-mounted arrangement.
Orientation also affects serviceability. A right angle PCB arrangement can reduce enclosure height, but it needs tool access, cable bend clearance, and a keepout that prevents neighboring parts from blocking the coupling. Review the 3D envelope and mating motion, not only the land pattern.
How Should a BNC or SMA PCB Launch and Ground Return Be Designed?
Design the connector launch as a controlled-impedance transition, not as an ordinary component pad. The connector, pad, trace, ground structure, vias, solder, and production stackup form one RF discontinuity. Use the following checks before releasing the footprint:

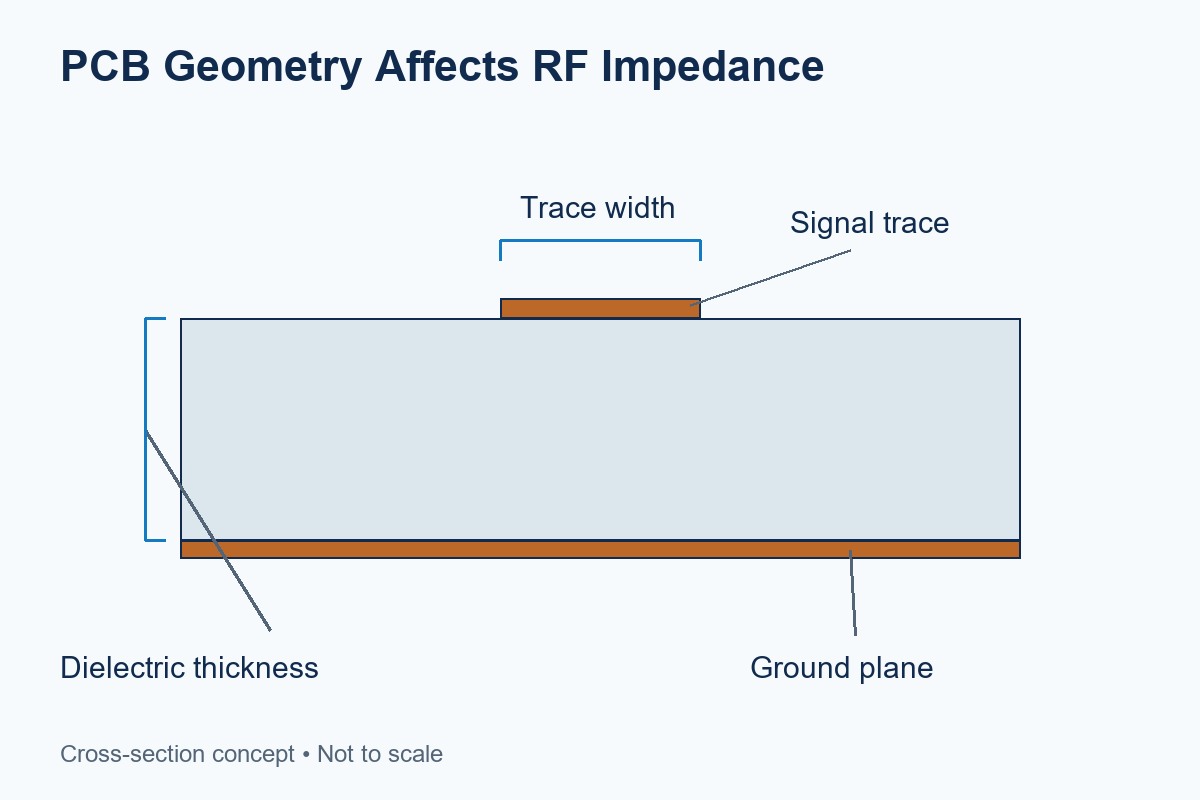

Start from the production stackup: Use the actual dielectric thickness, Dk value, copper thickness, finished board thickness, solder-mask condition, and target impedance. Calculate or model the trace width and ground gap for the selected microstrip or grounded-coplanar geometry.
Control the center-pin transition: Keep the exposed pin and signal-pad length short, avoid abrupt trace-width changes, and align the pin without forcing it. An oversized pad adds capacitance; a narrow neck, long pin, or excessive gap adds inductance.
Provide a short ground-return path: Connect the connector ground tabs or body to continuous ground copper close to the signal transition. Add symmetric stitching vias near the launch so return current does not detour around a void or distant via fence.
Protect the reference plane: Do not place plane splits, unrelated traces, large antipads, or unnecessary voids beneath the launch. If the signal changes layers, place return vias beside the signal via and reduce or remove the signal-via stub where bandwidth requires it.
Model the assembled geometry: Include connector body clearance, pad and antipad dimensions, solder-mask opening, finished solder volume, board-edge tolerance, and the manufacturer’s recommended footprint. These details can shift local impedance after assembly.
Verify before production release: For high-frequency or strict return-loss targets, tune the launch with a field solver or 3D electromagnetic model, then measure a representative coupon or prototype with suitable calibration and de-embedding. Release controlled dimensions, tolerances, and assembly requirements with the footprint.
What Should You Check in a BNC or SMA Connector Datasheet?
Approve the exact ordering code only after its electrical, mechanical, assembly, and environmental limits all match the design. A family name alone cannot establish cable compatibility, PCB geometry, sealing, or RF performance.
Datasheet area
What to verify
Approval rule
Interface identity
BNC or SMA; plug or jack; standard or reverse polarity; 50-ohm or 75-ohm impedance
Approve only when the complete interface designation matches the mating part and system impedance.
Qualified RF band
Maximum frequency; VSWR or return loss across the required band; stated cable, fixture, and reference plane
The exact part must meet the reflection target across the full operating band, not only at one frequency.
Loss, voltage, and power
Insertion loss; working and dielectric-withstanding voltage; current where specified; power derating versus frequency, temperature, altitude, and mismatch
Approve only with operating margin under the worst specified electrical and environmental condition.
Cable termination
Approved cable group; center-conductor, dielectric, and jacket diameters; ferrule; strip dimensions; crimp or solder tooling
Every cable dimension and assembly tool must match the connector manufacturer’s qualified termination method.
Lock the approved configuration in the BOM and compare every substitute field by field before release.
Which Applications Are Better Suited to BNC or SMA?
Choose by operating conditions, not by application name alone. The matrix below identifies the interface that normally gives the best starting point and the condition that can overturn that choice.
Application condition
Preferred starting point
Engineering reason
Mandatory verification
Frequently reconfigured bench instrument or test lead
BNC
Fast bayonet coupling and easy hand access
Confirm 50-ohm input, bandwidth, mating life, and cable strain relief.
Broadcast, SDI, CCTV, or video distribution
75-ohm BNC
Maintains the intended 75-ohm video path and supports secure patching
Confirm the required SDI data rate, connector/cable bandwidth, and return loss.
Compact wireless, GPS, antenna, or RF module
SMA or RP-SMA as specified
Small threaded interface suits dense 50-ohm RF assemblies
Verify polarity, frequency, antenna power, enclosure clearance, and cable bend radius.
The enclosure or support must carry cable force instead of PCB joints
Verify shock/vibration qualification, fastener retention, cable support, and solder-joint load.
High-power transmitter path
Do not decide from BNC versus SMA alone
Power may be limited by voltage, heating, mismatch, altitude, and cable loss
Use exact derated power data; select a larger RF interface when margin is inadequate.
Permanent BNC-to-SMA transition
Direct 50-ohm cable assembly preferred
Fewer interfaces reduce reflection, loss, and mechanical leverage
Verify impedance, frequency, VSWR, insertion loss, power, and gender.
Recheck the decision after the enclosure and PCB launch are defined. Identify system impedance, full operating band, allowable reflection and loss, power and voltage, environmental exposure, mating frequency, panel space, and mechanical support. Then verify every requirement against the exact part datasheet. This second BNC vs SMA review prevents an initially sensible family choice from failing at the cable, adapter, or board transition.
FAQs About BNC vs SMA Connectors
Q1: Are SMA and coax the same?
A1: No. Coax describes a cable or transmission structure with concentric conductors. SMA is one connector interface used to terminate certain 50-ohm coaxial cables or connect a coaxial path to a PCB.
Q2: Are SMA and 3.5 mm connectors the same?
A2: No. They are different precision levels and have different frequency capability, although properly made versions are mechanically mateable under defined conditions. Inspect interfaces carefully because damaged or out-of-tolerance connectors can harm expensive test ports.
Q3: Are all SMA connectors compatible?
A3: No. Standard SMA and RP-SMA differ in center-contact polarity. Parts also vary by plug or jack, cable group, mounting style, frequency rating, and environmental design.
Q4: How much power can an SMA connector handle?
A4: There is no single universal value. Power capability depends on the exact part, frequency, VSWR, cable, temperature, altitude, and installation. Use the manufacturer’s derated power data for the specified operating conditions.
Q5: Does connector plating affect RF performance and service life?
A5: Yes, especially at the contact surfaces. Plating affects contact resistance, corrosion behavior, wear, solderability, and mating durability. Compare the specified material, plating system, and thickness for the exact part rather than treating all gold- or nickel-colored connectors as equivalent.
Q6: Can a BNC cable carry audio?
A6: Yes, if the equipment is designed for it. BNC is a connector interface and coaxial cable can carry analog or digital audio signals, but impedance, signal level, grounding, and equipment compatibility still have to match.
Q7: Can two BNC cables be connected?
A7: Yes, with the correct BNC adapter. Match 50-ohm or 75-ohm impedance and understand that the added junction introduces another discontinuity and contact pair. For permanent installations, one correctly sized cable is usually preferable.
Q8: Is BNC better than RCA?
A8: It depends on the system. BNC provides a locking connection and controlled-impedance options, which are valuable in RF, test, and professional video equipment. RCA remains common in consumer audio and video where those characteristics may not be required.
Q9: Why can SMA cable assemblies cost more?
A9: Higher-frequency performance requires tighter control. Precision dimensions, plating, cable preparation, assembly tooling, inspection, and RF testing can increase cost. Price still varies widely with cable type, frequency rating, volume, and qualification.
Q10: Is an unmated BNC or SMA connector weatherproof?
A10: Usually not unless the datasheet explicitly says so. An IP or environmental rating may apply only when the connector is correctly mated, torqued, sealed, or fitted with an approved cap. Verify the exact sealing condition before outdoor use.
Conclusion
BNC and SMA solve different interface priorities. BNC favors quick access, robust hand operation, and both 50-ohm and 75-ohm applications. SMA favors compact threaded retention and greater high-frequency headroom in a 50-ohm system. The final result still depends on the exact connector, cable, PCB launch, mechanical support, soldering quality, and operating environment.
Turn the connector choice into a reliable assembled product. EBest can review your RF footprint and controlled-impedance stackup, manufacture the PCB, source specified connectors, assemble the PCBA, and support inspection and electrical test requirements. Send your Gerber files, BOM, stackup targets, connector part numbers, and test requirements to sales@bestpcbs.com for a PCBA manufacturing review and quotation.
USB C PCB Design should start with a port specification, not a copied connector footprint. Define the data mode, power role, maximum negotiated power, and Alternate Mode requirements before selecting the connector, controller, protection network, and PCB stackup.
What Does a USB-C PCB Design Need to Support?
Define the port function before selecting the connector or starting layout. A USB-C receptacle can provide power only, USB 2.0 data, SuperSpeed data, USB Power Delivery, an Alternate Mode, or a combination of these functions. The connector shape does not guarantee a protocol, speed, or power level.
Start with a one-page port specification. State whether the product is a power source, power sink, or dual-role device; whether it needs USB 2.0, USB 3.x, USB4, or no data; the maximum negotiated voltage and current; and whether DisplayPort or another sideband function is required. Then identify the controller, PHY, connector, cable assumptions, and compliance target that support that exact feature set.
Required Function
Essential Circuit Blocks
Layout Consequence
Power sink only
CC terminations or sink controller, VBUS protection, power conversion
Prioritize safe VBUS copper, connector mechanics, and CC placement
USB 2.0 device
D+/D- PHY, CC configuration, ESD protection
Route one controlled differential pair with a continuous return path
SuperSpeed device
High-speed PHY, orientation switch or integrated mux, CC controller
Route multiple high-speed pairs with strict stackup and loss control
Separate sensitive control routing from high-current switching paths
Alternate Mode
Mode-capable controller, mux, SBU and high-speed lane routing
Add lane switching, sideband protection, and interface-specific checks
Do not specify “USB-C” as the only requirement. A fabrication and assembly team needs the exact connector part number, stackup, impedance requirement, assembly side, and inspection criteria. The electrical team also needs the selected controller reference design and datasheet constraints.
How Do You Choose and Place a USB-C PCB Connector?
Choose from the connector manufacturer’s current drawing. Match the connector to the required USB functions, enclosure geometry, finished PCB construction, and assembly process.
Contact set: Use a 24-contact receptacle when SuperSpeed lanes or sideband functions are required. A reduced-pin connector is suitable only when its available VBUS, GND, D+/D-, and CC contacts match the intended power-only or USB 2.0 circuit.
Electrical rating: Verify rated current, working voltage, contact resistance, mating-cycle rating, and any manufacturer derating. Do not infer capability from connector appearance.
Mounting style: Select top-mount, mid-mount, or straddle-mount from the enclosure datum, finished PCB thickness, and permitted board-edge position.
Footprint orientation: Compare the schematic symbol and land pattern with both the mating view and PCB view. Confirm A/B-side pin numbering, signal-pad pitch, shell tabs, locating features, paste apertures, and solder-mask clearances.
Board-edge position: Align the mating face with the enclosure opening and preserve clearance for the plug shell and cable overmold through the complete insertion path.
Mechanical retention: Use the specified through-hole stakes, SMT tabs, or hybrid anchors so insertion and extraction forces are carried by the shell supports rather than the signal pads.
Assembly access: Reserve space for paste printing, optical inspection, solder-joint access, selective rework, enclosure fasteners, and any keep-out specified below or behind the connector.
Placement order: Place the receptacle first, then arrange ESD protection, orientation switching, required AC-coupling components, and VBUS protection immediately behind it. Keep exposed paths short and avoid branches, long stubs, and unnecessary neck-downs.
Which USB-C Pins Does Your PCB Design Actually Need?
Connect only the pin groups required by the selected port function, but never omit the CC implementation. The 24-contact receptacle contains repeated VBUS and GND contacts, duplicated USB 2.0 contacts for reversible insertion, two sets of SuperSpeed lanes, CC1/CC2, and SBU1/SBU2.
Pin Group
Purpose
Design Decision
VBUS and GND
Power delivery and return
Connect all required contacts with balanced, low-resistance copper
D+ and D-
USB 2.0 data
Join the duplicated receptacle contacts as the connector documentation directs, while minimizing stubs
TX/RX pairs
SuperSpeed data
Route through the approved orientation mux or PHY topology
CC1 and CC2
Attach, orientation, role, current advertisement, PD communication
Use the correct Rp, Rd, or Type-C/PD controller architecture
SBU1 and SBU2
Sideband signals for supported modes
Leave unused only when the selected implementation permits it
Shield
Connector shell and high-frequency interference path
Implement the chassis or PCB grounding strategy defined for the product
For a USB 2.0-only receptacle, the SuperSpeed and SBU contacts may remain unused when the connector and controller documentation allow it. For a full-featured port, both plug orientations must reach the correct PHY lanes through the selected mux or integrated controller. If you need a broader comparison of USB connector families, review the pin configuration of USB port before returning to the Type-C-specific design decisions here. Avoid naming nets only by pin number; functional names make schematic review and test-point planning clearer.
How Should USB-C PCB Traces Be Routed for USB 2.0 and SuperSpeed?
Route USB 2.0 D+/D- and SuperSpeed TX/RX as separate controlled-impedance systems. Use the production stackup and the selected PHY’s channel limits rather than copied trace dimensions.
Set the impedance: State the required differential impedance in the fabrication drawing and identify every controlled pair. Let the PCB fabricator calculate line width and spacing from the finished copper, dielectric thickness, material, solder mask, and reference-plane distance.
Keep pairs coupled: Route each positive and negative conductor together with consistent width, spacing, and layer assignment. Avoid unnecessary separation around pads or components.
Preserve the reference: Keep every pair over a continuous plane. Do not cross plane splits, voids, antipad fields, or poorly stitched layer transitions.
Limit discontinuities: Minimize long neck-downs, test pads, branches, connector-to-protection stubs, and abrupt geometry changes.
Control pair skew: Follow the PHY vendor’s intra-pair skew limit. Add tuning only where the added bends do not create excessive coupling or impedance variation.
Manage vias: Use the fewest practical layer transitions, keep both signal vias geometrically balanced, reduce unused via stubs where required, and place ground-return vias beside the transition.
Separate noise sources: Keep data pairs away from switch-node copper, inductors, oscillators, clocks, and other fast-edge or high-current nets.
Verify lane mapping: Confirm mux connections, plug-orientation routing, polarity inversion, and lane swapping against the controller documentation. Do not assume the PHY supports every swap.
Check the full channel: Include connector breakout, protection devices, muxes, vias, and package escape in the loss and discontinuity review; a short PCB trace alone does not prove compliance.
How Do CC1 and CC2 Work in a USB-C PCB Design?
CC1 and CC2 make the receptacle reversible. When a plug is inserted, only the CC contact connected through the cable detects the partner. The controller uses that active contact to determine plug orientation and select the corresponding SuperSpeed lane path.
A sink presents Rd on both CC pins. A source presents Rp on both CC pins and reads the detected CC voltage to confirm attachment and advertise the available Type-C current. A dual-role port needs a Type-C or PD controller to alternate and manage the source and sink states; fixed resistors alone cannot implement controlled role changes.
After attachment, the active CC line remains the configuration path and carries USB PD signaling when PD is supported. The other CC contact can supply VCONN to an electronically marked or active cable. CC1 and CC2 must remain separate; shorting them together prevents correct orientation detection and VCONN control.
On the PCB, place the CC terminations, controller, and protection close to the connector, keep both CC routes short, and protect them against ESD and possible VBUS overvoltage. During bring-up, test both plug orientations and verify the CC states, VBUS enable timing, advertised current, and PD negotiation. A source must keep VBUS off until a valid sink attachment is detected.
How Should USB-C Power Delivery Be Designed on a PCB?
Design every VBUS component and copper segment for the highest permitted PD contract and its credible fault conditions. Do not qualify the path only at the 5 V startup state.
Set the power target: Define source, sink, or dual-role operation; maximum negotiated voltage and current; required PD revision; cable current capability; and whether Standard or Extended Power Range applies.
Rate every component: Check the connector, protection IC, power-path FETs, current-sense element, capacitors, converter, and discharge circuit against the maximum contract voltage, continuous current, and credible transients.
Size the VBUS path: Calculate resistance and voltage drop through contacts, copper planes, neck-downs, vias, switches, and the sense element. Connect parallel VBUS contacts into balanced copper so one contact does not carry a disproportionate share.
Control power sequencing: Follow the controller reference design for attach detection, FET turn-on, soft-start, inrush limiting, VBUS discharge, reverse-current blocking, and detach behavior.
Route current sensing: Use Kelvin connections where required, keep the sense pair symmetrical, and separate it from switch nodes and gate-drive currents.
Provide VCONN correctly: Add the specified current-limited and protected VCONN path when the port must power an electronically marked or active cable.
Manage heat: Calculate FET and sense-resistor dissipation at continuous load, provide copper area and thermal vias, and verify temperature rise inside the final enclosure at the highest ambient condition.
Protect fault paths: Include overcurrent, short-circuit, overvoltage, reverse-voltage, and VBUS-to-CC/SBU fault protection appropriate to the port role and maximum voltage.
Validate the implementation: Test every supported contract with qualified cables and partners while recording VBUS ripple, voltage drop, inrush, current limit, discharge time, component temperature, and PD messages. Claim only power levels supported by the complete hardware, firmware, cable, and compliance result.
Where Should USB-C ESD and Overvoltage Protection Be Placed?
Place protection immediately behind the receptacle, before connector-exposed traces reach the controller or power path. Keep the discharge route short and low-inductance.
Establish the protection boundary: Place each device between the receptacle and the protected controller or power circuit. Do not position sensitive components on the connector side of that boundary.
Protect high-speed lanes: Select low-capacitance ESD devices whose bandwidth, insertion loss, package, and flow-through pinout fit the USB 2.0 or SuperSpeed channel budget.
Protect CC and SBU: Match the normal working voltage and supported mode, then add short-to-VBUS overvoltage protection where connector faults can expose these pins to VBUS. A low-voltage ESD diode alone may not survive that fault.
Protect VBUS: Choose overvoltage, surge, reverse-current, and current-limit protection for the maximum supported PD voltage and the port’s source or sink role.
Use flow-through routing: Route connector pins into the protection device and then onward to the controller. Avoid branches, long stubs, unnecessary test pads, and repeated neck-downs.
Shorten the ground return: Connect protection ground pads to a solid low-inductance ground structure with short copper and nearby vias. Do not route a discharge through a long thin trace before reaching the plane.
Separate exposed traces: Keep the short connector-side segment away from protected signals, clocks, reset lines, and high-impedance nodes to reduce ESD coupling.
Verify device limits: Check working voltage, clamp voltage, dynamic resistance, capacitance, pulse rating, leakage, package parasitics, and the system-level ESD target for each signal group.
Inspect and test the path: Review connector-to-device placement in the PCB layout, confirm assembly polarity and grounding, then perform controlled ESD and fault testing on the assembled product rather than relying on component ratings alone.
How Do USB-C PCB Stackup, Impedance, and Board Thickness Work Together?
Finished board thickness is a mechanical requirement. Select it from the USB-C connector drawing, mounting style, enclosure datum, and manufacturing tolerance. A top-mount receptacle may work with several standard thicknesses, while a mid-mount or straddle-mount part can impose a narrow thickness range. A nominal 1.6 mm board is not a universal USB-C requirement.
Controlled impedance comes from the production stackup, not the overall board thickness alone. Trace width, pair spacing, finished copper thickness, dielectric thickness and dielectric constant, solder mask, and distance to the reference plane all affect the differential impedance. The target must come from the applicable interface and PHY requirements; the final geometry should be calculated for the fabricator’s actual materials and process.
The layer arrangement must give each USB pair a continuous reference plane from the connector to the PHY or mux. USB 2.0 can often be implemented on a well-planned four-layer board, but SuperSpeed routing may justify more layers when the design needs cleaner reference planes, shorter fanout transitions, less coupling to switching power, or additional routing space. Adding layers helps only when the resulting stackup improves the signal and return paths.
Before fabrication, provide the connector drawing, finished thickness and tolerance, copper weights, material family, proposed layer stack, differential-impedance targets, and the location of every controlled pair. Ask the PCB manufacturer to return the producible trace geometry for approval and to verify impedance with the agreed coupon or test method. That measurement confirms the fabricated transmission-line geometry; it does not by itself prove that the complete USB channel passes signal-integrity or compliance testing.
What USB-C PCB Design Mistakes Cause Charging or Data Failures?
Use the symptom to select the first circuit domain to inspect, not to declare a root cause. Each row below is a diagnostic starting point; confirm the fault with measurements, schematic review, layout review, and controlled substitution.
Failure Symptom
Probable Failure Domain
Initial Diagnostic Check
VBUS remains absent after connection
CC termination, controller supply, port-role configuration, or power-path enable logic
With a known-good partner and cable, measure CC1, CC2, VBUS, controller supply, and power-switch gate timing during attachment
Port works in only one plug orientation
CC2 path, duplicated USB 2.0 contacts, orientation-mux control, or one SuperSpeed lane set
Repeat the same test in both orientations, then compare CC detection, mux state, and end-to-end connectivity for the affected lane set
Inspect the connector joints, verify D+/D- pin mapping and stubs, and observe reset and enumeration signaling with the intended host
SuperSpeed falls back or disconnects
Channel loss, intra-pair skew, via discontinuities, plane gaps, mux configuration, or connector breakout
Confirm the negotiated link state, review the complete channel from receptacle to PHY, and run the applicable transmitter, receiver, or channel tests
USB PD contract is not completed
CC protection path, PD-controller configuration, firmware policy, cable capability, or VBUS switching sequence
Capture PD protocol messages while recording CC, VBUS, current, and power-switch gate timing
Connector, FET, or sense element overheats
Contact resistance, unbalanced VBUS current sharing, copper neck-down, insufficient vias, or component conduction loss
Measure millivolt drop across each path segment and component temperature at the maximum supported continuous load
Damage follows insertion or an ESD event
Protection working voltage, clamp path, short-to-VBUS exposure, or high-inductance discharge return
Verify component ratings and connector-to-protection placement before repeating controlled fault or immunity testing
Record the partner, cable capability, plug orientation, negotiated mode, load, temperature, and measurement points for every failure. A certified cable is useful for isolation, but it does not certify the end product or increase the port’s implemented capabilities.
What Should You Check Before Sending a USB-C PCB to Fabrication?
Run a joint schematic, layout, mechanical, manufacturing, and test review before releasing Gerber or ODB++ data. A final design-rule check does not prove that the port role, footprint, stackup, or protection strategy is correct.
Freeze the port specification: Record the USB data mode and maximum data rate, power role, maximum voltage and current, PD behavior, Alternate Modes, and cable assumptions.
Verify the connector: Compare the symbol, pin numbering, footprint, 3D position, shell stakes, and board thickness with the connector manufacturer’s current drawing.
Audit CC behavior: Check CC1 and CC2 components, dead-battery behavior, controller supply, VCONN, and source/sink state transitions.
Review every signal path: Trace D+/D-, TX/RX, SBU, polarity, mux control, AC coupling, vias, and reference planes end to end.
Confirm the stackup: Obtain the fabricator’s proposed dielectric and copper construction and approve the controlled-impedance geometry.
Calculate the power path: Check copper width, planes, neck-downs, via count, contact sharing, voltage drop, and component dissipation.
Add useful test points: Expose controller rails, VBUS, CC nodes, fault outputs, and low-speed controls without creating high-speed stubs.
Release complete data: Provide fabrication notes, impedance table, Gerber or ODB++, drill files, BOM, pick-and-place data, assembly drawings, and test requirements.
For a production-oriented USB C PCB Design review, include the controller and connector datasheets with the release package. They let the fabricator and assembler distinguish intentional features from missing data and flag footprint or stackup conflicts before boards are built.
FAQs About USB-C PCB Design
Q1: Can a USB-C receptacle be replaced with a similar-looking part?
A1: Treat every connector substitution as a footprint and qualification change. Compare contact population, pin numbering, mounting height, board-edge datum, shell stakes, rated current, mating life, paste pattern, and keep-outs before approving the alternate part.
Q2: How should USB-C connector solder joints be inspected?
A2: Use inspection methods that cover both visible anchors and hidden signal joints. Combine optical inspection with X-ray or another validated method when the connector body obscures critical pads, then add mechanical and functional checks appropriate to the product.
Q3: Can a USB-C receptacle be hand-soldered on a prototype?
A3: Hand soldering is acceptable only when every joint can be formed and inspected without damaging the connector or PCB. Fine hidden contacts and large shell tabs often make controlled reflow or hot-air assembly more repeatable.
Q4: Which cable should be used to validate a USB-C board?
A4: Use known-good cables whose certified data rate and power capability match each tested mode. One charge-only, USB 2.0, or lower-rated cable cannot validate unsupported SuperSpeed or high-power behavior.
Q5: Does using a certified USB-C cable make the product compliant?
A5: No, cable certification does not certify the end product. It reduces one test variable, while the port, protocol, power behavior, signal integrity, interoperability, and product implementation still require their applicable verification.
Q6: What should a production USB-C functional fixture test?
A6: Test the functions that can reveal assembly escapes without duplicating full compliance testing. Typical coverage includes both orientations, VBUS presence and drop, CC detection, USB enumeration, negotiated mode, selected PD contracts, and connector continuity.
Q7: When should a damaged USB-C connector be replaced instead of reworked?
A7: Replace it when contacts, insulator, shell retention, plating, or PCB pads are mechanically compromised. Cosmetic shell marks may be reviewable, but intermittent contact, lifted pads, deformation, or heat damage should not be accepted through repeated touch-up.
Q8: What surface finish is suitable for a USB-C connector footprint?
A8: Select the finish with the connector footprint and assembly process. ENIG is common for fine-pitch SMT boards, but solderability, flatness, shelf life, cost, and the assembler’s validated process should drive the final choice.
Q9: Should the USB-C shell connect directly to digital ground?
A9: The shell connection must follow the product’s EMC and chassis-ground strategy. Enclosure construction, cable shielding, ESD return paths, safety requirements, and verification results determine whether the connection is direct or uses a controlled coupling network.
Q10: What connector records should be controlled for production?
A10: Control the manufacturer, exact part number, revision, approved alternates, drawing, qualification evidence, and incoming-inspection criteria. This prevents an unreviewed mechanical or electrical change from entering assembly under a generic BOM description.
Conclusion
Do not release a USB-C PCB until the port role, connector footprint, CC behavior, VBUS rating, controlled-impedance stackup, protection boundary, and both plug orientations have been verified. Freeze those decisions before ordering prototypes, then use measured bring-up results to correct the design before production tooling or volume assembly.
Send your Gerber or ODB++ files, BOM, quantity, connector drawing, stackup, impedance requirements, assembly needs, firmware or programming scope, and test plan to sales@bestpcbs.com. EBest Circuit can review the manufacturing package for PCB fabrication, controlled impedance, connector assembly, inspection access, and production-test requirements before the build.
via stitching is the deliberate use of plated vias to connect copper regions on the same net across PCB layers. It is often applied to ground pours and planes so high-frequency return current can change layers with a signal. The same technique can contain board-edge fields, connect isolated copper to a reference plane, and spread heat through more copper. A useful stitching pattern is driven by current path, frequency, stackup, copper geometry, and fabrication limits—not by filling every open area with holes.
What Is Via Stitching in PCB Design?
Via stitching connects two or more copper areas that belong to one electrical net, usually GND, with repeated plated through holes. A via is itself an interlayer electrical connection; “stitching” describes how multiple vias are placed to make separated copper behave more like one three-dimensional conductor. The term overlaps with via fence, but the design task differs. General stitching distributes connections through pours or planes. A fence places a line or perimeter of vias to constrain fields near a board edge, RF trace, shield boundary, or noisy functional block.
The purpose determines whether a via is useful. A ground via beside a signal transition can shorten the return-current detour. A perimeter row can reduce the length of an electrically open board edge. Vias beneath a grounded thermal pad may also spread heat while bonding ground layers. The same-looking via grid placed far from every relevant current path may deliver little electrical benefit and consume routing area, drill capacity, and inspection effort.
What Are Stitching Vias Used For?
Stitching vias are used to control return paths, lower interplane connection inductance, contain electromagnetic fields, connect copper pours, support shielding, and sometimes improve heat spreading. These functions are related but not interchangeable, so the drawing should identify the reason for each local pattern.
Signal-layer transition: place a ground return via near a signal via when the signal changes reference layers. This lets high-frequency return current follow the transition instead of circulating around a remote plane connection.
Ground-pour connection: tie top or bottom copper pours to a solid internal ground plane so the pours do not become floating or weakly connected islands.
Board-edge containment: use a via fence along selected edges to reduce parallel-plate and edge-field propagation, especially near connectors, clocks, switching nodes, or RF structures.
Functional shielding: surround a sensitive or noisy region with grounded copper and a compatible via fence, while checking openings, connector penetrations, and enclosure bonds.
Thermal spreading: create parallel copper paths through the board when the stitched net and land geometry also support heat flow. Thermal-via design still needs its own current, solder-wicking, assembly, and temperature analysis.
How Does Via Stitching Control the Return Current Path?
Via stitching controls return current by providing a nearby connection between the reference conductors used before and after a signal transition. At low frequency, current distribution is influenced mainly by resistance and available copper area. As edge rate increases, return current concentrates near the signal path because the lowest-impedance path is the one that minimizes loop inductance. If the signal changes layers but its reference connection is remote, the return path spreads out, enlarges the loop, and increases coupling and radiation risk.
A return via should therefore be placed according to the signal via and its reference planes, not according to a decorative grid. For a single-ended transition between layers referenced to connected ground planes, one nearby ground via may be the essential connection. For a differential transition, symmetric ground vias can reduce field imbalance, but their location must preserve pair symmetry and avoid narrowing the escape channel.
Texas Instruments interface guidance provides a device-specific example that calls for ground stitching vias symmetrically within 200 mil center-to-center of signal transition vias. This is evidence for that interface context, not a universal rule for every PCB.
If a trace changes from a layer referenced to ground onto a layer referenced to power, a ground via alone cannot directly connect two different nets. The return-transfer method may require a carefully placed decoupling capacitor between the reference planes, a stackup change, or rerouting so the signal retains one reference. Review the complete field path rather than treating “add a via” as a universal cure.
Where and When to Place Stitching Vias?
Place stitching vias where the electromagnetic or thermal path must cross layers. Priority locations include signal transitions, relevant board edges, ground-pour necks, connector returns, shield perimeters, and unavoidable ground discontinuities. Start with the highest-risk current loops and only then fill lower-priority copper regions.
Trace the reference: identify the plane or pour beneath each high-speed segment and note every layer change, split, slot, void, connector, and reference-plane change.
Place transition returns: add the shortest manufacturable ground connection beside each important signal transition. For differential pairs, keep the return structure symmetric.
Close copper bottlenecks: add connections at narrow ground necks and around antipad fields where a pour may otherwise connect through a long path.
Define fence boundaries: place edge or shielding rows only where the field-containment objective, enclosure, and copper geometry support them.
Recheck clearances: confirm antipads do not cut a power or ground plane into a perforated slot, and verify drill-to-copper, hole-to-hole, solder-mask, and component courtyard rules.
Avoid placing vias inside RF transmission structures, antenna keep-outs, creepage paths, flex bend zones, or assembly access areas unless the relevant design rules explicitly allow them. Also inspect via clusters near connectors and BGA escapes; a dense pattern can block routing or weaken the intended plane connection through oversized antipads.
How to Choose Via Stitching Spacing and Fence Pitch?
Via stitching spacing should be calculated from the highest frequency of concern and then checked against stackup geometry, field-containment goals, available copper, and fabrication rules. There is no single pitch that works for every digital, power, RF, or mixed-signal board.
For a fence intended to suppress propagation, designers often begin with a fraction of wavelength. The wavelength in a PCB structure is shorter than in free space and depends on effective permittivity. A screening calculation can use λ = c/(f√εeff), followed by a conservative fraction such as λ/10 or λ/20.
That result is only a starting ceiling. Transitions, enclosure openings, via diameter, row offset, copper width, and the actual field mode can demand a tighter pattern. The “frequency of concern” must include fast harmonic energy associated with signal rise time, not only the data rate or clock fundamental.
For return vias beside signal transitions, wavelength pitch is not the main decision variable. Minimize the loop and keep the return connection close to the signal via while respecting antipad and routing constraints. For low-frequency copper-pour bonding, use enough vias to avoid long narrow current paths and isolated islands; simulation or impedance measurement may be more useful than a wavelength formula. For thermal or high-current stitching, calculate current sharing and temperature rise separately because current crowding, barrel resistance, copper spreading, and uneven heating prevent ideal equal sharing.
Via Size, Stackup, and Fabrication Rules to Confirm
A stitch pattern is manufacturable only when its hole, pad, annular ring, aspect ratio, drill spacing, copper clearance, and mask treatment fit the selected process. Do not copy a software default without comparing it with the fabricator’s capability table and the project’s reliability class.
Design item
What engineering must define
What the fabricator must confirm
Finished hole
Electrical, thermal, and routing objective
Finished-hole tolerance and drill class
Pad and annular ring
Required connection and breakout risk
Minimum production annular ring after registration tolerance
Board thickness
Stackup and via span
Allowed through-hole aspect ratio and plating process
Via pitch
Return-path or shielding need
Minimum hole-to-hole and pad-to-pad spacing
Plane antipad
Reference continuity and impedance
Etch and registration allowance
Via treatment
Open, tented, filled, or capped requirement
Compatible fill, mask, planarization, and inspection route
Dense stitching increases drill hits and can add cost or lead time, especially when it introduces a smaller drill class, via fill, sequential lamination, or stricter registration. It can also create unintended copper perforation because every nonconnecting plane needs an antipad around the barrel. Review those voids in every plane layer.
If a pattern sits beneath a component, decide whether tenting or filling is needed to control solder wicking and assembly cleanliness. A procurement package should state the via span, finished hole, pad diameter, treatment, net, and applicable acceptance class rather than relying on appearance alone.
Via Stitching for Differential Pairs and High-Speed Transitions
For differential pairs, stitching vias should preserve a balanced reference transition while limiting return-loop area and discontinuity. Place ground vias symmetrically around the pair where feasible and keep the signal-via geometry matched. Avoid a fence arrangement that forces one conductor to take a different escape path.
Review the transition as a three-dimensional structure. Signal-via barrel length and stubs, pad and antipad dimensions, connector launch, reference-plane separation, and nearby ground vias all influence impedance and mode conversion. Treat impedance control as part of the complete transition, not as a trace-width calculation alone. A pair can remain length matched yet become unbalanced if one signal via sees a different ground-via distance or antipad environment.
At multi-gigabit rates, use the connector or IC vendor layout guide first. Then validate the transition with a field solver, channel simulation, or test coupon when the loss and reflection budget demands it.
Do not place ground vias between the two members of a tightly coupled pair unless the transmission-line design explicitly calls for that topology. The inserted conductor changes coupling and impedance. A via fence alongside a coplanar waveguide is also part of the transmission-line geometry. Include its row offset, pitch, pad diameter, and substrate thickness in the impedance model instead of adding it after routing.
Via Stitching for High-Current and Thermal Paths
High-current and thermal via arrays may look like ground stitching, but they require separate sizing. Use current density, temperature rise, copper spreading, and assembly constraints. Increasing via count reduces the ideal parallel resistance, yet real vias do not share current equally when their approach copper, barrel length, pad geometry, or plane connection differs.
For a power path, calculate the current distribution through the complete copper system: surface trace, neck-down, pads, barrels, internal planes, and exit geometry. Check the hottest corner vias rather than dividing total current by via count. For thermal transfer beneath an exposed pad, evaluate the device datasheet pattern, copper area, board stackup, solder paste aperture, voiding risk, and whether open vias can wick solder. Filled or capped vias can improve assembly behavior but add process steps and must be explicitly specified.
Ground-stitching vias should never bridge nets or defeat an intentional isolation boundary. In safety-spaced regions, a via barrel and its internal-layer pads affect clearance and creepage. In analog layouts, stitching cannot compensate for an uncontrolled common-impedance path. The correct action may be to move the current loop, widen the return, change the stackup, or separate noisy power conversion from a sensitive reference region.
How to Add Stitching Vias in Altium, KiCad, and EasyEDA?
EDA tools can generate stitching arrays, but the operator must first select the correct net, layers, keep-outs, spacing, and via template. Automation accelerates placement; it does not decide whether the pattern supports the real return path.
Altium Designer: define a legal via template and select the intended ground net before using the via-stitching or shielding command. Set grid or fence geometry, clearances, and object boundaries, then repour polygons and run the DRC. If Altium cannot add stitching vias or locate an area, confirm that the target polygons are poured and share the selected net. They must also overlap the chosen layers and leave enough room for the via pad plus clearance.
KiCad: use the version-appropriate stitching or placement workflow, assign the correct net, and verify that the vias actually connect filled zones on the required layers. Refill zones and inspect connectivity; visually present holes can remain unconnected if a zone excludes them or the net is wrong.
EasyEDA: place or array vias with the GND net assigned, then rebuild copper areas and run design-rule and connectivity checks. Confirm exported Gerber and drill files, because a screen view alone does not prove the intended plane connections.
After any automated operation, inspect three outputs: the connectivity report, the plane geometry with antipads, and the fabrication files. Remove orphan vias, vias that land only on isolated copper, and dense groups that block escapes. Lock the approved pattern or document regeneration settings so a later polygon edit does not silently remove its purpose.
How to Verify Via Stitching Before Fabrication?
Verify via stitching with connectivity, geometry, electromagnetic intent, fabrication review, and—when risk justifies it—simulation or measurement. A DRC pass proves only that encoded rules were satisfied; it does not prove the return path is short or the fence suppresses the relevant mode.
Net and layer audit: confirm every stitching via is on the intended net and intersects useful copper on each required layer.
Reference-path audit: trace return continuity through signal transitions, connectors, plane changes, slots, and split boundaries.
Plane-integrity audit: view antipads on all nonconnecting layers and check that via rows do not form a slot or narrow a current path.
Manufacturing audit: compare finished holes, pads, pitch, aspect ratio, mask, fill, and drill classes with the selected process capability.
Fabrication-output audit: inspect Gerber or ODB++ copper, NC drill data, netlist, and a cross-section view before release.
Risk-based validation: use 2D/3D field simulation for sensitive transitions and conduct pre-compliance EMI scans, TDR, VNA, or thermal testing when design margins are limited.
Define pass/fail evidence before testing. For a transition, that may be return loss, insertion loss, mode conversion, or eye margin. Plan EMI/EMC testing in PCBs around the applicable limit, detector, bandwidth, antenna geometry, test method, operating mode, and baseline. For thermal performance, record load, ambient condition, stabilization time, and measurement location. Without these controls, a before/after image or single spectrum peak can mislead.
Common Via Stitching Mistakes and Diagnostic Actions
The most common mistake is treating via count as performance. Diagnose the current path and the failure mechanism before adding more holes.
Observed problem
Likely mechanism
Next engineering action
EMI changes little after adding a grid
Vias are remote from the dominant loop or enclosure opening
Locate the source and return path with probing or simulation; move stitching to the coupling boundary
High-speed transition shows excess reflection
Signal-via stub, antipad, or reference discontinuity dominates
Model the complete transition and adjust stackup, backdrill, pad, antipad, and return vias together
Ground pour remains isolated
Wrong net, zone priority, keep-out, or unfilled polygon
Repour, run connectivity checks, and inspect exported copper
Plane impedance increases near a via row
Antipads perforate or neck down the plane
Change pitch, pad stack, row position, or layer routing to restore copper width
Solder is pulled from a thermal pad
Open via barrels wick solder
Review via fill/cap, tenting, hole size, and paste aperture with the assembler
Fabricator flags drill density or annular ring
Pattern exceeds the selected process window
Use the approved drill class and spacing or request a documented process exception
FAQs About Via Stitching
Q1: What is the difference between via stitching and a via fence? A1: Via stitching broadly connects same-net copper across layers. A via fence is a deliberately aligned boundary used for field containment, shielding, or edge control. A fence is one application of stitching, but a general ground grid is not automatically an effective fence.
Q2: Does every signal via need a ground stitching via? A2:No; prioritize signals whose return current changes reference layers and whose edge rate makes the discontinuity important. Low-speed signals over a continuous reference may not need a dedicated adjacent return via.
Q3: What net should stitching vias use? A3: Most use GND, but the correct choice is the same net shared by the copper regions being connected. Never stitch different power or ground domains together unless the schematic and isolation plan explicitly requires that connection.
Q4: Can stitching vias cross a split ground plane? A4:A ground via can only connect copper of the same ground net. It cannot repair a signal crossing between intentionally isolated nets. Reroute the signal or design an approved reference-transfer network.
Q5: Is λ/20 always the correct via spacing? A5:No; it is only a conservative starting concept for some shielding or fence problems. The relevant frequency, effective permittivity, mode, enclosure, row geometry, and manufacturing constraints determine the final pitch.
Q6: Why is Altium unable to add stitching vias to GND? A6: Common causes include an unpoured polygon, no overlapping same-net copper on selected layers, a wrong via template or net, and insufficient space after clearance rules. Repour, verify net assignment, and inspect the rule conflict.
Q7: Should stitching vias be tented? A7: Tenting depends on assembly location, hole size, solder-wicking risk, cleanliness, and fabricator capability. Specify the treatment instead of assuming the solder-mask generator will choose correctly.
Q8: Can stitching vias reduce PCB temperature? A8: They can improve heat transfer when they connect thermally useful copper, but temperature depends on copper area, barrel geometry, interface resistance, airflow, load, and component package. Validate the complete thermal path.
Q9: Do more stitching vias always reduce EMI? A9:No; vias help only when they shorten the dominant return path or constrain the relevant field. Poorly positioned vias may add cost, consume routing space, and perforate planes without addressing the emission source.
Q10: What fabrication files should be checked? A10:Inspect copper layers, NC drill files, netlist, solder mask, fabrication drawing, stackup, and any via-fill or cap notes. Confirm finished hole and pad definitions with the supplier before release.
Conclusion
Effective via stitching begins with a specific job: transfer high-frequency return current, connect useful ground copper, contain an edge field, support a shield, or move heat. Place vias where that path crosses layers, choose pitch from frequency and geometry rather than habit, and verify both the three-dimensional electrical structure and the fabrication outputs. A smaller, well-justified pattern can outperform a dense decorative grid while preserving routing space and process margin.
For a manufacturability review or PCB quotation, send your stackup, Gerber or ODB++ data, NC drill files, netlist, via table, impedance requirements, and via-fill notes to sales@bestpcbs.com. The engineering team can review the proposed stitching geometry against the selected board process.
Analog input vs digital input comes down to what the controller must learn from a field device. An analog input measures a continuously changing value, such as pressure or temperature. A digital input detects a defined ON/OFF state. Select the channel from the sensor output, required information, timing, noise, diagnostics, and PCB interface.
Analog Input vs Digital Input: What Is the Main Difference?
An analog input preserves magnitude; a digital input decides between defined states. A 4–20 mA pressure transmitter can report where pressure lies within a calibrated span. A 24 V proximity switch reports whether a target is present, not its distance.
The comparison includes the sensor, cable, connector, protection, filter, isolation, converter or threshold circuit, power, grounding, firmware, and test limits. A pin labeled “analog” or “digital” may still be unsafe for a field signal.
Comparison Dimension
Analog Input
Digital Input
Engineering Impact
Information
Magnitude across a range
One of two defined states
Measurement versus state detection
Common field signals
4–20 mA, 0–10 V, bridge, thermocouple
24 V discrete, dry contact, PNP/NPN, logic level
Determines range, loading, and wiring
Receiving hardware
Signal conditioning and ADC
Threshold detector, buffer, comparator, or optocoupler
False transition, missed state, or indeterminate level
Requires different diagnostic paths
Best fit
Variable process measurement
Events, interlocks, presence, and status
Matches the channel to the required information
How Does an Analog Input Measure a Continuous Signal?
An analog input measures a continuous signal through six conversion stages. Each stage must preserve the required range, bandwidth, and accuracy.
Identify the signal. Define the source type, range, impedance, common-mode voltage, return path, cable resistance, and fault voltage. Voltage, current, RTD, thermocouple, and bridge sensors require different front ends.
Protect the connection. Limit ESD, surge, reverse polarity, overvoltage, and fault current. Check protection leakage and capacitance because they can shift high-impedance signals or reduce bandwidth.
Convert and scale. Use a divider or amplifier for voltage, a burden resistor for current, controlled excitation for an RTD, cold-junction compensation for a thermocouple, or an instrumentation amplifier for a bridge. Verify component tolerance, common-mode range, output swing, and power dissipation.
Filter and settle. Set the anti-alias filter from the required bandwidth and response time. For multiplexed ADCs, verify settling after each channel change, especially with high source impedance.
Convert the signal. The ADC produces a code relative to its reference. A 12-bit ADC has 4,096 nominal codes, but offset, gain, nonlinearity, reference drift, noise, grounding, and layout reduce effective accuracy.
Scale and verify. Convert the code into engineering units, build a channel error budget, and test minimum, midpoint, maximum, overrange, settling, and temperature behavior. Averaging reduces random noise but cannot correct clipping or systematic error.
How Does a Digital Input Detect ON/OFF States?
A digital input detects ON/OFF states through six decision stages. The channel must deliver a valid, protected signal to the controller without losing legitimate transitions.
Define the source. Identify PNP, NPN, dry contact, open collector, push-pull, or logic-level output. Document polarity, normally open/closed behavior, logic meaning, and fail-safe state.
Match voltage and current. Compare guaranteed source levels with guaranteed receiver ON/OFF ranges. Include loading and leakage; open-circuit voltage alone does not prove compatibility.
Protect and translate. Add current limiting, polarity protection, transient clamping, level translation, buffering, or isolation. A 3.3 V GPIO is not a protected 24 V industrial input.
Apply thresholds. Use a comparator or Schmitt trigger with adequate hysteresis. Verify threshold margin across supply, temperature, leakage, and ground shift.
Filter invalid transitions. Set hardware filtering or debounce from the shortest valid event. Excess filtering can suppress encoder, flowmeter, or counter pulses.
Capture and verify. Include isolation, comparator, sampling, PLC scan, capture hardware, and software delays. Test minimum HIGH/LOW time and ON, OFF, transition, power-off, and fault states at the controller logic point.
Which Analog Input vs Digital Input Examples Best Explain the Difference?
The clearest examples compare a measured value with a state from the same physical process. A tank may use an analog level transmitter for 0–100% measurement and a digital float switch for a high-level alarm. A motor may use analog current feedback for load trending and a digital overload contact for trip status. A cylinder may use an analog position sensor for travel and digital limit switches for endpoint confirmation.
Application
Analog Input Example
Digital Input Example
Decision Value
Temperature
RTD or transmitter value
Overtemperature contact
Control value versus alarm state
Machine position
Linear position sensor
Limit switch
Travel feedback versus endpoint
Fluid system
Pressure or flow transmitter
Pressure or flow switch
Trend versus interlock
Motor monitoring
Current or vibration level
Run, fault, or overload contact
Condition versus operating state
Operator control
Speed potentiometer
Start/stop pushbutton
Setpoint versus command
Choose by electrical interface and required information. Analog measurement supports control and trending; a switch provides a direct alarm or interlock. Encoders and PWM use digital pulses to encode variable information, while IO-Link, CAN, and RS-485 are digital communication interfaces rather than discrete inputs.
What Hardware Blocks Separate Analog Inputs from Digital Inputs?
An analog path scales and converts magnitude, while a digital path protects and resolves state. The analog chain normally uses protection, a burden resistor or divider, amplification or buffering, an anti-alias filter, optional isolation, an ADC, and a stable reference. Component tolerance, leakage, source impedance, and settling affect the measured value.
A digital path normally uses current limiting, transient and polarity protection, optional isolation, a comparator or Schmitt trigger, and a logic buffer or controller input. Threshold margin, hysteresis, leakage, input current, delay, and minimum pulse width determine whether the state is dependable.
Analog interface definition: signal range, common-mode range, source impedance, return path, shield connection, cable resistance, and differential or single-ended behavior.
Digital interface definition: ON/OFF voltage and current, PNP/NPN or dry-contact behavior, wetting current, pulse width, debounce, and fail-safe state.
Shared checks: connector pinout, fault voltage, surge environment, isolation boundary, field ground, and power dissipation.
Isolation can appear in either chain, but its implementation differs. An isolated analog channel may use an isolation amplifier, isolated ADC, or converter plus digital isolator and isolated power. An isolated digital channel may use an optocoupler, digital isolator, isolated comparator, or relay interface. The isolation component alone is insufficient: the PCB must maintain the required separation, and any shield, test point, copper pour, mounting hardware, or power converter crossing the boundary must be reviewed.
How Do 4–20mA and 0–10V Analog Inputs Compare with 24V Digital Inputs?
4–20 mA and 0–10 V carry proportional measurements; a 24 V digital input carries a state. A current loop tolerates cable resistance provided that the loop has sufficient compliance voltage. A voltage input depends more directly on reference differences, loading, leakage, and voltage drop. A discrete input depends on valid ON/OFF current and voltage margins.
Comparison Dimension
4–20 mA Analog
0–10 V Analog
24 V Digital
Selection Check
Information
Proportional measurement
Proportional measurement
ON/OFF state
Magnitude or state?
Receiver
Burden resistor and ADC path
Divider/buffer and ADC path
Limiter and threshold/isolation path
Range, impedance, and dissipation
Wiring sensitivity
Loop compliance limits series drop
Reference and loading affect voltage
Threshold margin dominates
Cable, returns, and grounding
Diagnostics
Live zero may identify some faults
0 V may be valid or faulty
OFF may be valid or faulty
Define detectable failures
Typical use
Industrial transmitters
Local controls and instrumentation
Switches and interlocks
Match the field-device data sheet
For 4–20 mA, verify the loop voltage budget before choosing the burden resistor. The supply must cover the transmitter’s minimum operating voltage, cable and barrier drop, receiver drop, and other series elements at the highest expected current. A 250 Ω burden produces 1–5 V at 4–20 mA and dissipates 0.1 W at 20 mA, but component rating must also consider overrange and fault conditions. The value is an example, not a universal requirement.
For 0–10 V, verify the reference-to-ground difference, input impedance, common-mode range, rail linearity, shielding, and possible negative voltage. For 24 V digital inputs, verify guaranteed ON/OFF regions, source type, leakage, input current, hysteresis, and voltage drop across the protection circuit. A general-purpose PLC input is not automatically safety-rated.
How Do Analog Input Resolution and Sampling Rate Compare with Digital Input Switching Speed?
For analog input vs digital input performance, resolution and sampling rate describe analog measurement, while switching speed describes digital state detection. They are not interchangeable specifications and must be verified with different stimuli.
Comparison Dimension
Analog Resolution
Analog Sampling Rate
Digital Switching Speed
Design and Verification
Primary purpose
Defines the smallest nominal code step
Defines how often conversions occur
Defines how fast transitions can be recognized
Start from required measurement change or event timing
Key calculation
Ideal code size = VFS/2N
Per-channel rate depends on ADC rate, channel count, and settling
Maximum rate depends on minimum HIGH/LOW time and total delay
Calculate the complete channel, not one component rating
Practical example
0–10 V at 12 bits gives about 2.44 mV per nominal code
A multiplexed ADC may provide less usable rate per channel
A filtered 24 V input may reject a valid short pulse
Use actual range, filtering, topology, and controller timing
What it does not prove
Resolution does not prove accuracy or noise-free bits
Sample rate does not equal usable signal bandwidth
Fast device delay does not prove system event capture
Check sensor, front end, reference, filter, scan, and software
Main error or loss
Noise, offset, gain, reference error, drift, or clipping
Aliasing, incomplete settling, or channel-to-channel memory
Missed pulses, chatter, excessive latency, or indeterminate states
Test minimum, maximum, boundary, and dynamic conditions
Filter trade-off
Lower noise can improve stable readings
Narrower bandwidth increases response and settling time
Longer debounce rejects noise but reduces event rate
Preserve the fastest valid signal or pulse
Selection rule
Choose bits from meaningful change and the total error budget
Choose rate from bandwidth, channels, acquisition, and latency
Choose speed from pulse width, delay, filtering, capture, and scan time
The slowest stage sets usable system performance
Verification method
Inject calibrated increments and measure noise-free response
Apply timed steps and verify settling on every channel
Apply worst-case pulse trains at minimum valid amplitude
Test at supply and temperature limits with real firmware timing
Why Do Analog Input vs Digital Input Circuits Respond Differently to Noise and Interference?
In analog input vs digital input circuits, noise changes the analog reading directly but affects the digital result mainly when it crosses a threshold or corrupts timing. Digital inputs still fail when interference crosses a threshold, ground shift moves the signal outside its valid range, or filtering removes a legitimate short pulse.
Analog interference appears as variation, offset, ripple, or saturation; narrow bandwidth reduces noise but increases settling time. Digital inputs tolerate disturbances inside their noise margin, but slow edges, insufficient hysteresis, ground shift, or threshold-crossing transients can cause chatter or false states.
Connector disturbance: Quantify the normal signal and credible interference at the connector.
Digital margin: Verify threshold margin across supply, temperature, leakage, and ground shift.
Analog bandwidth: Set bandwidth from the required response, then measure settling.
PCB separation: Keep relays, converters, clocks, gate-drive loops, and high-current traces away from sensitive analog paths.
Immunity validation: Test immunity to ESD, burst, surge, cable transients, and common-mode disturbances against the end-product requirements.
What Signal Conditioning and Protection Does Each Input Type Require?
Analog conditioning must preserve magnitude, while digital conditioning must preserve state and timing. Select the divider or burden resistor for range and dissipation, keep amplifier common-mode and output swing within limits, set filter cutoff from signal bandwidth and ADC settling, and include reference and tolerance errors in the budget. Protection leakage and capacitance must not corrupt the source.
Protection must survive the fault without invalidating normal measurements or states. A TVS diode must be coordinated with series impedance and downstream absolute maximum ratings; its dynamic clamp voltage, leakage, and capacitance matter. A resistor must be checked for working voltage, pulse energy, temperature rise, and fault dissipation, not only nominal resistance. Where sustained overvoltage is credible, a fuse, resettable protector, current limiter, or disconnect device may be necessary.
Define normal and fault ranges. Include source impedance, cable, grounding, and power-off states.
Select protection. Coordinate current limiting, clamps, TVS devices, fuses, and isolation with the available fault energy.
Set the analog transfer path. Calculate scaling, gain, bandwidth, settling, and error contribution.
Set the digital decision path. Calculate ON/OFF current, thresholds, hysteresis, delay, and minimum pulse width.
Verify at temperature and supply limits. Nominal bench behavior does not prove boundary margin.
How Are Analog and Digital Inputs Used in PLC Systems?
A PLC digital module reports states, while an analog module reports scaled measurements. The digital input evaluates field voltage or current against ON/OFF thresholds and places the state in process data. Input filtering can suppress bounce and short noise pulses, but it adds delay. High-speed counters require channels specified for the pulse frequency and minimum HIGH/LOW time.
Match the module to two-, three-, or four-wire transmitters; PNP or NPN sensors; shared or isolated returns; and required wire-break or overrange diagnostics. Check isolation, input impedance, update time, accuracy over temperature, terminal wiring, and fuse requirements in the module data sheet.
PLC configuration must match the physical module and field wiring. For an analog channel, select current or voltage mode, engineering-unit scaling, filtering, update behavior, and diagnostic limits. If a 4–20 mA transmitter is scaled as 0–20 mA, the value and fault interpretation will be wrong even when the wiring is correct. For a digital channel, confirm input polarity, filtering time, normally open or normally closed logic, and whether the application needs a standard, interrupt, counter, or safety input.
At commissioning, compare the terminal signal, raw module value, and scaled PLC tag. This separates field, module, and program faults. Review individual, group, or backplane isolation before combining commons; software forcing does not verify field wiring or protection.
How Should You Choose Between Analog and Digital Sensor Inputs for Automation?
Choose the required information first: measurement, state, event, or a combination. Then match the receiving channel to the sensor’s electrical output and to normal, boundary, and fault conditions. This keeps the choice between analog and digital sensor inputs tied to the control task rather than the connector label.
Define the control task. Specify the range, alarm, event, or interlock.
Read the sensor output specification. Identify 4–20 mA, 0–10 V, bridge, thermocouple, dry contact, PNP, NPN, open collector, or logic level.
Match electrical limits. Check voltage, current, impedance, common-mode range, leakage, thresholds, and fault exposure.
Set performance. Define analog accuracy, bandwidth, sample rate, and drift or digital delay, pulse width, debounce, and switching rate.
Assess installation conditions. Include cable length, shielding, grounding, nearby switching, temperature, moisture, and isolation.
Define diagnostics. Decide how the system distinguishes a valid minimum or OFF state from open wire, short circuit, or lost sensor power.
Verify the complete channel. Test the sensor, cable, PCB, scaling or logic, and fault response together.
Prefer analog when control quality depends on how much; prefer digital when the decision depends only on whether. A proportional valve controller needs position or pressure magnitude, while an emergency stop, guard switch, or end limit needs an unambiguous state. If the process needs an alarm threshold that may change in software, an analog measurement provides flexibility. If the threshold must remain independent of the controller, a separate switch can provide a distinct hardware signal.
For procurement, specify the signal standard, range, sourcing or sinking behavior, supply, pinout, isolation, cable, environment, accuracy or timing, and fault diagnostics. Analog channels may add calibration and shielding costs; several digital switches may be needed to represent multiple operating points.
How Should Mixed Analog and Digital Input Data Acquisition Hardware Be Designed on a PCB?
Design mixed-input PCBs from voltage domains, current paths, timing, and fault containment. The hardware must protect field connections without allowing switching current, ground shift, or shared conversion resources to corrupt analog results or digital events.
List channel roles and domains. Identify measurements, states, triggers, interlocks, field power, chassis, isolated supplies, analog ground, and digital ground.
Place protection at each connector. Keep ESD, surge, polarity, and current-limiting components near the entry point.
Keep input chains compact. Group analog scaling, amplification, filtering, reference, and ADC components; group digital protection, isolation, threshold, and buffer components.
Control return currents. Maintain a continuous reference where appropriate and prevent fast digital returns from crossing sensitive analog paths.
Allocate conversion and timing resources. Account for ADC multiplexing, per-channel settling, digital timestamp needs, shared clocks, processor load, and simultaneous operation.
Separate noisy nodes. Increase distance from relays, switching regulators, gate-drive loops, clocks, memory buses, and high-current traces.
Implement real isolation boundaries. Check creepage, clearance, slots, copper keepouts, component ratings, and isolated power against working voltage and applicable safety conditions.
Provide diagnostics and test access. Include safe test points, range status, wire-break or overrange handling, calibration storage, and production-test access.
Review before release. Verify connector pinout, fault paths, shields, return paths, isolation-domain labels, and simultaneous analog/digital operation.
Partition placement by current flow and fault energy, not by labels alone. Put connector protection first, then scaling or current limiting, isolation where required, and finally sensitive conversion or logic. Keep a short, low-inductance return for transient clamps to the intended chassis or reference node. Do not route surge current through the analog ground used by the ADC reference.
Review analog and digital tolerances as channel-level stacks, including scaling, offset, reference, thresholds, leakage, delay, and fault dissipation. Keep test points on the correct side of each isolation barrier and define how production fixtures stimulate, identify, calibrate, and record every channel.
How Can Analog Input vs Digital Input Circuits Be Tested, Calibrated and Troubleshot?
Analog input vs digital input testing must cover boundaries and faults, not only nominal operation. Use calibrated sources and define acceptance limits before testing.
Inspect the unpowered assembly. Verify polarity, values, spacing, connector mapping, solder quality, shorts, and resistance to ground.
Power each domain with current limiting. Check rails, references, isolated supplies, and unexpected heating.
Test digital thresholds and timing. Sweep rising and falling levels; verify hysteresis, OFF leakage, ON current, minimum pulse width, debounce, and fail-safe state.
Test analog endpoints and midpoints. Inject calibrated minimum, midpoint, and maximum values; check offset, gain, linearity, saturation, and channel consistency.
Calibrate where required. Calculate coefficients from traceable stimuli, store them with channel identity and revision, and verify the corrected result independently.
Measure dynamic response. Apply analog steps and digital pulses; record settling, latency, missed events, and filter effects.
Inject credible faults. Test open wire, safe shorts, reversal, overrange, and loss of field power.
Evaluate interference. Operate nearby relays, motors, converters, and communications while monitoring readings and transitions.
Correlate hardware and software. Compare connector signal, conditioned node, ADC code or logic state, scaling, alarms, and displayed value.
Define production limits. Convert results into fixture stimuli, pass/fail windows, calibration records, and traceable functional tests.
Trace the signal stage by stage instead of replacing components by guesswork. Disconnect or simulate the field source, inject a known value at the connector, and follow it through each accessible node. If the conditioned voltage is correct but the reported value is wrong, investigate the ADC reference, channel selection, calibration, and scaling. If the connector signal is correct but the conditioned node is wrong, check for damaged protection components, incorrect component values, leakage, loading, common-mode violations, or solder defects.
Capture intermittent digital faults at the field and receiver nodes to check bounce, ringing, thresholds, delay, and pulse width. For analog drift, log sensor output, reference, supply, temperature, and converted data. Set production limits from design tolerance and measurement uncertainty, then record revision, stimulus, calibration, result, and status.
What Are the Most Common Questions About Analog Input vs Digital Input?
Q1: Can one universal input channel accept both analog and digital sensors?
A1: Yes, but only when hardware provides selectable protection, range, analog-conversion, and digital-threshold paths. Firmware selection cannot make one fixed front end safe for every source. Treat it as multiple validated electrical modes.
Q2: What happens if 24 V is connected directly to an MCU input?
A2: A typical low-voltage MCU pin can be overstressed or destroyed. Use current limiting, clamping, level translation, or isolation designed for the fault voltage, duration, and source impedance.
Q3: Is a pulse or frequency signal a digital input?
A3: Usually, because the receiver counts threshold crossings. Check frequency, minimum HIGH/LOW time, delay, and counter capability before using a high-speed digital or counter channel.
Q4: How should unused inputs be terminated?
A4: Do not leave a high-impedance input floating. Apply the receiver’s recommended bias or termination and configure a defined, safe, and detectable state.
Q5: Can analog and digital inputs share one connector?
A5: Yes, after reviewing pin assignment, spacing, returns, shielding, and miswiring. Use a keyed, documented pinout and protect an analog pin from credible digital-supply faults.
Q6: Is an I2C, SPI, CAN, or RS-485 sensor a digital input?
A6: It provides digital data but is not a discrete ON/OFF input. It needs protocol handling and the correct logic interface or transceiver. Classify it as a digital communication interface.
Q7: What should an input do when the controller is powered off?
A7: The field source must not back-power an unpowered controller through protection diodes or interface components. Check current paths for every power sequence and use suitable blocking, limiting, buffering, or isolation so the channel enters a defined power-off state.
Q8: Can one sensor provide both an analog value and a digital alarm?
A8: Yes. Some sensors provide a proportional output plus a configurable switch output. Treat them as two electrical interfaces: verify each output type, reference, loading, timing, and fault behavior before connecting them to separate compatible input channels.
Q9: When is a ratiometric analog measurement useful?
A9: Ratiometric conversion is useful when the sensor output and ADC reference change with the same excitation voltage. The shared variation can cancel in the calculated ratio, provided the excitation and reference remain properly related and within their operating ranges.
Q10: How can input impedance be checked without disturbing the circuit?
A10: Measure the voltage change produced by a known source resistance or apply a small, controlled test signal within safe limits. Include instrument loading and protection leakage in the calculation; use a buffered method when the source is too sensitive for direct probing.
Send your schematic, Gerber files, BOM, input ranges, channel count, isolation requirements, operating environment, and test criteria to EBest Circuit at sales@bestpcbs.com for a PCB and PCBA quotation.
The phrase how it works grounding bus usually refers to how a shared conductor provides a common reference and return-current path. In a PCB, the grounding bus may be a wide copper trace, copper region, or connection to a ground plane. Its effectiveness depends on impedance, geometry, frequency, and where each current enters and leaves the shared path.
What Is a PCB Grounding Bus?
A PCB grounding bus is a shared copper conductor used to connect multiple circuit returns to a common ground node. At DC it carries return current with a voltage drop determined mainly by resistance. At higher frequency, inductance and current-loop geometry can dominate, so a conductor that looks wide enough for DC may still create noise.
The term should not be confused with the ground bar in a building service panel. A PCB ground bus belongs to the electronic signal and power-return structure; its design is governed by circuit current paths, signal bandwidth, isolation, EMC, and board construction.
How Does a PCB Ground Bus Work?
Current always returns to its source. A grounding bus gives several circuit branches a shared route back to the supply, converter, driver, or signal source. If the bus impedance were zero, all connection points would remain at the same potential. Real copper has resistance and inductance, so current from one branch can create a voltage difference seen by another branch.
The resulting error is approximately the return current multiplied by the relevant impedance. Slow, low-current circuits may tolerate a shared trace. Fast switching or high-current circuits can create ground bounce, common-impedance coupling, timing errors, ADC offset, audio hum, or radiated emissions.
Why Must Ground Impedance Stay Low?
Ground is a reference node, not a perfect physical zero. A return path with resistance R and inductance L develops both an IR drop and an L × di/dt voltage. The inductive term becomes important when current changes rapidly, even if the average current is small.
For example, a switching edge with high di/dt can create hundreds of millivolts across a short inductive return path. That disturbance may be comparable with the noise margin of a logic interface or several least-significant bits of a precision converter. Low impedance therefore requires more than sufficient copper cross-section; it requires a short, continuous path with a small loop area.
Return current uses a broad continuous copper layer
High-speed, mixed-signal, multilayer and EMC-sensitive boards
Slots and splits can interrupt the path
Star ground
Branches meet at one selected node
Separating noisy power returns from sensitive analog returns
Poor physical placement can create long loops
A modern multilayer board normally uses a continuous circuit board ground plane for high-frequency return current. A bus or star point may still be useful for controlling how high current, chassis current, or low-frequency analog current joins that plane.
When Should a PCB Use a Ground Bus?
A defined ground bus can work in low-frequency power distribution, simple analog circuits, single-sided prototypes, LED drivers, relay controls, and boards where branch currents need an intentional connection order. It can also connect several local copper regions to a selected star point.
It is a weak choice when fast signals cross the board, switching currents share the same narrow return, or connectors create several remote ground entry points. In those cases, a plane or wider copper region generally provides lower impedance and a more predictable return path.
How Should Analog, Digital and Power Grounds Connect?
Start by tracing current loops rather than assigning ground names alone. Keep high-current switching loops local to their power stage. Give precision analog inputs a quiet reference path. Place decoupling capacitors so their return current closes directly to the relevant IC ground and plane.
Analog and digital regions may share one solid plane when placement keeps noisy currents away from sensitive paths. If separate regions are required, connect them at a deliberate point that matches the converter or isolation architecture. Do not route a high-speed signal across a ground split, because its return current must detour around the gap.
How Do Current and Frequency Change the Layout?
DC voltage drop depends on copper resistivity, length, width, and thickness. Higher current may require wider traces, heavier copper, multiple vias, or a busbar connection. At high frequency, return current concentrates near the signal path because that geometry minimizes loop inductance.
Rise time is often more important than nominal clock frequency. A low-frequency signal with a fast edge can still require a continuous reference plane. Connector pinout, via transitions, plane changes, cable shields, and chassis bonds must be included in the complete loop.
What Grounding Bus Mistakes Cause Noise and EMI?
Routing sensitive analog return current through a high-current switching segment.
Using a long narrow ground trace for MOSFET, relay, motor, or converter pulse current.
Splitting a ground plane beneath a high-speed signal.
Connecting local grounds at several uncontrolled points and creating a PCB ground loop.
Placing decoupling capacitors far from the power and ground pins they serve.
Using too few vias between ground regions or layers.
Treating chassis, protective earth, shield, analog ground, and power return as interchangeable nodes.
Correcting the schematic symbol without changing the physical return path will not solve these problems. Grounding performance is determined by copper geometry and current flow on the finished board.
How Can a Ground Bus Be Checked on a Prototype?
Measure DC voltage drop along the bus under representative load, then observe noise between selected ground points with a short ground spring or differential probe. A long oscilloscope ground lead can add enough loop inductance to create a misleading waveform.
Test the board during worst-case switching, load steps, communication activity, and cable connection. Near-field scanning, conducted-emissions tests, thermal imaging, and current probes can reveal return paths that are not obvious from the schematic.
How Does PCB Construction Support a Low-Impedance Ground?
Layer stack-up should place critical signal layers next to a continuous reference plane. Copper thickness, via count, drill size, plane clearance, isolation requirements, and solder-mask openings affect the manufactured return structure. A 2 layer PCB ground plane needs careful component placement and routing to preserve copper continuity.
EBest Circuit (Best Technology) supports multilayer PCB fabrication, controlled stack-ups, impedance control, heavy copper, via structures, and PCB assembly. Engineering review can identify plane splits, insufficient copper connections, manufacturability conflicts, and assembly features that would alter the intended current path.
FAQ About PCB Grounding Buses
How exactly does grounding work on a PCB?
Grounding provides a reference potential and closes current loops back to their sources. It does not make current disappear; it controls where return current flows and how much unwanted voltage develops along that path.
Is a ground bus the same as a ground plane?
No. A bus is usually a defined shared conductor, while a plane is a broad copper layer or region. A plane normally provides lower high-frequency impedance, but both can be part of one grounding system.
Can ground and neutral be on the same bus bar?
That question normally concerns building service panels, not PCB layout. Neutral and protective-earth bonding must follow the applicable electrical code and installation point; it should not be inferred from PCB grounding rules.
Should analog and digital ground always be split?
No. A solid plane with controlled placement and return paths is often better. Split grounds are justified only when the architecture and current paths require them, and signals must not cross the split without an intentional return path.
How many ground vias should be used?
The answer depends on current, frequency, layer transition, via geometry, and EMI requirements. Use enough vias to avoid creating a narrow inductive neck, and place them close to the current transition rather than far away.
Conclusion
How it works grounding bus becomes clear when the design is treated as a current-return problem. A useful PCB ground bus provides a short, low-impedance shared path without allowing noisy branch currents to disturb sensitive references. At higher frequency, a continuous ground plane and controlled loop geometry usually outperform a narrow shared trace.
For PCB stack-up, grounding, fabrication, or assembly support, contact EBest Circuit (Best Technology) at sales@bestpcbs.com.
An intercom circuit board integrates voice capture, audio processing, wired or wireless communication, power management and access-control functions. Reliable operation depends on circuit architecture, PCB layout, component quality, firmware and production testing. EBest Circuit provides custom PCB manufacturing and assembly services for door-entry systems, wireless intercoms, building communication panels and industrial talkback equipment.
Are you worried about these problems in intercom circuit board projects?
Design challenges: Poor grounding, incorrect gain settings or unsuitable antenna placement may cause noise, echo, weak audio and unstable wireless communication.
Production risks: Incomplete files, material shortages and uncontrolled impedance may delay prototypes or affect batch consistency.
Assembly difficulties: Fine-pitch parts, microphones, wireless modules and hidden solder joints require precise placement and reliable inspection.
As a one-stop PCBA service provider with more than 20 years of industry experience, EBest Circuit provides the following solutions:
Design optimization: We review audio circuits, power distribution, grounding, RF routing and antenna layout to reduce noise and communication failures.
Controlled production: We verify manufacturing files, materials, impedance and component availability before fabrication to reduce delays and redesigns.
Reliable assembly and testing: We provide SMT and THT assembly, SPI, AOI, X-ray, programming and functional testing to verify product performance.
Send your Gerber files, BOM and test requirements to EBest Circuit via sales@bestpcbs.com for a quotation.
What Is an Intercom Circuit Board?
An intercom circuit board is the electronic platform that receives, processes, transmits and reproduces voice and control signals between communication stations. It is used in analog door-entry units, digital building systems, wireless handsets, IP intercoms and industrial communication terminals.
The board connects microphones, speakers, call buttons, displays, relays, power inputs and communication interfaces. A basic intercom PCB may use analog amplifiers and switching circuits, while an advanced design can include an MCU, DSP, audio codec, wireless module, Ethernet PHY and access-control output.
The circuit architecture depends on audio quality, communication distance, network type, enclosure size, power source and operating environment.
What Functions Does an Intercom PCB Control?
An intercom PCB controls audio capture, signal processing, communication, user commands and power distribution. The exact functions depend on whether the product is analog, digital, wired, wireless or IP-based.
Common functions include:
Capturing voice through an electret or MEMS microphone
Filtering and amplifying microphone signals
Converting audio between analog and digital formats
Driving speakers, handsets or headsets
Supporting half-duplex or full-duplex communication
Processing buttons, keypads and status indicators
Controlling electric locks, relays and alarms
Managing WiFi, Bluetooth, RF, Ethernet or two-wire connections
Regulating input power into separate voltage rails
Storing firmware, addresses and operating settings
Protecting external interfaces against ESD and voltage surges
Stable performance requires these functions to operate without introducing noise, distortion or communication interference.
What Are the Main Components of an Intercom Circuit Board?
An intercom circuit board normally includes audio input, signal processing, communication, speaker output, power and protection circuits. The actual configuration depends on the system architecture and product functions.
Component
Typical Selection
Main Function
Microphone
Electret, analog MEMS or digital MEMS
Captures voice
Microphone front end
Bias circuit, low-noise amplifier and filter
Conditions weak microphone signals
Audio codec
ADC, DAC and I²S interface
Converts analog and digital audio
Processor
MCU, DSP or application SoC
Controls audio, communication and system logic
Program memory
SPI NOR, EEPROM, NAND or eMMC
Stores firmware and configuration
Working memory
Internal SRAM or external DDR
Buffers audio and processing data
Audio amplifier
Class AB or Class D
Drives the speaker or handset
Speaker interface
Filter, protection and connector
Connects and protects the speaker output
Wireless circuit
Sub-GHz, Bluetooth or WiFi module
Provides wireless communication
RF network
Matching components, RF feed and antenna
Transfers RF energy to the antenna
Wired interface
Two-wire line interface or RS-485 transceiver
Supports wired communication
Ethernet interface
PHY, magnetics and RJ45 connector
Supports IP communication
PoE circuit
PoE PD controller and DC-DC converter
Receives power through Ethernet
Access-control output
Relay, MOSFET or transistor driver
Controls locks, alarms or gates
User interface
Buttons, keypad, LEDs or display driver
Processes commands and status
Clock and reset
Crystal, oscillator and reset IC
Controls timing and startup
Power supply
Buck, boost or LDO regulator
Generates stable voltage rails
Protection circuit
Fuse, TVS, ESD and reverse-polarity protection
Protects power and external interfaces
Debug interface
SWD, JTAG, UART or USB
Supports programming and diagnostics
Connector
Terminal block, FFC or board-to-board connector
Connects external devices
A basic analog board may not require a processor, external memory or Ethernet circuit. An IP intercom with video, networking or an operating system may require a higher-performance SoC, DDR and eMMC.
The microphone front end, power supply, grounding, speaker amplifier and communication interface have the greatest influence on audio clarity and stability.
How to Read an Intercom Circuit Board Schematic and Block Diagram?
Read the functional block diagram first to understand the complete signal flow. Then use the schematic to verify how each circuit is powered, controlled and connected.
Identify the system type: Confirm whether the product is analog, digital, two-wire, wireless or IP-based.
Trace the power tree: Follow the input through the fuse, reverse-polarity protection, surge protection and voltage converters.
Follow the microphone path: Check microphone bias, input protection, filters, amplifier gain and codec input.
Review the processor section: Locate the MCU, DSP or SoC and check its clock, reset, memory, boot and programming circuits.
Trace the speaker path: Follow the signal through the codec, amplifier, output filter and speaker connector.
Inspect communication circuits: Review RF, Ethernet, RS-485 or two-wire interfaces separately.
Check lock-control outputs: Confirm the relay or MOSFET driver, flyback protection and load connection.
Compare with the PCB layout: Confirm that audio, RF, switching-power and speaker-current paths are separated.
Check test access: Locate power, reset, programming, audio and communication test points.
This method helps identify incorrect voltages, excessive gain, missing protection and potential noise paths before production.
How Should a Wireless Intercom PCB Be Designed?
A wireless intercom PCB must balance RF performance, audio quality, power stability and mechanical constraints. These areas should be planned together because antenna placement, speaker current and switching noise can directly affect voice clarity and communication range.
Step 1: Define the product requirements. Confirm the wireless protocol, operating frequency, communication range, microphone type, speaker power, input voltage, enclosure size and duplex mode. These requirements determine the processor, RF solution, audio circuit and PCB layer count.
Step 2: Choose the wireless solution. A pre-certified wireless module can shorten development time and reduce RF certification risk. A discrete RF SoC provides more control over board size, antenna design and production cost but requires stronger RF design and testing capability.
Step 3: Plan the power system. Separate the power needs of the processor, RF circuit, microphone front end and speaker amplifier. Use suitable converters, LDOs, decoupling capacitors and bulk capacitance to prevent RF transmission or high speaker volume from causing voltage drops and resets.
Step 4: Select the PCB layer structure. A four-layer PCB is suitable for most wireless intercom products. One internal layer should provide a continuous ground plane, while another supports power distribution and low-speed signals. More layers may be required for external memory, Ethernet or dense routing.
Step 5: Divide the board into functional areas. Separate the microphone circuit, processor, RF section, power converter and speaker amplifier. Keep low-level audio circuits away from switching nodes, inductors, crystals and high-current speaker traces.
Step 6: Position the antenna carefully. Place the antenna near the PCB edge and follow the supplier’s keep-out requirements. Batteries, speakers, shields, cables, copper and metal fasteners should remain outside the antenna area because they can reduce range and change antenna tuning.
Step 7: Route the RF path correctly. Keep the RF feed short and route it as a controlled 50 Ω transmission line. Maintain a continuous ground reference, avoid unnecessary vias and place the matching network close to the antenna or RF output.
Step 8: Protect the microphone signal. Place microphone biasing, filtering and preamplification close to the microphone. Keep analog audio routes short and away from RF feeds, clocks, Class D outputs and switching regulators.
Step 9: Control speaker current paths. Use short, wide traces for the amplifier supply, ground and speaker output. High-current return paths should not cross the microphone, codec or RF sections.
Step 10: Maintain a clean ground reference. Use a continuous ground plane instead of unnecessary ground splits. Component placement and routing should control how audio, digital, RF and speaker currents return to the power source.
Step 11: Protect external interfaces. Place ESD protection close to buttons, power inputs, charging ports and external connectors. Add reverse-polarity, surge or overcurrent protection according to the product environment.
Step 12: Add programming and test access. Provide accessible points for power rails, reset, programming, microphone input, speaker output and communication signals. These points simplify prototype debugging and batch functional testing.
Step 13: Check heat dissipation. Use copper areas and thermal vias around power amplifiers, regulators and other heat-generating parts. Keep these components away from microphones and temperature-sensitive RF parts.
Step 14: Review the enclosure design. Confirm antenna clearance, microphone openings, speaker chambers, mounting holes and cable routes before releasing the PCB. The enclosure can affect wireless range, voice pickup and acoustic feedback.
Step 15: Test the complete product. Verify pairing, communication range, reconnect behavior, audio clarity, standby current and maximum speaker volume inside the final enclosure. Testing should cover different distances, orientations, power conditions and nearby interference sources.
A reliable wireless intercom PCB depends on coordinated RF layout, clean audio routing, stable power delivery and enclosure-level testing.
How to Reduce Noise, Echo and Signal Interference in an Intercom PCB?
Noise and echo may come from power ripple, shared return paths, excessive gain, RF coupling, long cables or poor enclosure acoustics. The source should be identified before changing components or increasing amplifier power.
Stabilize the power rails: Use suitable regulators, local decoupling and adequate bulk capacitance.
Maintain continuous ground references: Avoid unnecessary ground-plane splits and control return paths through placement.
Protect the microphone front end: Keep microphone routes short and away from regulators, clocks and speaker outputs.
Separate high-current paths: Prevent amplifier and speaker currents from sharing narrow routes with the codec or microphone circuit.
Set the gain correctly: Use only the required analog gain before the ADC to avoid clipping and amplified noise.
Control RF coupling: Keep the RF section away from high-impedance audio nodes and follow antenna keep-out rules.
Improve cable immunity: Use twisted pairs, differential signalling, shielding and suitable termination where possible.
Reduce acoustic feedback: Increase microphone-to-speaker distance and use separate acoustic chambers.
Apply digital processing: Use noise suppression, automatic gain control and acoustic echo cancellation.
Validate under real conditions: Test different volume levels, cable lengths, wireless states and power sources.
PCB layout reduces electrical interference, but full-duplex echo normally requires both enclosure isolation and tuned echo-cancellation software.
What PCB Materials Are Suitable for Intercom Circuit Board?
Standard FR-4 is suitable for most intercom circuit boards because it provides adequate electrical performance, mechanical strength and manufacturing availability. Material selection should follow the operating temperature, wireless frequency, circuit density and environmental conditions.
Standard FR-4: Suitable for basic analog intercoms, indoor door stations and low-density wired communication boards.
High-Tg FR-4: Recommended for outdoor systems, repeated lead-free assembly and products exposed to wider thermal cycles.
Controlled-Dk FR-4: Suitable for wireless and IP intercoms that require controlled RF or high-speed impedance.
Low-loss RF material: Used when RF routes are long, insertion loss is critical or operating frequency exceeds the practical performance of standard FR-4.
Flexible PCB: Suitable for connecting microphones, keypads, displays and controls in compact or movable assemblies.
Rigid-flex PCB: Reduces connectors and cables in products with limited internal space.
Metal-core PCB: Rarely used for the main board but may support separate high-power lighting or thermal modules.
Material evaluation should consider Tg, Td, Dk, Df, moisture absorption, z-axis expansion, CAF resistance, copper weight and finished thickness.
For most digital and wireless intercom products, high-Tg or controlled-Dk FR-4 provides sufficient performance without the cost of a full RF laminate.
How Are Intercom Circuit Boards Manufactured and Assembled?
Intercom circuit board production combines bare-board fabrication, component assembly, programming and functional verification. Each stage should control materials, solder quality, firmware versions and audio performance.
Step 1: Review the production files. Check Gerber or ODB++ data, drill files, stackup, controlled-impedance requirements, BOM, centroid data, assembly drawings, firmware and test specifications. Footprints, polarity, antenna restrictions and missing test points should be corrected before production.
Step 2: Confirm materials and components. Verify the laminate, copper weight, finished thickness, surface finish and impedance structure. Component manufacturers, package sizes, lifecycle status, moisture sensitivity and approved substitutions should also be confirmed.
Step 3: Form the inner-layer circuits. Image, develop and etch the inner copper layers. Inspect line width, spacing, copper balance and layer registration before lamination.
Step 4: Laminate the multilayer PCB. Align the copper cores and prepreg, then press them together under controlled temperature and pressure. Lamination quality affects board thickness, dielectric spacing and impedance consistency.
Step 5: Drill and plate the holes. Drill vias, component holes and mounting holes, then clean the hole walls and deposit copper. Final plating connects the copper layers and provides the required finished hole size.
Step 6: Form the outer-layer circuits. Image and etch the outer copper patterns, then inspect trace dimensions, pad geometry and copper thickness. Controlled RF and high-current routes require close dimensional control.
Step 7: Apply solder mask and surface finish. Add solder mask and legend before applying ENIG, lead-free HASL or another specified finish. Microphone pads, fine-pitch devices and connectors require accurate solder-mask openings.
Step 8: Inspect the bare PCB. Perform electrical testing for opens and shorts, followed by dimensional and visual inspection. Controlled-impedance coupons should be measured when RF or Ethernet routes require impedance verification.
Step 9: Prepare the assembly process. Review stencil openings, solder-paste type, feeder setup, component polarity and reflow requirements. Moisture-sensitive PCBs and components should be stored or baked according to their handling level.
Step 10: Assemble the SMT components. Print solder paste onto the pads and use SPI to check deposit volume and alignment. Place resistors, processors, codecs, MEMS microphones, RF modules and other SMT parts before controlled reflow soldering.
Step 11: Install through-hole components. Assemble terminal blocks, relays, switches, transformers and large connectors. Selective soldering, wave soldering or manual soldering can be used according to component layout and volume.
Step 12: Inspect the completed PCBA. Use AOI to check placement, polarity and visible solder joints. X-ray inspection should be used for QFN, LGA, BGA and other bottom-terminated packages with hidden connections.
Step 13: Clean and program the board. Remove process residues when cleaning is required, then load firmware, serial numbers, MAC addresses and configuration data. Programming results should be verified through read-back or functional checks.
Step 14: Complete functional testing. Verify voltage rails, operating current, microphone input, speaker output, audio loopback, buttons, indicators, relays and wired or wireless communication. Testing should use the specified microphone, speaker load and firmware version.
Step 15: Approve the first article and release production. Confirm the first completed units before batch assembly. Approved PCB files, BOM revisions, component substitutions, firmware versions and test results should be recorded for repeat-order traceability.
A controlled manufacturing and assembly process reduces solder defects, audio inconsistency, programming errors and performance differences between production batches.
What Testing Is Required for an Intercom Circuit Board Assembly?
Testing should verify soldering quality, electrical operation, audio performance and communication stability. Acceptance limits should be defined from the product specification.
Bare-board electrical testing: Detect opens, shorts and incorrect connections.
SPI: Check solder paste volume, alignment and bridging risk.
AOI: Inspect component presence, polarity, placement and visible solder joints.
X-ray inspection: Examine joints under QFN, LGA, BGA and other bottom-terminated packages.
Power-up testing: Measure input current, startup behavior, voltage rails, ripple and abnormal heating.
Programming verification: Confirm firmware, configuration, serial number and read-back results.
Microphone testing: Check bias voltage, sensitivity, gain, background noise and channel operation.
PCB assembly: SMT, THT and mixed assembly for prototypes, pilot runs and batch orders.
Fine-pitch assembly: Support for 01005 components, QFN, LGA and BGA packages down to 0.25 mm pitch.
Firmware programming: MCU firmware, serial numbers, MAC addresses and configuration data.
Inspection and testing: SPI, AOI, X-ray, first-article inspection and customized functional testing.
Box assembly: Enclosure installation, cable connection, labeling and final product assembly.
Send your Gerber files, BOM, assembly drawings and test requirements to sales@bestpcbs.com for evaluation.
Custom Wireless Intercom Circuit Board Manufacturing and Assembly Case Study
Project background: A compact wireless intercom product required two-way voice communication, button control and speaker output within a limited enclosure. The project also required stable wireless performance, clear audio, firmware programming and repeatable PCBA production.
Project requirements:
4-layer FR-4 PCB
1.0 mm finished board thickness
1 oz copper
2.4 GHz wireless communication
Digital MEMS microphone
4 Ω, 3 W speaker output
12 V DC input
Controlled 50 Ω RF impedance
Firmware and serial-number programming
Audio and wireless functional testing
Prototype and repeat production support
Our solution:
Design review: Reviewed the schematic, PCB layout, stackup, BOM and test requirements before production.
Functional zoning: Separated the microphone, processor, RF, power and amplifier sections to reduce interference.
RF optimization: Routed the RF feed with controlled 50 Ω impedance and placed the antenna keep-out area near the PCB edge.
Audio protection: Kept the microphone input away from switching regulators, clocks and speaker-current routes.
Power stability: Added suitable decoupling capacitors, filtering components and short power-return paths.
Test access: Added test points for voltage rails, audio signals, programming and communication checks.
Assembly control: Used SPI, AOI and X-ray inspection to verify solder paste, component placement and hidden joints.
Programming: Loaded firmware, serial numbers and configuration data after assembly.
Project result: The pilot boards passed the specified power, audio, control and wireless communication tests. After first-article approval, the PCB files, BOM, firmware version and test requirements were released for controlled repeat production.
The completed manufacturing package supported consistent assembly, programming and testing across subsequent orders.
Why Choose EBest Circuit as Your Intercom PCB Manufacturer?
EBest Circuit integrates design support, PCB production, sourcing, assembly and testing to reduce project handoffs and improve production control. Here are reasons why choose EBest Circuit as your intercom PCB manufacturer:
One-stop project management: Design review, PCB fabrication, sourcing, assembly, programming and testing are coordinated through one supplier.
Fewer prototype failures: Manufacturing and assembly risks are identified before fabrication, reducing avoidable redesigns.
Faster product validation: Prototype assembly supports early testing of audio, RF, power and enclosure performance.
Flexible order volumes: Support is available for prototypes, low-volume builds, pilot runs and mass production.
Fine-pitch capability: Assembly supports 01005 components and BGA pitches down to 0.25 mm.
Mixed assembly support: SMT, THT and mixed processes support processors, microphones, relays and large connectors.
Risk-based inspection: SPI, AOI, X-ray and functional tests are selected according to the board design.
Quality-system support: Available certifications include ISO 9001, IATF 16949, ISO 13485, AS9100D, UL, RoHS and REACH.
Repeat-order consistency: Approved files, BOM revisions, firmware and test requirements can be retained for future production.
China manufacturing with global supply: Custom intercom PCB products are manufactured in China and delivered internationally.
FAQs About Intercom Circuit Boards
Q1: Can a discontinued intercom board be replaced with a newly designed board?
A1: Yes, but the new board must match the original voltage, connector pinout, microphone type, speaker impedance and lock-control method. Mounting holes and enclosure dimensions should also be confirmed before redesign.
Q2: How many assembled boards should be ordered for the first prototype run?
A2: A first build of 5–20 assembled boards is practical for firmware debugging, acoustic testing, wireless validation and enclosure fitting. This quantity also helps separate design problems from individual assembly defects.
Q3: Can a 4 Ω speaker replace an 8 Ω intercom speaker?
A3: Only if the amplifier supports a 4 Ω load. Lower impedance increases current and may cause distortion, overheating or power-supply droop. Check the amplifier rating and speaker power before replacement.
Q4: Should an intercom use an electret or MEMS microphone?
A4: Electret microphones are low-cost but require careful biasing and filtering. MEMS microphones are smaller and provide more consistent sensitivity. The choice depends on board space, pickup distance, interface and operating environment.
Q5: Can existing building wiring be reused for a new intercom system?
A5: Yes, when the cable condition, resistance, insulation and topology meet the new system requirements. Existing analog wiring may not support Ethernet or high-speed digital communication, so continuity and voltage-drop tests are required.
Q6: Does an outdoor intercom board require conformal coating?
A6: Conformal coating is recommended for humidity, condensation, dust or salt exposure. Typical coating thickness is 25–75 μm. Microphones, connectors, antennas and test points may require masking.
Q7: Can firmware, serial numbers and MAC addresses be loaded during assembly?
A7: Yes. Firmware and identification data can be programmed through SWD, JTAG, UART, USB or test pads. Read-back or functional testing should confirm that the correct data was loaded.
Q8: How should obsolete components be managed in a long-life intercom product?
A8: Check the lifecycle status of processors, codecs, RF modules, memory and connectors before production. Approved alternatives, planned last-time purchases and controlled redesigns help reduce supply interruptions.
Q9: Can an intercom board be designed for future feature upgrades?
A9: Yes. Reserve programming access, test points, memory capacity and selected optional interfaces. However, unnecessary circuits should be avoided because they increase board size, cost and validation work.
Q10: What should be checked before approving the first assembled sample?
A10: Confirm the PCB revision, BOM, firmware, polarity, power consumption and connector functions. Test the microphone, speaker, controls, relays and communication interfaces before batch production.
Q11: Can EBest Circuit assemble boards with supplied components?
A11: Yes. Components can be customer-supplied, partially supplied or fully sourced. Clear part numbers, quantities, packaging and moisture-sensitivity information should be provided before assembly.
Q12: Is final box assembly available after PCBA production?
A12: Yes. Box assembly can include enclosure installation, cable connection, labeling, firmware loading and final functional inspection. Mechanical drawings and acceptance criteria should be supplied in advance.
Q13: How can an intercom PCB be made easier to repair?
A13: Use clear labels, accessible test points and replaceable modules. Programming connectors and frequently serviced parts should remain accessible after final assembly.
Q14: How can repeated orders maintain consistent quality?
A14: Keep PCB files, BOMs, firmware versions and test limits under revision control. Record material lots, component batches and inspection results for each production run.
Q15: What information should be included in an intercom PCBA purchase order?
A15: Include PCB revision, BOM, quantity, delivery date, firmware version, test scope and packaging requirements. Clearly identify supplied parts, approved alternatives and programming rules.
A reliable intercom circuit board project requires coordinated audio design, RF control, material selection, component sourcing, assembly and functional testing. Before production, confirm the operating voltage, communication method, microphone type, speaker load, enclosure restrictions, firmware version and acceptance limits.
For custom intercom PCB design, prototype manufacturing, component sourcing, PCB assembly or repeat production, send your Gerber files, BOM, assembly drawings and test requirements to EBest Circuit via sales@bestpcbs.com.
A 10 layer PCB stackup is used when a board has dense routing, high-speed signals, several power rails and strict signal integrity needs. The right stackup controls impedance, shortens return paths and reduces crosstalk.
For high-speed PCB design, more layers alone do not guarantee better performance. The stackup should use solid ground planes, controlled dielectric spacing, balanced copper and realistic impedance targets. These details help the PCB perform well in both testing and mass production.
What Is a 10 Layer PCB Stackup?
A 10 layer PCB stackup is a multilayer PCB structure with ten copper layers separated by core and prepreg materials. These copper layers are arranged as signal layers, ground planes, power planes or mixed routing layers.
The stackup controls how signals, power and return current move through the board. It also affects impedance, EMI, board thickness, thermal behavior and production yield.
A good 10-layer structure should clearly define layer order, copper weight, dielectric thickness, material type, GND plane position, power plane position and impedance targets. Without these details, the PCB may pass layout review but fail during testing or production.
What Is a Standard 10 Layer PCB Stackup?
A standard 10 layer PCB stackup usually places signal layers close to ground planes. This gives high-speed traces a stable return path and leaves enough layers for power distribution and component fanout.
A common structure is:
Layer
Type
Function
L1
Signal
Components and short routing
L2
GND
Reference plane
L3
Signal
Inner signal routing
L4
Power
Power distribution
L5
GND
Shielding and return path
L6
GND
Shielding and return path
L7
Power
Power distribution
L8
Signal
Inner signal routing
L9
GND
Reference plane
L10
Signal
Components and low-speed routing
This structure is widely used because it provides multiple ground references, good shielding and balanced lamination. However, the final layer order should still match the signal speed, power rails, BGA density and PCB factory capability.
What Is a Practical 10 Layer PCB Stackup Example?
A practical 10 layer PCB stackup example should show how each layer supports routing, power integrity and production stability. For high-speed PCB design, critical signals should be placed next to continuous GND planes.
A practical PCB 10 layer stackup example is:
Layer
Type
Design Use
L1
Signal
Components, BGA fanout and short traces
L2
GND
Reference for L1
L3
Signal
Controlled impedance stripline
L4
GND
Reference for L3
L5
Power
Main voltage rails
L6
Power
Secondary voltage rails
L7
GND
Reference for L8
L8
Signal
Controlled impedance stripline
L9
GND
Reference for L10
L10
Signal
Secondary routing and components
This structure gives four GND layers, two power layers and four signal layers. It is suitable for high-speed interfaces, dense routing and controlled impedance layouts.
How Should Ground and Power Planes Be Arranged in a 10 Layer PCB Stackup?
Ground and power planes should be arranged to give high-speed signals short return paths, stable voltage delivery and low EMI risk. In a 10 layer PCB stackup, ground planning should come before adding more routing space.
Place high-speed signal layers next to solid GND planes. A nearby GND plane gives the return current a direct path under the trace. This reduces loop area, signal reflection and radiation noise.
Use more than one GND plane when the design has fast signals. A strong 10-layer high-speed PCB often uses three to four GND planes. This improves shielding and helps separate noisy circuits from sensitive signals.
Keep power and GND planes close where possible. Closely spaced power and ground planes improve plane coupling and help reduce power noise. This is useful for processors, FPGAs, DDR memory and communication chips.
Avoid routing high-speed traces over split planes. If a trace crosses a gap in the reference plane, the return current is forced to detour. This can create EMI, impedance discontinuity and timing problems.
Place noisy power areas away from sensitive signal layers. Switching regulators, high-current rails and fast digital circuits should not share weak or broken reference areas with sensitive signal routes.
Keep the whole stackup symmetrical. Balanced copper and even dielectric distribution reduce bow, twist and lamination stress during PCB manufacturing.
Use stitching vias near layer transitions. When high-speed signals change layers, nearby GND stitching vias help the return current move smoothly between reference planes.
Do not use broken power islands as the main high-speed reference. A continuous GND plane is usually safer than a fragmented power plane because return current is easier to control.
How Does Dielectric Thickness Affect a 10 Layer PCB Stackup?
Dielectric thickness affects impedance, trace width, crosstalk and total PCB thickness. In a 10 layer PCB stackup, the distance between a signal trace and its reference plane directly changes the electrical behavior of the trace.
A thinner dielectric gives stronger coupling between the signal trace and the GND plane. This helps create a shorter return path, lower EMI risk and narrower controlled-impedance traces.
A thicker dielectric weakens coupling and usually requires wider traces to reach the same impedance. This can reduce routing space around BGAs, fine-pitch ICs and dense connectors.
Dielectric thickness should not be guessed during layout. It should be confirmed with the PCB manufacturer because real prepreg thickness can change after lamination due to resin flow, copper coverage and press conditions.
How to Design a 10 Layer PCB Stackup for Impedance Control?
To design a 10 layer PCB stackup for impedance control, start with signal requirements and manufacturing limits. The goal is to make the designed impedance match the real PCB after lamination, etching and plating.
Confirm the impedance targets first. Common values include 50Ω single-ended, 90Ω differential and 100Ω differential, depending on the signal interface.
Choose the routing structure. Use microstrip for outer-layer routing and stripline for inner-layer routing. Stripline usually gives better shielding, while microstrip is easier to access during layout review.
Assign clean reference planes. Each controlled-impedance layer should reference a continuous GND plane. Avoid plane cuts, voids and split areas under high-speed traces.
Define dielectric thickness before routing. Trace width depends on the distance between the signal layer and the reference plane. If the dielectric changes later, impedance may also change.
Use the correct material Dk. Dk should match the working frequency range, not only the material name. High-speed designs may require lower-loss materials when signal loss becomes critical.
Control trace width and spacing together. Differential pairs depend on both trace width and pair spacing. Changing only one value may cause impedance drift or layout mismatch.
Include finished copper thickness. Finished copper is affected by base copper, plating and etching. Wrong copper assumptions can change the final impedance result.
Avoid unnecessary layer changes. Each via transition can create impedance discontinuity. When layer changes are required, use proper via design and nearby GND stitching vias.
Request impedance coupons. Test coupons help verify whether the finished PCB matches the required impedance tolerance after fabrication.
Let the PCB factory review the stackup before release. The final structure should match actual laminate, prepreg, copper and process capability.
What Is the Best 10 Layer PCB Stackup for High-Speed Design?
The best 10 layer PCB stackup for high-speed design is a balanced structure with continuous GND planes beside critical signal layers, stable power-plane placement and controlled dielectric spacing.
A strong high-speed structure is:
Layer
Type
Purpose
L1
Signal
Components and short high-speed routing
L2
GND
Reference for L1
L3
Signal
Controlled impedance stripline
L4
GND
Reference for L3
L5
Power
Main power distribution
L6
Power
Secondary power distribution
L7
GND
Reference for L8
L8
Signal
Controlled impedance stripline
L9
GND
Reference for L10
L10
Signal
Components and secondary routing
This structure works well because it gives high-speed signals clear return paths, strong shielding, lower crosstalk and better EMI control. It also keeps the board more balanced during lamination.
How to Use a 10 Layer PCB Stackup Calculator?
A 10 layer PCB stackup calculator helps estimate trace width, spacing and dielectric height for controlled impedance. It is useful at the early design stage, but the final result should always be checked by the PCB manufacturer.
Select the right trace model. Choose microstrip for outer layers and stripline for inner layers. Using the wrong model can give misleading impedance values.
Enter dielectric thickness accurately. Use the real distance from the signal trace to its reference plane. Do not use total board thickness for impedance calculation.
Enter finished copper thickness. Finished copper includes base copper and plating. This value affects trace geometry and impedance.
Use the correct material Dk. Dk should come from the selected laminate and working frequency range. A generic FR-4 value may not be accurate for high-speed designs.
Set the target impedance. Enter 50Ω single-ended, 90Ω differential or 100Ω differential according to the signal standard.
Adjust trace width and spacing within factory capability. Very narrow traces or tight spacing may look correct in the calculator but may reduce production yield.
Check both outer and inner layers separately. Outer-layer microstrip and inner-layer stripline usually require different trace widths for the same impedance target.
Send the result for factory review. Calculator values are estimates. Final impedance depends on material tolerance, etching accuracy, plating thickness, solder mask and lamination control.
What Problems Can Happen in a Poor 10 Layer PCB Stackup?
A poor 10 layer PCB stackup can cause electrical failure, EMI issues and production instability. Most problems appear when signal layers lack clean references, dielectric thickness is wrong or copper distribution is unbalanced.
Impedance mismatch. Wrong trace width, dielectric spacing or copper thickness can cause impedance drift. This may lead to signal reflection, eye diagram failure and unstable communication.
Crosstalk between signal layers. If high-speed traces are routed too close or stacked without proper GND shielding, signals can interfere with each other.
EMI radiation. Long return paths and split reference planes create large current loops. These loops can increase radiated noise and cause EMI test failure.
Power noise. Weak power and GND plane coupling can increase voltage ripple. This affects processors, memory, RF modules and high-speed interfaces.
BGA escape routing problems. Poor layer planning can make dense BGA fanout difficult. This may force risky trace spacing, extra vias or unnecessary routing detours.
Board warpage. Unbalanced copper, uneven dielectric spacing or poor layer symmetry can increase bow and twist during lamination and assembly.
Higher signal loss. Unsuitable dielectric material or rough copper can increase insertion loss, especially in fast digital and communication designs.
Low manufacturing yield. If the stackup requires traces, spacing or dielectric values beyond factory capability, production may face more defects and higher cost.
Poor repeatability in batch production. A stackup that works once may fail in volume if material, lamination and impedance tolerance are not controlled.
What Should Be Checked Before Manufacturing a 10 Layer PCB Stackup?
Before manufacturing a 10 layer PCB stackup, the design should be checked against real production capability. The review should cover electrical performance, material selection, mechanical balance and inspection requirements.
Final layer order: Confirm each signal, GND and power layer position.
Reference planes: Check whether every high-speed signal layer has a continuous reference plane.
Board thickness: Confirm finished thickness and tolerance.
Core and prepreg: Verify material type, dielectric thickness and lamination structure.
Copper weight: Confirm base copper and finished copper thickness.
Impedance targets: List single-ended and differential values clearly.
Impedance tolerance: Confirm whether the project uses standard or tighter tolerance.
Trace width and spacing: Check whether values match factory capability.
Differential pairs: Confirm pair width, pair spacing and length-matching rules.
Via structure: Review through vias, blind vias, buried vias, microvias and via-in-pad needs.
BGA fanout: Confirm escape routing feasibility before production.
Copper balance: Check whether copper distribution is balanced across the board.
Warpage risk: Review board thickness, copper balance and panel layout.
Surface finish: Choose ENIG, HASL, immersion silver, OSP or other finish based on assembly needs.
Impedance coupons: Confirm coupon design and test method.
Electrical test: Confirm netlist test requirements.
Inspection reports: Confirm AOI, microsection, impedance test and final quality records.
Assembly requirements: Check panelization, fiducials, component clearance and soldering process needs.
FAQs About 10 Layer PCB Stackup
Q1: What is the common finished thickness for a 10-layer PCB? A1: Many 10-layer PCBs use 1.6mm finished thickness, but this is not fixed. High-speed PCB design may use a different thickness to meet impedance, connector, enclosure or mechanical strength requirements. The final value should be confirmed with dielectric spacing, copper thickness and lamination tolerance before layout release.
Q2: Is a 10-layer PCB always better than an 8-layer PCB? A2: No. A 10-layer PCB is better only when the design requires more routing space, more reference planes, better power distribution or stronger EMI control. An 8-layer PCB may work well for simpler circuits. The decision should depend on signal speed, BGA density, power rails, board size and cost target.
Q3: When should a 10 layer HDI PCB stackup be used? A3: A 10 layer HDI PCB stackup should be used when fine-pitch BGAs, compact board size or dense routing make through-hole vias difficult. HDI can use blind vias, buried vias, microvias and via-in-pad structures. It improves routing density, but it also increases cost, lamination steps and process control requirements.
Q4: What is the difference between microstrip and stripline in a 10-layer PCB? A4: Microstrip traces are usually routed on outer layers and reference one plane below them. Stripline traces are routed inside the PCB and are placed between reference planes. Stripline gives better shielding, while microstrip is easier to inspect and adjust during layout review.
Q5: Does solder mask affect controlled impedance? A5: Yes. Solder mask can affect outer-layer microstrip impedance because it changes the dielectric environment around the trace. The effect is usually smaller than dielectric thickness or trace width, but it still matters for tight impedance control. For sensitive designs, solder mask data should be included in the impedance model.
Q6: What impedance tolerance is common for 10-layer PCBs? A6: Many controlled impedance PCB projects use ±10% tolerance as a common production target. Tighter tolerance may be possible, but it depends on material control, etching accuracy, copper thickness, dielectric tolerance and testing method. For high-speed interfaces, tolerance should be confirmed before fabrication.
Q7: What materials are used in a 10-layer PCB? A7: A 10-layer PCB usually uses copper foil, core, prepreg, solder mask and surface finish. Standard FR-4 can be used for many digital boards, while high-speed designs may require high-Tg FR-4 or low-loss laminate. Material choice should consider Dk, Df, Tg, copper roughness and assembly temperature.
Q8: What files are required for 10-layer PCB stackup review? A8: A complete review should include Gerber files, drill files, stackup drawing, impedance table, material requirements, copper weight, finished thickness, via structure and special notes. For controlled impedance designs, provide single-ended and differential impedance targets so the PCB factory can check manufacturability before production.
Q9: Can one standard 10-layer stackup fit all high-speed designs? A9: No. A standard 10 layer PCB stackup can be a useful starting point, but each project should be adjusted for signal speed, BGA pitch, impedance targets, power rails, material loss and board thickness. A design for DDR, Ethernet, PCIe or RF may require different layer spacing and routing rules.
Q10: How does copper thickness affect a 10-layer PCB stackup? A10: Copper thickness affects trace width, impedance, current capacity, heat spreading and etching accuracy. Thicker copper can carry more current, but it may make fine-line impedance routing harder. For high-speed boards, finished copper thickness should be defined clearly because plating and etching variation can change the final impedance result.
Q11: Why does BGA pitch matter in a 10-layer PCB stackup? A11: BGA pitch affects escape routing, via size, trace spacing and layer count. Fine-pitch BGAs may require microvias, via-in-pad or HDI buildup. If BGA fanout is not checked early, the layout may require more layers, tighter spacing or expensive process changes during PCB fabrication.
Q12: How can a supplier prove 10-layer PCB quality? A12: A reliable supplier should provide stackup review, material traceability, AOI, electrical testing, impedance testing, microsection inspection and final inspection records. For batch production, repeatable lamination control and stable impedance data are more important than a low first quote.
Q13: What affects the cost of a 10-layer PCB? A13: Cost is affected by board size, material grade, copper thickness, impedance control, HDI structure, via-in-pad, surface finish, solder mask type, test requirements and order quantity. A simple 10-layer board costs less than a high-speed HDI board with tight tolerance and low-loss laminate.
Q14: Can EBest provide 10-layer PCB assembly after fabrication? A14: Yes. EBest Circuit can support 10-layer PCB fabrication and PCBA assembly for custom, OEM/ODM and batch production projects. Assembly support can include component sourcing, SMT assembly, through-hole assembly, functional testing, inspection reports and global delivery from a China-based source factory.
Conclusion
The best 10-layer PCB structure for high-speed PCB design should combine solid GND references, controlled dielectric spacing, suitable materials, balanced copper and verified impedance targets. A good stackup reduces signal risk before layout problems become expensive to fix.
For project selection, check signal speed, impedance values, BGA density, material loss, board thickness, power rails and assembly requirements before finalizing the stackup. For procurement, compare the supplier’s review ability, impedance testing, material traceability, production records and PCBA support, not only the board price.
EBest Circuit provides 10-layer PCB manufacturing and assembly services for high-speed, industrial, communication, medical, automotive and custom electronic projects. If you need stackup review, controlled impedance fabrication, HDI production, PCBA assembly or a batch quotation, send your files to sales@bestpcbs.com.
Solder mask expansion defines the opening offset between a PCB copper pad and the solder mask window around it. The right setting keeps pads exposed for soldering while preserving enough mask between nearby features. If the value is too large, solder bridges and exposed copper may appear. If it is too small, the mask may cover part of the pad and reduce solder joint quality.
What Is Solder Mask Expansion in PCB Design?
Solder mask expansion is the extra opening added around a PCB copper pad in the solder mask layer. It controls how much larger the mask window is than the actual copper feature.
For example, if a copper pad is 1.00 mm wide and the mask opening is 1.10 mm wide, the offset is 0.05 mm on each side. This margin helps the pad stay exposed even when normal fabrication alignment tolerance occurs.
In PCB design, this setting affects SMT pads, through-hole pads, vias, test points, BGA pads and fine-pitch components. A small value can still affect soldering quality, solder mask separation and final assembly yield.
What Is the Purpose of Solder Mask Expansion?
The purpose of solder mask expansion is to expose the full solderable pad while allowing normal mask registration tolerance. During PCB production, the solder mask layer may shift slightly compared with the copper pattern.
A proper opening offset helps the mask stay away from the pad edge. It also reduces pad coverage, poor wetting and weak solder joints. In batch production, this value should be checked before tooling release, not only after assembly defects appear.
Main functions include:
Expose the full copper pad for soldering.
Keep solder mask away from the pad edge.
Support stable solder fillet formation.
Protect nearby copper from unwanted solder.
Maintain solder mask separation between dense pads.
Reduce assembly defects caused by poor pad exposure.
Without enough opening, the mask may cover part of the pad. With too much opening, the mask between pads may become too narrow or disappear.
How Does Solder Mask Expansion Work with Pads and Mask Openings?
Solder mask expansion works by increasing the solder mask opening around each copper pad. The copper pad defines the metal area, while the mask opening defines the exposed solderable window.
The basic relationship is:
Solder mask opening = copper pad size + expansion on both sides
If a pad is 0.80 mm wide and the offset is 0.05 mm per side, the mask opening becomes 0.90 mm wide. The same logic applies to pad length.
However, the value must fit the surrounding spacing. Fine-pitch ICs, BGA pads and dense connectors may not have enough room for large openings. In these areas, the setting should be reduced or controlled according to the PCB factory’s process capability.
Solder Mask Expansion vs Clearance vs Opening: What Is the Difference?
Solder mask expansion, solder mask clearance and solder mask opening are closely related, but they are not the same parameter. Expansion is the CAD offset, clearance is the spacing around the copper pad, and opening is the final exposed solderable window.
Parameter
Definition
Measurement Basis
Design Function
Risk If Incorrect
Solder Mask Expansion
Extra offset added around a copper pad in the solder mask layer
Measured per side from the copper pad edge
Controls how much larger or smaller the mask window is than the copper pad
Too large may expose nearby copper; too small may cover the pad edge
Solder Mask Clearance
Physical gap between the copper pad edge and the solder mask edge
Measured as the open space around the pad after expansion is applied
Keeps solder mask away from solderable copper and allows fabrication tolerance
Too small may cause mask encroachment, poor wetting or weak solder joints
Solder Mask Opening
Final exposed window in the solder mask layer
Measured as the full width, length or diameter of the exposed area
Defines the actual solderable area available for assembly
Too large may reduce mask separation; too small may limit solderable pad area
In simple terms, solder mask expansion is the setting, solder mask clearance is the gap, and solder mask opening is the final result. These three values should be checked together in Gerber files before PCB fabrication.
What Is the Standard Solder Mask Expansion Value?
A common solder mask expansion standard value is 0.05 mm to 0.10 mm per side for standard PCB pads. This range is suitable for many normal SMT pads because it exposes the pad while leaving enough tolerance for mask registration.
There is no single universal value for every PCB. IPC-SM-840 covers solder mask material qualification and performance, but it does not define one fixed expansion value. The final value depends on PCB density, pad pitch, solder mask separation capability, imaging method, solder mask color, surface finish and fabrication control.
Pad Type
Recommended Value
Use Condition
Standard SMT pad
0.05–0.10 mm
General PCB layout
Through-hole pad
0.075–0.13 mm
Larger pads with enough spacing
Fine-pitch pad
0.05–0.075 mm
Check mask separation first
Advanced fine-pitch pad
Below 0.05 mm
Only after factory confirmation
BGA NSMD pad
0.05–0.075 mm
Follow package land pattern
SMD BGA pad
Controlled negative opening
Mask defines solderable land
Test pad
0.05–0.10 mm
Stable probe contact
Tented via
No opening
Via covered by solder mask
Exposed via
0.05–0.10 mm
Test, soldering or thermal access
For normal PCB production, 0.05 mm per side is a practical lower value, and 0.10 mm per side is a safe general value. For BGA, fine-pitch ICs and dense connectors, always check solder mask separation before using a default rule.
How to Set Solder Mask Expansion for Different PCB Pads?
Set solder mask expansion according to pad type, component pitch, soldering method and factory capability. A global rule is acceptable for simple PCB layouts, but dense areas need local control.
Standard SMT pads: Use 0.05–0.10 mm per side. This gives clear pad exposure and supports stable reflow soldering.
Through-hole pads: Use 0.075–0.13 mm per side when spacing allows. The opening should expose the annular ring without uncovering nearby copper.
Fine-pitch IC pads: Use 0.05–0.075 mm per side. The main target is to keep enough solder mask between adjacent pads.
Advanced fine-pitch pads: Use values below 0.05 mm only after DFM confirmation. Do not apply small values without checking mask registration tolerance.
BGA NSMD pads: Use an opening larger than the copper pad, commonly 0.05–0.075 mm per side. Follow the package land pattern and fabrication rule.
SMD BGA pads: Use controlled or negative opening when the mask defines the solderable land. Do not copy NSMD settings into SMD pads.
Thermal pads: Keep the opening controlled and match it with stencil design. Excess exposed copper may cause solder float, voiding or uneven reflow.
Test pads: Use 0.05–0.10 mm per side to keep stable probe contact. The opening should be clean and easy to inspect.
Vias near SMT pads: Use tented, plugged or capped vias when solder wicking is a risk. Expose nearby vias only when testing or thermal transfer requires it.
Castellated or edge pads: Check mask pullback near the board edge and plating area. The opening should support soldering without exposing unwanted copper.
For dense PCB layouts, local pad rules are safer than one default value across the whole board. Before production, review Gerber mask openings and CAM feedback to confirm the setting can be manufactured reliably.
How to Calculate Solder Mask Expansion for PCB Pads?
Solder mask expansion calculation is based on the difference between the mask opening and the copper pad size. The value is usually calculated per side.
Formula: Expansion per side = (solder mask opening size – copper pad size) ÷ 2
Example: A copper pad is 0.80 mm wide. The required mask opening is 0.90 mm wide.
Expansion per side = (0.90 – 0.80) ÷ 2 = 0.05 mm
For rectangular pads, calculate width and length separately. For round pads, calculate by diameter. For BGA pads, first confirm whether the design uses non-solder mask defined pads or solder mask defined pads, because the opening logic may be different.
What Problems Happen If Solder Mask Expansion Is Too Large or Too Small?
Too large a solder mask expansion exposes extra copper. Too small a value may let solder mask cover the pad. Both conditions can create manufacturing and assembly defects.
Setting
Problem
Result
Too large
Narrow mask separation
Solder bridge risk
Too large
Exposed nearby copper
Short circuit risk
Too large
Excess pad opening
Solder spread
Too small
Mask on pad edge
Poor wetting
Too small
Reduced solderable area
Weak joint
Too small
Misaligned opening
Rework or scrap
The risk becomes higher on fine-pitch components, dense connectors, BGA pads and small passive components. In batch production, one wrong value can repeat across thousands of pads, so the issue should be corrected before PCB fabrication.
What Solder Mask Expansion Rules Should You Follow?
Good solder mask expansion rules should expose solderable pads, protect nearby copper and preserve solder mask separation. The largest opening is not always the best choice.
Confirm factory capability first. Check minimum solder mask separation, registration tolerance, imaging method and solder mask color before finalizing the value.
Avoid one value for all pads. Standard SMT pads, BGA pads, vias, thermal pads and fine-pitch ICs often need different local rules.
Protect mask separation between pads. If two openings are too close, the remaining mask may become too narrow and fail during fabrication.
Use smaller openings for dense pads. Fine-pitch ICs and dense connectors need controlled openings to reduce solder bridge risk.
Keep vias near pads covered when possible. Tented, plugged or capped vias help reduce solder wicking during reflow.
Separate mask rules from paste rules. The mask opening controls exposed copper. The paste opening controls solder volume.
Check BGA pad type first. NSMD pads need larger openings. SMD pads may need controlled or negative openings.
Review thermal pads with stencil design. Mask opening, paste window and thermal via design should work together.
Avoid exposing nearby traces. Large openings may uncover copper that should remain protected.
Confirm CAM changes before production. Any factory adjustment should be approved before tooling release, especially for BGA and fine-pitch PCB.
These rules help reduce solder bridges, pad coverage, solder wicking, weak joints and unexpected fabrication changes.
How to Check Solder Mask Expansion Before PCB Fabrication?
Check solder mask expansion before fabrication by reviewing Gerber files, pad openings, mask separation and DFM feedback. This step prevents mask issues from entering production.
Open the solder mask layers. Review top and bottom mask layers in a Gerber viewer and compare them with the copper layers.
Check all solderable pads. Confirm that SMT pads, through-hole pads, test pads and edge pads are fully exposed.
Inspect fine-pitch areas. Look closely at IC pads, dense connectors and small passive components to confirm enough mask remains between openings.
Review BGA openings. Confirm whether the BGA footprint uses NSMD or SMD pads before approving the mask layer.
Check via status. Make sure vias are tented, exposed, plugged or capped according to the design intent.
Review thermal pads. Confirm the opening works with stencil windows and thermal vias to reduce voiding or floating.
Check for exposed traces. Large openings should not uncover copper traces, copper pours or adjacent pads.
Confirm DFM feedback. Ask the PCB factory to review minimum mask separation, registration tolerance, IPC class, surface finish and solder mask color.
Approve CAM changes. If the factory modifies openings, confirm the change before tooling release.
Use inspection after production. AOI, visual inspection and solderability review can confirm whether final openings match the design intent.
This check is especially important for fine-pitch PCB, BGA PCB, high-reliability products and repeat batch production.
FAQs About Solder Mask Expansion
Q1: Can top and bottom solder mask layers use different values? A1: Yes. Top and bottom layers can use different values if pad density, component type or assembly method is different. For example, a dense SMT top layer may need tighter openings, while a bottom layer with through-hole pads may allow more tolerance. Both layers should still follow factory registration limits.
Q2: Does solder mask expansion affect solder paste printing? A2: It affects paste printing indirectly, but it is not the same as stencil aperture design. The mask opening controls exposed copper, while the stencil opening controls solder paste volume. If the mask opening is too large near fine-pitch pads, solder may spread more easily during reflow.
Q3: Should the value be set in the footprint library or board rule? A3: It can be set in either place, but board-level review is still required. A footprint that works on a simple PCB may fail in a dense area. BGA pads, fine-pitch ICs, thermal pads and nearby vias often need local rules instead of one library default.
Q4: Why does a PCB factory modify mask openings during CAM review? A4: A factory may adjust openings when the file violates minimum mask separation, registration tolerance or process limits. This can improve manufacturability, but it may also change pad exposure. For controlled PCB assembly, CAM changes should be reviewed before tooling starts.
Q5: Is green solder mask easier to control than black or white solder mask? A5: Green solder mask is often easier to inspect because it provides stronger contrast and mature process control. Black, white, red or blue masks can still be used, but inspection and exposure control may be more demanding. The opening value should always match real factory capability.
Q6: Can the setting affect high-voltage PCB spacing? A6: Yes. A large opening may expose copper that should remain insulated.Electrical clearance and creepage should be checked separately from mask openings. Solder mask can protect copper, but it should not be treated as the only safety barrier for high-voltage spacing.
Q7: What should be checked for via-in-pad designs? A7: Via-in-pad designs should be checked for filling, capping, solder wicking and pad flatness. If the via is not properly filled or capped, solder can flow into the hole during reflow. This may reduce solder volume and create weak joints under BGA or QFN packages.
Q8: Does surface finish affect the opening choice? A8: Surface finish does not change the basic formula, but it can affect assembly behavior. ENIG, OSP, HASL and immersion silver have different wetting and flatness characteristics. For fine-pitch PCB or BGA PCB, surface finish, pad design and mask opening should be reviewed together.
Q9: Is negative expansion always risky? A9: No. Negative expansion is useful when the solder mask must define the solderable area, such as some SMD BGA pads. The risk appears when the overlap is too large or poorly aligned. In that case, the mask may reduce solderable copper and affect solder joint reliability.
Q10: What file should be checked before placing a PCB order? A10: Gerber or ODB++ files should be checked before ordering. The review should include copper pads, mask openings, paste openings, vias, BGA areas, fine-pitch components and thermal pads. A DFM review from the PCB factory is useful before tooling, especially for dense layouts.
Q11: Can mask openings affect PCB appearance? A11: Yes. Large openings may expose more copper than expected and make pad areas look uneven. Small openings may create partial pad coverage or inconsistent mask edges. For visible products, solder mask color, pad exposure and surface finish should be checked during sample approval.
Q12: How does the opening affect rework? A12: Proper openings make rework easier because solderable pads are fully exposed and accessible. If mask covers part of the pad, solder wetting becomes harder during repair. If the opening is too large, nearby copper may collect solder and increase bridge risk during manual rework.
Q13: What should a PCB drawing specify for mask control? A13: A PCB drawing can specify solder mask color, IPC class, via tenting, surface finish, special BGA rules, filled via requirements and CAM approval areas. This is useful when the board includes fine-pitch pads, BGA pads or controlled assembly features.
Q14: When should EBest Circuit review solder mask expansion before quotation? A14: EBest Circuit should review it before quotation when the PCB has BGA, QFN, fine-pitch ICs, via-in-pad, dense connectors, high-voltage areas, special solder mask color or batch production requirements. Early DFM review helps confirm manufacturability before cost, lead time and tooling are finalized.
Conclusion
Solder mask expansion is a small setting, but it directly affects PCB solderability, solder mask separation and assembly yield. Standard SMT pads often use 0.05–0.10 mm per side, while fine-pitch pads, BGA pads, vias and thermal pads need local review. A reliable setting should expose the pad, protect nearby copper and match real fabrication capability.
Before production, do not rely only on CAD defaults. Check Gerber files, mask openings, solder mask separation, via strategy, BGA pad type, surface finish and CAM feedback. These checks help prevent solder bridges, weak joints, exposed copper and avoidable rework.
EBest Circuit is a China-based PCB source factory offering custom PCB fabrication, DFM review, CAM confirmation, solder mask process control and global supply. Send your PCB files and requirements to sales@bestpcbs.com for a fast quotation and reliable PCB manufacturing support.
This website uses cookies to enhance your experience, remember your preferences, and help us understand how visitors use our site. You can accept all cookies, reject non-essential cookies, or manage your settings.
This website uses cookies to improve your experience while you navigate through the website. Out of these cookies, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. But opting out of some of these cookies may have an effect on your browsing experience.
Necessary cookies are absolutely essential for the website to function properly. These cookies ensure basic functionalities and security features of the website, anonymously.
Cookie
Duration
Description
cookielawinfo-checkbox-analytics
11 months
This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional
11 months
The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary
11 months
This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others
11 months
This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance
11 months
This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy
11 months
The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
Functional cookies help to perform certain functionalities like sharing the content of the website on social media platforms, collect feedbacks, and other third-party features.
Performance cookies are used to understand and analyze the key performance indexes of the website which helps in delivering a better user experience for the visitors.
Analytical cookies are used to understand how visitors interact with the website. These cookies help provide information on metrics the number of visitors, bounce rate, traffic source, etc.
Advertisement cookies are used to provide visitors with relevant ads and marketing campaigns. These cookies track visitors across websites and collect information to provide customized ads.
