How Does PCB to PCB Soldering Create Reliable Board Connections?

October 28th, 2026

PCB to PCB soldering joins compatible conductive features on two circuit boards into a permanent electrical connection. A castellated module can sit directly on matching carrier-board pads, while soldered pins can connect boards at a defined spacing. Reliability starts with the joint geometry, access for heating and inspection, and a mechanical support arrangement that does not ask small solder joints to carry the entire assembly.

AI illustration of a castellated PCB module soldered onto a matching carrier board

Can You Solder One PCB Directly to Another?

Yes, when both boards have solderable features intended to meet. Plated half-holes around a module edge are a common example: each half-hole aligns with a carrier land, and solder connects the exposed plating to that land. Two arbitrary board edges covered in solder mask will not form the same connection.

Decide whether the connection needs to be permanent before choosing the layout. A soldered module can reduce connector height and part count, but replacing it requires controlled rework. A separable board-to-board connector is generally more practical where routine servicing or repeated removal is part of the product requirement. Direct soldering also leaves less freedom to accommodate footprint errors after fabrication.

Which Connections Are Suitable for PCB to PCB Soldering?

The relevant types of PCB soldering depend on how the two boards meet. Start with board orientation, service access and mechanical loads, then select the joining process. A continuous solder bead along unrelated board edges is not a substitute for a designed interconnect.

Connection	Suitable arrangement	What the design must provide
Castellated module	Small module mounted flat on a carrier	Matched lands, controlled placement, solder access and required underside clearances
Soldered pins or headers	Boards separated vertically or joined at an angle	Compatible holes and pins, spacing control, access to each soldered end and support
Designed edge or tab joint	Fixed board geometry with exposed joining lands	Defined copper geometry, a locating fixture and a validated load path
Flex termination soldered to a rigid board	Low-profile flexible interconnect	Purpose-designed exposed fingers, alignment support and strain relief outside the joint

When soldering header pins to PCB holes on both boards, hold the boards at the specified spacing while the joints solidify. Confirm access to both ends before choosing this construction. Short wire links are another option when the board positions cannot be matched directly. They require strain relief and routing space, and they are not equivalent to a compact surface-mounted module. For high-speed signals or substantial current, evaluate the complete connection path rather than assuming that fewer parts automatically means better performance.

How Do Castellated Holes Connect a Module to a Carrier Board?

Castellated holes are plated holes intersected by the finished PCB edge. Their exposed, curved copper walls provide solderable surfaces beside the module. The carrier’s land extends into the matching connection region so solder can wet both surfaces. The visible outside fillet provides useful inspection access, although it cannot reveal every hidden interface beneath the module.

Technical illustration identifying a plated half-hole, solder fillet and carrier pad

Half-hole plating quality, edge definition and land registration matter before assembly starts. A damaged or poorly plated edge cannot be corrected simply by adding more solder. For a new module design, specify the finished outline and half-hole requirements together with the carrier footprint; do not derive production dimensions from a photograph.

On FR4 PCBs, board thickness, copper distribution and surface finish also affect how the joint heats and wets. The module manufacturer’s recommended land pattern remains the starting point when using an existing module.

How Should the Two PCB Footprints Be Matched?

Compare both coordinate systems, not just the nominal pitch. Check pin 1, rotation, row spacing, board outline tolerance, pad dimensions and any module features extending underneath. A footprint that appears correct from above can still put copper beneath an antenna keepout or interfere with a bottom-side component.

Use the current module drawing and its specified carrier land pattern.
Check solder-mask openings and whether the module sits flat without unintended contact.
Allow tool and inspection access around the perimeter.
Review routing, copper balance and large ground connections that change local heat demand.
Keep antenna, exposed-contact and mechanical keepouts consistent across both drawings.
Provide fiducials or other suitable placement references for the assembly process.

Do a dry fit before soldering prototypes. If one end aligns but the other does not, stop and investigate dimensions or orientation. Pulling a board into place with solder can leave misregistration or residual stress that becomes visible only after cooling.

How Do You Hand-Solder Two PCBs Together?

Hand soldering is useful for accessible castellated joints and prototypes. The essential PCB soldering techniques are controlled alignment, heating both mating surfaces and limiting solder volume. Use a stable holder, magnification, appropriate fume extraction and an ESD-controlled setup for sensitive assemblies. Disconnect all power and batteries.

Inspect the lands and half-holes for damage or contamination. Use a cleaning method compatible with the board and components.
Place the module in its intended orientation and apply compatible flux where needed.
Tack one accessible corner with a small amount of solder, then verify the entire footprint before fixing the opposite side.
Place the PCB soldering iron tip so it transfers heat to both the carrier land and the module’s plated edge.
Feed a controlled amount of solder to the heated joint. Withdraw the solder wire, then the tip, and let the joint solidify without movement.
Complete the remaining connections, checking alignment and bridges as work progresses.
Clean residues only as required by the flux chemistry and product process, then inspect and test.

Technical illustration showing heat applied to both mating surfaces and solder fed into the joint

Choose solder wire for PCB soldering with an alloy, flux core and diameter appropriate to the joint. A large wire can make small deposits difficult to control. Do not use plumbing flux on electronic assemblies. If the tip cannot reach both surfaces, redesign the access or use a suitable assembly process instead of heating nearby components for an extended time.

A PCB soldering kit marketed for soldering circuit boards for beginners may supply an iron and wire without suitable magnification, holding support or a correctly sized tip. Check those requirements separately, and practice the same joint geometry on scrap or training boards before handling a valuable module.

When Should You Use Reflow Soldering for PCB Modules?

Reflow is appropriate when the module is qualified for that process and the carrier layout supports repeatable paste printing and placement. It can join many connections in one controlled cycle, including connections that are impractical to hand-solder. The module and every already-installed component must tolerate the planned thermal exposure.

Specify paste deposit requirements through the SMT stencil design rather than treating the stencil as a copy of the copper artwork. Aperture geometry and stencil thickness influence deposited volume, bridging and module seating. Inspect the print and placement before reflow; an oven cannot correct a misaligned footprint.

A PCB soldering machine setpoint alone does not establish a valid profile. Measure the loaded assembly and examine both the thermally heavy joints and heat-sensitive locations. Count earlier reflow operations on the module, not only the carrier’s latest pass. Follow the actual module’s limits for reflow exposure, moisture handling and orientation.

What Temperature Should You Use for PCB to PCB Soldering?

There is no single temperature that applies to every two-board assembly. For hand soldering, the iron setpoint is a tool setting; the joint temperature depends on tip contact, tip size, thermal recovery, copper area and heating time. A very fine tip may transfer heat poorly to a large ground connection even when its setpoint is high.

For reflow, use the solder paste’s recommended process window within the limits of the module, laminate and other components. Peak temperature, time above the alloy’s liquidus, ramp and cooling conditions all matter. Do not transfer a temperature from a different alloy or module into a production instruction without qualification.

When a joint heats slowly, first check contact area, tip condition, flux activity and the thermal load. Raising temperature repeatedly can damage pads or components without fixing the root cause. Where preheating is appropriate, control it as part of the complete process and verify the actual assembly temperature.

Can You Solder Flex PCB to Rigid PCB?

Soldering flex PCB to rigid PCB is possible when the flex has exposed termination features designed for the connection. The flexible dielectric itself is not solderable. Finger pitch, coverlay opening, surface finish and support near the termination must suit the selected hand, reflow or specialized joining process.

Keep the intended bend away from the soldered transition. Solder wicking into a flexible conductor can create a locally stiff region, concentrating strain at its end. A fixture or stiffened termination can maintain alignment during joining, while the product’s strain relief controls movement afterward. Do not repeatedly flex a finished joint to demonstrate that the cable is flexible.

A purpose-designed rigid-flex board can remove a separate soldered interface, but it changes the board construction and cost. A connector may be preferable when the flex must be replaced. Choose among these options before committing to a footprint, not after assembly problems appear.

How Can You Prevent Solder Bridges and Poor Wetting?

Inspect the geometry and process together. Excess solder, shifted placement, unsuitable paste deposits and closely spaced lands can create bridges. Oxidized or contaminated surfaces, exhausted flux and inadequate heat transfer can prevent wetting. Adding flux is not a reliable repair for missing plating or a lifted pad.

Observation	First checks	Controlled response
Solder connects neighboring lands	Placement, deposit volume, land spacing	Remove the bridge using a qualified rework method, then inspect for damage and shorts.
Solder beads up instead of wetting	Surface condition, flux compatibility, actual heat transfer	Identify the cause before reheating; replace damaged material when necessary.
Module sits tilted	Underside interference, uneven deposits, first tack position	Correct seating through controlled rework; do not force the board flat after solidification.
Land or plating lifts	Thermal exposure and mechanical force	Stop rework and assess conductor integrity against an approved repair disposition.

A matte joint is not automatically a cold joint, particularly with lead-free alloys. Evaluate wetting, connection geometry and evidence of disturbance against the specified acceptance criteria rather than demanding a uniformly shiny appearance.

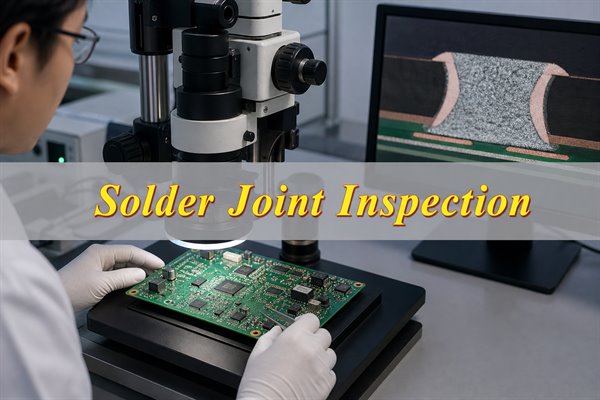

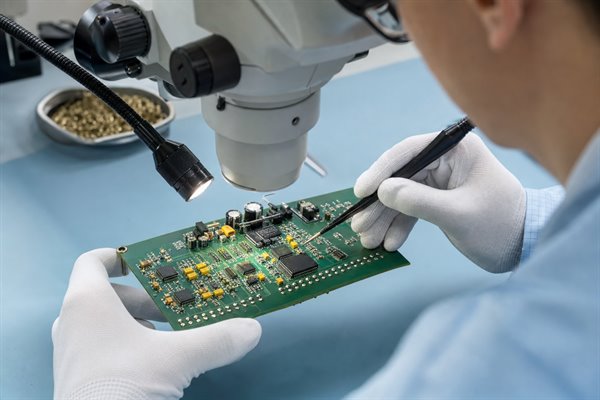

How Should PCB-to-PCB Solder Joints Be Inspected?

Start with orientation and seating, then inspect every accessible joint for bridging, wetting, damage and contact with unintended conductors. Use magnification and lighting that reveal the module edge rather than hiding it behind reflections. Record the location of a suspect joint so rework and retest remain traceable.

Technical illustration comparing separated castellated solder joints with an unwanted bridge between adjacent pads

Follow visual inspection with the electrical tests appropriate to the circuit. Check for unintended supply shorts before first power-up, then use a controlled power-on procedure and the agreed functional test. Continuity alone cannot show that a mechanically weak joint will survive service, and a powered module that starts once has not passed environmental reliability testing.

At EBest Circuit (Best Technology), our PCB assembly services include solder-paste inspection, AOI, X-ray inspection and functional testing. We use equipment including the SINIC-TEK S8080 3D SPI and UNICOMP AX8200 X-ray system. The inspection route depends on joint accessibility and the assembly: optical inspection cannot see through a module, and X-ray does not replace electrical or mechanical validation.

How Do You Keep Mechanical Loads off the Solder Joints?

A daughterboard can act as a lever. Connector insertion, cable pull, vibration and enclosure bending may load its soldered connections even when the module weighs very little. Place supports so these forces reach the chassis or carrier structure without being concentrated at the outermost joint.

Use the module’s approved mounting features, standoffs or an appropriate retention arrangement where the design requires them. Supports must respect electrical clearances, antenna keepouts and component height. An incorrectly positioned support can bow the board or impose stress instead of relieving it.

Thermal expansion also matters. Two boards with different temperatures, sizes or constructions can move relative to each other during operation. Evaluate the final supported assembly under its actual thermal and mechanical requirements. An unsupported desktop prototype is not evidence for a product exposed to repeated vibration or temperature cycling.

What Files Do We Need to Assemble Your PCB Module?

Send us the carrier fabrication data, assembly drawing, BOM, placement data and the module’s current drawing and assembly instructions. Identify customer-supplied modules and include their part revision, packaging and available moisture or reflow history. For a custom two-board connection, include both board drawings and the intended assembled position.

For PCB to PCB soldering, specify the required support arrangement, solder alloy, inspection criteria and functional-test procedure. If a joint will be hidden after enclosure assembly, identify when it must be inspected. These details let us evaluate the footprint and process before boards and modules reach the assembly line.

We provide PCB fabrication together with PCB assembly and soldering, component sourcing and engineering review matched to the project. Our placement capability includes SMD packages down to 01005 and BGA pitch down to 0.25 mm, subject to the specific layout and process review; these figures are not automatic minimums for a castellated module. Contact sales@bestpcbs.com with your drawings and quantities for a PCB-to-PCB assembly quotation.

PCB to PCB Soldering FAQs

How to Clean a PCB after Soldering?

Match the cleaning process to the flux and the module’s component restrictions. Residue trapped beneath a module may be difficult to remove and dry. Do not assume that an alcohol wipe cleans hidden areas or that every populated module can be immersed. Specify whether the assembly uses a qualified no-clean process or a validated cleaning and drying process.

Can a soldered PCB module be removed and reused?

Sometimes, but removal must stay within the module’s rework limits. Heating all required joints without prying is important. Inspect the module and carrier after removal, and do not assume that an apparently intact module remains suitable for reuse without the required checks.

Can conductive glue replace solder between two PCBs?

Not as a direct substitute in a solder-qualified footprint. Conductive adhesives have different curing, electrical, mechanical and environmental behavior. Using one requires a joint design and qualification appropriate to that material.

Does a continuity beep prove the connection is good?

No. It shows that the meter detected a conductive path under its test conditions. Parallel circuit paths can also affect the reading. A continuity check does not establish wetting quality, current-carrying performance or long-term mechanical reliability.

How Is Component Lead Forming Done Before PCB Assembly?

October 23rd, 2026

Component lead forming bends and trims a component's terminals to fit the PCB footprint without transferring damaging loads into the package. A usable form has more than the right spacing: it also needs the correct bend location, radius, body clearance and lead length. For through-hole assemblies, we need the exact component part number and assembly drawing to resolve those dimensions before insertion, rather than forcing a mismatched component into the board.

Component lead forming with preformed axial resistors and a forming jig; AI illustration

What Is Component Lead Forming?

Electronic component lead forming is the controlled preparation of lead geometry before assembly. It can produce a simple right-angle bend, a specified offset or an approved stand-off shape. Trimming controls lead length; forming controls the path and position of the lead. They are related operations, but one does not automatically establish the requirements for the other.

The component body is not a handle for bending its leads. A part may still fit the holes after rough handling while its lead-to-body interface has been damaged. Fit, package condition and electrical performance therefore answer different acceptance questions. An acceptable shape also has to survive handling between the forming station and PCB insertion.

Which Dimensions Should a Lead Forming Drawing Specify?

The drawing should define the finished shape using identifiable reference points, not just a distance dialed into a tool. Include the component outline, lead cross-section and tolerances alongside the PCB footprint. A center-to-center pitch and an outside-to-outside measurement are not interchangeable.

Drawing input	What needs to be defined	What it prevents
Component identity	Manufacturer, exact part number, package and drawing revision	Applying another package's forming limits
Lead size	Round-wire diameter or rectangular-lead width and thickness	Selecting a die or hole for the wrong cross-section
Body-to-bend clearance	The body reference and the start of the permitted bend	Bending into a seal, coating or molded exit
Bend geometry	Inside radius, angle, direction and any approved offset	A sharp crease or an uncontrolled twist
Finished lead pitch	Center-to-center spacing, measurement height and tolerance	Accepting a tool setting instead of the released part
Body position	Orientation, polarity and required stand-off	Reversed parts or contact with nearby features
Trimmed length	Lead-tip position relative to the board and soldering requirement	Insufficient protrusion or interference below the PCB

For a multi-lead package, one total span is insufficient: individual terminal positions must match the footprint. When a supplier changes the package outline or lead dimensions, the previous forming setup needs review even if the electrical description is unchanged.

How Do You Choose the Lead Bend Radius?

Choose the bend radius from the exact component's approved forming instructions. Lead diameter alone is not enough when package construction, lead material, plating and bend direction differ. A radius measured at the inside of the curve must not be confused with the centerline radius.

For example, onsemi's axial plastic-package guidance AND8390/D specifies a radius no smaller than the lead diameter, limits the angle to 90 degrees and calls for a single forming operation. Its body-to-bend minimum is 1.5 times the typical lead diameter, with at least twice the diameter preferred. These are conditions for the packages covered by that guidance, not a universal rule for resistors, LEDs, capacitors or all transistor packages.

The drawing must also leave enough straight lead for the support tool. If the required footprint forces the bend into a prohibited region, changing the footprint or using an approved preformed component is preferable to tightening the bend until the part fits. Do not resolve a clearance conflict by silently replacing the manufacturer's radius requirement.

How Can You Prevent Stress at the Component Body?

Support the lead between the package and the forming point so that the tool takes the reaction load. Pulling the free end while holding the body allows that load to reach the lead exit. The support must restrain the lead without cutting it, stripping the finish or crushing the package.

Lead support between the component body and rounded bend, shown as an illustrative setup

Glass packages require particular care. For the Vishay SOD-57, SOD-64, DO-35 and DO-41 glass diodes covered by document 86158, the body-to-bending-position distance is greater than 1.5 mm. The specified fixture grips the lead wires and keeps mechanical load off the glass body. This is a package-specific requirement, not permission to grip the glass itself.

That document includes a minimum clamping-force instruction expressed as 2.5 kg. It must be interpreted with the original fixture arrangement and applicable device documentation; it is not a general hand-pliers setting. A controlled setup must distinguish sufficient restraint from excessive lead deformation. Unexpected tool marks or package movement require a setup review, not simply more force.

How Do Axial and Radial Lead Forming Differ?

Axial component lead forming positions leads that leave opposite ends of the body. The finished geometry must accommodate the body length, clearances on both sides and the two bends. An axial component lead former therefore needs space for the actual body and suitable support for both wires, not merely a groove labeled with the target pitch.

Radial lead forming deals with leads leaving the same side of the body. Changing their spacing can load the nearby lead exits, especially when the available straight length is short. Radial component lead forming also needs to preserve polarity, lead order and the component's intended seating height. Do not treat every two-lead radial part as mechanically equivalent to an axial resistor.

Flat transistor leads introduce another issue: bending through the thin dimension is mechanically different from sideways bending across the width. A TO-92 lead forming tool must match the particular pin arrangement and approved bend location. The package name alone does not establish a permitted offset or bending direction.

How Do You Select a Component Lead Forming Tool?

Select a component lead forming tool by lead shape, supported diameter or thickness, bend profile and finished spacing. An electronic component lead former should hold the part consistently without using its body as a reaction stop. Accessibility matters too: the tool must leave room for the required straight section near the package.

Tool approach	Useful role	Check before use
Fixed or adjustable lead bending and component forming tool	Repeatable simple axial bends	Groove geometry, body clearance and released pitch
Component lead forming pliers	Local offsets or specified lead shapes	Jaw profile, contact marks and operator repeatability
Component lead forming machine	Repeated parts with controlled feed and setup	Package compatibility, tooling condition and first-piece results

A component lead forming kit can help with prototype work, but its available shapes do not override component requirements. The same applies to a lead forming tool for resistors and capacitors: sharing a tool is reasonable only where the two devices' permitted geometry and support conditions actually match.

For larger runs, an electronic component lead forming machine needs a verified setup rather than a copied setting from a different package. A component lead former with multiple stations should maintain the same reference orientation through feeding, forming and cutting. Before releasing a batch, compare the first formed parts with the approved drawing and check that feeding has not reversed the component orientation.

How Should Component Leads Be Trimmed?

Trim to the specified finished length while preventing the cutting action from pulling on the lead-to-body interface. Support and cutting sequence depend on the package and tooling. Keep cut fragments away from parts and PCB assemblies, and inspect the cut end for a burr that could obstruct insertion.

For the glass-diode packages in Vishay document 86158, simultaneous cutting of both leads is not permitted in the illustrated arrangement. Separate cutting steps or a staggered cutting arrangement are shown instead. The document allows simultaneous bending with its specified support conditions. Cutting and bending are therefore not interchangeable when deciding which operations can be performed together.

Where trimming occurs after insertion, support must also protect the board, pads and any existing solder connection. For a through-hole component fitted to a multilayer PCB, use the finished board thickness and seating height to establish the required lead length, not the layer count. The finished protrusion should come from the applicable assembly requirement, not an arbitrary universal length. A shorter lead is not automatically a better assembly if it compromises soldering or inspection access.

How Do You Check Lead Pitch After Forming?

Check pitch after removing the forming load, at the drawing's specified measurement location. Elastic recovery can make the released part differ from the tool's nominal setting. A measurement made while the part is still constrained can hide that difference.

Released axial component with center-to-center finished lead pitch indicated; illustrative geometry

For two equal round leads measured across their outside surfaces, subtract one lead diameter to obtain the center-to-center distance. As a dimensional example, a 10.60 mm outside span with two 0.60 mm leads gives a 10.00 mm center pitch. This calculation assumes parallel leads of equal diameter at that measurement height; it is not a forming tolerance recommendation.

Check lead parallelism and seating height as well as pitch. For our FR4 PCB manufacturing, the drawing's finished-hole size and position must be considered with the actual lead envelope. A nominal drill diameter is not the finished plated-hole diameter. Do not spread or squeeze the component against the board to conceal a mismatch.

What Should You Inspect After Lead Forming?

Inspect the component body, lead exits, bends, finish and final dimensions before accepting the formed parts. Compare with the incoming condition where a mark or crack may already have existed. Appearance alone cannot establish whether a hidden connection or seal remains intact.

Illustrative magnified inspection of a formed lead and component body

Inspection area	Look for	Follow-up when it does not match the requirement
Body and lead exit	Cracks, chipped coating, displacement or a changed lead exit	Segregate the part and assess package damage
Bend	Creasing, twisting, inconsistent radius or repeated rework	Check the profile and support arrangement
Lead surface	Deep jaw marks, exposed base metal or damaged finish	Compare with the device's permitted tooling marks
Dimensions	Pitch, parallelism, angle, length and stand-off	Measure in the released state against the drawing
Insertion fit	Leads aligned with holes without forced reshaping	Review both formed geometry and PCB footprint
Electrical condition	Results required by the device and test plan	Record failures without treating continuity alone as full qualification

An inspection record is most useful when it identifies the part number, lot, drawing revision, setup, sampled quantity and measured dimensions. A photograph can document a visible condition, but cannot prove a numerical radius or hidden seal integrity by itself. Abnormal parts need disposition before insertion, when access to the lead exits is still clear.

How Can You Keep Lead Forming Consistent Across a Batch?

Use an approved first piece, defined setup controls and checks at meaningful change points. Tool wear, a new component lot or a changed package can alter the output even when the operator uses the same setting. Record the released dimensions rather than treating a machine setting as the acceptance result.

Separate unformed, accepted and held parts so rejected pieces cannot re-enter production. Packaging between operations should protect the formed leads from being compressed or tangled. If a component needs repeated straightening to pass the insertion check, stop and resolve the mismatch rather than cycling the lead through additional bends.

For a new footprint, our PCB prototype manufacturing can provide the actual board for a fit review before the design moves to volume assembly. The useful result is a checked component-and-board combination, not a nominal pitch verified on only one side of that interface.

What Information Do We Need for Through-Hole Assembly?

We need the BOM with exact manufacturer part numbers, PCB fabrication data, assembly drawing, orientation requirements and any approved lead-form dimensions. Include the original component instructions when a bend, stand-off or trimming sequence is critical. State whether parts arrive unformed, factory-preformed or customer-prepared.

At EBest Circuit (Best Technology), our PCB assembly service includes through-hole and mixed assembly, incoming inspection, DFA review, insertion and wave soldering. We support tube, tray and loose-part supply as well as other listed packaging formats. The suitable preparation route depends on the component and build requirements; we do not apply one bend specification to every package.

For component lead forming services within a PCBA project, send the drawing, quantity and required inspection records to sales@bestpcbs.com. We can review those inputs with your assembly requirements before quotation. If the package instructions and footprint conflict, that conflict needs an agreed resolution before production.

Component Lead Forming FAQs

How to Clean and Form Component Leads Before Soldering?

Check incoming finish condition before forming. Use only a cleaning method compatible with the component, plating and approved process; abrasive removal of finish or an unapproved chemical treatment can create a solderability problem. Suspect corrosion requires assessment rather than polishing the part until it looks clean. Confirm acceptable surface condition before releasing the part for forming and soldering.

When Shall Sleeving Be Placed on a Component Lead Before Forming?

Where the approved assembly requires insulation sleeving and the finished bend would prevent it from sliding into place, fit the sleeve before that bend. Confirm its final position, temperature suitability and clearance from the solder joint. Do not assume every formed lead needs sleeving or trap a sleeve in a tooling contact area.

Can Through-Hole Forming Rules Be Used for SMT Leads?

Not automatically. SMT component lead forming also involves seating-plane and coplanarity requirements, plus the specific package's permitted reshaping method. A through-hole bend or spacing instruction does not establish an acceptable gull-wing lead profile. Use the component's approved surface-mount geometry rather than adapting the axial-wire examples without verification.

Can a 3D-Printed Lead Forming Jig Replace Metal Tooling?

A resistor lead forming tool made by 3D printing may be useful for a checked prototype geometry. It still needs adequate stiffness, smooth contact surfaces and appropriate ESD controls for the parts being handled. Wear or deflection can change the finished dimensions. It should not be treated as a qualified production fixture merely because one component fits.

What Causes Solder Graping and How Can You Prevent It?

October 23rd, 2026

Solder graping is incomplete coalescence of solder powder, leaving a cluster of recognizable particles on a reflowed solder deposit. Small SMT paste deposits are especially vulnerable when exposed particles oxidize before the remaining flux can clean and protect them. The practical response is to check deposit volume and the measured reflow profile together, rather than immediately adding heat.

Technical illustration of solder graping on a small chip-component fillet, not an inspection photograph

What Does Solder Graping Look Like?

A graping solder defect usually appears as multiple rounded particles on the surface or edge of an otherwise coalesced solder deposit. Under magnification, the individual particle outlines remain visible instead of merging into the surrounding metal. Solder joint graping can be localized to the smallest pads while larger joints on the same assembly look normal.

A dull surface alone is not enough to identify graping. Lead-free joints can have a matte finish without containing uncoalesced powder. Record the component reference, affected termination and particle location; use consistent lighting and magnification when comparing boards. A photograph of a rough joint does not establish its root cause or electrical reliability.

Why Are Small Solder Paste Deposits More Vulnerable?

Small deposits expose a relatively large surface compared with the amount of paste available. During heating, flux can spread away from the upper particles. Those exposed particles then have less local protection against oxidation. This is why solder paste graping often concentrates around miniature components and small apertures rather than appearing uniformly across a board.

Two different geometries matter: the size of the whole printed deposit and the size of the powder particles inside it. A small deposit does not necessarily contain a finer powder grade, and changing powder grade does not correct an inconsistent print. Keep these variables separate when investigating the problem.

AI microscopy-style illustration comparing uncoalesced solder particles with a coalesced fillet; not an actual inspection record

How Do Oxidation and Flux Depletion Cause Graping?

Solder paste oxidation obstructs the joining of adjacent particles. Flux removes existing oxides and helps protect surfaces during heating, but its useful activity and coverage are finite. Prolonged thermal exposure, unsuitable paste chemistry or flux spreading can leave exposed powder insufficiently protected before coalescence occurs.

Melting and coalescence are not identical. A particle can reach the alloy's melting range yet remain separated by an oxide skin. Consequently, a peak temperature reading above liquidus does not prove that every surface particle joined the deposit. Conversely, visible graping does not prove that the whole joint stayed below liquidus.

Paste history belongs in the investigation: check the manufacturer's storage, thawing, handling and stencil-life requirements against the actual batch record. Do not add solvent or liquid flux to solder paste as an improvised correction. That changes the formulation and print behavior without establishing a qualified process.

Does Finer Solder Powder Increase Graping Risk?

For an equal volume of spherical metal, smaller particles have more total surface area. In the idealized geometry, surface area divided by metal volume is 6/d, where d is particle diameter. Halving d doubles that ratio. This explains the increased oxidation burden associated with finer powder; it is not a prediction that the defect rate will double.

Finer powder may still be necessary for small stencil apertures. Select the paste by its printing requirements and demonstrated reflow performance, not by choosing the coarsest or finest grade automatically. If a coarser grade is evaluated, verify release, deposit consistency and the smallest features before treating it as an improvement. A more oxidation-resistant formulation must also satisfy residue, cleaning and electrical requirements for the assembly.

How Do Stencil Apertures and Paste Volume Affect Graping?

The stencil opening specifies a theoretical volume, but the board receives only the paste that releases from it. Incomplete or variable transfer can leave vulnerable small deposits. For a rectangular opening with length a, width b and foil thickness t, the area ratio is ab/[2(a+b)t]. It compares opening area with aperture wall area; it is not a solder-graping acceptance ratio.

Consider an illustrative 0.20 × 0.25 mm aperture in a 0.10 mm foil. Its area ratio is 0.556 and its theoretical volume is 0.005 mm³. If the measured deposit is 0.004 mm³, transfer efficiency is 80%. Those numbers describe this example only: neither 0.556 nor 80% is a universal pass/fail threshold. Repeatability and the released process limits still matter.

Rectangular stencil aperture and printed solder paste deposit with area ratio and transfer efficiency equations

Our SMT stencils support the printing step where aperture geometry and paste release are established. On mixed-size assemblies, step-up and step-down stencils allow local foil-thickness changes, subject to spacing and printability review. Neither a thicker foil nor a larger aperture is an automatic cure: excess paste can create bridging or beading while a smaller area ratio can make release harder.

How Should You Adjust the Reflow Profile to Reduce Graping?

First measure the board, not just the oven settings. Place thermocouples at the affected small joint and representative high-thermal-mass and hot locations. Compare ramp, preheat or soak exposure, time above liquidus and peak against the selected paste's process window and the assembly's temperature limits.

If small deposits spend unnecessary time at elevated temperature before reflow, a shorter preheat or soak may preserve flux activity. However, shortening the profile must not leave heavy joints underheated. If the measured cold location fails the required process window, correct that deficiency rather than assuming every granular-looking joint has the same oxidation history.

Avoid changing peak, conveyor speed, paste and stencil at the same time. A better-looking board would then provide little evidence about which change helped. Check wetting, bridging, tombstoning and temperature-sensitive parts alongside the graping result; a profile that reduces one defect but creates another is not ready for production.

Can Nitrogen Reflow Prevent Solder Graping?

Nitrogen can reduce oxidation during reflow and widen the usable process window. It does not replenish depleted flux, repair poor paste transfer or prove that every joint has received sufficient heat. Evaluate atmosphere with the same paste, deposit geometry and measured thermal conditions wherever practical.

Better wetting can also change solder distribution and the balance of forces at small chip components. Compare other defects as well as graping. Use the residual-oxygen conditions specified and qualified for the process; there is no single nitrogen setting that can be inferred from the word “graping.”

How Is Graping Different from Solder Balls, Cold Joints and Slump?

Location and formation history help separate these problems. The distinctions below guide investigation, not automatic acceptance of a delivered assembly.

Condition	What distinguishes it	What to check first
Graping	Recognizable powder particles remain at the solder deposit surface after reflow	Particle location, paste transfer, flux protection and the joint's actual profile
Solder balling or beading	Separate balls or beads occur outside the intended joint, sometimes beside or beneath a chip	Printing, paste displacement, placement and whether particles can move or bridge conductors
Cold solder joint	An inadequately formed joint, potentially involving insufficient heat or poor wetting; surface dullness alone is inconclusive	Joint formation, wetting and measured thermal history
Solder paste powder size	A material specification before printing, not itself a defect	Paste grade, aperture requirements and formulation compatibility
Slump	Paste spreads or loses its printed shape before full reflow	Cold/hot slump behavior, print-to-reflow delay and spacing

These conditions can coexist. Hot spreading can expose powder and contribute to graping, while displaced paste can form a separate bead. Classifying everything as “solder balls” obscures those different corrective actions. A board that passes a basic continuity check still requires assessment of loose conductive particles and the applicable workmanship requirements.

How Can You Confirm the Cause of Solder Graping?

Use a controlled comparison rather than judging one improved photograph. Define the affected component population and the inspection method before starting. The following order preserves evidence from the print stage through reflow:

Keep a baseline. Record paste product, alloy, lot, handling time, stencil revision, printer setup and oven program. Photograph representative affected and unaffected joints.
Check deposition. Compare SPI volume, area and height at the problem pads with their released limits. Examine variation across board positions and consecutive prints, not only the average.
Measure the thermal history. Confirm the small-joint and heavy-joint profiles on the populated assembly. Record atmosphere conditions where nitrogen is used.
Change one practical factor. Test a justified profile change, transfer improvement or qualified paste alternative against the baseline. Keep the other conditions recorded and controlled.
Inspect the trade-offs. Count affected joints using the same denominator and examine wetting, bridging, beading and tombstoning. Retain the unsuccessful trial results as well as the improved sample.
Repeat before release. Confirm that the improvement survives the planned production conditions and inspection requirements. One passing board is not evidence of a stable process.

For example, “12 affected terminations out of 400 inspected” is more useful than “graping is lower.” The example is a reporting format, not our production result. Include which termination types were counted so a change in the product mix does not masquerade as an improvement.

What Can We Check for Your SMT Assembly?

At EBest Circuit (Best Technology), our PCB assembly service includes solder-paste printing, 3D SPI, placement, reflow and inspection. Our equipment includes a SINIC-TEK S8080 3D SPI system, a Suneast SER710NH nitrogen-capable reflow oven and a SINIC-TEK A510DL 3D AOI system. SPI examines the deposit before reflow; AOI examines visible assembly features afterward. Neither independently establishes the chemical cause of uncoalesced particles.

For a graping concern on a planned build, send us the PCB files, BOM, affected component references and available inspection images. Existing paste, stencil and profiling information helps us assess the relevant printing and assembly conditions. We can discuss the build and inspection scope before quoting; process changes and acceptance criteria should be agreed for the specific assembly rather than inferred from a generic defect name.

Solder Graping FAQs

Can you remove graping by cleaning the board?

Cleaning residue does not make separated solder particles coalesce. Loose particles and suspect joints need a defined disposition and, where required, an approved rework process. Do not brush a cluster into surrounding circuitry or assume that a cleaner-looking surface demonstrates a sound joint.

Is there an IPC limit called a solder graping ratio?

Do not confuse stencil area ratio with an acceptance limit for graping. Use the applicable workmanship document, revision, class and customer requirements to assess the actual condition, including particle attachment, joint formation and electrical clearance.

Can a second oven pass fix graping?

A second pass with already depleted flux can add thermal exposure without correcting coalescence. Evaluate the cause and an approved rework method first, including component and board thermal limits. Repeated reflow is not a substitute for correcting the original print or thermal process.

Reducing solder graping means preserving flux effectiveness while achieving adequate joint heating and repeatable paste deposition. For SMT build review, contact us at sales@bestpcbs.com with the assembly files and affected joint details.

Custom GPS Navigation PCB Assembly From Prototype to Mass Production

August 27th, 2026

A GPS navigation PCB assembly combines a GPS or multi-constellation GNSS receiver with its antenna interface, processor, power supplies, memory and product communication circuits. It converts weak satellite signals into position and timing data that the host product can use for navigation, tracking or control.

Successful production depends on more than assembling the GNSS module. RF routing, power noise, board stackup, component placement, firmware and the functional test method must work together. EBest Circuit supports design review, PCB fabrication, component sourcing, SMT assembly, programming and customer-defined testing from prototype through repeat production.

GPS navigation PCB assembly, engineer inspecting a GNSS navigation PCBA under a microscope

Are you worried about your GPS navigation PCB assembly project?

Could antenna placement, enclosure metal or an unreviewed RF substitution reduce receiver margin after assembly?
Could power ripple, switching nodes or high-speed digital circuits interfere with acquisition or communication?
Could incomplete programming and test requirements produce a prototype that cannot be released confidently for repeat builds?

With over 20 years of experience, EBest Circuit provides one-stop PCB and PCBA manufacturing support from design review and prototyping through repeat production.

Protect receiver margin: We review the submitted stackup, RF feed, matching components, antenna interface and enclosure constraints before PCB release.
Control the assembled configuration: We align the BOM, placement data, power requirements, firmware and assembly drawing so purchasing and production use the same revision.
Build usable release evidence: We coordinate inspection, programming and customer-defined functional checks so prototype results can support the next production decision.

Ready to start your GPS navigation PCB assembly project? Send your PCB data, BOM, placement file, assembly drawing, module and antenna references, quantities and test requirements to sales@bestpcbs.com.

What Is a GPS Navigation PCB Assembly and How Does It Work?

A GPS navigation PCBA receives satellite signals, calculates or relays positioning data and passes that data to the host product. GPS is one GNSS constellation; many current receivers can also use Galileo, BeiDou or GLONASS. The approved module specification determines which constellations, interfaces and operating modes apply to the product.

The signal path normally runs from the GNSS antenna through an RF feed and matching network to the receiver. The receiver outputs navigation or timing data to an MCU or processor, which exchanges information with the display, cellular modem, CAN network, USB port or another host interface. Power-management circuits supply the receiver and, when used, an active antenna. Before assembly release, verify the module interface, antenna path and required output messages against the approved schematic and module documentation.

Where Are GPS Navigation PCB Assemblies Used?

GPS navigation PCB assemblies are used wherever a product must determine, report or act on location, speed or precise timing. The application changes the mechanical environment, interfaces, power states and acceptance tests that the manufacturer must plan.

Automotive navigation and telematics: The PCBA may exchange data with vehicle networks, displays, cellular modules and sensors while operating near chargers, motors and other noise sources.
Fleet and asset tracking: Low-power operation, cellular connectivity, enclosure size and antenna placement often control the design and test conditions.
Marine and industrial positioning: Connector sealing, corrosion exposure, cable routing and external-antenna interfaces can become part of the manufacturing package.
UAV and agricultural equipment: Vibration, power-converter noise, orientation and communication interfaces must be defined for the intended installation.
Portable navigation products: Battery management, compact layout, display activity and enclosure interaction can affect both assembly and functional validation.

What Components Are Integrated on a GPS Navigation PCB?

The board combines the GNSS signal chain with processing, power and product interfaces. Each functional block creates a distinct placement, sourcing or verification task, so the design package should identify the exact component and the evidence required for release.

GNSS receiver: Processes satellite signals and outputs position, velocity or timing data. Production must control the exact part number, package orientation, footprint and approved substitution boundary.
RF path: Connects the antenna interface, filter, amplifier or matching network to the receiver. Review the feed geometry, reference plane, keepout, matching-component identity and connector condition.
MCU or processor: Uses navigation data and controls product logic. Release its programming package, clocking, reset behavior and required interfaces with the assembly data.
Power management: Supplies the receiver, processor and active antenna when used. Define the rail sequence, ripple-sensitive loads, regulator placement and measurement points.
Memory and timing: Stores code or configuration and provides timing references. Control the exact device identity, oscillator layout, loading parts and programming data.
Product interfaces: Connect UART, USB, CAN, Ethernet, cellular, Bluetooth or other product circuits. Identify connector orientation, protection parts, routing constraints and functional-test access.

How Do RF Layout and Antenna Integration Affect GPS Performance?

The RF feed must preserve the reference design from the antenna interface to the receiver. Loss, discontinuities, an interrupted return path or coupling from nearby electronics can reduce the usable signal margin before software processes the data.

The selected module and antenna documents remain the controlling sources. The u-blox GNSS antenna integration overview explains why the front-end RF path, interference filtering and antenna environment must be considered together. The actual stackup, antenna and enclosure still require project-specific review.

Preserve the RF feed: Route the specified feed over its reference plane, control transitions and keep the matching network close to the location defined by the reference design.
Protect the antenna zone: Apply the required copper, component and mechanical keepout around the embedded antenna or approved antenna interface.
Control the enclosure boundary: Record nearby metal, cable routes, connector position and antenna orientation because these conditions can change the assembled RF environment.
Restrict substitutions: Mark filters, matching parts, connectors and active-antenna components as do-not-substitute unless engineering approval includes the necessary retest.
Provide inspection access: Define how RF connectors, shield joints and hidden receiver-module joints will be inspected without damaging the feed or antenna contact.

How Should Power Integrity and Digital Noise Be Managed?

The receiver needs a stable supply and physical separation from strong switching and digital noise sources. A board can communicate correctly on the bench yet lose receiver margin when a modem transmits, a display switches or a DC-DC converter enters a different operating mode.

Define the power tree: Identify receiver and active-antenna rails, startup sequence, reset criteria, expected current states and the measurement points used during verification.
Place converters deliberately: Keep switching nodes, inductors and high-current loops away from the RF feed, receiver input and timing components. Use the selected regulator and module guidance to set the boundary.
Apply local decoupling: Place specified capacitors at the intended pins with short return paths so component placement matches the electrical design rather than a generic assembly convention.
Test active noise states: Exercise the processor, display, cellular radio, charger, motor or other integrated loads that can create product-level interference.
Record comparable conditions: Tie results to firmware, antenna, enclosure, supply source and operating mode so changes between builds can be evaluated.

How Should RF, Power and Digital Circuits Be Separated?

Partition the board by current path and noise sensitivity, then preserve continuous return paths between connected functions. Physical separation alone is insufficient if a noisy signal crosses the RF reference area or a plane opening forces return current around the receiver.

Reserve the RF zone: Keep the receiver input, feed, matching network and antenna interface together and away from clocks, switching nodes and high-current connectors.
Contain the power zone: Minimize the hot loop of each switching converter and route its input, switch node and output currents without crossing the RF area.
Control digital routing: Route fast clocks, USB, memory buses and processor interfaces over continuous references and away from the antenna feed.
Place timing parts carefully: Position the crystal or TCXO according to the component reference layout and avoid coupling from switching or high-speed nets.
Plan shielding and test access: Locate shield fences, cans, programming pads and measurement points before routing is frozen so production can inspect and test the board without improvisation.

If a switching return crosses the RF reference area, supply noise can couple into the receiver input and cause slow or intermittent acquisition. Verify the final partition by reviewing current-return paths and repeating receiver tests while converters and high-speed interfaces operate in their defined active states.

What PCB Manufacturing Requirements Matter for GPS and GNSS Boards?

The PCB specification must preserve the RF reference, power return paths and package geometry required by the released design. Layer count or material should not be selected from the application name alone; the stackup, routing density, impedance needs and assembly packages determine the construction.

Stackup and reference planes: Define layer order, dielectric thickness, copper weight and reference planes so controlled routes and return paths match the approved layout.
Controlled features: State any impedance target, trace geometry, coupon or verification requirement that applies to the RF feed or other controlled nets.
Material selection: Use the designer-specified FR-4 or RF material and its approved equivalent boundary. Do not replace material solely from a generic GPS label.
Via and HDI structures: Specify through vias, blind or buried vias, via-in-pad treatment and fill requirements only where routing or package escape requires them.
Surface and dimensional control: Define finish, solder mask, board outline, connector geometry and RF trace-etching requirements that affect assembly or interface fit.
Fabrication evidence: Release the approved stackup, controlled-feature report and any inspection records required for prototype acceptance or repeat orders.

How Is a GPS Navigation PCB Assembly Manufactured?

The process converts one released PCB, BOM and assembly package into an inspected and programmed navigation board. Each operation must protect the GNSS module, RF parts, timing devices, connectors and shields identified by the design.

GPS navigation PCB assembly, SMT production of compact GNSS navigation boards

Verify incoming materials: Match PCB revision, component part numbers, moisture requirements and approved substitutions to the purchase package. Quarantine discrepancies before they enter kitting, and retain the receiving record required by the order.
Print and inspect solder paste: Use the released stencil and paste process for the actual pad geometry and thermal mass. SPI can detect deposit conditions covered by the plan before placement makes the defect harder to isolate.
Place sensitive components: Load the approved program and verify pin-one, connector direction, GNSS module orientation, RF filters, matching parts and timing components. A first-article check should confirm these identities before the run continues.
Reflow the assembly: Establish the profile for the actual board, solder and component limits. Monitor the defined profile evidence because an unrelated board’s profile does not prove suitable heating for the current module or shields.

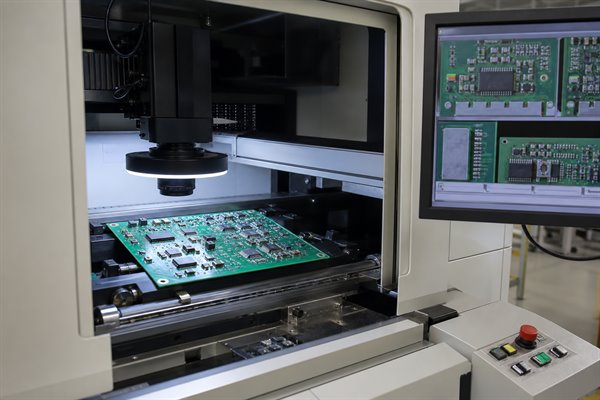

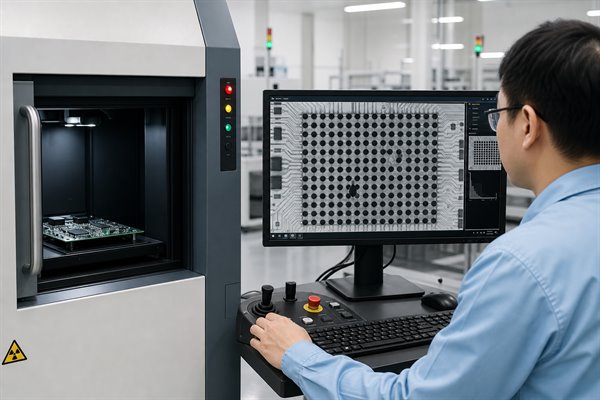

Inspect soldered joints: Apply AOI to visible conditions and X-ray where hidden joints create a documented risk. Record defects and disposition against the order’s acceptance criteria.
Complete secondary operations: Install through-hole connectors, shields, cables or hardware using the approved drawing. Protect RF contacts and test points from residue or mechanical damage.
Program and functionally test: Load the approved firmware, verify its identity and run the specified electrical and navigation checks. Save the result format required for prototype approval or traceability.

If the order invokes IPC requirements, state the revision and class. IPC distinguishes solder-process requirements in J-STD-001J from post-assembly acceptability in A-610J, as summarized in the IPC assembly standards release.

How Should GPS Navigation PCB Assemblies Be Tested?

Inspection verifies construction, while electrical and functional tests verify the customer-defined behavior. The test plan should separate visible solder evidence, hidden-joint evidence, power and interface checks, firmware control and GNSS operation.

GPS navigation PCB assembly, engineer testing a navigation PCBA in a fixture

Structural inspection: Use SPI, AOI, visual inspection and X-ray only for the conditions each method can observe. Define package targets, coverage and defect disposition instead of presenting one method as universal.
Electrical checks: Measure specified rails, current states, shorts, opens and interfaces at named points with the fixture revision and pass limits recorded.
Programming control: Verify firmware version, configuration, serialization and programming result before the navigation test begins.
GNSS functional test: Check receiver communication, module status, antenna condition and required positioning outputs under the antenna, enclosure and operating conditions defined by the customer.
Acceptance boundary: Assembly inspection does not certify final positioning accuracy. Product-level performance requires the customer’s defined environment, limits and validation method.
Failure records: Preserve board identity, firmware, antenna state, power state and test setup so the team can distinguish an assembly defect from design, component, software or environmental causes.

How Is a Prototype Validated Before Mass Production?

The prototype stage must close design-transfer, sourcing, assembly and test risks before quantity increases. A board that acquires satellites once is not enough; the release package must show what was built, what changed and how later units will be judged.

Release Area	Prototype Evidence	Volume Decision
Configuration	PCB, BOM, placement data, firmware, antenna and approved substitutions match	Freeze the as-built baseline and open exceptions
Assembly	First-article, solder, connector, shield and hidden-joint results as applicable	Approve the process or require corrective action
Power and interfaces	Startup, reset, rail, current and communication results under defined states	Set the repeatable electrical test limits
GNSS function	Customer-defined antenna, enclosure, operating mode and output results	Approve the functional method and result format
Supply continuity	Approved part numbers, lifecycle risks, alternates and material responsibility	Authorize purchasing for the planned quantity

For pilot and repeat production, carry forward the approved BOM, firmware, assembly notes, test limits and exception record. Any change to the GNSS module, RF components, antenna, enclosure or power architecture should invalidate the affected evidence and trigger the relevant review or retest.

What Common Problems Cause GPS Navigation PCBA Failures?

Most failures can be narrowed by linking the symptom to the RF path, power state, assembled configuration or test environment. Diagnosis should reproduce the reported condition before changing parts or retuning the design.

Weak or unstable reception: Inspect the antenna contact, RF connector, feed continuity, matching-part identity and enclosure changes. Compare the result with the approved antenna condition.
Slow or intermittent acquisition: Measure supply ripple and startup states, confirm firmware identity and repeat the test while defined product circuits are active.
No receiver communication: Check module orientation, solder joints, reset, clock, interface activity and programming configuration before replacing the receiver.
Active antenna fault: Measure the defined bias supply and inspect the protection circuit, connector and cable path under the approved load condition.
Enclosure-only failure: Compare bare-board and enclosure results with the same firmware and power state, then inspect nearby metal, cable routing, orientation and internal radio activity.

What Affects GPS Navigation PCB Assembly Cost and Lead Time?

The cost and schedule for GPS navigation PCB assembly depend on material availability, board complexity, package mix, inspection coverage, programming, fixtures, functional-test time and order quantity. A quote is comparable only when each supplier prices the same released scope.

Component availability: Allocated navigation modules or buyer-restricted parts can determine the material schedule. Approved alternatives and consigned parts change both risk and commercial responsibility.
PCB construction: Layer count, controlled impedance, specified RF material, HDI structures, finish and dimensional requirements affect fabrication cost and schedule.
Assembly complexity: Fine-pitch packages, bottom-terminated parts, shields, RF connectors and mixed SMT/through-hole operations affect tooling, inspection and rework exposure.
Test scope: Fixture design, firmware loading, electrical checks, RF connections and product-specific navigation tests should be quoted explicitly. A lower price that omits agreed evidence is not an equivalent offer.
Prototype learning: Unresolved DFM questions, test-method gaps or unstable BOM revisions lengthen the path to volume release. Closing them in the prototype reduces avoidable changes later.
Order profile: Prototype, pilot and repeat production use different quantities, setup effort and material commitments. Provide the current quantity and forecast instead of requesting one price for an undefined range.

What Files Are Needed for a GPS Navigation PCB Assembly Quote?

An accurate quote needs one released, internally consistent package that identifies what will be fabricated, purchased, assembled, programmed, inspected and tested. Missing or conflicting files force the supplier to make assumptions that later change price or delivery.

PCB data: Gerber or approved intelligent data, drill files, board outline, stackup, material, copper, finish and controlled-feature notes.
BOM: Complete manufacturer part numbers, quantities, approved alternatives, do-not-substitute items and any consigned material.
Placement data: Reference designator, X/Y position, rotation, side and origin convention matching the released assembly drawing.
Assembly drawing: Polarity, connector direction, shields, hardware, special soldering, antenna keepouts and workmanship notes.
Module and antenna references: Relevant datasheets, layout guidance, matching details and approval boundaries for the selected configuration.
Programming package: Firmware identity, programming method, security or serialization inputs and verification output.
Test specification: Fixture interface, power states, measurement points, limits, navigation conditions, sampling or full-test requirement and result format.
Commercial inputs: Prototype and production quantities, target schedule, delivery location, packaging, traceability and required quality records.

Why Choose EBest Circuit for GPS Navigation PCB Assembly?

EBest Circuit gives buyers one project path for PCB fabrication, component sourcing, SMT assembly, programming coordination and customer-defined testing. This reduces handoff gaps between board production, parts and assembly while keeping the approved design and evidence requirements visible.

One-stop PCB and PCBA: Coordinate fabrication, sourcing, SMT, secondary assembly and project records through one manufacturing handoff.
RF-focused manufacturability review: Check submitted stackup, controlled routes, receiver footprint, matching-part placement, shield and connector requirements before release.
GNSS module assembly control: Tie exact module identity, orientation, moisture handling and approved substitutions to the released BOM and drawing.
Programming and test coordination: Build the supplied firmware, fixture, limits and result format into the production package instead of treating testing as an undefined add-on.
Prototype-to-volume continuity: Transfer the approved as-built configuration, exceptions and test evidence into pilot and repeat orders.
Traceable project response: Return DFM questions, sourcing risks and missing evidence against the submitted files so the buyer can close specific release decisions.

FAQs About GPS Navigation PCB Assembly

Q1: Does every GPS navigation board require a controlled-impedance RF trace?

A1: Follow the selected module and antenna reference design. The required feed structure, impedance target and layout depend on the chosen configuration. Specify the approved feed geometry, stackup reference, matching locations and acceptance method in the released PCB data rather than assuming every module uses the same structure.

Q2: Can AOI confirm GPS or GNSS reception?

A2: No, AOI verifies visible assembly conditions. Navigation performance needs a separate customer-approved functional method with the defined antenna, firmware, power state, enclosure and signal environment. Keep the AOI record and functional result separate so each one proves only what it actually checks.

Q3: Can FR-4 be used for a GPS navigation PCB?

A3: Use the material specified by the released stackup and RF design. Many navigation boards may use FR-4, while a design with different loss, frequency or routing constraints may specify another material. Confirm the impedance, geometry and supplier-approved material boundary rather than selecting by product name alone.

Q4: Can EBest source the GPS or GNSS module?

A4: Component sourcing can be included in the project scope. Supply the exact manufacturer part number, approved alternatives and any date-code or traceability requirements for review. Parts that affect RF, timing, firmware or regulatory evidence should remain do-not-substitute unless the approval process says otherwise.

Q5: Can a GPS navigation PCB include cellular, Bluetooth or CAN interfaces?

A5: Yes, when the product architecture and layout support them. Define each interface, its power state, routing constraints and simultaneous operating modes. Wireless transmitters and high-speed circuits should be active during the relevant interference and functional checks.

Q6: Can a module substitution be approved from the footprint alone?

A6: No, mechanical compatibility does not prove functional equivalence. Check electrical, RF, firmware, regulatory, lifecycle and test implications before approving a replacement. Record the approved alternative and any required retest against the affected board and firmware revision.

Q7: Where should the GNSS module be placed on the PCB?

A7: Follow the selected module reference layout and the board’s RF partition. Keep the receiver input and antenna feed away from strong switching and digital noise sources, preserve its reference plane and leave the required antenna or connector boundary intact.

Q8: What makes a GPS navigation PCBA quote change?

A8: Scope changes alter material, setup and test effort. Common causes include BOM revisions, unavailable parts, added inspection, new fixtures, firmware changes, quantity changes and missing acceptance criteria. Compare quotations only after these assumptions and their validity periods are stated in writing.

Q9: Does every navigation PCBA need X-ray inspection?

A9: No, X-ray should follow package and hidden-joint risk. Use it when the GNSS module, processor or another bottom-terminated package requires internal evidence under the inspection plan. Visible joints still need the appropriate visual or optical checks.

Q10: What should buyers send first for a manufacturability review?

A10: Send the complete released PCB and assembly package. Include the BOM, placement data, drawings, module and antenna references, quantities, programming method and test requirements. Consistent revisions let the supplier identify open decisions without rebuilding design intent from separate emails.

Conclusion

A production-ready navigation PCBA connects receiver architecture, RF integration, power integrity, PCB construction, assembly and functional testing under one approved configuration. That connection lets engineering diagnose real product risks and gives purchasing a comparable basis for scope, price, lead time and repeat-production evidence.

EBest Circuit can review your project from PCB fabrication and component sourcing through prototype assembly, programming coordination and repeat production. Send the Gerber or approved intelligent PCB data, BOM, placement file, assembly drawing, module and antenna references, quantities and test specification to sales@bestpcbs.com for a project-specific DFM review and quotation.

Custom Scanner PCB Board Manufacturer: Design, Prototype, and Assembly Services

August 13th, 2026

A custom scanner pcb board must do more than connect a scan engine to a host. It has to deliver stable power during illumination and data capture, protect exposed interfaces, fit the optical and mechanical assembly, support the required firmware, and remain testable after the enclosure is closed. A mistake at any one of these boundaries can produce intermittent scanning even when the bare PCB and solder joints are acceptable.

EBest supports scanner PCB design, prototyping, component sourcing, PCB assembly, and production. The project starts with the actual scan module and product requirements rather than a generic scanner schematic. This allows the quotation and engineering scope to define what EBest will manufacture, assemble, program, inspect, and test.

Custom scanner PCB board beside an imaging engine and barcode test card

What Is a Scanner PCB Board?

A scanner PCB board is the control and interconnection board that turns a scanning module into a usable product. Depending on the device, it can distribute power, receive trigger inputs, control indicators, connect the scan engine or sensor, process captured data, and send results to a computer, terminal, or industrial controller.

Processing responsibilities vary by scanner. A decoded barcode engine can return decoded characters to the host, whereas an undecoded imaging engine sends data for processing elsewhere. A flatbed scanner may also require illumination and motion control, while a fingerprint product may place matching or security functions in a separate processor or module. The module documentation therefore determines the circuit, connector, data path, and firmware responsibilities.

Which Scanner Devices Need a Custom PCB Board?

A custom board is useful when an off-the-shelf scanner module cannot directly satisfy the product’s enclosure, host interface, controls, power source, or test requirements. The board may be a compact carrier for a decoded engine or a larger controller that coordinates several scanner subsystems.

Scanner Product	What the PCB Commonly Integrates	Decision That Drives the Design
Handheld barcode or QR scanner	Scan engine, trigger, beeper, LEDs, USB or serial connection, and power	Decoded versus undecoded engine and wired versus battery operation
Fixed-mount industrial scanner	Imager, machine I/O, status outputs, protected power input, and host communication	Electrical environment, connector retention, grounding, and service access
Fingerprint scanner	Sensor module, processor or secure module, user indication, and host interface	Where image processing, matching, and security functions reside
Flatbed or document scanner	Image sensor, illumination, motor control, position sensing, and data transfer	Moving cable path, calibration method, motion scope, and image bandwidth
Embedded kiosk or terminal scanner	Scan module, wake or trigger input, host connector, and product power	Available space, optical window, mounting datum, and host protocol

A scanner control board and a camera PCB module serve different roles. A camera module centers on image capture and its local electronics. A scanner control PCB can manage the complete product interface, including power conversion, triggering, user feedback, host communication, and the connection to a separate imager.

What Information Is Required Before Starting a Scanner PCB Design?

The most important design input is the exact scan engine or sensor part number with its current integration documentation. Without that information, connector selection, voltage domains, timing, data routing, and mechanical placement cannot be verified.

Scanning subsystem: exact module part number, hardware guide, mating connector, cable, optical keep-out, mounting drawing, and approved alternatives.
Host connection: USB, UART, SPI, I2C, MIPI, parallel data, or another interface; also define logic levels, host role, protocol owner, connector, and cable length.
Power source: input range, battery or external supply, operating modes, available peak-current data, sequencing, sleep behavior, and charging responsibility.
Mechanical package: board outline, mounting holes, enclosure model, component-height limits, optical window, connector openings, FPC path, and assembly access.
User controls: trigger, buttons, beeper, indicators, display, vibration motor, and required default states.
Firmware scope: processor selection, decoding location, configuration method, programming file, version identification, and responsibility for software debugging.
Operating conditions: temperature, contamination, drop or vibration exposure, ESD contact points, ingress expectations, and product-level compliance requirements.
Acceptance criteria: required code types, reading media, operating distance, orientation, host behavior, test conditions, and pass/fail limits.

Before schematic release, organize these inputs in an interface-control table. For each connection, record the source, destination, voltage domain, direction, connector pin, default state, protection requirement, and verification method. Keep unresolved items open for engineering review instead of turning them into undocumented assumptions in the PCB files.

Scanner PCB design inputs with scan engine, FPC, USB cable, and interface planning sheet

How Should a Barcode Scanner PCB Integrate the Scan Engine, Power, and Host Interface?

Start with the scan engine’s electrical and mechanical specification, then design the power tree, data interface, connector, and control signals around that exact device. Two engines that read the same symbols can require different pinouts, voltage levels, communication paths, and host processing.

Zebra’s SE4100 and SE4107 documentation, for example, distinguishes an undecoded engine from a decoded version and lists different interface arrangements. This comparison shows why the term “barcode scanner module” is not a sufficient schematic specification. Other engines may use different interfaces.

Power path: size regulators and distribution from documented operating modes and transient demand. Verify rail behavior during illumination, capture, decoding, and communication, not only at idle.
Logic levels: check direction, high and low thresholds, idle state, pull requirements, reset conditions, and tolerance for every signal crossing a voltage domain.
FPC or board connector: review the mating view, pin-one reference, contact side, latch direction, stiffener, insertion depth, retention, and technician access.
High-speed data: apply the impedance, length, return-path, spacing, and protection requirements appropriate to the selected USB, MIPI, clock, or image interface.
Control sequence: document power enable, reset, trigger, wake, illumination, and status timing so the hardware design and firmware use the same states.
External exposure: add suitable ESD or transient protection at exposed connectors while checking its capacitance, leakage, and placement against the real interface.

Review the PCB layout and enclosure together. A correct connector footprint can still fail in the assembled product if the latch is inaccessible, the FPC is forced into an unsuitable bend, a cable crosses the optical path, or the scan engine sits outside its specified mounting position.

What Design Risks Must Be Controlled on a Scanner PCB Board?

The most damaging failures usually appear at subsystem boundaries, where each individual part can look correct but the assembled scanner is unstable. Connect every major risk to a preventive design check and a prototype measurement.

Boundary Risk	Possible Product Symptom	Evidence Needed Before Release
Scan engine pinout or connector orientation error	No communication, wrong power connection, or damaged module	Independent pin mapping, mating-view drawing, and continuity check before module installation
Power rail droop during illumination or transmission	Random reset, failed reads, unstable light output, or corrupted data	Oscilloscope capture at the load during defined operating modes
Incorrect logic level or startup state	Intermittent communication, failure to wake, or electrical overstress	Powered measurements compared with the signed interface table
Noisy return path or protection layout	Data errors or sensitivity to cable, touch, or operating mode	Layout review by current path followed by interface and ESD-oriented testing
FPC strain or inaccessible latch	Assembly damage or intermittent contact after movement	Enclosure build, bend-path inspection, retention check, and movement test
Hardware, firmware, and test revisions do not match	A production unit behaves differently from the approved prototype	One release baseline linking PCB, BOM, firmware, configuration, and test revision

Optical performance also has a clear responsibility boundary. Follow the scan-engine supplier’s mechanical and optical integration guidance. PCB fabrication cannot correct an obstructed field of view, unsuitable illumination geometry, a contaminated window, or a module installed outside its permitted position.

How Does Scanner PCB Prototyping Reduce Product Development Risk?

A prototype answers questions that drawings and simulations cannot close: Does the module start reliably? Does the interface recover from faults? Does the complete scanner work inside its enclosure? Assign each sample a revision and a defined test purpose.

Inspect before connecting the scan engine. Verify fitted parts, polarity, connector orientation, rail resistance, and isolation to reduce the risk of damaging a high-value module.
Bring up the power system in stages. Confirm every rail, reset state, enable state, current behavior, and unexpected heating before full operation.
Establish host communication. Test enumeration or serial exchange, configuration, malformed or interrupted transactions, disconnects, and recovery.
Measure real operating modes. Capture power and control behavior during aim, illumination, image capture, decoding, data transfer, sleep, wake, and repeated triggering as applicable.
Build the mechanical assembly. Install the production-intent PCB, engine, window, cables, and enclosure to expose alignment, access, strain, and clearance problems.
Run the intended reading task. Use approved symbols or documents at defined distances, angles, orientations, and operating conditions instead of relying on one clean test label.
Close every issue against a revision. Record the symptom, root cause, correction, affected files, and retest result before authorizing the next build.

What Is Included in Custom Scanner PCB Assembly?

Scanner PCB assembly begins with a controlled BOM and assembly package, followed by the handling, programming, inspection, and test operations agreed for the order. The quotation distinguishes customer-supplied scan engines from manufacturer-sourced components because their procurement risk, value, and handling requirements can differ.

BOM validation: manufacturer part numbers, package data, quantities, designators, lifecycle status, approved manufacturers, and substitution rules.
Component sourcing: procurement against approved part identities, with proposed alternates held for documented approval rather than silently fitted.
SMT and THT assembly: placement and soldering planned around fine-pitch parts, mixed technologies, panel handling, inspection access, and rework risk.
Connector protection: defined storage, placement, soldering, cleaning, insertion, and packing controls for ZIF, FPC, USB, and board-to-board connectors.
Programming: released image, version, configuration, connector, programming method, serialization, security handling, and pass record when included.
Functional-test preparation: fixture, software, known-good cables, scan engine, host, test media, sequence, and objective limits supplied before production test begins.

For a customer-supplied scan engine, the work instruction also covers incoming inspection, storage conditions, traceability, connector insertion, contamination control, and responsibility for units that fail before or after integration.

How Should a Scanner PCB Board Be Inspected and Functionally Tested?

Inspection should progress from board integrity to assembly quality, powered interfaces, and finally scanner behavior. Each layer finds different defects, so a bare-board electrical pass cannot substitute for a scan test, and a successful scan cannot prove that every solder joint or protection path is acceptable.

Verification Level	What It Can Confirm	What It Cannot Confirm Alone
Bare PCB electrical inspection	Required continuity and isolation within the agreed fabrication scope	Component placement, firmware, module communication, or scan performance
Assembly inspection	Presence, orientation, solder condition, connector condition, and visible contamination	Correct power sequencing or complete interface behavior
Controlled power-up	Rail voltage, current behavior, reset state, sequencing, and abnormal heating	Reliable communication across all modes
Interface and control test	Host communication, trigger, indicators, beeper, wake, configuration, and recovery	Reading performance in the final mechanical assembly
Product-level scan test	Defined reading behavior with the approved module, firmware, media, cable, host, and enclosure	Performance outside the documented test conditions

Scanner PCB board functional testing with fixture probes, scan engine, and barcode card

Functional testing cannot be priced accurately from Gerber files alone. The manufacturer needs the expected behavior, sequence, required fixtures or fixture concept, released software, scan media, host configuration, limits, and required test record. If these inputs are not available, the quotation should list test development and missing customer inputs as open items.

How Do You Move a Scanner PCB Board from Prototype to Volume Production?

Production release is a configuration-control decision, not simply a larger prototype order. The approved board, BOM, scan engine, firmware, enclosure, programming method, and functional test must all point to the same baseline.

Close prototype issues: assign every issue a disposition and verify each correction on the affected revision.
Release matching manufacturing files: fabrication data, drawings, stackup, BOM, placement data, assembly instructions, and approved deviations must carry compatible revisions.
Freeze component decisions: identify approved parts, controlled alternates, customer-supplied materials, and the approval path for future substitutions.
Bind firmware to hardware: release the production image, configuration, programming procedure, version check, and security requirements.
Approve the test baseline: define fixtures, software, media, known-good references where applicable, limits, failure handling, and retained records.
Review the first production build: compare the output with the validated sample before increasing quantity.
Control later changes: assess PCB, BOM, firmware, scan-engine, process, and test changes for revalidation impact.

This release package gives engineering, purchasing, quality, and manufacturing the same definition of an acceptable unit. It also prevents a component substitution or firmware update from silently breaking a scanner function that worked during prototyping.

What Scanner PCB Manufacturing Services Does EBest Provide?

EBest provides PCB design, PCB prototyping, component sourcing, PCB assembly, and mass production services. For a scanner project, these services can be quoted separately or combined after the input files, responsibilities, and acceptance criteria are reviewed.

Service	Customer Input	Scope to Confirm in the Quote
Scanner PCB design	Product requirements, module guide, interfaces, mechanics, firmware boundary, and test criteria	Schematic, layout, reviews, design files, and validation responsibilities
PCB prototype	Released fabrication data, quantity, stackup, materials, and inspection requirements	Bare-board build, documentation, schedule, and acceptance
Component sourcing	Controlled BOM, approved manufacturers, alternate policy, and consigned-parts list	Procurement responsibility, approval records, and traceability
PCB assembly	BOM, placement data, assembly drawings, special instructions, and panel information	SMT/THT operations, inspection, programming, cleaning, handling, and packing
Mass production	Validated release baseline, order quantity, forecast, change controls, and test package	Production revision, records, test coverage, packaging, and delivery terms

How Does EBest Support Scanner PCB Design and Engineering Review?

Engineering support turns product requirements into reviewable interfaces and manufacturable release files. Work can begin with a requirement set, an existing schematic and layout, or a complete manufacturing package. The deliverables depend on the maturity of the customer’s design.

For a new design, the review can cover the scan-engine connection, power architecture, host interface, controls, protection, board outline, component placement, FPC access, programming, and planned test points. For customer-supplied PCB files, the review can focus on fabrication clarity, footprint-to-BOM consistency, assembly access, polarity, panel requirements, component availability, and whether the stated programming and test scope is executable.

Responsibilities also need to be explicit. The scan-engine supplier may own optical performance and module firmware; the product developer may own the enclosure and application software; the PCB team may own power, connectivity, layout, and manufacturing data. Defining those boundaries before the prototype prevents a failure from being passed between suppliers without a measurable owner or acceptance criterion.

How Does EBest Manage Components for Scanner PCB Assembly?

Component control protects the validated electrical function, footprint, firmware compatibility, and mechanical fit of the scanner PCBA. Availability or price alone is not enough to approve an alternate.

The production BOM identifies the manufacturer part number, package, quantity, reference designators, approved manufacturer list, customer-supplied parts, and substitution status. Give priority to the scan engine, processor, memory, power devices, clock components, FPC/ZIF connectors, USB connectors, protection parts, beeper, and indicators. A visually similar part may have a different pinout, interface behavior, tolerance, lifecycle, or firmware requirement.

Before releasing a substitute, compare its electrical ratings, pin and package compatibility, mechanical clearance, firmware impact, regulatory relevance where applicable, and required validation tests. Record the approval against the production revision so procurement changes remain visible to engineering and quality.

What Files Are Needed for a Scanner PCB Manufacturing Quote?

An accurate quote separates PCB fabrication, assembly, programming, testing, and commercial requirements. Listing missing inputs as open items prevents them from being hidden inside a provisional price.

PCB fabrication: Gerber or ODB++, drill files, fabrication drawing, board outline, stackup, material, copper, surface finish, impedance, marking, panel, and applicable acceptance requirements.
Assembly: revision-controlled BOM, pick-and-place data, assembly drawings, polarity information, special process notes, customer-supplied parts, and substitution rules.
Mechanical integration: enclosure model or drawing, scan-engine mounting data, connector openings, keep-outs, height limits, optical window, FPC route, and cable drawings.
Programming: released image, configuration values, method, connector or fixture definition, security handling, serialization, and version-verification rule.
Functional test: test sequence, instruments or fixture concept, software, approved scan engine, cables, host, scan media, objective limits, and required report fields.
Commercial requirements: prototype and production quantities, delivery destination, requested schedule, packaging, forecast, and change-control contacts.

Why Choose EBest as Your Scanner PCB Manufacturer?

Choose EBest when you want one manufacturing partner to carry your scanner PCB from design review and prototyping through sourcing, assembly, and production. Keeping these stages connected helps reduce handoff gaps between separate design, PCB, purchasing, and assembly suppliers.

Find integration problems before they reach a larger build. The review can check scan-engine pinout, power, connector orientation, board outline, FPC access, programming, and test requirements before prototype release.
Keep the validated design consistent during production. PCB files, BOM, approved component alternatives, firmware inputs, and test requirements can be controlled against the same project revision.
Reduce sourcing uncertainty. Component sourcing and PCB assembly can be coordinated from the approved BOM, while proposed substitutions remain subject to customer or engineering approval.
Receive a clearer quotation. The review identifies included services, customer-supplied parts, missing inputs, programming responsibilities, and functional-test scope before the order is placed.
Support both development and production needs. EBest provides PCB design, PCB prototyping, component sourcing, PCB assembly, and mass production services.

EBest Circuit was established on June 28, 2006. Its certifications and compliance credentials include IATF 16949, ISO 9001:2015, ISO 13485:2016, AS9100D, REACH, RoHS, and UL. Current documents and the applicable scope can be provided for supplier qualification.

Send your scan-engine documentation, Gerber/ODB++, BOM, quantity, enclosure constraints, programming method, and test requirements. EBest can review the package and prepare a quotation based on the services and deliverables your scanner project actually needs.

FAQs About Scanner PCB Boards

Q1: Is a QR code scanner PCB different from a barcode scanner PCB?

Not necessarily. “Barcode scanner” can include 1D and 2D products, while QR reading requires a 2D-capable imaging and decoding path. The engine interface and processing architecture, rather than the product label, determine whether the PCB must change.

Q2: Can one PCB support both 1D and 2D barcode scan engines?

Yes, when both engines are compatible with the board’s power, connector, interface, mechanical space, control signals, and firmware. A common connector does not prove drop-in compatibility; both integration guides must be compared.

Q3: What is the difference between decoded and undecoded scan engines?

A decoded engine returns decoded results to the host. An undecoded engine requires image or sensor data to be processed elsewhere. The choice affects processor workload, software responsibility, data interface, and connector definition.

Q4: Can a barcode scanner PCB use both USB and UART interfaces?

It can if the selected engine and system architecture support both. The design must provide the correct routing, logic levels, protection, connectors, and firmware selection behavior. Confirm both interfaces for the exact engine part number.

Q5: Does a battery-powered scanner require a different PCB design?

Usually. Battery operation adds energy budgeting, transient-load response, low-voltage behavior, sleep and wake control, and potentially charging, protection, and fuel-gauge functions. The battery profile and scan-engine operating modes must be reviewed together.

Q6: How is a fingerprint scanner PCB different from a barcode scanner PCB?

The sensor, processing, security boundary, interface, mechanics, firmware, and validation method can all differ. A fingerprint module should be integrated as its own controlled subsystem, not treated as a barcode-engine substitute.

Q7: What should be considered when designing a flatbed scanner PCB?

Define the image-sensor interface, illumination, motion-control responsibility, home or limit sensing, moving-cable path, calibration, data bandwidth, and enclosure geometry. Cable life and calibration ownership should be included in the validation plan.

Q8: Can the scan engine be replaced without redesigning the entire PCB?

Only if the replacement remains compatible with the existing power, pinout, logic levels, protocol, firmware, mechanics, thermal conditions, and optical arrangement. Any failed comparison may require a PCB or product change.

Q9: How is a scanner control PCB different from a camera PCB module?

A camera module concentrates on image capture. A scanner control PCB can manage the broader product functions, such as power, trigger, indicators, host communication, peripheral control, and a separate scan engine. The two boards can coexist in the same product.

Q10: Can EBest support scanner PCB prototypes and volume production?

Yes. EBest provides PCB prototyping, PCB assembly, component sourcing, and mass production services. The quotation defines the deliverables after review of the design, BOM, quantities, assembly, programming, and test package.

Conclusion

A production-ready scanner pcb board begins with one defined scan engine, a controlled interface table, a realistic enclosure model, and measurable acceptance criteria. Prototype work should close power, communication, connector, firmware, mechanical, and scanning risks before the manufacturing files are frozen.

For scanner PCB design, prototyping, component sourcing, assembly, or production support, send your Gerber/ODB++, BOM, quantity, stackup, scan-engine documentation, enclosure constraints, assembly details, programming method, and test requirements to sales@bestpcbs.com for engineering review and a quotation.

Solder Joint Inspection Guide: Methods, Criteria and Checklist

July 23rd, 2026

Solder joint inspection verifies whether each connection meets the specified workmanship and product-class requirements. A defensible plan combines documented criteria with visual inspection, SPI, AOI, X-ray and electrical testing. The goal is controlled, traceable evidence that the assembly meets its requirements, not a cosmetically perfect board.

Solder Joint Inspection at a professional PCBA quality workstation

What Is PCB Solder Joint Inspection and Why Is It Important?

PCB solder joint inspection examines paste deposits, formed joints and process evidence against defined criteria. A neat joint can still contain insufficient solder, poor wetting or a hidden void. A matte lead-free joint may be fully acceptable.

Effective inspection catches defects before they become field failures. It also provides objective evidence for lot acceptance, corrective action and traceability. Before production, define the assembly standard, product class, package risks and inspection stages. Assign clear authority for accepting, rejecting or escalating nonconforming results.

What Does a Good Solder Joint Look Like and Which Defects Should Be Rejected?

A good solder joint has the wetting, solder quantity, alignment and geometry required for its specific termination. There is no universal shape or shine.

Inspect the lead, land and solder together. Apply the criteria for that termination and product class. Surface finish, alloy and process affect appearance. Gloss alone does not prove solder joint integrity.

Inspection Characteristic	Acceptable Evidence	Nonconforming or Review Condition	Engineering Significance
Wetting	Solder visibly wets the required land and termination surfaces	Nonwetting, dewetting or exposed areas beyond the applicable limit	Poor wetting can reduce mechanical and electrical integrity
Solder quantity	Enough solder to form the required connection without obscuring critical evidence	Insufficient or excessive solder, or solder balls outside the applicable acceptance limits	Both too little and too much solder can hide or create failure risks
Joint geometry	Termination position and fillet dimensions satisfy the applicable criteria	Lifted lead, severe misalignment, open joint, bridging, disturbed shape or inadequate clearance	Geometry affects contact, electrical clearance and load transfer
Surface condition	Surface is consistent with the alloy and process, without damaging cracks or contamination	Cracks, foreign material, overheating or exposed metal outside the applicable criteria	Surface anomalies can indicate process damage or reduced durability
Hidden structure	X-ray or other evidence shows acceptable hidden-joint formation where required	Suspected opens, bridging, head-in-pillow indicators, displaced solder or voiding beyond the agreed limit	Bottom-terminated packages cannot be fully judged from the board surface

Do not create a local reject rule from a photograph alone. Confirm the termination type and use the specified magnification and lighting. Record the acceptance clause or approved customer criterion behind the decision.

What Solder Joint Inspection Criteria, Standards and Requirements Apply?

A solder joint should be accepted only against a documented requirement. The inspection plan must name the applicable standard, revision and product class. It should also identify the assembly drawing, customer additions, approved deviations and the order of precedence when requirements differ.

IPC J-STD-001 defines how soldered electrical and electronic assemblies are produced and controlled. It covers materials, process requirements and minimum end-product expectations. IPC-A-610 provides the visual acceptability criteria used to judge the completed assembly. These documents are normally applied together, but the purchase order or drawing must state the required revisions and whether Class 1, 2 or 3 applies.

Package-specific guidance helps engineers select suitable inspection evidence. IPC-7095 addresses BGA implementation, while IPC-7093 covers bottom-termination components such as QFNs. These documents support design, process and inspection planning. They do not replace the acceptance criteria specified by contract.

The acceptance check must match the joint geometry and what can actually be observed. Visible SMT joints are evaluated for alignment, wetting, solder quantity, bridging, disturbed solder and terminal damage. Through-hole joints also require checks of source- and destination-side wetting, barrel fill, lead protrusion and damage to the land, barrel or laminate.

Hidden joints require an inspection method that can produce the missing evidence. For BGA, QFN and LGA terminations, define the X-ray system, viewing angle, coverage and measurement method before inspection. The plan should explain how opens, bridges, void patterns, head-in-pillow indications and uncertain results will be reviewed or escalated.

Product-specific limits must be written into the acceptance plan. Do not apply one universal void percentage, fillet shape or solder-coverage limit to every package. Define the measured area, calculation method and local concentration rule, then relate each limit to the thermal, electrical or reliability risk it controls.

Every acceptance decision needs traceable evidence. Record the board or lot identity, reference designator, defect classification and supporting image or measurement. Also retain the governing requirement, inspection equipment or program revision, disposition, rework status and reinspection result.

How Do You Choose the Right Solder Joint Inspection Method?

Choose solder joint inspection methods by visibility, package geometry, process stage and escape consequence. No single method covers every defect. Map each credible failure mode to the least complex repeatable method.

Method	Primary Application	Detectable Conditions	Primary Limitation
Human visual inspection	Accessible joints, first articles, low-volume builds and rework verification	Bridges, alignment, wetting and contamination	Operator-dependent; no hidden-joint view
SPI	Paste control before reflow	Volume, area, height and offset	Does not inspect the completed joint
AOI	High-throughput visible inspection	Presence, polarity, placement and bridges	Occlusion restricts coverage
X-ray	Hidden or complex solder structures	Open-joint signatures, bridges, voids and alignment	Does not prove electrical function
Electrical testing	Connectivity and functional behavior	Opens, shorts and circuit failures	Can pass a mechanically weak joint
Cross-section	Internal-structure validation and failure analysis	Joint geometry, internal interfaces, cracks and separation	Destructive; examines only the selected section
Dye-and-pry	BGA or LGA interface failure analysis	Dye indications at cracked or separated interfaces	Destructive; does not provide a metallographic cross-section

For a new assembly, map package type, accessibility, process history and failure severity to the chosen method. Use solder joint testing only as complementary evidence. This makes coverage auditable and avoids paying for irrelevant inspection.

What Can Human Visual Inspection of Solder Joints Reliably Detect?

Human visual inspection can reliably detect accessible surface defects when the method is controlled. It works well for first articles, low-volume builds and rework verification. It also helps resolve borderline AOI calls.

Human visual inspection of solder joints under a microscope

Confirm the acceptance basis: Verify the assembly revision, product class and applicable standard before inspection. Keep approved deviations and package-specific criteria at the workstation.
Control the viewing conditions: Use clean optics, stable board support and repeatable illumination. Select magnification that shows the full joint and the required detail. Change the viewing angle when leads or nearby parts create shadows.
Inspect in a fixed sequence: Scan the board by region and reference designator. Check every required location once before reviewing suspected defects. This method reduces missed joints and duplicate inspection.
Evaluate joint formation: Check visible wetting, solder quantity, fillet shape and terminal alignment where applicable. Confirm that the lead or termination remains seated. Look for acceptable clearance from adjacent conductors.
Find connection defects: Visual inspection can reveal bridges, visible opens and obvious insufficient or excessive solder. It can also find disturbed joints, lifted leads, solder balls and cracked surface fillets.
Find placement defects: Check polarity, offset, skew, tombstoning, missing parts and damaged components. Confirm that the visible termination reaches its intended land.
Find workmanship damage: Look for contamination, flux residue outside the allowed condition and foreign material. Inspect solder mask, lands and laminate for heat, handling or rework damage.
Record objective evidence: Identify the board, lot and reference designator. Save a clear image with the viewing angle and useful scale. Record the defect category, acceptance clause and final disposition.
Escalate hidden or uncertain conditions: Use X-ray for obscured BGA, QFN and LGA connections. Use electrical testing when function or continuity must be proven. Request cross-section analysis when internal structure or failure cause remains uncertain.

Appearance alone cannot prove electrical continuity or long-term reliability. Lead-free solder may appear matte without being defective. A shiny surface does not prove complete wetting. Validate the work instruction with known defects and periodic inspector-agreement checks.

How Do SPI and AOI Support Automated Solder Joint Inspection?

SPI measures solder paste before reflow. It identifies printing variation before that variation becomes a finished-joint defect.

AOI checks visible component and solder conditions after placement or soldering. It verifies whether the assembly result matches the controlled program and acceptance criteria.

SPI and AOI supporting automated solder joint inspection

SPI measures paste height, area, volume, offset and shape. Repeated low volume can indicate a blocked aperture or poor paste release. Position drift can indicate board support, stencil alignment or printer setup problems.

AOI inspection in PCB assembly compares optical or 3D data with programmed limits. It checks component presence, polarity, position and visible solder features. It can also flag bridging, lifted leads, tombstoning and visible solder-volume anomalies.

SPI and AOI become more useful when their records are correlated by board and designator. Low paste volume followed by insufficient solder points toward printing. Acceptable paste followed by component offset points toward placement, board movement or reflow.

Control both programs by product revision and package type. Verify lighting, measurement repeatability and reference samples before production. Review false calls and escapes separately before changing inspection limits.

When Is X-Ray Solder Joint Inspection Required and What Hidden Defects Can It Detect?

X-ray solder joint inspection is needed when critical evidence is hidden from optical inspection. The inspection plan should state the target locations, method, coverage and acceptance basis.

X-Ray solder joint inspection for hidden BGA and QFN defects

Hidden area-array packages: Use X-ray for BGA, LGA and bottom-terminated QFN joints. Optical inspection cannot see the complete connection beneath these packages.
Obscured through-hole joints: Use X-ray when connectors, shields or board geometry hide required barrel-fill evidence. Do not infer internal fill from one visible surface.
First-article validation: Inspect named high-risk packages before releasing the process. Compare the images with SPI, placement and reflow records.
Production monitoring: Define full, sampled or risk-based coverage by board, package and designator. Increase coverage after a process change or adverse trend.
Failure investigation: Use X-ray before destructive analysis when hidden opens, shorts or solder-distribution problems are suspected. Preserve the original images and machine settings.
Bridges and missing solder: X-ray can show solder connections between adjacent features, missing balls and major solder-volume differences.
Alignment and collapse: Compare ball position, diameter and shape across the package. Irregular patterns can indicate offset, uneven collapse, warpage or local thermal imbalance.
Voids and solder distribution: Measure the defined joint or thermal-pad area with a controlled projection method. Record both total voiding and harmful local concentration when required.
Open-joint indications: Look for separation, abnormal ball shape and inconsistent collapse. Head-in-pillow and nonwet opens may remain difficult to confirm in a top-down 2D image.
Overlapping structures: Use oblique views, laminography or CT when copper planes and components obscure the target. Select the simplest method that resolves the required feature.

X-ray inspection for PCB assembly does not prove electrical function or metallurgical strength. Confirm ambiguous indications with electrical results, process history or destructive analysis. Record the view, settings, designator, finding and disposition.

How Should BGA, QFN, LGA and Through-Hole Solder Joints Be Inspected?

Match the inspection sequence to joint visibility and credible package failure modes. Begin with paste and placement evidence where available. Inspect the formed joint with the appropriate optical or X-ray method.

Use electrical testing as supporting evidence. It does not prove physical joint quality.

BGA solder joint inspection: Review pre-reflow SPI. Then use 2D X-ray to check ball population, alignment, collapse, bridges and void patterns. Use oblique views or CT when structures overlap. Escalate irregular collapse or head-in-pillow indicators. Use electrical testing because X-ray alone does not prove connectivity.
QFN solder joint inspection: Verify paste coverage and thermal-pad stencil segmentation before reflow. After reflow, check alignment and accessible perimeter evidence. QFN package guidance shows why standard cut flanks may not provide a reliable toe fillet. Use X-ray to check thermal-pad distribution, concentrated voiding, shorts and package lift. Apply the agreed void criteria.
LGA inspection: Confirm paste uniformity and placement before the joints become hidden. Use X-ray after reflow to compare solder distribution, alignment, open-joint signatures, bridges and package tilt. Correlate anomalies with electrical results and reflow history; repeated location-specific defects require review of land geometry, coplanarity and thermal balance.
Through-hole inspection: Inspect both sides for lead and land wetting, circumferential evidence, solder fill, protrusion, clearance, bridging and damage. When the barrel is obscured, use X-ray or approved destructive analysis rather than inferring fill from one surface. Reinspect reworked joints for lifted lands, plating damage and contamination.

For BGA soldering and other hidden terminations, record the inspected designators, viewing program, acceptance basis and disposition. This evidence is more useful than a generic “X-ray passed” statement.

What Steps Are Included in the Solder Joint Inspection Process?

A complete solder joint inspection procedure controls requirements, risk, equipment, disposition and corrective action. Each stage should leave enough evidence for another qualified person to reproduce the decision.

Establish the acceptance basis: Confirm the drawing, BOM revision, workmanship standard and revision, product class, customer criteria and approved deviations. Resolve conflicts before inspection.
Define the inspection population: Record the work order, board revision, lot size and inspected quantity. State whether coverage applies to every board, a defined sample, first articles or named critical locations.
Map package and process risks: Identify hidden packages, fine pitch, high-current joints, thermal pads, selective-soldered connectors and reworked areas. Link each to credible defects and failure consequences.
Select complementary methods: Match visual inspection, SPI, AOI, X-ray and electrical tests to defect visibility and risk. Reserve destructive analysis for validation or failure investigation. Document each method’s limitation.
Verify inspection readiness: Check calibration, program revision, fixtures, lighting, magnification, X-ray settings and reference evidence. Run the approved verification routine before accepting production results.
Inspect in process order: Review paste before reflow, visible conditions after soldering and hidden structures by X-ray. Record board ID, designator, method, defect code and supporting evidence during inspection.
Control nonconforming findings: Segregate affected material, distinguish confirmed defects from ambiguous indications and preserve evidence. Only designated personnel should accept, reject, rework or escalate the result.
Verify rework and lot impact: Reinspect with a method that can find the original defect, then check for rework damage. Determine whether the same mechanism may affect other units or locations.
Close corrective action: Trend defects by package, location, machine, material and profile. Correct the verified cause, confirm performance on subsequent builds and update the control plan when improvement is sustained.

What Should Be Included in a Solder Joint Inspection Checklist and Report?

A useful solder joint inspection checklist identifies the product, acceptance basis, scope, evidence and disposition. The solder joint inspection report must make coverage traceable. A simple “pass” is not sufficient.

Product and lot identity: Record part number, revision, work order, lot or serial IDs, lot quantity and inspected quantity.
Acceptance requirements: State the standard and revision, product class, drawing requirements, customer additions and approved deviations.
Inspection scope: Identify the process stage, locations, package groups, sample size, coverage level and methods. Distinguish full-board coverage from selected critical joints.
Equipment and program control: Record equipment ID, calibration status, program revision, fixture and settings needed to reproduce the result.
Finding details: Record board ID, designator, defect code, condition, severity, count and supporting image or measurement. Avoid vague descriptions such as “bad solder.”
Result summary: State accepted, rejected, reworked and pending-review quantities. Separate confirmed defects, false calls and unresolved indications.
Disposition and reinspection: Record the decision, rework authorization, reinspection method and result for each affected unit.
Approval and traceability: Include the inspector, dates, disposition authority and attachment references. Retain the record for the required period.

Agree on the report format before ordering when traceability matters. Engineers should identify critical designators and hidden joints in the assembly data.

Procurement should confirm programming, sampled or 100% coverage, archived images and reinspection after rework.

What Determines Solder Joint Inspection Coverage, Sampling and Cost?

Solder joint inspection cost depends on risk, visibility, volume, evidence requirements and process capability. “100% inspection” is incomplete without the characteristics, method and stage. AOI of every board does not cover every hidden joint.

Assembly risk: Safety, high-current and harsh-environment functions justify stronger evidence.
Package mix: Hidden joints and dense layouts increase X-ray time and interpretation complexity.
Build maturity: New products and unstable trends need greater initial coverage.
Sampling basis: Lot size, history, capability, contract and escape consequence should drive the plan.
Reporting depth: Archived images and serial-level traceability add labor and data handling.
False-call burden: Poor programming increases review time without improving detection.

Ask suppliers to separate one-time programming or setup charges from recurring per-board inspection costs. For critical packages, confirm whether pricing includes every unit, a defined sample or only failure investigation.

How Can Inspection Results Prevent Recurring Solder Joint Defects?

Inspection prevents recurrence only when each finding is linked to a verified cause and controlled correction. Reject counts alone do not show where the process failed.

Contain the affected population: Identify the lot, time window, line and component batches. Hold suspect material and increase inspection at the affected designators.
Normalize the defect data: Report defects per board, joint or inspection opportunity. Separate true defects, false calls and unconfirmed indications.
Stratify the pattern: Compare results by product, designator, package, printer, placement machine, oven profile and operator. A repeated location often indicates a local design or process cause.
Confirm the failure mechanism: Use a second inspection method when the first result is ambiguous. Preserve samples for cross-section, dye-and-pry or other approved failure analysis when needed.
Correct printing causes: For insufficient or excessive solder, check aperture design, stencil condition, paste handling, support and printer alignment. Verify the correction with SPI data.
Correct placement causes: For offset, skew or tombstoning, check pickup accuracy, nozzle condition, placement force and land balance. Confirm component and PCB dimensional variation.
Correct reflow causes: For non-wetting, opens or uneven BGA collapse, review the measured profile, alloy, surface condition and package warpage. Reprofile the actual assembly after a material or layout change.
Correct through-hole causes: For low barrel fill, review flux application, preheat, contact time, solder temperature and thermal demand. Do not increase one setting without checking heat-sensitive parts.
Validate effectiveness: Inspect a defined number of subsequent boards using the method that detected the original defect. Check that the correction did not create a different failure mode.
Lock the improved process: Update programs, work instructions, control limits and training. Continue trend review until the improvement remains stable across normal production variation.

The corrective-action record should connect the defect, evidence, root cause, change and verification result. This record prevents teams from investigating the same problem without its history.

FAQs About Solder Joint Inspection

Q1: What should happen when AOI and X-ray results disagree?

A1: Hold the material and review what each method measured. Check the images, limits, package geometry and electrical result. Use higher-resolution or destructive analysis if risk remains unresolved.

Q2: Should solder joints be inspected before conformal coating or underfill?

A2: Yes, inspect before materials obscure access. Record the result and control any later rework.

Q3: Can X-ray inspection damage electronic components?

A3: Validated production exposure is normally nondestructive, but dose still requires control. Radiation-sensitive devices and repeated scans need component-specific review. Define exposure settings and limits before inspection.

Q4: Can a golden board replace written acceptance criteria?

A4: No. A golden board can support program verification but cannot replace the specified standard and customer requirements. It may contain variation that should not become a new acceptance limit.

Q5: When should inspection limits be revalidated?

A5: Revalidate after changes that can alter the joint or its image. Examples include component, PCB, stencil, alloy, equipment, program or reflow changes. Recurring false calls also require review.

Q6: Does successful reflow of a failed joint prove the original root cause?

A6: No. Recovery after reheating is evidence, not proof. Reflow changes solder, flux and mechanical contact. Preserve electrical data and images before repair, then investigate the original process conditions.

Q7: How can consistency between inspectors be checked?

A7: Use qualified samples and periodic attribute-agreement studies. Compare decisions by defect type, then retrain or clarify criteria where agreement is weak.

Q8: Why can an intermittent solder joint pass a room-temperature electrical test?

A8: A static test may not reproduce thermal or mechanical movement. Use controlled hot, cold, vibration or flex testing when service conditions justify it. Monitor the affected circuit while stress is applied.

Q9: Can inspection images from different systems be compared directly?

A9: Only when scale, angle, lighting or X-ray settings and image processing are controlled. Otherwise, apparent differences may come from the imaging setup rather than the joint.

Q10: Should inspection thresholds be relaxed to reduce false calls?

A10: Not without validation. Review the false-call cause, confirm known defects remain detectable and approve the revised limit before production use.

Need a PCBA quotation with a defined solder joint inspection plan? Send Gerber or ODB++, BOM, pick-and-place data, assembly drawings, quantity and product class. Include critical joints, testing requirements and traceability expectations.

EBest Circuit can review your inspection scope and prepare a practical quotation. Send the project package to sales@bestpcbs.com.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

How Does PCB to PCB Soldering Create Reliable Board Connections?

Can You Solder One PCB Directly to Another?

Which Connections Are Suitable for PCB to PCB Soldering?

How Do Castellated Holes Connect a Module to a Carrier Board?

How Should the Two PCB Footprints Be Matched?

How Do You Hand-Solder Two PCBs Together?

When Should You Use Reflow Soldering for PCB Modules?

What Temperature Should You Use for PCB to PCB Soldering?

Can You Solder Flex PCB to Rigid PCB?

How Can You Prevent Solder Bridges and Poor Wetting?

How Should PCB-to-PCB Solder Joints Be Inspected?

How Do You Keep Mechanical Loads off the Solder Joints?

What Files Do We Need to Assemble Your PCB Module?

PCB to PCB Soldering FAQs

How to Clean a PCB after Soldering?

Can a soldered PCB module be removed and reused?

Can conductive glue replace solder between two PCBs?

Does a continuity beep prove the connection is good?

You may also like

How Is Component Lead Forming Done Before PCB Assembly?

What Is Component Lead Forming?

Which Dimensions Should a Lead Forming Drawing Specify?

How Do You Choose the Lead Bend Radius?

How Can You Prevent Stress at the Component Body?

How Do Axial and Radial Lead Forming Differ?

How Do You Select a Component Lead Forming Tool?

How Should Component Leads Be Trimmed?

How Do You Check Lead Pitch After Forming?

What Should You Inspect After Lead Forming?

How Can You Keep Lead Forming Consistent Across a Batch?

What Information Do We Need for Through-Hole Assembly?

Component Lead Forming FAQs

How to Clean and Form Component Leads Before Soldering?

When Shall Sleeving Be Placed on a Component Lead Before Forming?

Can Through-Hole Forming Rules Be Used for SMT Leads?

Can a 3D-Printed Lead Forming Jig Replace Metal Tooling?

You may also like

What Causes Solder Graping and How Can You Prevent It?

What Does Solder Graping Look Like?

Why Are Small Solder Paste Deposits More Vulnerable?

How Do Oxidation and Flux Depletion Cause Graping?

Does Finer Solder Powder Increase Graping Risk?

How Do Stencil Apertures and Paste Volume Affect Graping?

How Should You Adjust the Reflow Profile to Reduce Graping?

Can Nitrogen Reflow Prevent Solder Graping?

How Is Graping Different from Solder Balls, Cold Joints and Slump?

How Can You Confirm the Cause of Solder Graping?

What Can We Check for Your SMT Assembly?

Solder Graping FAQs

Can you remove graping by cleaning the board?

Is there an IPC limit called a solder graping ratio?

Can a second oven pass fix graping?

You may also like

Custom GPS Navigation PCB Assembly From Prototype to Mass Production

What Is a GPS Navigation PCB Assembly and How Does It Work?

Where Are GPS Navigation PCB Assemblies Used?

What Components Are Integrated on a GPS Navigation PCB?

How Do RF Layout and Antenna Integration Affect GPS Performance?

How Should Power Integrity and Digital Noise Be Managed?

How Should RF, Power and Digital Circuits Be Separated?

What PCB Manufacturing Requirements Matter for GPS and GNSS Boards?

How Is a GPS Navigation PCB Assembly Manufactured?

How Should GPS Navigation PCB Assemblies Be Tested?

How Is a Prototype Validated Before Mass Production?

What Common Problems Cause GPS Navigation PCBA Failures?

What Affects GPS Navigation PCB Assembly Cost and Lead Time?

What Files Are Needed for a GPS Navigation PCB Assembly Quote?

Why Choose EBest Circuit for GPS Navigation PCB Assembly?

FAQs About GPS Navigation PCB Assembly

Conclusion

You may also like

Custom Scanner PCB Board Manufacturer: Design, Prototype, and Assembly Services

What Is a Scanner PCB Board?

Which Scanner Devices Need a Custom PCB Board?

What Information Is Required Before Starting a Scanner PCB Design?

How Should a Barcode Scanner PCB Integrate the Scan Engine, Power, and Host Interface?

What Design Risks Must Be Controlled on a Scanner PCB Board?

How Does Scanner PCB Prototyping Reduce Product Development Risk?

What Is Included in Custom Scanner PCB Assembly?

How Should a Scanner PCB Board Be Inspected and Functionally Tested?
