What Is IT180A PCB Material? Properties, Uses and Manufacturing Guide

Tuesday, November 3rd, 2026

IT180A is the common search form of ITEQ’s IT-180A, a halogen-free, high-Tg FR-4 laminate system developed for multilayer PCBs that need lower Z-axis expansion than conventional FR-4. Its value is not just a higher glass-transition temperature. Designers choose it when plated-hole reliability, lead-free assembly exposure, dimensional stability and a manufacturable multilayer stackup must be considered together. The exact laminate or prepreg designation and datasheet revision still matter, so a material callout should identify more than the words “high Tg.”

IT180A PCB material used in a realistic high-density multilayer PCB

What Is IT180A PCB Material?

IT180A is a high-Tg, filled epoxy FR-4 laminate and prepreg family. The official material name normally appears as IT-180A; the unhyphenated IT180A PCB material is the same search term, not a different grade. It uses woven glass reinforcement and a phenolic-cured resin system. Copper-clad cores and matching prepregs can be combined in a multilayer construction, subject to the available glass styles, resin contents, copper foils and dielectric thicknesses.

At EBest Circuit (Best Technology), we use the approved material designation in the stackup and purchasing record. We do not treat every high-Tg FR-4 as an automatic substitute because resin behavior, dielectric data, available constructions and customer approvals may differ.

Why Is IT180A Used in Multilayer PCBs?

IT180A is used when a multilayer board needs stronger thermal robustness than a basic FR-4 construction. A higher Tg keeps the resin in its glassy state over a wider temperature range, while lower Z-axis expansion reduces the amount of thickness-direction movement applied to plated through holes during heating. Those two properties support reliability, but neither one alone proves that a finished board will survive its assembly profile or field environment.

For a multilayer PCB, the complete result also depends on layer count, finished thickness, hole diameter, copper balance, resin fill, lamination quality, drill condition and copper plating. Material selection and fabrication design therefore need to be reviewed as one stackup.

How Do Tg, Td and CTE Describe IT180A?

Tg, Td and CTE answer different questions. Tg marks the glass transition of the cured resin. Td is a decomposition-temperature measurement based on mass loss. CTE describes how quickly the material expands with temperature, and its value changes above Tg. A board does not become unusable the moment it reaches Tg, and a high Td does not mean the laminate can operate continuously near that temperature.

Difference between IT180A Tg, Td and Z-axis CTE

This distinction prevents a common specification error: using one headline temperature as a replacement for the entire thermal profile. Reflow peak temperature, time above liquidus, repeated cycles, board moisture and the operating environment must be evaluated separately.

What Are the Detailed IT180A Material Parameters?

The following values are representative of the referenced multi-page IT-180A datasheet. They must remain attached to the stated method, frequency and material construction. Values can change with resin content, specimen thickness and datasheet revision.

Parameter	Representative IT-180A value	Method or condition	How to use it
Tg	175°C typical; 170°C minimum	DSC	Compare resin transition behavior using the same test method.
Td	345°C typical; 340°C minimum	TGA, 5% weight loss	Do not use as a continuous operating-temperature rating.
Z-axis CTE below Tg	45 ppm/°C typical	TMA, alpha 1 region	Supports plated-hole strain analysis below Tg.
Z-axis CTE above Tg	210 ppm/°C typical	TMA, alpha 2 region	Shows why time above Tg matters during thermal exposure.
Z-axis expansion	Approximately 2.7%	50–260°C	Use with board thickness and PTH geometry, not as a stand-alone pass/fail limit.
Dk	Approximately 4.4 at 1 GHz	Representative datasheet construction	Confirm the actual construction and frequency before impedance modeling.
Df	Approximately 0.015 at 1 GHz	Representative datasheet construction	Shows that high Tg does not automatically mean low loss.
Flammability	UL 94 V-0	Listed construction and thickness range	Verify the applicable UL construction instead of copying the label alone.

Older and newer IT180A datasheets may show different typical values or test presentations. The approved fabrication package should therefore retain the supplier, exact grade and revision used for the design decision.

IT180A vs Standard FR4: What Is the Difference?

IT180A is still an FR-4 material, but it is formulated for higher Tg and lower Z-axis expansion than many conventional FR-4 grades. The practical comparison is not “FR-4 or IT180A”; it is IT180A versus the exact alternative grade and construction being considered.

IT180A versus standard FR4 under thermal cycling around a plated through hole

Selection point	Conventional FR-4	IT180A high-Tg FR-4	What still needs confirmation
Glass transition	Usually lower, depending on the grade	DSC Tg around 175°C in the referenced sheet	Use the same Tg test method for comparison.
Z-axis expansion	May be higher during assembly heating	Designed for lower Z-axis expansion	Check the actual alternative-grade datasheet.
Lead-free assembly	Depends strongly on grade and board design	Intended for lead-free multilayer applications	Validate moisture control and the real reflow profile.
Signal loss	Varies by resin system and construction	Not automatically a low-loss laminate	Compare Dk/Df at the design frequency.
Fabrication	Common process knowledge is widely available	Requires approved constructions and material control	Confirm availability, stackup and process window.

Why Do IT180A Datasheet Values Differ by Revision?

Datasheet values differ because suppliers revise products, test methods, presentation formats and representative constructions. For example, an older sheet may present a rounded Tg or Td that is not identical to a later multi-page sheet. Dk and Df can also vary with resin content, glass style, thickness and frequency.

Do not build a specification by selecting the best value from several documents. Record the exact source revision and keep each number with its method and condition. If an engineering drawing calls out a minimum property, it should state the method used to verify that property.

How Does IT180A Support Lead-Free Reflow?

IT180A supports lead-free assembly by combining high Tg, suitable decomposition resistance and controlled Z-axis expansion. The laminate datasheet includes time-to-delamination indicators such as T260 and T288, but those values are material tests, not a guarantee for every completed PCB.

A finished board adds drilled holes, copper plating, solder mask, absorbed moisture and local copper-density differences. Before assembly, define storage and baking controls where needed, and review the actual number of reflow or rework cycles. A short assembly peak is not the same as continuous operating temperature.

How Does IT180A Affect Plated-Hole Reliability?

Lower Z-axis expansion can reduce strain on a plated through-hole barrel during thermal cycling. It does not remove the need for correct hole design and plating. Finished board thickness, drilled diameter, aspect ratio, copper thickness, drill smear removal and annular-ring geometry still control the stress concentration and current path.

We review the smallest finished hole against the stack thickness before confirming a build. Our listed rigid-PCB capability includes a normal minimum hole of 0.20 mm, a 0.10 mm HDI minimum hole and an 8:1 aspect ratio, but these limits are not automatically combinable with every IT180A stackup. The actual panel size, layer count, copper weights and reliability requirements must pass DFM together.

Is IT180A Suitable for Controlled Impedance?

Yes, IT180A can be used for controlled-impedance routing, provided the calculation uses the actual core and prepreg constructions. A single generic Dk value is not enough. The field solver needs finished copper thickness, trace width, spacing, solder mask condition, dielectric thickness and a Dk appropriate to the material construction and frequency.

For an HDI PCB, laser-via build-up and thin dielectrics add more construction variables. Send the target impedance, layer assignment and stack constraints with the Gerber or ODB++ data so that the proposed stack can be checked before production.

Is IT180A a Low-Loss Material?

No. IT180A is primarily a high-Tg, low-CTE FR-4 material, not a dedicated ultra-low-loss laminate. The referenced sheet gives a representative Df around 0.015 at 1 GHz. That may be acceptable for many digital and industrial boards, but high-speed channels should be evaluated by insertion-loss budget, route length, frequency content, copper roughness and the exact construction.

If loss is the limiting requirement rather than plated-hole thermal robustness, compare IT180A with an appropriate low-loss family. Do not select a material only because its Tg is higher.

How Should IT180A Cores and Prepregs Be Specified?

Specify the manufacturer, exact grade, core thickness, copper weight on each face and the required prepreg construction. “IT180A prepreg thickness” is not one universal number. Pressed thickness depends on glass style, resin content, copper distribution, flow and the surrounding stack.

Specification item	What to provide	Why it matters
Material identity	ITEQ IT-180A or an explicitly approved alternate	Prevents an unreviewed high-Tg substitution.
Core construction	Dielectric thickness and copper weight on both faces	Controls impedance, overall thickness and etch feasibility.
Prepreg	Glass style or target pressed dielectric with resin requirement	Supports resin fill and dielectric control.
Finished board	Overall thickness, tolerance, hole sizes and copper requirements	Connects material selection to fabrication acceptance.
Electrical targets	Impedance values, layers, tolerances and test method	Allows a construction-specific field-solver review.

Which PCB Applications Use IT180A?

IT180A is used in multilayer boards for automotive electronics, servers, networking equipment, telecom systems, data storage, industrial controls and heavy-copper designs. These applications do not use the material for one identical reason. A server backplane may prioritize layer count and plated-hole durability, while an automotive controller may emphasize repeated thermal exposure and dimensional stability.

High-Tg multilayer PCB formats for networking automotive and industrial electronics

The material is also relevant where lead-free assembly and multiple thermal cycles make a basic laminate marginal. Application names alone do not define the stack. The board-level requirements must still be translated into layer count, copper, hole geometry, impedance, thermal profile and acceptance criteria.

How Do We Manufacture IT180A Multilayer PCBs?

We begin with material and stackup review, then check inner-layer geometry, copper balance, prepreg resin demand, drill aspect ratio, lamination thickness and controlled-impedance requirements. Material identity is retained through purchasing and production records. Lamination, drilling, desmear and plating controls are matched to the approved construction rather than inferred from the words “high Tg.”

EBest Circuit’s listed rigid-board capability extends to 32 layers, with normal 4/4 mil line and space and HDI capability down to 2/2 mil under suitable designs. These are capability boundaries, not a promise that the most aggressive line, hole, layer and thickness limits can all be combined in one board. We confirm the manufacturable combination after reviewing the data package.

IT180A FAQs

Is IT180A the same as IT-180A?

Yes. IT-180A is the formal hyphenated material name; IT180A is the common search and shorthand form.

Can IT180A replace any standard FR-4 material?

No. Electrical properties, constructions, approvals, availability and process requirements must be compared before substitution.

What is the IT180A prepreg thickness?

There is no single thickness. Pressed thickness depends on glass style, resin content, copper distribution and the stackup. Use an approved construction proposal.

Does a 175°C Tg mean a PCB can operate continuously at 175°C?

No. Tg is a resin transition measurement, not a continuous-use temperature rating. Use the applicable material listing and the finished assembly’s environmental requirements.

What Should You Include in an IT180A PCB RFQ?

To prepare an accurate quotation, we need the Gerber or ODB++ data, drill files, fabrication drawing, stackup, finished thickness, copper weights, minimum holes, impedance targets, surface finish, quantity and assembly thermal requirements. Tell us whether IT-180A is mandatory or whether we may propose an alternate for approval. If the material revision or UL construction is controlled, include that requirement rather than relying on a generic “high-Tg FR-4” note.

For an IT180A high-Tg PCB build review, send the complete files to sales@bestpcbs.com. Our PCB team will review the IT180A material callout and stackup before confirming the construction.

Ceramic PCB Manufacturer at a Glance

Choosing a ceramic PCB manufacturer means matching the process to the application before comparing prices. A supplier may be strong in DBC ceramic substrates but not the best fit for thin film precision work, AMB power modules or LTCC multilayer structures.

Buyer decision	What to confirm	Why it matters
Material	Al2O3, AlN, ZrO2, Si3N4 or other ceramic substrate	Thermal conductivity, insulation, CTE and cost change by material.
Process	DPC, DBC/DCB, AMB, thick film, thin film, LTCC or HTCC	Each process supports different copper, line width and reliability needs.
Geometry	Panel size, thickness, hole size, trace/space and profile tolerance	Ceramic boards are not designed like standard FR4 PCBs.
Surface finish	OSP, ENIG, immersion silver or process-specific metallization	Finish affects solderability, bonding and assembly.
RFQ data	Drawing, substrate, copper or conductor thickness, quantity and test needs	Complete files reduce quote revisions and feasibility risk.

Is Your Ceramic PCB Project Limited by Material or Thermal Uncertainty?

Ceramic PCB buyers need early review of substrate, metallization, heat path, assembly conditions and inspection needs.

Customer Pain Point	Project Risk	How bestpcbs Helps
Substrate choice is not tied to the application	Thermal, insulation or mechanical expectations may not match the final board	bestpcbs asks for application environment, material expectations and thermal requirements before confirming the route.
Metallization or copper details are unclear	Cost, solderability and reliability can change with process assumptions	bestpcbs reviews drawings, surface finish, conductor requirements and assembly needs before quoting.
Dimensional tolerance is not defined	Fit, mounting or module assembly may be affected	bestpcbs checks drawings and tolerance notes with the fabrication data.
Testing scope is not specified	A high-reliability board may ship without the checks the application needs	bestpcbs confirms electrical, visual and project-specific inspection requirements during RFQ review.

ceramic pcb manufacturer RFQ checklist for supplier review.

ceramic pcb manufacturer risk review flow before production.

Ceramic PCB Buyer Priorities Before Supplier Selection

Ceramic PCB buyers should confirm substrate type, metallization, thermal requirements, assembly conditions, dimensional tolerance and inspection needs before choosing a supplier. Ceramic boards are often selected for heat, insulation or high-reliability reasons, so assumptions must be made explicit.

Share the application environment, thermal path, copper or metallization notes, component attachment method, operating temperature and test expectations. This helps the supplier review the board as a performance part instead of a generic PCB.

When Ceramic PCB Is the Right Choice

Ceramic PCB is the right choice when thermal conductivity, electrical insulation, high-temperature stability, dimensional stability or material reliability matter more than the cost advantage of FR4. It is often considered for power electronics, LED modules, RF circuits, sensors, high-temperature devices and compact thermal designs.

Bestpcbs has a dedicated ceramic PCB product page covering ceramic circuit boards such as alumina PCB and AlN ceramic PCB. The useful RFQ question is which ceramic material and process fit the design, not whether the project can be labeled as ceramic PCB.

Ceramic PCB Materials Buyers Should Compare

Ceramic PCB material selection should be driven by heat, insulation, CTE, strength, dielectric behavior and cost target. The capability files list ceramic substrate options such as Al2O3, AlN, ZrO2 and Si3N4 in the ceramic PCB capability sheet, with additional special-material notes in the original ceramic process file.

Material family	Common buyer reason	RFQ note
Al2O3 alumina	Balanced insulation, heat resistance and cost	State purity or grade when specified by the design.
AlN aluminum nitride	Higher thermal performance than many standard ceramic options	Confirm process, substrate thickness and finish.
ZrO2 zirconia	Special mechanical or insulation needs	Use only when the application requires it.
Si3N4 silicon nitride	Strength and thermal reliability in demanding modules	Confirm with the supplier before quoting.

DPC, DBC, AMB, Thick Film and Thin Film Differences

Ceramic PCB processes are not interchangeable; the process affects copper thickness, line precision, panel size, substrate choice and reliability testing. The RFQ should name the target process or ask the supplier to recommend one based on the electrical and thermal goal.

Process	Typical fit	Buyer check
DPC ceramic PCB	Precision plated copper on ceramic	Review trace/space, conductor thickness and pad needs.
DBC/DCB ceramic PCB	Direct bonded copper substrates for power modules	Check copper thickness, substrate and thermal stress requirements.
AMB ceramic PCB	High-reliability power and thermal applications	Confirm material, copper thickness and test plan.
Thick film ceramic PCB	Printed conductor or functional paste circuits	Check conductor material and firing requirements.
Thin film ceramic PCB	Fine features and precision circuits	Check line precision, finish and inspection criteria.

For process-specific context, see the bestpcbs DPC ceramic PCB, DCB ceramic PCB and AMB ceramic PCB pages.

Capability Ranges to Verify Before Quoting

Capability ranges should be verified against the exact ceramic process, because one ceramic PCB process does not share all limits with another. The original capability files show separate values for thin film, DBC/DCB, DPC and AMB ceramic PCB.

Capability item from process files	Verified reference point	How to use it
Layer count	Thin film up to 10 layers; DBC/DCB, DPC and AMB listed as 2 layers in the English capability sheet	Confirm if a multilayer ceramic route is needed.
Max panel size	Examples include 200 x 200 mm for thin film and smaller listed sizes for DBC/DCB, DPC and AMB	Send drawing and panel needs for review.
Conductor thickness	Ranges differ by process, from micrometer-scale thin film to oz-level DBC/AMB copper	Do not compare quotes without the same conductor target.
Trace and space	Minimum trace/space differs by process; DPC and thin film allow finer values than AMB in the sheet	Mark critical features in the drawing.
Thermal stress test	The sheet lists process-specific thermal stress tests such as 350 C or 280 C conditions	Ask which test applies to the selected process.

Design and DFM Checks for Ceramic PCB

Ceramic PCB DFM review should happen before the supplier quotes final price because ceramic boards use different design rules from FR4. Brittle substrates, thermal expansion, metallization, profile tolerance and soldering method need early review.

Confirm substrate type, thickness and final board outline.
Review minimum trace/space and pad size for the chosen process.
Check hole diameter, hole tolerance and whether PTH is required.
Define solder mask opening, bridge and conductor surface requirements.
Review heat source, mounting method, thermal interface and assembly load.
Use the DCB ceramic PCB design guide when the project uses DBC/DCB ceramic technology.

Surface Finish and Metallization Decisions

Surface finish and metallization must match the process, component attachment method and reliability target. The ceramic capability files include surface finish references such as OSP, ENIG and immersion silver for several ceramic processes, while other ceramic methods may use process-specific metallization systems.

Do not choose finish only by price. Ask whether the board needs wire bonding, soldering, high-temperature exposure, low contact resistance, corrosion resistance or a specific assembly process.

Ceramic PCB Assembly and Component Sourcing

Ceramic PCB assembly should be planned with fabrication because the substrate, thermal mass, pad finish and component package can affect soldering and reliability. A separate assembly supplier may miss ceramic-specific risks if the fabrication assumptions are not shared.

For projects that require mounted components, send BOM, CPL, assembly drawings, polarity notes, thermal interface information and test requirements with the fabrication files. Bestpcbs can connect ceramic board fabrication with PCBA and PCB assembly service when the project needs a combined review.

Testing and Quality Control for Ceramic Circuit Boards

Testing should be selected according to process risk, not copied from a standard FR4 checklist. Ceramic PCB inspection can involve electrical continuity, isolation, profile tolerance, surface finish, hole position, thermal stress, solderability and application-specific checks.

Quality item	What to define	Why it matters
Electrical check	Continuity, isolation and netlist requirements	Confirms the circuit matches design data.
Dimensional inspection	Outline, hole position, thickness and tolerance	Ceramic parts may have tight mechanical fit needs.
Thermal stress	Process-specific stress test or customer test condition	Supports high-heat application confidence.
Assembly inspection	AOI, solder joint, wire bond or special attachment checks	Assembly risk depends on finish and package type.

What Determines Ceramic PCB Cost?

Ceramic PCB cost depends on substrate material, process route, conductor thickness, line precision, panel size, hole features, surface finish, testing and quantity. A supplier cannot quote accurately from the keyword alone.

The ceramic PCB price guide explains cost factors in more detail. For this manufacturer selection page, the key point is to keep every supplier quoting the same material, process, thickness, finish, testing and assembly scope.

How to Compare Ceramic PCB Manufacturers

Compare ceramic PCB manufacturers by process fit, engineering review quality, evidence of capability and quote transparency before comparing lead time or unit price. A good supplier should ask which ceramic technology the design needs and why.

Can the supplier support the required substrate and process route?
Do they explain DPC, DBC/DCB, AMB, thick film and thin film tradeoffs?
Can they review trace/space, conductor thickness, holes and surface finish?
Do they define thermal stress, inspection and acceptance criteria?
Can they support assembly or component sourcing if PCBA is required?
Do they avoid unsupported claims about universal capability or guaranteed lead time?

Files to Prepare for a Ceramic PCB RFQ

A complete ceramic PCB RFQ should include both circuit data and the application reason for selecting ceramic material. That lets the supplier recommend the right substrate and process instead of guessing from incomplete files.

Gerber or ODB++ fabrication data and drill files.
Mechanical drawing with outline, thickness, holes and tolerance.
Target substrate such as Al2O3, AlN, ZrO2 or Si3N4 if already selected.
Preferred process: DPC, DBC/DCB, AMB, thick film, thin film, LTCC or HTCC.
Conductor thickness, surface finish, pad requirements and critical trace/space.
Thermal, electrical, insulation, bonding or soldering requirements.
BOM, CPL and assembly drawing if PCBA is required.
Quantity, revision, target lead time and test or report requirements.

Common Ceramic PCB Sourcing Risks

The most common ceramic PCB sourcing risk is choosing a supplier before the substrate, process and reliability target are clear. That creates quote revisions, unsuitable material choices, avoidable failures and late production changes.

Do not treat all ceramic PCB processes as interchangeable.
Do not compare DBC pricing with DPC or thin film pricing without scope control.
Do not send only Gerbers when material, thermal and test requirements matter.
Do not assume FR4 design rules apply to ceramic substrates.
Do not accept broad capability claims without process-specific confirmation.

Frequently Asked Questions About Ceramic PCB Manufacturers

What does a ceramic PCB manufacturer do?

A ceramic PCB manufacturer fabricates circuit boards or substrates using ceramic materials such as alumina, aluminum nitride, zirconia or silicon nitride. Depending on the process, the supplier may support DPC, DBC/DCB, AMB, thick film, thin film, LTCC or HTCC ceramic circuits.

Which ceramic PCB process should I choose?

Choose the process based on thermal load, conductor thickness, line precision, substrate material, assembly method and reliability requirement. If unsure, send the application notes and ask the supplier to compare DPC, DBC/DCB, AMB, thick film or thin film options.

Can ceramic PCB support assembly?

Yes, but assembly requirements should be reviewed early. Ceramic substrates, metallization, surface finish and thermal mass can affect soldering, bonding, inspection and test planning. Send BOM and CPL with the fabrication files.

Why is ceramic PCB more expensive than FR4?

Ceramic PCB usually costs more because the substrate, metallization, processing, tolerance control and testing are more specialized. The cost can be justified when thermal, insulation, high-temperature or reliability needs cannot be met by standard FR4.

Final RFQ Recommendation

Before selecting a ceramic PCB manufacturer, define the substrate, process route and application risk clearly enough for a real engineering review. A useful supplier comparison should use the same files, material assumptions, finish, tolerances, testing scope and assembly requirements.

For a ceramic PCB quote, send Gerber or ODB++ files, drill data, mechanical drawings, target substrate, process preference, conductor thickness, surface finish, thermal and insulation requirements, BOM, CPL, assembly drawings, quantity, testing requirements and target lead time to sales@bestpcbs.com. Best Technology / bestpcbs can review the files, confirm which ceramic process needs project-specific checking and help prepare the build as a ceramic substrate, assembled PCBA or production RFQ.

What Does Ceramic PCB High Temperature Resistant Mean?

Ceramic PCB high temperature resistant means the circuit substrate can keep useful electrical insulation, dimensional stability, and mechanical integrity in a hotter environment than many organic PCB materials can tolerate.

Ceramic PCB high temperature resistant substrates with keyword overlay

For PCB buyers, high temperature resistance should not be read as one simple number. A board may survive a short thermal event but still fail in long-term operation because of copper stress, solder joint fatigue, ceramic cracking, metallization adhesion, component limits, or repeated thermal cycling.

A ceramic PCB is usually chosen when the substrate must support both heat transfer and electrical reliability. Alumina, aluminum nitride, silicon nitride, thick film ceramic circuits, DBC ceramic PCB, and other ceramic substrate options each solve a different high temperature problem.

Why Choose Ceramic PCB for High Temperature Applications?

Choose ceramic PCB for high temperature applications when the board must handle heat, insulation, and dimensional stability at the same time.

Standard FR4 PCB works well for many electronic products, but its resin system limits long-term high temperature reliability. High Tg FR4 can improve heat resistance, yet it is still an organic laminate. Ceramic substrates are inorganic, so they can offer stronger temperature stability and lower thermal expansion in harsh environments.

Common high temperature ceramic PCB applications include LED modules, power electronics, semiconductor modules, automotive electronics, industrial sensors, heating control circuits, aerospace electronics, high-voltage insulation circuits, and compact assemblies where heat cannot be removed easily through a standard board stack.

PCB Option	High Temperature Fit	Buyer Note
FR4 PCB	Good for many standard products	Check Tg, Td, operating temperature, and soldering profile
High Tg FR4	Better than standard FR4	Useful when temperature is elevated but not extreme
Metal core PCB	Good heat spreading	Often used for LEDs and power boards, but dielectric layer matters
Ceramic PCB	Strong heat resistance and insulation	Best when heat, voltage, reliability, and size all matter
DBC ceramic PCB	Power module and high current applications	Useful when copper thickness and heat transfer are both important

What Temperature Can a Ceramic PCB Withstand?

A ceramic PCB can often tolerate much higher substrate temperatures than organic PCB laminates, but the real usable temperature depends on material, metallization, assembly, components, solder, coating, and operating time.

It is risky to ask only for “maximum temperature.” For a production design, define the continuous operating temperature, peak temperature, dwell time, temperature cycling range, heating and cooling rate, and whether the board will carry power during the high temperature condition.

EBest Circuit’s ceramic PCB page lists high-temperature resistance as a ceramic PCB process advantage and covers ceramic materials including Al2O3 and AlN. Public technical references also commonly describe ceramic substrates as suitable for high-power and high-reliability applications where FR4 temperature limits are not enough.

How Does Ceramic PCB Thermal Conductivity Affect Heat Dissipation?

Ceramic PCB thermal conductivity affects how quickly heat can move through the substrate from components to a heat sink, chassis, or surrounding structure.

Ceramic PCB material samples for thermal conductivity and CTE review

Thermal conductivity is not the same as temperature resistance. A material can tolerate high temperature but still conduct heat poorly. Alumina ceramic PCB is often cost-effective and stable, while AlN ceramic PCB usually provides much higher thermal conductivity for stronger heat transfer. Silicon nitride may be selected when mechanical strength and thermal cycling reliability are more important.

Material	Thermal Behavior	Typical Decision Logic
Al2O3 / alumina	Moderate ceramic thermal conductivity	Cost-effective choice for many high temperature ceramic PCB projects
AlN	Higher thermal conductivity	Useful for high-power modules and compact heat paths
Si3N4	Good strength and thermal cycling behavior	Consider when mechanical reliability is a major concern
Metal core PCB	Good heat spreading through metal base	Good for many LED and power applications, but not always ceramic-level insulation

For accurate selection, review the full thermal path: component package, solder layer, copper area, ceramic thickness, substrate material, interface material, heat sink, airflow, and mounting pressure.

Why Does Ceramic PCB CTE Matter in High Temperature Design?

Ceramic PCB CTE, or coefficient of thermal expansion, matters because materials expand and contract as temperature changes.

If the ceramic substrate, copper layer, solder joint, component package, and mounting structure expand at very different rates, thermal cycling can create stress. That stress may lead to cracks, delamination, solder fatigue, conductor damage, or loss of electrical reliability.

CTE matching is especially important in power modules, high-temperature sensors, automotive electronics, aerospace electronics, and products exposed to repeated heating and cooling. Buyers should provide the expected temperature cycle, not only the maximum temperature.

Al2O3 vs AlN vs Si3N4: Which Ceramic PCB Material Should You Choose?

The best ceramic PCB material depends on whether the design needs lower cost, higher thermal conductivity, stronger mechanical reliability, or better thermal cycling performance.

Al2O3 is often the first ceramic PCB material to review because it is widely used and cost-effective. AlN is usually selected when the design needs much stronger heat transfer. Si3N4 can be attractive for demanding thermal cycling or mechanical stress conditions, but availability, process route, and cost should be reviewed early.

Material	Strength	Limitation	Best Use
Al2O3 ceramic PCB	Stable, economical, mature	Lower thermal conductivity than AlN	General high temperature ceramic PCB, sensors, LEDs, hybrid circuits
AlN ceramic PCB	High thermal conductivity	Higher cost and stricter processing	High-power modules, compact thermal designs, advanced LEDs
Si3N4 ceramic PCB	Mechanical strength and thermal cycling potential	Cost and process availability need review	Demanding power electronics and reliability-focused applications

Ceramic PCB vs FR4 vs Metal Core PCB for High Temperature Use

Ceramic PCB, FR4, and metal core PCB solve different temperature and heat problems, so the best choice depends on the real operating environment.

FR4 is usually best when cost, multilayer routing, and normal operating temperatures matter most. Metal core PCB is often useful when heat spreading is needed from LEDs or power devices. Ceramic PCB becomes more attractive when the board must combine high temperature stability, insulation, compact size, and reliable heat transfer.

If the circuit has high voltage, high heat flux, repeated thermal cycling, or a small heat path, ceramic PCB should be reviewed before the layout is locked.

Which Ceramic PCB Manufacturing Process Fits High Temperature PCBs?

The manufacturing process should match the temperature, current, line width, copper thickness, and reliability requirement.

Thick film ceramic PCB is useful for hybrid circuits, sensors, and designs that need fired conductor patterns on ceramic. Thin film ceramic PCB supports finer circuit features and precision applications. DBC ceramic PCB is often used where bonded copper, power handling, and heat transfer are important.

Process	Useful For	High Temperature Note
Thick film	Sensors, hybrid circuits, fired conductors	Review conductor paste and firing system
Thin film	Fine lines, precision circuits, compact modules	Useful when pattern accuracy matters
DBC	Power modules and higher current paths	Review copper thickness, ceramic thickness, and thermal cycling
HTCC / LTCC	Multilayer ceramic structures and packages	Use when the design needs ceramic multilayer integration

What Design Checks Help Prevent High Temperature PCB Failure?

High temperature PCB failure is often caused by the whole assembly, not only the ceramic substrate.

Check continuous temperature, peak temperature, and thermal cycling range.
Review CTE compatibility between ceramic, copper, solder, and component packages.
Confirm copper thickness and conductor adhesion for the process.
Check solder alloy, attachment method, and component temperature ratings.
Review ceramic thickness, board outline, holes, slots, and edge stress.
Confirm whether conformal coating, potting, or enclosure materials can survive the same temperature.
Define inspection and reliability testing before production.

For procurement teams, a “high temperature ceramic PCB” quote should include more than Gerber files. It should include application temperature, power dissipation, operating environment, assembly requirements, and reliability expectations.

What Should You Provide for a High Temperature Ceramic PCB Quote?

A complete RFQ helps the manufacturer choose the right ceramic material, process, tolerance, copper structure, and test plan.

High temperature ceramic PCB inspection after thermal testing

Gerber files, drill file, and mechanical drawing.
Preferred ceramic material, such as Al2O3, AlN, or Si3N4.
Operating temperature, peak temperature, and temperature cycle profile.
Power dissipation, current load, and heat source area.
Copper thickness, conductor method, and surface finish.
Minimum line width, spacing, hole size, and tolerance requirements.
Assembly method, component type, solder requirement, and testing needs.
Prototype quantity, mass production estimate, and delivery expectation.

How EBest Circuit Supports High Temperature Ceramic PCB Projects?

EBest Circuit supports ceramic PCB manufacturing and related PCB/PCBA services for customers evaluating high temperature, high thermal conductivity, and high reliability circuit requirements.

Relevant capabilities include ceramic PCB, thick film ceramic PCB, thin film ceramic PCB, DBC ceramic PCB, FR4 PCB, metal core PCB, component sourcing, and PCB assembly. For high temperature ceramic PCB projects, the engineering review should focus on material, thermal conductivity, CTE, copper structure, process route, testing, and assembly compatibility.

If the design is still early, send the working temperature, heat source details, voltage/current requirement, and expected environment. This helps the team suggest whether Al2O3, AlN, Si3N4, DBC, thick film, thin film, FR4, or metal core PCB is the better starting point.

FAQ

Is ceramic PCB good for high temperature?

Yes. Ceramic PCB is often good for high temperature electronics because ceramic substrates provide strong insulation, stable dimensions, and better heat resistance than many organic PCB laminates. The final reliability still depends on copper, solder, components, assembly, and thermal cycling.

What is the best material for high temperature ceramic PCB?

There is no single best material for every high temperature ceramic PCB. Al2O3 is often cost-effective, AlN is useful when high thermal conductivity is needed, and Si3N4 may be considered when mechanical strength and thermal cycling reliability are major concerns.

Is thermal conductivity the same as temperature resistance?

No. Thermal conductivity describes how well heat moves through a material. Temperature resistance describes how well the material and assembly survive heat. A board can tolerate high temperature but still need better heat spreading, or conduct heat well but fail because of CTE stress or assembly limits.

Why is CTE important for ceramic PCB?

CTE matters because ceramic, copper, solder, and components expand at different rates when temperature changes. Poor CTE matching can create mechanical stress, which may cause cracking, delamination, or solder joint fatigue during thermal cycling.

Can FR4 be used for high temperature PCB?

FR4 can be used in many moderate-temperature electronics, and high Tg FR4 can improve thermal margin. For harsher environments, stronger insulation, high heat flux, or repeated thermal cycling, ceramic PCB or another high temperature substrate may be a better fit.

When should I choose metal core PCB instead of ceramic PCB?

Choose metal core PCB when heat spreading through a metal base is enough and the circuit does not require ceramic-level insulation, temperature stability, or CTE behavior. LEDs and some power boards often use metal core PCB, while ceramic PCB fits more demanding thermal and reliability cases.

What affects the cost of high temperature ceramic PCB?

Cost depends on ceramic material, substrate thickness, board size, process type, copper thickness, line width, holes, tolerance, surface finish, inspection, assembly, quantity, and lead time. AlN, fine features, tight tolerances, and special reliability testing usually increase cost.

What files are needed for a high temperature ceramic PCB quote?

Send Gerber files, drill files, drawings, stackup notes, ceramic material preference, operating temperature, thermal cycling profile, current and voltage requirements, copper thickness, surface finish, quantity, and assembly or testing requirements if needed.

Conclusion

A ceramic PCB can solve high temperature PCB problems when the design needs more than ordinary laminate heat resistance. The right choice depends on temperature profile, thermal conductivity, CTE, material type, manufacturing process, copper structure, assembly method, and quality inspection.

If you are evaluating high temperature ceramic PCB, Al2O3 PCB, AlN PCB, DBC ceramic PCB, thick film ceramic PCB, or ceramic PCB assembly, EBest Circuit can review your drawings and help choose a practical manufacturing path. Contact our engineering team for technical support and a quote at sales@bestpcbs.com.

What Are High-Frequency PCB Materials?

High-frequency PCB materials are special circuit board laminates designed for RF, microwave, millimeter-wave, and high-speed signal applications. Compared with standard FR4, they provide lower signal loss, more stable dielectric properties, better impedance control, and stronger frequency performance.

Common high-frequency PCB materials include Rogers PCB materials, PTFE-based laminates, hydrocarbon ceramic laminates, low-loss FR4 alternatives, ceramic-filled materials, and hybrid RF laminates. Rogers PCB materials are widely used because they offer several laminate families for RF, microwave, antenna, radar, 5G, and high-speed applications.

These materials are selected when the PCB must behave as part of the signal path, not only as a mechanical support. In high-frequency circuits, small material changes can affect signal speed, wavelength, resonance, phase delay, impedance, and RF testing results.

Why Are High-Frequency PCB Materials Important?

High-frequency PCB materials are important because signal behavior becomes more sensitive as frequency increases. At higher frequencies, dielectric loss, conductor loss, copper roughness, dielectric thickness variation, and impedance mismatch can all reduce circuit performance.

If the wrong material is selected, the PCB may suffer from high insertion loss, unstable antenna tuning, poor return loss, phase drift, EMI issues, weak RF output, or inconsistent batch performance. These problems may not appear in a simple open-short electrical test, but they can fail during RF testing or real product operation.

For applications such as 5G antennas, radar modules, RF power amplifiers, microwave filters, satellite boards, and high-speed test equipment, high-frequency PCB materials directly affect product reliability, signal quality, and production yield.

How Do High-Frequency PCB Materials Work?

High-frequency PCB materials work by providing a stable dielectric environment for electromagnetic signal transmission. The dielectric layer controls signal propagation, while the copper foil, trace geometry, reference plane, and laminate thickness control impedance and signal loss.

Key material properties include dielectric constant, dissipation factor, dielectric thickness, copper roughness, moisture absorption, thermal conductivity, coefficient of thermal expansion, and dimensional stability. These properties must remain stable across frequency, temperature, humidity, and production batches.

For example, a small shift in dielectric constant may change impedance or antenna resonance. A rough copper surface may increase conductor loss at microwave frequencies. A weak lamination process may create reliability problems in hybrid stack-ups. That is why high-frequency PCB material selection must be connected with both RF design and PCB manufacturing control.

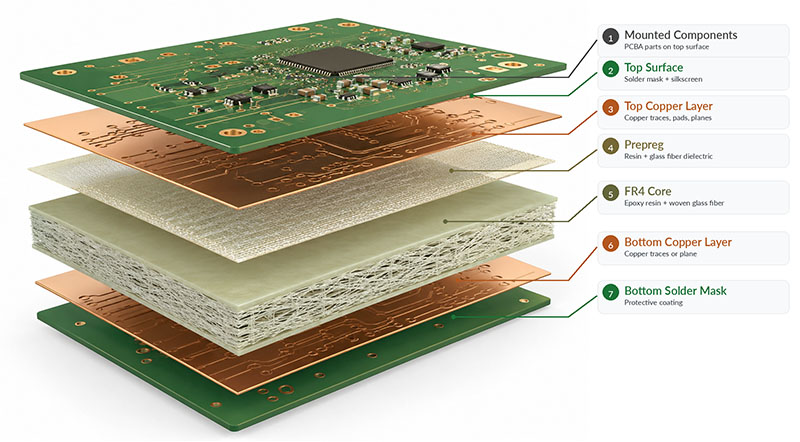

What Is the Structure of a High-Frequency PCB?

A high-frequency PCB usually includes high-frequency laminate, copper foil, bonding material, ground plane, solder mask, surface finish, and sometimes FR4 supporting layers. The exact structure depends on the frequency range, impedance requirement, layer count, thermal load, and assembly method.

Layer / Material	Main Function	Key Selection Points
High-frequency laminate	Provides RF dielectric base	Dk, Df, thickness, stability
Copper foil	Carries RF signals and current	Roughness, thickness, peel strength
Bondply or prepreg	Bonds multilayer structures	Dk match, flow control, lamination reliability
Ground plane	Controls return path and shielding	Copper thickness, spacing, flatness
Solder mask	Protects copper areas	RF impact, adhesion, heat resistance
Surface finish	Supports soldering and contact quality	ENIG, immersion silver, OSP, hard gold

For RF boards, dielectric thickness and copper roughness are especially important. Even small changes in these areas can shift impedance, increase insertion loss, or change resonance behavior.

What Types of High-Frequency PCB Materials Are Common?

High-frequency PCB materials can be grouped by resin system, electrical performance, cost level, and application area. Common types include Rogers PCB materials, PTFE laminates, hydrocarbon ceramic laminates, low-loss FR4 materials, LCP materials, and ceramic PCB materials.

Material Type	Typical Features	Common Applications
Rogers PCB materials	Stable RF performance, multiple laminate families	RF modules, radar, antennas, 5G
PTFE laminates	Very low loss, strong microwave performance	Microwave, satellite, defense
Hydrocarbon ceramic laminates	Good RF performance and manufacturability	Commercial RF, antennas, filters
Low-loss FR4	Lower cost than advanced RF laminates	High-speed digital, moderate frequency
LCP materials	Low moisture absorption, good RF performance	Antenna, flexible RF, compact modules
Ceramic PCB materials	High thermal stability and insulation	RF power, laser, aerospace, medical

The best choice depends on frequency, loss budget, board size, cost target, thermal demand, manufacturing process, and test requirements. Rogers PCB materials are often selected when projects need a practical balance of RF performance and manufacturability.

high-frequency PCB materials types, https://www.bestpcbs.com/blog/2026/06/high-frequency-pcb-materials/

What Are Rogers PCB Materials?

Rogers PCB materials are advanced circuit laminates used for high-frequency, RF, microwave, and high-speed electronic products. They are known for low dielectric loss, stable dielectric constant, controlled thickness, and reliable RF performance.

Common Rogers material families include RO4000 Series, RO3000 Series, RT/duroid materials, TC Series materials, and other high-speed circuit materials. These materials are used in antennas, RF front-end modules, radar boards, satellite communication systems, microwave circuits, and 5G infrastructure.

Rogers PCB materials are not selected only because of the brand name. They are chosen because specific Rogers laminates can provide predictable Dk, low Df, stable impedance behavior, and better RF repeatability compared with standard FR4 materials.

What Are RO4000 Series Materials?

RO4000 Series materials are commonly used in commercial RF and microwave PCB projects. They are often selected when the design needs better RF performance than FR4, but still requires practical processing, reasonable cost, and stable production.

RO4003C, RO4350B, and related Rogers PCB materials are widely used in RF modules, antennas, microwave boards, filters, power amplifiers, and communication systems. They offer a useful balance between electrical performance and manufacturability.

For many RF projects, RO4000 materials are a practical choice because they can support controlled impedance, low loss, stable fabrication, and cost control better than many high-end PTFE-only options.

What Are RO3000 Series Materials?

RO3000 Series materials are ceramic-filled PTFE composites used for more demanding microwave and RF applications. They are often selected when the circuit requires stable dielectric constant, low loss, and good dimensional control.

RO3003, RO3006, RO3010, and related Rogers PCB materials are commonly used in radar systems, microwave circuits, antenna products, multilayer RF designs, 5G modules, and high-frequency test equipment.

These materials are especially useful when a project needs stable electrical behavior across frequency and temperature. For radar and microwave products, this stability can help reduce frequency drift, phase error, and inconsistent RF test results.

What Are RT/duroid Materials?

RT/duroid materials are high-performance Rogers PCB materials used in demanding RF, microwave, aerospace, defense, satellite, and broadband applications. They are often selected when the design requires very low loss, stable signal behavior, and high reliability.

These materials are common in satellite communication boards, radar systems, phased-array antennas, microwave modules, aerospace electronics, and defense-grade RF circuits. They can provide excellent high-frequency performance, but usually require stricter fabrication control.

Compared with more cost-balanced high-frequency PCB materials, RT/duroid laminates may increase material and processing cost. However, they are often justified when the project has strict RF loss, phase stability, or reliability requirements.

What Material Properties Matter Most?

The most important properties of high-frequency PCB materials include Dk, Df, copper roughness, dielectric thickness, thermal conductivity, CTE, moisture absorption, and dimensional stability.

Property	Why It Matters
Dielectric constant	Controls impedance, wavelength, antenna size, and phase
Dissipation factor	Affects dielectric loss and signal efficiency
Copper roughness	Increases conductor loss at higher frequencies
Thickness tolerance	Affects impedance and coupling accuracy
Thermal conductivity	Helps control RF power heat rise
Moisture absorption	Reduces frequency drift in humid environments
CTE	Affects plated hole and lamination reliability
Dimensional stability	Supports registration and repeatable production

A low Df value is important, but it is not the only selection factor. A material can still create problems if thickness tolerance, copper profile, lamination behavior, or fabrication capability is not suitable for the design.

How Do High-Frequency PCB Materials Compare with FR4?

High-frequency PCB materials and FR4 are used for different performance levels. FR4 is suitable for general electronics, control boards, and many digital circuits. High-frequency PCB materials are used when signal loss and dielectric stability become critical.

Comparison Item	High-Frequency PCB Materials	Standard FR4
Signal loss	Lower loss at RF and microwave frequencies	Higher loss at high frequencies
Dk stability	More controlled and stable	Less stable at high frequency
Impedance control	Better for RF and microwave circuits	Suitable for general circuits
Cost	Higher	Lower
Manufacturing difficulty	Requires tighter process control	Easier and widely available
Best use	RF, radar, antenna, microwave, 5G	Control boards, standard electronics
Main risk	Higher cost and process sensitivity	Limited RF performance

FR4 can still work in some lower-frequency or cost-sensitive designs. However, for antennas, RF filters, radar boards, microwave modules, and high-speed communication products, high-frequency PCB materials are usually more reliable.

High-Frequency PCB Materials vs FR4, https://www.bestpcbs.com/blog/2026/06/high-frequency-pcb-materials/

How Do Rogers PCB Materials Compare with Other High-Frequency PCB Materials?

Rogers PCB materials are one category of high-frequency PCB materials. They are often compared with PTFE laminates, low-loss FR4, LCP, and ceramic PCB materials.

Comparison Item	Rogers PCB Materials	Low-Loss FR4	Ceramic PCB Materials
RF performance	Strong and stable	Moderate	Strong in RF and thermal applications
Cost	Medium to high	Lower	Usually higher
Fabrication	Depends on material family	Easier	Specialized process
Thermal behavior	Varies by series	Moderate	Often excellent
Mechanical behavior	Laminate-based PCB process	Similar to FR4	Hard but brittle
Best use	RF, microwave, radar, antenna, 5G	High-speed digital, lower RF demand	RF power, laser, medical, aerospace

Rogers PCB materials are often preferred when the project requires better RF stability than low-loss FR4, but still needs practical PCB fabrication. Ceramic materials may be selected when thermal conductivity, insulation stability, or high-power operation becomes more important.

What Manufacturing Challenges Occur with High-Frequency PCB Materials?

High-frequency PCB materials require tighter manufacturing control than standard FR4. Common challenges include drilling quality, plating reliability, copper adhesion, lamination control, registration accuracy, surface cleanliness, impedance variation, and material handling damage.

PTFE-based materials may require special drilling, plasma treatment, or surface preparation. Hybrid stack-ups using Rogers PCB materials and FR4 also require careful control of CTE mismatch, lamination cycle, material flow, and layer registration.

Small manufacturing variations can create large RF differences. Rough copper, dielectric thickness variation, poor etching, weak plating, or contamination can increase loss and shift impedance.

What Design Rules Matter for High-Frequency PCB Materials?

Design rules for high-frequency PCB materials should focus on electrical behavior, not only routing space. Important rules include controlled impedance, short RF paths, smooth trace transitions, stable ground reference, proper via placement, and clear stack-up definition.

For antenna and microwave circuits, avoid unnecessary stubs, sharp corners, uncontrolled dielectric changes, and inconsistent ground spacing. Trace width, dielectric thickness, copper roughness, and surface finish should be reviewed together.

For hybrid designs, clearly define which layers use Rogers PCB materials and which layers use FR4 or other materials. This helps reduce quotation errors, production confusion, and RF test failure risk.

What Surface Finishes Are Used for High-Frequency PCBs?

Common surface finishes for high-frequency PCBs include ENIG, immersion silver, OSP, immersion tin, and hard gold. The right finish depends on solderability, contact requirements, shelf life, cost, and RF sensitivity.

Surface Finish	Advantages	Common Use
ENIG	Flat surface and good shelf life	RF modules, fine-pitch assembly
Immersion silver	Good conductivity and solderability	RF and microwave circuits
OSP	Thin and cost-effective	Fast assembly projects
Immersion tin	Good flatness	Selected soldering applications
Hard gold	Wear resistance	RF contacts, edge connectors

Surface finish can affect RF performance at microwave and millimeter-wave frequencies. For sensitive circuits, finish thickness, surface roughness, and pad geometry should be reviewed before production.

What Quality Tests Are Needed for High-Frequency PCB Materials?

High-frequency PCB materials require both standard PCB inspection and RF-related verification. Quality tests may include electrical test, impedance test, AOI, X-ray, dimensional inspection, cross-section analysis, solderability testing, thermal stress testing, and RF testing when required.

Test Item	Purpose
Electrical test	Checks open and short circuits
Impedance test	Confirms controlled impedance performance
AOI	Detects trace defects and spacing issues
X-ray inspection	Checks hidden structures and vias
Cross-section	Checks plating, hole wall, and lamination quality
Dimensional inspection	Verifies outline, holes, and registration
Solderability test	Confirms assembly readiness
RF test	Confirms insertion loss, return loss, or antenna performance

A board may pass standard electrical testing but still fail RF performance. For high-frequency projects, impedance control and RF testing are often more meaningful than open-short testing alone.

What Common Problems Happen with High-Frequency PCBs?

Common problems include impedance mismatch, high insertion loss, poor return loss, delamination, drilling defects, plating failure, registration shift, soldering issues, contamination, and unstable RF test results.

Impedance mismatch may come from wrong material data, dielectric thickness variation, inaccurate etching, incorrect copper thickness, or poor stack-up control. High insertion loss may result from high Df material, rough copper, long trace paths, or unsuitable surface finish.

Many failures are caused by incomplete communication before production. The manufacturer should know exact material grade, copper thickness, dielectric thickness, impedance target, surface finish, stack-up, and RF test requirements before manufacturing starts.

How to Choose the Right High-Frequency PCB Materials?

Choosing the right high-frequency PCB materials starts with frequency, signal type, loss budget, power level, impedance target, board size, operating temperature, and product environment.

For cost-sensitive RF designs, RO4000 Series Rogers PCB materials may be practical. For more stable microwave multilayer designs, RO3000 Series materials may be considered. For low-loss aerospace, satellite, broadband, or defense applications, RT/duroid materials may be suitable.

A good selection process should review Dk, Df, thickness tolerance, copper roughness, thermal performance, surface finish, fabrication complexity, material availability, and test requirements together. The best material is the one that meets RF performance and production reliability at the same time.

What Factors Affect the Cost of High-Frequency PCB Materials?

High-frequency PCB cost depends on material grade, laminate thickness, copper thickness, layer count, impedance tolerance, via structure, surface finish, drilling difficulty, testing requirements, and order quantity.

Cost Factor	Why It Affects Price	Cost Control Suggestion
Material grade	Rogers PCB materials and specialty laminates cost more	Match material to real RF demand
Layer count	More layers increase lamination complexity	Keep RF stack-up as simple as possible
Impedance tolerance	Tight tolerance requires more process control	Use realistic tolerance where possible
Copper profile	Low-profile copper may cost more	Use where insertion loss matters
Surface finish	ENIG, silver, or hard gold affects cost	Choose based on RF and assembly needs
RF testing	Special testing adds time and cost	Define required test items early
Quantity	Small batches have higher setup cost	Plan prototype and batch needs together

Choosing a cheaper material may not reduce total cost if the board fails RF testing. Material selection should balance performance, manufacturability, and long-term reliability.

Where Are High-Frequency PCB Materials Commonly Used?

High-frequency PCB materials are used in products that require stable RF, microwave, millimeter-wave, or high-speed signal performance.

5G and wireless communication: antennas, RF front-end boards, base station modules, filters, and power amplifiers.

Automotive electronics: radar modules, ADAS sensors, vehicle communication systems, and high-frequency control units.

Aerospace and defense: radar systems, satellite communication boards, avionics, phased-array systems, and microwave modules.

Industrial electronics: RF sensors, test instruments, measurement equipment, and high-speed control modules.

Medical electronics: RF imaging systems, high-frequency diagnostic equipment, and compact signal modules.

Consumer and IoT products: wireless modules, high-frequency antennas, wearable communication products, and smart devices.

What Should You Confirm Before Ordering High-Frequency PCBs?

Before ordering high-frequency PCBs, confirm material grade, laminate thickness, copper thickness, stack-up, impedance target, surface finish, tolerance, via structure, solder mask requirement, and testing method.

You should provide Gerber files, drill files, stack-up drawings, impedance requirements, RF performance notes, material callouts, quantity, and assembly requirements. If the board uses Rogers PCB materials in a hybrid stack-up, clearly mark which layers use Rogers and which layers use FR4.

For RF projects, prototype validation is strongly recommended before mass production. Testing real boards under working frequency conditions helps confirm whether the selected material, stack-up, and fabrication process match the design goal.

Why Choose EBest for High-Frequency PCB Manufacturing?

EBest Technology provides one-stop PCB solutions, including PCB design, PCB prototype, mass production, component sourcing, PCB assembly, and box-build assembly. Its product range includes standard FR4 PCB, metal-based PCB, ceramic PCB, flexible PCB, rigid-flex PCB, and high frequency PCB, supporting different electronic manufacturing needs.

For high-frequency PCB projects, EBest can support material review, Rogers PCB materials selection, stack-up confirmation, controlled impedance production, prototype validation, batch manufacturing, PCB assembly, and quality inspection. This is useful for RF modules, antennas, communication boards, radar boards, microwave products, and high-speed electronic systems.

EBest also supports quality and compliance systems such as IATF 16949, ISO 9001:2015, ISO 13485:2016, AS9100D, REACH, RoHS, and UL-related requirements. These capabilities help customers manage industrial, automotive, medical, aerospace, and export-oriented high-frequency PCB projects with more confidence.

high frequency PCB, https://www.bestpcbs.com/blog/2026/06/high-frequency-pcb-materials/

FAQs About High-Frequency PCB Materials

Q1: What are high-frequency PCB materials used for?
A1: High-frequency PCB materials are used for RF, microwave, radar, antenna, 5G, satellite, aerospace, and high-speed communication circuits. They help reduce signal loss, control impedance, improve frequency stability, and support more predictable electrical performance than standard FR4.

Q2: Are Rogers PCB materials the same as high-frequency PCB materials?
A2: Rogers PCB materials are one important type of high-frequency PCB materials. They include several laminate families used for RF, microwave, radar, antenna, and high-speed applications, but high-frequency materials can also include PTFE, LCP, low-loss FR4, and ceramic materials.

Q3: Why are high-frequency PCB materials better than FR4 for RF circuits?
A3: High-frequency PCB materials usually provide lower dielectric loss, more stable dielectric constant, better impedance control, and lower signal distortion. FR4 may work for general electronics, but it becomes less predictable at higher RF and microwave frequencies.

Q4: What does Dk mean in high-frequency PCB materials?
A4: Dk means dielectric constant. It affects impedance, wavelength, phase delay, antenna size, and signal propagation speed. In RF design, stable Dk is important because small changes can shift frequency response and reduce product performance.

Q5: What does Df mean in Rogers PCB materials?
A5: Df means dissipation factor. It describes dielectric loss. Lower Df usually means lower signal loss, which is important for RF, microwave, antenna, radar, satellite, and high-speed communication circuits.

Q6: Can Rogers PCB materials be combined with FR4?
A6: Yes. Hybrid stack-ups using Rogers PCB materials and FR4 are common when only certain RF layers need high-frequency performance. However, the stack-up must be carefully designed to manage lamination, CTE mismatch, impedance control, and reliability.

Q7: What causes signal loss in high-frequency PCBs?
A7: Signal loss can come from dielectric loss, copper roughness, impedance mismatch, long RF traces, poor transitions, via discontinuities, surface finish effects, and weak stack-up control. Material selection and fabrication quality both matter.

Q8: What surface finish is best for high-frequency PCBs?
A8: ENIG and immersion silver are commonly used, but the best choice depends on frequency, soldering process, shelf life, contact requirements, and RF sensitivity. For sensitive circuits, surface finish thickness and roughness should be reviewed before production.

Q9: Why are high-frequency PCBs more expensive?
A9: High-frequency PCBs cost more because the materials are more expensive and manufacturing requires tighter process control. Cost may also increase due to controlled impedance, special drilling, hybrid lamination, RF testing, and strict tolerance requirements.

Q10: What files are needed for a high-frequency PCB quotation?
A10: Provide Gerber files, drill files, stack-up, exact material grade, copper thickness, impedance requirements, surface finish, board thickness, tolerance, quantity, drawings, and RF testing requirements. For assembly, also provide BOM and placement files.

Q11: Can high-frequency PCBs support PCB assembly?
A11: Yes. High-frequency PCBs can support SMT assembly and selected through-hole assembly. The assembly process should consider material thermal behavior, soldering profile, surface finish, component layout, and RF-sensitive areas.

Q12: How do I choose between RO4000, RO3000, and RT/duroid materials?
A12: RO4000 materials are often used for cost-effective RF designs. RO3000 materials are suitable for stable microwave and radar applications. RT/duroid materials are often selected for very low-loss, aerospace, satellite, broadband, and defense-grade RF products.

Conclusion

High-frequency PCB materials are selected when a circuit needs low signal loss, stable dielectric performance, controlled impedance, high-frequency reliability, and consistent RF behavior. Rogers PCB materials are widely used because they provide multiple RF laminate options for antennas, radar, microwave circuits, 5G modules, and high-speed communication systems.

For RF and microwave projects, do not choose materials by brand name alone. Review Dk, Df, thickness tolerance, copper profile, impedance target, surface finish, manufacturing capability, and testing requirements before confirming the PCB stack-up.

If you need high-frequency PCB materials, Rogers PCB materials, Rogers PCB manufacturing, high-frequency PCB production, controlled impedance PCB, RF PCB assembly, OEM production, ODM development, sample testing, batch production, or custom engineering solutions, please contact our team at sales@bestpcbs.com for technical support and quotation service.

What Are Flexible PCB Materials?

Flexible PCB materials are the base films, conductive foils, adhesives, coverlays, stiffeners, and surface finishes used to manufacture flexible printed circuits. Unlike rigid FR4 boards, flexible PCBs are designed to support movement, space saving, lightweight structure, and three-dimensional assembly.

The most common flexible PCB material stack includes polyimide film, copper foil, adhesive or adhesiveless laminate, coverlay, solder mask, stiffener, and surface finish. Each material has a different function. The base film provides flexibility and insulation, copper carries signals or power, and coverlay protects the circuit.

For product development, choosing the right flexible PCB materials is not only a material decision. It affects mechanical reliability, electrical stability, manufacturing yield, assembly quality, and final product lifetime.

Why Are Flexible PCB Materials Important?

Flexible PCB materials are important because flexible circuits often work in tight spaces, moving areas, or products with strict size and weight limits. If the wrong material is selected, the circuit may suffer from copper cracking, delamination, poor solderability, insulation failure, short flex life, or unstable signal transmission.

A flexible PCB may look thin and simple, but its reliability depends heavily on the material stack. The base film, copper type, adhesive system, coverlay thickness, stiffener location, and surface finish must match the product’s bending condition and assembly process.

In mass production, material consistency is also critical. A small change in adhesive thickness, copper type, or coverlay opening may affect bend performance, impedance, dimensional accuracy, and component assembly quality.

How Do Flexible PCB Materials Work?

Flexible PCB materials work by combining a flexible insulating substrate with copper conductors and protective layers. The base film supports bending, the copper foil carries electrical current or signals, and the coverlay protects the traces from moisture, abrasion, and short circuits.

When a flexible PCB bends, the material stack experiences mechanical stress. The copper layer is usually the most vulnerable part because repeated bending can cause fatigue. That is why copper type, copper thickness, bend radius, and trace direction are important.

For high-reliability designs, flexible PCB materials must balance flexibility, adhesion, insulation, heat resistance, soldering compatibility, and dimensional stability. A good material stack allows the board to bend without damaging the circuit.

What Is the Structure of a Flexible PCB?

A typical flexible PCB includes base film, copper foil, adhesive or adhesiveless laminate, coverlay, surface finish, and optional stiffeners. The structure may change depending on whether the board is single-sided, double-sided, multilayer, or rigid-flex.

Layer	Main Function	Key Selection Points
Polyimide base film	Supports flexibility and insulation	Thickness, heat resistance, dimensional stability
Copper foil	Carries current and signals	Copper type, thickness, bend life
Adhesive layer	Bonds copper to base film	Flexibility, thermal resistance, bonding strength
Coverlay	Protects copper traces	Thickness, opening accuracy, insulation
Surface finish	Protects exposed pads	Solderability, shelf life, assembly compatibility
Stiffener	Supports component or connector areas	Material, thickness, bonding method

For most flexible circuits, the base film, copper foil, and coverlay determine the core mechanical reliability. Stiffeners are added only where extra support is needed, such as connector zones or component mounting areas.

flexible PCB structure, https://www.bestpcbs.com/blog/2026/06/flexible-pcb-materials/

What Base Films Are Used in Flexible PCB Materials?

The base film is the foundation of a flexible PCB. It provides electrical insulation and mechanical flexibility. The most common base material is polyimide, while polyester and other films may be used in cost-sensitive or special applications.

Base Film	Main Features	Common Use
Polyimide	High heat resistance, excellent flexibility, strong insulation	Most flexible PCB applications
Polyester	Lower cost, good flexibility, lower heat resistance	Simple low-cost circuits
LCP	Low moisture absorption, good high-frequency performance	RF, antenna, high-speed applications
PEN	Better heat resistance than PET, lower than PI	Selected flexible electronics

Polyimide is widely used because it handles soldering heat better and supports stronger long-term reliability. For dynamic bending, compact electronics, and industrial products, polyimide is usually the preferred flexible PCB base material.

What Copper Foils Are Used in Flexible PCB Materials?

Copper foil is the conductive layer of a flexible PCB. It forms traces, pads, ground areas, and signal paths. The two common copper types are rolled annealed copper and electrodeposited copper.

Copper Type	Typical Features	Best Use
Rolled annealed copper	Better ductility and flex fatigue resistance	Dynamic bending and repeated flexing
Electrodeposited copper	Cost-effective and widely available	Static flex or limited bending
Heavy copper	Higher current capacity	Power flexible circuits
Thin copper	Better flexibility and fine traces	Compact and fine-pitch designs

Rolled annealed copper is often selected for applications that require repeated bending because it has better grain structure for flexing. Electrodeposited copper is common in applications where the circuit bends during installation but does not move repeatedly afterward.

What Adhesive Materials Are Used in Flexible PCB Materials?

Adhesive materials bond copper foil to the base film and help build the flexible laminate. Flexible PCBs may use adhesive-based materials or adhesiveless materials depending on reliability, thickness, and thermal requirements.

Material Type	Advantages	Limitations
Adhesive-based laminate	Cost-effective, widely used, good bonding	Thicker stack, lower heat resistance than adhesiveless
Adhesiveless laminate	Thinner, better thermal performance, improved flex life	Higher cost, tighter process control required
Acrylic adhesive	Good flexibility and bonding	May have lower heat resistance
Epoxy adhesive	Good strength and stability	May be less flexible in repeated bending

Adhesiveless flexible PCB materials are often preferred for high-reliability or fine-line circuits because they reduce thickness and improve bend performance. Adhesive-based materials remain practical for many standard applications where cost control matters.

What Coverlay Materials Are Used in Flexible PCBs?

Coverlay is a protective layer used over copper traces on flexible PCBs. It usually consists of polyimide film with adhesive. Coverlay protects the circuit from scratches, moisture, dust, solder bridging, and mechanical damage.

Unlike standard solder mask on rigid PCBs, coverlay is more flexible and better suited for bending areas. It is especially important in circuits that move, fold, or pass through narrow mechanical spaces.

Coverlay Factor	Why It Matters
Coverlay thickness	Affects flexibility and protection
Adhesive thickness	Affects bending and bonding reliability
Opening accuracy	Controls pad exposure and assembly quality
Heat resistance	Supports soldering and long-term operation
Flexibility	Prevents cracking during bending

Coverlay openings must be designed carefully. If openings are too small, soldering may be difficult. If openings are too large, traces may lose protection near pads or bending areas.

What Stiffener Materials Are Used in Flexible PCB Materials?

Stiffeners are added to selected areas of a flexible PCB to provide mechanical support. They are not part of the electrical circuit, but they improve assembly, connector insertion, and component stability.

Common stiffener materials include FR4, polyimide, stainless steel, aluminum, and pressure-sensitive adhesive-backed materials. The choice depends on the required thickness, rigidity, temperature resistance, and assembly method.

Stiffener Material	Common Use
FR4 stiffener	Component mounting, connector support
Polyimide stiffener	Flexible support with better heat resistance
Stainless steel stiffener	Strong mechanical support in thin areas
Aluminum stiffener	Lightweight support and heat spreading
PSA-backed stiffener	Fast bonding for selected applications

Stiffeners should be placed only where needed. A poorly designed stiffener edge can create stress concentration and cause cracking near bending zones.

What Surface Finishes Are Used with Flexible PCB Materials?

Surface finish protects exposed copper pads and supports soldering. Common flexible PCB surface finishes include ENIG, OSP, immersion tin, immersion silver, HASL, and hard gold.

Surface Finish	Main Advantages	Common Use
ENIG	Flat surface, good shelf life, stable soldering	Fine pitch, connectors, reliable assembly
OSP	Thin, economical, good for fast assembly	Cost-sensitive flexible circuits
Immersion tin	Good solderability and flatness	Selected connector and soldering areas
Immersion silver	Good conductivity and solderability	High-performance applications
HASL	Cost-effective	Less common for very thin flex
Hard gold	Wear resistance	Contact fingers and repeated mating areas

ENIG is often used for flexible PCBs because it provides flat pads and reliable solderability. For contact fingers, hard gold may be required to handle repeated insertion or wear.

How Do Flexible PCB Materials Compare with Rigid PCB Materials?

Flexible PCB materials and rigid PCB materials are used for different mechanical needs. Rigid boards provide strong structural support, while flexible materials allow bending, folding, and compact installation.

Comparison Item	Flexible PCB Materials	Rigid PCB Materials
Base material	Polyimide, PET, LCP	FR4, high Tg FR4, ceramic, metal core
Mechanical behavior	Bendable and lightweight	Rigid and stable
Space saving	Excellent	Limited in 3D layouts
Assembly support	May require stiffeners	Strong by default
Cost	Often higher than simple FR4	Lower for standard boards
Best use	Compact, moving, foldable products	Main control boards and structural circuits
Design risk	Bend cracking and delamination	Warpage, cracking, thermal stress

Flexible PCB materials are ideal when the product needs movement or compact packaging. Rigid PCB materials are better when the board must support heavy components, connectors, or mechanical loads.

Flexible PCB Materials vs Rigid PCB Materials, https://www.bestpcbs.com/blog/2026/06/flexible-pcb-materials/

How Do Flexible PCB Materials Compare with Rigid-Flex PCB Materials?

Flexible PCB materials are used in both flexible circuits and rigid-flex boards. The difference is that rigid-flex boards combine flexible sections with rigid PCB sections into one integrated structure.

Comparison Item	Flexible PCB	Rigid-Flex PCB
Structure	Flexible circuit only	Rigid sections plus flexible sections
Assembly	Often needs connectors or stiffeners	Reduces connectors and cables
Cost	Lower than rigid-flex in many cases	Higher manufacturing cost
Reliability	Good when designed correctly	Better for complex compact assemblies
Space use	Very good	Excellent in 3D products
Best use	Simple bending or cable replacement	High-reliability compact electronics

Rigid-flex PCB is usually selected when the product needs fewer connectors, higher assembly reliability, and compact three-dimensional packaging. Flexible PCB is often better when the design needs a simpler bendable circuit at lower cost.

What Bend Radius Should Be Considered for Flexible PCB Materials?

Bend radius is one of the most important factors for flexible PCB material selection. A smaller bend radius creates higher stress on copper traces and coverlay. If the bend radius is too tight, the flexible PCB may crack or delaminate.

The required bend radius depends on copper thickness, number of layers, base film thickness, adhesive type, coverlay thickness, and whether the bend is static or dynamic. Dynamic bending usually requires a larger bend radius and more careful material selection.

For safer design, traces should be routed perpendicular to the bend direction when possible, and copper should be kept away from sharp bend edges. The bend area should be as simple, thin, and stress-free as possible.

What Electrical Properties Should Be Checked?

Flexible PCB materials must provide stable electrical performance while bending or fitting into compact spaces. Important properties include dielectric strength, insulation resistance, impedance control, copper thickness, current capacity, dielectric constant, and moisture resistance.

Electrical Property	Why It Matters
Dielectric strength	Prevents insulation breakdown
Insulation resistance	Reduces leakage current
Copper thickness	Supports current capacity
Dielectric constant	Affects high-speed and RF signals
Impedance control	Supports stable signal transmission
Moisture resistance	Improves reliability in humid environments

For high-speed, RF, or antenna applications, LCP or special low-loss materials may be considered. For standard industrial products, polyimide-based flexible PCB materials are often sufficient.

What Manufacturing Processes Are Used for Flexible PCBs?

Flexible PCB manufacturing includes material cutting, drilling, imaging, etching, coverlay lamination, surface finishing, electrical testing, profiling, stiffener bonding, and final inspection. The process requires careful handling because flexible materials are thin and easily deformed.

Common production steps include laminate preparation, copper patterning, drilling or laser processing, coverlay alignment, lamination, surface finish, outline cutting, electrical test, and packaging.

Manufacturing quality depends on precise control of coverlay openings, dimensional stability, adhesive flow, copper adhesion, and surface cleanliness. Poor process control may cause misalignment, wrinkles, delamination, or poor soldering results.

What Quality Tests Are Needed for Flexible PCB Materials?

Flexible PCB materials should be tested for mechanical, electrical, thermal, and assembly reliability. Quality control should check not only the circuit, but also the flexibility, adhesion, coverlay bonding, and dimensional stability.

Test Item	Purpose
Visual inspection	Checks scratches, stains, coverlay defects, and exposed copper
Electrical test	Confirms open and short performance
Dimensional inspection	Checks outline, hole size, and pad position
Peel strength test	Confirms copper adhesion
Bend test	Evaluates flex performance
Solderability test	Confirms assembly readiness
Thermal stress test	Checks heat resistance
Insulation resistance test	Confirms electrical isolation

For moving applications, bend testing is especially important. Static bend and dynamic bend requirements should be clearly defined before production.

What Common Problems Happen with Flexible PCB Materials?

Common problems include copper cracking, coverlay delamination, adhesive overflow, poor solderability, pad lifting, stiffener misalignment, trace fracture, impedance instability, and insulation failure.

Copper cracking often happens when the bend radius is too small, copper is too thick, or the wrong copper type is used. Delamination may come from weak bonding, moisture, poor lamination, or repeated thermal cycling. Stiffener misalignment can affect connector insertion and assembly accuracy.

Many failures can be avoided by reviewing the material stack early. The design should match bend type, bend radius, copper thickness, coverlay structure, stiffener placement, and assembly temperature.

How to Choose the Right Flexible PCB Materials?

Choosing the right flexible PCB materials starts with the product’s movement and environment. Confirm whether the board will be bent once during installation or flexed repeatedly during use. Then check thickness, copper type, base film, coverlay, stiffener, surface finish, and reliability requirements.

For dynamic bending, choose polyimide, rolled annealed copper, thinner copper, thinner dielectric, and smooth bend routing. For static bending, electrodeposited copper or adhesive-based materials may be suitable if the design is not highly stressed.

For high-temperature, automotive, medical, or industrial products, material selection should also consider thermal cycling, humidity, vibration, soldering process, chemical exposure, and lifetime expectations.

What Factors Affect the Cost of Flexible PCB Materials?

Flexible PCB material cost depends on base film type, copper type, copper thickness, layer count, adhesive type, coverlay thickness, surface finish, stiffeners, tolerance, testing, and order quantity.

Cost Factor	Why It Affects Price	Cost Control Suggestion
Base film	Polyimide and LCP cost more than PET	Match material to real application needs
Copper type	Rolled annealed copper costs more than ED copper	Use RA copper where dynamic bending is required
Layer count	More layers increase lamination complexity	Keep flex areas simple where possible
Adhesiveless laminate	Improves performance but increases cost	Use for high-reliability or thin designs
Surface finish	ENIG and hard gold cost more	Choose by assembly and contact needs
Stiffeners	Add material and bonding steps	Use only where mechanical support is needed
Testing	Bend and reliability tests add cost	Apply critical tests to high-risk applications

A low-cost flexible material may not be cheaper if it causes field failure. Cost control should focus on correct material selection, simplified bend zones, and stable manufacturability.

Where Are Flexible PCB Materials Commonly Used?

Flexible PCB materials are used in products that require lightweight circuits, movement, compact structure, or repeated bending.

Consumer electronics: smartphones, tablets, cameras, wearables, foldable devices, and display modules.

Automotive electronics: sensors, lighting, battery systems, dashboards, cameras, and control modules.

Medical devices: diagnostic equipment, wearable monitors, imaging devices, probes, and compact instruments.

Industrial equipment: sensors, robotic arms, control modules, HMI systems, and moving machine assemblies.

Aerospace and defense electronics: lightweight assemblies, compact modules, and high-reliability interconnects.

Communication products: antennas, RF modules, optical modules, and compact signal interconnects.

What Should You Confirm Before Ordering Flexible PCBs?

Before ordering flexible PCBs, confirm material stack, base film thickness, copper type, copper thickness, coverlay thickness, bend radius, surface finish, stiffener material, tolerance, and testing requirements.

You should also provide Gerber files, drill files, stack-up notes, drawings, bend area requirements, stiffener drawings, BOM if assembly is needed, quantity, and final application details.

For dynamic bending or high-reliability products, prototype validation is recommended before mass production. Testing under real bending, temperature, and assembly conditions helps reduce batch risk.

Why Choose EBest for Flexible PCB Manufacturing?

EBest Technology provides one-stop PCB solutions, including PCB design, PCB prototype, mass production, component sourcing, PCB assembly, and box-build assembly. Its product range includes standard FR4 PCB, multilayer PCB, metal-based PCB, ceramic PCB, flexible PCB, rigid-flex PCB, and high frequency PCB, supporting customers with different electronic manufacturing needs.

For flexible PCB projects, EBest can support material selection, stack-up review, prototype validation, batch production, assembly coordination, and quality inspection. This is useful when a project involves compact routing, connector areas, stiffeners, bend zones, and final product assembly.

flexible PCB, https://www.bestpcbs.com/blog/2026/06/flexible-pcb-materials/

FAQs About Flexible PCB Materials

Q1: What are flexible PCB materials made of?
A1: Flexible PCB materials usually include polyimide base film, copper foil, adhesive or adhesiveless bonding layers, coverlay, surface finish, and optional stiffeners. These materials work together to provide flexibility, insulation, electrical connection, mechanical support, and circuit protection.

Q2: What is the most common flexible PCB base material?
A2: Polyimide is the most common base material because it offers excellent heat resistance, strong insulation, good flexibility, and stable long-term performance. It is widely used in consumer electronics, automotive systems, medical devices, and industrial electronics.

Q3: What copper type is best for flexible PCB materials?
A3: Rolled annealed copper is often better for dynamic bending because it has stronger flex fatigue resistance. Electrodeposited copper is more cost-effective and suitable for static flex or applications where the board bends only during installation.

Q4: What is the difference between coverlay and solder mask?
A4: Coverlay is a flexible protective film, usually made from polyimide and adhesive. It is better for bending areas. Solder mask is more common on rigid PCBs and may not provide the same flexibility for repeated bending applications.

Q5: Are adhesiveless flexible PCB materials better?
A5: Adhesiveless materials can provide thinner structure, better thermal performance, improved dimensional stability, and better flex life. They are often used for high-reliability, fine-line, or dynamic bending applications, but they usually cost more.

Q6: How do I choose flexible PCB material thickness?
A6: Material thickness depends on bend radius, layer count, current load, mechanical space, and assembly needs. Thinner materials generally bend better, while thicker materials may provide stronger support but increase bending stress.

Q7: What causes copper cracking in flexible PCBs?
A7: Copper cracking may happen when the bend radius is too small, copper is too thick, the wrong copper type is used, or traces are placed poorly in the bend area. Proper material selection and bend design help prevent this issue.

Q8: Can flexible PCB materials support high-speed signals?
A8: Yes. Flexible PCBs can support high-speed signals when material dielectric properties, impedance control, copper roughness, trace geometry, and stack-up are properly designed. LCP or low-loss materials may be used for demanding RF applications.

Q9: Why are stiffeners used in flexible PCBs?
A9: Stiffeners provide mechanical support in selected areas, such as connectors, soldering zones, and component mounting locations. They help improve assembly stability but should not be placed in active bending zones unless carefully designed.

Q10: What surface finish is best for flexible PCBs?
A10: ENIG is commonly selected because it provides flat pads, good shelf life, and reliable soldering. OSP may be used for cost-sensitive and fast assembly projects, while hard gold is used for contact fingers or wear-resistant areas.

Q11: Are flexible PCB materials suitable for medical devices?
A11: Yes. Flexible PCB materials are widely used in medical devices because they support compact size, lightweight structure, and flexible interconnection. Material selection should consider reliability, cleanliness, insulation, biocompatible packaging, and long-term operating conditions.

Q12: What files are needed for a flexible PCB quotation?
A12: Provide Gerber files, drill files, stack-up requirements, copper thickness, base material, coverlay information, stiffener drawing, surface finish, quantity, bend radius requirements, and application details. For assembly, also provide BOM and placement files.

Conclusion

Flexible PCB materials determine how well a circuit can handle bending, insulation, soldering, current, thermal stress, dimensional control, and long-term reliability. The right material stack should be selected based on the real bending condition, operating environment, assembly process, and product lifetime target.

For product development, do not choose flexible PCB materials only by price or thickness. Review base film, copper type, adhesive system, coverlay, stiffener placement, surface finish, bend radius, and testing requirements before confirming the stack-up. For procurement, work with a manufacturer that can support prototype review, batch consistency, quality inspection, assembly coordination, and reliable delivery.

If you need flexible PCB materials, flexible PCB manufacturing, PCB assembly, OEM production, ODM development, sample testing, batch production, or custom engineering solutions, please contact our team at sales@bestpcbs.com for technical support and quotation service.

What Are High-Tg PCB Materials?

High-Tg PCB materials are PCB laminates with a higher glass transition temperature than standard FR4 materials. Tg means “glass transition temperature.” It refers to the temperature range where the resin system changes from a rigid glass-like state to a softer rubber-like state.

In PCB manufacturing, Tg is important because the board does not immediately fail when it reaches this temperature range. Instead, its mechanical behavior changes. Above Tg, the laminate expands faster, especially in the Z-axis direction. This can stress plated through holes, vias, copper barrels, inner-layer connections, and solder joints.

Standard FR4 material often has a Tg of around 130–140°C. High-Tg FR4 usually refers to materials with a Tg of around 170°C or higher. Some advanced laminate systems may reach 180°C, 200°C, or above, depending on resin chemistry and application requirements.

In simple terms, high-Tg PCB materials are base materials designed to maintain better mechanical and thermal stability when exposed to higher processing or operating temperatures.

Why Are High-Tg PCB Materials Important?

High-Tg PCB materials are important because modern PCB assemblies often experience more heat than older electronic products. Lead-free soldering requires higher reflow temperatures. Compact electronic designs place more components into smaller spaces. Power devices, LEDs, motor drivers, battery systems, and RF modules all create localized thermal stress.

When a PCB material has an insufficient Tg rating, the board may show warpage, delamination, pad lifting, barrel cracking, or degraded electrical performance after soldering or long-term use. These issues are especially costly in automotive electronics, industrial control, medical devices, aerospace modules, energy systems, and communication equipment.

High-Tg materials help improve:

Performance Area	Why It Matters
Thermal Stability	Reduces deformation during reflow and operation
Via Reliability	Helps protect plated through holes under thermal cycling
Dimensional Control	Supports tighter registration in multilayer boards
Delamination Resistance	Improves laminate integrity during heat exposure
Long-Term Durability	Supports products used in harsh or high-duty environments
Assembly Yield	Reduces process risk during lead-free soldering

For high-reliability PCBs, Tg is usually reviewed together with decomposition temperature, CTE, copper thickness, layer count, board thickness, soldering profile, and operating temperature.

How Do High-Tg PCB Materials Work Under Heat?

High-Tg PCB materials work by using resin systems that remain mechanically stable at higher temperatures. The resin, glass fiber, copper foil, and curing system must work together to resist expansion, softening, moisture stress, and thermal fatigue.

Before the laminate reaches Tg, the board stays relatively rigid. Once the temperature passes Tg, the resin becomes more flexible and its expansion rate increases. This expansion is especially important in the Z-axis direction because vias and plated through holes pass vertically through the board.

If Z-axis expansion becomes excessive, copper barrels can stretch. Repeated heating and cooling may create micro-cracks. In multilayer boards, inner-layer connections may also become vulnerable if material selection, drilling, plating, and lamination are not well controlled.

High-Tg materials help reduce this risk by keeping the resin system more stable at elevated temperatures. They do not make the PCB immune to heat, but they provide a wider process and reliability margin.

Tg is not the same as maximum operating temperature. It is one important thermal property used to evaluate how a PCB laminate behaves under heat.

Common Types of High-Tg PCB Materials

High-Tg PCB materials are available in different material families. The right choice depends on electrical performance, thermal load, mechanical requirements, cost target, and application environment.

Material Type	Typical Tg Range	Common Use
High-Tg FR4	170–180°C	Industrial, automotive, medical, and multilayer PCBs
Halogen-Free High-Tg FR4	170–180°C	Products requiring environmental compliance
High-Performance FR4	180°C+	Dense multilayer, lead-free assembly, and high-reliability electronics
Polyimide	250°C+ depending on grade	Aerospace, high-temperature, flex, and rigid-flex designs
Rogers / High-Frequency Laminate	Varies by material	RF, microwave, antenna, radar, and communication modules
Metal-Core PCB Material	Depends on dielectric system	LED lighting, power electronics, and thermal management
Ceramic PCB Material	Very high thermal stability	Power modules, high-power LED, laser, sensor, and RF applications

For most rigid PCB projects, high-Tg FR4 is the practical first choice. It offers better thermal endurance than standard FR4 while keeping fabrication cost and process compatibility under control.

For extreme temperature, RF performance, or high thermal conductivity, engineers may need polyimide, Rogers, metal-core, or ceramic substrates instead of high-Tg FR4.

High-Tg FR4 vs Standard FR4 vs Advanced PCB Materials

Not every product needs high-Tg material. Standard FR4 remains suitable for many consumer, low-power, and moderate-temperature applications. The decision should be based on actual design risk, not only on the desire to use a “better” material.

Material	Main Strength	Limitation	Best Fit
Standard FR4	Cost-effective and widely available	Lower thermal margin	General electronics
High-Tg FR4	Better thermal stability and assembly reliability	Higher cost than standard FR4	Multilayer, automotive, industrial, and medical PCBs
Polyimide	Excellent high-temperature resistance	More expensive and process-sensitive	Aerospace, high-temperature, flex, and rigid-flex designs
Rogers Laminate	Stable dielectric performance	Higher material and process cost	RF, antenna, and microwave circuits
Aluminum PCB	Good heat spreading	Limited routing structure	LED and power modules
Ceramic PCB	High thermal conductivity and stability	Higher cost and specialized processing	High-power, high-frequency, and high-reliability modules

A common engineering mistake is selecting high-Tg FR4 when the real issue is heat dissipation. Tg improves thermal stability, but it does not replace thermal design. If the circuit generates significant heat, copper weight, thermal vias, copper planes, metal-core materials, or ceramic substrates may also be required.

Key Properties Engineers Should Check

Tg is important, but it should not be checked alone. A laminate with a high Tg value can still perform poorly if other thermal or electrical properties do not match the design.

Glass Transition Temperature

Tg indicates when the resin system begins to change mechanical behavior. A higher Tg gives the board a wider thermal process margin, especially for lead-free soldering and high-temperature operation.

CTE

CTE means coefficient of thermal expansion. Z-axis CTE is critical because plated holes and vias are exposed to vertical expansion stress. Lower and more stable CTE helps improve via reliability.

Td means decomposition temperature. It indicates when the resin begins to chemically degrade. A material with good Tg but low Td may still be risky during multiple reflow cycles or harsh processing.

T288

T288 measures how long a laminate can withstand 288°C before delamination under test conditions. It is useful for evaluating resistance to lead-free assembly temperatures.

CAF Resistance

CAF means conductive anodic filament. It is an electrochemical failure path that can occur inside the laminate under voltage, humidity, and contamination. CAF resistance matters for dense designs, fine spacing, and high-reliability electronics.

Dielectric Constant and Loss Tangent

For impedance-controlled, RF, and high-speed circuits, Dk and Df stability must be reviewed. High Tg alone does not guarantee signal integrity.

Moisture Absorption

Moisture trapped inside the laminate can expand during soldering and increase the risk of delamination or blistering. Low moisture absorption supports better assembly reliability.

When Should You Use High-Tg PCB Materials?

High-Tg PCB materials are recommended when the PCB will face higher thermal stress during production, operation, or field use. They are also suitable when product reliability is more important than the lowest possible board cost.

You should consider high-Tg material when the PCB has:

Project Condition	Why High-Tg Material Helps
Lead-Free Reflow	Higher peak temperature increases laminate stress
Multilayer Stackup	More lamination pressure and thermal expansion risk
Thick Board Design	Higher Z-axis stress around plated holes
High Copper Weight	More thermal mass and process stress
Fine-Pitch Components	Better dimensional stability supports assembly accuracy
Automotive Temperature Cycling	Improves long-term mechanical reliability
Power Electronics	Supports higher thermal exposure around power areas
Industrial Equipment	Improves durability under continuous operation
Medical Electronics	Supports stable production and documentation control
Aerospace or UAV Electronics	Helps withstand demanding reliability conditions

High-Tg material is especially valuable when a PCB must pass repeated thermal cycles, multiple soldering processes, rework exposure, or long operating life requirements.

Where Are High-Tg PCB Materials Used?

High-Tg PCB materials are widely used in industries where heat, reliability, traceability, and stable production matter.

Automotive Electronics

Automotive boards often face temperature cycling, vibration, high current, and long service life requirements. High-Tg FR4 is commonly used in control modules, lighting systems, battery management, sensors, radar support boards, and power control circuits.

Industrial Control

Industrial PCBs may operate continuously in cabinets, motor systems, power supplies, PLC modules, and automation equipment. High-Tg materials help maintain stable performance in warmer operating environments.

Medical Electronics

Medical PCB projects often require controlled quality, reliable soldering, traceability, and consistent production documentation. High-Tg material can support stable assembly for diagnostic equipment, monitoring modules, and medical control systems.

Communication and RF Support Systems

Not all communication boards require RF laminates throughout the entire design. Some products use high-Tg FR4 for digital, power, or control sections while reserving special materials for RF layers or antenna areas.

LED and Power Electronics

High-power LED and power boards generate localized heat. High-Tg FR4 can help in moderate thermal designs, while aluminum, copper substrate, or ceramic PCB may be selected when heat dissipation becomes the primary requirement.

Aerospace and UAV Electronics

For UAVs, avionics support modules, and high-reliability control circuits, high-Tg materials support improved thermal cycling resistance and dimensional stability during fabrication.

Design Considerations for High-Tg PCB Materials

Good material selection must be supported by good PCB design. A high-Tg laminate cannot compensate for weak stackup planning, poor copper balance, insufficient thermal paths, or unsuitable via structure.

Control the Stackup Early

Material type, copper thickness, prepreg selection, dielectric thickness, impedance requirement, and lamination cycle should be reviewed before layout is finalized. Late changes can affect impedance, board thickness, delivery time, and cost.

Balance Copper Distribution

Uneven copper distribution can cause bow and twist during lamination and reflow. For multilayer boards, copper balance between layers helps improve dimensional stability and manufacturing yield.

Review Via Structure

High aspect-ratio vias need careful drilling, desmear, plating, and thermal reliability control. For high-reliability boards, via size, annular ring, plating thickness, and thermal cycling requirements should be reviewed together.

Plan Heat Dissipation

High-Tg material improves heat resistance, but heat still needs a path to leave the board. Copper pours, thermal vias, heat sinks, metal substrates, and component placement must be considered.

Check the Soldering Profile

Multiple reflow cycles, selective soldering, wave soldering, or rework can increase material stress. The material should match the actual assembly process, not only the final product environment.

Manufacturing Challenges and Factory Control Points

High-Tg PCB materials require controlled fabrication because material stiffness, resin behavior, drilling response, and lamination conditions may differ from standard FR4.

Lamination Control

High-Tg laminates may need specific lamination temperature, pressure, and cure control. Incorrect lamination can lead to voids, weak bonding, thickness deviation, or delamination risk.

Drilling Quality

The drilling process affects hole wall quality and later plating reliability. High-Tg materials may be harder or more abrasive, so drill bit condition, feed rate, spindle speed, and hole cleaning must be managed.

Desmear and Plating

After drilling, resin smear must be removed before copper plating. Poor desmear can create weak via connections. Plating thickness and uniformity are critical for boards exposed to thermal cycling.

Solder Mask and Surface Finish

ENIG, OSP, HASL, immersion silver, and other finishes should be selected according to assembly process, shelf life, solderability, fine-pitch components, and application environment.

Final Inspection

AOI, electrical testing, impedance testing, microsection analysis, solderability checks, and dimensional inspection help verify that the board meets production requirements.

Common Failure Modes Related to Material Selection

Material-related failures often appear after assembly or during field operation. Many of them can be reduced by choosing the correct laminate and controlling the manufacturing process.

Failure Mode	Possible Cause	Prevention Method
Delamination	Excessive heat, moisture, or poor lamination	Use a laminate with suitable Tg and Td values, bake when required, and control lamination
Barrel Crack	Z-axis expansion and thermal cycling	Check CTE, plating thickness, and via aspect ratio
Pad Lifting	High soldering stress or weak bonding	Select proper material and optimize the reflow profile
Bow and Twist	Copper imbalance or poor stackup	Improve copper distribution and lamination control
CAF Failure	Humidity, voltage, spacing, or contamination	Use CAF-resistant material and clean process control
Impedance Drift	Unstable dielectric or thickness variation	Control stackup, material Dk, and process tolerance
Blistering	Moisture absorption or trapped volatiles	Bake when needed and apply suitable storage control

A practical failure review should not stop at the material name. It should check laminate batch, storage, drilling quality, plating, soldering profile, moisture control, and field operating conditions.

What Affects the Cost of High-Tg PCB Materials?

High-Tg PCB materials cost more than standard FR4 because the resin system, laminate manufacturing process, and PCB fabrication controls are more demanding. However, the final PCB price depends on more than Tg alone.

Main cost factors include:

Cost Factor	Impact on Price
Tg Grade	Higher Tg materials generally cost more
Laminate Brand	Premium brands may increase material cost
Layer Count	More layers require more prepreg, copper, and lamination steps
Board Thickness	Thick boards may require longer drilling and plating control
Copper Weight	Heavy copper increases material and processing cost
Surface Finish	ENIG usually costs more than OSP or HASL
Impedance Control	Requires stackup control and testing
Tight Tolerance	Increases process control and inspection requirements
Test Requirements	Microsection, thermal stress, impedance, and reliability tests add cost
Order Volume	Larger batches usually reduce unit cost

For cost control, do not automatically choose the highest Tg grade. A well-matched 170°C high-Tg FR4 may be more practical than a more expensive laminate if the application does not require extreme thermal performance.

How to Choose the Right High-Tg PCB Material

Choosing the right high-Tg PCB material starts with understanding the product’s real operating and assembly conditions. The best material is not always the highest-priced material. It is the material that fits the design, process, reliability target, and budget.

A practical selection process includes:

Confirm the operating temperature range.
Check whether the assembly uses lead-free reflow.
Review layer count, board thickness, copper weight, and via aspect ratio.
Confirm whether impedance control is required.
Check thermal cycling or reliability test requirements.
Review environmental requirements such as RoHS, REACH, UL, or halogen-free needs.
Compare Tg, Td, CTE, T288, Dk, Df, and CAF resistance.
Confirm material availability before mass production.
Ask the factory to review stackup and manufacturability.
Keep the selected material consistent between prototype and production.

For regulated or long-life products, material consistency is important. Switching laminate brands without engineering review may affect impedance, thermal reliability, and production repeatability.

Quality Standards and Testing Methods for High-Tg PCBs

High-Tg PCB quality should be verified through material control, process inspection, and final testing. A certificate alone is not enough. The factory should show how the material is controlled during real production.

Common quality control points include:

Quality Item	Purpose
Material Certificate Review	Confirms laminate grade and supplier information
Incoming Material Inspection	Checks thickness, copper foil, and material condition
Stackup Verification	Confirms dielectric thickness and copper structure
AOI	Detects inner and outer layer circuit defects
Electrical Test	Confirms open and short circuit performance
Impedance Test	Verifies controlled impedance design
Microsection	Checks hole wall, plating thickness, and layer bonding
Thermal Stress Test	Evaluates resistance to soldering heat
Solderability Test	Confirms surface finish performance
Final Visual Inspection	Checks workmanship and dimensional quality

For high-reliability projects, IPC workmanship and performance standards are often referenced. Buyers should also define acceptance criteria clearly before production, especially for via plating, solder mask, warpage, impedance tolerance, and surface finish.

Regional Procurement Considerations for Global Buyers

Global buyers often source high-Tg PCBs from China because of mature supply chains, laminate availability, engineering support, and production flexibility. However, overseas procurement should be handled with clear technical documentation and quality expectations.

For North American buyers, reliability, UL material recognition, IPC workmanship, long-term supply stability, and engineering communication are often key concerns.

For European buyers, RoHS, REACH, documentation control, material traceability, and environmental compliance are commonly reviewed before approval.

For Southeast Asian and emerging manufacturing markets, lead time, cost control, small-to-medium batch flexibility, and stable repeat orders are often important.

A reliable China PCB manufacturer should not pretend to be local in every market. The stronger approach is to provide transparent factory capability, compliant documentation, export experience, engineering review, and stable global delivery.

How to Choose a High-Tg PCB Manufacturer

A capable high-Tg PCB manufacturer should understand both material behavior and production control. Buyers should not only ask whether the supplier can purchase high-Tg laminate. They should ask how the supplier controls stackup, drilling, lamination, plating, solder mask, inspection, and traceability.

Before placing an order, check whether the manufacturer can provide:

Supplier Capability	Why It Matters
DFM Review	Finds material, stackup, via, and spacing risks before production
Laminate Brand Options	Helps balance performance, cost, and availability
Controlled Lamination	Reduces delamination and thickness variation
Drilling and Plating Control	Improves via reliability
Impedance Control	Supports high-speed and RF-related designs
AOI and Electrical Testing	Improves defect detection
Microsection Capability	Verifies hole wall and layer quality
PCBA Support	Ensures PCB material matches the assembly process
Traceability	Supports regulated and long-life products
Engineering Communication	Reduces misunderstanding before mass production

For high-Tg PCB projects, the best supplier is usually not the cheapest quotation. It is the manufacturer that can identify production risks before the board enters fabrication.

FAQ About High-Tg PCB Materials

What does high-Tg mean in PCB materials?
High-Tg means the PCB laminate has a higher glass transition temperature than standard FR4. It remains more stable when exposed to heat from soldering, operation, or thermal cycling. In PCB manufacturing, high-Tg usually refers to FR4 materials with a Tg of around 170°C or higher.

Is high-Tg PCB material always better than standard FR4?
High-Tg material offers better thermal stability, but it is not always necessary. Standard FR4 is still suitable for many low-power and moderate-temperature products. High-Tg is a better choice when the board has a higher layer count, lead-free assembly, high operating temperature, or strict reliability requirements.

What is the typical Tg value of high-Tg FR4?
High-Tg FR4 commonly has a Tg value of around 170–180°C. Some advanced grades may reach 200°C or higher. The exact value depends on laminate brand, resin system, and test method. Engineers should review the material datasheet instead of relying only on a general category name.

Does high-Tg material improve heat dissipation?
High-Tg material improves thermal stability, but it does not significantly increase heat dissipation by itself. If the design generates high heat, engineers should also consider copper thickness, thermal vias, copper planes, heat sinks, metal-core substrates, or ceramic PCB materials.

When should I choose high-Tg FR4?
Choose high-Tg FR4 when the PCB must withstand lead-free reflow, multiple soldering cycles, high layer count, automotive temperature cycling, industrial operation, or long-term reliability requirements. It is also recommended when via reliability and dimensional stability are important to the product.

What is the difference between Tg and Td?
Tg is the temperature range where the resin changes mechanical behavior. Td is the decomposition temperature where the resin begins to chemically degrade. A good PCB material should have suitable Tg and Td values for the assembly process and application environment.

Can high-Tg PCB materials prevent delamination?
High-Tg materials can reduce delamination risk, but they do not eliminate it alone. Proper lamination, moisture control, drilling, desmear, plating, soldering profile, and storage conditions are also important. Delamination prevention requires both correct material selection and stable process control.

Are high-Tg PCB materials needed for multilayer boards?
Many multilayer boards benefit from high-Tg material because they experience more lamination stress, drilling complexity, and Z-axis expansion risk. For dense multilayer, thick boards, or boards with high aspect-ratio vias, high-Tg FR4 is often a practical reliability upgrade.

Does high-Tg affect controlled impedance?
High-Tg itself does not guarantee impedance performance. Controlled impedance depends on dielectric thickness, copper thickness, trace width, Dk value, resin content, and process tolerance. However, stable material selection helps improve repeatability in high-speed PCB production.

Is high-Tg PCB material suitable for automotive electronics?
Yes. High-Tg FR4 is commonly used in automotive electronics because these products may face temperature cycling, vibration, lead-free assembly, and long service life requirements. The final material choice should match the automotive module’s thermal and reliability conditions.

What files are needed for a high-Tg PCB quotation?
A supplier usually needs Gerber files, drill files, stackup requirements, material Tg requirement, board thickness, copper thickness, surface finish, solder mask color, impedance data, quantity, IPC class, and special testing requirements. For assembly, BOM and pick-and-place files are also needed.

How can buyers reduce high-Tg PCB costs?
Buyers can reduce costs by selecting the right Tg level, avoiding unnecessary over-specification, confirming material availability early, using practical tolerances, standardizing stackup, and keeping prototype and production material consistent. A DFM review can also prevent costly redesign or production delays.

Conclusion

High-Tg PCB materials are an important choice when a PCB must handle higher soldering temperature, continuous thermal exposure, multilayer complexity, or long-term reliability requirements. The main value is not only a higher Tg number, but also better dimensional stability, improved via reliability, stronger delamination resistance, and a wider manufacturing process margin.

For most projects, high-Tg FR4 is a balanced option for industrial, automotive, medical, communication, power, and high-reliability electronics. For extreme heat dissipation, RF stability, or special electrical performance, engineers may need metal-core, ceramic, Rogers, or polyimide materials instead.

When selecting a supplier, focus on material control, DFM support, stackup engineering, lamination process, drilling and plating quality, testing capability, and traceability. A well-reviewed material choice can reduce production risk before the first board enters fabrication.

If you are looking for reliable OEM manufacturing, ODM production, sample development, mass production, or custom engineering solutions, please contact our engineering team for technical support and a quotation.

What Is a Copper Clad Circuit Board?

A copper clad circuit board is made by bonding copper foil to an insulating base material. The base material can be FR4, paper based material, CEM material, polyimide, metal base material, or another special laminate.

The copper layer is used to form the circuit. The base material supports the board and provides insulation. Therefore, both copper and substrate quality matter.

A simple copper clad board usually includes two main parts:

Part	Function
Copper Foil	Forms traces, pads, and circuit patterns
Base Material	Provides support, insulation, heat resistance, and board strength

In PCB production, the board goes through several steps. For example, it may need drilling, imaging, etching, plating, solder mask, surface finish, and inspection. After these processes, the copper clad material becomes a finished printed circuit board.

What Is a Copper Clad Printed Circuit Board Used For?

A copper clad printed circuit board is used in many electronic products. It provides the base for electrical connection and component mounting. Also, it helps carry signals or current between components.

Common applications include:

Consumer electronics
Industrial control boards
LED lighting products
Communication devices
Automotive electronics
Power supply modules
Medical electronics
Test instruments
IoT devices

For simple products, a single sided board may be enough. However, more complex products often need double sided or multilayer PCB structures. This is because they need more routing space and better layout flexibility.

Therefore, the best board type depends on the circuit design. It also depends on current load, signal speed, working temperature, product size, and cost target.

Copper Clad Laminate Circuit Boards: What Material Options Are Available?

Copper clad laminate circuit boards can be made with different materials. Each material has its own purpose. So, buyers should not choose only by price or appearance.

Here are some common material options:

Material Type	Common Use
Paper Based CCL	Simple and low cost electronics
FR4 Glass Fiber CCL	General PCB manufacturing
CEM Material CCL	Cost sensitive products with better strength than paper material
High Tg FR4 CCL	Boards that need better heat resistance
Low Loss CCL	High speed or high frequency circuits
Metal Based CCL	LED, power, and heat dissipation applications
Flexible CCL	Flexible PCB and compact electronic products

Among these options, FR4 is one of the most common choices. It offers good strength, insulation, process stability, and cost balance. Because of this, it is widely used in standard PCB production.

However, some projects need special materials. For example, LED boards may need better heat transfer. High speed boards may need lower signal loss. In these cases, material selection should be reviewed before production.

What Copper Clad Circuit Board Material Should You Choose?

The right copper clad circuit board material should match the product’s real working conditions. Before choosing the material, engineers should first check heat, current, signal speed, soldering temperature, board thickness, and final use environment.

A simple selection logic is:

Design Need	Suggested Material Direction	Key Reason
General control circuit	Standard FR4 copper clad board	Balanced cost, strength, and insulation
Lead free soldering or higher heat	High Tg FR4	Better thermal stability
LED or power product	Metal core PCB or copper core PCB	Better heat transfer
High current circuit	Heavy copper PCB	Better current carrying capacity
High speed or RF signal	Low loss laminate	Lower signal loss and stable impedance
Compact multilayer design	Stable FR4 or special laminate	Better layer alignment and process control

For heat sensitive products, material selection should not rely on guesswork.

Engineers can use a simple thermal estimate:

ΔT = P × Rθ

In this formula, ΔT is temperature rise, P is power loss, and Rθ is thermal resistance. If power loss is high, the board needs a better thermal path.

Thermal resistance can also be estimated by:

Rθ = t / (k × A)

Here, t is dielectric thickness, k is thermal conductivity, and A is heat transfer area. So, a thinner dielectric layer, higher thermal conductivity, or larger heat spreading area can help reduce temperature rise.

This is why standard FR4 is suitable for many control boards, but it may not be the best choice for LED lighting, automotive lighting, power modules, or high current products. In those cases, metal core PCB, copper core PCB, or heavy copper PCB may be more suitable.

For high speed or RF designs, the key points are different. Engineers should focus on Dk, Df, impedance control, copper roughness, stackup thickness, and material stability. These factors can affect signal loss and transmission quality.

At EBest, we review copper clad circuit board material together with the actual PCB design. Our engineering team can check copper thickness, board thickness, Tg value, thermal path, dielectric layer, surface finish, and assembly process before production. This helps customers choose a material that fits both performance and manufacturing needs.

Instead of only producing boards according to files, EBest can provide DFM review, material suggestions, PCB fabrication, component sourcing, PCBA assembly, and testing. This is especially useful when customers are not sure whether to use FR4, high Tg FR4, metal core PCB, copper core PCB, heavy copper PCB, or low loss laminate.

FR4 Copper Clad Circuit Board: When Is It the Right Choice?

An FR4 copper clad circuit board is suitable for many standard PCB projects. FR4 is made from glass fiber cloth and epoxy resin. It offers good strength and electrical insulation.

FR4 is commonly used in:

Industrial control PCB
Consumer electronics PCB
Communication device PCB
Power supply PCB
Automotive auxiliary electronics
Instrument control boards
General multilayer PCB designs

FR4 is a good choice when the project needs stable quality and reasonable cost. Also, it has mature manufacturing support. Therefore, it is often the first option for many PCB designs.

However, not all FR4 materials are the same. Standard FR4, high Tg FR4, halogen free FR4, and low loss FR4 have different properties. So, the material grade should be confirmed before production.

This is especially important for boards with high temperature, dense components, controlled impedance, or strict reliability needs.

Single Sided Copper Clad Circuit Board vs Double Sided Copper Clad Circuit Board

Single sided and double sided boards are two common choices. The difference is simple. However, it can strongly affect layout, cost, and production.

Type	Structure	Best For
Single Sided Copper Clad Circuit Board	Copper on one side only	Simple circuits, low cost products, LED boards, basic control boards
Double Sided Copper Clad Circuit Board	Copper on both sides	Denser layouts, more routing space, plated holes, compact products

A single sided copper clad circuit board is easier to make. Also, it usually costs less. It works well when the circuit is simple and all routing can be done on one side.

A double sided copper clad circuit board gives more design space. It allows traces on both sides of the board. In addition, plated through holes can connect the two copper layers. As a result, the layout can be smaller and cleaner.

Therefore, the choice depends on layout density, current needs, assembly method, board size, and target cost.

Copper Clad Circuit Board vs Copper Core PCB: What Is the Difference?

A copper clad circuit board and a copper core PCB both use copper. However, they are not the same product.

A copper clad circuit board usually means an insulating laminate with copper foil on the surface. The copper is etched to form circuit traces.

A copper core PCB has a copper core or copper base inside the board structure. The copper core is mainly used for heat spreading. Therefore, it is often used in high power and high heat products.

Item	Copper Clad Circuit Board	Copper Core PCB
Main Purpose	Form circuit traces	Improve heat dissipation
Copper Position	Copper foil on laminate surface	Copper core or copper base
Common Use	General PCB fabrication	High power LED, automotive lighting, power modules
Design Focus	Circuit routing and insulation	Thermal path and heat transfer
Cost Level	Usually more flexible	Usually higher due to special structure

If your product needs normal signal routing, a standard copper clad PCB may be enough. However, if heat is the main concern, copper core PCB or metal core PCB may be a better choice.

How to Choose a Copper Clad Circuit Board Manufacturer or Supplier?

Choosing a manufacturer is not only about price. The supplier should understand PCB materials, copper thickness, board tolerance, surface finish, and assembly needs.

Before ordering, buyers should check these points:

Can the supplier support the required material?
Can they make single sided, double sided, and multilayer PCBs?
Can they control copper thickness and line spacing?
Can they provide DFM review before production?
Can they support prototypes and mass production?
Can they also provide PCB assembly?
Can they source components if needed?
Do they have testing and quality control?

DFM review is very useful. It means Design for Manufacturing review. In this step, engineers check whether the board can be produced smoothly.

For example, they may check trace spacing, hole size, copper weight, solder mask clearance, and board stackup. As a result, many hidden risks can be found before production.

A good supplier should help you avoid production issues early. Also, they should support both quality and delivery control.

What Copper Clad Circuit Board Services Does EBest Provide?

EBest provides custom copper clad circuit board manufacturing support. In addition, we can support the full process from PCB fabrication to PCBA assembly.

Our services include:

Custom PCB fabrication
FR4 PCB manufacturing
Single sided PCB production
Double sided PCB production
Multilayer PCB fabrication
Metal core PCB support
Copper core PCB support
High Tg PCB manufacturing
DFM pre review
BOM optimization
Component sourcing
SMT assembly
Through hole assembly
Functional testing
Quality inspection
Prototype and small batch production

For copper clad PCB projects, EBest can review the material, copper thickness, board structure, surface finish, and assembly needs before production. Therefore, customers can reduce material mismatch and process risks.

Also, EBest can support different industries. These include industrial control, medical electronics, automotive electronics, communication products, LED lighting, and other electronic devices. Our factory operates under certified quality systems, including ISO 9001, ISO 13485, IATF 16949, and AS9100D. Our products are also manufactured in compliance with UL, REACH, and RoHS requirements.

If you need bare PCB fabrication, assembled PCBA, or turnkey electronics manufacturing, EBest can help from prototype to production.

FAQs About Copper Clad Circuit Board

Q1: What is a copper clad circuit board?
A1: A copper clad circuit board is an insulating board with copper foil on one or both sides. During PCB fabrication, the copper is etched to form the circuit pattern.

Q2: Is copper clad laminate the same as PCB?
A2: Not exactly. Copper clad laminate is the base material. After drilling, etching, plating, solder mask, surface finish, and testing, it becomes a finished PCB.

Q3: What is the most common copper clad circuit board material?
A3: FR4 is one of the most common materials. It offers good insulation, board strength, heat resistance, and cost balance.

Q4: What is the difference between single sided and double sided copper clad boards?
A4: A single sided board has copper on one side. A double sided board has copper on both sides. Therefore, a double sided board offers more routing space.

Q5: Can copper clad circuit boards be used for high power products?
A5: Yes, but the material must be selected carefully. For better heat transfer, metal core PCB or copper core PCB may be more suitable.

Q6: Where can I get copper clad boards for printed circuit boards?
A6: You can source them from a PCB manufacturer that supports material selection, PCB fabrication, copper thickness control, surface finish, and assembly service.

Q7: Can EBest provide both copper clad PCB fabrication and assembly?
A7: Yes. EBest can support PCB fabrication, component sourcing, SMT assembly, through hole assembly, testing, and quality control.

In a nutshell, a copper clad circuit board is the foundation of many PCB products. It affects circuit quality, heat resistance, assembly results, and product reliability.

For standard projects, FR4 is often a practical choice. However, high heat, high speed, or special products may need other materials. Therefore, material review is important before production.

Need help with your copper clad PCB project? Send your Gerber files, BOM, drawings, or project requirements to sales@bestpcbs.com. EBest can support material review, PCB fabrication, component sourcing, PCBA assembly, testing, and production follow up.

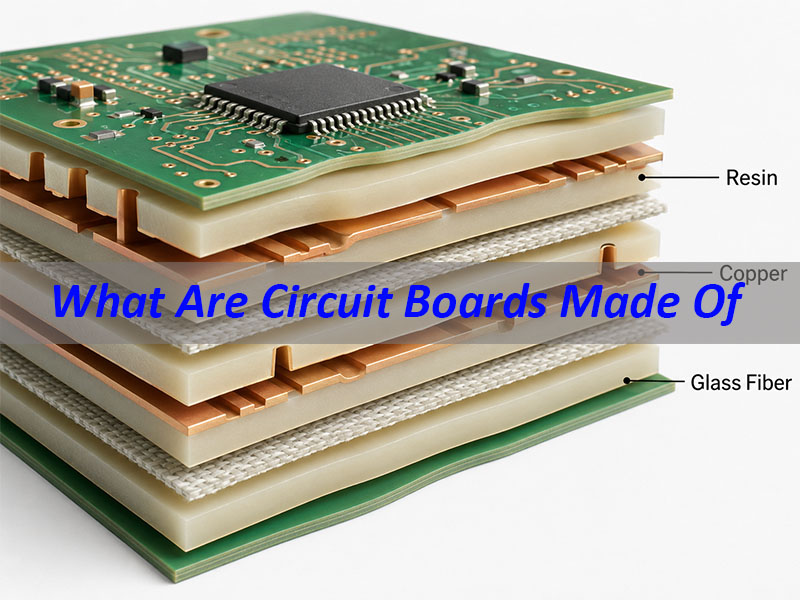

What Are Circuit Boards Made Of?

What are circuit boards made of? Most circuit boards use an insulating base, copper, resin, glass fiber, solder mask, silkscreen ink, and surface finish. These materials work together to support components, carry signals, control heat, and protect the circuit.

For many standard PCBs, the main base material is FR4. FR4 combines woven glass fiber with epoxy resin. This structure gives the board strength, insulation, and stable performance.

However, not every PCB uses the same material. A simple consumer PCB may use standard FR4. A high frequency board may need Rogers or PTFE based material. A power LED board may need an aluminum or copper core. Therefore, the right material depends on the final application.

In simple terms, a circuit board is not made from one material. It is a layered structure. Each layer has a clear job.

Core PCB Raw Materials

A printed circuit board usually contains several main raw materials. Each one affects performance, cost, and reliability.

PCB Material	Main Function
Base substrate	Supports the board and insulates copper layers
Copper foil	Creates traces, pads, planes, and vias
Resin	Bonds the material and improves insulation
Glass fiber	Adds strength and dimensional stability
Prepreg	Bonds layers in multilayer PCBs
Solder mask	Protects copper and prevents solder bridges
Silkscreen	Marks component names, polarity, and positions
Surface finish	Protects exposed copper pads before assembly

Copper gives the PCB its electrical path. Resin and glass fiber form the base structure. Meanwhile, solder mask protects the copper pattern during soldering and long term use.

Also, surface finish matters. It keeps copper pads from oxidizing and helps components solder well during PCBA assembly.

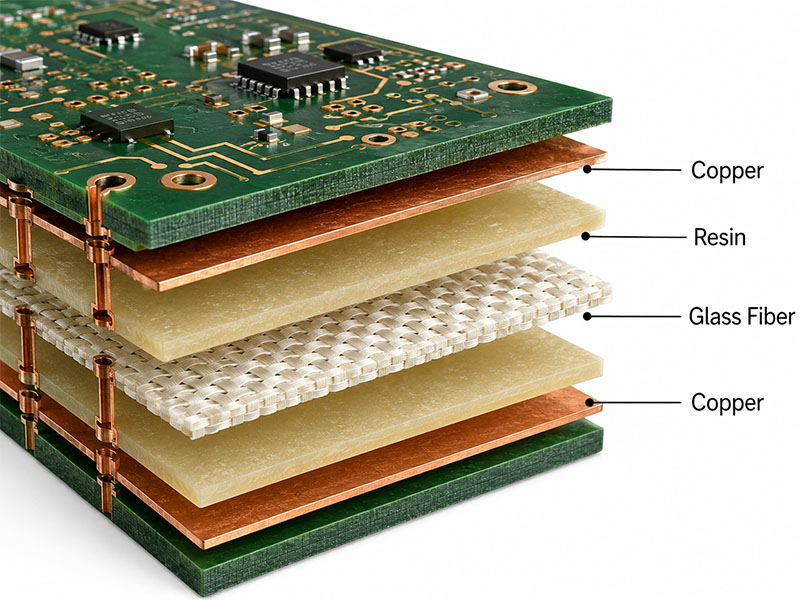

How Copper, Resin, and Glass Work Together

Copper, resin, and glass fiber form the heart of many circuit boards.

Copper carries current and signals.

PCB manufacturers laminate copper foil onto the base material. Then they etch it into traces, pads, and copper planes. In multilayer boards, copper also forms power layers, ground layers, and signal layers.

Resin bonds and insulates the board.

Resin holds the glass cloth and copper structure together. It also insulates different copper layers. Because of this, resin quality affects heat resistance, moisture resistance, and electrical reliability.

Glass fiber adds mechanical strength.

Glass cloth helps the board stay flat and stable. It also reduces warpage during fabrication and soldering. As a result, the PCB can handle drilling, plating, routing, and assembly more reliably.

Together, these three materials decide many PCB properties. For example, they affect board thickness, impedance, thermal expansion, and long term durability.

PCB Laminate and Prepreg

PCB laminate is the base sheet used to make a circuit board. A common laminate is copper clad FR4. It includes copper foil, epoxy resin, and glass cloth.

Laminate quality directly affects the final PCB. It can influence heat resistance, drilling quality, copper adhesion, impedance control, and dimensional stability.

For multilayer PCBs, manufacturers also use prepreg. Prepreg is glass cloth soaked with semi cured resin. During lamination, heat and pressure make the resin flow. Then it bonds the PCB layers together.

Prepreg is important because it controls:

Layer bonding strength
Dielectric spacing
Final board thickness
Impedance stability
Resin flow around copper
Multilayer reliability

Therefore, prepreg is not just “glue.” It is a key dielectric material in multilayer PCB stackups.

Common PCB Material Types

Different products need different PCB materials. The table below shows common options.

PCB Material	Common Use	Main Benefit
Standard FR4	Consumer electronics, control boards	Good cost and balanced performance
High Tg FR4	Automotive, industrial, lead free assembly	Better heat resistance
Polyimide	Flexible PCB, rigid flex PCB	Flexible and heat stable
PTFE / Rogers	RF, microwave, antenna PCB	Low signal loss
Aluminum Core PCB	LED lighting, power modules	Better heat dissipation
Copper Core PCB	High power LED, automotive lighting	Strong thermal spreading
Ceramic PCB	Power electronics, harsh environments	High thermal conductivity

FR4 works well for many standard products. However, high power, high speed, or high temperature designs often need better material.

For example, RF circuits need stable Dk and low Df. LED boards need strong heat dissipation. Flexible electronics need polyimide. Therefore, material choice should follow the product function, not only the price.

Key PCB Material Properties

When engineers choose PCB materials, they often review several key properties.

Tg: Glass Transition Temperature
Tg shows when the material starts to soften. A higher Tg helps the board handle heat during lead free soldering and operation.

Td: Decomposition Temperature
Td shows when the material starts to break down. Higher Td gives better thermal safety.

CTE: Coefficient of Thermal Expansion
CTE shows how much the material expands when temperature changes. Lower and stable CTE helps protect plated holes and multilayer structures.

Dk: Dielectric Constant
Dk affects signal speed and impedance. High speed and RF boards need controlled Dk values.

Df: Dissipation Factor
Df affects signal loss. Lower Df helps high frequency signals travel with less loss.

Copper Thickness
Copper thickness affects current capacity and heat. Power boards often need thicker copper, while fine line boards may need thinner copper for accurate etching.

Peel Strength
Peel strength shows how well copper bonds to the base material. Good peel strength helps prevent copper lifting during soldering and use.

These properties help engineers avoid material mismatch. In addition, they help manufacturers control reliability before production starts.

What Are Green Circuit Boards Made Of?

Green circuit boards are not green because of the base material. The green color usually comes from green solder mask.

Solder mask covers most copper areas on the PCB. It protects copper from oxidation, dust, moisture, and solder bridging. It also gives the board a cleaner surface for assembly and inspection.

Although green is the most common color, PCB solder mask can also be black, blue, red, white, yellow, or matte colors. However, the color does not always show the base material. A green PCB may still use FR4, high Tg FR4, polyimide, or another substrate.

So, when customers ask what green circuit boards are made of, the answer is simple: the green layer is solder mask, while the main board structure usually includes copper, resin, and glass fiber.

How to Choose Circuit Board Material

Choosing the right circuit board material starts with the product requirement. Cost matters, but function comes first.

Before selecting a PCB material, engineers should check:

Operating temperature
Board thickness
Copper thickness
Current load
Signal speed
Frequency range
Heat dissipation needs
Flexibility requirements
Assembly process
Reliability standard
Production quantity

For standard electronics, FR4 often works well. For higher heat, high Tg FR4 is safer. For RF and microwave circuit boards, low loss materials may be necessary. For LED and power boards, aluminum core, copper core, or ceramic materials can improve heat transfer.

Also, do not choose material only by datasheet values. The PCB stackup, copper design, drilling process, surface finish, and assembly process also affect final performance.

A professional PCB manufacturer can help review the stackup, impedance, copper weight, base material, surface finish, and DFM risks before fabrication. This step saves time and reduces production problems.

FAQs About What Circuit Boards Are Made Of

Q1: What are printed circuit boards made of?
A1: Printed circuit boards are usually made of base substrate, copper foil, resin, glass fiber, solder mask, silkscreen, and surface finish. Standard rigid PCBs often use FR4.

Q2: What are PCB boards made of?
A2: PCB boards use insulating materials and conductive copper layers. The insulating material may be FR4, high Tg FR4, polyimide, PTFE, ceramic, aluminum core, or copper core material.

Q3: What are circuit board traces made of?
A3: Circuit board traces are made of copper. These copper paths connect components and carry signals or power across the PCB.

Q4: What plastic are circuit boards made of?
A4: Most circuit boards are not made of ordinary plastic. Many standard PCBs use glass fiber reinforced epoxy resin, also called FR4.

Q5: What are circuit board pins made of?
A5: Circuit board pins usually come from connectors or components. They often use copper alloy with tin, nickel, or gold plating.

Q6: Are all circuit boards made from FR4?
A6: No. FR4 is common, but not universal. High frequency boards may use Rogers or PTFE materials. LED boards may use metal core materials. Flexible boards often use polyimide.

Q7: What are cell phone circuit boards made of?
A7: Cell phone PCBs often use thin multilayer materials, fine copper traces, flexible polyimide circuits, and high density interconnect structures.

Q8: Why does PCB material selection matter?
A8: PCB material affects heat resistance, signal quality, soldering stability, mechanical strength, and long term reliability. Good material selection helps reduce production risk.

In conclusion, circuit boards are made from several materials, not one simple substance. Copper creates the electrical paths. Resin and glass fiber build the base structure. Laminate and prepreg form the PCB stackup. Solder mask, silkscreen, and surface finish protect the board and support assembly.

For simple products, standard FR4 may be enough. However, high speed, high power, RF, medical, automotive, and industrial products often need more careful material selection.

Need help choosing the right PCB material? Send your Gerber files, stackup, BOM, and application details to EBest Circuit. Our team can support PCB material review, DFM analysis, PCB fabrication, component sourcing, PCBA assembly, testing, and turnkey production. Pls feel free to contact us at sales@bestpcbs.com for a quotation.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

PCB Materials

What Is IT180A PCB Material?

Why Is IT180A Used in Multilayer PCBs?

How Do Tg, Td and CTE Describe IT180A?

What Are the Detailed IT180A Material Parameters?

IT180A vs Standard FR4: What Is the Difference?

Why Do IT180A Datasheet Values Differ by Revision?

How Does IT180A Support Lead-Free Reflow?

How Does IT180A Affect Plated-Hole Reliability?

Is IT180A Suitable for Controlled Impedance?

Is IT180A a Low-Loss Material?

How Should IT180A Cores and Prepregs Be Specified?

Which PCB Applications Use IT180A?

How Do We Manufacture IT180A Multilayer PCBs?

IT180A FAQs

Is IT180A the same as IT-180A?

Can IT180A replace any standard FR-4 material?

What is the IT180A prepreg thickness?

Does a 175°C Tg mean a PCB can operate continuously at 175°C?

What Should You Include in an IT180A PCB RFQ?

You may also like

Ceramic PCB Manufacturer at a Glance

Is Your Ceramic PCB Project Limited by Material or Thermal Uncertainty?

Ceramic PCB Buyer Priorities Before Supplier Selection

When Ceramic PCB Is the Right Choice

Ceramic PCB Materials Buyers Should Compare

DPC, DBC, AMB, Thick Film and Thin Film Differences

Capability Ranges to Verify Before Quoting

Design and DFM Checks for Ceramic PCB

Surface Finish and Metallization Decisions

Ceramic PCB Assembly and Component Sourcing

Testing and Quality Control for Ceramic Circuit Boards

What Determines Ceramic PCB Cost?

How to Compare Ceramic PCB Manufacturers

Files to Prepare for a Ceramic PCB RFQ

Common Ceramic PCB Sourcing Risks

Frequently Asked Questions About Ceramic PCB Manufacturers

What does a ceramic PCB manufacturer do?

Which ceramic PCB process should I choose?

Can ceramic PCB support assembly?

Why is ceramic PCB more expensive than FR4?

Final RFQ Recommendation

You may also like

What Does Ceramic PCB High Temperature Resistant Mean?

Why Choose Ceramic PCB for High Temperature Applications?

What Temperature Can a Ceramic PCB Withstand?

How Does Ceramic PCB Thermal Conductivity Affect Heat Dissipation?

Why Does Ceramic PCB CTE Matter in High Temperature Design?

Al2O3 vs AlN vs Si3N4: Which Ceramic PCB Material Should You Choose?

Ceramic PCB vs FR4 vs Metal Core PCB for High Temperature Use

Which Ceramic PCB Manufacturing Process Fits High Temperature PCBs?

What Design Checks Help Prevent High Temperature PCB Failure?

What Should You Provide for a High Temperature Ceramic PCB Quote?

How EBest Circuit Supports High Temperature Ceramic PCB Projects?

FAQ

Is ceramic PCB good for high temperature?

What is the best material for high temperature ceramic PCB?

Is thermal conductivity the same as temperature resistance?

Why is CTE important for ceramic PCB?

Can FR4 be used for high temperature PCB?

When should I choose metal core PCB instead of ceramic PCB?

What affects the cost of high temperature ceramic PCB?

What files are needed for a high temperature ceramic PCB quote?

Conclusion

You may also like

What Are High-Frequency PCB Materials?

Why Are High-Frequency PCB Materials Important?

How Do High-Frequency PCB Materials Work?

What Is the Structure of a High-Frequency PCB?

What Types of High-Frequency PCB Materials Are Common?

What Are Rogers PCB Materials?

What Are RO4000 Series Materials?

What Are RO3000 Series Materials?

What Are RT/duroid Materials?

What Material Properties Matter Most?

How Do High-Frequency PCB Materials Compare with FR4?

How Do Rogers PCB Materials Compare with Other High-Frequency PCB Materials?

What Manufacturing Challenges Occur with High-Frequency PCB Materials?

What Design Rules Matter for High-Frequency PCB Materials?

What Surface Finishes Are Used for High-Frequency PCBs?
