Ceramic PCB manufacturer for thermal substrate and high reliability circuit board projects

A ceramic PCB manufacturer should help you choose the right substrate, ceramic process, copper structure, surface finish, DFM limits, assembly path and test plan before you place the order. Ceramic boards are not selected only because they look more advanced than FR4. They are used when heat, insulation, high temperature, power density, RF behavior, dimensional stability or long-term reliability makes an organic laminate a poor fit.

EBest Circuit supports buyers with ceramic PCB manufacturing, DFM review, material and process confirmation, optional ceramic PCB assembly, BOM/CPL review and RFQ planning. Send your Gerber or ODB++, drawing, stackup, substrate request, copper requirement, finish, quantity, assembly files and test needs early so the project can be reviewed as a ceramic substrate build rather than a normal PCB quote.

Ceramic Board Buyer Decision Before Quote Approval

A ceramic PCB manufacturer should first help you decide whether the project needs alumina, aluminum nitride, ZTA, silicon nitride, DPC, DBC/DCB, AMB, thick film, LTCC or HTCC. The right answer depends on heat flow, conductor thickness, layer count, operating environment, part mounting, dimensional limits and cost target.

Many ceramic PCB delays happen because the RFQ says only “ceramic PCB” without defining the substrate and process. That is not enough. A thin film ceramic circuit, a DPC board, a DBC/DCB power substrate and an AMB ceramic board do not follow the same design rules or quote logic.

Is your ceramic PCB quote difficult to compare because every supplier is reading the files differently?

Buyers often run into these problems before a ceramic PCB order is approved:

The project asks for a ceramic PCB, but the substrate material and ceramic process are not clearly tied to the thermal or electrical requirement.
The copper thickness looks attractive in a quote, but trace width, spacing, panel size, edge quality and assembly clearance have not been reviewed together.
The board needs good heat transfer, yet the RFQ does not show the heat source, heat path, mounting surface or expected test condition.
The same design is sent to FR4, MCPCB and ceramic PCB suppliers without adjusting design rules, creating slow DFM loops.
Assembly, component sourcing and test requirements arrive after fabrication planning, forcing late changes to pads, finish, fixtures or packaging.

Five RFQ Details That Change a Ceramic Board Build

Ceramic PCB projects often get delayed when the purchase team compares unit prices before engineering has confirmed the substrate, conductor, finish and test scope. A low line-item price can hide a weak quote if the supplier has not checked manufacturability.

For a buyer, the fastest path is to make the quote package specific. Show where the heat enters the ceramic substrate, which components sit on high-copper areas, whether the board needs assembly, which finish is expected, and what inspection or reliability checks are important for the application.

EBest Circuit helps turn ceramic PCB uncertainty into a reviewable RFQ package:

We review substrate choice, ceramic process, copper thickness, line/space, hole design, finish and board outline together instead of quoting one isolated specification.
We separate standard capability, special review items and file-dependent limits so buyers do not approve a quote on unsupported assumptions.
We connect ceramic PCB fabrication with PCBA planning when pads, power devices, thermal interfaces, component sourcing or test fixtures affect the finished product.
We help buyers compare quote scope, not only unit price, so prototype and production decisions are easier to defend internally.

EBest Circuit Review Path for Ceramic Substrate Orders

EBest Circuit reviews ceramic PCB projects by checking substrate, process, copper, geometry, finish, assembly and test requirements before production planning. This reduces the chance that a quote looks acceptable but later fails during DFM, assembly or reliability review.

For example, a high-power ceramic board may need DBC/DCB ceramic PCB or AMB discussion because conductor thickness and heat transfer are more important than fine traces. A precision circuit may need DPC or thin film review because line/space, metallization and surface quality matter more. The right manufacturing route should be selected from the function of the board, not from a catalog word.

When Ceramic Beats FR4 or Metal Core PCB

Ceramic PCB is usually the right choice when the board needs stronger heat transfer, electrical insulation, dimensional stability or high-temperature performance than a normal FR4 board can provide. It is not the lowest-cost route for every circuit, but it can be the better route when thermal or reliability risk dominates the project.

Project Need	Why Ceramic PCB May Fit	What to Confirm Before RFQ
High heat density	Ceramic substrates can support strong heat transfer paths.	Heat source, substrate, copper thickness and mounting method.
Power electronics	DBC/DCB or AMB structures can support thicker conductors.	Copper weight, isolation, outline, finish and test needs.
RF or high-frequency circuit	Some ceramic materials offer stable dielectric behavior.	Material, impedance target, geometry and finish.
Harsh or high-temperature environment	Ceramic substrates can provide heat and chemical stability.	Operating temperature, coating, metallization and reliability checks.

Alumina, AlN, ZTA and Si3N4 Board Fit

Ceramic PCB material should be selected from thermal, mechanical, electrical and cost requirements, not from the keyword alone. Verified EBest Circuit capability records list ceramic substrate options including Al2O3, AlN, ZTA and Si3N4. Special substrate discussions may also involve glass, quartz, sapphire and different alumina grades depending on the project.

Alumina is common in ceramic circuit projects because it balances insulation, availability and cost. Aluminum nitride is often considered when thermal performance is a bigger driver. ZTA and silicon nitride can enter the discussion when mechanical strength, hardness or stability matter. Each choice should be checked with board thickness, conductor method, outline and test requirements.

DPC, DBC, AMB, Thick Film, LTCC and HTCC Routes

The ceramic PCB process should match the required copper structure, layer count, thermal path and operating environment. The source capability records include DPC, DBC/DCB, AMB, thick film, LTCC and HTCC, but they are not interchangeable processes.

Process	Typical Buying Question	RFQ Evidence Needed
DPC	Do I need finer ceramic circuit features?	Line/space, conductor thickness, finish and dimensional drawing.
DBC/DCB	Do I need a strong direct copper thermal path?	Copper thickness, substrate, isolation, power device location.
AMB	Do I need a robust ceramic power substrate?	Substrate, copper thickness, outline, reliability expectation.
Thick film, LTCC or HTCC	Does the design need a ceramic circuit route beyond common DPC/DBC?	Layer count, conductor material, application conditions and drawings.

Layer Count and Panel Size by Ceramic Route

Layer count, copper thickness and panel size must be checked by ceramic process because one capability number cannot represent every ceramic PCB route. EBest Circuit’s English capability source lists thin film ceramic PCB up to 10 layers, while DBC/DCB, DPC and AMB are listed as 2-layer processes in that table.

The same source lists example maximum panel sizes of 200 x 200 mm for thin film ceramic PCB, 138 x 178 mm for DBC/DCB, 138 x 190 mm for DPC and 114 x 114 mm for AMB. These figures should be treated as process-specific review data, not as a universal promise for every ceramic board.

Capability Item	Verified Process-Specific Data	Buyer Action
Layer count	Thin film up to 10 layers; DBC/DCB, DPC and AMB listed as 2 layers in the English table.	Send stackup and process expectation for review.
Conductor thickness	Thin film 5-13 um; DPC 2-200 um; DBC/DCB 3.9-8.6 oz; AMB 8-22.9 oz.	Confirm whether the project needs fine features or heavy current paths.
Panel size	Panel limits vary by process and must be checked against the drawing.	Provide board outline, panel needs and quantity.

Trace, Space, Drill and Thickness Limits

Ceramic PCB geometry should be reviewed before quote approval because trace/space, hole size and substrate thickness depend on process and material. Verified capability records list thin film and DPC minimum trace/space as 6/8 mil, DBC/DCB as 12/12 mil and AMB as 20/20 mil in the English ceramic table.

The broader ceramic process source also lists general line width and line spacing at 0.1 mm / 0.1 mm, with 0.076 mm / 0.076 mm as a special process item. It lists minimum PTH and NPTH as 0.05 mm and a PTH aspect ratio of 5:1. These values should be checked against your drawing, finish and process route before they are used for approval.

Ceramic PCB RFQ planning flow from material and process to copper finish DFM and test — Ceramic PCB RFQ planning should connect material, process, copper, finish, DFM review and testing before the quote is approved.

Pad Finish Choices for Soldering, Contact or Bonding

Surface finish affects solderability, wire bonding, storage, assembly and contact reliability, so it should be confirmed before the ceramic PCB quote is finalized. EBest Circuit’s ceramic capability source lists OSP, ENIG, immersion silver, immersion tin, ENEPIG and hard gold among available surface treatment options.

Do not select finish only from price. Ask whether the finish matches your component package, assembly method, contact requirement, storage condition and test plan. If a ceramic PCB will be assembled later, the finish decision should be made together with the PCBA requirement.

DFM Review Before Ceramic Files Move to CAM

A useful ceramic PCB DFM review checks whether the selected material, process, copper, geometry, finish and test plan can be built together. The review should happen before purchasing, because changing ceramic process after quote approval can change cost, lead time, inspection and assembly planning.

For a practical review, send the Gerber or ODB++ files, drill data, board drawing, stackup, copper requirement, substrate requirement, surface finish, application notes and any thermal or electrical constraints. If the design is moving from FR4 or MCPCB to ceramic PCB, call out what failed or what performance target changed.

Component Mounting and Thermal Interface Planning

Ceramic PCB assembly should be planned together with fabrication when component pads, heat-generating devices, soldering, sourcing or test fixtures affect the final product. A ceramic substrate can move heat well, but the assembled product still depends on package selection, solder joints, thermal interface, mechanical mounting and inspection.

EBest Circuit can review fabrication and assembly needs together when you provide Gerber/ODB++, BOM, CPL, assembly drawing, quantity and test requirements. This is especially useful for LED modules, power devices, sensor modules, high-temperature electronics and compact thermal designs.

Reliability Checks for Ceramic Boards Under Load

Testing for ceramic PCB orders should match the failure risks of the application rather than follow a generic checklist. Dimensional inspection, visual inspection, electrical test, finish checks, thermal review and assembly inspection may all matter depending on the board.

If the ceramic board carries power or heat, ask how the supplier will confirm critical copper areas and insulation. If the board supports precision signals, ask how the geometry, finish and cleanliness will be checked. If the board is assembled, define whether AOI, X-ray, functional test or custom fixture testing is required.

High-Temperature and Chemical Environment Review

Environment review matters because ceramic PCB projects are often selected for heat, corrosion resistance or stability under tougher operating conditions. Tell the manufacturer whether the board will face high ambient temperature, aggressive cleaning, chemical exposure, outdoor sealing, power cycling or continuous heat from mounted devices.

This information helps the engineering team review substrate, finish, copper, mounting and inspection needs together. A ceramic board that works on a bench may still need a different finish, coating, fixture plan or acceptance test when it is used in a harsher product environment.

Isolation, Creepage and Grounding Concerns

Isolation and creepage should be reviewed early when ceramic PCB is used in power, RF or high-voltage electronics. Ceramic can provide strong insulation, but the final circuit still depends on conductor spacing, pads, vias, metallization, surface condition and assembled component clearance.

Share voltage, current, isolation targets and any safety spacing rules with the RFQ. Do not assume that a ceramic substrate alone solves all electrical clearance issues. The layout and assembly both need to support the same requirement.

Mounting Flatness, Edge Chipping and Ceramic Handling

Ceramic boards need mechanical handling review because the substrate is rigid and can be sensitive to edge stress, mounting force and packaging choices. Outline shape, hole placement, panelization, screw pressure and fixture design can affect the real manufacturing plan.

If the board will be mounted against a heat sink, metal frame or optical housing, send the mechanical drawing with the PCB files. This helps the supplier check flatness, keep-out areas, edge clearance and safe handling before production begins.

Power Module, LED and Sensor Application Fit

Ceramic PCB is often considered for power modules, LED thermal boards, sensors, RF circuits and compact electronics where heat or stability drives the design. The application should guide the ceramic process and quote scope.

A power device may need conductor thickness and heat-spreading review. An LED module may need thermal path, surface finish and assembly review. A sensor or RF circuit may need tighter geometry, clean finish and stable material behavior. These are different buyer problems, even when they all use ceramic substrates.

Failure Modes: Copper Lift, Cracking and Hot Spots

Common ceramic PCB risks include weak copper adhesion, substrate cracking, local hot spots, finish mismatch and late assembly changes. These risks are easier to control before the files move into production than after a sample fails inspection.

Ask the supplier to review copper thickness, conductor geometry, ceramic thickness, device location, heat path and mechanical mounting together. If the design has high power density, note which areas are most critical so the DFM review does not treat all copper features equally.

Supplier Questions to Ask Before Purchase Order

Ask ceramic PCB suppliers questions that reveal whether they understand your specific build, not only whether they can quote a material name. Useful questions include which process route they recommend, which dimensions require review, how copper thickness affects line/space, what finish they suggest for assembly, and which test records can be provided.

Also ask what information is missing from your RFQ. A strong supplier should be able to tell you what must be confirmed before the quote is reliable.

RoHS, UL and IPC Documents to Confirm

Compliance documents should be confirmed from the actual order scope instead of assumed from a generic ceramic PCB listing. If your product requires RoHS, UL-related documentation, IPC acceptance criteria, material declarations or customer-specific records, state that in the RFQ.

Do not let certification wording float in the quote without a document requirement. If a document is needed for your customer approval process, ask for it before purchase order release and confirm whether it applies to the quoted process.

Ceramic PCB Checklist Before Releasing the Order

Before releasing a ceramic PCB order, check whether the quote covers substrate, process, copper, finish, geometry, assembly, testing and documentation. This checklist prevents the most common gap: a price is approved before the build is fully defined.

Substrate and ceramic process are clearly stated.
Copper thickness and critical heat path are reviewed.
Line/space, holes, board size and substrate thickness match the selected route.
Finish matches soldering, contact or bonding needs.
Assembly, sourcing and test scope are included if required.
Required documents and acceptance criteria are named in the RFQ.

What Ceramic Board Buyers Need to Solve

Most ceramic board buyers are trying to solve a specific performance risk, not simply buy a different PCB base material. The risk may be heat concentration, insulation distance, power cycling, signal stability, device mounting, high-temperature operation or a product approval requirement.

State that problem directly in the RFQ. A supplier can give a more useful review when the files explain what the ceramic board must protect, improve or replace in the final product.

Cracking and Delamination Root Cause Review

Cracking and delamination risk should be reviewed when ceramic boards face mechanical stress, thermal cycling or uneven mounting pressure. Ceramic substrates are strong in the right design, but they should not be treated like flexible laminate during handling, assembly or enclosure design.

Tell the manufacturer where the board is clamped, how it is supported, which components add local stress and whether the product will see repeated heating and cooling. These details can change edge clearance, panel handling, fixture planning and inspection focus.

Price Drivers Buyers Should Normalize

Ceramic PCB cost is mainly driven by substrate, process route, copper thickness, layer count, size, finish, tolerance, quantity, assembly and test requirements. A quote that does not define these items is hard to compare.

Cost Factor	Why It Changes the Quote	How to Control It
Substrate and process	Alumina, AlN, DPC, DBC/DCB and AMB use different manufacturing routes.	Choose from the actual heat, insulation and copper requirement.
Copper and geometry	Thicker copper and tighter line/space can change yield and process review.	Send current path, drawing and design rules early.
Finish and assembly	Finish must match soldering, contact or bonding needs.	Share BOM, CPL and assembly plan before quote approval.
Testing and reliability	Extra inspection or custom test fixtures add scope.	Define acceptance criteria in the RFQ.

Supplier Shortlist Criteria for Ceramic Boards

Compare ceramic PCB manufacturers by how clearly they review your material, process, copper, finish, assembly and test requirements, not by price alone. A strong supplier should help you see what is standard, what is special and what must be confirmed from the files.

Can the supplier explain which ceramic process fits your application?
Can the supplier review copper thickness, trace/space, holes and panel size together?
Can the supplier support both bare ceramic PCB and assembly if your project needs PCBA?
Can the supplier give DFM feedback before purchase order approval?
Can the supplier help define test and inspection scope instead of leaving it vague?
Can the supplier separate confirmed capability from file-dependent review items?

File Package for a Fast Ceramic Board Review

A ceramic PCB RFQ should include the files and decisions needed to confirm the board as a ceramic substrate project. The more complete the package is, the easier it is to avoid re-quotation and late engineering changes.

Gerber or ODB++ files.
Drill files and mechanical drawing.
Substrate request, such as alumina, AlN or project-specific review.
Preferred process if known, such as DPC, DBC/DCB, AMB, thick film, LTCC or HTCC.
Copper thickness or conductor requirement.
Board thickness, outline, panel or array requirements.
Surface finish requirement.
BOM, CPL and assembly drawing if PCBA is needed.
Quantity, prototype or production stage and target schedule.
Thermal, electrical, insulation, reliability or test requirements.

Why Put EBest Circuit on the Quote List Early?

EBest Circuit belongs on your ceramic PCB quote list when you need engineering review, cost control, fabrication planning, optional PCBA support and clear RFQ feedback before production starts. We do not ask buyers to send a vague “ceramic PCB” request and wait for a price. We help define the build so the quote can be compared on scope and risk.

That matters for buyers in power electronics, LED, industrial control, communication modules, medical electronics, sensors and compact thermal assemblies. The supplier you choose should help you protect the project from material mismatch, unsupported geometry, finish errors, assembly surprises and unclear test scope.

FAQ About Ceramic PCB Manufacturers

These questions help buyers clarify ceramic PCB scope before asking for a quote.

What is a ceramic PCB manufacturer?

A ceramic PCB manufacturer builds circuit boards or substrates using ceramic materials instead of standard organic laminate. The manufacturer should help confirm substrate, ceramic process, copper, surface finish, geometry, assembly and testing requirements before production.

Is ceramic PCB better than FR4?

Ceramic PCB is better than FR4 when the project needs stronger thermal performance, electrical insulation, dimensional stability or high-temperature behavior. FR4 may still be more cost-effective for standard electronics without severe heat or reliability requirements.

What is the difference between DPC and DBC ceramic PCB?

DPC and DBC/DCB are different ceramic metallization and copper bonding routes. DPC is often considered where finer circuit features are important, while DBC/DCB is often considered for stronger copper and thermal power paths. The right choice depends on your design files and application.

Can ceramic PCB be assembled with components?

Yes, ceramic PCB can be assembled when the pads, finish, component package, soldering method and inspection plan are suitable. Send BOM, CPL, assembly drawing and test requirements with the fabrication files so the assembly scope can be reviewed early.

What files are needed for a ceramic PCB quote?

Send Gerber or ODB++, drill files, mechanical drawing, substrate request, copper requirement, finish, quantity, target schedule and any thermal or electrical test needs. If assembly is required, also send BOM, CPL and assembly drawings.

Final Recommendation

Choose a ceramic PCB manufacturer that can review the complete project, not only quote a ceramic material name. Your quote should connect substrate, process, copper, finish, DFM, assembly and testing so the board can move from prototype to production with fewer surprises.

To review a ceramic PCB project with EBest Circuit, send your Gerber or ODB++, drawing, stackup, substrate preference, copper thickness, surface finish, BOM, CPL, quantity, test requirements and target schedule to sales@bestpcbs.com. Our team will help check the files, confirm the manufacturing route and prepare a practical quotation scope.

What Is Alumina Heat Conductivity?

Alumina heat conductivity is the rate at which alumina, also known as aluminum oxide or Al2O3, conducts heat. In engineering data sheets it is usually expressed as thermal conductivity in W/m·K. A higher value means heat can move through the material more easily under the same temperature gradient.

For PCB buyers, the term is often used when comparing ceramic PCB substrates with FR4, metal core PCB and aluminum nitride ceramic. Alumina is not a metal heat spreader, but it conducts heat much better than ordinary organic PCB laminates while maintaining electrical isolation. This makes it useful where a circuit needs both insulation and a shorter heat path.

What Is the Typical Thermal Conductivity of Alumina?

Typical dense alumina ceramic used for electronics substrates is often specified around 20-30 W/m·K, while very dense or high-purity alumina grades may be listed higher by some material suppliers. The exact value should always be taken from the ceramic supplier’s data sheet because purity, porosity, grain structure and processing route can change the result.

Alumina ceramic PCB thermal conductivity testing and temperature check

For practical ceramic PCB selection, it is safer to treat alumina as a balanced thermal-insulating material rather than a maximum-conductivity material. If a design only needs moderate heat spreading, alumina can be a cost-effective choice. If the component has very high heat flux, AlN or another high-thermal-conductivity substrate may need review.

Is Alumina Conductive or Electrically Insulating?

Alumina is thermally conductive compared with FR4, but it is electrically insulating under normal electronics operating conditions. This distinction matters because many searches for “alumina conductivity” mix thermal conductivity and electrical conductivity into one phrase.

In PCB use, the value of alumina is that heat can pass through the ceramic while voltage isolation is maintained between copper features, components and the heat sink. This is why alumina ceramic substrates are used in LED modules, sensor circuits, power resistors, hybrid circuits, automotive electronics and other designs where heat and insulation must be handled together.

How Does Alumina Thermal Conductivity Change with Temperature?

Alumina thermal conductivity generally decreases as temperature rises because phonon scattering increases inside the ceramic. Published research and material databases show that temperature-dependent values can vary significantly by sample type, density and measurement method.

For PCB design, this means a room-temperature conductivity value should not be used blindly for high-temperature operation. If the board will operate near a hot device, inside an enclosed module or under repeated thermal cycling, request temperature-dependent material data and validate the full stack under the expected operating range.

How Do Alumina, FR4, MCPCB and AlN Compare?

The useful comparison is not “which material has the highest heat conductivity” in isolation. The better question is which material gives enough heat transfer, insulation, reliability and manufacturability for the assembly.

FR4 alumina and AlN substrate heat conductivity comparison

Material	Typical Thermal Role	Electrical Behavior	Best Fit
FR4	Low thermal conductivity	Insulating laminate	Standard control circuits, signal boards and low-heat designs
MCPCB	Uses a metal base and dielectric layer for heat spreading	Dielectric layer provides isolation	LED lighting, power boards and cost-sensitive thermal designs
Alumina ceramic PCB	Moderate-to-good ceramic thermal conductivity	Electrical insulator	Insulated ceramic circuits needing stable cost, hardness and heat transfer
AlN ceramic PCB	High ceramic thermal conductivity	Electrical insulator	High heat flux, compact power modules, laser drivers and demanding thermal paths

If the design is mainly limited by FR4’s poor heat transfer, alumina may be enough. If the design is limited by junction temperature in a compact high-power package, compare alumina with high thermal conductivity ceramic PCB options such as AlN.

Which Alumina Properties Matter Besides Heat Conductivity?

Alumina properties should be reviewed as a package, not as a single thermal number. Heat conductivity is important, but density, specific heat capacity, hardness, dielectric strength, CTE, surface roughness and flatness can all affect PCB performance and assembly reliability.

Density: Higher density usually means fewer pores and more stable mechanical and thermal behavior.
Specific heat capacity: This affects how much heat the ceramic can absorb before its temperature rises.
Hardness: Alumina is hard and wear-resistant, but machining, laser cutting and drilling require ceramic-capable processes.
CTE: Thermal expansion affects copper stress, solder fatigue and compatibility with components.
Surface quality: Thin film, thick film, DPC and DBC processes may require different surface conditions.

For sourcing, ask whether the quoted value is for 96% alumina, 99.6% alumina or another grade. A higher-purity material may support better surface quality or stability, but it may not automatically solve every thermal or cost problem.

When Is Alumina Ceramic PCB a Good Choice?

Alumina ceramic PCB is a good choice when the design needs better heat transfer than FR4, strong electrical insulation, good mechanical strength and a more cost-accessible ceramic option than AlN. It is often practical for medium-power modules, LED substrates, sensor electronics, thick-film circuits, precision resistive circuits and industrial control boards.

Alumina also fits projects where production availability and process maturity matter. EBest Circuit (Best Technology) supports ceramic PCB projects including alumina and AlN options, and engineering review can help determine whether ceramic substrate selection, copper thickness and surface finish match the operating conditions.

When Is Alumina Not Enough for Thermal Management?

Alumina may not be enough when the heat source is very small, the power density is high, the board has limited copper area, or the assembly has a weak interface to the heat sink. In those cases, upgrading the substrate alone may not fix the thermal bottleneck unless the full stack is redesigned.

AlN should be considered when thermal conductivity is the controlling requirement and the project can justify the higher material and processing cost. BeO has high thermal conductivity, but its toxicity and handling restrictions make it unsuitable for many commercial PCB programs. For cost-sensitive ceramic designs, review whether a cost-effective Al2O3 ceramic PCB approach can meet the thermal target before moving to a higher-cost material.

How Do Thickness, Copper Area and Interfaces Change Heat Transfer?

Thermal conductivity is a material property, while heat transfer in a PCB assembly depends on geometry and interfaces. A thinner alumina substrate can reduce through-thickness thermal resistance, but it may reduce mechanical margin. Larger copper areas can spread heat, but copper imbalance may increase stress and warpage.

Alumina ceramic PCB thermal path from component through copper and ceramic to heat sink

The interface between the ceramic board and heat sink is often as important as the ceramic itself. Gaps, poor flatness, insufficient mounting pressure or unsuitable thermal interface material can cancel part of the benefit gained from a better substrate. A useful thermal review should include component footprint, copper layout, ceramic thickness, surface finish, mounting method and cooling structure.

What Should Buyers Provide for an Alumina Ceramic PCB RFQ?

An alumina ceramic PCB RFQ should provide enough technical data to judge thermal path, manufacturability and reliability. A request that only says “need alumina PCB” is usually too vague for accurate quotation or process advice.

Alumina ceramic PCB RFQ review for thermal design and production checks

Target alumina grade, such as 96% or 99.6%, or permission for supplier recommendation.
Ceramic thickness, outline size, holes, slots and tolerance requirements.
Copper thickness, minimum line and spacing, copper balance and surface finish.
Expected heat source size, power dissipation, operating temperature and cooling method.
Electrical insulation requirement, voltage clearance and dielectric test expectations.
Manufacturing route preference: thick film, thin film, DPC, DBC or open for review.
Prototype quantity, annual volume, inspection requirements and assembly method.

For projects that also require component mounting, BOM review or testing, EBest Circuit can review PCB fabrication and PCBA needs together. Send drawings, stack-up notes, thermal assumptions and quantity targets to contact EBest Circuit or email sales@bestpcbs.com.

FAQ About Alumina Heat Conductivity?

1. What is heat conductivity?
Heat conductivity, usually called thermal conductivity in engineering, is a material’s ability to conduct heat. It is measured in W/m·K and helps compare how quickly heat can pass through different materials.

2. Is alumina a good conductor of heat?
Alumina is a good heat conductor compared with FR4 and many insulating polymers, but it is not as conductive as metals or aluminum nitride ceramic. It is best viewed as an electrically insulating ceramic with useful thermal performance.

3. Is alumina electrically conductive?
No. Alumina is normally used as an electrical insulator in PCB and electronic packaging applications. Its value is that it can transfer heat while helping maintain electrical isolation.

4. What material has the highest heat conductivity for ceramic PCBs?
Among common ceramic PCB materials, BeO has very high thermal conductivity but serious handling restrictions. AlN is a more common high-conductivity ceramic choice for electronics, while alumina is chosen for balanced cost, availability and insulation.

5. Does alumina thermal conductivity change with temperature?
Yes. Alumina thermal conductivity generally decreases as temperature rises, so high-temperature designs should use temperature-dependent data rather than relying only on a room-temperature number.

6. Is alumina hazardous?
Finished alumina ceramic substrates are generally stable in normal use, but ceramic dust from machining or grinding should be controlled with proper industrial safety practices. Buyers should request material and process compliance information when needed.

Conclusion

Alumina heat conductivity is useful because it gives PCB designers a thermally capable ceramic substrate while preserving electrical insulation and mechanical stability. The important decision is not only the W/m·K value. Ceramic grade, thickness, copper layout, interface material, heat sink design, temperature range and production process all affect the final thermal result.

If you are evaluating alumina ceramic PCB, AlN ceramic PCB or a mixed PCB/PCBA build, EBest Circuit (Best Technology) can review your drawings, thermal assumptions, process route and quotation files. For engineering review or quotation, contact sales@bestpcbs.com.

Ceramic PCB Manufacturer at a Glance

Choosing a ceramic PCB manufacturer means matching the process to the application before comparing prices. A supplier may be strong in DBC ceramic substrates but not the best fit for thin film precision work, AMB power modules or LTCC multilayer structures.

Buyer decision	What to confirm	Why it matters
Material	Al2O3, AlN, ZrO2, Si3N4 or other ceramic substrate	Thermal conductivity, insulation, CTE and cost change by material.
Process	DPC, DBC/DCB, AMB, thick film, thin film, LTCC or HTCC	Each process supports different copper, line width and reliability needs.
Geometry	Panel size, thickness, hole size, trace/space and profile tolerance	Ceramic boards are not designed like standard FR4 PCBs.
Surface finish	OSP, ENIG, immersion silver or process-specific metallization	Finish affects solderability, bonding and assembly.
RFQ data	Drawing, substrate, copper or conductor thickness, quantity and test needs	Complete files reduce quote revisions and feasibility risk.

Is Your Ceramic PCB Project Limited by Material or Thermal Uncertainty?

Ceramic PCB buyers need early review of substrate, metallization, heat path, assembly conditions and inspection needs.

Customer Pain Point	Project Risk	How bestpcbs Helps
Substrate choice is not tied to the application	Thermal, insulation or mechanical expectations may not match the final board	bestpcbs asks for application environment, material expectations and thermal requirements before confirming the route.
Metallization or copper details are unclear	Cost, solderability and reliability can change with process assumptions	bestpcbs reviews drawings, surface finish, conductor requirements and assembly needs before quoting.
Dimensional tolerance is not defined	Fit, mounting or module assembly may be affected	bestpcbs checks drawings and tolerance notes with the fabrication data.
Testing scope is not specified	A high-reliability board may ship without the checks the application needs	bestpcbs confirms electrical, visual and project-specific inspection requirements during RFQ review.

ceramic pcb manufacturer RFQ checklist for supplier review.

ceramic pcb manufacturer risk review flow before production.

Ceramic PCB Buyer Priorities Before Supplier Selection

Ceramic PCB buyers should confirm substrate type, metallization, thermal requirements, assembly conditions, dimensional tolerance and inspection needs before choosing a supplier. Ceramic boards are often selected for heat, insulation or high-reliability reasons, so assumptions must be made explicit.

Share the application environment, thermal path, copper or metallization notes, component attachment method, operating temperature and test expectations. This helps the supplier review the board as a performance part instead of a generic PCB.

When Ceramic PCB Is the Right Choice

Ceramic PCB is the right choice when thermal conductivity, electrical insulation, high-temperature stability, dimensional stability or material reliability matter more than the cost advantage of FR4. It is often considered for power electronics, LED modules, RF circuits, sensors, high-temperature devices and compact thermal designs.

Bestpcbs has a dedicated ceramic PCB product page covering ceramic circuit boards such as alumina PCB and AlN ceramic PCB. The useful RFQ question is which ceramic material and process fit the design, not whether the project can be labeled as ceramic PCB.

Ceramic PCB Materials Buyers Should Compare

Ceramic PCB material selection should be driven by heat, insulation, CTE, strength, dielectric behavior and cost target. The capability files list ceramic substrate options such as Al2O3, AlN, ZrO2 and Si3N4 in the ceramic PCB capability sheet, with additional special-material notes in the original ceramic process file.

Material family	Common buyer reason	RFQ note
Al2O3 alumina	Balanced insulation, heat resistance and cost	State purity or grade when specified by the design.
AlN aluminum nitride	Higher thermal performance than many standard ceramic options	Confirm process, substrate thickness and finish.
ZrO2 zirconia	Special mechanical or insulation needs	Use only when the application requires it.
Si3N4 silicon nitride	Strength and thermal reliability in demanding modules	Confirm with the supplier before quoting.

DPC, DBC, AMB, Thick Film and Thin Film Differences

Ceramic PCB processes are not interchangeable; the process affects copper thickness, line precision, panel size, substrate choice and reliability testing. The RFQ should name the target process or ask the supplier to recommend one based on the electrical and thermal goal.

Process	Typical fit	Buyer check
DPC ceramic PCB	Precision plated copper on ceramic	Review trace/space, conductor thickness and pad needs.
DBC/DCB ceramic PCB	Direct bonded copper substrates for power modules	Check copper thickness, substrate and thermal stress requirements.
AMB ceramic PCB	High-reliability power and thermal applications	Confirm material, copper thickness and test plan.
Thick film ceramic PCB	Printed conductor or functional paste circuits	Check conductor material and firing requirements.
Thin film ceramic PCB	Fine features and precision circuits	Check line precision, finish and inspection criteria.

For process-specific context, see the bestpcbs DPC ceramic PCB, DCB ceramic PCB and AMB ceramic PCB pages.

Capability Ranges to Verify Before Quoting

Capability ranges should be verified against the exact ceramic process, because one ceramic PCB process does not share all limits with another. The original capability files show separate values for thin film, DBC/DCB, DPC and AMB ceramic PCB.

Capability item from process files	Verified reference point	How to use it
Layer count	Thin film up to 10 layers; DBC/DCB, DPC and AMB listed as 2 layers in the English capability sheet	Confirm if a multilayer ceramic route is needed.
Max panel size	Examples include 200 x 200 mm for thin film and smaller listed sizes for DBC/DCB, DPC and AMB	Send drawing and panel needs for review.
Conductor thickness	Ranges differ by process, from micrometer-scale thin film to oz-level DBC/AMB copper	Do not compare quotes without the same conductor target.
Trace and space	Minimum trace/space differs by process; DPC and thin film allow finer values than AMB in the sheet	Mark critical features in the drawing.
Thermal stress test	The sheet lists process-specific thermal stress tests such as 350 C or 280 C conditions	Ask which test applies to the selected process.

Design and DFM Checks for Ceramic PCB

Ceramic PCB DFM review should happen before the supplier quotes final price because ceramic boards use different design rules from FR4. Brittle substrates, thermal expansion, metallization, profile tolerance and soldering method need early review.

Confirm substrate type, thickness and final board outline.
Review minimum trace/space and pad size for the chosen process.
Check hole diameter, hole tolerance and whether PTH is required.
Define solder mask opening, bridge and conductor surface requirements.
Review heat source, mounting method, thermal interface and assembly load.
Use the DCB ceramic PCB design guide when the project uses DBC/DCB ceramic technology.

Surface Finish and Metallization Decisions

Surface finish and metallization must match the process, component attachment method and reliability target. The ceramic capability files include surface finish references such as OSP, ENIG and immersion silver for several ceramic processes, while other ceramic methods may use process-specific metallization systems.

Do not choose finish only by price. Ask whether the board needs wire bonding, soldering, high-temperature exposure, low contact resistance, corrosion resistance or a specific assembly process.

Ceramic PCB Assembly and Component Sourcing

Ceramic PCB assembly should be planned with fabrication because the substrate, thermal mass, pad finish and component package can affect soldering and reliability. A separate assembly supplier may miss ceramic-specific risks if the fabrication assumptions are not shared.

For projects that require mounted components, send BOM, CPL, assembly drawings, polarity notes, thermal interface information and test requirements with the fabrication files. Bestpcbs can connect ceramic board fabrication with PCBA and PCB assembly service when the project needs a combined review.

Testing and Quality Control for Ceramic Circuit Boards

Testing should be selected according to process risk, not copied from a standard FR4 checklist. Ceramic PCB inspection can involve electrical continuity, isolation, profile tolerance, surface finish, hole position, thermal stress, solderability and application-specific checks.

Quality item	What to define	Why it matters
Electrical check	Continuity, isolation and netlist requirements	Confirms the circuit matches design data.
Dimensional inspection	Outline, hole position, thickness and tolerance	Ceramic parts may have tight mechanical fit needs.
Thermal stress	Process-specific stress test or customer test condition	Supports high-heat application confidence.
Assembly inspection	AOI, solder joint, wire bond or special attachment checks	Assembly risk depends on finish and package type.

What Determines Ceramic PCB Cost?

Ceramic PCB cost depends on substrate material, process route, conductor thickness, line precision, panel size, hole features, surface finish, testing and quantity. A supplier cannot quote accurately from the keyword alone.

The ceramic PCB price guide explains cost factors in more detail. For this manufacturer selection page, the key point is to keep every supplier quoting the same material, process, thickness, finish, testing and assembly scope.

How to Compare Ceramic PCB Manufacturers

Compare ceramic PCB manufacturers by process fit, engineering review quality, evidence of capability and quote transparency before comparing lead time or unit price. A good supplier should ask which ceramic technology the design needs and why.

Can the supplier support the required substrate and process route?
Do they explain DPC, DBC/DCB, AMB, thick film and thin film tradeoffs?
Can they review trace/space, conductor thickness, holes and surface finish?
Do they define thermal stress, inspection and acceptance criteria?
Can they support assembly or component sourcing if PCBA is required?
Do they avoid unsupported claims about universal capability or guaranteed lead time?

Files to Prepare for a Ceramic PCB RFQ

A complete ceramic PCB RFQ should include both circuit data and the application reason for selecting ceramic material. That lets the supplier recommend the right substrate and process instead of guessing from incomplete files.

Gerber or ODB++ fabrication data and drill files.
Mechanical drawing with outline, thickness, holes and tolerance.
Target substrate such as Al2O3, AlN, ZrO2 or Si3N4 if already selected.
Preferred process: DPC, DBC/DCB, AMB, thick film, thin film, LTCC or HTCC.
Conductor thickness, surface finish, pad requirements and critical trace/space.
Thermal, electrical, insulation, bonding or soldering requirements.
BOM, CPL and assembly drawing if PCBA is required.
Quantity, revision, target lead time and test or report requirements.

Common Ceramic PCB Sourcing Risks

The most common ceramic PCB sourcing risk is choosing a supplier before the substrate, process and reliability target are clear. That creates quote revisions, unsuitable material choices, avoidable failures and late production changes.

Do not treat all ceramic PCB processes as interchangeable.
Do not compare DBC pricing with DPC or thin film pricing without scope control.
Do not send only Gerbers when material, thermal and test requirements matter.
Do not assume FR4 design rules apply to ceramic substrates.
Do not accept broad capability claims without process-specific confirmation.

Frequently Asked Questions About Ceramic PCB Manufacturers

What does a ceramic PCB manufacturer do?

A ceramic PCB manufacturer fabricates circuit boards or substrates using ceramic materials such as alumina, aluminum nitride, zirconia or silicon nitride. Depending on the process, the supplier may support DPC, DBC/DCB, AMB, thick film, thin film, LTCC or HTCC ceramic circuits.

Which ceramic PCB process should I choose?

Choose the process based on thermal load, conductor thickness, line precision, substrate material, assembly method and reliability requirement. If unsure, send the application notes and ask the supplier to compare DPC, DBC/DCB, AMB, thick film or thin film options.

Can ceramic PCB support assembly?

Yes, but assembly requirements should be reviewed early. Ceramic substrates, metallization, surface finish and thermal mass can affect soldering, bonding, inspection and test planning. Send BOM and CPL with the fabrication files.

Why is ceramic PCB more expensive than FR4?

Ceramic PCB usually costs more because the substrate, metallization, processing, tolerance control and testing are more specialized. The cost can be justified when thermal, insulation, high-temperature or reliability needs cannot be met by standard FR4.

Final RFQ Recommendation

Before selecting a ceramic PCB manufacturer, define the substrate, process route and application risk clearly enough for a real engineering review. A useful supplier comparison should use the same files, material assumptions, finish, tolerances, testing scope and assembly requirements.

For a ceramic PCB quote, send Gerber or ODB++ files, drill data, mechanical drawings, target substrate, process preference, conductor thickness, surface finish, thermal and insulation requirements, BOM, CPL, assembly drawings, quantity, testing requirements and target lead time to sales@bestpcbs.com. Best Technology / bestpcbs can review the files, confirm which ceramic process needs project-specific checking and help prepare the build as a ceramic substrate, assembled PCBA or production RFQ.

What Is Ceramic PCB Prototype Production?

Ceramic PCB prototype production is the first manufacturing run of a ceramic circuit board design, usually built to validate the material, copper layout, process route, inspection plan, and assembly compatibility. The goal is to find manufacturability issues while the design can still be corrected without large production losses.

Ceramic PCB prototype production scene with ceramic circuit samples under microscope inspection

Unlike a standard FR4 prototype, a ceramic prototype depends heavily on substrate behavior, metallization method, firing or bonding process, conductor adhesion, surface flatness, and thermal expansion matching. A good prototype order should therefore answer both electrical and manufacturing questions, not only confirm that the Gerber files can be plotted.

For a new project, the prototype stage often confirms whether ceramic PCB technology is the right direction, or whether an alternative such as FR4 PCB or metal-core PCB is enough for the thermal and cost target.

Why Is Ceramic PCB Prototyping Different from FR4 PCB Prototyping?

Ceramic PCB prototyping is different because the substrate is rigid, hard, thermally conductive, and much less forgiving than glass-reinforced epoxy laminate. The process needs more attention to ceramic material selection, copper bonding, drilling or laser processing, dimensional tolerance, and thermal cycling behavior.

Prototype factor	FR4 PCB prototype	Ceramic PCB prototype
Base material	Glass epoxy laminate	Al2O3, AlN, BeO alternatives, LTCC, HTCC, or other ceramic substrates
Main design concern	Signal routing, layer stack, cost, and standard fabrication limits	Thermal path, ceramic thickness, copper adhesion, CTE match, and process route
Mechanical behavior	Can flex slightly before fracture	Brittle and requires careful handling, panel design, and fixture planning
Prototype review focus	DFM, impedance, hole quality, solder mask, assembly fit	Metallization quality, substrate flatness, thermal design, edge quality, and inspection plan

This difference affects the RFQ stage. A supplier should review not only the Gerber data, but also the ceramic material, copper thickness, board outline, via structure, tolerance needs, component heat load, and whether the prototype must support later mass production approval.

Which Ceramic PCB Material Should You Choose for a Prototype?

The best ceramic prototype material depends on thermal conductivity, insulation requirement, mechanical strength, cost target, and the final application environment. Al2O3 is commonly chosen for cost-effective ceramic prototypes, while AlN is often selected when higher thermal conductivity is required.

Material or technology	Why it is used in prototypes	Typical review point
Al2O3 ceramic	Balanced cost, insulation, mechanical stability, and mature processing	Check whether thermal performance is enough for the heat load
AlN ceramic	Higher thermal conductivity for power and LED designs	Confirm cost, availability, and metallization compatibility
Thick film ceramic	Useful for printed conductor, resistor, and hybrid circuit structures	Review conductor geometry and fired pattern tolerance
Thin film ceramic	Used where fine lines, stable circuits, or precise patterns are needed	Confirm line width, adhesion, finish, and application fit
DPC, DCB, or related structures	Selected when copper thickness, thermal path, or power handling drives the design	Match the process route to copper thickness and reliability needs

If the project is still early, ask the manufacturer to compare available ceramic options before confirming the prototype route. EBest Circuit supports ceramic PCB categories such as thick film ceramic PCB, thin film ceramic PCB, DPC ceramic PCB, and DCB ceramic PCB, so the prototype can be planned around the final production requirement instead of treated as an isolated sample.

What Is the Ceramic PCB Manufacturing Process?

The ceramic PCB manufacturing process usually starts with design review and material selection, then moves through substrate preparation, metallization, patterning, firing or bonding, surface finish, profiling, inspection, testing, and packing. The exact route depends on whether the project uses thick film, thin film, DPC, DCB, LTCC, HTCC, or another ceramic process.

Ceramic PCB prototype manufacturing process samples arranged from substrate to copper patterned board

Engineering review: Check Gerber files, drill data, board outline, copper thickness, substrate thickness, tolerances, and application requirements.
Material preparation: Select Al2O3, AlN, or another ceramic substrate and confirm thickness, size, flatness, and handling needs.
Metallization and patterning: Build the conductive layer using the selected process route, then define circuit features according to the design.
Thermal or bonding process: Fire, sinter, plate, bond, or otherwise stabilize the conductor system depending on the technology.
Finishing and profiling: Apply the required surface finish, cut the outline, and prepare the board for inspection or assembly.
Inspection and test: Review dimensions, conductor quality, insulation, open/short status, surface quality, and packaging condition.

A prototype should be reviewed as a process sample. If the prototype later moves into production, the same data package, material choice, and inspection criteria should be stable enough to repeat.

How Do Thick Film, Thin Film, DPC and DCB Affect Prototype Production?

Different ceramic PCB process routes affect prototype cost, minimum features, copper thickness, thermal performance, and sample lead time. Choosing the process too late can force the engineering team to redesign pads, traces, vias, or thermal areas after the first prototype.

Thick film ceramic PCB is often used for hybrid circuits and printed conductor structures. It can be practical for prototypes where fired pastes, resistive elements, or ceramic-based circuit patterns are part of the design.

Thin film ceramic PCB is better suited for finer features and stable circuit requirements. It is often reviewed for sensor, microwave, medical, and precision electronic applications where conductor geometry matters.

DPC and DCB ceramic PCB routes are more closely tied to power electronics and heat transfer. For these prototypes, copper thickness, adhesion, thermal cycling, and substrate-to-copper reliability need early review.

What Files Are Needed for a Ceramic PCB Prototype Quote?

A ceramic PCB prototype quote is more accurate when the supplier receives a complete technical package, not just a screenshot or partial Gerber export. Missing tolerances, material notes, and assembly requirements can cause delays or a quote that does not match the real production risk.

Gerber files and drill data
Board outline drawing with critical dimensions
Ceramic material preference, such as Al2O3 or AlN
Substrate thickness and copper thickness requirement
Surface finish requirement
Panelization or single-piece delivery preference
Quantity for prototype and expected production volume
Assembly files if the prototype needs PCBA service
Thermal, electrical, or reliability test requirements
Application notes, especially for high-power, high-temperature, LED, sensor, or RF use

When a buyer provides both the prototype quantity and the expected mass production target, the manufacturer can recommend a route that avoids sample-only shortcuts that may not scale.

What Should You Check Before Moving from Prototype to Production?

Before moving from ceramic prototype to production, check whether the prototype truly validates the final design, process, material, and inspection standard. A board that passes a simple electrical test may still need thermal, mechanical, and assembly review before mass production.

Ceramic PCB prototype inspection under microscope with caliper and probe station in quality lab

Confirm the ceramic material and thickness match the final thermal design.
Check conductor adhesion, line quality, edge quality, and surface finish.
Review substrate flatness and dimensional tolerance against assembly needs.
Test open/short status, insulation resistance, and critical electrical paths.
Review solderability or bonding compatibility if components will be mounted.
Record any design changes before approving the production file set.
Ask whether the same process route will be used for the production batch.

The cleanest transition happens when the prototype report, customer feedback, corrected files, and final production requirements are all connected before the next purchase order.

What Problems Can Delay Ceramic PCB Prototype Production?

Ceramic PCB prototype production is often delayed by incomplete files, unclear material selection, unrealistic tolerances, process-route mismatch, missing assembly data, or late changes to the thermal design. These problems are easier to fix before production starts than after substrates and tooling have been prepared.

Delay cause	Why it matters	How to prevent it
Unclear ceramic material	Al2O3, AlN, and other ceramics change cost and thermal behavior	Share heat load, application, and target cost before quoting
Missing tolerance drawing	Ceramic processing may need different tolerance planning than FR4	Mark critical dimensions and non-critical dimensions separately
Wrong process route	Thick film, thin film, DPC, and DCB do not fit the same designs equally	Ask the supplier to review process fit before sample build
Late assembly requirement	Pad finish, flatness, and component heat transfer may need early planning	Send BOM, placement file, and assembly notes with the RFQ

How to Choose a Ceramic PCB Prototype Manufacturer?

Choose a ceramic PCB prototype manufacturer by checking whether the supplier can review material selection, process route, DFM risk, inspection requirements, assembly needs, and future production scaling. Price matters, but the cheapest sample is not useful if the process cannot support the final product.

Good supplier questions include:

Which ceramic materials and process routes are suitable for this design?
Can the same route support prototype and mass production?
What design features may increase cost or delay?
Which tolerances should be relaxed if they are not functional?
What tests are recommended for this application?
Can assembly, inspection, and packaging be coordinated in one project flow?

EBest Circuit can support custom ceramic PCB projects from prototype review to sample production and later batch manufacturing. For projects that need assembled samples, prototype PCB fabrication can also be coordinated with PCBA review to reduce handoff risk.

FAQ

How much does a ceramic PCB prototype cost?

Ceramic PCB prototype cost depends on material, substrate thickness, copper thickness, process route, dimensions, tolerance level, quantity, surface finish, testing, and whether assembly is included. Al2O3 prototypes are often more cost-effective than higher thermal conductivity ceramic options, but the right choice should be based on the heat load and reliability target.

Can ceramic PCB prototypes be assembled?

Yes, ceramic PCB prototypes can be assembled when the pad finish, flatness, component package, soldering or bonding method, and thermal requirements are reviewed early. If assembly is needed, send the BOM, placement file, polarity notes, and any thermal interface requirements with the PCB quotation package.

Is Al2O3 or AlN better for ceramic PCB prototype production?

Al2O3 is often selected for balanced cost and mature processing, while AlN is chosen when higher thermal conductivity is required. The better option depends on the heat source, insulation requirement, mechanical design, available budget, and whether the prototype must represent a later production build.

Can one ceramic PCB prototype be used for mass production approval?

One prototype can support production approval only if it uses the same material, process route, design file set, tolerance standard, inspection method, and assembly assumptions planned for mass production. If the prototype used sample-only changes, a second verification run may be needed before release.

What tolerances matter most in ceramic PCB prototyping?

The most important tolerances are usually board outline, hole or slot position, substrate thickness, copper feature size, registration, flatness, and critical pad locations. The buyer should identify which dimensions affect assembly or function, because unnecessary tight tolerances can increase cost and delay without improving performance.

What is the difference between ceramic prototype and ceramic PCB prototype?

A ceramic prototype can refer to any trial part made from ceramic material, while a ceramic PCB prototype is a circuit board sample built on a ceramic substrate with conductive patterns for electronic use. For RFQ clarity, use ceramic PCB prototype when the part includes circuit fabrication requirements.

How Can EBest Circuit Support Ceramic PCB Prototype Production?

EBest Circuit supports ceramic PCB prototype production by helping buyers review materials, process route, manufacturability, inspection needs, and assembly requirements before moving into larger production. If you are developing a ceramic PCB for LED, power electronics, sensor, automotive, medical, or industrial electronics applications, send your files and requirements to the engineering team for a practical review and quotation at sales@bestpcbs.com.

What Does Ceramic PCB High Temperature Resistant Mean?

Ceramic PCB high temperature resistant means the circuit substrate can keep useful electrical insulation, dimensional stability, and mechanical integrity in a hotter environment than many organic PCB materials can tolerate.

Ceramic PCB high temperature resistant substrates with keyword overlay

For PCB buyers, high temperature resistance should not be read as one simple number. A board may survive a short thermal event but still fail in long-term operation because of copper stress, solder joint fatigue, ceramic cracking, metallization adhesion, component limits, or repeated thermal cycling.

A ceramic PCB is usually chosen when the substrate must support both heat transfer and electrical reliability. Alumina, aluminum nitride, silicon nitride, thick film ceramic circuits, DBC ceramic PCB, and other ceramic substrate options each solve a different high temperature problem.

Why Choose Ceramic PCB for High Temperature Applications?

Choose ceramic PCB for high temperature applications when the board must handle heat, insulation, and dimensional stability at the same time.

Standard FR4 PCB works well for many electronic products, but its resin system limits long-term high temperature reliability. High Tg FR4 can improve heat resistance, yet it is still an organic laminate. Ceramic substrates are inorganic, so they can offer stronger temperature stability and lower thermal expansion in harsh environments.

Common high temperature ceramic PCB applications include LED modules, power electronics, semiconductor modules, automotive electronics, industrial sensors, heating control circuits, aerospace electronics, high-voltage insulation circuits, and compact assemblies where heat cannot be removed easily through a standard board stack.

PCB Option	High Temperature Fit	Buyer Note
FR4 PCB	Good for many standard products	Check Tg, Td, operating temperature, and soldering profile
High Tg FR4	Better than standard FR4	Useful when temperature is elevated but not extreme
Metal core PCB	Good heat spreading	Often used for LEDs and power boards, but dielectric layer matters
Ceramic PCB	Strong heat resistance and insulation	Best when heat, voltage, reliability, and size all matter
DBC ceramic PCB	Power module and high current applications	Useful when copper thickness and heat transfer are both important

What Temperature Can a Ceramic PCB Withstand?

A ceramic PCB can often tolerate much higher substrate temperatures than organic PCB laminates, but the real usable temperature depends on material, metallization, assembly, components, solder, coating, and operating time.

It is risky to ask only for “maximum temperature.” For a production design, define the continuous operating temperature, peak temperature, dwell time, temperature cycling range, heating and cooling rate, and whether the board will carry power during the high temperature condition.

EBest Circuit’s ceramic PCB page lists high-temperature resistance as a ceramic PCB process advantage and covers ceramic materials including Al2O3 and AlN. Public technical references also commonly describe ceramic substrates as suitable for high-power and high-reliability applications where FR4 temperature limits are not enough.

How Does Ceramic PCB Thermal Conductivity Affect Heat Dissipation?

Ceramic PCB thermal conductivity affects how quickly heat can move through the substrate from components to a heat sink, chassis, or surrounding structure.

Ceramic PCB material samples for thermal conductivity and CTE review

Thermal conductivity is not the same as temperature resistance. A material can tolerate high temperature but still conduct heat poorly. Alumina ceramic PCB is often cost-effective and stable, while AlN ceramic PCB usually provides much higher thermal conductivity for stronger heat transfer. Silicon nitride may be selected when mechanical strength and thermal cycling reliability are more important.

Material	Thermal Behavior	Typical Decision Logic
Al2O3 / alumina	Moderate ceramic thermal conductivity	Cost-effective choice for many high temperature ceramic PCB projects
AlN	Higher thermal conductivity	Useful for high-power modules and compact heat paths
Si3N4	Good strength and thermal cycling behavior	Consider when mechanical reliability is a major concern
Metal core PCB	Good heat spreading through metal base	Good for many LED and power applications, but not always ceramic-level insulation

For accurate selection, review the full thermal path: component package, solder layer, copper area, ceramic thickness, substrate material, interface material, heat sink, airflow, and mounting pressure.

Why Does Ceramic PCB CTE Matter in High Temperature Design?

Ceramic PCB CTE, or coefficient of thermal expansion, matters because materials expand and contract as temperature changes.

If the ceramic substrate, copper layer, solder joint, component package, and mounting structure expand at very different rates, thermal cycling can create stress. That stress may lead to cracks, delamination, solder fatigue, conductor damage, or loss of electrical reliability.

CTE matching is especially important in power modules, high-temperature sensors, automotive electronics, aerospace electronics, and products exposed to repeated heating and cooling. Buyers should provide the expected temperature cycle, not only the maximum temperature.

Al2O3 vs AlN vs Si3N4: Which Ceramic PCB Material Should You Choose?

The best ceramic PCB material depends on whether the design needs lower cost, higher thermal conductivity, stronger mechanical reliability, or better thermal cycling performance.

Al2O3 is often the first ceramic PCB material to review because it is widely used and cost-effective. AlN is usually selected when the design needs much stronger heat transfer. Si3N4 can be attractive for demanding thermal cycling or mechanical stress conditions, but availability, process route, and cost should be reviewed early.

Material	Strength	Limitation	Best Use
Al2O3 ceramic PCB	Stable, economical, mature	Lower thermal conductivity than AlN	General high temperature ceramic PCB, sensors, LEDs, hybrid circuits
AlN ceramic PCB	High thermal conductivity	Higher cost and stricter processing	High-power modules, compact thermal designs, advanced LEDs
Si3N4 ceramic PCB	Mechanical strength and thermal cycling potential	Cost and process availability need review	Demanding power electronics and reliability-focused applications

Ceramic PCB vs FR4 vs Metal Core PCB for High Temperature Use

Ceramic PCB, FR4, and metal core PCB solve different temperature and heat problems, so the best choice depends on the real operating environment.

FR4 is usually best when cost, multilayer routing, and normal operating temperatures matter most. Metal core PCB is often useful when heat spreading is needed from LEDs or power devices. Ceramic PCB becomes more attractive when the board must combine high temperature stability, insulation, compact size, and reliable heat transfer.

If the circuit has high voltage, high heat flux, repeated thermal cycling, or a small heat path, ceramic PCB should be reviewed before the layout is locked.

Which Ceramic PCB Manufacturing Process Fits High Temperature PCBs?

The manufacturing process should match the temperature, current, line width, copper thickness, and reliability requirement.

Thick film ceramic PCB is useful for hybrid circuits, sensors, and designs that need fired conductor patterns on ceramic. Thin film ceramic PCB supports finer circuit features and precision applications. DBC ceramic PCB is often used where bonded copper, power handling, and heat transfer are important.

Process	Useful For	High Temperature Note
Thick film	Sensors, hybrid circuits, fired conductors	Review conductor paste and firing system
Thin film	Fine lines, precision circuits, compact modules	Useful when pattern accuracy matters
DBC	Power modules and higher current paths	Review copper thickness, ceramic thickness, and thermal cycling
HTCC / LTCC	Multilayer ceramic structures and packages	Use when the design needs ceramic multilayer integration

What Design Checks Help Prevent High Temperature PCB Failure?

High temperature PCB failure is often caused by the whole assembly, not only the ceramic substrate.

Check continuous temperature, peak temperature, and thermal cycling range.
Review CTE compatibility between ceramic, copper, solder, and component packages.
Confirm copper thickness and conductor adhesion for the process.
Check solder alloy, attachment method, and component temperature ratings.
Review ceramic thickness, board outline, holes, slots, and edge stress.
Confirm whether conformal coating, potting, or enclosure materials can survive the same temperature.
Define inspection and reliability testing before production.

For procurement teams, a “high temperature ceramic PCB” quote should include more than Gerber files. It should include application temperature, power dissipation, operating environment, assembly requirements, and reliability expectations.

What Should You Provide for a High Temperature Ceramic PCB Quote?

A complete RFQ helps the manufacturer choose the right ceramic material, process, tolerance, copper structure, and test plan.

High temperature ceramic PCB inspection after thermal testing

Gerber files, drill file, and mechanical drawing.
Preferred ceramic material, such as Al2O3, AlN, or Si3N4.
Operating temperature, peak temperature, and temperature cycle profile.
Power dissipation, current load, and heat source area.
Copper thickness, conductor method, and surface finish.
Minimum line width, spacing, hole size, and tolerance requirements.
Assembly method, component type, solder requirement, and testing needs.
Prototype quantity, mass production estimate, and delivery expectation.

How EBest Circuit Supports High Temperature Ceramic PCB Projects?

EBest Circuit supports ceramic PCB manufacturing and related PCB/PCBA services for customers evaluating high temperature, high thermal conductivity, and high reliability circuit requirements.

Relevant capabilities include ceramic PCB, thick film ceramic PCB, thin film ceramic PCB, DBC ceramic PCB, FR4 PCB, metal core PCB, component sourcing, and PCB assembly. For high temperature ceramic PCB projects, the engineering review should focus on material, thermal conductivity, CTE, copper structure, process route, testing, and assembly compatibility.

If the design is still early, send the working temperature, heat source details, voltage/current requirement, and expected environment. This helps the team suggest whether Al2O3, AlN, Si3N4, DBC, thick film, thin film, FR4, or metal core PCB is the better starting point.

FAQ

Is ceramic PCB good for high temperature?

Yes. Ceramic PCB is often good for high temperature electronics because ceramic substrates provide strong insulation, stable dimensions, and better heat resistance than many organic PCB laminates. The final reliability still depends on copper, solder, components, assembly, and thermal cycling.

What is the best material for high temperature ceramic PCB?

There is no single best material for every high temperature ceramic PCB. Al2O3 is often cost-effective, AlN is useful when high thermal conductivity is needed, and Si3N4 may be considered when mechanical strength and thermal cycling reliability are major concerns.

Is thermal conductivity the same as temperature resistance?

No. Thermal conductivity describes how well heat moves through a material. Temperature resistance describes how well the material and assembly survive heat. A board can tolerate high temperature but still need better heat spreading, or conduct heat well but fail because of CTE stress or assembly limits.

Why is CTE important for ceramic PCB?

CTE matters because ceramic, copper, solder, and components expand at different rates when temperature changes. Poor CTE matching can create mechanical stress, which may cause cracking, delamination, or solder joint fatigue during thermal cycling.

Can FR4 be used for high temperature PCB?

FR4 can be used in many moderate-temperature electronics, and high Tg FR4 can improve thermal margin. For harsher environments, stronger insulation, high heat flux, or repeated thermal cycling, ceramic PCB or another high temperature substrate may be a better fit.

When should I choose metal core PCB instead of ceramic PCB?

Choose metal core PCB when heat spreading through a metal base is enough and the circuit does not require ceramic-level insulation, temperature stability, or CTE behavior. LEDs and some power boards often use metal core PCB, while ceramic PCB fits more demanding thermal and reliability cases.

What affects the cost of high temperature ceramic PCB?

Cost depends on ceramic material, substrate thickness, board size, process type, copper thickness, line width, holes, tolerance, surface finish, inspection, assembly, quantity, and lead time. AlN, fine features, tight tolerances, and special reliability testing usually increase cost.

What files are needed for a high temperature ceramic PCB quote?

Send Gerber files, drill files, drawings, stackup notes, ceramic material preference, operating temperature, thermal cycling profile, current and voltage requirements, copper thickness, surface finish, quantity, and assembly or testing requirements if needed.

Conclusion

A ceramic PCB can solve high temperature PCB problems when the design needs more than ordinary laminate heat resistance. The right choice depends on temperature profile, thermal conductivity, CTE, material type, manufacturing process, copper structure, assembly method, and quality inspection.

If you are evaluating high temperature ceramic PCB, Al2O3 PCB, AlN PCB, DBC ceramic PCB, thick film ceramic PCB, or ceramic PCB assembly, EBest Circuit can review your drawings and help choose a practical manufacturing path. Contact our engineering team for technical support and a quote at sales@bestpcbs.com.

What Is a Ceramic PCB for Automotive Electronics?

A ceramic PCB for automotive electronics is a circuit board or substrate that uses ceramic material as the base instead of FR4 laminate. Common ceramic materials include alumina, aluminum nitride, and silicon nitride. Copper circuits are formed on the ceramic surface through DPC, DBC, AMB, thick film, thin film, or other metallization processes.

The main purpose of using ceramic is to combine electrical insulation with heat transfer. This is useful in automotive systems where heat must move from power devices to a heat sink, metal housing, or cooling plate while the circuit remains electrically isolated.

Ceramic PCB boards are commonly used in EV power modules, automotive LED lighting, onboard chargers, DC-DC converters, high-temperature sensors, heater circuits, and powertrain modules. A small alumina sensor substrate and a thick copper AMB substrate for an EV drive system are both ceramic-based products, but their structures and costs are very different.

For customers requesting a ceramic PCB prototype, the process type matters. DPC is often used for fine circuit patterns. DBC and AMB are better suited for thick copper, high current, and power module applications. Thick film ceramic circuits are used when printed resistors, heater traces, or functional paste layers are required.

Why Are Ceramic PCBs Used in Automotive Electronics?

Ceramic PCBs are used when the board must handle heat, voltage, or harsh working conditions better than standard FR4. In automotive electronics, this usually happens near power semiconductors, LEDs, balancing resistors, current sensors, heating elements, and high-voltage power sections.

The biggest advantage is thermal performance. FR4 is a poor heat conductor. Ceramic materials can transfer heat more efficiently while still providing insulation. This makes them useful in modules where the substrate sits between a hot component and a cooling structure.

Ceramic PCBs are also stable under temperature changes. Vehicle electronics go through repeated heating and cooling during driving, charging, parking, and load changes. A stable ceramic substrate helps reduce stress on solder joints, copper layers, chips, and bonded interfaces.

Ceramic PCB is usually worth considering when the design has:

High heat in a small area
High-voltage insulation requirements
Power devices mounted close to the substrate
Limited space for heat sinks or airflow
Repeated thermal cycling
Thick copper or high-current paths
A need for long-term stability in a harsh environment

If the board mainly carries signals or low-power control circuits, FR4 is usually enough. Ceramic should be used where it solves a clear engineering problem.

How Is a Ceramic PCB Board Different from an FR4 PCB?

Ceramic PCB and FR4 PCB are used for different design priorities. FR4 is strong in routing flexibility, multilayer design, cost control, and general electronics. Ceramic PCB is stronger in heat transfer, insulation, dimensional stability, and power-density applications.

Ceramic PCB for Automotive Electronics: What Should Customers Know?

Item	Ceramic PCB Board	FR4 PCB
Base material	Alumina, AlN, Si3N4, or other ceramic	Glass fiber and epoxy resin
Main value	Thermal transfer and insulation	Routing flexibility and cost control
Thermal conductivity	Much higher, depending on ceramic type	Low, commonly around 0.25–0.35 W/m·K
Heat resistance	Strong in high-temperature areas	Limited by resin system and Tg grade
Electrical insulation	Excellent for power and high-voltage use	Good for standard circuits
Copper structure	Can support thick copper in DBC or AMB	Better for standard multilayer PCB routing
Typical use	EV power modules, LEDs, sensors, power converters	ECU, BMS control board, infotainment, body electronics
Cost	Higher	Lower

FR4 is the better first choice for control boards, communication boards, and cost-sensitive electronics. Ceramic PCB is the better option when the board must act as a thermal path or an insulating power substrate.

When Should You Choose Ceramic Substrate vs FR4 in Automotive Electronics?

Choose ceramic substrate when heat, voltage, or current density is the design limit. Choose FR4 when the board mainly needs signal routing, control, and standard assembly.

In many automotive products, both materials can be used in the same system. For example, an EV charger may use FR4 for the control board and ceramic substrate for the power section. A BMS may use FR4 for monitoring and communication, while using ceramic near balancing resistors or heat-generating parts.

Design Condition	Better Choice	Reason
Low-power control circuit	FR4 PCB	Lower cost and easier multilayer routing
Infotainment or communication board	FR4 PCB	Better for dense signal routing
High-power LED module	AlN ceramic PCB or metal core PCB	Better heat transfer
EV inverter power stage	DBC or AMB ceramic substrate	Handles heat, current, and insulation
BMS main control board	FR4 PCB	Mostly signal and monitoring circuits
BMS resistor hot zone	Ceramic PCB or metal core PCB	Helps spread local heat
High-temperature sensor	Alumina or AlN ceramic PCB	Stable near heat sources
Compact DC-DC converter	Ceramic PCB	Reduces thermal resistance

Before choosing ceramic, customers should provide power loss, current load, operating voltage, target temperature, board size, copper thickness, cooling method, and assembly requirements. Without these details, material selection is incomplete.

What Ceramic PCB Materials Are Used in Automotive Applications?

The main ceramic PCB materials for automotive applications are alumina, aluminum nitride, and silicon nitride. Each material fits a different use case.

Alumina is the most common option. It is stable, insulating, mature in production, and more economical than AlN or Si3N4. It is often used for sensors, thick film circuits, heater circuits, and moderate-power modules.

Aluminum nitride is selected when heat transfer is the main requirement. It has much higher thermal conductivity than alumina and is widely used in automotive LED lighting, compact power modules, and high-heat areas.

Silicon nitride is selected for mechanical reliability and thermal cycling performance. It is often used in AMB substrates for EV inverter and drive system modules.

Material or Structure	Main Feature	Automotive Use
Alumina ceramic	Stable, insulating, cost-effective	Sensors, heater circuits, thick film modules
AlN ceramic	High thermal conductivity	LED lighting, power modules, compact thermal designs
Si3N4 ceramic	Strong thermal cycling reliability	EV inverter and drive systems
DPC ceramic PCB	Fine circuits and plated copper	LEDs, sensors, precision circuits
DBC ceramic substrate	Thick copper bonded to ceramic	Power modules and high-current circuits
AMB ceramic substrate	Strong copper-to-ceramic bonding	EV drive systems and SiC power modules
Thick film ceramic	Printed conductor or resistor layers	Sensors and heater modules

Material selection should not rely only on thermal conductivity. Copper thickness, ceramic thickness, bonding strength, insulation distance, surface finish, assembly process, and cost target should also be reviewed.

Why Is AlN Ceramic PCB Used for Automotive LED Lighting?

AlN ceramic PCB is used in automotive LED lighting because high-power LEDs generate concentrated heat. In headlights, daytime running lights, matrix LED systems, and EV lighting modules, the board must move heat away from the LED package quickly.

AlN provides a strong thermal path while keeping electrical insulation. This helps the lighting module maintain stable brightness, color consistency, and service life. It is especially useful in compact lamp designs where airflow is limited and the heat sink area is small.

The thermal path usually follows this route: LED package, solder joint, copper layer, AlN ceramic substrate, thermal interface material, heat sink, and lamp housing. The ceramic board improves the substrate part of this path, but the full structure must also be well designed.

Lighting Requirement	Why AlN Helps
High LED power density	Transfers heat away from small LED areas
Slim lamp structure	Supports compact thermal design
Matrix LED layout	Helps manage multiple heat sources
Stable brightness	Reduces excessive temperature rise
Color consistency	Keeps LED operation more stable
Electrical insulation	Isolates copper circuits from the housing

For customers, LED power, copper thickness, soldering method, housing design, thermal interface material, and surface finish should be confirmed before making an AlN ceramic PCB prototype.

How Does Ceramic PCB Thermal Conductivity Help EV Systems?

Ceramic PCB thermal conductivity helps EV systems by reducing the thermal bottleneck between power components and the cooling structure. This is important in inverters, onboard chargers, DC-DC converters, power distribution units, LED drivers, and battery-related circuits.

Material	Typical Thermal Conductivity Range	Meaning in EV Systems
FR4	About 0.25–0.35 W/m·K	Suitable for control and signal boards
Alumina ceramic	About 20–30 W/m·K	Good for cost-balanced ceramic designs
AlN ceramic	About 140–180 W/m·K	Strong for compact high-power modules
Si3N4 ceramic	About 70–90 W/m·K	Good for thermal cycling reliability
Copper	About 400 W/m·K	Used for current and heat spreading

Higher thermal conductivity helps move heat away from IGBTs, SiC MOSFETs, LEDs, power resistors, and other hot components. However, customers should not look at substrate thermal conductivity alone. Total thermal resistance is more important.

Ceramic thickness, copper thickness, solder layer, thermal interface material, heat sink contact, mounting pressure, and cooling method all affect final temperature. A high-performance ceramic substrate still needs a good mechanical and thermal design around it.

How Are Ceramic PCBs Used in EV Power Electronics?

Ceramic PCBs are used in EV power electronics as insulating thermal substrates. They support power devices, carry current through copper, transfer heat to the cooler, and maintain electrical isolation.

In traction inverters, ceramic substrates are often used under IGBTs or SiC MOSFETs. Heat moves from the semiconductor into copper, through the ceramic, and toward the cooling plate. The ceramic layer keeps the high-voltage circuit isolated from the cooler.

In onboard chargers, ceramic boards can be used near switching devices, rectifiers, and other heat-generating power components. In DC-DC converters, ceramic substrates may be used in the power section, while FR4 remains suitable for the control section.

Typical applications include:

Traction inverter power modules
SiC MOSFET and IGBT substrates
Onboard charger power sections
DC-DC converter thermal modules
Power distribution circuits
Electric compressor drive electronics
High-power LED driver modules
Ceramic PCB assembly for powertrain modules

For EV power electronics, copper design is critical. Copper thickness affects current capacity and heat spreading. Copper shape affects stress. Isolation gaps affect voltage safety. Ceramic thickness affects thermal resistance and mechanical strength. These details should be checked before prototype production.

How Is AMB Ceramic PCB Used in Electric Vehicle Drive Systems?

AMB ceramic PCB is used in electric vehicle drive systems as a high-reliability power substrate. AMB means Active Metal Brazing. Copper is bonded to ceramic through an active brazing alloy, creating a strong copper-to-ceramic connection.

EV drive systems create repeated heating and cooling during acceleration, regenerative braking, and load changes. The substrate must handle current, heat, insulation, vibration, and thermal cycling. AMB is selected when bonding strength and long-term reliability are more important than lowest cost.

AMB substrates are commonly made with AlN or Si3N4. AlN AMB is used when high thermal conductivity is the priority. Si3N4 AMB is used when thermal cycling and mechanical reliability are more important.

Substrate Type	Main Feature	Automotive Use
Alumina DBC	Mature and cost-effective	Standard power modules
AlN DBC	Better heat transfer	Higher power-density modules
AlN AMB	High thermal transfer and strong bonding	Compact power modules
Si3N4 AMB	Strong thermal cycling reliability	EV traction inverter modules

AMB ceramic PCB is especially useful for SiC power modules. SiC devices can operate at high power density, so the substrate must support concentrated heat and strong copper adhesion. AMB gives the module a more robust base for demanding drive system conditions.

Can Ceramic PCBs Be Used for BMS in Electric Vehicles?

Ceramic PCBs can be used for BMS in electric vehicles, but usually only in selected areas. Most BMS main boards use FR4 because they handle voltage monitoring, communication, control, and low-power signal processing.

Ceramic becomes useful where heat or insulation stress is higher. The most common example is the balancing resistor area. During cell balancing, resistors can generate local heat. A ceramic substrate can help spread that heat and protect nearby components.

Ceramic PCB may also be considered for current sensing areas, temperature sensing modules, compact protection circuits, or battery modules exposed to elevated temperature.

BMS Area	Suitable PCB Choice	Reason
Main control board	FR4 PCB	Good for signal routing and cost control
Communication circuit	FR4 PCB	Low power and standard assembly
Voltage monitoring board	FR4 or ceramic PCB	Depends on location and insulation need
Balancing resistor area	Ceramic PCB or metal core PCB	Better local heat spreading
Temperature sensing module	Alumina ceramic PCB or FR4 PCB	Depends on operating temperature
Current sensing area	Ceramic PCB may be useful	Helps thermal stability
High-temperature battery area	Ceramic PCB	Better stability near heat sources

For BMS projects, the best choice is often mixed-material design. Use FR4 for control and communication. Use ceramic only where heat, insulation, or reliability requires it. This keeps the design practical and avoids unnecessary cost.

In short, ceramic PCB for automotive electronics is suitable for high-heat, high-voltage, high-current, and compact power applications. FR4 remains suitable for many automotive control and signal boards. Ceramic substrates are stronger choices for EV power electronics, automotive LED lighting, sensors, BMS hot zones, and electric vehicle drive systems.

EBest Circuit provides ceramic PCB manufacturing, ceramic PCB prototype service, and PCB assembly support for automotive and EV-related projects. If you need ceramic PCB for automotive electronics, EV power modules, automotive LED lighting, BMS thermal circuits, or ceramic PCB assembly for powertrain modules, contact sales@bestpcbs.com for project review and quotation.

What Is a Ceramic PCB for Power Devices?

A ceramic PCB for power devices is a circuit board made with a ceramic substrate and metallized conductive layers. Unlike FR4, which uses glass-reinforced epoxy, ceramic boards use inorganic materials that offer high thermal stability, strong dielectric insulation, and excellent dimensional stability.

In power electronics, the board is more than a carrier for components. It also becomes part of the heat-transfer path. Heat moves from the semiconductor junction to the package, solder layer, copper circuit, ceramic substrate, thermal interface material, heat sink, and finally the ambient environment.

Common ceramic PCB structures for power devices include:

Structure	Typical Use
DBC ceramic substrate	IGBT modules, power modules, motor drives, inverters
DPC ceramic PCB	High-precision circuits, LEDs, sensors, compact power modules
AMB ceramic substrate	SiC modules, EV power modules, high-reliability power electronics
Thick film ceramic PCB	Hybrid circuits, resistive circuits, high-temperature electronics
Thin film ceramic PCB	Fine-line circuits, high-frequency and precision applications

For power devices, the most common discussion usually centers on DBC, DPC, and AMB because they support thermal management, copper bonding, and power module packaging.

Why Do Power Devices Need Ceramic PCBs?

Power devices convert, switch, regulate, or distribute electrical energy. During operation, they generate heat. If heat cannot leave the device efficiently, junction temperature rises, efficiency drops, solder joints age faster, and long-term reliability becomes harder to control.

Ceramic PCB helps solve this problem by combining thermal conductivity and electrical insulation in one structure. Aluminum nitride ceramic substrates can offer much higher thermal conductivity than alumina, while silicon nitride provides strong mechanical reliability for demanding thermal cycling environments. Rogers’ ceramic substrate data lists typical thermal conductivity values such as 24 W/mK for Al2O3, 90 W/mK for Si3N4, and 170 W/mK for AlN.

Power devices also need insulation between high-current conductors and the heat sink. Ceramic materials can conduct heat while remaining electrically insulating, which makes them useful for compact power modules where heat and voltage must be managed at the same time.

How Does a Ceramic PCB Work in Power Electronics?

A ceramic PCB works by shortening the thermal path between the power device and the heat sink. In a typical power assembly, copper spreads heat laterally, while the ceramic substrate conducts heat vertically to the cooling structure. The ceramic layer also provides electrical isolation.

Ceramic PCB for Power Devices: Materials, Design, and Procurement Guide

The working logic is simple:

Function	How Ceramic PCB Supports It
Heat dissipation	Ceramic substrate transfers heat away from power chips
Electrical insulation	Ceramic separates conductive copper from heat sink or housing
Current carrying	Copper layer supports power paths and device interconnection
Mechanical support	Ceramic base supports chips, solder joints, and terminals
Reliability	Stable material behavior helps resist heat-related deformation

For high-current designs, copper thickness and copper layout matter as much as the ceramic material. A good ceramic substrate with poor copper distribution may still create hot spots. A strong power PCB design should balance thermal spreading, conductor width, copper thickness, clearance, creepage, solder area, and heat sink contact.

What Types of Ceramic PCBs Are Used for Power Devices?

Different ceramic PCB technologies are used for different power levels and manufacturing goals. The best choice depends on the device package, current, voltage, thermal load, circuit accuracy, and reliability requirement.

DBC Ceramic PCB

DBC means Direct Bonded Copper. In this process, copper is bonded directly to ceramic through a high-temperature bonding process. It is widely used in power modules because it offers thick copper, good heat spreading, and reliable insulation.

DBC is often used for IGBT modules, rectifier modules, DC-DC converters, motor drives, solar inverters, and industrial power modules.

DPC Ceramic PCB

DPC means Direct Plated Copper. It uses thin-film metallization and electroplating to build copper circuits on ceramic. DPC supports finer lines, smaller spacing, plated vias, and higher circuit precision than traditional thick copper ceramic substrates.

DPC is useful for compact power devices, LED modules, sensors, laser modules, and applications where fine circuit features are required.

AMB Ceramic PCB

AMB means Active Metal Brazing. It uses active brazing alloy to bond copper to ceramic. AMB is especially valuable for silicon nitride ceramic substrates, where mechanical toughness and thermal cycling performance are important.

AMB ceramic substrates are increasingly used in EV power modules, SiC power modules, traction inverters, renewable energy systems, aerospace electronics, and harsh industrial applications. Ferrotec lists AMB substrates on AlN and Si3N4 and DBC substrates on alumina and AlN for power electronic applications.

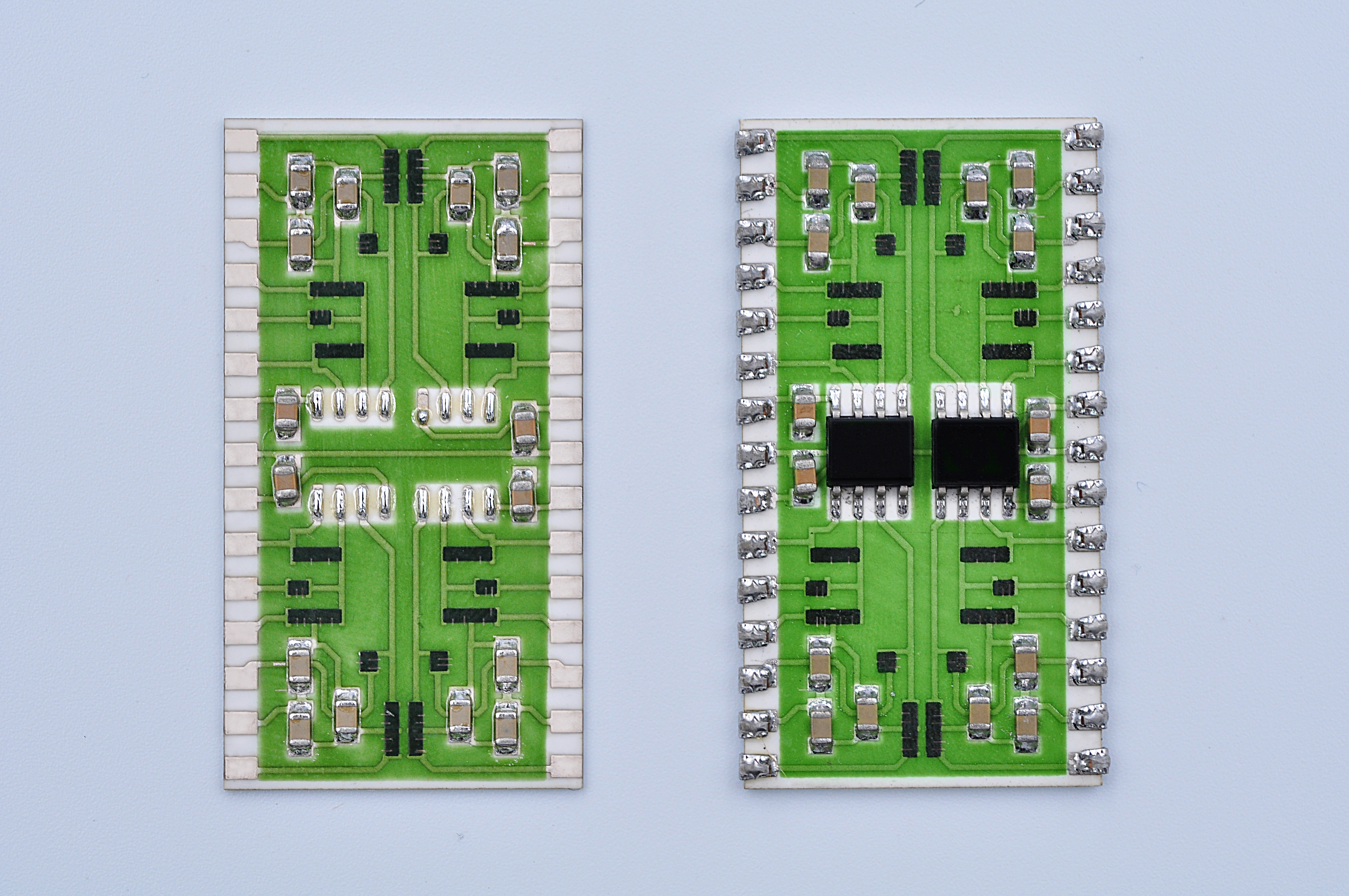

Thick Film Ceramic PCB

Thick film ceramic PCB uses screen-printed conductor, resistor, or dielectric pastes fired onto ceramic. It is suitable for hybrid circuits, heating circuits, resistive networks, and some high-temperature electronics.

Thin Film Ceramic PCB

Thin film ceramic PCB uses sputtering, photolithography, and etching to create fine and accurate patterns. It is used when precision, stable impedance, or fine-line geometry is required.

Which Ceramic Materials Are Best for Power Devices?

Material selection is one of the most important decisions in ceramic PCB manufacturing. No single ceramic material is best for every project.

Material	Main Strength	Typical Power Device Use	Selection Note
Alumina Al2O3	Cost-effective, stable, widely available	Medium-power modules, LED, industrial electronics	Good balance for cost-sensitive projects
Aluminum Nitride AlN	High thermal conductivity	High-power LED, RF power, laser, power modules	Better for high heat flux
Silicon Nitride Si3N4	High toughness and thermal cycling reliability	EV power modules, SiC modules, harsh environments	Good for reliability-critical modules
Zirconia-toughened alumina ZTA	Improved strength over standard alumina	Power substrates needing better mechanical reliability	Intermediate option
Beryllium Oxide BeO	Very high thermal conductivity	Legacy or special applications	Limited use due to health and handling concerns

Alumina is often selected when the power level is moderate and cost control matters. AlN is preferred when heat dissipation is the main challenge. Si3N4 is selected when thermal cycling, vibration, or mechanical stress is more demanding.

For SiC and GaN devices, buyers should be especially careful. These devices may operate at higher switching speeds and higher power density. The substrate must support heat transfer, insulation, partial discharge resistance, copper adhesion, and package-level reliability.

What Key Features Should Engineers Check?

A ceramic PCB for power devices should not be selected only by material name. Engineers and buyers should check measurable parameters.

Feature	Why It Matters
Thermal conductivity	Affects heat transfer from device to heat sink
Dielectric strength	Supports voltage isolation
Copper thickness	Impacts current capacity and heat spreading
Copper peel strength	Affects bonding reliability
Ceramic thickness	Balances insulation, thermal resistance, and strength
Surface finish	Influences solderability, wire bonding, and assembly
Warpage control	Important for chip mounting and module assembly
Line width and spacing	Determines circuit density and manufacturability
Via structure	Important for DPC ceramic PCB and compact modules
Thermal cycling performance	Predicts long-term reliability under repeated heating and cooling

For power devices, the most dangerous mistake is focusing only on thermal conductivity. A high thermal conductivity material may still fail if copper thickness, solder joint design, ceramic thickness, or thermal interface control is not suitable.

What Advantages and Limits Should Buyers Understand?

Ceramic PCB has strong advantages, but it is not a universal replacement for every PCB type.

Advantages

Ceramic PCB offers excellent heat dissipation, strong insulation, good dimensional stability, and better high-temperature performance than many organic board materials. It supports compact power modules where heat needs to move quickly from the device to the heat sink.

It also helps reduce the number of thermal interface layers in some structures. Fewer layers can lower thermal resistance and simplify the thermal path.

Limits

Ceramic materials are harder and more brittle than FR4 or aluminum PCB. Processing, drilling, metallization, and singulation require controlled manufacturing. Cost is usually higher than FR4 or standard metal core PCB. Lead time may also be longer for customized substrates, special copper thickness, tight tolerances, or high-reliability testing.

Ceramic PCB is a strong option when performance justifies the cost. It is not always the lowest-cost solution for low-power products.

How Does Ceramic PCB Compare with FR4, Metal Core PCB, DBC, DPC, and AMB?

Many buyers compare ceramic PCB with FR4 PCB, aluminum PCB, copper substrate PCB, and different ceramic processes. The right answer depends on heat, voltage, current, space, and reliability.

Option	Thermal Performance	Electrical Insulation	Cost Level	Best Fit
FR4 PCB	Low to medium	Good	Low	General electronics, control boards
High-Tg FR4 PCB	Medium	Good	Low to medium	Higher soldering or operating temperature
Aluminum PCB	Medium to good	Depends on dielectric layer	Medium	LED, power supply, moderate thermal load
Copper substrate PCB	Good	Depends on dielectric layer	Medium to high	High-power thermal spreading
DPC ceramic PCB	Good to excellent	Excellent	High	Fine-line ceramic circuits, compact modules
DBC ceramic PCB	Excellent for power	Excellent	High	IGBT, inverter, power modules
AMB ceramic PCB	Excellent reliability	Excellent	High	SiC, EV, high thermal cycling applications

For many power modules, DBC and AMB are more relevant than ordinary ceramic PCB. For high-precision ceramic circuits, DPC may be more suitable. For simple high-power LED boards, aluminum PCB may still be enough if the thermal requirement is moderate.

How Should You Select the Right Ceramic PCB for a Power Project?

Selection should start with the power device and operating environment. Before choosing Al2O3, AlN, Si3N4, DBC, DPC, or AMB, clarify the real engineering target.

A practical selection path looks like this:

Project Requirement	Recommended Direction
Cost-sensitive medium-power board	Alumina ceramic PCB
High heat flux and compact size	AlN ceramic PCB
High thermal cycling reliability	Si3N4 AMB ceramic substrate
Thick copper and power module structure	DBC ceramic substrate
Fine circuit pattern and plated vias	DPC ceramic PCB
Hybrid circuit with printed resistors	Thick film ceramic PCB
Fine-line precision circuit	Thin film ceramic PCB

For procurement teams, the safest method is to share the power device type, voltage, current, heat dissipation target, ceramic material preference, copper thickness, board size, surface finish, assembly method, and annual demand. A factory can then check manufacturability and suggest a stable production route.

Where Are Ceramic PCBs Used in Power Electronics?

Ceramic PCB is used in industries where heat, current, insulation, and reliability are tied together.

Electric Vehicles and Charging Systems

EV traction inverters, onboard chargers, DC-DC converters, battery management systems, and charging modules often use high-density power devices. SiC modules and IGBT modules may require ceramic substrates with strong thermal cycling resistance.

Renewable Energy

Solar inverters, wind power converters, and energy storage systems need long service life and stable thermal behavior. DBC and AMB ceramic substrates can support power conversion modules in demanding operating environments.

Industrial Drives and Automation

Motor drives, servo drives, power controllers, welding equipment, and industrial power supplies generate heat during long operation. Ceramic PCB helps improve thermal transfer and insulation.

High-Power LED and Laser Modules

High-power LED, UV LED, laser diode, and optical modules use ceramic PCB to control junction temperature and keep light output stable.

Aerospace and Defense Electronics

These applications may require higher reliability, thermal shock resistance, and stable performance under vibration or temperature cycling.

Medical and Scientific Equipment

Power supply modules, imaging systems, laser modules, and precision instruments may use ceramic PCB when heat control and dimensional stability are important.

What Practical Cases Show Ceramic PCB Value?

A common case is a high-power LED module that suffers from brightness decay and solder fatigue. Replacing a standard board with AlN ceramic PCB can reduce thermal bottlenecks and help maintain more stable heat transfer from the LED chip to the heat sink.

Another case is an EV inverter power module. The module may face repeated heating and cooling during acceleration, braking, charging, and environmental temperature changes. In this situation, Si3N4 AMB may be preferred because mechanical toughness and copper bonding reliability become more important than material price alone.

A third case is a compact industrial power module. The buyer needs thick copper, high insulation, and stable soldering. DBC ceramic substrate can provide a direct thermal path and support high-current operation in a smaller package.

These cases show a clear point: ceramic PCB selection is not only about “higher thermal conductivity.” It is about matching the substrate structure to the failure risk of the actual product.

What Design and DFM Points Matter Before Fabrication?

Ceramic PCB design should be reviewed early because ceramic materials are less forgiving than standard FR4. A small layout decision can affect yield, cost, and long-term reliability.

Important DFM points include:

DFM Item	Why It Matters
Copper thickness	Impacts etching tolerance, current capacity, and stress
Copper balance	Helps control warpage and thermal stress
Corner radius	Reduces stress concentration in copper patterns
Ceramic thickness	Balances insulation, strength, and thermal resistance
Clearance and creepage	Important for high-voltage power devices
Solder pad size	Affects solder voiding and assembly reliability
Via design	Critical for DPC structures
Edge distance	Prevents cracking during cutting or handling
Surface finish	Must match soldering, wire bonding, or die attach process
Panelization	Affects cost, yield, and production handling

For high-power modules, engineers should avoid sharp copper corners where possible. Rounded copper features can reduce local stress during thermal cycling. For thick copper DBC or AMB substrates, copper pattern geometry should be reviewed with the manufacturer before tooling.

How Are Ceramic PCBs Manufactured and Tested?

Manufacturing depends on the ceramic material and process route. DPC, DBC, AMB, thick film, and thin film all use different production methods.

A simplified manufacturing flow may include ceramic substrate preparation, cleaning, metallization, copper bonding or plating, imaging, etching, drilling or laser processing, surface finishing, inspection, electrical testing, and packaging.

Quality testing should be built around the final use. For power devices, common checks include:

Test or Inspection	Purpose
Visual inspection	Checks surface defects, contamination, copper damage
Dimensional inspection	Confirms outline, hole, pad, and pattern tolerance
Electrical test	Checks open and short circuits
Insulation resistance test	Confirms isolation performance
Dielectric withstand test	Verifies high-voltage insulation capability
Copper thickness test	Confirms current and thermal design assumptions
Peel strength test	Checks copper bonding strength
Solderability test	Supports assembly reliability
Warpage measurement	Helps control module assembly quality
Thermal cycling test	Evaluates reliability under temperature changes
X-ray inspection after assembly	Checks voids, solder joints, and hidden defects

IPC-6012F covers qualification and performance requirements for rigid printed boards, including plating, conductors, holes, acceptance testing, and mechanical and environmental requirements. While ceramic substrates may need project-specific criteria beyond standard FR4 PCB checks, IPC-based inspection language is still useful for documentation and customer communication.

What Failure Modes Should Be Checked in Power Ceramic PCBs?

Power ceramic PCB failure usually comes from heat, stress, poor bonding, contamination, or unsuitable assembly conditions. Failure analysis should look at the whole stack, not only the ceramic board.

Common failure modes include:

Failure Mode	Possible Cause	Prevention Method
Ceramic cracking	Mechanical shock, poor panel design, edge stress	Control handling, edge distance, cutting method
Copper delamination	Weak bonding, thermal cycling, poor process control	Verify peel strength and bonding process
Solder voiding	Poor paste control, unsuitable reflow, pad design issue	Optimize soldering profile and pad geometry
Hot spots	Poor copper spreading, bad thermal interface, uneven die attach	Improve copper layout and thermal path
Insulation breakdown	Insufficient ceramic thickness, contamination, voltage stress	Check dielectric strength and cleanliness
Partial discharge	High voltage, voids, insulation weakness	Improve insulation design and test criteria
Warpage	Copper imbalance, thermal stress, substrate mismatch	Balance copper and control process conditions
Surface oxidation	Poor storage or finish control	Use proper packaging and surface finish

Thermal cycling is one of the most important reliability concerns. Copper and ceramic expand at different rates. Repeated heating and cooling can create stress at bonded interfaces, solder joints, and copper corners. This is why material toughness, copper geometry, bonding quality, and assembly process control all matter.

What Affects Ceramic PCB Cost and Lead Time?

Ceramic PCB cost depends on material, process, copper thickness, tolerance, testing, and order volume. AlN and Si3N4 usually cost more than alumina. AMB and DBC substrates also need controlled high-temperature bonding processes, so they are normally more expensive than simple FR4 or aluminum PCB.

Major cost factors include:

Cost Factor	Impact
Ceramic material	Al2O3 is usually lower cost; AlN and Si3N4 cost more
Board size	Larger ceramic panels increase material and yield risk
Copper thickness	Thicker copper increases processing difficulty
Circuit tolerance	Fine lines and tight spacing increase cost
Surface finish	ENIG, silver, gold, or special finishes affect price
Via structure	DPC vias increase process complexity
Testing requirement	Extra reliability tests add cost and time
Order quantity	Prototype price is higher per piece than batch production
Custom tooling	New shapes and special processes may need tooling
Packaging requirement	Vacuum packing, dry packing, and export packing add handling steps

A useful cost-control method is to avoid over-specification. For example, do not choose AlN if alumina can meet the thermal target. Do not request ultra-tight tolerance if the module assembly does not require it. Do not use AMB when DBC can meet the reliability requirement.

How Can Buyers Choose a Ceramic PCB Supplier?

A good ceramic PCB supplier should understand materials, manufacturing limits, testing, and power electronics reliability. Price matters, but low price without process control can create higher cost later through assembly failure, field returns, or unstable delivery.

Before choosing a supplier, buyers should check:

Supplier Check	What to Confirm
Ceramic material capability	Al2O3, AlN, Si3N4, ZTA availability
Process capability	DPC, DBC, AMB, thick film, thin film support
Copper capability	Copper thickness, bonding strength, pattern tolerance
Quality control	Electrical test, insulation test, peel strength, dimensional report
Engineering support	DFM review, stack-up review, material suggestion
Documentation	RoHS, REACH, material data, inspection report
Production experience	Prototype, small batch, and volume manufacturing
Export support	Global shipping, packaging, customs documentation
Communication	Fast feedback on technical questions and drawings
Long-term stability	Repeat production control and traceability

For Europe and North America, buyers often care about compliance documentation, stable repeatability, and long-term quality records. For Southeast Asia and emerging manufacturing regions, lead time, flexible MOQ, and total landed cost can be decisive. A China-based source factory can support global buyers with custom fabrication, batch production, DFM feedback, and export delivery without claiming false local manufacturing locations.

RoHS compliance is also important for many electrical and electronic products. The European Commission states that RoHS currently restricts ten substances in electrical and electronic equipment, including lead, cadmium, mercury, hexavalent chromium, PBB, PBDE, and four phthalates.

What Should Be Checked Before Ordering Ceramic PCB for Power Devices?

Before placing an order, buyers should prepare a clear technical package. This helps the manufacturer quote accurately and reduce engineering back-and-forth.

Recommended order checklist:

Item	Required Information
Application	Power module, LED, inverter, charger, laser, sensor, etc.
Power device	IGBT, MOSFET, SiC, GaN, diode, LED chip
Ceramic material	Al2O3, AlN, Si3N4, or open for recommendation
Process	DPC, DBC, AMB, thick film, thin film
Copper thickness	Top and bottom copper thickness
Ceramic thickness	Required insulation and thermal target
Surface finish	ENIG, silver, gold, OSP, or other finish
Drawing files	Gerber, DXF, mechanical drawing, stack-up
Tolerance	Line width, spacing, outline, hole, thickness
Testing	Electrical test, Hi-Pot, insulation resistance, thermal cycling
Assembly needs	Soldering, wire bonding, die attach, SMT, module assembly
Quantity	Prototype, pilot run, mass production forecast
Certification	RoHS, REACH, UL file if applicable, inspection report

A complete file package gives the factory enough information to evaluate manufacturability, cost, and lead time. It also helps prevent wrong material selection and avoids delay before production.

FAQ About Ceramic PCB for Power Devices

Is ceramic PCB better than FR4 for power devices?

Ceramic PCB is better when the project needs high heat dissipation, strong insulation, compact structure, or stable operation under high temperature. FR4 is still suitable for many control circuits and low-to-medium power electronics. The choice depends on power density, temperature rise, voltage, current, cost target, and reliability requirement.

Which ceramic material is best for high-power devices?

Aluminum nitride is often selected for high thermal conductivity. Silicon nitride is preferred when thermal cycling and mechanical toughness are critical. Alumina is a practical choice for medium-power projects with cost control. For EV modules, SiC modules, and harsh environments, Si3N4 AMB is often considered a strong option.

What is the difference between DBC and DPC ceramic PCB?

DBC uses bonded copper and is suitable for thick copper power substrates. DPC uses metallization and plating, allowing finer circuit patterns and plated vias. DBC is common in IGBT and inverter modules. DPC is often used in compact, high-precision ceramic circuits, LED modules, and sensor-related products.

What is the difference between DBC and AMB ceramic substrate?

DBC bonds copper directly to ceramic, usually alumina or AlN. AMB uses active brazing alloy to bond copper to ceramic and is especially useful for Si3N4 substrates. AMB is often chosen for higher reliability under thermal cycling, while DBC is widely used in established power module applications.

Can ceramic PCB carry high current?

Yes, ceramic PCB can support high-current applications when copper thickness, conductor width, thermal path, and bonding quality are properly designed. The ceramic itself provides insulation and heat transfer, while copper carries current. Current capacity should be calculated based on copper geometry, temperature rise, cooling method, and device layout.

Is AlN ceramic PCB always better than alumina ceramic PCB?

No. AlN has much higher thermal conductivity, but alumina is more cost-effective and suitable for many medium-power applications. If the heat load is not extreme, alumina may provide a better cost-performance balance. AlN is more suitable when thermal resistance must be reduced in a compact structure.

Why is silicon nitride used in EV power modules?

Silicon nitride has strong mechanical toughness and good thermal cycling reliability. EV power modules may face repeated temperature changes, vibration, and high power density. Si3N4 AMB substrates can help improve long-term reliability where standard ceramic substrates may be more vulnerable to stress-related cracking.

What surface finish is used on ceramic PCB?

Common surface finishes include ENIG, immersion silver, gold plating, and other application-specific finishes. The right finish depends on soldering, wire bonding, die attach, storage time, and assembly process. For power modules, solderability and bonding compatibility should be confirmed before production.

What causes ceramic PCB cracking?

Cracking may come from mechanical impact, poor edge design, excessive stress during assembly, thermal shock, sharp copper geometry, or unsuitable panelization. Ceramic materials are hard but brittle, so handling, cutting, packaging, and assembly process control are important for yield and reliability.

How can solder voids be reduced on ceramic PCB assemblies?

Solder voids can be reduced through proper pad design, solder paste selection, stencil control, reflow profile optimization, vacuum reflow when needed, and clean surface finish. For power devices, void control is important because voids increase thermal resistance and may create local hot spots.

How much does ceramic PCB cost?

Cost depends on ceramic material, board size, copper thickness, process type, surface finish, tolerance, testing, and quantity. Alumina is usually more economical. AlN and Si3N4 cost more. DBC and AMB structures also cost more than standard FR4 or aluminum PCB because the process is more specialized.

What files are needed for a ceramic PCB quotation?

A complete quotation package should include Gerber files, mechanical drawing, stack-up, material request, copper thickness, ceramic thickness, surface finish, quantity, tolerance, testing requirement, and application notes. If the material is not decided, share the power device, voltage, current, and thermal target for review.

Can ceramic PCB be used for SiC and GaN devices?

Yes. Ceramic PCB is often used for SiC and GaN power devices because these devices can generate high heat density and require strong insulation. Material and process selection should consider switching frequency, voltage stress, thermal cycling, soldering method, and module structure.

How do buyers verify ceramic PCB quality?

Buyers can request dimensional reports, electrical test records, copper thickness measurement, insulation resistance, Hi-Pot testing, peel strength data, solderability checks, and material compliance documents. For power modules, thermal cycling or application-specific reliability testing may also be needed.

How should I choose between a prototype supplier and a mass production factory?

For power ceramic PCB, choose a supplier that can support both engineering validation and repeat production. Prototype speed is useful, but batch consistency matters more for long-term projects. A capable source factory should provide DFM feedback, stable material sourcing, process control, inspection records, and global delivery support.

Conclusion:

Ceramic PCB for power devices is selected when heat dissipation, insulation, current handling, and reliability must work together in a compact structure. Alumina is suitable for cost-sensitive and medium-power applications. Aluminum nitride is better for high heat flux. Silicon nitride, especially with AMB technology, is a strong choice for thermal cycling and harsh operating environments.

For engineering selection, do not judge the board by thermal conductivity alone. Review copper thickness, ceramic thickness, process type, surface finish, insulation distance, soldering method, thermal cycling risk, and test requirements. For procurement, choose a manufacturer that can support DFM review, custom ceramic PCB fabrication, prototype development, batch production, quality documentation, and global delivery from a real China-based source factory.

If you need ceramic PCB for IGBT modules, SiC devices, GaN power devices, high-power LEDs, inverters, chargers, industrial drives, renewable energy equipment, or customized power electronics, working with an experienced ceramic PCB manufacturer can reduce trial-and-error cost and improve production stability.

Thick Film Ceramic PCB Technical FAQ’s

1. What is the standard thickness of a thick-film ceramic board? +

0.635mm

2. What is the maximum size of thick film ceramic PCB? +

114mm x 114mm

3. What is the commonly referred name for the solder mask used on thick film ceramic PCB? What colors are available? +

It is called glass glaze, and the available colors are greenish-blue/blue.

4. What is the surface treatment for thick film ceramic PCB? +

No additional surface treatment is required.

5. How many types of substrates are typically used for thick film ceramic PCB? What are they? +

There are 3 types: Alumina, Aluminum Nitride, and Beryllium Oxide.

6. What are the color differences between the three substrates used in thick film ceramic PCB? +

Alumina and Beryllium Oxide are white, while Aluminum Nitride is gray.

7. How many types of Alumina substrates are there? +

96% Al₂O₃ and 99% Al₂O₃.

8. How are Alumina, Aluminum Nitride, and Beryllium Oxide written in English? +

Alumina: Aluminium Oxide/Alumina; Aluminum Nitride: Aluminium Nitride; Beryllium Oxide: Beryllium Oxide.

9. What are the dielectric constants of Alumina, Aluminum Nitride, and Beryllium Oxide? +

96% Al₂O₃: 8.9; 99% Al₂O₃: 9.5; AlN: 8.9; BeO: 6.4.

10. What conductor pastes are commonly used for thick film ceramic PCB? +

AgPd and Au.

11. What are the typical thicknesses of the conductor pastes for thick film ceramic PCB? +

AgPd: ≥10µm, Au: 3-7µm.

12. Can copper be used as a conductor on thick film ceramic PCB? +

No.

13. Are the circuits on thick film ceramic PCB created using printing or etching processes? +

They are created using a printing process.

14. How are the conductor paste and ceramic material bonded together? +

Through high-temperature sintering.

15. What is the peak sintering temperature for the conductor on thick film ceramic PCB? +

850°C ± 10°C.

16. What is the dwell time at peak temperature? +

8 minutes to 10 minutes.

17. What is the sintering cycle time? +

30 minutes to 60 minutes.

18. What is the operating temperature of thick film ceramic PCB? +

-55°C to 850°C.

19. Do thick film ceramic PCB require an insulating material between the conductor and substrate? +

No, ceramic materials are inherently insulating.

20. Can thick film ceramic PCB be screen-printed? +

Yes, but it is generally not done as it is quite complex to manufacture.

21. What is the minimum line width and spacing for thick film ceramic PCB? +

For samples: 0.2/0.2mm, for mass production: ≥0.25/0.25mm.

22. Can resistors be sintered on thick film ceramic PCB? What method is commonly used? +

Yes, laser trimming is commonly used.

23. Can thick film ceramic PCB be bonded? +

Yes.

24. Can thick film ceramic PCB be made with double-sided multilayers? +

Currently, no. Only single-sided multilayers are possible.

25. Can thick film ceramic PCB have through-holes? +

Yes, but only using special silver paste.

26. Can thick film ceramic PCB with gold paste conductors have through-holes? +

No, through-holes must be made with special silver paste, as silver paste and gold paste are incompatible.

27. Can thick film ceramic PCB be panelized? +

Yes.

28. How are panelized thick film ceramic PCB separated? +

They can be separated using tools like pliers or by hand-breaking.

29. How are holes drilled in ceramic boards? +

They are drilled using a laser.

30. Do ceramic boards absorb water? +

No, they are non-absorbent.

31. How are ceramic boards typically packaged? +

Vacuum packaging or in blister trays.

32. If the AgPd conductor on thick film ceramic PCB oxidizes, how can it be handled? +

The surface can be rubbed with an eraser.

What Is a High Thermal Conductivity PCB?

High thermal conductivity PCBs are special circuit boards that move heat away from electronic parts quickly. Regular FR-4 boards only conduct 0.3-0.5 W/m·K of heat, but these boards use metal or ceramic cores to do 2-100 times better. They work as both a circuit board and a heat spreader, so you often don’t need big separate heatsinks.

Aluminum PCBs are the most popular type, making up over 85% of the market. They are cheap and work well for most power products. Other types include copper core, IMS, and ceramic PCBs for more demanding uses.

Why Is High Thermal Conductivity Important in PCB Design?

Good heat conduction makes electronics last longer and work better. A 10°C drop in component temperature can double the life of semiconductors. Bad heat dissipation makes LEDs lose 70% of their brightness in 3 years and causes power parts to fail suddenly.

In cars, thermal stability keeps safety systems working from -40°C to 125°C. Without high thermal conductivity PCBs, modern small, high-power devices like EV chargers and 5G phones would overheat and break.

What Materials Are Used in High Thermal Conductivity PCBs?

High thermal conductivity PCBs use three main layers: a copper circuit layer, a thermally conductive dielectric layer, and a core base. The dielectric layer is the most important because it causes 70-90% of the total heat resistance

High thermal conductivity PCBs layer consture

Core Material Performance Comparison

Material Type	Thermal Conductivity (W/m·K)	Max Temperature (°C)	Cost Index	Best For
Aluminum 6061	150-205	130	1.0	General power products
Pure Copper	385-400	150	3.5	High-current modules
Alumina Ceramic	18-36	1000+	2.5	Sensors and industrial parts
Aluminum Nitride	150-230	1000+	8.0	Medical and aerospace

Aluminum PCB, Copper Core PCB, IMS PCB, and Ceramic PCB: What Is the Difference?

Each type has its own strengths for different jobs. Aluminum PCBs are the cheapest and most common. Copper core PCBs conduct heat better for high-power uses. IMS PCBs have better insulation, and ceramic PCBs work in extreme temperatures.

PCB Type Comparison

PCB Type	Overall Heat Conductivity (W/m·K)	Insulation Voltage	Cost	Best Use
Aluminum PCB	1-5	1-3 kV	Low	LED lights, small power supplies
Copper Core PCB	3-10	1-3 kV	Medium	Motor controls, EV chargers
IMS PCB	1-9	Up to 5 kV	Medium	Power converters, car electronics
Ceramic PCB	18-230	>15 kV/mm	High	RF devices, medical lasers

How to Choose the Right Thermal Conductivity Rating?

The right rating depends on how much power your device uses. Too low and it overheats; too high and you waste money. A simple rule: add 0.5 W/m·K for every extra 10W of power.

For small LED bulbs under 50W, 1.0-1.5 W/m·K works fine. For street lights (50-150W), use 2.0-3.0 W/m·K. For industrial converters over 300W, you need 5.0+ W/m·K or a copper core PCB.

Thermal Conductivity vs Thermal Resistance: What Should Designers Know?

Thermal conductivity is how well a material moves heat. Thermal resistance is how hard it is for heat to pass through a whole structure. Many people mix these up, which leads to bad designs.

The formula is simple: Thermal Resistance = Thickness ÷ (Conductivity × Area). This means a thin, high-conductivity layer with a big area works best. For example, a 100μm thick 3 W/m·K dielectric is the same as a 200μm thick 6 W/m·K one.

How Does Copper Thickness Affect Thermal Performance?

Thicker copper carries more current and spreads heat better. It reduces resistive heating and moves heat away from hot parts faster. Increasing copper from 1 oz to 2 oz can lower component temperature by 5-10°C.

Copper Thickness Guide

Copper Weight	Thickness (μm)	Current per 1mm Width	Typical Use
1 oz	35	3-5 A	General circuits
2 oz	70	6-10 A	Power supplies, LED drivers
3 oz	105	10-15 A	High-current boards
4 oz+	140+	15-25 A+	Heavy power modules

How to Improve Heat Dissipation in PCB Layout?

Layout choices often matter more than material selection. Even the best material won’t work if heat can’t flow to the cooling system. Follow these simple rules for better results.

First, put high-power parts near the board edges or mounting holes. Use big copper pads under hot components and add copper pours around them. Use thermal vias (0.3mm diameter, 1mm apart) under exposed pads. Also, keep heat-sensitive parts at least 10mm away from hot areas.

What Applications Use High Thermal Conductivity PCBs?

High thermal conductivity PCBs are used everywhere heat is a problem. The biggest use is LED lighting, where they make bulbs last 3-5 times longer. They are also common in car electronics, power supplies, and 5G communication devices.

Other uses include motor controls, medical equipment, and aerospace parts. Any device that is small but uses a lot of power will benefit from a high thermal conductivity PCB.

How to Choose a Reliable High Thermal Conductivity PCB Manufacturer?

A good manufacturer has experience with all types of high thermal conductivity PCBs and can help with design. Look for one that uses high-quality materials and has strict quality control.

Key things to check: experience with aluminum, copper, and ceramic PCBs; ability to do thermal analysis; stable material supply; and compliance with IPC, RoHS, and REACH standards. Also, make sure they can support both prototypes and mass production.

Why Choose EBest Circuit for High Thermal Conductivity PCB Projects?

EBest Circuit offers complete high thermal conductivity PCB services, from design review to mass production. We have over 10 years of experience with all types of thermal PCBs and work with top material suppliers.

Our team can help you optimize your stackup, select the right materials, and fix thermal issues before production. We support fast prototypes and reliable mass production, so you can get your products to market quickly.

FAQs About High Thermal Conductivity PCB

Q1: Can high thermal conductivity PCBs be multilayer?

A1: Yes, but they are more expensive than single-layer ones. Most designs use 1-2 layers, with 4+ layers only for special high-density needs.

Q2: How much more do they cost than FR-4?

A2: They usually cost 2-3 times more than FR-4. But they often eliminate the need for separate heatsinks, saving total system cost.

Q3: What is the maximum voltage they can handle?

A3: Standard aluminum PCBs handle 1-3kV. Special high-voltage designs can go up to 5kV, and ceramic PCBs offer even higher insulation.

Q4: Can aluminum PCBs be bent?

A4: Yes, 5052 aluminum alloy bends well. This is useful for curved LED lights and other custom shapes.

Q5: How do I test the actual thermal conductivity?

A5: Ask your manufacturer for laser flash analysis (LFA) test data. Datasheet values are often higher than real-world performance.

What is a ceramic PCB manufacturer serving USA?

For many buyers, the phrase ceramic pcb manufacturer usa does not only mean “a factory physically located in the USA.” It often means a capable ceramic PCB supplier that can serve U.S. projects with dependable engineering support, export experience, and quality systems suitable for demanding applications.

Ceramic PCB Manufacturer USA Serving | Alumina & AlN Boards

Ceramic PCBs are different from standard FR4 boards because the base material is a ceramic substrate, such as alumina or aluminum nitride. These materials offer excellent thermal conductivity, electrical insulation, dimensional stability, and high-temperature endurance. That is why ceramic PCB technology is widely used in power electronics, LED modules, medical devices, aerospace electronics, RF modules, automotive electronics, sensors, and other products where heat, reliability, and compact design matter.

When a U.S. customer searches for a ceramic PCB partner, the real question is usually simple: can this supplier manufacture the correct ceramic substrate, control the process, support the design review, and deliver boards that perform as expected?

EBest Circuit(Best Technology), serves U.S. customers with ceramic PCB fabrication and assembly support for prototype, low-volume, medium-volume, and production requirements. The company provides custom ceramic PCB manufacturing, turnkey PCB and PCBA services, and multiple ceramic processes, including DPC, DBC, AMB, thick film, LTCC, and HTCC. Its ceramic PCB capabilities include alumina, aluminum nitride, ZTA, silicon nitride, several conductor options, multiple surface finishes, and certified quality systems including ISO 9001, ISO 13485, IATF 16949, AS9100D, RoHS, REACH, and UL recognition.

What materials do ceramic PCB manufacturers for USA offer?

Ceramic PCB manufacturers serving USA customers usually offer several substrate materials. The most common ceramic PCB materials are alumina and aluminum nitride, but advanced projects may also require silicon nitride, zirconia-toughened alumina, LTCC materials, or HTCC materials.

Alumina ceramic PCB is one of the most widely used choices because it provides a balanced mix of insulation, thermal performance, mechanical durability, and cost control. It is commonly used in LED lighting, power modules, sensors, hybrid circuits, and industrial electronics. Alumina is available in different purity levels, such as 92% and 96%, and some manufacturers can support special variants such as black alumina.

Aluminum nitride, often written as AlN, is selected when thermal performance is a main priority. Compared with alumina, AlN has much higher thermal conductivity and a thermal expansion behavior that works well with certain semiconductor and power device packages. This makes it a strong choice for high-power LED modules, laser diodes, power conversion modules, RF power devices, aerospace electronics, medical imaging electronics, and other compact systems that generate concentrated heat.

Some advanced projects also use silicon nitride, ZTA, LTCC, or HTCC. Silicon nitride offers high strength, high toughness, good thermal conductivity, and excellent thermal shock resistance. ZTA combines alumina with zirconia to improve toughness and mechanical reliability. LTCC and HTCC are often used for multilayer ceramic circuits, high-frequency modules, sensors, and compact electronic packages.

Ceramic PCB Material	Main Strength	Typical Use Cases	Common Reason to Choose It
Alumina PCB	Good insulation, stable performance, cost-effective ceramic base	LED modules, sensors, power circuits, industrial electronics	Balanced ceramic performance and practical cost
Aluminum Nitride PCB	High thermal conductivity and good CTE behavior	Power electronics, RF power modules, laser modules, medical electronics	Better heat dissipation in compact designs
Silicon Nitride PCB	High mechanical strength and thermal shock resistance	Automotive power modules, harsh environments, high-reliability electronics	Stronger mechanical reliability
ZTA PCB	Improved toughness compared with standard alumina	Industrial and power applications	Better crack resistance and durability
LTCC	Multilayer ceramic structure, good for compact circuits	RF modules, sensors, microwave devices, integrated packages	Compact multilayer ceramic integration
HTCC	High-temperature ceramic circuit capability	Aerospace, defense-related commercial electronics, harsh applications	High-temperature endurance and stable insulation

For most U.S. projects, the best starting point is to match the material to the real design challenge. If the main issue is controlled heat transfer at a reasonable cost, alumina may be suitable. If the design has a very hot component, tight thermal limits, or high power density, aluminum nitride may be the better direction. If the board needs extra toughness, silicon nitride or ZTA may deserve attention. If the product requires ceramic multilayer routing, LTCC or HTCC may be a stronger path than a simple single-sided or double-sided ceramic board.

EBest Circuit supports several ceramic PCB materials and process types, which gives U.S. customers more flexibility during design evaluation. Instead of forcing one standard material into every project, the engineering team can review thermal requirements, copper thickness, operating temperature, board size, assembly needs, and budget targets.

Can China ceramic PCB suppliers meet USA aerospace/medical standards?

China ceramic PCB suppliers can meet the expectations of USA aerospace and medical customers when they have the right manufacturing capability, quality certifications, process controls, and documentation discipline. The key is not the country alone. The key is whether the supplier can build to controlled requirements, maintain traceability, support audits, and provide reliable production records.

For advanced ceramic PCB projects, U.S. customers should evaluate the supplier’s quality system, engineering response, material control, inspection process, and shipment reliability before placing important orders.

Aerospace and medical electronics often require more than basic PCB fabrication. These markets value documented processes, controlled materials, repeatable production, inspection evidence, and clear communication. Aerospace customers may look for AS9100D alignment, first article inspection support, lot traceability, controlled process records, and stable supplier management. Medical customers may look for ISO 13485, process documentation, component traceability for assembly projects, clean handling practices, and long-term quality consistency.

EBest Circuit’s positioning is especially relevant here because the company supports ceramic PCB fabrication and ceramic PCB assembly under a quality framework that includes ISO 9001, ISO 13485, IATF 16949, AS9100D, RoHS, REACH, and UL. For U.S. medical, aerospace, automotive, and industrial customers, these certifications help show that the supplier has invested in quality management and controlled production practices.

For ceramic PCB projects going into regulated or high-reliability products, the manufacturer should provide practical support in several areas:

Material selection records, substrate specifications, and copper or conductor details.
Engineering review for manufacturability, tolerances, hole sizes, surface finish, and thermal design.
Inspection methods such as visual inspection, dimensional checks, electrical testing, and process-specific validation.
Production traceability by order, lot, material batch, and process route.
Clear export packaging, shipping documentation, and communication for USA delivery.

The best approach is to treat the supplier qualification step as part of the design process. U.S. customers can request the manufacturer’s certifications, capability table, sample reports, material options, and previous industry experience. They can also start with a prototype order, review the board quality, check communication speed, and then move toward repeat orders or volume production.

What certifications should a USA-serving ceramic PCB manufacturer have?

A USA-serving ceramic PCB manufacturer should have certifications that match the application risk level and target industry. For general industrial electronics, ISO 9001 is usually the baseline. For medical device electronics, ISO 13485 is highly valuable because it focuses on quality management for medical device-related manufacturing. For automotive electronics, IATF 16949 is an important signal of process control and automotive supply chain discipline. For aerospace electronics, AS9100D is especially relevant because it aligns with aerospace quality management expectations. RoHS and REACH are also important for material compliance, especially when products are sold into global markets.

Certification or Compliance Item	Why It Matters for USA Customers	Typical Application Relevance
ISO 9001	Shows a structured quality management system	General PCB and PCBA manufacturing
ISO 13485	Supports medical device quality expectations	Medical electronics, monitoring devices, diagnostic equipment
IATF 16949	Supports automotive process discipline	Automotive electronics, EV systems, lighting, control modules
AS9100D	Supports aerospace quality management expectations	Aerospace electronics, UAV electronics, avionics-related commercial projects
UL	Supports recognized material or product safety-related requirements	Products requiring UL-recognized manufacturing inputs
RoHS	Restricts hazardous substances in electronics	Global electronics, consumer, industrial, medical, automotive
REACH	Supports chemical compliance for global markets	Electronics exported to compliance-sensitive regions

A ceramic PCB manufacturer serving USA customers should also understand that certifications are not only marketing badges. They should influence how the supplier handles document control, incoming inspection, production routing, staff training, nonconforming material, corrective actions, equipment maintenance, and final inspection. This matters because ceramic PCB production can involve special processes such as metallization, firing, plating, laser drilling, DPC, DBC, AMB, or thick film printing. Each process needs stable control to produce boards with repeatable performance.

For U.S. buyers, the most efficient qualification method is to map the certification to the product use. A medical sensor PCB may need ISO 13485 support and strong traceability. An aerospace power module substrate may need AS9100D alignment, material control, and detailed inspection records. An automotive LED ceramic board may benefit from IATF 16949 discipline and thermal reliability evaluation. A general industrial ceramic PCB may be well served by ISO 9001, RoHS, REACH, and clear production documentation.

EBest Circuit (Best Technology)’s certification portfolio supports a wide range of ceramic PCB applications for U.S. customers. Our quality system coverage is helpful for customers who want one supplier for ceramic PCB fabrication, ceramic PCB assembly, and turnkey electronics manufacturing support.

How fast can a ceramic PCB supplier deliver orders to the USA?

Delivery time for ceramic PCB orders shipped to the USA depends on the material, process, board complexity, quantity, surface finish, inspection requirements, and assembly scope. A simple alumina ceramic PCB may move faster than a complex aluminum nitride, DBC, AMB, LTCC, or HTCC project. A bare ceramic board can usually be completed faster than a full turnkey PCBA order that includes component sourcing, assembly, inspection, and functional testing.

For ceramic PCB USA projects, buyers should think about lead time in two parts. The first part is production lead time, which includes engineering review, material preparation, substrate processing, metallization, plating, surface finishing, inspection, and packaging. The second part is shipping time, which includes export documentation, courier pickup, customs clearance, and delivery to the customer’s U.S. location.

A typical ceramic PCB project may follow this delivery flow: design file review, quotation confirmation, DFM feedback, purchase order, production preparation, manufacturing, inspection, packing, export shipment, and arrival in the USA. For urgent prototype orders, early DFM review is very important because a small design issue can slow down production if it is discovered after the order begins.

Lead time is also affected by material choice. Alumina is usually easier to source and process, so it is often faster. Aluminum nitride requires more careful handling and may need a longer production window depending on the structure. DBC and AMB boards with thicker copper often require more process control. LTCC and HTCC projects can require additional engineering discussion because they involve multilayer ceramic construction and firing behavior.

U.S. customers can improve delivery speed by preparing complete production data from the beginning. A good RFQ package should include Gerber files, drill files, stack-up or material requirement, copper thickness, board thickness, surface finish, solder mask and silkscreen requirements, tolerance notes, quantity, test requirements, and assembly files if PCBA is needed. For turnkey assembly, the BOM should include manufacturer part numbers, acceptable alternates, reference designators, and any approved sourcing rules.

EBest Circuit (Best Technology) supports rapid response for ceramic PCB manufacturing and turnkey PCB assembly projects. For USA customers, the company can review custom ceramic PCB designs, provide DFM suggestions, manufacture the boards, support assembly if required, and arrange international delivery.

Do ceramic PCB manufacturers serving USA provide DFM support?

A strong ceramic PCB manufacturer serving USA customers should provide DFM support before production. DFM, or design for manufacturability, is especially important for ceramic boards because ceramic substrates behave differently from FR4 laminates. The material is hard, dimensionally stable, thermally efficient, and electrically insulating, but it also needs suitable design rules for holes, edge clearance, copper geometry, metallization, solder mask, and final handling. A design that works well on FR4 may need adjustments when moved to alumina, AlN, or another ceramic substrate.

DFM support helps align the customer’s design intent with the supplier’s manufacturing process. This step can review whether the selected ceramic material matches the thermal requirement, whether the copper thickness is suitable, whether the hole sizes are manufacturable, whether the board outline tolerance is realistic, and whether the surface finish supports the assembly method. For high-power designs, DFM may also include discussion of thermal paths, component placement, copper coverage, solder joint reliability, and attachment method.

The value of DFM is high because ceramic PCB projects often involve expensive components or high-reliability applications. When the design is reviewed early, the supplier can identify small adjustments that improve production yield and long-term performance. This can save time during prototyping and make volume production easier. It also helps U.S. customers communicate with their internal engineering, purchasing, and quality teams because the project risks are explained in practical manufacturing language.

A useful ceramic PCB DFM review may cover:

Ceramic material selection, including alumina, aluminum nitride, silicon nitride, ZTA, LTCC, or HTCC.
Board thickness, copper thickness, conductor type, and surface finish.
Minimum line width, spacing, hole size, hole tolerance, and board outline tolerance.
Solder mask, silkscreen, metallized holes, edge clearance, and panelization method.
Thermal design, including heat flow, hot spot control, and copper distribution.
Assembly considerations, including component footprint, soldering method, and inspection access.

EBest Circuit (Best Technology) provides engineering support for custom ceramic PCB projects, including DFM pre-review and process recommendations. This is useful for U.S. customers who want to avoid repeated prototype revisions. The team can review whether the design should use DPC, DBC, AMB, thick film, LTCC, or HTCC, depending on the required thermal performance, copper structure, current capacity, board geometry, and end-use environment.

What’s the MOQ for custom ceramic PCB orders from USA clients?

The MOQ for custom ceramic PCB orders from USA clients depends on the material, process, size, tooling requirement, and production method. Many ceramic PCB manufacturers can support prototypes and small batches, but the price per piece is usually higher at low quantity because setup time, engineering review, tooling, process preparation, and inspection are spread across fewer boards.

For U.S. customers, the better question is not only “what is the MOQ?” but also “what quantity makes sense for my stage?” A new product may start with a small prototype batch for electrical and thermal validation. After the design is confirmed, the buyer may order a pilot run to check assembly, reliability, packaging, and field testing. Once the project is stable, the order can move into regular production.

MOQ can also vary by ceramic process. Simple alumina boards may allow more flexible prototype quantities. Aluminum nitride boards may have a different cost structure because the material is more expensive. DBC and AMB boards can involve thicker copper and special bonding processes, so setup and panel utilization become important. LTCC and HTCC designs may require more engineering preparation, especially for multilayer ceramic structures.

Order Stage	Typical Buyer Goal	Recommended Quantity Thinking	Supplier Support Needed
Prototype	Validate thermal, electrical, and mechanical design	Small quantity for testing and design confirmation	DFM review, material advice, quick feedback
Pilot Run	Check assembly, yield, inspection, and field performance	Medium quantity based on test plan	Process control, PCBA support, inspection reports
Production	Support stable customer demand	Larger batches for better unit cost	Repeatability, traceability, scheduled delivery
Engineering Sample	Compare materials or processes	Multiple small lots may be useful	Side-by-side technical guidance

EBest Circuit (Best Technology) supports low, medium, and larger quantity ceramic PCB manufacturing, which is useful for USA clients at different project stages. A startup developing a power module may need only a small number of samples first. A medical device company may need prototype boards, then a documented pilot run. An industrial equipment manufacturer may need recurring batches with stable quality and delivery.

For custom ceramic PCB orders, U.S. customers should share the estimated annual usage when requesting a quote, even if the first order is small. This helps the supplier recommend a practical production path. For example, the manufacturer may quote prototype pricing and also provide a production price range for later batches. This gives the buyer better visibility for cost planning. It also helps engineering and purchasing teams decide whether the selected material and process fit the long-term product target.

How to ensure quality control for ceramic PCBs shipped to the USA?

Quality control for ceramic PCBs shipped to the USA begins before production, not after the boards are finished. The first step is to define the technical requirements clearly. This includes substrate material, thickness, copper or conductor structure, surface finish, solder mask, hole sizes, tolerances, inspection criteria, testing needs, packaging requirements, and documentation expectations. When these points are confirmed before manufacturing, the supplier can control the process more effectively and the customer can inspect the delivered boards with a clear standard.

Ceramic PCB quality is built through process discipline. The manufacturer should control incoming ceramic substrates, conductor materials, metallization process, plating thickness, surface finish, dimensional accuracy, hole quality, solder mask quality, and final appearance. For high-reliability projects, the quality team may also check bond strength, insulation performance, thermal behavior, solderability, and electrical continuity.

For U.S. customers, quality control also includes documentation. A supplier serving the USA market should be comfortable providing inspection records, certificates of conformity, material-related information, production lot references, and packing records when required. For medical, aerospace, automotive, and industrial projects, traceability is often as important as the physical board quality.

A practical quality control plan for ceramic PCB USA shipments should include the following steps:

Confirm drawings, Gerber data, stack-up, tolerances, and special requirements before production.
Review material selection and ceramic process type during DFM.
Check critical dimensions, hole quality, copper features, and board outline during manufacturing.
Apply electrical testing or functional inspection based on project needs.
Inspect surface finish, solder mask, silkscreen, and appearance before packing.
Use protective packaging suitable for ceramic substrates and international shipping.
Keep order records, lot information, and inspection results for traceability.

Packaging deserves special attention because ceramic boards are hard and stable, but they should still be protected from edge damage, contamination, moisture exposure, and mechanical shock during international transit. A good supplier uses proper separation, vacuum packing or moisture-protective methods when needed, rigid outer cartons, and clear labels. For assembled ceramic PCBs, ESD protection and component-level packaging become even more important.

EBest Circuit (Best Technology) supports quality control through certified management systems, ceramic manufacturing capability, inspection procedures, and turnkey service support. For USA customers, this means one supplier can help manage bare ceramic PCB fabrication, component sourcing, assembly, and testing when the project requires PCBA delivery.

What industries do USA-serving ceramic PCB manufacturers support most?

USA-serving ceramic PCB manufacturers support industries where heat management, electrical insulation, compact packaging, and long-term reliability are important. Ceramic PCB technology is especially valuable when FR4 or conventional metal core PCB cannot provide enough thermal performance or dimensional stability.

Power electronics is one of the strongest application areas. Ceramic substrates can support high-power components, improve heat transfer, and help maintain electrical insulation. This makes them useful in power supplies, converters, inverters, motor control modules, semiconductor packages, and high-current electronic systems.

LED and laser electronics also use ceramic PCB technology extensively. High-power LED modules generate concentrated heat, and ceramic substrates can help move that heat away from the junction area. This supports better optical stability and longer product life. Ceramic PCBs are used in industrial lighting, automotive lighting, medical lighting, UV LED modules, laser diode modules, and other optoelectronic products.

Medical electronics can benefit from ceramic PCBs because they offer stable insulation, precision, and strong thermal behavior. Applications may include imaging systems, monitoring equipment, sensor modules, diagnostic devices, power control boards, and compact electronic modules. For this market, the supplier’s ISO 13485 capability, traceability, and documentation support are important. EBest Circuit (Best Technology)’s ceramic PCB and PCBA capabilities are a strong fit for medical device teams that need both manufacturing support and controlled quality processes.

Aerospace and UAV electronics also value ceramic PCBs because these systems often require stable performance under thermal stress, vibration, compact design constraints, and long service expectations. Ceramic substrates can support RF modules, power electronics, sensor packages, control modules, and high-reliability electronic assemblies.

Automotive and EV electronics are another major field. Ceramic PCBs are used in power modules, LED headlights, battery systems, charging equipment, sensors, and control electronics. The automotive market values thermal cycling reliability, process repeatability, and traceable production. A supplier with IATF 16949 capability and ceramic process knowledge can support automotive-related engineering teams more effectively.

Industrial automation, telecommunications, RF, microwave electronics, and new energy equipment also rely on ceramic PCB solutions. In these markets, ceramic boards can help manage high frequency, heat, insulation, and compact layout requirements. The exact material depends on the design. Alumina is often practical for many industrial and sensor products. Aluminum nitride is preferred when heat density is higher. LTCC can support compact RF and multilayer ceramic modules. DBC and AMB can support power electronics requiring thick copper and strong thermal behavior.

In brief, a qualified ceramic PCB manufacturer USA serving partner should provide more than ceramic substrates. The right supplier should help U.S. customers choose materials, review DFM, control quality, support documentation, manage delivery, and scale from prototype to production. EBest Circuit (Best Technology) provides ceramic PCB manufacturing, ceramic PCB assembly, and turnkey electronics manufacturing support for U.S. customers working in medical, aerospace, automotive, industrial, RF, power electronics, LED, and new energy applications. For ceramic PCB fabrication or assembly inquiries, contact sales@bestpcbs.com.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

ceramic PCB

Ceramic Board Buyer Decision Before Quote Approval

Five RFQ Details That Change a Ceramic Board Build

EBest Circuit Review Path for Ceramic Substrate Orders

When Ceramic Beats FR4 or Metal Core PCB

Alumina, AlN, ZTA and Si3N4 Board Fit

DPC, DBC, AMB, Thick Film, LTCC and HTCC Routes

Layer Count and Panel Size by Ceramic Route

Trace, Space, Drill and Thickness Limits

Pad Finish Choices for Soldering, Contact or Bonding

DFM Review Before Ceramic Files Move to CAM

Component Mounting and Thermal Interface Planning

Reliability Checks for Ceramic Boards Under Load

High-Temperature and Chemical Environment Review

Isolation, Creepage and Grounding Concerns

Mounting Flatness, Edge Chipping and Ceramic Handling

Power Module, LED and Sensor Application Fit

Failure Modes: Copper Lift, Cracking and Hot Spots

Supplier Questions to Ask Before Purchase Order

RoHS, UL and IPC Documents to Confirm

Ceramic PCB Checklist Before Releasing the Order

What Ceramic Board Buyers Need to Solve

Cracking and Delamination Root Cause Review

Price Drivers Buyers Should Normalize

Supplier Shortlist Criteria for Ceramic Boards

File Package for a Fast Ceramic Board Review

Why Put EBest Circuit on the Quote List Early?

FAQ About Ceramic PCB Manufacturers

What is a ceramic PCB manufacturer?

Is ceramic PCB better than FR4?

What is the difference between DPC and DBC ceramic PCB?

Can ceramic PCB be assembled with components?

What files are needed for a ceramic PCB quote?

Final Recommendation

You may also like

What Is Alumina Heat Conductivity?

What Is the Typical Thermal Conductivity of Alumina?

Is Alumina Conductive or Electrically Insulating?

How Does Alumina Thermal Conductivity Change with Temperature?

How Do Alumina, FR4, MCPCB and AlN Compare?

Which Alumina Properties Matter Besides Heat Conductivity?

When Is Alumina Ceramic PCB a Good Choice?

When Is Alumina Not Enough for Thermal Management?

How Do Thickness, Copper Area and Interfaces Change Heat Transfer?

What Should Buyers Provide for an Alumina Ceramic PCB RFQ?

FAQ About Alumina Heat Conductivity?

Conclusion

You may also like

Ceramic PCB Manufacturer at a Glance

Is Your Ceramic PCB Project Limited by Material or Thermal Uncertainty?

Ceramic PCB Buyer Priorities Before Supplier Selection

When Ceramic PCB Is the Right Choice

Ceramic PCB Materials Buyers Should Compare

DPC, DBC, AMB, Thick Film and Thin Film Differences

Capability Ranges to Verify Before Quoting

Design and DFM Checks for Ceramic PCB

Surface Finish and Metallization Decisions

Ceramic PCB Assembly and Component Sourcing

Testing and Quality Control for Ceramic Circuit Boards

What Determines Ceramic PCB Cost?

How to Compare Ceramic PCB Manufacturers

Files to Prepare for a Ceramic PCB RFQ

Common Ceramic PCB Sourcing Risks

Frequently Asked Questions About Ceramic PCB Manufacturers

What does a ceramic PCB manufacturer do?

Which ceramic PCB process should I choose?

Can ceramic PCB support assembly?

Why is ceramic PCB more expensive than FR4?

Final RFQ Recommendation

You may also like

What Is Ceramic PCB Prototype Production?

Why Is Ceramic PCB Prototyping Different from FR4 PCB Prototyping?

Which Ceramic PCB Material Should You Choose for a Prototype?

What Is the Ceramic PCB Manufacturing Process?

How Do Thick Film, Thin Film, DPC and DCB Affect Prototype Production?

What Files Are Needed for a Ceramic PCB Prototype Quote?

What Should You Check Before Moving from Prototype to Production?

What Problems Can Delay Ceramic PCB Prototype Production?

How to Choose a Ceramic PCB Prototype Manufacturer?

FAQ
