PCB Consulting: When to Use It and What the Consultant Should Deliver

Monday, August 17th, 2026

PCB consultants reviewing a complex circuit board and manufacturing data — Useful PCB consulting turns design uncertainty into traceable findings, owned decisions and released manufacturing data.

PCB consulting is an independent or specialist engineering service that helps a team make better circuit-board decisions before design, fabrication, assembly or product qualification. Its value is not a long meeting or a generic checklist. A useful engagement produces findings that can be verified, decisions with named owners and outputs that a designer, manufacturer or test team can execute.

Consulting may cover schematic and layout review, signal or power integrity, thermal and reliability analysis, DFM/DFA, stackup and material decisions, component risk, test strategy, failure investigation or manufacturing transfer. The scope must say what is reviewed, what evidence is required and who has design authority.

Will the consultant leave your team with an approved release package, or only a presentation full of suggestions?

If a finding has no location, evidence, risk, owner, disposition and changed source file, it can disappear between the review call and the factory.

EBest Circuit can review the manufacturing side of a released PCB or PCBA package.

Send Gerber or ODB++, drills, fabrication drawing, stackup, impedance requirements, quantity, test scope and schedule. Assembly projects should add BOM, CPL, assembly drawings and acceptance requirements. Consulting conclusions that affect construction must be reflected in controlled data before production.

What PCB Consulting Should and Should Not Own

A consultant advises within an agreed authority boundary; the product owner still owns product intent and release approval. The statement of work should identify design authority, safety/compliance responsibility, IP ownership, file custody, confidentiality, tool/version access, required analyses, assumptions, exclusions and final acceptance.

Do not let “review the PCB” stand as a scope. It could mean a visual layout pass, a rule check, a full schematic-to-layout review, simulation, manufacturing DFM or a failure-analysis investigation. Define board/revision, interfaces, operating conditions, target standards, priority risks and deliverables.

When a PCB Project Needs an External Consultant

The design team lacks experience with high-speed, RF, high-current, isolation, flex/rigid-flex, HDI or unusual thermal constraints.
A previous prototype failed but the root cause remains uncertain.
The schedule cannot absorb a late layout respin or failed compliance test.
The manufacturer repeatedly raises stackup, drill, impedance, panel or assembly questions.
A product is moving from prototype into pilot or a new factory.
The internal team needs an independent design review before a release gate.
Component availability, lifecycle or substitute decisions may change the layout.
The acceptance test does not yet prove the risks the product must survive.

Consulting is most effective before routing is frozen or money is committed to tooling and materials. A late review can still help, but the cost of change rises sharply after layout, fabrication and assembly.

Choose the Right Consulting Engagement

Engagement	Primary question	Typical output	Best timing
Architecture/design review	Will the circuit and physical partition meet requirements?	Risk register, schematic/layout findings, design actions	Before or during layout
Analysis/simulation	Will signals, power, temperature or stress stay within limits?	Model, assumptions, plots, limits and design changes	Before design freeze
DFM/DFA and transfer	Can the chosen factory build, assemble and test it repeatedly?	DFM dispositions, stackup, panel/test and release checklist	Before RFQ and tooling
Failure investigation	What mechanism produced the observed symptom?	Evidence chain, root-cause hypothesis, verification plan and corrective action	After a controlled failure sample exists

A single consultant may cover more than one type, but each work package still needs its own acceptance criteria.

Inputs a Consultant Needs Before Making Recommendations

Advice without the product context can be technically correct and still wrong for the project. Provide product requirements, operating environment, interfaces, power/current, data rates, safety/isolation needs, mechanical constraints, cooling, reliability targets, schematic, layout source, libraries, stackup, rules, simulations, previous test data, failure evidence, intended factory and planned volumes.

For manufacturing work, include the complete data described in the PCB fabrication drawing guide. Freeze the reviewed revision and record missing information as assumptions, not invisible gaps.

Review Gates From Schematic to Manufacturing Release

Requirements gate: measurable electrical, mechanical, environmental, regulatory and manufacturing constraints are agreed.
Schematic gate: interfaces, power, protection, component ratings, test access and design assumptions are reviewed.
Placement/stackup gate: layer strategy, return paths, partitioning, thermal paths, critical placement and mechanical zones are approved.
Routing gate: constraints, transitions, reference continuity, spacing, current paths and controlled structures are checked.
Release gate: design outputs, drawings, stackup, libraries, revisions and unresolved deviations are controlled.
Factory gate: CAM/DFM questions, proposed construction, panel, tests and any substitutions receive disposition before production.

The PCB DFM checklist can be used as one input, but it does not replace project-specific engineering judgment.

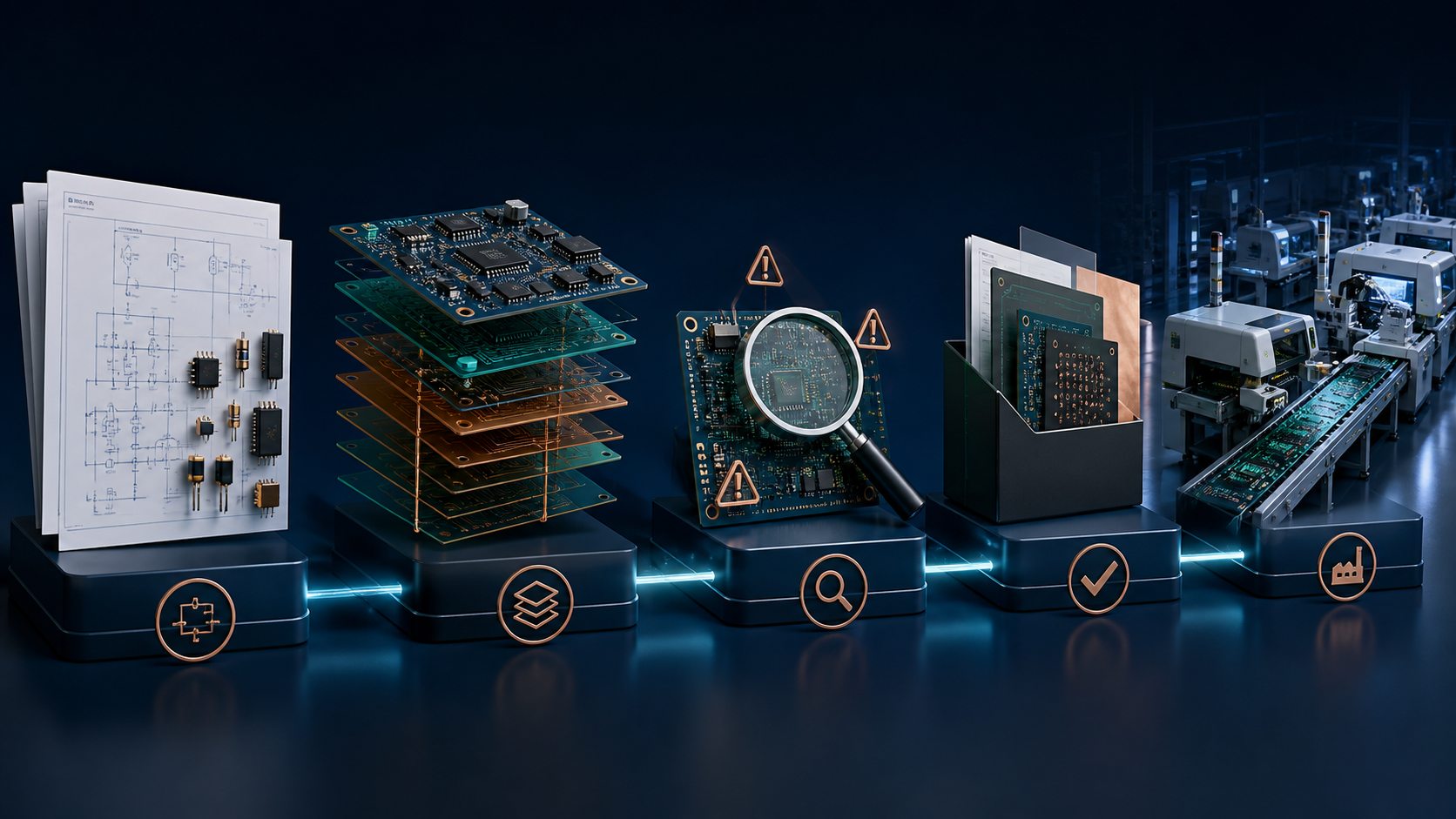

PCB consulting workflow from schematic and design review to approved factory release — A closed consulting loop connects requirements, design analysis, finding disposition, released files and factory execution.

Deliverables That Make PCB Advice Verifiable

Deliverable	Minimum useful content	Closure test
Finding register	ID, file/revision, location, evidence, consequence, severity and recommendation	Each item has an owner and disposition
Analysis package	Model, boundary conditions, assumptions, material data, result and margin	Another qualified engineer can reproduce the conclusion
Decision log	Options, trade-offs, approver, date and selected action	The released design matches the decision
Verification plan	Measurement, fixture, limit, sample, environment and pass/fail rule	The result proves or rejects the risk
Release checklist	Controlled source/output files, drawings, revision, unresolved deviations and approvals	The factory receives one coherent baseline

Use a Responsibility Matrix for Every Decision

Each technical decision needs one accountable owner. Record who recommends, who supplies evidence, who changes the source design, who approves product intent and who implements the manufacturing process. Typical parties include the product owner, internal electrical/mechanical engineers, consultant, PCB designer, component engineer, compliance lab, fabricator and assembler.

A consultant can recommend a stackup, but the fabricator must confirm manufacturability and the product authority must approve electrical/mechanical consequences. A factory can propose a pad or drill change, but it cannot silently change a controlled design. This separation preserves speed without losing ownership.

How to Evaluate a PCB Consulting Firm

Ask for anonymized examples of findings, analyses, decision logs and release packages—not only a capabilities deck.
Check experience with the relevant technology, failure modes, product environment and manufacturing route.
Confirm which work is performed by named senior engineers and which is delegated.
Review tools, model validation, peer review, data security, source-file handling and retention.
Define response time, meeting cadence, change limits, rework responsibility and escalation.
Ask how recommendations are verified and transferred into controlled source data.
Separate fixed deliverables from open-ended hourly advice, and define what “complete” means.

The existing PCB design outsourcing guide is useful when the provider will create the design itself; consulting may instead review or direct work owned by another team.

Convert Consulting Findings Into Factory-Ready Data

Close every accepted finding in the source-of-truth files. Update the schematic/layout, libraries, rules, drawings, stackup, impedance table, BOM, assembly notes, test requirements and revision history as applicable. Export a clean manufacturing package, independently view it, compare it with the approved source and archive checksums.

Send the factory the release plus a concise list of controlled requirements and unresolved deviations. Then disposition CAM/DFM questions without overwriting the original baseline. The PCB CAM outsourcing guide explains the boundary between approved design data and manufacturing front-end changes.

How EBest Circuit Supports the Manufacturing Side

EBest Circuit is the manufacturing reviewer and supplier for the released project, not a substitute for the customer’s product authority. The team can assess fabrication data consistency, construction, materials, copper, drills, controlled features, surface finish, panel, tests and documentation against the actual job.

When assembly is included, BOM, CPL, assembly drawings, component constraints and test instructions should be reviewed with the board data. Any consultant recommendation that changes build requirements must appear in the controlled release or a documented, approved deviation.

FAQ About PCB Consulting

What does a PCB consultant do?

A consultant reviews or analyzes defined PCB risks and provides evidence-based findings, recommendations, decision support and verification or release deliverables.

When should I hire a PCB design consultant?

Before design freeze when the project has unfamiliar high-speed, RF, power, thermal, HDI, flex, reliability or compliance risks, or after a failure that the team cannot explain.

Is PCB consulting the same as PCB design outsourcing?

No. Outsourcing assigns design creation to an external provider. Consulting may advise, review or analyze a design whose source remains owned and edited by another team.

What files should I send for a PCB review?

Provide requirements, schematic, layout source, libraries, stackup, rules, mechanical data, BOM, simulations/test results and the intended manufacturing outputs for the controlled revision.

How do I judge the quality of consulting advice?

Look for traceable evidence, explicit assumptions, quantified limits or margins, reproducible analysis, practical actions, named decision owners and a verification method.

Can a PCB manufacturer perform consulting?

A manufacturer can provide valuable DFM, stackup and process guidance. Independent product-design, safety or compliance authority may still be needed for decisions outside the factory’s manufacturing scope.

What should happen after the consulting review?

Disposition every finding, update controlled source files, run the defined verification, approve the release package and submit that coherent baseline for factory DFM and quotation.

What PCB CAM Outsourcing Covers After Design Release

CAM sits between customer design outputs and executable factory data. Typical front-end work includes layer identification, format and polarity checks, drill/tool analysis, netlist comparison, DFM analysis, stackup and impedance coordination, solder-mask and legend checks, panelization, coupons, tooling features, rout/V-cut data, factory compensation, and release documentation.

CAM may repair data artifacts or apply approved manufacturing compensation, but it does not validate circuit function. The customer remains responsible for design intent, electrical behavior, safety, controlled dimensions, and the approved revision.

Audit the Incoming Data Before CAM Work Starts

The first deliverable should be an input-status report, not a tooled panel. Confirm:

file set, revision, units, format, naming, and checksum;
layer count, copper/mask/legend/paste/mechanical roles, polarity, and alignment;
plated/non-plated drills, slots, countersinks, depth-controlled features, and drill pairs;
outline, dimensions, tolerances, cutouts, edge treatment, V-cuts, and routed tabs;
stackup, finished thickness, copper, material, Tg/other properties, and special construction notes;
impedance targets, tolerance, layers, references, line classes, and coupon expectations;
netlist availability and whether comparison is permitted/required;
panel, tooling, marking, date/lot code, testing, reports, quantity, and delivery requirements.

The PCB fabrication drawing guide shows which requirements should not be left to filenames or assumptions.

Separate CAM Corrections From Customer Design Changes

Classify every issue before editing.

Issue class	Example	Who approves	Required record
Data clarification	Unknown mechanical layer or unit ambiguity	Customer data owner	Question and confirmed interpretation
Routine factory transformation	Documented process compensation that preserves finished geometry	Defined by approved factory process	CAM rule/version and output trace
Manufacturability correction	Mask bridge, annular ring, copper-to-edge, drill or rout conflict	Customer unless pre-authorized threshold exists	Before/after view and disposition
Design change	Moved trace, pad, component land, net, hole, outline or controlled dimension	Customer design authority	Revised source/release or formal deviation

Never let a small geometric delta bypass the approval rule merely because CAM software can repair it automatically.

12 Front-End CAM Checks Before a PCB Job Is Tooled

Layer mapping, polarity, registration origin, units, and scaling.
Customer revision consistency across every file and drawing.
Netlist extraction and comparison to supplied reference data.
Minimum conductor width/spacing by copper layer and construction.
Annular ring, drill-to-copper, breakout risk, and finished-hole allowance.
Copper-to-profile, slot, cutout, V-cut, and scoring clearances.
Solder-mask openings, dams, via treatment, and exposed copper intent.
Legend-to-pad/mask/profile conflicts and required marking content.
Plane polarity, thermal connections, isolated copper, and unintended islands.
Impedance features, reference layers, stackup consistency, and coupons.
Panel rails, spacing, tabs, tooling holes, fiducials, coupons, and depanelization.
Factory electrical test, inspection, traveler, output archive, and approval status.

Use a broader PCB DFM checklist to connect these CAM checks to design and assembly consequences.

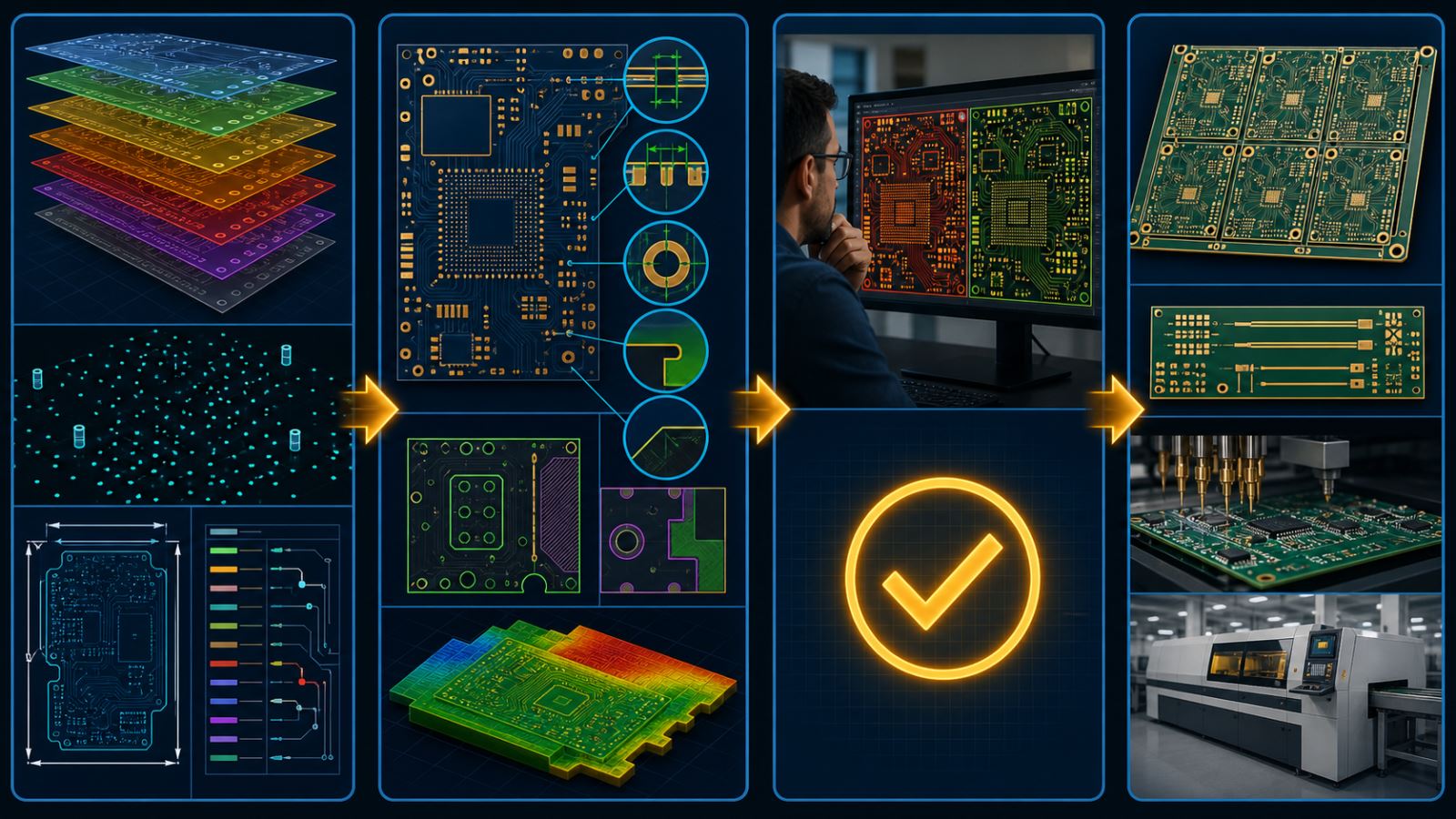

PCB CAM front-end gate map from incoming data through DFM approval tooling and factory release — A controlled CAM workflow has four visible gates: input integrity, manufacturability review, customer disposition, and factory tooling release.

Panelization and Tooling Data Need Customer-Supplier Alignment

Panelization changes manufacturing, assembly, test, handling, and depanelization risk. The CAM scope should identify who owns the customer array, fabrication panel, assembly panel, rails, breakaway features, coupons, fiducials, tooling holes, bad-mark strategy, serial/lot marking, and delivered format.

Consider board geometry, component overhang, edge clearances, selective solder or fixture access, conveyor support, warpage, copper balance, paste/placement needs, test fixtures, depanelization stress, and packaging. A panel optimized only for fabrication may be awkward for assembly; a customer array may need a larger factory production panel around it.

Stackup and Impedance Changes Must Be Controlled

CAM cannot safely treat stackup and impedance as independent post-processing. Material availability, dielectric thickness, copper, finished thickness, layer count, via structures, reference planes, line geometry, etch compensation, and coupon design interact.

If the factory proposes a production stackup, return the layer structure, materials, nominal dielectrics/copper, impedance geometry, targets/tolerances, coupons, and affected nets or classes for customer confirmation. Preserve the approved version with the job. For complex builds, use the HDI process guide to review sequential lamination and microvia dependencies.

Build an Approval Loop That Leaves an Audit Trail

Each open issue needs an owner, evidence, disposition, and released revision. Use screenshots or marked views, coordinates, layer names, rule/value, risk, proposed action, and response deadline. Record accept, reject, supply revised data, or approve deviation.

Do not rely on chat fragments detached from the job. Freeze customer inputs, CAM software/rule version, reviewed output, approved changes, production stackup, panel drawing, test data, and final release status. When customer files change, restart affected comparisons rather than overwriting the old result.

How to Evaluate a PCB CAM Outsourcing Provider

Can it preserve the customer baseline and produce before/after evidence?
Which formats, netlists, stackups, impedance models, panel rules, and factory systems are supported?
How are automated edits classified and approved?
Can senior CAM engineers review HDI, flex/rigid-flex, RF, heavy copper, controlled depth, and unusual outlines when relevant?
How are customer data, IP, access, subcontracting, retention, and deletion controlled?
What checks are automated, what receives human review, and what remains customer responsibility?
How are response time, revision count, error correction, escalation, and factory feedback handled?
Does the final archive let another qualified factory or engineer reproduce the approved job?

Final CAM Deliverables the Factory Should Preserve

The archive should show the path from customer release to factory release. Preserve the original input manifest and checksums, input audit, extracted/reference netlists, DFM report, issue/disposition log, approved stackup and impedance/coupon data, panel/tooling drawing, rout/V-cut data, electrical-test data, customer approvals, factory CAM outputs, software/rule versions, and traveler/release record.

If an intelligent package is used, the IPC-2581 guide explains why machine-readable data still needs revision and viewer checks.

How EBest Circuit Uses CAM Review Before Fabrication

EBest Circuit uses manufacturing front-end review to clarify the actual board construction before production. Available checks can cover layer/data consistency, drills, spacing, annular features, copper-to-profile, mask and legend, stackup, impedance notes, panel requirements, fabrication drawing, and requested test/documentation scope.

Capability is confirmed for the actual combination of material, layers, copper, thickness, holes/vias, geometry, finish, tolerance, panel, quantity, and schedule. A CAM suggestion that changes customer-controlled intent is returned for approval rather than silently treated as a routine repair.

FAQ About PCB CAM Outsourcing

What is PCB CAM engineering?

It is the manufacturing front-end work that audits released PCB data, applies controlled factory transformations, performs DFM checks, creates panel/tooling/test data, and releases executable fabrication information.

Is PCB CAM the same as PCB design?

No. PCB design creates circuit and physical layout intent. CAM prepares approved design outputs for manufacturing and should not change product intent without authority.

Why outsource PCB CAM work?

Companies may need specialist capacity, 24-hour coverage, format expertise, or standardized front-end processing. Value depends on accuracy, traceability, approval control, security, and factory integration.

What files does PCB CAM need?

Typically Gerber/ODB++, drills/routes, fabrication drawing, stackup, material/copper and impedance notes, netlist data, panel requirements, tests, quantity, and schedule.

Can CAM engineers repair Gerber data?

They can correct agreed manufacturability or data issues, but the change class and approval threshold must be defined. Design-intent changes require customer authority.

What is the difference between a customer array and a fabrication panel?

A customer array is the delivered multi-board format. A fabrication panel may place one or more arrays/boards within factory rails, coupons, tooling, and process spacing.

How do I verify CAM output?

Compare it with the frozen input, review the DFM/change log, inspect layers/drills/outline/panel in an independent viewer, compare connectivity, and approve stackup, impedance, and controlled changes.

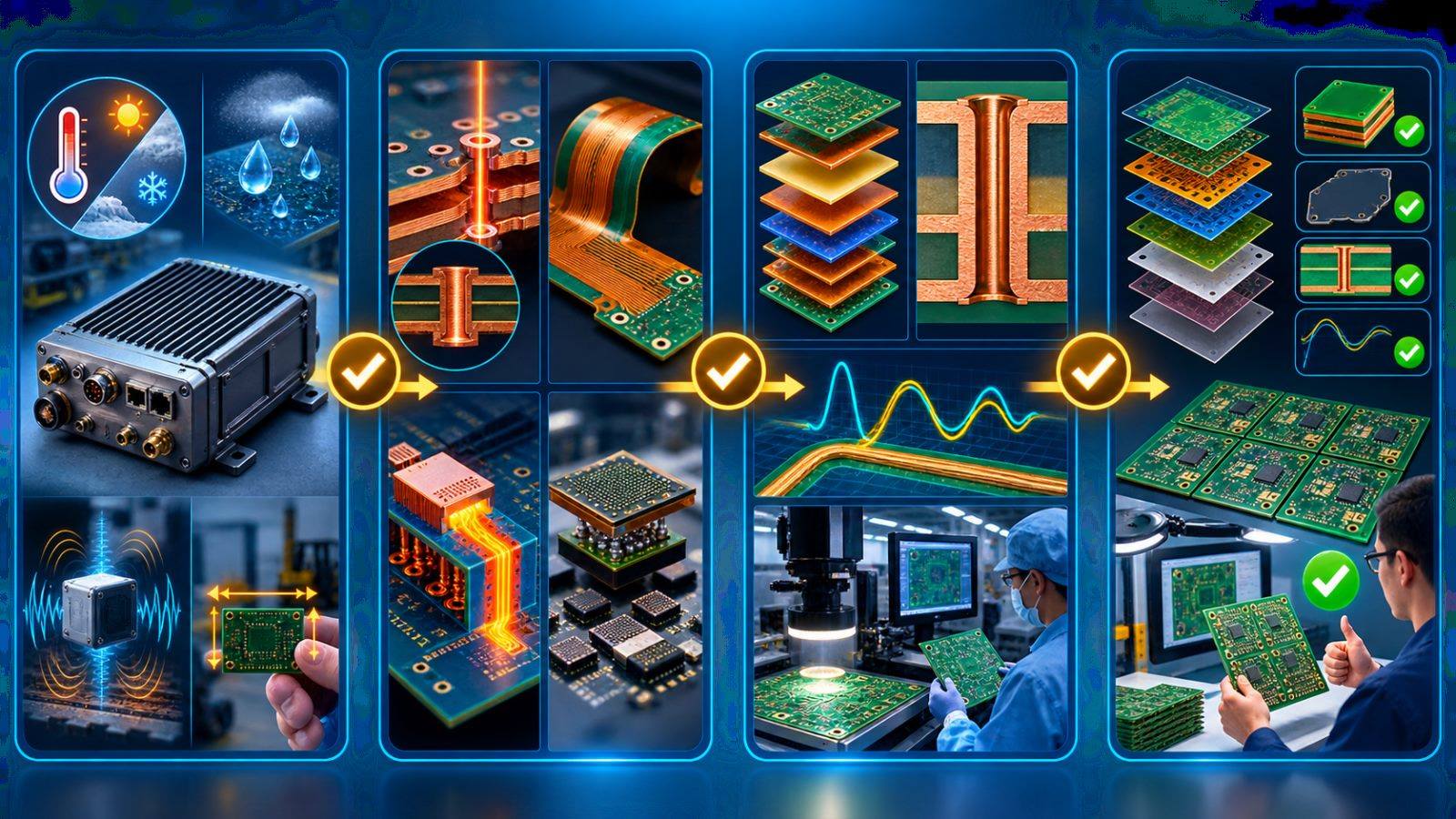

Which PCB Technology Trends Actually Change Buying Decisions?

A trend matters when it changes at least one controlled input or acceptance test. Ask what product limitation it solves, which new constraint it introduces, and how the team will prove the result.

Trend	Potential value	Buyer decision that changes	Evidence to request
Finer features and HDI	More routing density and smaller form factor	Stackup, via structure, material, yield/cost tradeoff	Approved stackup, DFM disposition, coupons/inspection scope
Advanced packaging	More function in less board area	Footprints, escape routing, assembly and inspection plan	Package data, paste design, X-ray/test access
Higher power density	Smaller converters and higher output	Copper, thermal path, material, interfaces, validation	Loss model, temperature limits, thermal test plan
Flex/rigid-flex integration	Fewer connectors and compact motion/folding	Mechanical ownership, bend rules, materials, fixtures	Controlled flex drawing, bend model, stackup and coupons
Digital data and automation	Fewer manual translations	Format, revision, machine-readable attributes	Viewer comparison, netlist, change/release record
Traceability/material evidence	Better control and reporting	Required lot, process, component, and material records	Agreed fields, retention, reports, exception path

Finer Features Make Stackup and DFM Coordination Earlier

HDI, microvias, tighter routing, and smaller land patterns move manufacturer coordination ahead of final layout. The designer needs a credible layer structure, dielectric thicknesses, copper assumptions, laser/mechanical drill strategy, via fill/cap requirements, impedance geometry, and registration allowance before critical routing is frozen.

Do not select minimum line/space, hole size, or via geometry independently. Copper weight, finished thickness, material system, aspect ratio, pad size, layer transitions, sequential lamination, reliability expectations, and inspection all interact. The project017 capability source confirms that even apparently simple feature ranges change between normal and special processing; the public article therefore treats every advanced combination as subject to project review.

Use the fewest advanced structures that solve the density problem.
Define via pairs and whether any structure is stacked, staggered, filled, capped, or via-in-pad.
Ask where the design enters a special-process window and what that changes for cost, lead time, and evidence.
Freeze impedance and stackup assumptions before length-sensitive routing.

For a deeper handoff, use the HDI PCB manufacturing process guide.

Advanced Packaging Pulls PCB and Assembly Rules Together

Fine-pitch BGA, LGA, QFN, module, and multi-chip packages cannot be treated as only a footprint choice. The package affects escape routing, layer count, via technology, solder-mask strategy, paste deposition, placement, reflow, inspection, rework, and test access.

Before approving the package, verify the exact manufacturer drawing and revision, pin map, thermal pad, exposed-pad via design, coplanarity information, moisture sensitivity, storage, assembly profile constraints, and inspection method. A footprint that passes library checks can still be difficult to manufacture if the chosen via/pad structure conflicts with the fabricator’s process or if hidden joints lack an agreed inspection plan.

The multi-chip module integration guide shows why package, board, thermal, assembly, and test decisions must be planned together.

Thermal Management Is Becoming a Board-Architecture Decision

Higher power density makes heat a system path from junction to ambient, not an afterthought solved by adding copper. The board may need thicker or distributed copper, thermal vias, direct-thermal-path structures, metal-core or ceramic materials, heat spreaders, interface materials, chassis contact, airflow, or controlled component placement.

Start with power loss, allowable junction/case/board temperatures, duty cycle, ambient and enclosure conditions, heat-source interaction, safety margin, and validation method. Then compare architectures. A technology that lowers one thermal resistance may introduce cost, isolation, planarity, soldering, CTE, mechanical, or sourcing constraints elsewhere.

Use simulation to compare options, then validate a representative build under realistic load and environment. The copper direct-thermal-path guide explains how localized thermal structures change both design and manufacturing inputs.

Flex and Rigid-Flex Move Mechanical Design Into the PCB Release

Flex circuits turn bend, fold, motion, assembly sequence, and enclosure geometry into electrical manufacturing inputs. The release should define rigid/flex regions, layer transitions, bend direction and radius, dynamic or static use, neutral-axis considerations, stiffeners, coverlay openings, controlled-impedance areas, component and via keep-outs, strain relief, and final formed state.

Do not approve the electrical layout before the mechanical team proves the installed path. A fold that fits in a static CAD view may create stress during assembly, conflict with a connector, or force copper into an unfavorable bend. Use controlled drawings and, where useful, physical bend samples or fixtures.

Ask the manufacturer to review material set, stackup, adhesive/coverlay construction, dimensional tolerances, panelization, tooling, stiffeners, impedance, coupons, and acceptance criteria before release.

PCB technology trend decision map connecting product need design rules manufacturing evidence and RFQ — Every technology choice should connect a product need to design rules, manufacturing controls, verification evidence, and a quote-ready file package.

Intelligent Data Packages Reduce Manual Handoff Risk

Machine-readable manufacturing data can reduce separate files and manual interpretation, but only when the package is complete and verified. Formats such as IPC-2581 can carry design, fabrication, assembly, BOM, stackup, net, and attribute information in a structured exchange.

The adoption decision should consider CAD export quality, manufacturer import support, revision control, viewer availability, attribute mapping, supply-chain requirements, and the fallback package. Compare the intelligent output with the approved design and preserve drawings or notes needed to express requirements that the format does not capture reliably.

Read the IPC-2581 guide for a practical file-handoff checklist. Whether you release IPC-2581, ODB++, or Gerber/drill files, independent viewing and connectivity comparison remain important.

AI and Automation Accelerate Reviews but Do Not Own Signoff

AI-assisted schematic, placement, routing, analysis, CAM, inspection, and quotation systems can shorten bounded tasks. Their value depends on controlled inputs, visible constraints, inspectable output, and a qualified owner who can approve or reject the result.

Automation may identify patterns or explore more options, but it cannot prove that the product requirements, safety rules, stackup assumptions, footprint revisions, manufacturing limits, test strategy, and release package are correct unless those inputs and checks are explicitly controlled.

The AI PCB design workflow provides a 12-point release check. Keep the human signoff and record the tool version, inputs, settings, warnings, changes, analyses, and approved revision.

Traceability and Responsible Material Choices Need Better Inputs

Traceability and material reporting are becoming more useful when buyers define the decision they need to support. “Full traceability” or “green PCB” is not an executable requirement. Specify which materials, components, processes, lots, serials, operators/stations, test results, certificates, retention periods, and exception records must be linked.

For materials, state the required regulatory or customer evidence, declaration scope, part or homogeneous-material level, revision, exemptions, and supplier-document expectations. For components, define approved sources, date/lot or serial tracking, substitutions, programming identity, and counterfeit-risk controls where appropriate.

More data is not automatically better. Collect records that support compliance, failure containment, field action, supplier management, or customer acceptance, and define who reviews them.

15 RFQ Questions for a Technology-Forward PCB Project

Which product limitation requires the advanced technology?
What simpler construction was considered and why was it rejected?
Which stackup, material, copper, thickness, and impedance assumptions are frozen?
Which features are standard and which require special review?
What via structures, fill/cap, sequential lamination, or controlled-depth operations are required?
Which package/footprint and assembly risks must be reviewed together?
How will thermal performance be modeled and validated?
Which mechanical/flex states and tolerances must be controlled?
Which output format and independent viewer will be used?
What netlist/connectivity comparison is required?
Which coupons, cross-sections, electrical tests, or inspection records are needed?
Which material and component declarations must be delivered?
What traceability fields and retention period are required?
Which substitutions or manufacturer DFM changes need customer approval?
What quantity, build stage, target schedule, and scale-up plan apply?

How EBest Circuit Reviews Advanced PCB Requirements

The review starts with the construction and acceptance evidence, not the trend label. EBest Circuit can check the available board data, layer definition, stackup, drills/via structures, copper, material, impedance notes, mask, drawings, panel needs, and test/documentation requests before confirming a fabrication quote.

For assembly, submit the BOM, CPL, approved substitutions, drawings, package constraints, inspection needs, programming, test procedure, limits, and traceability fields. Use the PCB fabrication manufacturer selection guide to compare technical evidence rather than marketing labels.

Capabilities are confirmed for the actual combination. Do not combine the smallest feature, heaviest copper, most complex via, tightest tolerance, fastest schedule, and most demanding documentation into one assumed standard process window.

FAQ About PCB Technology Trends

What are the most important PCB technology trends in 2026?

Key changes include finer features/HDI, advanced packaging, higher power density, flex integration, machine-readable manufacturing data, AI-assisted workflows, automation, and stronger traceability/material evidence. Importance depends on the product problem.

Does every new product need HDI?

No. Use HDI when routing density, form factor, package escape, or performance requires it. A conventional multilayer construction may be lower risk and easier to source when it meets the requirement.

How is AI changing PCB design?

AI can assist bounded schematic, placement, routing, analysis, documentation, and review tasks. Engineers still own requirements, constraints, validation, DFM, and release approval.

Why are PCB and assembly decisions becoming more connected?

Fine-pitch packages, via-in-pad, thermal structures, compact layouts, and hidden joints link board fabrication choices to paste, placement, reflow, inspection, rework, and test.

What files help manufacturers review advanced PCBs?

Send Gerber/ODB++ or an agreed intelligent format, drills, fabrication drawing, stackup, impedance and via notes, netlist, material/copper requirements, quantity, tests, and schedule; add BOM/CPL and assembly/test files for PCBA.

How should buyers compare advanced PCB suppliers?

Compare the proposed construction, standard-versus-special boundary, engineering questions, DFM evidence, inspection/test plan, documentation, change control, and scale-up support—not only a technology list.

Do PCB trend forecasts guarantee adoption?

No. Forecasts describe possible direction. A project should adopt technology only when requirements, capability, supply, cost, verification, and lifecycle evidence support the decision.

What Should PCB Design Outsourcing Include?

The phrase can describe anything from a short layout task to full electronic product development, so the contract must name the boundary. Do not assume that “PCB design” includes schematic capture, component selection, firmware, enclosure work, simulation, compliance, prototyping, or manufacturing support.

Requirements definition: turning a product brief into electrical, mechanical, environmental, test, cost, and compliance constraints.
Schematic work: architecture, circuit design, part selection, calculations, ERC, simulation, and design documentation.
Library work: symbols, footprints, 3D models, pin mapping, land-pattern source, and approval records.
PCB layout: board setup, placement, routing, constraints, planes, thermal features, mechanical integration, and DRC.
Analysis: signal integrity, power integrity, thermal, high-current, safety-spacing, EMC, or other project-specific signoff work.
Manufacturing release: Gerber/ODB++, drill, drawings, stackup, netlist, BOM/CPL, assembly files, output comparison, and revision archive.
Prototype support: DFM questions, sourcing clarifications, build deviations, bring-up, failure investigation, and controlled corrections.

Ask the provider to mark every item as included, excluded, customer-supplied, or optional. This single step prevents two quotations with very different responsibilities from looking artificially comparable.

When Outsourcing Helps—and When It Adds Risk

Outsourcing is valuable when it adds missing expertise or capacity without separating design decisions from product knowledge. It adds risk when the external team receives weak inputs, cannot speak directly with responsible engineers, or is rewarded only for finishing drawings quickly.

Situation	Why outsourcing may help	Control required
Internal team has a temporary layout bottleneck	Adds capacity while product architects stay engaged	Controlled constraints, daily issue path, internal release owner
Board needs specialist RF, high-speed, power, safety, HDI, or rigid-flex knowledge	Brings domain experience not available in-house	Named specialist, explicit analyses, measurable acceptance criteria
Product requirements are still changing	May accelerate option studies	Paid discovery phase and change control before committed layout
Team wants the lowest fixed price for an undefined scope	Apparent budget certainty	High risk: exclusions and rework usually emerge later
Project contains sensitive IP or regulated data	Access to specialist capability	Approved tools, locations, people, retention, transfer, and deletion rules

If the product team cannot answer basic architecture, compliance, interface, environment, and validation questions, outsource a discovery milestone first. Do not ask a layout provider to silently invent product requirements.

Choose the Ownership Model Before the First Schematic Edit

Ownership means decision authority and long-term responsibility, not just possession of files. Collaborative or co-design models can work well, but each technical area needs one accountable approver. Cadence’s discussion of co-design and outsourced PCB work also illustrates why teams need a deliberate collaboration model rather than an isolated handoff.

Decision area	Possible external role	Customer must retain	Acceptance evidence
Product requirements	Clarify and structure inputs	Business, safety, regulatory, and performance authority	Approved requirements baseline
Circuit and parts	Design, calculate, simulate, recommend	Approval of function, lifecycle, supply, derating, and substitutions	Schematic review, calculations, simulation, BOM approval
Libraries	Create or validate symbols and footprints	Approval method and ownership of reusable data	Datasheet cross-check and library review log
Layout	Place, route, document, resolve constraints	Approval of critical topology and product tradeoffs	Review snapshots, DRC, analysis, change log
Manufacturing release	Generate and package outputs	Final revision and release authority	Independent output-viewer and netlist comparison

Name the people who approve each gate. A group mailbox or “customer to review” line is not enough when a safety spacing, critical footprint, impedance rule, or component substitution needs a decision.

Build a Scope of Work the Designer Can Actually Quote

A quote-ready scope connects project inputs to deliverables, milestones, and acceptance tests. Give every bidder the same package and require assumptions to be written into the quotation.

Describe the product and use environment. Include function, interfaces, input power, loads, enclosure, temperature, moisture, vibration, service access, compliance targets, and expected production volume.
Define the starting point. Identify whether the provider receives requirements, an approved schematic, a partial layout, a reusable reference design, or legacy manufacturing files.
State the technology assumptions. Include board size, layer target, stackup status, copper, impedance, via strategy, material needs, assembly process, and preferred manufacturer review point.
Classify critical circuits. Mark safety, power, RF, high-speed, precision analog, clocks, memory, sensors, isolation, antennas, and thermal constraints.
List required analyses. Define models, tools, inputs, limits, output reports, and who interprets the result.
Define review milestones. Typical gates include architecture, schematic, component/library, placement, critical routing, pre-release DRC/analysis, and manufacturing outputs.
List every deliverable. Include native editable CAD, libraries, PDFs, analysis files, manufacturing and assembly outputs, drawings, 3D data, settings, reports, and revision history.
Set change and correction rules. Distinguish customer changes, provider errors, manufacturer DFM changes, prototype learning, and post-release support.
Define acceptance. Specify who reviews, the response time, objective pass criteria, issue severity, and how approval is recorded.

A manufacturer-aligned PCB DFM checklist should be incorporated before the external designer freezes the layout, not attached after all routing is finished.

What Does Outsourced PCB Design Cost?

There is no useful universal price because the quoted object changes with scope, uncertainty, board complexity, analyses, deliverables, and support. Compare the cost of reaching an accepted release, not only the hourly rate or first fixed-price milestone.

Fixed price can work for stable inputs and clearly bounded deliverables. It becomes fragile when requirements or constraints are incomplete.
Time and materials fits discovery, redesign, uncertain legacy data, and iterative engineering, but needs transparent time records and budget gates.
Milestone pricing separates schematic, library, placement, routing, analysis, and release so the customer can approve evidence before funding the next stage.
Dedicated capacity may suit a pipeline of boards when the same external team, libraries, and process will be reused.

Major cost drivers include component count and library work, layer count, density, constraints, high-speed/RF/power complexity, mechanical integration, simulation, safety/compliance needs, documentation, review cycles, project management, urgent scheduling, and prototype support. Ask whether manufacturing questions and one controlled correction cycle are included; a cheap layout that requires unplanned rescue work is not a cheap release.

12 Questions to Evaluate a PCB Design Partner

Who will perform the work, and what directly relevant board experience can that person demonstrate?
Which tasks, analyses, meetings, revisions, and post-release responses are included or excluded?
How are requirements, constraints, assumptions, issues, decisions, and approvals recorded?
How are symbols, footprints, 3D models, pin maps, and datasheet revisions created and verified?
Can the provider work with the customer’s CAD version, libraries, version control, naming, and release process?
How are high-risk nets, safety regions, power paths, thermal needs, mechanical limits, and test access reviewed?
Which simulations or analyses are performed, with what models, acceptance limits, and deliverable reports?
Who owns native files, libraries, scripts, models, and reusable design blocks after payment?
Where is data stored, who can access it, which subcontractors are involved, and how is deletion verified?
How does the provider coordinate stackup and DFM questions with the selected PCB manufacturer?
What happens when a manufacturer reports a DFM conflict or the first prototype exposes a design problem?
Can another qualified engineer understand and continue the work from the delivered archive?

Request a sample redacted deliverable set, not confidential customer data. The goal is to see whether reports, drawings, library records, constraints, revisions, and issue closure are understandable.

PCB design outsourcing control gates for scope ownership reviews IP and manufacturing handoff — The customer can outsource work without outsourcing control when scope, ownership, review evidence, IP rules, and manufacturing deliverables are agreed before release.

Keep These PCB Review Gates Under Your Control

Approval should follow risk, not a percentage-complete status. Retain authority over requirements, architecture, critical components, libraries, safety and performance constraints, analyses, major layout tradeoffs, manufacturer exceptions, and the final revision.

Schematic gate: approved function, interfaces, power tree, protection, calculations, simulations, ERC exceptions, and BOM direction.
Library gate: datasheet revision, pin map, pad geometry, polarity, courtyard, 3D alignment, assembly origin, and reviewer identity.
Placement gate: mechanical fit, connectors, functional zones, power and return paths, clocks, sensitive analog/RF, heat, assembly, and test access.
Critical-routing gate: reference paths, impedance, length relationships, via transitions, high-current geometry, isolation, coupling, and analysis assumptions.
Pre-release gate: DRC, independent connectivity, analyses, drawings, stackup, DFM disposition, 3D fit, and unresolved issue list.
Output gate: independent viewer inspection and proof that native CAD, Gerber/ODB++, drills, netlist, drawings, BOM, CPL, and assembly outputs represent one approved revision.

For AI-assisted external workflows, the same authority applies. The AI PCB design release guide adds controls for generated output, constraint completeness, and accountable signoff.

Protect IP, Libraries and Revision History

A nondisclosure agreement is only one control. The operating process should define permitted people, systems, locations, transfers, retention, backups, external AI tools, subcontractors, and disposal. Match the rigor to the value and sensitivity of the product.

Identify background IP brought by each party and project IP created during the work.
State ownership and reuse rights for native CAD, libraries, design blocks, scripts, models, calculations, and manufacturing outputs.
Require disclosure and approval before data is placed in cloud collaboration, generative AI, or third-party analysis systems.
Use named user access, multi-factor authentication where practical, controlled exports, and revisioned repositories.
Define how supplier data, component models, and licensed reference designs may be used.
Record releases with revision, date, approver, tool version, library baseline, checks, known exceptions, and cryptographic hash where useful.
Specify return or deletion at project end and the retention needed for future support.

Do not make the external provider the only place where editable source data, approved libraries, or decision records exist. The customer should be able to restore the approved release independently.

PCB Design Handoff Checklist for Fabrication and Assembly

The design milestone is complete when the manufacturer can quote and review a consistent package without guessing the product intent.

native editable CAD archive and approved library baseline;
Gerber X2/RS-274X or ODB++, NC drill, route, and layer map;
fabrication drawing with dimensions, tolerances, thickness, copper, material, finish, edge details, via notes, special processes, and revision;
stackup and controlled-impedance table with targets, tolerances, layers, references, and coupon requirements;
IPC-356 or suitable electrical netlist for independent comparison where available;
resolved DRC, DFM, analysis, mechanical, and exception records;
BOM with approved manufacturer part numbers, lifecycle/substitution status, and variants;
CPL/pick-and-place file, assembly drawing, polarity and special-process notes;
programming files and checksums, test procedure, fixture/interface information, limits, and result requirements;
quantity, build stage, panel or delivery preference, quality documentation, and target schedule.

Use the prototype PCB manufacturing RFQ checklist for early builds and the IPC-2581 handoff guide when evaluating an intelligent manufacturing-data package. The chosen format does not remove the need for revision control and output review.

How EBest Circuit Supports the Manufacturing Handoff

EBest Circuit’s role begins with the released project data and the requested manufacturing scope. The team can review open fabrication inputs, confirm project-specific capability, identify questions in stackup, drills, clearances, copper, mask, impedance notes, drawings, panel needs, and file consistency, then quote the agreed PCB build.

For PCBA, the handoff can extend to BOM and CPL consistency, component sourcing, approved substitutions, assembly drawings, inspection, programming, and testing inputs. The custom PCB assembly guide explains how those controls affect an executable quote.

If you are still comparing production partners, use the PCB fabrication manufacturer selection guide to check capability evidence, engineering response, quote assumptions, and release control. Specific design responsibility, fabrication capability, assembly coverage, testing, documentation, and schedule are confirmed for the actual project.

FAQ About PCB Design Outsourcing

When should a company outsource PCB design?

Outsource when the project needs temporary capacity, specialist knowledge, or an independent design resource and the company can still supply product requirements, make technical decisions, and approve the release. Start with discovery if inputs are not stable.

Should I outsource only PCB layout or the schematic too?

It depends on internal capability and ownership. Layout-only outsourcing can work when the schematic, components, libraries, stackup assumptions, and constraints are approved. Broader outsourcing needs explicit responsibility for architecture, calculations, simulation, component choices, and validation.

How much does PCB design outsourcing cost?

Cost depends on scope uncertainty, component/library work, size, layers, density, constraints, analyses, mechanical integration, documentation, reviews, urgency, and prototype support. Compare milestone deliverables and total accepted-release cost, not only hourly rates.

Who owns the PCB design files after outsourcing?

The agreement should state ownership and reuse rights for native CAD, libraries, design blocks, scripts, models, reports, and outputs. Do not assume payment automatically grants every editable source file or reusable asset.

What files should an outsourced PCB designer deliver?

Require native CAD, libraries, PDFs, review and analysis records, Gerber/ODB++, drills, netlist, fabrication drawing, stackup, 3D data, BOM, CPL, assembly drawings, settings, release notes, and any programming or test deliverables included in scope.

How do I check an outsourced PCB layout?

Review against approved requirements and constraints, not appearance. Check libraries, schematic connectivity, placement, return paths, critical routing, safety, SI/PI, thermal and mechanical behavior, DRC/DFM, test access, and independently viewed release files.

Can the PCB manufacturer review an outsourced design?

Yes. A manufacturer can perform a fabrication-focused DFM review and, when assembly is included, review BOM/CPL and assembly inputs. That review does not replace the customer’s responsibility for circuit function, product requirements, safety, and final design approval.

Can AI Design a PCB From Schematic to Gerbers?

AI can participate across the workflow, but “design a PCB” covers several different engineering jobs. A text request may produce a circuit concept or first-pass schematic. A placement engine may optimize component locations against encoded goals. An autorouter may complete connections under a defined rule set. A review assistant may explain a DRC finding. None of these steps proves the full product requirement.

The important question is not whether a tool can generate output. It is whether the input constraints are complete and whether the output can be independently verified. A correct netlist does not prove signal integrity. A DRC-clean layout does not prove that the selected rules match the chosen stackup. Generated Gerbers do not prove that drill pairs, impedance callouts, materials, tolerances, assembly clearances, and test access are complete.

For that reason, treat AI output as a candidate design state. A qualified engineer should still approve the circuit, part choices, footprint library, placement, critical routing, power integrity, thermal path, manufacturability, testability, and final release package.

AI PCB Design Tools by Job: Schematic, Placement, Routing and Review

Choose an AI PCB design tool by the task it performs and the evidence you need from that task. “AI-powered” is not a useful comparison unless the buyer knows what enters the system, what it changes, which constraints it honors, and how a human can inspect or override the result.

Tool or approach	Useful role	Input that must be controlled	Engineer must still verify
Flux	Browser-based schematic and PCB collaboration with an AI assistant and layout automation	Requirements, approved parts, schematic intent, placement constraints, routing rules, stackup assumptions	Footprints, critical nets, physical layout, rule completeness, DFM package
Quilter	Physics-driven placement and routing from a supplied circuit design and constraints	Validated circuit, board outline, constraints, component data, design priorities	Whether the completed layout meets product, SI/PI, thermal, test, and manufacturing needs
Cadence Allegro X AI	Generative assistance for placement and routing inside a professional PCB environment	Constraint system, technology files, library quality, layer strategy, critical-net definitions	Constraint accuracy, routing quality, signoff analyses, release data
Zuken CR-8000 AIPR	Intelligent place-and-route informed by design libraries and established design practices	Reusable design knowledge, validated rules, board architecture, technology setup	Project-specific exceptions, performance, manufacturability, final approval

Product functions, licensing, deployment, supported formats, and data-handling terms change. Verify the current version and security model before uploading confidential schematics, component data, or product requirements. Also distinguish a circuit-generation assistant from an autonomous layout system and from conventional rule-based autorouting; their risks and required reviews are not the same.

AI PCB design tool role map for schematic placement routing analysis and manufacturing review — Separate the workflow into roles. A tool may accelerate one stage without owning the requirements, evidence, and approval needed at the next gate.

Where AI PCB Layout Still Needs Engineer Judgment

The hardest layout decisions are often interactions, not isolated rules. Moving a connector may improve enclosure fit but worsen an ESD path. Spreading components may improve assembly access but enlarge a sensitive current loop. Adding copper may help current capacity while changing thermal balance or impedance. AI can search alternatives, but an engineer must decide which tradeoff serves the product.

Architecture and safety: isolation boundaries, creepage, clearance, protection devices, grounding concept, and applicable product standards.
Signal and power integrity: reference-plane continuity, return-current paths, impedance geometry, crosstalk, differential-pair behavior, decoupling, and power-distribution impedance.
Thermal behavior: component loss, heat spreading, copper balance, thermal vias, airflow, enclosure conditions, and temperature-sensitive parts.
RF and analog behavior: placement sensitivity, shielding, guard structures, antenna keep-outs, matching networks, noise coupling, and tuning access.
Mechanical integration: enclosure tolerances, connector alignment, mounting hardware, rigid-flex bend areas, cable access, and assembly sequence.
Manufacturing and test: realistic line/space and hole choices, annular rings, solder-mask geometry, assembly clearances, panel strategy, fiducials, tooling, probing, inspection access, and rework risk.

These decisions also depend on the selected manufacturer’s verified process window. For example, line/space, finished-hole size, aspect ratio, copper weight, material, layer count, and blind/buried-via construction are linked constraints. A value that is routine for one construction may require special review for another. Do not let an AI tool turn a generic rule table into an unconditional fabrication claim.

A Practical AI PCB Design Workflow From Requirements to Release Files

A safe workflow gives AI a narrow job, defines an observable acceptance test, and preserves a human approval gate. Use the following sequence whether the tool assists schematic creation, placement, routing, analysis, or documentation.

Freeze the design brief. Record electrical requirements, interfaces, environment, dimensions, connector locations, compliance needs, test strategy, cost target, quantity, and lifecycle expectations.
Control the component and footprint source. Approve manufacturer part numbers, lifecycle status, ratings, package variants, land patterns, 3D models, pin mapping, and substitution policy. Never accept a generated footprint on appearance alone.
Validate the schematic. Review power sequencing, protection, pull states, unused pins, current paths, tolerance stack-ups, net naming, ERC results, and design calculations. Simulate critical behavior where appropriate.
Define the physical technology. Establish board outline, stackup, copper weights, impedance needs, via strategy, fabrication classes, assembly process, and manufacturer rules before layout automation begins.
Encode constraints by intent. Mark safety regions, high-current paths, high-speed classes, differential pairs, length relationships, return references, keep-outs, placement groups, thermal needs, and test access.
Run AI or automation on a controlled revision. Preserve the input revision, tool version, settings, constraint files, generated output, warnings, and rejected alternatives. This creates a reviewable change instead of an unexplained new baseline.
Review by risk, not by visual neatness. Inspect safety and power first, then clocks and high-speed interfaces, analog/RF regions, thermal paths, mechanical fit, manufacturability, and testability.
Perform independent checks. Run ERC/DRC, connectivity comparison, field-solvers or SI/PI analysis where needed, thermal assessment, 3D/mechanical review, and a manufacturer-aligned DFM check.
Generate and compare release files. Inspect Gerber/ODB++, drills, netlist, drawings, stackup, pick-and-place, BOM, and assembly outputs in viewers independent of the source editor.
Obtain accountable signoff. Identify the engineer approving the circuit, layout, analyses, DFM exceptions, and released revision. An AI conversation is not an approval record.

If your team needs a manufacturing-focused review structure, use this PCB design for manufacturability checklist to connect CAD decisions to fabrication and assembly risks.

12 Checks Before You Trust an AI-Generated PCB Layout

Use this list as a release gate, not as a late visual review. Each item should produce evidence that another engineer can inspect.

Schematic-to-layout connectivity: compare the released netlist and confirm intentional net ties, no-connects, swapped pins, and variant handling.
Library integrity: verify symbol-to-footprint mapping, pad numbering, polarity, courtyard, assembly origin, paste openings, and package revision.
Power entry and protection: inspect current paths, fusing, reverse-polarity protection, surge/ESD parts, sequencing, and fault behavior.
Return paths: trace the reference plane beneath critical signals and inspect every layer transition for a controlled return path.
Impedance and timing: connect stackup geometry to the routed widths, gaps, layers, via structures, length relationships, and simulation assumptions.
Spacing by voltage and environment: verify creepage, clearance, slots, coating assumptions, pollution conditions, altitude, and standard-specific requirements.
Thermal path: review loss estimates, junction limits, thermal vias, copper spreading, heat-sink interfaces, airflow, and neighboring heat sources.
Mechanical fit: compare board, connectors, fasteners, components, keep-outs, cables, and enclosure using the controlled mechanical model.
Fabrication feasibility: check line/space, annular ring, drills, aspect ratio, copper balance, mask dams, board edge clearances, via fill/cap needs, and special processes against the actual construction.
Assembly access: verify polarity visibility, component spacing, paste design, fiducials, tooling, selective-solder needs, inspection views, and rework access.
Test strategy: confirm accessible test points, programming interface, power-up controls, isolation needs, fixture constraints, golden-unit plan, and measurement limits.
Release consistency: ensure the revision, Gerbers/ODB++, drills, drawings, stackup, BOM, CPL, assembly notes, and change log describe the same build.

AI PCB design release gates covering requirements electrical review DFM and manufacturing files — A fabrication-ready release needs four aligned layers of evidence: product requirements, electrical and physical verification, manufacturer-specific DFM, and consistent output files.

When AI Saves Time—and When Manual Layout Is Safer

AI is most useful when success can be expressed as constraints and checked independently. It can accelerate repetitive placement exploration, low-risk routing, component research, documentation, rule explanation, design comparison, and first-pass review. It can also help a small team expose missing questions earlier.

Manual or tightly supervised work is safer when the board contains safety-critical isolation, RF tuning, dense high-speed interfaces, mixed-signal sensitivity, unusual power conversion, extreme thermal conditions, novel packages, complex HDI structures, rigid-flex mechanics, or certification-sensitive requirements. These projects may still use AI, but the automation should not own the critical decision.

Situation	Recommended AI role	Release condition
Simple controller or adapter with mature interfaces	Generate options, assist placement/routing, explain checks	Independent schematic, layout, DRC, DFM, and output review
Cost or area exploration	Compare constrained alternatives	Engineer documents the accepted tradeoff and downstream effects
High-speed, RF, precision analog, or power-dense board	Support analysis and bounded optimization	Domain specialist approves architecture, models, layout, and measurements
Safety- or compliance-sensitive product	Assist documentation and rule discovery	Applicable standards and responsible engineer govern every signoff
Prototype intended to become production	Accelerate early iterations without weakening records	Production stackup, test, panel, component, and process constraints are revalidated

Speed is valuable only when the team can explain what was automated, what was checked, and what remains uncertain. If the verification cost approaches the cost of doing the critical work manually, automation may not be the faster path.

What Files Should Go to the PCB Manufacturer for DFM Review?

Send outputs that define the board, plus the assumptions needed to interpret them. A screenshot, AI transcript, or native CAD file alone is not a manufacturing package.

Gerber X2, Gerber RS-274X, or ODB++ data that matches the released revision;
NC drill and route data, including plated/non-plated definition and blind/buried-via pairs where applicable;
fabrication drawing with board dimensions, tolerances, finished thickness, copper, material, finish, edge treatment, special notes, and revision;
proposed stackup and controlled-impedance requirements, including target, tolerance, layer, reference, and coupon expectations;
IPC-356 or another suitable netlist for an independent connectivity comparison where available;
quantity, panel or delivery preferences, testing requirements, quality documentation, and target schedule;
for assembly: BOM with approved manufacturer part numbers, CPL/pick-and-place data, assembly drawing, polarity notes, variant rules, programming, and test instructions.

Use a structured prototype PCB manufacturing RFQ checklist for early builds, then confirm that the same package can scale into repeat production. If supplier selection is still open, this PCB fabrication manufacturer selection guide explains how to compare capability evidence, engineering review, and quote assumptions.

How EBest Circuit Reviews AI-Assisted PCB Files Before Fabrication

The review starts with the released files and the intended construction—not with an assumption that an AI-designed board is either automatically good or automatically risky. The useful question is whether the package can be built, inspected, tested, and traced under an agreed scope.

EBest Circuit can check open manufacturing inputs such as layer definition, outline, drill data, annular features, spacing, copper-to-edge conditions, mask and legend interactions, stackup information, impedance notes, material and finish, panel considerations, fabrication drawings, and file consistency. For assembly projects, the review can extend to BOM/CPL alignment, polarity, package and footprint risks, assembly access, programming, and test inputs.

Capability values are confirmed against the actual construction. Standard and special-process ranges are not interchangeable, and combinations of minimum features, copper, thickness, materials, via structures, tolerances, and delivery needs require project review. For conventional FR-4 work, see the FR-4 PCB manufacturing overview; for microvia and high-density work, use the HDI PCB capability page as a starting point and submit the real stackup for confirmation.

If assembly is part of the build, include all controlled procurement and placement data so the fabrication and PCBA reviews describe one product. The custom PCB assembly guide shows how BOM, CPL, approved substitutions, inspection, programming, and testing affect the quote.

FAQ About AI PCB Design

Can AI design a complete PCB?

AI can generate or automate parts of the schematic and layout workflow, and some systems can complete placement and routing from supplied design data and constraints. A complete product still needs verified requirements, libraries, analyses, manufacturing rules, output checks, and accountable engineering approval.

Which AI tool is best for PCB design?

The best choice depends on the job. A schematic assistant, autonomous layout engine, professional place-and-route feature, and review assistant solve different problems. Compare supported formats, constraint depth, output inspectability, collaboration, IP controls, toolchain compatibility, and the amount of expert review required.

Can AI generate a PCB from a schematic?

Some tools can create placement and routing from a validated schematic or netlist plus board and routing constraints. The schematic alone is not enough: stackup, board outline, component locations, interfaces, power and signal classes, keep-outs, thermal needs, mechanical limits, manufacturing rules, and test access also matter.

Will AI replace PCB designers?

AI is more likely to change how designers explore, route, document, and review boards than to remove responsibility for product decisions. Engineers remain necessary for architecture, tradeoffs, constraint definition, analysis, safety, manufacturability, failure learning, and release signoff.

Can I use an AI-generated PCB layout for production?

Yes, if it passes the same engineering and manufacturing gates required for any production layout. Verify electrical behavior, libraries, signal/power integrity, thermal and mechanical performance, DRC, DFM, testability, output consistency, and revision control before release.

Is a DRC-clean AI layout ready to fabricate?

No. DRC only checks the rules that were encoded. It cannot prove that the rules match the selected stackup, manufacturer, product standard, assembly process, mechanical design, test strategy, or real operating environment.

What should I send for a DFM review of an AI-assisted board?

Send Gerber or ODB++, NC drills, fabrication drawing, stackup, material and copper requirements, impedance notes, netlist data where available, quantity, finish, testing needs, and target delivery. Add BOM, CPL, assembly drawings, substitutions, programming, and test instructions for PCBA.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

design for manufacturing

What PCB Consulting Should and Should Not Own

When a PCB Project Needs an External Consultant

Choose the Right Consulting Engagement

Inputs a Consultant Needs Before Making Recommendations

Review Gates From Schematic to Manufacturing Release

Deliverables That Make PCB Advice Verifiable

Use a Responsibility Matrix for Every Decision

How to Evaluate a PCB Consulting Firm

Convert Consulting Findings Into Factory-Ready Data

How EBest Circuit Supports the Manufacturing Side

FAQ About PCB Consulting

What does a PCB consultant do?

When should I hire a PCB design consultant?

Is PCB consulting the same as PCB design outsourcing?

What files should I send for a PCB review?

How do I judge the quality of consulting advice?

Can a PCB manufacturer perform consulting?

What should happen after the consulting review?

You may also like

What PCB CAM Outsourcing Covers After Design Release

Audit the Incoming Data Before CAM Work Starts

Separate CAM Corrections From Customer Design Changes

12 Front-End CAM Checks Before a PCB Job Is Tooled

Panelization and Tooling Data Need Customer-Supplier Alignment

Stackup and Impedance Changes Must Be Controlled

Build an Approval Loop That Leaves an Audit Trail

How to Evaluate a PCB CAM Outsourcing Provider

Final CAM Deliverables the Factory Should Preserve

How EBest Circuit Uses CAM Review Before Fabrication

FAQ About PCB CAM Outsourcing

What is PCB CAM engineering?

Is PCB CAM the same as PCB design?

Why outsource PCB CAM work?

What files does PCB CAM need?

Can CAM engineers repair Gerber data?

What is the difference between a customer array and a fabrication panel?

How do I verify CAM output?

You may also like

Which PCB Technology Trends Actually Change Buying Decisions?

Finer Features Make Stackup and DFM Coordination Earlier

Advanced Packaging Pulls PCB and Assembly Rules Together

Thermal Management Is Becoming a Board-Architecture Decision

Flex and Rigid-Flex Move Mechanical Design Into the PCB Release

Intelligent Data Packages Reduce Manual Handoff Risk

AI and Automation Accelerate Reviews but Do Not Own Signoff

Traceability and Responsible Material Choices Need Better Inputs

15 RFQ Questions for a Technology-Forward PCB Project

How EBest Circuit Reviews Advanced PCB Requirements

FAQ About PCB Technology Trends

What are the most important PCB technology trends in 2026?

Does every new product need HDI?

How is AI changing PCB design?

Why are PCB and assembly decisions becoming more connected?

What files help manufacturers review advanced PCBs?

How should buyers compare advanced PCB suppliers?

Do PCB trend forecasts guarantee adoption?

You may also like

What Should PCB Design Outsourcing Include?

When Outsourcing Helps—and When It Adds Risk

Choose the Ownership Model Before the First Schematic Edit

Build a Scope of Work the Designer Can Actually Quote

What Does Outsourced PCB Design Cost?

12 Questions to Evaluate a PCB Design Partner

Keep These PCB Review Gates Under Your Control

Protect IP, Libraries and Revision History

PCB Design Handoff Checklist for Fabrication and Assembly

How EBest Circuit Supports the Manufacturing Handoff

FAQ About PCB Design Outsourcing

When should a company outsource PCB design?

Should I outsource only PCB layout or the schematic too?

How much does PCB design outsourcing cost?

Who owns the PCB design files after outsourcing?

What files should an outsourced PCB designer deliver?

How do I check an outsourced PCB layout?

Can the PCB manufacturer review an outsourced design?

You may also like

Can AI Design a PCB From Schematic to Gerbers?

AI PCB Design Tools by Job: Schematic, Placement, Routing and Review

Where AI PCB Layout Still Needs Engineer Judgment
