What Is a Ceramic PCB for RF?

A ceramic PCB for RF is a circuit board or substrate used in high-frequency circuits where dielectric stability, low signal loss, dimensional accuracy, and thermal reliability matter more than standard PCB cost.

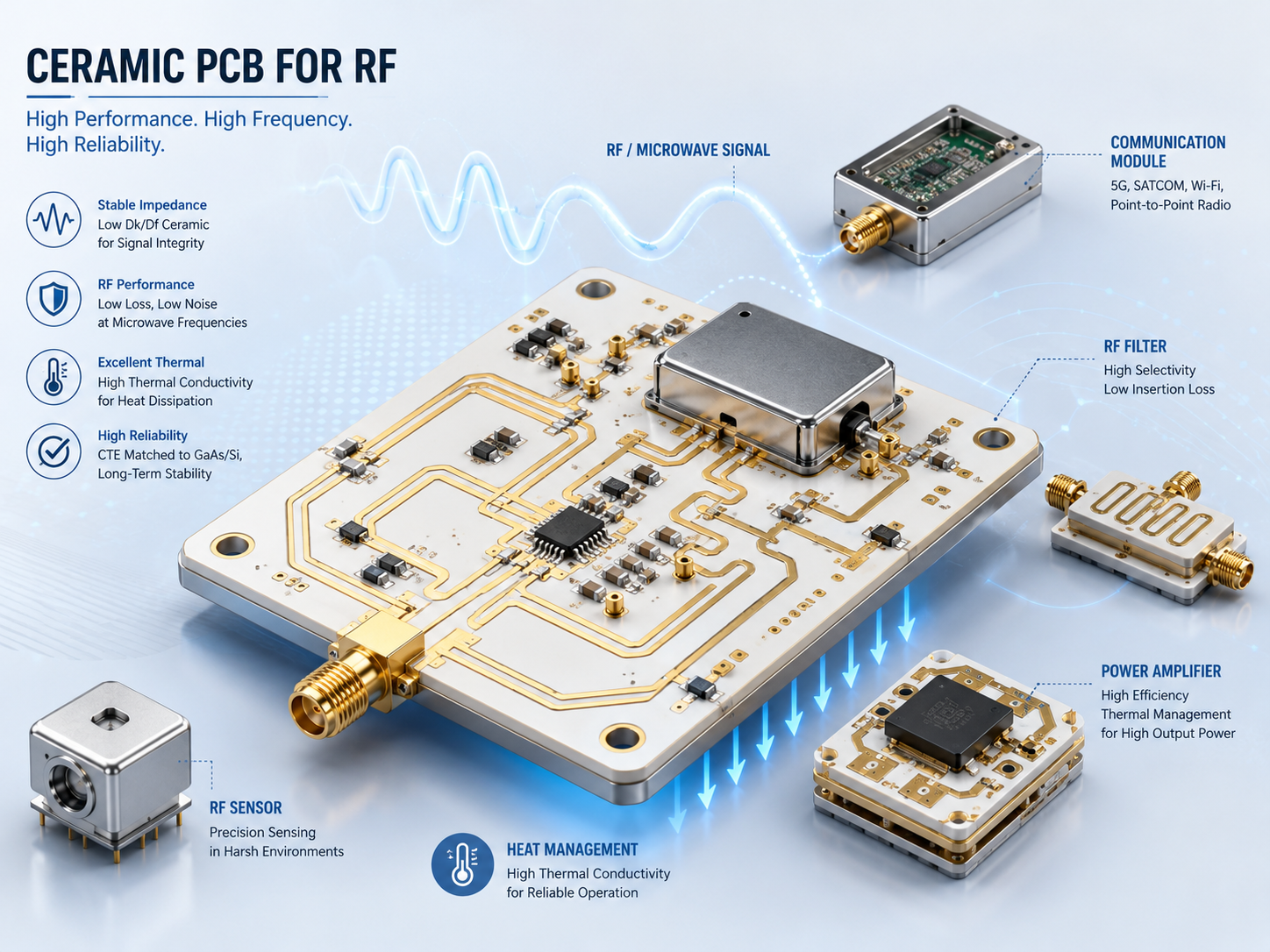

Ceramic PCB for RF modules, microwave filters, sensors, and power amplifiers

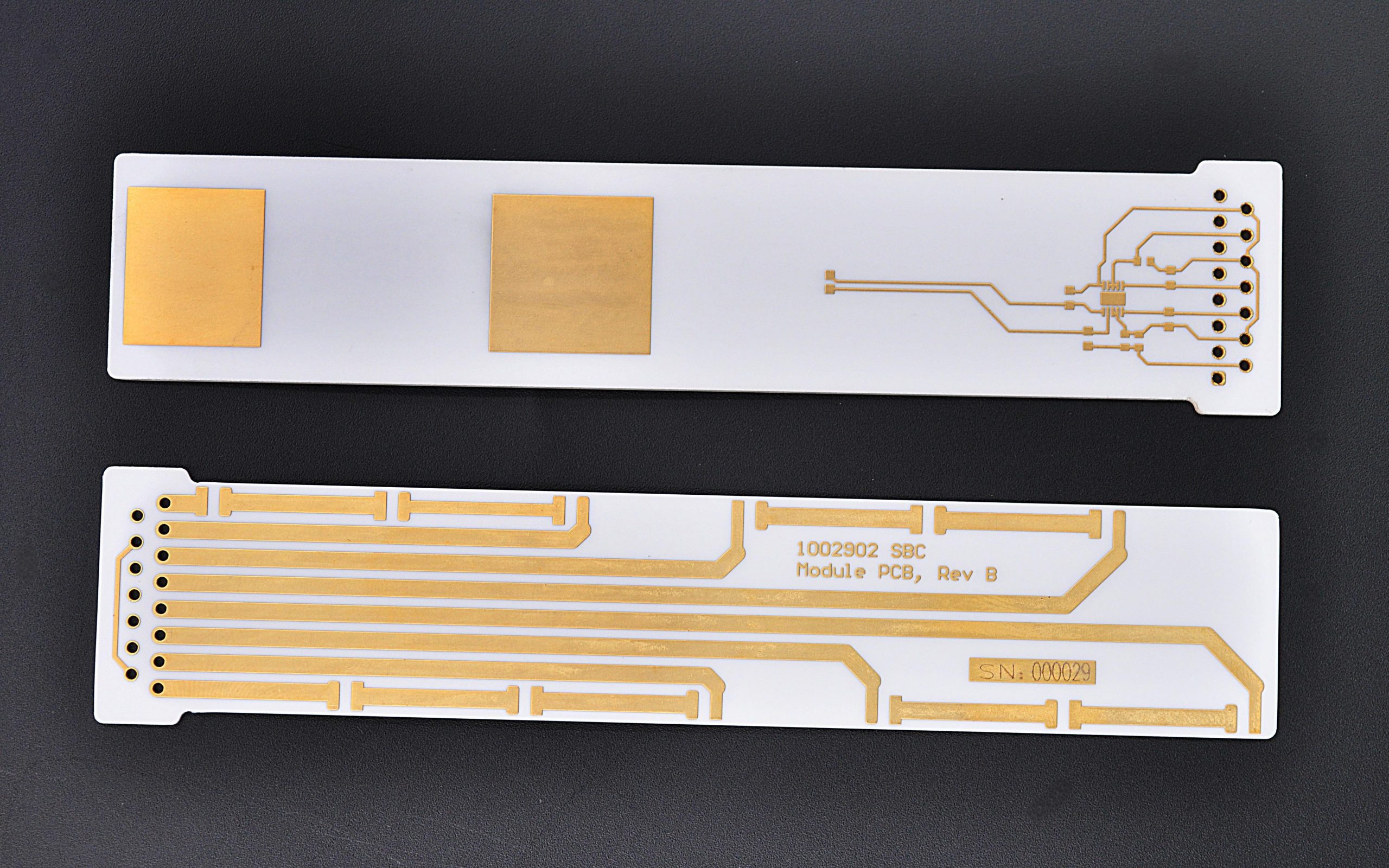

In RF and microwave applications, the substrate is part of the electrical design. It affects impedance, insertion loss, resonance behavior, signal phase, and long-term stability. This is why engineers often consider ceramic PCB substrate options such as alumina PCB for RF modules, microwave circuits, filters, sensors, power amplifiers, and hybrid circuits.

Why Ceramic PCB Substrate Matters in RF Circuits?

A ceramic PCB substrate matters in RF circuits because high-frequency signals are sensitive to material behavior. Small changes in dielectric constant, trace geometry, surface quality, or substrate thickness can shift impedance and affect performance.

For buyers, the key point is simple: RF ceramic PCB is not selected only for heat dissipation. The material must support stable signal behavior at the target frequency. A supplier must understand both ceramic PCB manufacturing and the RF requirements behind the drawing.

Key RF Properties: Dielectric Constant, Loss Tangent, and Dimensional Stability

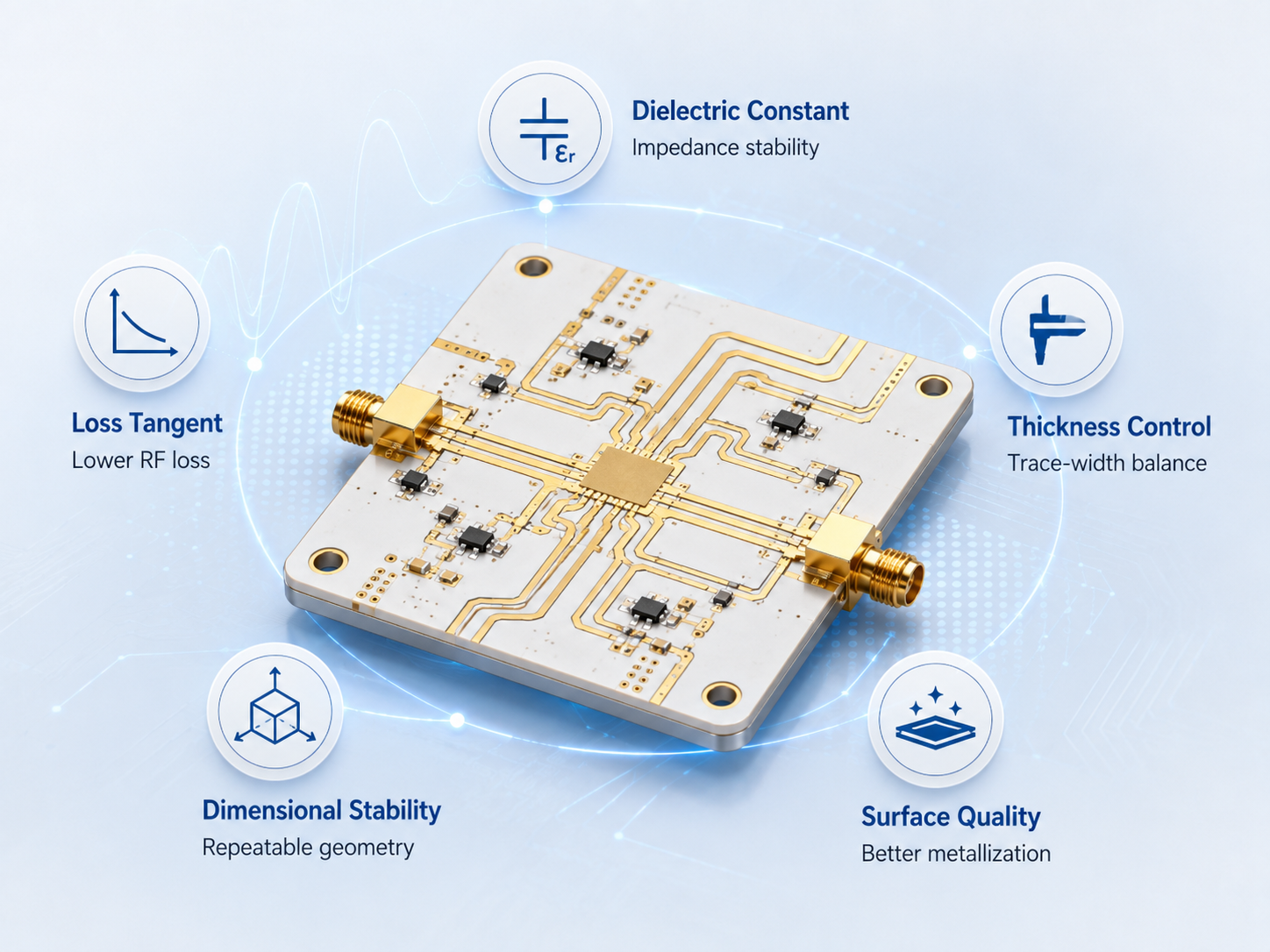

For RF ceramic PCB projects, three material properties usually matter most: dielectric constant, loss tangent, and dimensional stability.

RF Property	Why It Matters	Buyer Note
Dielectric constant	Affects impedance, wavelength, trace width, and circuit size	Confirm the value required by the RF design, not only the material name
Loss tangent	Affects signal loss at high frequency	Lower loss is more important as frequency increases
Substrate thickness	Affects impedance and manufacturable line width	Keep thickness controlled and clearly specified
Dimensional stability	Helps maintain trace geometry and circuit repeatability	Important for filters, antennas, resonators, and microwave circuits
Surface quality	Affects metallization and high-frequency current behavior	Review finish and metallization process early

A good RF ceramic PCB quote should not start with “Can you make ceramic PCB?” It should start with frequency range, impedance target, material requirement, line width, tolerance, and metallization needs.

Common Materials: Alumina PCB, AlN, Rogers, and FR4

Material choice depends on frequency, loss target, thermal demand, cost, and manufacturing method. Alumina PCB is common in RF ceramic substrate applications, but it is not the only option.

Material	RF Strength	Limitation	Best Use
Alumina PCB	Stable ceramic substrate, good mechanical and thermal behavior, widely used in RF and hybrid circuits	Higher dielectric constant than many organic RF laminates; design must account for it	RF modules, microwave circuits, sensors, hybrid circuits
Aluminum nitride PCB	Better thermal conductivity than alumina	Higher cost; not always needed for RF unless heat is also a major issue	RF power modules, high-power microwave circuits, compact thermal designs
Rogers / PTFE-based RF laminate	Common for RF PCB design, lower-loss options available	Material and processing cost can be higher than FR4; thermal/mechanical behavior differs from ceramic	Antennas, RF boards, microwave circuits, communication devices
FR4	Low cost and easy to manufacture	Loss and dielectric variation become problematic at higher frequencies	Low-frequency or cost-sensitive circuits where RF loss is acceptable

For many RF ceramic PCB projects, alumina PCB is selected when the design needs ceramic stability, precision metallization, and reliable high-frequency behavior in a compact substrate.

Ceramic PCB for RF vs Standard RF PCB Materials

The decision between ceramic PCB and standard RF laminate depends on circuit function, frequency, power level, size, and reliability environment.

Option	Advantage	Limitation	Better Fit
Ceramic PCB for RF	Stable substrate, good thermal behavior, suitable for hybrid and precision circuits	Higher cost and stricter manufacturing limits	RF modules, microwave packages, high-stability circuits
Rogers RF PCB	Mature RF laminate option with known dielectric choices	Not ceramic; thermal and mechanical behavior differ	Antennas, RF communication boards, microwave PCB layouts
FR4 RF design	Low cost and fast production	Higher loss and less predictable dielectric behavior at high frequency	Low-frequency RF, simple prototypes, cost-sensitive products

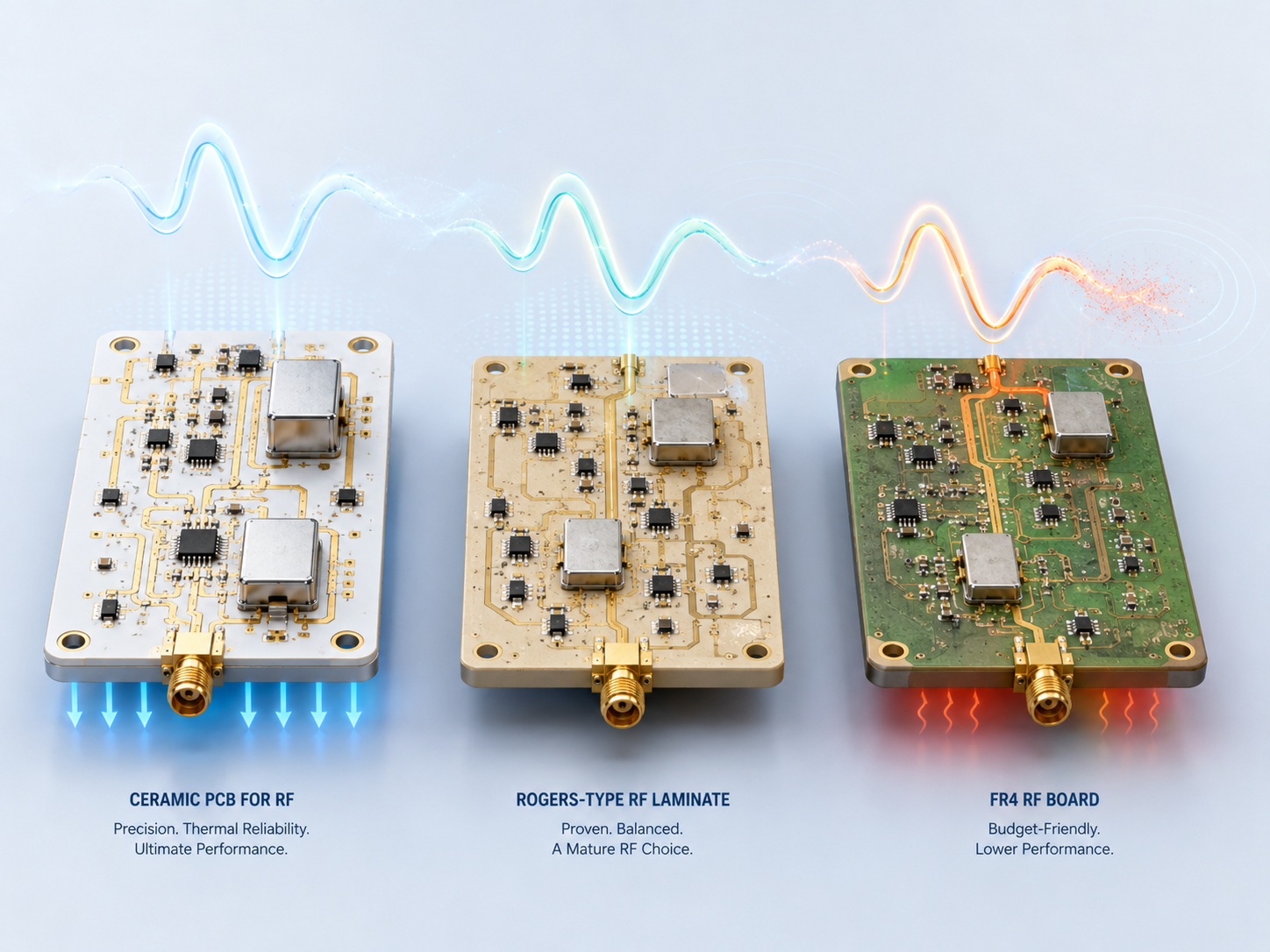

RF performance comparison between ceramic PCB, Rogers laminate, and FR4 board

The practical takeaway: use FR4 only when RF loss and dielectric variation are acceptable. Use Rogers-type RF laminates for many standard RF boards. Use ceramic PCB when the design needs ceramic stability, compact structure, precision, or stronger thermal reliability.

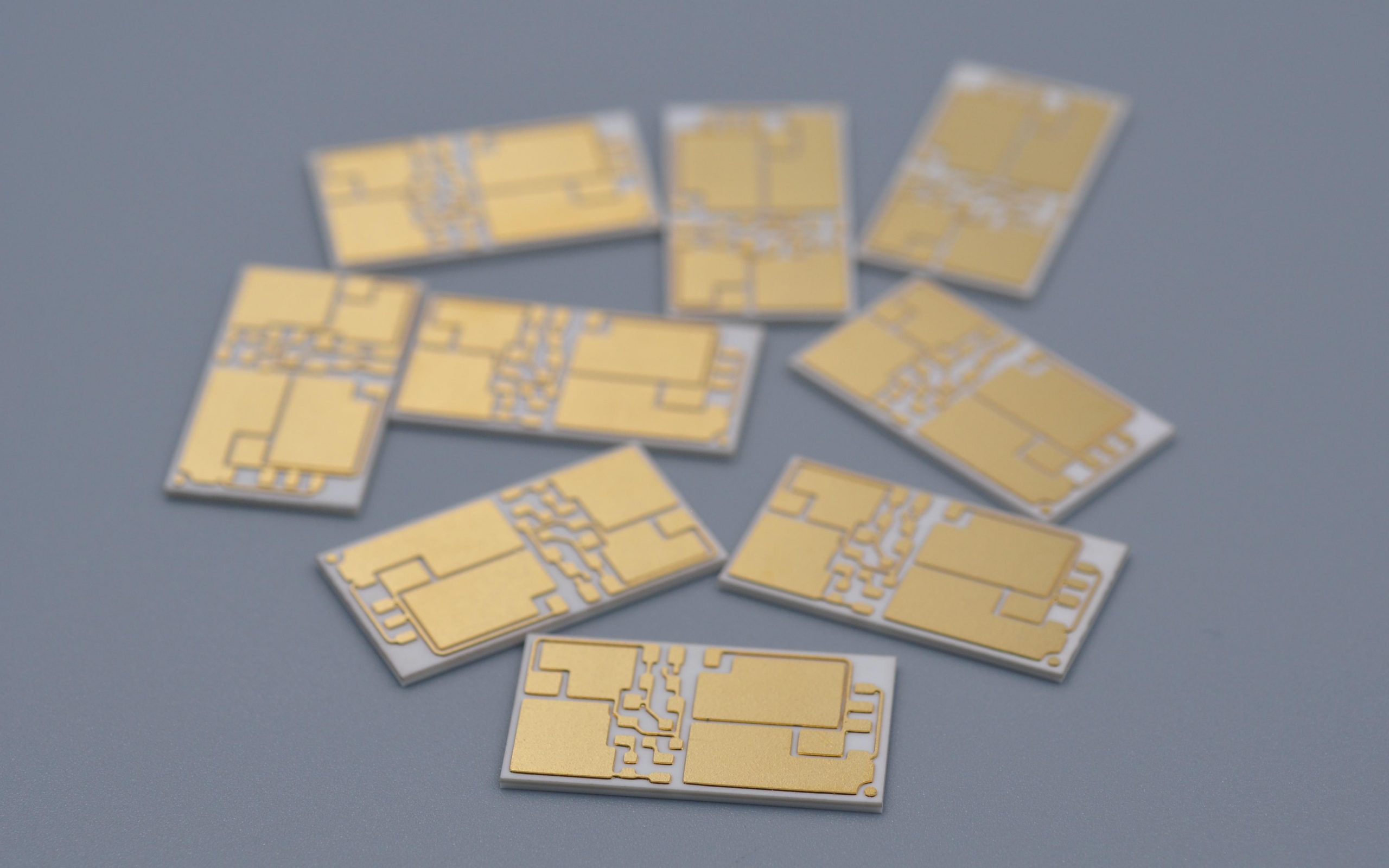

Ceramic PCB Manufacturing Considerations for RF Applications

Ceramic PCB manufacturing for RF applications must control the details that affect signal performance. A small trace width error may be more serious in RF than in a normal power or control PCB.

Important manufacturing points include:

Substrate material and thickness control
Fine line and spacing capability
Metallization method, such as thick film, thin film, DBC, or other suitable process
Copper or conductor thickness
Surface roughness and finish
Dimensional tolerance
Via and hole quality if required
Flatness and warpage
Pattern registration
Cleanliness and handling

For RF ceramic PCB manufacturing, the supplier should review whether the requested geometry is manufacturable before production. If the layout uses very fine traces, tight impedance targets, or microwave structures, early engineering communication reduces prototype failure risk.

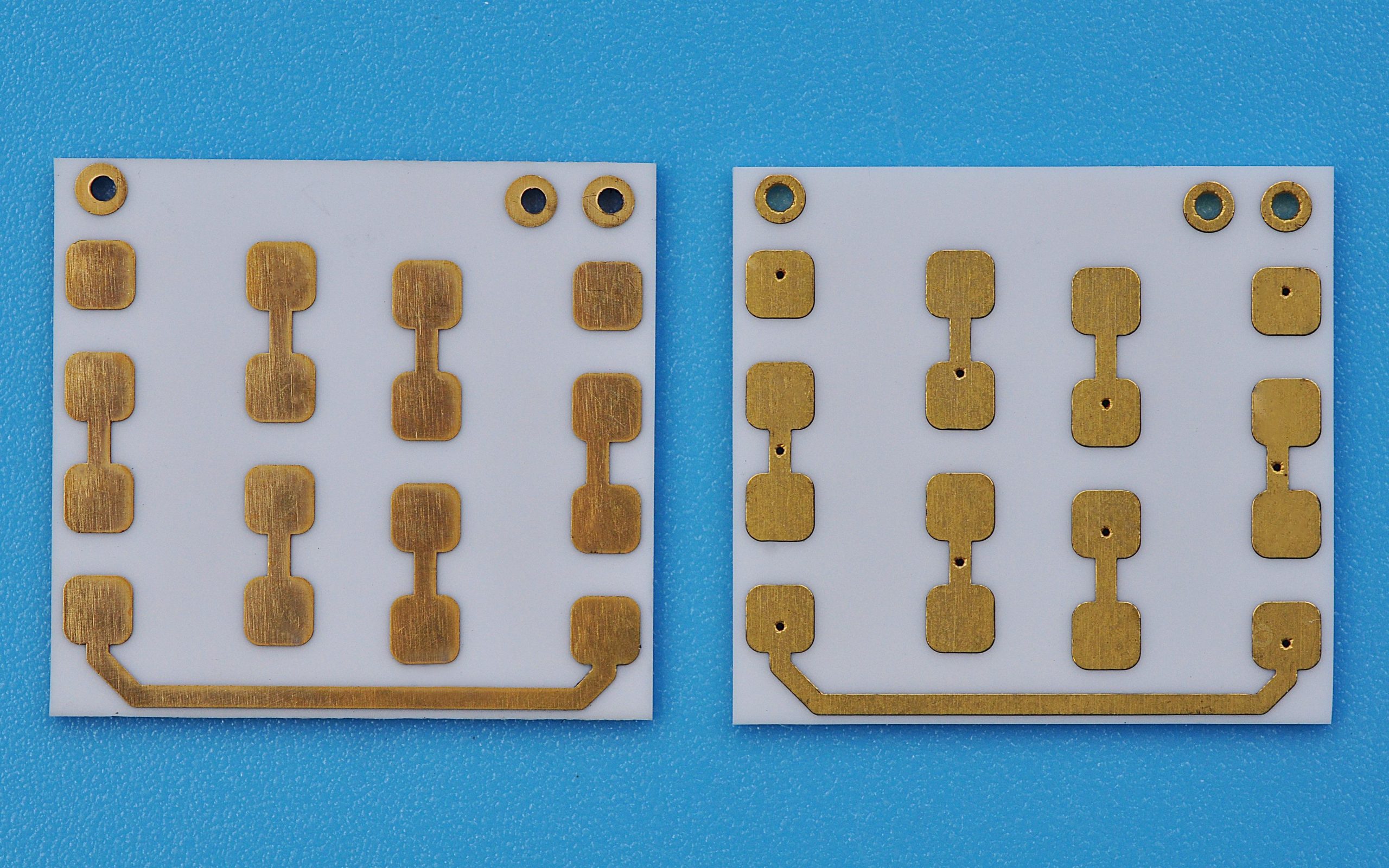

When Should You Choose Alumina PCB for RF?

Choose alumina PCB for RF when the circuit needs a stable ceramic substrate, good dimensional control, and reliable behavior in a compact or harsh environment.

Alumina PCB is often suitable for:

RF hybrid circuits
Microwave modules
Sensor circuits
Thin film or thick film RF substrates
Filters and matching networks
High-temperature or high-reliability electronics
Compact modules where ceramic stability is useful

Alumina may be unnecessary if the circuit can meet RF performance with a standard RF laminate at lower cost. It may also be the wrong choice if the design requires a different dielectric constant, lower loss material, or stronger thermal conductivity than alumina can provide.

Common Design and Purchasing Mistakes

The most common mistake is treating RF ceramic PCB like a normal ceramic circuit board. RF performance depends on both material and geometry.

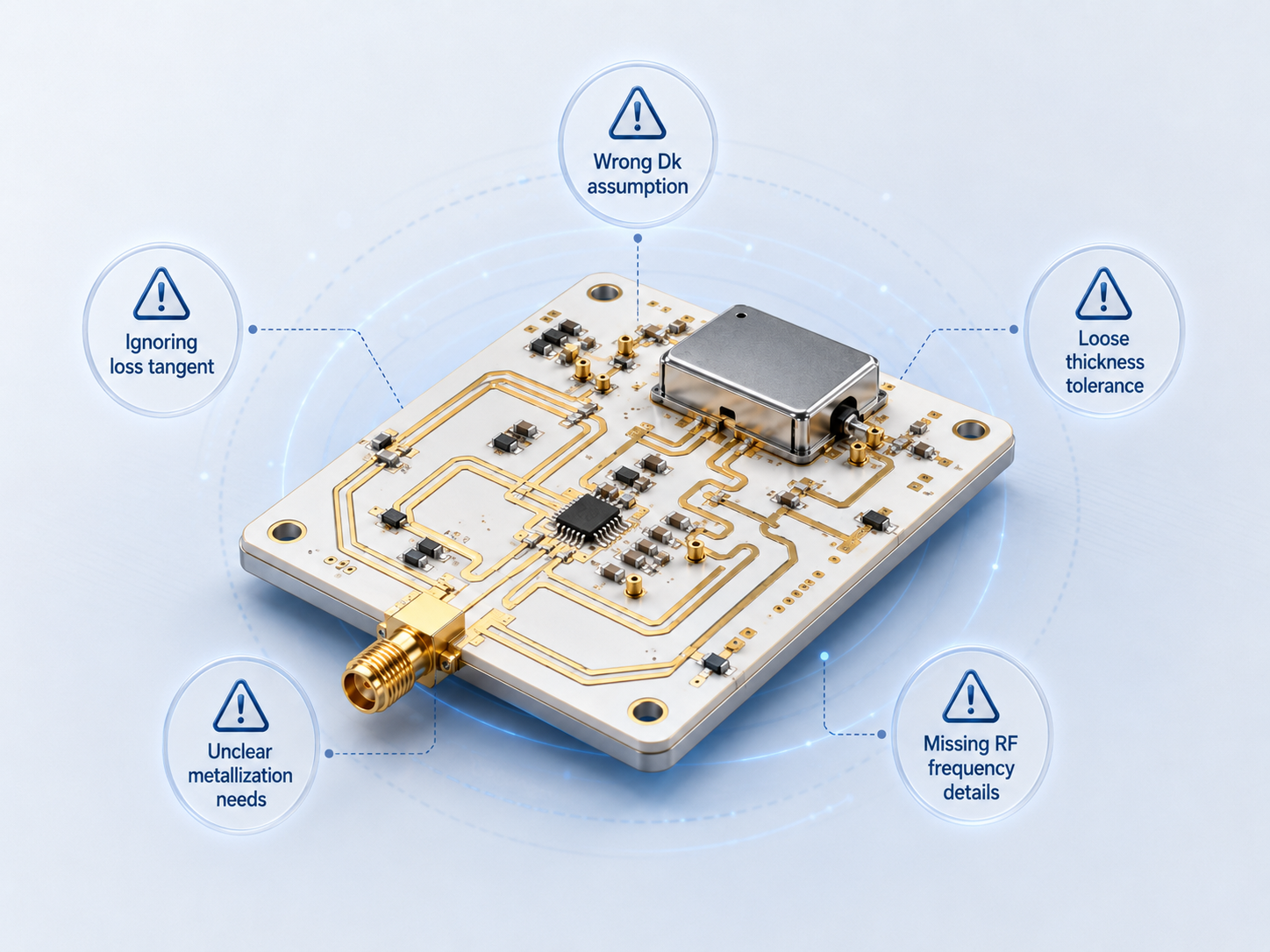

Common RF ceramic PCB mistakes including incorrect dielectric constant, loose tolerance, and missing frequency details

Mistake	Why It Causes Problems	Better Approach
Only asking for “ceramic PCB for RF”	Supplier cannot confirm material, frequency, or process	Provide frequency range, substrate material, and circuit function
Ignoring dielectric constant	Impedance and trace width may shift	Specify target dielectric constant or approved material
Ignoring loss tangent	High-frequency loss may become unacceptable	Define frequency and acceptable RF performance
Using vague tolerances	RF traces may not match design intent	Specify line width, spacing, substrate thickness, and dimensional tolerance
Choosing alumina automatically	Alumina may not fit every RF design	Compare alumina, AlN, Rogers, and FR4 based on real requirements
Sending only Gerbers	Supplier cannot judge RF function or risk	Include stackup, material notes, impedance targets, and application context

A good ceramic PCB manufacturer should ask technical questions before quotation if the RF requirements are unclear.

How to Choose a Ceramic PCB Manufacturer for RF Projects?

A ceramic PCB manufacturer for RF projects should be evaluated by engineering communication, material control, metallization capability, and tolerance control, not only by price.

Useful supplier checks include:

Experience with RF or microwave ceramic substrate projects
Ability to manufacture alumina PCB and other ceramic PCB substrate types
Clear process options for thin film, thick film, or metallized ceramic circuits
Fine line and spacing capability
Substrate thickness and dimensional tolerance control
Inspection process for metallization, surface finish, and pattern accuracy
Willingness to review drawings before quoting
Ability to support prototypes before mass production
Clear communication about manufacturing limits and alternatives

For EBest Circuit (Best Technology), RF ceramic PCB review should focus on whether the drawing, material, tolerance, and production method match the actual frequency and application requirement.

What to Provide When Requesting an RF Ceramic PCB Quote

A complete RFQ helps the supplier evaluate manufacturability, cost, and performance risk before production.

Provide these details when requesting a ceramic PCB quote:

Application type, such as RF module, microwave circuit, sensor, or power amplifier
Frequency range
Ceramic material preference, such as alumina PCB or AlN
Required dielectric constant if specified
Loss requirement if specified
Substrate dimensions and thickness
Line width and spacing
Metallization method or conductor requirement
Copper or metal thickness
Surface finish
Hole, via, or edge requirements
Dimensional tolerance
Quantity for prototype and mass production
Test or inspection requirements
Gerber files, drawings, and stackup notes

If the project is still in early design, provide the target frequency, operating environment, and performance concern. This allows the ceramic PCB manufacturer to suggest practical material and process options before the design is locked.

FAQ

Is ceramic PCB good for RF?

Yes. Ceramic PCB can be good for RF when the circuit needs dielectric stability, dimensional accuracy, thermal reliability, and compact substrate design. It is especially useful for RF modules, microwave circuits, hybrid circuits, sensors, and high-reliability electronics.

Why is alumina PCB used in RF circuits?

Alumina PCB is used in RF circuits because it provides a stable ceramic substrate, good mechanical strength, useful thermal behavior, and compatibility with thin film or thick film metallization. It is common in RF and microwave hybrid circuits.

Is ceramic PCB better than Rogers PCB for RF?

Not always. Rogers-type RF laminates are widely used for RF PCB designs, antennas, and microwave boards. Ceramic PCB is better when the design needs ceramic stability, compact substrate behavior, precision metallization, or stronger thermal/mechanical reliability.

Can FR4 be used for RF circuits?

FR4 can be used for lower-frequency or cost-sensitive RF circuits, but it becomes less predictable as frequency increases. Loss, dielectric variation, and tolerance control can limit performance in higher-frequency RF designs.

What affects RF performance in ceramic PCB manufacturing?

RF performance can be affected by dielectric constant, loss tangent, substrate thickness, line width, spacing, metallization quality, surface roughness, dimensional tolerance, and pattern registration.

What is the difference between alumina PCB and AlN PCB for RF?

Alumina PCB is commonly used for RF ceramic substrates and is usually more cost-effective. AlN PCB offers higher thermal conductivity, so it is useful when the RF circuit also has significant heat dissipation requirements.

What should I ask a ceramic PCB manufacturer before ordering?

Ask about material options, RF project experience, fine line capability, metallization process, substrate thickness tolerance, dimensional tolerance, inspection method, prototype support, and whether they can review RF-related drawing requirements before production.

Do I need impedance control for ceramic PCB for RF?

Many RF ceramic PCB designs need impedance awareness, even if the supplier does not provide full RF simulation. At minimum, the buyer should provide frequency range, trace geometry, substrate thickness, dielectric requirement, and critical RF areas.

Conclusion

A ceramic PCB for RF is not just a ceramic version of a normal PCB. The substrate affects impedance, signal loss, circuit size, stability, and long-term performance. Alumina PCB is often a practical RF ceramic substrate, while AlN, Rogers materials, and FR4 each fit different design conditions.

If you are evaluating ceramic PCB substrate options, alumina PCB, ceramic PCB manufacturing, or RF PCB prototype support, EBest Circuit (Best Technology) can help review your drawings, material requirements, tolerance needs, and quotation details. Contact us at sales@bestpcbs.com.
