Impedance Control PCB

April 10th, 2026

If you’ve worked with high-frequency circuits or sensitive signals, you might have come across the term “impedance control.” Understanding and managing impedance can be the difference between a reliable design and one plagued by signal loss or interference.

Are You Facing These Challenges?

Many customers come to us after struggling with unstable signal performance, failed first builds, or mismatched stack-up assumptions.

Common Challenges

Signal reflection in high-speed traces
Differential pair mismatch
Unclear stack-up planning
Unexpected impedance deviation after fabrication
EMI issues caused by routing inconsistency
Difficulty finding a manufacturer that understands impedance requirements

Our Solution

We help review your layer structure, material selection, and trace geometry before production. With manufacturing-aware engineering support, we reduce the gap between design calculation and actual fabrication result.

Why Choose EBest Circuit for Impedance Control PCB?

Choosing the right manufacturer is important because controlled impedance is not only a calculation task. It is also a process control task. A good supplier needs to understand both design intent and manufacturing consistency.

What We Offer

Engineering support for stack-up review
Controlled impedance trace calculation support
Stable multilayer lamination process
In-process impedance monitoring
Support for high-speed and RF PCB projects
Fast prototype and production service
PCB and PCBA one-stop support

Our team works closely with customers during the early design stage to reduce risk before fabrication starts. That helps shorten revision cycles and improve project efficiency.

Impedance Control PCB Manufacturer

What is Impedance?

Impedance, in simple terms, is the opposition a circuit offers to the flow of alternating current (AC). It combines two elements: resistance, which is straightforward opposition, and reactance, which is the opposition due to capacitance and inductance. Together, they form impedance, usually measured in ohms (Ω).

In a PCB, impedance is vital because it affects how signals propagate through the traces. If the impedance isn’t controlled, it can lead to reflections, signal loss, or even total communication failure, especially in high-speed circuits.

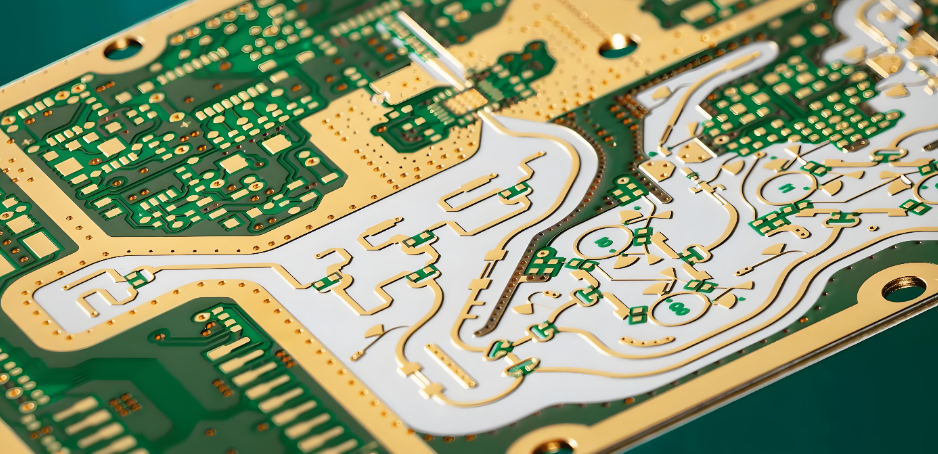

What is Impedance Control PCB?

An impedance control PCB is a printed circuit board designed so that specific traces maintain a target impedance value throughout signal transmission. The purpose is to make sure signals travel with minimal loss, reflection, or distortion.

In PCB design, impedance is influenced by resistance, capacitance, and inductance. When signal speed rises, these factors become more critical. If impedance changes unexpectedly along the routing path, the signal quality can drop quickly. This is why controlled impedance is widely used in RF circuits, high-speed digital interfaces, and precision analog systems.

Common controlled impedance types include:

50Ω single-ended impedance
75Ω single-ended impedance
90Ω differential impedance
100Ω differential impedance
120Ω differential impedance

The right target depends on your interface standard, material system, stack-up, and routing method.

Why Is Controlled Impedance Important in PCB Design?

Controlled impedance matters because signal integrity depends on consistency. In high-speed designs, the copper trace is not just a conductor. It behaves like a transmission line. If the impedance of that transmission line does not match the system requirement, part of the signal energy reflects back toward the source.

This can lead to:

Signal reflection
Timing instability
Crosstalk
EMI problems
Higher bit error rates
Reduced communication reliability

For products using DDR memory, RF modules, antennas, automotive communication, industrial control, or high-speed connectors, impedance control is often not optional. It is part of the design foundation.

What Factors Affect PCB Impedance?

PCB impedance is not determined by one variable alone. It comes from the interaction of conductor geometry, laminate properties, and layer arrangement. Even a small change in fabrication can affect the final result.

1. Trace Width

Trace width is one of the most direct factors. A wider trace usually lowers impedance, while a narrower trace increases it. This is why impedance traces cannot be adjusted casually during layout optimization.

2. Copper Thickness

Copper thickness changes the effective conductor shape and resistance. Thicker copper can reduce impedance, but it also changes etching behavior and production tolerance.

3. Dielectric Constant (Dk)

The dielectric constant of the laminate affects electric field distribution and capacitance between the trace and reference plane. FR4 materials commonly show Dk values around 3.9 to 4.5, while PTFE materials are lower and often preferred for high-frequency applications.

4. Dielectric Thickness

The spacing between the signal trace and the reference plane has a strong effect on impedance. A thicker dielectric usually increases impedance, while a thinner dielectric lowers it.

5. Loss Tangent

Low-loss materials preserve signal energy better, especially in RF and high-speed applications. While loss tangent is not the only parameter that matters, it strongly affects real-world transmission quality.

6. Trace Coupling and Crosstalk

When traces are too close, coupling can change the expected impedance and create crosstalk. This is particularly important in dense differential pair routing.

7. Layer Stack-Up

In multilayer PCBs, impedance depends heavily on stack-up design. Signal layer position, plane continuity, dielectric thickness, and via transitions must all be considered together.

When Do You Need an Impedance Control PCB?

Not every board needs controlled impedance. For low-speed, low-frequency, or simple power control products, standard PCB design may be enough. But if your design includes fast signals or strict waveform requirements, controlled impedance becomes much more important.

You should consider impedance control for:

RF and microwave circuits
High-speed digital interfaces
DDR memory routing
USB, HDMI, PCIe, LVDS, and Ethernet designs
Differential pair signal routing
Sensitive analog signal paths
Long trace interconnects
Multi-layer signal-dense boards

In these applications, controlled impedance helps maintain cleaner transmission and more predictable electrical behavior.

What Is the Typical Impedance Tolerance of PCB?

Impedance tolerance refers to the acceptable variation between the target impedance and the actual measured result. In many PCB applications, the typical tolerance is ±10%. For more demanding products, tighter tolerances such as ±5% or even ±2% may be required.

A tighter tolerance usually requires:

More accurate material data
Better etching control
Stable lamination process
Precise stack-up construction
Reliable impedance coupon testing

This is why the manufacturer’s process capability matters just as much as the design itself.

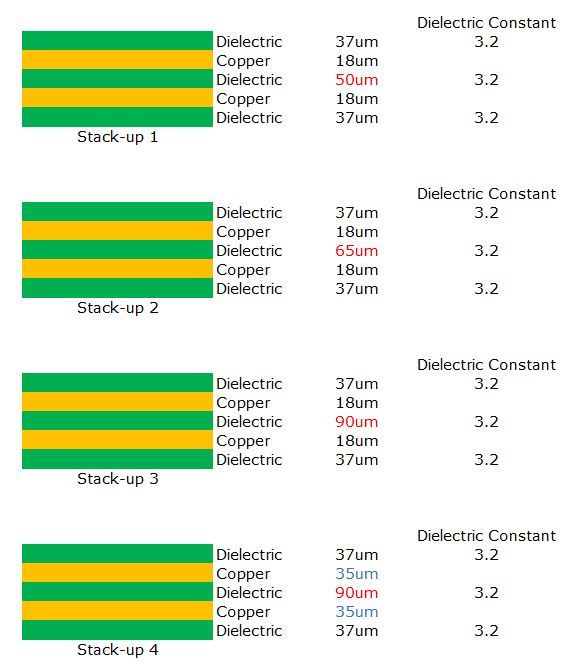

How Is 100Ω Differential Impedance Controlled?

For 100Ω differential impedance, the process usually begins with stack-up definition and field-solver calculation. The dielectric thickness between layers, line width, and trace spacing must all be matched to the target value. Your original content provided example geometries for four different stack-up options, showing that trace width and spacing vary depending on the specific layer structure.

Example reference values include:

Stack-Up 1: 70/130μm trace/space
Stack-Up 2: 95/140μm trace/space
Stack-Up 3: 125/130μm trace/space
Stack-Up 4: 105/150μm trace/space

During production, manufacturers normally establish process parameters after first article verification, then carry out random impedance checks during production and on finished boards.

Manufacturing Capabilities for Impedance Control PCB

At EBest Circuit (Best Technology), we support controlled impedance PCB manufacturing for a wide range of applications, from prototype builds to volume production.

Typical Capability Overview

Item	Capability
Board Type	Rigid PCB, multilayer PCB, HDI PCB, RF PCB
Layer Count	1–32 layers typical
Controlled Impedance Type	Single-ended and differential
Common Target Values	50Ω / 75Ω / 90Ω / 100Ω / 120Ω
Base Materials	FR4, high-speed materials, RF laminates
Copper Thickness	Standard to heavy copper options
Impedance Verification	Coupon testing / in-process control
Application Support	RF, telecom, automotive, industrial, medical

Applications of Impedance Control PCB

Controlled impedance PCBs are widely used in products where signal integrity matters.

Typical applications include:

Communication equipment
RF modules
Automotive electronics
Medical devices
Industrial control systems
Network hardware
Embedded computing platforms
High-speed data transmission systems

As product speed and complexity continue to rise, controlled impedance is becoming a standard requirement in more electronic categories.

FAQs About Impedance Control PCB

1. What is the difference between impedance control and standard PCB design?

Standard PCB design may not define a strict trace impedance target. Impedance control PCB design requires specific trace width, spacing, material selection, and stack-up planning to achieve a defined impedance value.

2. Is FR4 suitable for impedance control PCB?

Yes. FR4 can be used for many controlled impedance applications, especially common digital designs. For higher frequencies or lower signal loss requirements, specialized materials may be a better choice.

3. What is the most common differential impedance value?

100Ω differential impedance is one of the most common targets, especially for many high-speed signal interfaces.

4. Can impedance control PCB reduce EMI?

Yes. Stable impedance routing can reduce reflections and signal discontinuities, which helps improve overall signal integrity and can support better EMI performance.

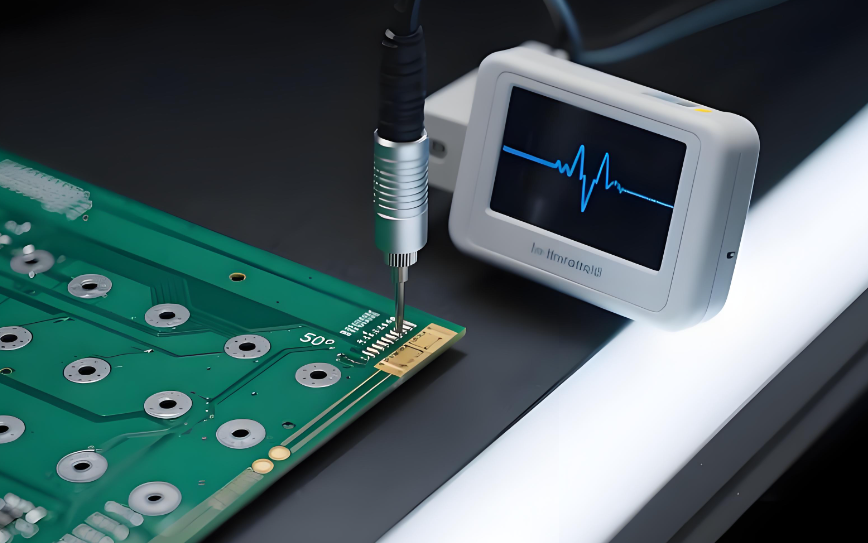

5. How is impedance tested during manufacturing?

Manufacturers commonly use impedance coupons and random process checks during production, followed by finished board verification.

6. What tolerance is usually acceptable?

A typical impedance tolerance is ±10%, while tighter requirements such as ±5% may be used in more demanding applications.

Get a Quote for Your Impedance Control PCB Project

If you are developing a high-speed or RF product, controlled impedance should be considered early in the design stage. A correct stack-up and manufacturable trace structure can save both time and revision cost later.

EBest Circuit (Best Technology) provides impedance control PCB manufacturing with engineering review, stack-up support, and reliable process control for demanding electronic applications.

Send us your Gerber files, layer stack-up, and impedance requirements, and our team will help you move your project forward with greater confidence.

Tags: controlled impedance PCB, impedance control in pcb, impedance control pcb, impedance control pcb design
Posted in Custom PCB | No Comments »

High-Speed PCB

April 10th, 2026

High-speed PCB is used in electronic products where fast signal transmission, impedance stability, and low noise are essential to system performance. Once signal frequency rises, data rate increases, or edge transitions become faster, standard PCB layout rules are no longer enough. At that stage, the board must be engineered for signal integrity, EMI control, stack-up stability, and manufacturability.

EBest Circuit (Best Technology) provides high-speed PCB manufacturing for applications that require reliable transmission performance, including telecommunications, automotive electronics, aerospace systems, networking hardware, industrial control, medical electronics, and RF-related products. We support customers from prototype through volume production with practical engineering review, controlled process capability, and material options suited for high-speed designs.

Why Does High-Speed PCB Design Matter in Modern Electronics?

High-speed PCB design matters because fast signals do not behave like ordinary low-speed connections. As frequency increases and edge rates become sharper, the PCB trace begins to act like a transmission line. That means routing length, impedance variation, dielectric material, grounding, and via structure can all change the final electrical result.

If these factors are not handled correctly, the system may face signal reflection, crosstalk, EMI issues, timing mismatch, data errors, and unstable communication between devices. This is why high-speed PCB is not simply a faster version of a standard board. It is a different design discipline that requires electrical and manufacturing control from the beginning.

What Is a High-Speed PCB?

A high-speed PCB is a printed circuit board developed for circuits where signal integrity becomes a major design requirement. In many practical cases, high-speed conditions are associated with one or more of the following: operating frequency above 50 MHz, transmission rate above 1 Gbps, or rise and fall time below 500 ps.

In practical engineering terms, a board should be treated as high-speed when signal quality can be affected by impedance mismatch, trace discontinuity, return path interruption, material loss, delay mismatch, or noise coupling. Once any of these begin to affect performance, the PCB must be designed as a high-speed platform rather than a conventional one.

High-Speed PCB vs. Low-Speed PCB: What Is the Difference?

The real difference between a high-speed PCB and a low-speed PCB is not only clock frequency. The larger difference is how tightly the board must control electrical behavior to preserve signal quality and stable transmission.

Item	Low-Speed PCB	High-Speed PCB
Signal behavior	Less sensitive	Highly sensitive
Impedance control	Often not critical	Essential
Trace routing	Basic design rules	Strict electrical design rules
EMI concern	Lower	Much higher
Material demand	Standard FR4 often enough	May require low-loss laminate
Timing control	Less critical	Important for reliability
Stack-up planning	Functional	Performance-driven

This comparison matters because many design issues appear when a board is still being treated like a conventional PCB even though the signals already behave like high-speed channels.

Are You Facing These High-Speed PCB Challenges?

Many OEMs, design houses, and sourcing teams run into the same issues when developing high-speed boards. The layout may look complete, but performance problems often appear during bring-up, test, or volume production.

Differential pair mismatch
Reflection caused by poor impedance control
Crosstalk between adjacent signal lines
EMI failure in dense multilayer boards
Excessive insertion loss at high frequency
Unstable routing performance between prototype and mass production
Material selection that does not match the actual signal requirement
Layout structures that are hard to manufacture consistently

These challenges are especially common in designs using PCIe, USB, Ethernet, HDMI, SATA, LVDS, and MIPI. When signal integrity, EMI, thermal behavior, power distribution, and component placement are not handled well, product performance can suffer quickly.

How Do We Help Solve High-Speed PCB Problems?

At EBest Circuit, we do more than fabricate copper patterns. We help align design intent with manufacturing reality so the finished board performs more predictably in actual use.

Material suggestion based on speed and loss targets
Stack-up review for impedance and return path stability
Controlled impedance manufacturing support
Routing manufacturability feedback
Process planning for multilayer and via structures
Prototype support for early validation
Stable transition from sample to production

This approach helps customers reduce design rework, shorten validation cycles, and improve consistency across builds.

What Materials Are Best for High-Speed PCB?

Dielectric material selection is essential because it affects how quickly and how cleanly signals travel through the PCB. In high-speed applications, lower dielectric constant materials are often preferred because they support faster signal propagation and lower loss.

Material	Typical Dk	Performance Characteristics	Typical Applications
Standard FR4	~4.5	Cost-effective, suitable for moderate-speed designs	General electronics, some digital boards
Low-Loss FR4	Lower than standard FR4	Better signal performance, improved loss behavior	Embedded systems, communication products
Rogers 4000 / 3000 Series	~2.0–3.5	Low loss, stable electrical performance	RF, telecom, automotive radar
PTFE	~2.0–2.5	Very low loss for very high-frequency applications	5G, microwave, aerospace, radar

Material selection should not be based on cost alone. It should be based on the actual signal environment, channel loss budget, interface type, and board structure.

What Are the Most Important High-Speed PCB Design Rules?

High-speed PCB design works best when electrical rules are defined early and followed consistently throughout the layout. A strong design must balance signal performance with practical manufacturability.

1. Control Impedance Carefully
Critical traces must maintain consistent impedance from source to load. Any sudden change can create reflections and degrade signal quality.

2. Build the Right Stack-Up
A good stack-up places signal layers next to solid reference planes. This improves return path continuity and reduces EMI.

3. Keep Trace Length Practical
Longer routes increase delay and loss. Critical nets should stay as short and direct as possible.

4. Reduce Crosstalk
Parallel routing should be limited, and spacing should be sufficient to reduce coupling between signal lines.

5. Route Differential Pairs Correctly
Differential pairs need consistent spacing, matched length, and stable reference conditions.

6. Manage Via Effects
Vias add parasitic inductance and capacitance. Poor via usage can hurt signal quality, especially in dense high-speed layouts.

7. Improve Power Integrity
Stable power delivery is important because high-speed ICs are sensitive to supply noise.

8. Optimize Component Placement
Key components should be placed to reduce routing complexity and improve signal path quality.

Which Interfaces Require High-Speed PCB Design?

Many modern electronic products rely on interface standards that demand strong high-speed layout and manufacturing control.

PCIe for high-speed peripheral data transfer
USB for fast communication and storage
Ethernet for networking up to high data rates
HDMI for high-bandwidth video and audio
SATA for storage communication
LVDS for displays and cameras
MIPI for mobile and embedded camera or display systems

When these interfaces are present, stack-up design, impedance control, pair routing, and connector transition quality become much more important.

How Is a High-Speed PCB Manufactured?

The manufacturing flow of high-speed PCB is more demanding than standard PCB because even small process variation can influence electrical performance. A reliable process must support both structural accuracy and repeatable signal behavior.

1. Material Selection
The correct laminate is chosen based on dielectric constant, signal frequency, and loss requirement.

2. Layer Stack-Up Design
Signal, power, and ground layers are arranged to support impedance targets and EMI control.

3. Trace Width Calculation and Impedance Control
Trace width and spacing are verified to match single-ended or differential impedance requirements.

4. Lamination
Multilayer panels are bonded under controlled pressure and temperature.

5. Drilling and Via Formation
Through holes, blind vias, buried vias, or microvias are created based on design need.

6. Copper Plating
Plating forms conductive connections between layers and helps ensure electrical reliability.

7. Etching
Precision etching defines trace width and spacing, which directly affects impedance.

8. Solder Mask and Silkscreen
Protective coating and identification marking are added.

9. Surface Finish
Common finish options include ENIG, OSP, and immersion silver.

10. Testing and Inspection
Final checks confirm electrical continuity, dimensional control, and manufacturing quality.

Why Choose EBest Circuit as Your High-Speed PCB Manufacturer?

For high-speed PCB projects, manufacturing experience matters because electrical performance depends on how well the design is translated into the real board. A supplier that understands only fabrication may miss what actually matters to the final product.

Support for impedance-controlled high-speed PCB fabrication
Experience with FR4, low-loss materials, Rogers, and PTFE-based builds
Engineering review for stack-up and manufacturability
Prototype and production support
Stable multilayer process control
One-stop PCB and PCBA support when required
Application experience across telecom, automotive, aerospace, industrial, and RF-related products

We focus on helping customers improve both performance and production stability, not only getting the board built.

What Applications Use High-Speed PCB?

High-speed PCBs are used in many industries where fast signal transmission and reliable electrical performance are essential.

Telecommunications equipment
Automotive electronics and radar systems
Aerospace electronics
5G infrastructure
Data centers
Defense systems
Medical devices
Networking equipment
RF and microwave systems
Industrial electronic control products

As data rates continue to rise across industries, high-speed PCB design is becoming a standard requirement in more product categories.

What Should You Look for in a High-Speed PCB Supplier?

If you are selecting a manufacturer, it helps to evaluate more than price and lead time. A better supplier should also understand the electrical side of the board.

Knowledge of signal integrity basics
Material options for different speed ranges
Controlled impedance capability
Multilayer stack-up support
Stable drilling, plating, and etching control
Clear communication during DFM review
Reliable prototype-to-production consistency

This reduces the chance of performance drift between sample builds and mass production orders.

Need a High-Speed PCB Quote for Your Project?

If your design includes fast data channels, impedance-sensitive routing, or multilayer architecture with demanding electrical requirements, we can help. EBest Circuit (Best Technology) provides high-speed PCB support from engineering review through fabrication and delivery.

Send us your Gerber files, stack-up, impedance requirements, or project specifications, and we will review the best manufacturing solution for your application.

FAQ About High-Speed PCB

1. What is considered a high-speed PCB?
A PCB is commonly treated as high-speed when the operating frequency is above 50 MHz, the data rate exceeds 1 Gbps, or the signal rise and fall time is below 500 ps.

2. Can FR4 be used for high-speed PCB?
Yes. FR4 can be used in some moderate-speed applications. For higher-frequency or lower-loss designs, Rogers or PTFE-based materials may be more suitable.

3. Why is impedance control important in high-speed PCB?
Impedance control helps reduce signal reflection and preserves waveform integrity during fast transmission.

4. What interfaces usually need high-speed PCB design?
PCIe, USB, Ethernet, HDMI, SATA, LVDS, and MIPI are common examples.

5. What surface finishes are used for high-speed PCB?
Common options include ENIG, OSP, and immersion silver.

6. Which industries use high-speed PCBs?
Telecommunications, automotive, aerospace, 5G, medical, defense, networking, and RF-related industries all use high-speed PCBs.

Tags: high speed pcb, high speed pcb design, high speed pcb design guide, high speed pcb design radiocord technologies, high speed pcb layout, high speed pcb manufacturer
Posted in Custom PCB | No Comments »

IC Substrate

April 8th, 2026

IC substrate is a core material in semiconductor packaging because it connects the chip to the circuit board, supports electrical transmission, and helps manage heat inside compact electronic products.

This article explains what an IC substrate is, how it is classified, which materials are commonly used, how it compares with PCB, and why it matters in modern electronics.

IC Substrate

What Is an IC Substrate?

An IC substrate, also called an integrated circuit packaging substrate, is a critical material used in semiconductor packaging. It acts as the bridge between the silicon chip and the printed circuit board, carrying electrical signals, supporting the chip mechanically, and helping dissipate heat.

In modern electronic packaging, the IC substrate is far more than a simple base material. It plays a central role in improving signal transmission, enabling fine-pitch interconnection, reducing package size, and supporting advanced multi-chip integration. Because of this, IC substrates have become essential in high-performance and miniaturized electronic products.

As demand grows in sectors such as AI, 5G, cloud computing, servers, and big data, the IC substrate industry is expanding quickly. High-end chips need packaging platforms with tighter dimensional control, better thermal management, and higher routing density. That is exactly where IC substrates add value.

Why Is IC Substrate Important?

IC substrates are indispensable in the chip packaging and testing process because they provide several functions at once.

First, they support the chip physically and protect it during assembly and operation. Second, they create reliable electrical connections between the die and the main board. Third, they help manage heat, which is increasingly important in processors, GPUs, networking devices, and automotive electronics.

Compared with conventional interconnection methods, IC substrates can also improve package miniaturization. They make it possible to route more signals in a smaller area, support more input and output pins, and enhance overall electrical performance. In some advanced designs, they can even integrate passive or active components to support additional system functions.

How Are IC Substrates Classified?

IC substrates can be classified in several ways, including by packaging type, material characteristics, and bonding technology.

Classification by Packaging Type

BGA IC Substrate
Ball Grid Array substrates are widely used because they offer strong electrical and thermal performance. They are well suited for devices with high pin counts, especially packages with more than 300 pins.

CSP IC Substrate
Chip Scale Package substrates are used for compact single-chip packaging. They are lightweight and small, making them suitable for telecommunications devices, memory products, and other applications with relatively fewer pins.

FC IC Substrate
Flip-chip substrates are designed for high-speed and high-performance applications. They offer lower circuit loss, reduced signal interference, and better heat dissipation.

MCM IC Substrate
Multi-Chip Module substrates allow multiple chips with different functions to be integrated into a single package. They support compact and lightweight product designs, though thermal and signal management can become more challenging as package complexity rises.

Classification by Material

Rigid IC Substrate
Rigid IC substrates are commonly made from ABF resin, BT resin, or epoxy resin. They usually have a coefficient of thermal expansion around 13–17 ppm/°C and are widely used in mainstream packaging.

Flexible IC Substrate
Flexible IC substrates are usually made from PI or PE resin. Their flexibility makes them useful in space-constrained designs and applications requiring bending or lightweight packaging.

Ceramic IC Substrate
Ceramic IC substrates use materials such as alumina, aluminum nitride, or silicon carbide. These substrates have lower thermal expansion and better thermal performance, making them suitable for demanding environments.

Classification by Bonding Technology

The main bonding methods used in IC substrate packaging include:

Tape-Automated Bonding (TAB)
Wire Bonding
Flip-Chip Bonding

Each method has its own packaging advantages depending on electrical performance, package size, cost, and design requirements.

What Materials Are Used in IC Substrates?

The main raw materials used in IC substrates today include BT substrates, ABF substrates, and glass substrates.

BT Substrate

BT substrate uses bismaleimide triazine resin as the base material. It offers high glass transition temperature, good heat resistance, and a relatively low dielectric constant. These properties make it suitable for products that require stable electrical performance and good reliability.

BT substrates are commonly used in memory chips, MEMS devices, RF chips, and LED packaging. As demand for servers and memory continues to grow, BT substrates remain an important material in the packaging supply chain.

ABF Substrate

ABF stands for Ajinomoto Build-Up Film. ABF substrates are known for enabling fine line widths, small spacing, and high-density interconnection. These features make them highly suitable for advanced packaging with high pin counts and high data rates.

They are widely used in CPU, GPU, FPGA, and ASIC packaging, especially in high-performance computing. With rapid growth in AI, cloud computing, and 5G infrastructure, ABF substrates have become one of the most valuable materials in advanced semiconductor packaging.

At the same time, ABF materials must keep evolving. As package sizes increase and performance targets become stricter, substrate materials need better dimensional stability, stronger thermal reliability, and improved process compatibility.

Glass Substrate

Glass substrate is an emerging material in semiconductor packaging. It provides excellent mechanical stability and attractive physical properties. Compared with traditional materials, glass can reduce pattern distortion, improve photolithography accuracy, and support much higher via density.

Glass substrates are also seen as promising for ultra-large package formats. According to industry analysis, they may offer advantages in performance, density, power efficiency, and long-term cost structure. Although still developing, they are becoming an important topic in next-generation packaging.

What Materials Are Used in IC Substrates?

IC Substrate vs. PCB: What Is the Difference?

Although IC substrates and PCBs are closely related, they are not the same.

1. Basic Definition

An IC substrate is mainly used in chip packaging. It connects the semiconductor die to the printed circuit board and supports fine-pitch, high-density electrical routing.

A PCB, by contrast, is the board used to mount and connect electronic components in a finished product. It serves as the platform for system-level assembly in devices such as computers, telecom equipment, industrial controls, and medical electronics.

2. Design Features

IC substrate design focuses heavily on miniaturization, precision, and electrical performance. It must support fine traces, tight spacing, and advanced signal routing within a very limited area. Thermal control and noise reduction are also major design concerns.

PCB design is broader in system scope. It must consider materials, stackup, EMI performance, manufacturability, and cost. While precision is still important, the design rules are generally less extreme than those of IC substrates.

3. Manufacturing Process

IC substrate manufacturing uses highly advanced processes such as deposition, exposure, fine etching, molding, and laser processing. The precision requirements are much closer to semiconductor fabrication than to standard board production.

PCB manufacturing includes drilling, plating, imaging, etching, solder mask application, surface finishing, testing, and assembly preparation. While both IC substrates and PCBs rely on circuit patterning and interconnection technologies, IC substrate production is generally more demanding in terms of dimensional tolerance and feature size.

Even though they differ in function and process complexity, IC substrates and PCBs work together in electronic products. The IC substrate connects the chip to the package level, while the PCB connects the package to the complete system.

What Are the Main Applications of IC Substrates?

IC substrates are used in a wide range of industries because they support high-density packaging, compact product design, and reliable electrical performance.

Common applications include:

Consumer electronics such as smartphones, tablets, laptops, and wearables
Automotive electronics including ADAS, infotainment systems, and EV power/control modules
Telecommunications such as 5G infrastructure and networking hardware
Medical devices including implantable electronics and diagnostic systems
Aerospace and defense applications such as radar, satellites, and surveillance systems
Industrial equipment including robotics and factory automation
AI and sensor modules requiring advanced data processing and compact packaging

As chip performance rises, these application areas increasingly rely on advanced substrate technology to meet electrical, thermal, and size requirements.

What Is IC Substrate Packaging?

IC substrate packaging refers to the stage in semiconductor production where the chip is enclosed in a protective package and electrically connected for use in electronic systems. The package protects the die from environmental damage while enabling electrical communication with the PCB.

Several packaging formats are commonly used:

PGA (Pin Grid Array) for socket-based connections
DIP (Dual Inline Package) for through-hole assembly
CSP (Chip Scale Package) for highly compact surface-mount designs
QFP (Quad Flat Package) for leaded surface-mount packages
QFN (Quad Flat No-Lead) for compact, leadless surface mounting
MCP (Multi-Chip Package) for integrating multiple dies in one package
Area Array Package for efficient high-density interconnection across the full package surface

The choice of package depends on product size, thermal requirements, electrical performance, assembly method, and cost targets.

What Is IC Substrate Packaging?

What Are the Key Features of IC Substrates?

IC substrates stand out because they are engineered for demanding electrical and mechanical performance. Their key features include:

High Interconnection Density

They support a large number of chip-to-board connections in a compact space, often through multilayer structures.

Strong Signal Integrity

Low-loss materials and precision routing help preserve high-speed and high-frequency signal quality.

Thermal Management

Substrate materials and structures are designed to help conduct and spread heat, which is critical in processors, power devices, and automotive systems.

Mechanical Reliability

IC substrates must withstand thermal cycling, vibration, and mechanical stress while maintaining stable interconnection.

Miniaturization Support

They enable narrow traces, small vias, fine pitch, and dense component integration, which are all needed in compact electronics.

Multi-Layer Capability

Multiple conductive layers allow more complex routing and better integration of electrical functions.

Moisture and Corrosion Resistance

Many substrate materials and protective finishes help improve long-term reliability in harsh operating environments.

How Is the IC Substrate Market Evolving?

The IC substrate market is moving toward higher density, thinner structures, better thermal stability, and stronger support for advanced computing. AI servers, high-speed networking, automotive electronics, and 5G devices are all pushing packaging requirements higher.

ABF substrates are seeing strong demand because they are widely used in high-performance computing chips. BT substrates continue to serve important roles in memory and RF packaging. Glass substrates are also attracting industry attention as a possible next-generation platform for very large and very advanced packages.

In the coming years, manufacturers that can offer precise process control, better yield, and material innovation will be in a strong position within the IC substrate supply chain.

FAQ About IC Substrate

1. What is the function of an IC substrate?

Its main function is to support the chip, connect it electrically to the board, help dissipate heat, and improve package miniaturization and performance.

2. Is IC substrate the same as PCB?

No. An IC substrate is mainly used in semiconductor packaging, while a PCB is used in finished electronic assemblies. The IC substrate connects the chip to the package level, and the PCB connects the package to the wider system.

3. What materials are commonly used in IC substrates?

BT substrate, ABF substrate, and glass substrate are the main material groups highlighted in your source content. Ceramic materials are also used in specific high-reliability or thermal-demanding designs.

4. Why is ABF substrate important?

Because it supports finer circuitry, high pin counts, and high-speed transmission, making it highly suitable for CPU, GPU, FPGA, ASIC, and HPC packaging.

5. What is the difference between ABF and BT substrate?

BT substrate is widely used in memory, MEMS, RF, and LED chip packaging, while ABF substrate is more closely tied to advanced, high-pin-count, high-speed packaging.

6. Is glass substrate already used in advanced packaging?

It is emerging as a serious next-generation material. Your source describes it as offering better mechanical stability, lower distortion, and much higher via density potential.

Tags: IC substrate, ic substrate manufacturer, ic substrate oackage, ic substrate vs pcb
Posted in Custom PCB | No Comments »

Extra Thin PCB

April 8th, 2026

Extra thin PCB refers to a printed circuit board with a significantly reduced thickness compared to standard FR4 boards, enabling compact, lightweight, and space-constrained electronic designs.

As modern devices become smaller and more integrated, ultra thin PCB solutions are increasingly used in smart cards, wearable devices, and miniature modules where every micron matters.

Are You Facing These Challenges?

Many customers come to us with similar design concerns:

The product housing leaves very little board space
Standard PCB thickness is too bulky for the assembly
Flexible PCB is not necessary, but standard rigid PCB is too thick
Thin boards may warp or become hard to handle in production
Small electronic modules need a lighter and slimmer rigid solution

Our extra thin PCB service is built to solve these issues with practical FR4-based manufacturing support.

What Is an Extra Thin PCB?

An extra thin PCB is a rigid printed circuit board with a thickness significantly lower than a normal FR4 board. Standard PCB thickness is usually around 1.0 mm to 2.0 mm. In thinner conventional constructions, 1-layer or 2-layer boards may be made at 0.3 mm to 0.4 mm, while 4-layer boards are often around 0.6 mm.

When electronic products require an even slimmer profile, designers may specify thicknesses such as 0.25 mm, 0.20 mm, or 0.15 mm. These ultra-slim boards are commonly referred to as extra thin PCB, ultra thin PCB, or very thin PCB.

They are especially useful in products where every fraction of a millimeter affects housing design, connector fit, weight, or assembly clearance.

Click here to see more pictures of our ultra thin PCB boards.

Extra Thin PCB

Why Use Extra Thin PCB?

As consumer and industrial devices continue moving toward lighter and more compact designs, extra thin PCBs are becoming more widely used. They help optimize the internal layout without forcing a full shift to flexible circuits.

Key benefits include:

Reduced product thickness
Lower overall weight
Better fit for compact assemblies
More rigid than flexible circuits
More cost-effective than FPC in many simple designs
Suitable for slim modules with limited installation space

In some applications, extra thin FR4 PCB can also provide slight bendability during assembly. It does not replace a true flex circuit, but it can offer more mechanical tolerance than a standard rigid board.

Extra Thin PCB Applications

Extra thin PCBs are commonly used in products that demand a slim form factor and stable board structure. Typical applications include:

SIM card modules
TF card modules
NFC devices
Mobile phone charging modules
Wearable electronics
Drawing tablets
Metro coins or smart token devices

These products often have very limited internal clearance, making thin board construction an important part of the mechanical design.

Extra Thin PCB Manufacturing Capability

EBest Circuit provides extra thin PCB fabrication with the following capability range:

Item	Capability
Base Material	FR4 Tg130, Tg170, Tg180
Board Thickness	0.10 mm to 0.30 mm
Copper Thickness	0.5 oz, 1 oz, 2 oz, 3 oz
Outline Processing	Routing, punching, V-cut, laser cutting
Solder Mask	Bare, white, black, blue, green, red
Silkscreen Color	Black, white
Surface Finish	Immersion gold, OSP, ENEPIG, HAL-LF
Max Panel Size	500 × 500 mm or 1000 × 350 mm
Min Panel Size	3.5 × 3.5 mm
Min Single Size	25 × 25 mm
Min Via Size	0.10 mm
Min Trace / Space	4/4 mil
Packing	Vacuum packing
Sample Lead Time	7 to 9 days
Mass Production Lead Time	8 to 10 days

We can manufacture extra thin boards with or without solder mask, depending on the design and end-use requirement.

Extra Thin PCB vs Flexible PCB

Although they may look similar in ultra-slim products, extra thin PCB and flexible PCB serve different purposes.

Extra Thin PCB

FR4-based rigid board
Better structural support
Easier for handling and assembly
Usually lower cost than FPC in comparable simple layouts
Suitable when slight thinness is needed, but repeated bending is not required

Flexible PCB

Built on polyimide or other flexible materials
Designed for dynamic bending or folding
Better choice for extremely thin or moving interconnect structures
Suitable when board thickness must go below 0.10 mm or when repeated flexing is required

If your design needs a board below 0.10 mm, a flex circuit is generally the better option. If you need a thin, stable, and economical rigid board, extra thin FR4 PCB is often the more practical solution.

Stack-Up of Extra Thin PCB

The construction of extra thin PCB is similar to standard FR4 PCB, but the material system is thinner and the process window is tighter. The board uses thinner core materials and prepregs to achieve the required final thickness.

Because the structure is much thinner, stack-up design becomes more sensitive. Material choice, copper balance, and lamination control all affect flatness, handling strength, and final dimensional stability.

For 2-layer to 4-layer extra thin PCBs, the stack-up is usually simpler than conventional multilayer boards, but it must still be engineered carefully to maintain production consistency.

2L PCB structure for extra thin PCB

4L PCB structure for extra thin PCB

How Are Extra Thin PCBs Manufactured?

The basic fabrication flow is close to standard FR4 PCB manufacturing, but extra thin boards require tighter control at every stage. Thin materials are easier to deform during drilling, imaging, etching, lamination, routing, and transportation through the production line.

To support reliable production, EBest Circuit uses stricter handling methods and more precise process control for extra thin boards. In some operations, dedicated equipment or supporting fixtures are used to improve stability and reduce the risk of deformation or damage.

This is especially important for:

Panel handling
Warpage control
Fine drilling accuracy
Outline precision
Surface protection
Final packing and shipment stability

Careful process control helps ensure that the finished boards meet both dimensional and reliability requirements.

Why Choose EBest Circuit for Extra Thin PCB?

Choosing the right supplier for extra thin PCB is not only about whether thin boards can be produced. It is also about whether the manufacturer can keep those boards stable, consistent, and practical for real assembly conditions.

At EBest Circuit, we provide:

Extra thin FR4 PCB fabrication for compact designs
Thickness options from 0.10 mm to 0.30 mm
Multiple copper weights and surface finishes
Prototype and volume production support
Engineering review before production
Stable manufacturing control for delicate thin boards
Fast lead times for samples and mass production

We understand the common manufacturing risks behind ultra-thin rigid boards and work to reduce handling issues before they become assembly problems.

Work with a Reliable Extra Thin PCB Manufacturer | EBest Circuit

If your project requires a thinner rigid board for compact electronics, EBest Circuit can help you move from design to production with stable manufacturing support.

We offer extra thin PCB solutions for card devices, wearable products, NFC modules, charging applications, and other slim electronic assemblies. Whether you need a prototype or volume production, our team can support your design with suitable materials, practical fabrication control, and responsive engineering service.

Looking for a dependable extra thin PCB manufacturer? Contact EBest Circuit today to discuss your project and request a quote.

FAQs About Extra Thin PCB

1. What is the thinnest PCB you can manufacture?

We can produce extra thin PCBs down to 0.10 mm using FR4 materials. For thinner requirements, flexible PCB is recommended.

2. Can extra thin PCB replace flexible PCB?

No. Extra thin PCB offers slight bendability but is not designed for dynamic flexing. For bending applications, FPC is required.

3. Is ultra thin PCB more expensive?

It is slightly higher than standard PCB due to tighter process control, but still more cost-effective than flexible PCB.

4. What copper thickness is supported?

We support 0.5 oz, 1 oz, 2 oz, and 3 oz depending on current and design requirements.

5. How do you prevent warpage in thin PCB?

We use optimized lamination parameters, panel support fixtures, and controlled handling processes to ensure flatness.

6. What industries use extra thin PCB the most?

Smart cards, wearable devices, consumer electronics, and compact modules are the most common applications.

Need Ultra Thin PCB for Your Project?

If your design requires a compact, lightweight, and reliable PCB solution, extra thin PCB is a practical choice.

Contact EBest Circuit today for a fast quote and free DFM review.

Email: sales@bestpcbs.com
Phone: +86-755-2909-1601

We help you turn complex thin PCB designs into stable, production-ready solutions.

Tags: extra thin pcb, extra thin pcb manuafcturer, extra thin pcb thickness
Posted in Custom PCB | No Comments »

Bus Bar PCB

April 8th, 2026

EBest Circuit (Best Technology) brings nearly 20 years of PCB manufacturing experience to high-current and power distribution projects. We provide one-stop support for bus bar PCB solutions, covering layout review, engineering evaluation, prototyping, mass production, and after-sales service.

Our manufacturing system is backed by ISO9001, ISO13485, IATF16949, and UL certifications, helping customers build reliable products for demanding industries. Whether you need a custom embedded bus bar PCB, copper inlay PCB, or extruded copper PCB, our team can tailor the structure to your current, thermal, and mechanical requirements.

What is Bus Bar PCB?

A bus bar PCB, also known as an embedded bus bar, busbar PCB, extruded copper PCB, or copper inlay PCB, is a specialized type of heavy copper PCB designed specifically to distribute power efficiently across different components on a board. Unlike traditional PCBs, which use copper traces etched into layers of non-conductive substrate to form circuits, bus bar PCBs integrate thick, solid bars of conductive material—often copper or aluminum—to handle higher currents.

The bus bar PCBs can also serve as mechanical connectors within the system, designed to accommodate screws and other metal parts for direct connections with other PCBs or system components.

Advantages of Bus Bar PCB

The PCB stiffener busbars can increase the rigidity and strength of circuit boards, so they can be used in severe environments like automotives, military instruments, aerospace, etc.
Higher power distribution and current-carry capabilities for power supply circuits or high-power applications.
The low voltage drop characteristic allows all components to maintain stable power delivery, especially under high load conditions.
The conductive bars in bus bar PCBs acts as an effective heat sink, helping to dissipate heat more efficiently than standard fiberglass PCBs, avoiding overheating problems during use.
The ability to handle higher currents simplifies the design and assembly process without the need for multiple layout or complex traces.
Bus bar PCBs can be used as electrical conduit, can also be used as mechanical connector.
They are often custom designed to meet specific application requirements, providing solutions that are not possible with standard PCB technology.

Basic Parameter of Bus Bar PCB Manufacturing

At EBest Circuit, bus bar PCB manufacturing can be customized according to current demand, installation method, and product structure. Typical capabilities include:

Minimum spacing between copper bars: 0.8–1.0mm
Copper bar thickness: 1.0–3.0mm
Current carrying capacity: 50–300A
Copper bar forming: bars can be bent based on project requirements
Surface finish options: ENIG, immersion silver, gold plating
Board thickness: 3.0–6.0mm
Hole wall copper thickness: ≥25um
Aspect ratio: 1:6 or 1:7
Example: for 1.0mm copper, minimum hole size can be 0.7mm
Layer count: typically 3–4 layers, with additional layers available after engineering review
Maximum dimension is 600*400mm for standard bus bar PCB, 900*600mm for double sided PCB
The lead time of 3-4L bus bar PCB is around 13-15days, add 3days per layer over 4 layers.

These values may vary depending on the bus bar design, material selection, drilling limitations, and final assembly requirements.

Design Guide for Bus Bar PCB

Copper or aluminum is typically used for the bus bars due to their excellent conductivity and thermal properties. Copper is more conductive, while aluminum is lighter and offers better resistance to oxidation.
Choose substrates capable of handling high thermal loads and providing good electrical insulation. Common material we used is FR-4.
Determine the maximum current that each busbar needs to carry, so we can know the required cross-sectional area of the bus to minimize drag and heat buildup.
Use the length of the bus and the resistivity of the material to calculate the allowable voltage drop on the bus to ensure that it remains within an acceptable range.
Add mechanical mounting points to the bus, such as screw holes or connector slots.
Consider the mechanical stresses that the PCB may encounter, ensuring that the bus is flexible enough to withstand bending and strong enough to support structural loads.

Where Are Bus Bar PCBs Used?

Bus bar PCBs are used in products that require strong current handling, efficient heat control, and compact power routing. Common applications include:

Electric vehicles
Renewable energy systems
Industrial automation equipment
Power distribution units
Data center power systems
High-power spacecraft electronics
Consumer electronics with heavy current demand
Power inverters and converters
Aerospace and defense systems

In these fields, designers often need a solution that goes beyond standard heavy copper routing. Bus bar PCBs provide a practical way to combine power transmission, thermal performance, and mechanical integration in one board structure.

Need a Custom Bus Bar PCB?

If you are developing a high-current product and need a reliable bus bar PCB manufacturer, EBest Circuit can help. We support custom structures based on your current load, board dimensions, copper thickness, thermal requirements, and assembly needs.

Send us your drawings, Gerber files, or project requirements, and our team will review the design and provide a suitable manufacturing solution.

Tags: Bus Bar PCB, bus bar pcb manufacturer, busbar copper pcb, Busbar PCB, embedded busbar pcb
Posted in Custom PCB | No Comments »
