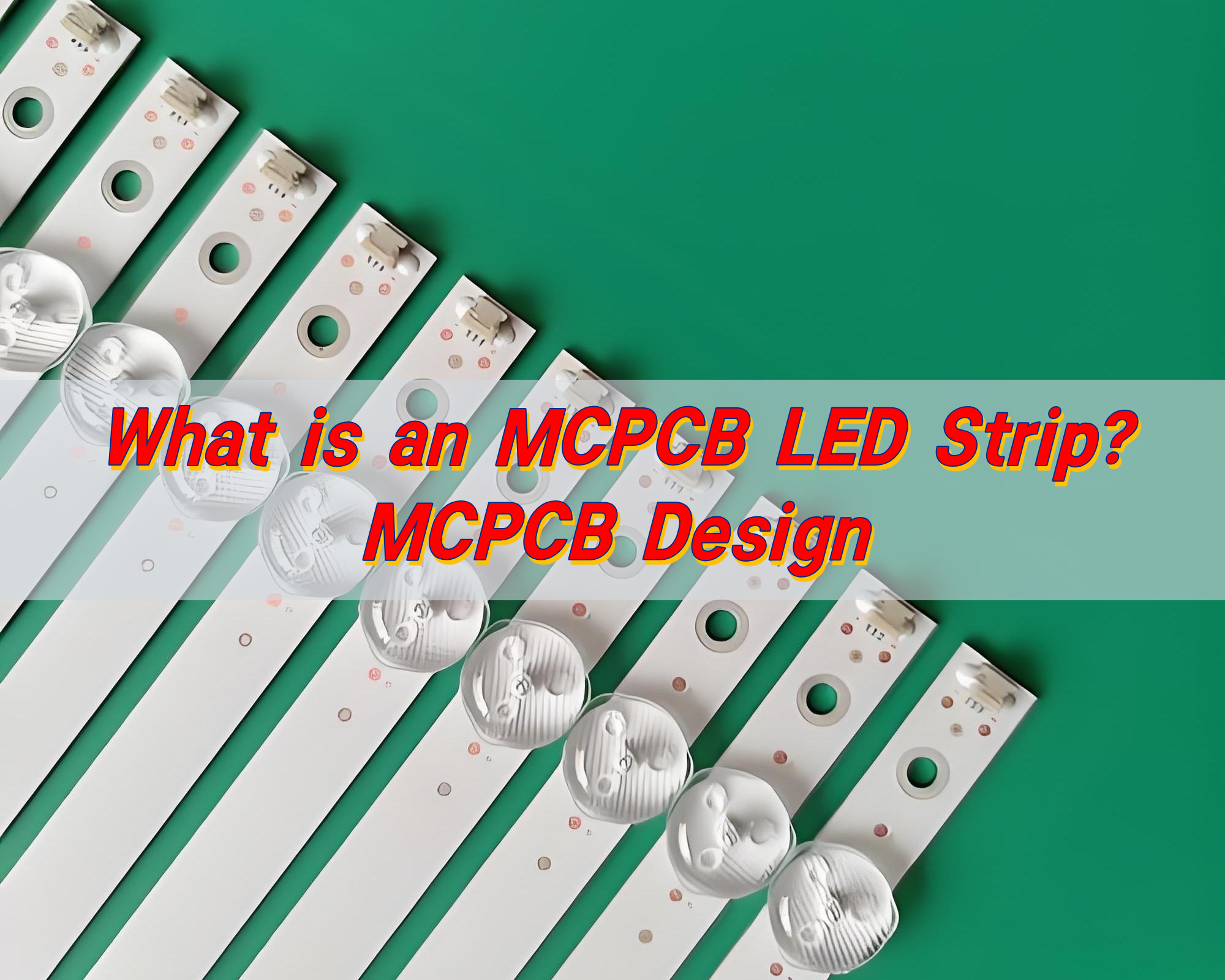

What is an MCPCB LED Strip? MCPCB Design
Thursday, July 31st, 2025

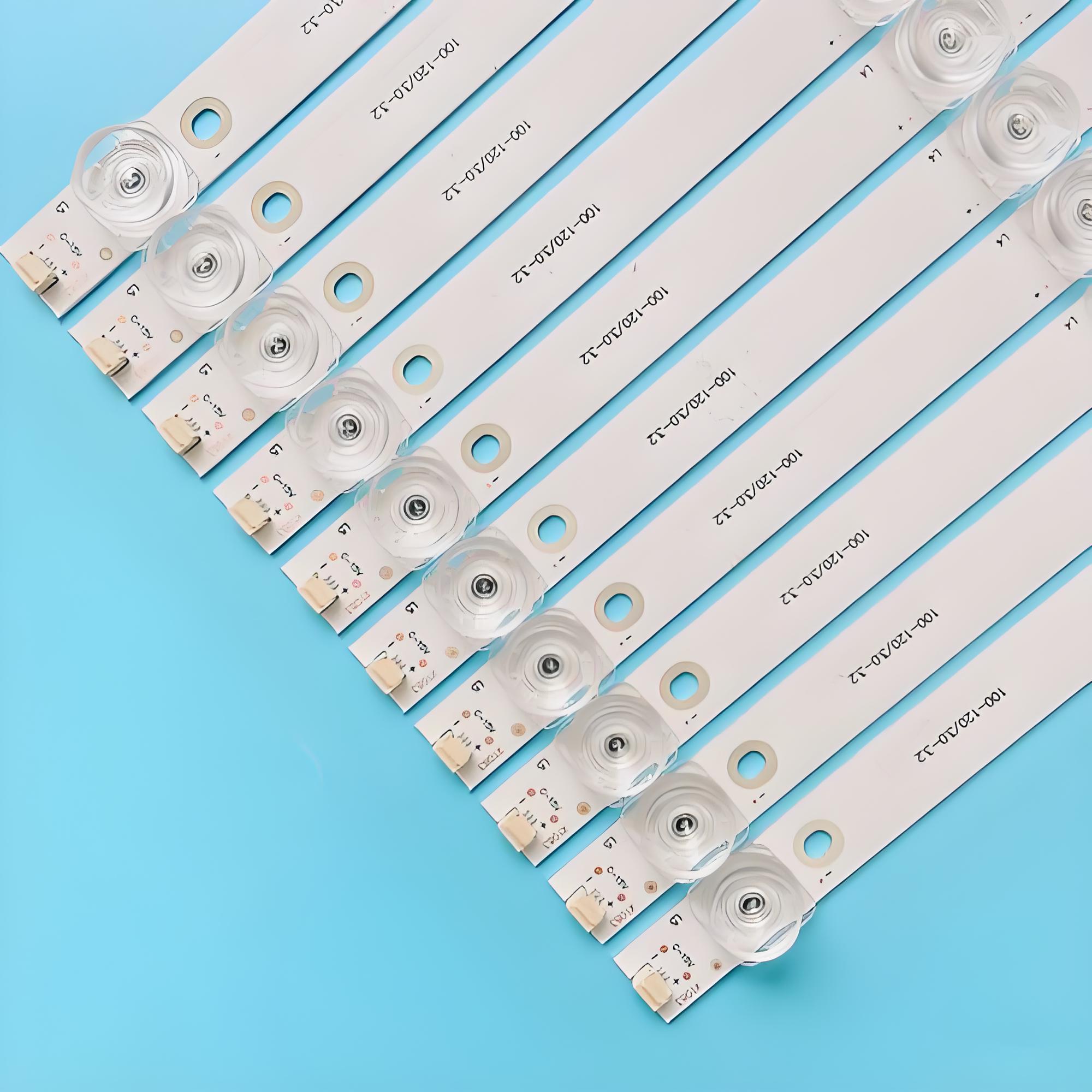

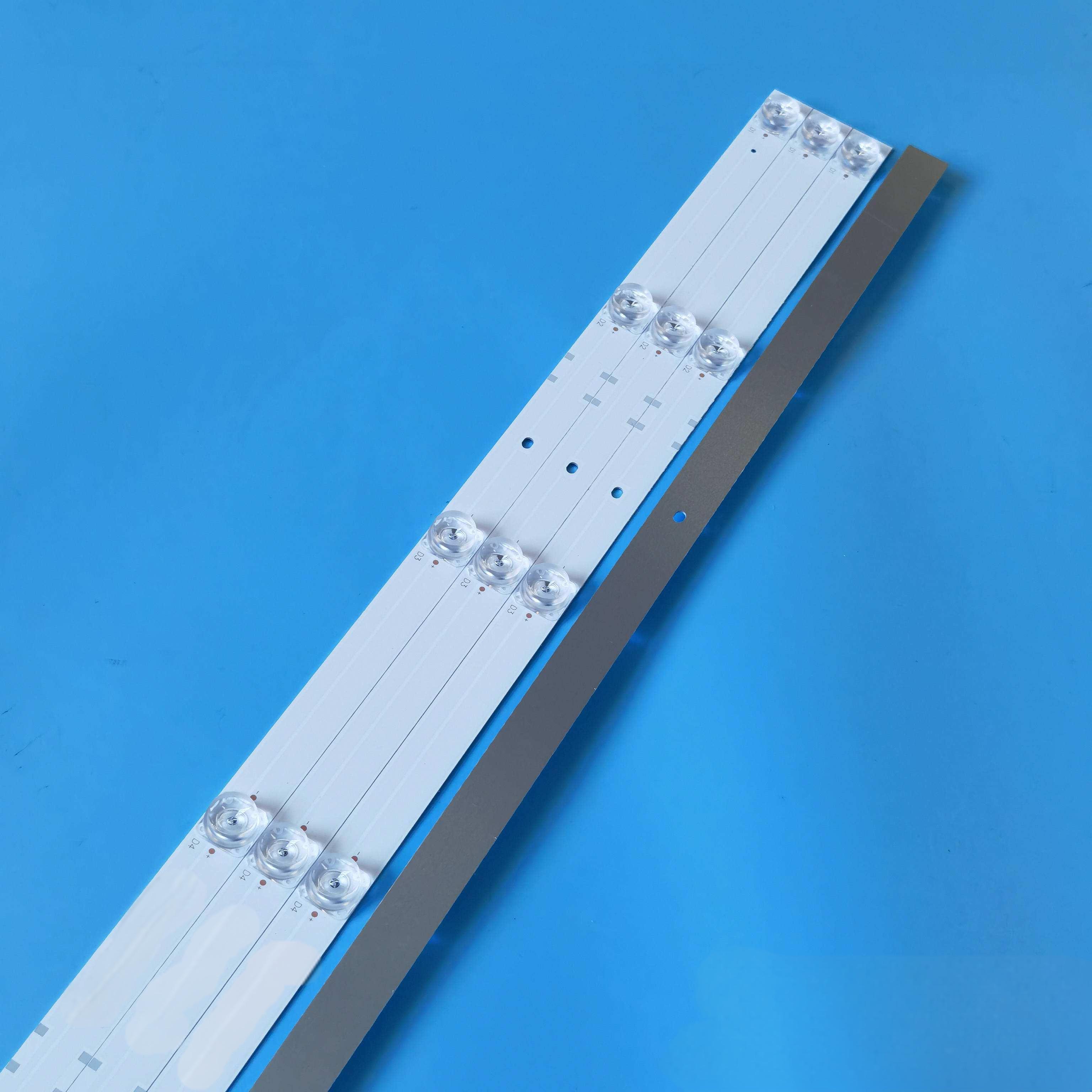

An MCPCB LED strip is an LED light strip built on a Metal Core PCB instead of a regular fiberglass board. The metal base, usually aluminum, helps pull heat away from the LEDs. This keeps them cooler, brighter, and longer-lasting.

What is MCPCB LED?

An MCPCB LED strip is a flexible or rigid lighting circuit that uses Metal Core Printed Circuit Boards (MCPCB) instead of traditional fiberglass boards. These boards are made with a metal base—often aluminum—layered with a dielectric material and topped with copper circuitry.

The main advantage? Superior heat dissipation. LED chips generate heat, and if it’s not managed properly, brightness fades and lifespan drops. The metal core acts as a thermal bridge, quickly pulling heat away from the LEDs.

Why use MCPCB for LED strip lights?

LED light strips are widely used for their compact size and bright output, but they also bring a problem: heat. Excessive heat shortens LED life, dims the light, and can even cause circuit failure.

Here’s where MCPCB LED steps in with its unique benefits:

  • High thermal conductivity: Metal cores rapidly remove heat from LED chips.
  • Longer lifespan: Cooler LEDs mean longer use.
  • More stable output: No flickering or fading over time.
  • Compact design support: Even tight spaces can house high-powered LEDs safely.
  • Durability: Metal cores are more resistant to physical damage than FR4 boards.

How does MCPCB design affect LED strips?

The MCPCB design is more than just the layout of circuits. Each layer of the MCPCB is chosen and designed for a specific function:

  • Metal base (usually aluminum): Carries the heat away.
  • Dielectric layer: Transfers heat while keeping electrical isolation.
  • Copper circuit layer: Routes electricity to the LEDs.

Even the thickness of the dielectric layer impacts how fast heat can move. A thinner dielectric means faster transfer, but it must still insulate properly. Similarly, thicker copper can handle higher currents without overheating.

Good MCPCB design ensures even temperature distribution. That means no LED on the strip gets too hot. Even light, long life, and better performance.

Can MCPCB design improve LED lifespan?

Absolutely. Heat is the main enemy of LED lifespan. Every degree of temperature rise reduces the life of an LED chip.

Traditional PCB materials like FR4 don’t handle heat well. Over time, they allow hotspots to build up. These hotspots degrade the LED’s light output and can eventually cause failure.

But MCPCB design changes the game. By channeling heat away from the LED source, it keeps the chip temperature lower. This cooler environment means:

  • No yellowing of lenses
  • No cracking of solder joints
  • No degradation of LED chip efficiency

So yes, MCPCB LED strips don’t just shine brighter—they shine longer.

MCPCB LED vs. regular LED PCB strip – what’s better?

Let’s compare a regular LED PCB strip to a metal core version:

FeatureRegular LED Strip (FR4)MCPCB LED Strip
Heat dissipationPoorExcellent
Brightness over timeDecreasesMaintained
DurabilityFragileRugged
Power handlingLowHigh
CostLower upfrontBetter long-term value

While FR4-based LED strips may seem cost-effective, they often end up needing frequent replacements—especially in high-power applications. MCPCB LED strips, on the other hand, are built to last.

How to choose the right LED PCB strip?

Choosing the right LED PCB strip depends on your application. Here are a few factors to consider:

  • Heat Load: If your strip is in a confined or warm space, go for MCPCB.
  • Power Requirement: More power means more heat. MCPCB handles high current safely.
  • Installation Area: Metal core strips are ideal for industrial, automotive, and high-brightness home uses.
  • Budget vs. Longevity: While MCPCB may cost more upfront, it saves money in the long run.
  • Brightness and Color Consistency: Heat can affect color temperature. MCPCB avoids this.

How to customize an MCPCB LED strip?

Customization is one of the most important aspects of MCPCB design. With the right manufacturer, you can tailor almost everything:

  • Board size and shape: Fit into curves, tight corners, or irregular enclosures.
  • Copper thickness: For heavy-duty current or low-voltage precision.
  • Thermal conductivity: Select different dielectric materials for performance.
  • LED configuration: Control spacing, brightness, and light pattern.
  • Mounting features: Add connectors, screw holes, or adhesive backs.
  • Surface finish: Choose between ENIG, HASL, OSP for different protection levels.

When you work with a professional manufacturer like Best Technology, your custom MCPCB LED strip lights will be the best they can be.

Where is MCPCB LED used most?

You’ll find MCPCB LED strips in places that demand both performance and reliability. Here are just a few common uses:

  • Automotive lighting: Headlights, tail lamps, and interior accents.
  • Commercial lighting: Display cases, signage, and architectural lights.
  • Medical devices: Surgical lights and diagnostic equipment.
  • Industrial machines: Workstation lighting, control panels.
  • Consumer electronics: High-end flashlights, monitors, smart mirrors.
  • Streetlights & floodlights: Large scale applications with heavy thermal loads.

Wherever durability meets brightness, MCPCB LED plays a vital role.

Conclusion:

MCPCB LED strips surpass traditional LED PCB light strips in every way with better heat management, longer lifespan, and greater durability.

Need support for MCPCB LED strip design or customization? Reach out to us at sales@bestpcbs.com

LED PCB: What Are the Different Types of LED PCB?
Friday, February 14th, 2025

LED PCB (Light Emitting Diode Printed Circuit Board) is an essential component in modern lighting solutions. This type of PCB integrates LEDs onto a circuit board to power and control them efficiently. In this article, we’ll explore the key aspects of LED PCBs, including how to design them, solder LEDs, and the different types available.

What is PCB in LED?

PCB in LED refers to the printed circuit board that hosts light-emitting diodes (LEDs). The purpose of the PCB is to provide electrical connections for the LEDs and facilitate heat dissipation, which is crucial for maintaining their performance and longevity. LED PCBs can be made from various materials, but aluminum-based PCBs are often preferred due to their excellent heat dissipation properties.

How Do You Add LED to PCB?

Adding an LED to a PCB is a simple process, but it requires attention to detail. First, the LED components are placed on the board in a specific pattern. Then, the LED leads are connected to the copper traces on the PCB using soldering. The PCB design ensures that the correct electrical pathways are established, enabling the LED to light up when powered. The placement of the LEDs on the PCB also plays a crucial role in the overall performance, affecting light distribution and heat management.

How Do You Solder LED with PCB?

Soldering LEDs onto a PCB involves several key steps. Begin by preparing the PCB, ensuring the copper pads are clean and ready for soldering. Next, position the LED onto the PCB in the correct orientation. Using a soldering iron, heat the pad and the LED lead, applying solder to form a secure electrical connection. It’s important to avoid overheating the LED, as excessive heat can damage the component. For high-density PCBs, such as SMD (Surface-Mounted Device) LED PCBs, using a reflow oven or wave soldering can improve precision and efficiency.

How to Build an LED PCB Board Step by Step?

Building an LED PCB board involves several steps:

Design the PCB Layout: Use PCB design software to create the layout. Include positions for the LEDs and traces for electrical connections.

Choose the Right Material: Select materials based on heat dissipation needs. For higher power LEDs, consider using aluminum PCBs.

Etch the PCB: After printing the design onto a copper-clad board, use an etching process to remove excess copper, leaving behind the circuit traces.

Apply Solder Paste: For SMD LED boards, apply solder paste to the pads where the LEDs will be placed.

Place the LEDs: Position the LEDs on the pads using a pick-and-place machine or manually, depending on the complexity of the design.

Solder the LEDs: Use a soldering iron or reflow oven to attach the LEDs securely to the board.

Testing: Finally, test the board to ensure proper function. This includes verifying electrical connections and light output.

How Much Amperage Can LED PCB Handle?

The amount of amperage an LED PCB can handle depends on several factors, including the type of LED, the design of the PCB, and the materials used. A standard LED typically operates at around 20mA, but high-power LEDs may require more amperage. To ensure safety and optimal performance, it’s crucial to design the PCB to accommodate the required current, using larger traces or heat dissipation features when necessary. For example, a typical 12V LED PCB board may handle around 1 to 2A, depending on the number of LEDs and their power requirements.

What Materials Make Up a Flexible LED PCB (Flex Circuit)?

Flexible LED PCBs, often referred to as flex circuits, are made from a combination of flexible base materials like polyimide or polyester film, which allow them to bend and conform to various shapes. The base material is coated with a thin layer of copper, which forms the electrical pathways for the LEDs. To ensure durability, the PCB may also include protective layers such as solder mask and a topcoat. The flexibility of these boards makes them ideal for applications that require curved or compact installations, such as in wearable devices or automotive lighting.

What Are the Different Types of LED PCB?

Firstly, Classification Based On Substrate Material

A. FR4 Standard PCB

Characteristics: Low cost, mature technology, but poor heat dissipation.

Applications: Low-power LEDs (e.g., indicator lights, decorative light strips).

B. Metal-Based PCB (MCPCB)

Characteristics: Uses a metal layer (usually 1-3mm thick) for rapid heat transfer, preventing LED light degradation.

Applications: High-power LEDs (e.g., automotive headlights, industrial lighting, stage lighting).

C. Ceramic PCB

Characteristics: Ultra-high thermal conductivity, heat resistance, good insulation, but very high cost.

Applications: UV LEDs, laser diodes, aerospace lighting.

D. Flexible PCB

Characteristics: Flexible, thin, suitable for non-flat installations.

Applications: Curved screen backlighting, wearable devices (e.g., smart wristbands), automotive interior ambient lighting.

Secondly, Classification Based On Packaging Technology

A. SMD (Surface-Mount Device) LED PCB

Characteristics: Compact, suitable for automated production, supports high-density layouts.

Applications: LED TV backlighting, advertising displays, general lighting modules.

B. COB (Chip-on-Board) LED PCB

Characteristics: High luminous efficiency, no glare, low thermal resistance.

Applications: Photography light, surgical shadowless lights, high-lumen street lights.

C. HDI (High-Density Interconnect) PCB

Characteristics: Uses micro-holes and blind/buried vias for fine circuit traces, supporting complex circuit designs.

Applications: Mini/Micro LED display driver boards, ultra-thin lighting modules.

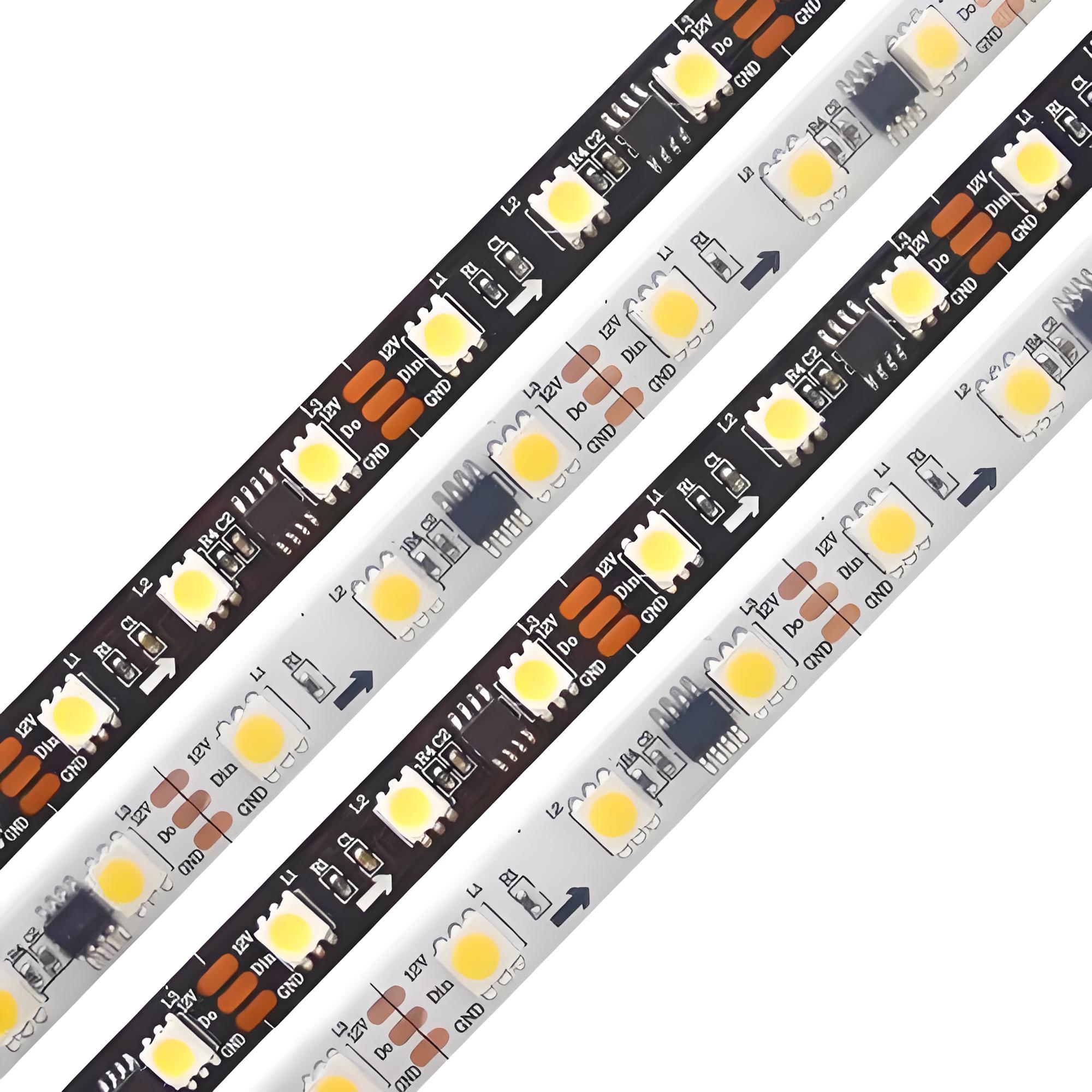

What Is the Difference Between White and Black PCB LED Strips?

When it comes to LED PCB strips, the color of the PCB itself can affect both aesthetics and performance. White PCBs are the most common, offering a clean, neutral look that works well with most environments. They also reflect light better, improving the brightness and efficiency of the LEDs. On the other hand, black PCB LED strips are often chosen for their sleek, modern appearance. The black surface absorbs more light, which can reduce the reflection of stray light, creating a more focused illumination. Additionally, black PCBs tend to provide better thermal management due to their heat-absorbing properties.

In summary, LED PCBs are integral to modern lighting technology, offering a wide range of possibilities for various applications. From designing your own 12V LED PCB to understanding the differences between aluminum and flexible types, there’s a lot to learn about this versatile component. Whether you need a custom LED PCB or are interested in SMD LED PCBs, the technology behind them continues to evolve, making it easier to integrate LEDs into a multitude of devices.

At Best Technology, we specialize in providing high-quality LED PCBs tailored to your specific needs. Our experienced team ensures that every product meets the highest standards, delivering efficient, long-lasting solutions. For details or inquiries, feel free to contact us at sales@bestpcbs.com.
