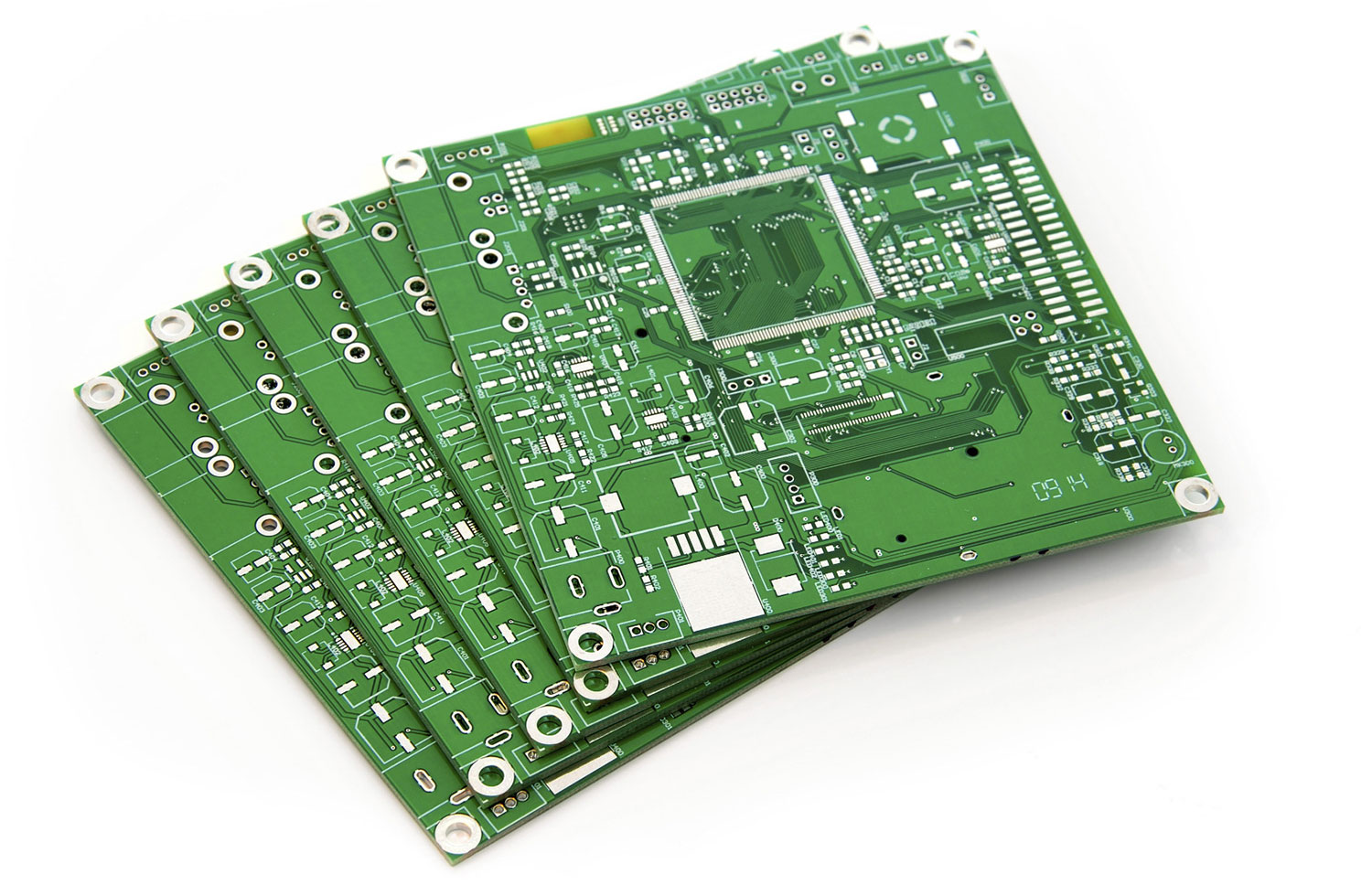

94V-0 circuit board

Why Choose EBest as Your 94V-0 Circuit Board Manufacturer?

EBest is your top choice for 94V-0 circuit board solutions, delivering unmatched compliance, speed, quality, and support for safety-critical projects. We combine strict UL certification, fast turnaround times, and professional engineering support to meet your exact requirements.

Category	EBest Key Advantages
Lead Time	3–7 days for prototypes; 10–15 days for mass production
Quality	100% electrical and UL94 flammability testing; IPC Class 2/3 compliance
Certifications	UL94 V-0, ISO 9001, RoHS, and REACH certified
Service	Free DFM analysis; low prototype MOQ; 24/7 technical support

What Is a 94V-0 Circuit Board?

A 94V-0 circuit board is a printed circuit board (PCB) that meets the UL94 V-0 vertical flammability standard—the highest safety rating for PCB laminates. It self-extinguishes within 10 seconds after flame removal, produces no flaming drips, and has a total burn time of ≤50 seconds across 10 tests. This rating stops fire spread and prevents ignition of nearby components, making it mandatory for high-risk electronic applications in the automotive, industrial, medical, and power sectors.

94V-0 Circuit Board Stackup

Below is the standard 2–4 layer stackup for 94V-0 circuit boards (most common for industrial/automotive use):

Layer	Material	Thickness	Function
Top Copper	1oz Electrodeposited Copper	35μm	Signal/power routing
Prepreg	FR-4 (94V-0 Rated)	0.2mm	Insulation & lamination
Core	FR-4 (94V-0 Rated)	1.0–1.6mm	Structural base
Bottom Copper	1oz Electrodeposited Copper	35μm	Signal/power routing
Solder Mask	Liquid Photoimageable	20μm	Insulation & oxidation protection
Silkscreen	Epoxy Ink	15μm	Component marking

94V-0 Circuit Board Manufacturing Process

1. Material Preparation: Cut 94V-0 rated FR-4 core and prepreg to panel size; verify UL certification.
2. Lamination: Bond copper foil to the core and prepreg at 180°C under high pressure to form multi-layer boards.
3. Drilling: Precision-drill via holes (0.2mm minimum) for interlayer electrical connections.
4. Plating: Apply electroless copper plating to hole walls to ensure reliable conductivity.
5. Etching: Use photolithography to remove excess copper and create precise circuit traces.
6. Solder Mask & Silkscreen: Apply solder mask and print component identifiers.
7. Surface Finish: Apply ENIG, HASL, or OSP to ensure solderability and long-term reliability.
8. Testing: Conduct 100% electrical testing, flying probe testing, and UL94 V-0 flammability verification.
9. Packaging & Delivery: Perform final inspection and secure packaging for on-time shipment.

94V-0 Circuit Board Design Guide: Pain Points & Solutions

Key Design Pain Points for 94V-0 PCBs

• Tight trace/space constraints for high-voltage circuits, which can lead to arcing and non-compliance with UL standards
• Material conflicts: balancing flame resistance with thermal performance and impedance control
• DFM errors that result in failed UL94 V-0 certification after production
• Lack of expert guidance for high-speed 94V-0 PCB design

Our Solutions

• Free DFM analysis to optimize trace/space, clearances, and stackup for 94V-0 compliance
• Recommend validated 94V-0 materials (FR-4, High-Tg FR-4, Polyimide) matched to your application’s thermal and electrical needs
• Early flammability simulation to prevent post-production certification failures
• Impedance-controlled design support for high-speed industrial and automotive 94V-0 circuits

Call to Action: For expert 94V-0 circuit board design support that ensures UL compliance and manufacturability, partner with EBest.

Fast & Reliable 94V-0 Circuit Board Prototyping Services

Prototype Pain Points

• Long lead times for small-batch 94V-0 prototypes
• High MOQ requirements for low-volume testing
• Inconsistent flammability performance between prototypes and mass production
• No DFM support for prototype designs, leading to production issues down the line

Our Solutions

• 3–7 day fast-turnaround 94V-0 prototypes with no hidden delays
• Low MOQ (1 piece) for prototype validation
• Identical 94V-0 materials and processes for both prototypes and mass production
• Free DFM review for every prototype order to optimize for manufacturability

Call to Action: Get your 94V-0 circuit board prototypes fast and fully compliant—contact EBest today.

How to Select 94V-0 Circuit Board Materials & Datasheet Reference

Choose 94V-0 materials based on your application’s temperature, frequency, and reliability needs. Below is a comparison of common options:

Material	UL Rating	Tg (°C)	Thermal Conductivity	Best For
Standard FR-4	94V-0	130–140	0.3–0.4 W/mK	General industrial, consumer electronics
High-Tg FR-4	94V-0	170–180	0.35 W/mK	Automotive, power electronics, high-temperature applications
Polyimide	94V-0	350+	0.25 W/mK	Aerospace, military, extreme temperature environments
Aluminum Core	94V-0	150	2.0 W/mK	LED lighting, power supplies, high-heat applications

Always verify material datasheets for UL94 V-0 certification, Tg, and thermal properties before final selection.

94V-0 Circuit Board Applications in Key Industries

94V-0 circuit boards are critical for safety-focused sectors—here are the top 4 high-demand industries with real-world cases:

1. Automotive Electronics: Engine Control Units (ECUs), Battery Management Systems (BMS), and ADAS sensors—94V-0 ensures vehicle fire safety and compliance with automotive industry standards.
2. Industrial Control & Automation: PLCs, servo drives, and power inverters—these operate in high-voltage, high-temperature factory environments with zero tolerance for fire risk.
3. Medical Electronics: Patient monitors, diagnostic equipment, and life-support controllers—UL94 V-0 meets strict medical safety regulations and protects patients.
4. Power & Energy Electronics: Solar inverters, UPS systems, and server power supplies—94V-0 prevents fire in high-power, continuous-use applications.

Additional applications: communications equipment, LED lighting, and aerospace avionics.

UL94 V-0 vs V-1 vs V-2 vs V-5: Complete Comparison Table

Parameter	94V-0	94V-1	94V-2	94V-5
After-Flame Time (per test)	≤10 sec	≤30 sec	≤30 sec	≤60 sec
Total Burn Time (10 tests)	≤50 sec	≤250 sec	≤250 sec	≤300 sec
Flaming Drips Allowed?	No	No	Yes	No
Cotton Ignition Risk	None	None	High	None
Application Safety	Highest	High	Moderate	Extreme

What Is the UL94 Flammability Standard for 94V-0 PCBs?

UL94 is the global safety standard for plastic and laminate flammability testing, developed by Underwriters Laboratories. For 94V-0 circuit boards, the vertical burn test applies a 50W flame twice (10 seconds each) to a vertical specimen. The board must self-extinguish quickly, produce no flaming drips, and not ignite cotton placed below—this confirms it will not spread fire in electronic equipment and meets global safety regulations.

Where Are 94V-0 Circuit Boards Most Commonly Used?

94V-0 circuit boards are required in any application where fire risk is unacceptable:

• High-voltage power systems
• Automotive/transportation electronics
• Medical life-support devices
• Industrial machinery and control panels
• Aerospace and military avionics
• Server and data center hardware
• LED lighting and power supplies

FAQ: Common Questions About 94V-0 Circuit Boards

Q1: What is the main difference between 94V-0 and 94V-1 PCBs?

A: 94V-0 has a shorter after-flame time (≤10s vs. ≤30s) and stricter total burn limits—no flaming drips are allowed. 94V-0 is designed for higher-safety, compliance-critical applications.

Q2: Is all FR-4 material automatically 94V-0 rated?

A: No. Standard FR-4 may carry V-1 or V-2 ratings. Always confirm the laminate’s UL94 certification before use.

Q3: Can 94V-0 PCBs handle high-temperature environments?

A: Yes. High-Tg 94V-0 FR-4 (Tg 170–180°C) reliably operates in 150°C+ industrial and automotive environments.

Q4: How long does it take to get UL94 V-0 certified 94V-0 PCBs?

A: EBest delivers UL94 V-0 certified prototypes in 7 days and mass production in 15 days, with full test reports included.

Q5: What happens if a PCB fails 94V-0 flammability testing?

A: It cannot be used in safety-critical applications. EBest reworks or replaces non-compliant boards at no cost.

Q6: Are 94V-0 PCBs required for medical devices?

A: Yes. Most medical electronic devices require 94V-0 PCBs to meet regulatory safety standards and protect patients.

Final Call to Action

EBest provides high-quality, UL-certified 94V-0 circuit boards for prototypes through mass production. For quotes, design support, or orders, contact us at sales@bestpcbs.com.
