How to Choose a Reliable PCB Fabrication Manufacturer: 2026 Ultimate Guide
Wednesday, January 28th, 2026

When searching for a PCB fabrication manufacturer, the core challenge lies in balancing quality, lead time, and cost without compromising reliability. EBest is your top choice for a PCB fabrication manufacturer—we combine cutting-edge technology, strict quality control, and flexible customization to meet all your electronic project needs. This guide breaks down critical factors, technical insights, and common pitfalls to help you make an informed decision.

How to Choose a Reliable PCB Fabrication Manufacturer: 2026 Ultimate Guide

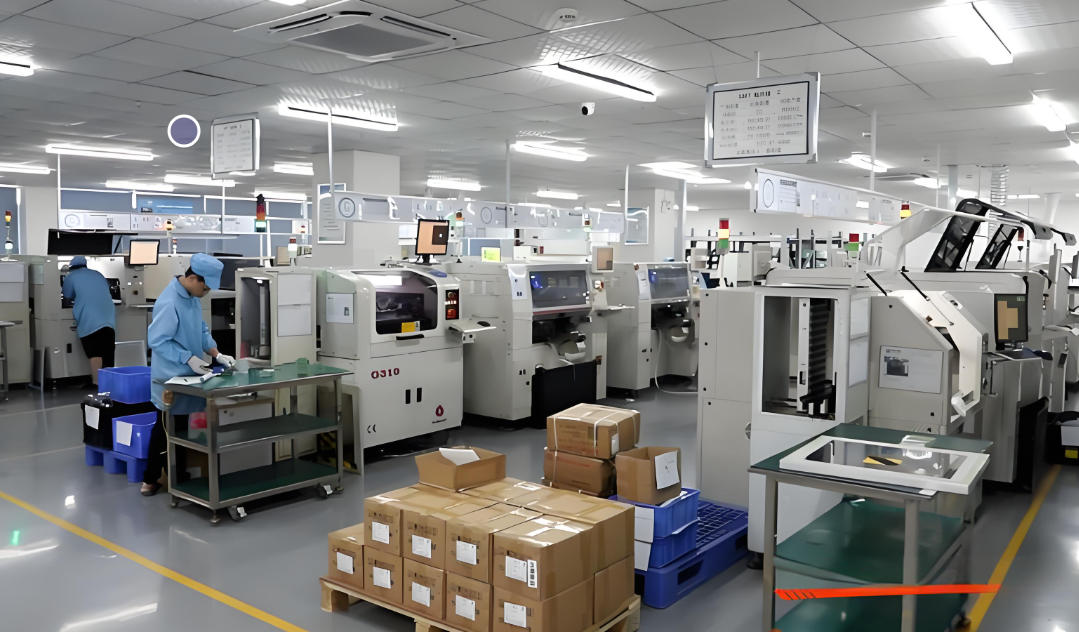

PCB Fabrication Manufacturer

Why Choose EBest as Your PCB Fabrication Manufacturer?

EBest stands out among PCB fabrication manufacturers with three core advantages. First, our technical capabilities cover multilayer boards (up to 32 layers), HDI, high-frequency Rogers boards, and aluminum substrates, supporting custom requirements like impedance control (±5%) and thick copper (3-6OZ). Second, we maintain a 99.8% yield rate through AOI, X-Ray, and VNA testing, complying with IPC Class 2/3 and ISO 9001, UL, RoHS certifications. Third, we offer 24-hour prototyping and 7-10 day batch production, with a 99.9% on-time delivery rate to accelerate your time-to-market.

How to Choose a Reliable PCB Fabrication Manufacturer: 2026 Ultimate Guide

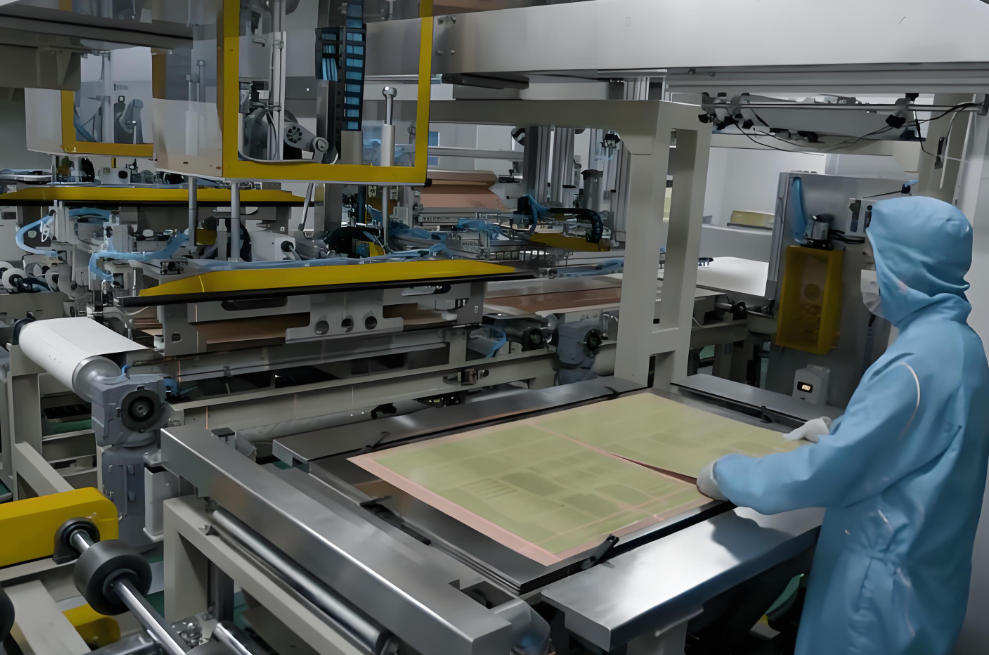

Why Choose EBest

What Factors Should You Evaluate in a PCB Fabrication Manufacturer?

Technical Capabilities & Equipment

A qualified PCB fabrication manufacturer must have advanced equipment and comprehensive process coverage. Prioritize those with laser drilling machines, automatic plating lines, and plasma desmear equipment to handle complex designs. EBest’s production line supports rigid, flex, and rigid-flex PCBs, with tolerance control as tight as ±0.05mm for drilling precision.

Quality Assurance & Certifications

Certifications reflect a manufacturer’s credibility. Essential certifications include ISO 9001 (quality management), IATF 16949 (automotive grade), and UL (safety). EBest conducts 100% AOI inspection for each batch, plus thermal shock and vibration tests to ensure reliability in extreme environments.

Lead Time & Scalability

Rapid prototyping and flexible scalability are non-negotiable. EBest delivers prototypes in 24 hours for standard boards and scales from small batches (10pcs) to mass production (1M+ pcs) seamlessly, adapting to your project’s growth.

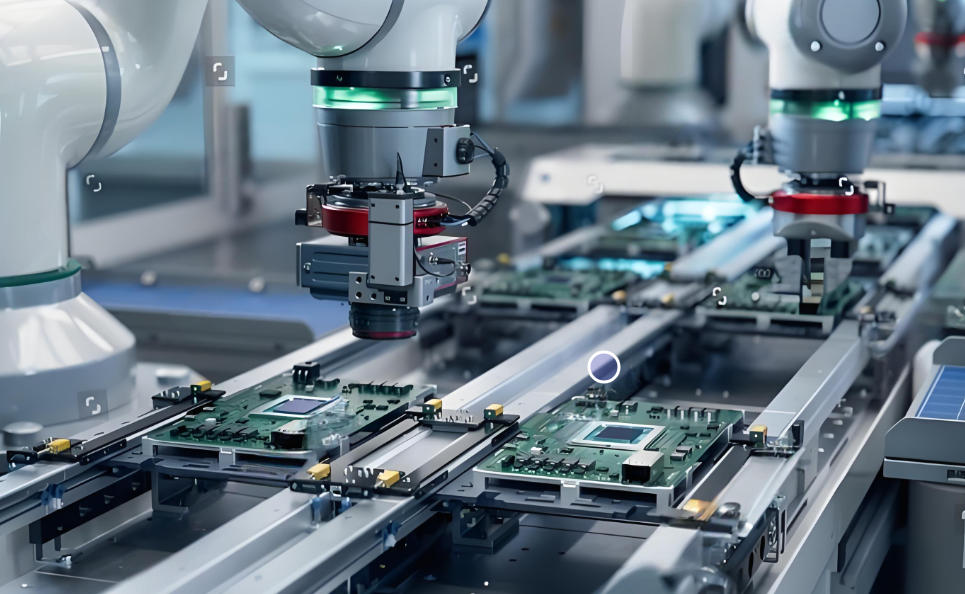

How to Choose a Reliable PCB Fabrication Manufacturer: 2026 Ultimate Guide

How to Compare PCB Fabrication Manufacturers Effectively?

Use the following table to compare key metrics of different PCB fabrication manufacturers, avoiding low-cost traps that sacrifice quality.

Evaluation MetricEBest StandardLow-Quality ManufacturerIndustry Average
Yield Rate≄99.8%≀95%97-98%
Prototyping Lead Time24 Hours5-7 Days3-4 Days
CertificationsISO 9001, UL, RoHS, IATF 16949No Formal CertificationsISO 9001, RoHS
Technical Support7×24 Hours, 2-Hour ResponseNo After-Sales SupportWorking Hours Support
Material QualityTG170 FR4, Rogers, High-Quality Copper FoilLow-Grade Recycled MaterialsTG140 FR4

What Are the Common PCB Fabrication Defects and Solutions?

Short Circuits (Bridging)

Short circuits are caused by incomplete etching, solder mask offset, or excessive solder. Resolve them by optimizing etching parameters (time/concentration), increasing solder mask bridge width to >0.1mm, and designing stencil openings to reduce solder volume. EBest’s automated etching line ensures uniform copper removal to avoid this issue.

Open Circuits (Breakage)

Open circuits stem from substrate scratches, drilling deviations, or over-etching. Fixes include strengthening material handling, calibrating drilling equipment to ±0.05mm precision, and controlling etching rate. EBest uses laser drilling and real-time process monitoring to minimize such defects.

Board Blistering & Delamination

Blistering results from material moisture absorption, excessive thermal stress, or poor resin curing. Prevent it by storing PCBs in vacuum packaging (≀30% RH), using low-CTE substrates, and limiting lead-free soldering peak temperature to <260℃. EBest pre-bakes all materials before production to remove moisture.

How to Optimize PCB Design for Manufacturability (DFM)?

DFM optimization reduces production defects and costs. As a professional PCB fabrication manufacturer, EBest recommends the following key points:

  • Add teardrop transitions to pads to enhance copper foil adhesion and prevent pad lifting.
  • Control line width and spacing: minimum 0.1mm for line width, 0.1mm for spacing (IPC Class 2).
  • Place ground vias every λ/20 for high-speed signals to reduce EMI interference.
  • Provide Gerber files (.gb/.zip) instead of design source files (PADS/Altium) for stable production.
  • Mark impedance requirements clearly, and collaborate with the manufacturer to select appropriate materials and stack-ups.

What Is the Cost Structure of PCB Fabrication?

PCB fabrication costs depend on material, layer count, size, quantity, and special processes. The main components include substrate cost (30-40%), copper plating (15-20%), solder mask/surface treatment (10-15%), processing fees (20-25%), and testing fees (5-10%). EBest offers transparent pricing with tiered discounts for large batches, avoiding hidden costs.

Which Surface Treatment Is Best for Your PCB Project?

Surface treatment affects solderability, corrosion resistance, and lifespan. The table below compares common options to help you choose:

Surface TreatmentAdvantagesDisadvantagesSuitable Scenarios
Immersion GoldExcellent Solderability, Long Shelf Life (12 Months)Higher CostHigh-End Electronics, Connectors
Hot Air Solder Leveling (HASL)Low Cost, Good DurabilityUneven Surface, Short Shelf Life (3 Months)Industrial Control, Consumer Electronics
Immersion SilverSmooth Surface, Moderate CostProne to OxidationHigh-Density PCBs, Fast Prototyping

FAQ About PCB Fabrication Manufacturer

How Long Does PCB Fabrication Take?

Standard prototyping (2-4 layers, 10×10cm) takes 24-48 hours at EBest. Complex boards (HDI, multilayer ≄8 layers) take 3-5 days for prototyping and 7-15 days for mass production. Expedited services are available for urgent projects, with 12-hour turnaround for simple prototypes.

What Certifications Should a Reliable PCB Fabrication Manufacturer Have?

Core certifications include ISO 9001 (quality management), UL (safety compliance), RoHS (environmental protection), and IATF 16949 (automotive grade). For medical electronics, ISO 13485 is required. EBest holds all these certifications to meet global standards.

Can a PCB Fabrication Manufacturer Handle Custom Material Requirements?

Yes. EBest supports custom materials like Rogers (high-frequency), aluminum substrates (heat dissipation), and high-TG FR4 (TG170/TG200) for industrial and automotive applications. Our engineers collaborate with you to select materials matching your project’s performance needs.

How to Verify the Quality of PCB Fabrication?

Verify quality through inspection reports (AOI, X-Ray, impedance test), yield rate data, and reliability test results (thermal shock, vibration). EBest provides a full inspection report for each batch, including IPC-A-600 visual inspection standards compliance.

What File Formats Does a PCB Fabrication Manufacturer Accept?

Most manufacturers accept Gerber files (.gb/.zip) as the standard format. Avoid sending design source files (PADS, Altium) as they may cause compatibility issues. EBest also supports ODB++ files for complex projects and offers DFM checks to optimize file compatibility.

Does EBest Offer One-Stop PCB Fabrication Services?

Yes. EBest provides end-to-end services from PCB fabrication to SMT assembly, including component sourcing, soldering, and final testing. This integrated solution reduces lead time and ensures consistency between PCB and assembly quality.

How to Ensure On-Time Delivery from a PCB Fabrication Manufacturer?

Choose a manufacturer with digital production management (ERP/MES systems) for real-time order tracking. EBest uses MES to monitor every production stage, with dedicated project managers updating you on progress. We guarantee a 99.9% on-time delivery rate and provide contingency plans for supply chain disruptions.

Why Is Impedance Control Critical in PCB Fabrication?

Impedance control ensures stable signal transmission in high-speed PCBs (≄1GHz), avoiding signal reflection and distortion. A professional PCB fabrication manufacturer like EBest controls impedance to ±5% precision through material selection, stack-up design, and copper thickness control. This is essential for 5G, AI, and automotive radar applications.

How to Reduce PCB Fabrication Costs Without Sacrificing Quality?

Optimize design to avoid unnecessary complex processes (e.g., blind/buried holes if not required), choose standard materials for non-critical applications, and order in batches to get tiered discounts. EBest’s DFM team provides cost-saving suggestions while maintaining quality, such as optimizing board size to maximize panel utilization.

What After-Sales Support Should a PCB Fabrication Manufacturer Provide?

Reliable after-sales support includes technical consultation, defect analysis, and replacement for qualified quality issues. EBest offers 7×24-hour technical support, 48-hour response to quality complaints, and a one-year warranty for all PCB products. Our engineers help troubleshoot assembly and performance issues to ensure project success.

EBest is a trusted PCB fabrication manufacturer with years of experience serving global clients in automotive, medical, 5G, and industrial sectors. We provide high-quality PCB fabrication services, including prototyping, mass production, and custom solutions. If you need reliable PCB fabrication, place your order with us today via email at sales@bestpcbs.com. Our team will respond within 2 hours to support your project.

PCB Fabrication China, Rapid Prototyping, Assembly Services
Monday, June 23rd, 2025

PCB fabrication china is more than a search term; it is the door to a huge ecosystem that blends speed, skill, and cost‑effectiveness. In this guide you will see how Chinese plants turn design ideas into reliable boards, how rapid prototypes cut weeks off a schedule, and how assembly services let you launch products sooner. You will also meet EBest Circuit (Best Technology), a factory that fixes your needs with practical solution.

EBest Circuit (Best Technology) provides PCB fabrication, rapid prototyping, and assembly services in China. High-mix, low-volume, high-quality, fast prototyping, and turnkey assembly service are our core competencies. Our wide PCB range includes FR4 PCBs, ceramic PCBs, and metal core PCBs. Just feel free to contact us via sales@bestpcbs.com for effective solutions for your PCB fabrication projects.

PCB Fabrication China, Rapid Prototyping, Assembly Services

What Is the Best PCB Fabrication China Company?

Every engineer wants the “best,” yet that word means different things. Some value dense HDI layers, some need medical traceability, and others just want parts shipped fast. In China the list of factories is long, but only a few check every box. The best partner masters three areas at once: production management, technical design help, and delivery quality. Clear planning tools avoid the last‑minute schedule chaos that plagues many shops. A digital MES platform logs every panel and keeps data honest. A customer sees real‑time status and can adjust volumes without fear of hidden delays. That is how EBest Circuit (Best Technology) has built trust. Its engineers run early DFM reviews, spot Mark point gaps, and resize tiny test pads that slow AOI. When boards ship, each has a QR code that links to full trace records. The “best” is not just clean copper; it is also calm communication, stable lead times, and data you can show your own clients.

PCB Fabrication China

PCB Fabrication Manufacturer in China

China hosts thousands of board shops, yet the market sorts itself into clear tiers:

Tier‑1 Integrated Groups. These giants run multiple plants, own laminate lines, and serve telecom or server farms. They tackle high‑layer counts but may give prototypes low priority.

Tier‑2 Specialist Plants. Focus areas include RF, ceramic, or flex. They invest in niche gear and skilled staff. EBest Circuit (Best Technology) sits here, pairing fine‑line know‑how with agile service.

Tier‑3 Mass Producers. They chase large consumer orders. Prices are sharp, yet service is thin and design feedback minimal.

When you need both speed and precision, the specialist tier wins. EBest Circuit (Best Technology) uses small‑batch parallel lines, so one day it runs a six‑piece RF sample, the next day a thousand power boards. The team holds ISO 9001, ISO 13485, IATF 16949, and AS9100D certificates. These cover medical, automotive, and aerospace fields, letting customers merge different projects under one roof rather than juggle several vendors.

Who Is the Largest PCB Fabrication China Supplier?

Measured by revenue, the crown often shifts between names such as Wus, Shennan, and DSBJ, each topping billions of dollars in sales. Their size brings depth of process but also layers of approval that can slow tweaks. For small to mid runs you may wait in a queue behind telecom giants. That gap is where agile factories thrive. EBest Circuit (Best Technology) may not be the biggest by floor space, yet its smart line layout and lean cells give response speed that giants cannot match. A focused scope means a project manager can tweak a drill file this morning and still plate copper tonight. Growth is steady but controlled, so each client keeps a direct contact, not a ticket number in a help desk.

Is EBest Circuit (Best Technology) in China?

Yes. EBest Circuit (Best Technology) is head‑quartered in Shenzhen. The site sits close to laminate suppliers like Shengyi, logistics hubs in Shenzhen, and the port of Hong Kong. That location drops transit time and lets engineers visit raw material plants the same day an issue appears. For customers abroad this means shorter DHL routes and consistent freight rates. Local teams speak fluent English, which clears cultural hurdles and streamlines calls.

How Much Does PCB Fabrication China Cost?

Cost moves with layer count, copper weight, surface finish, and above all, order volume. A two‑layer FR‑4 sample under 100 mmÂČ may cost under USD 30 shipped air. Move to eight layers, blind vias, ENIG finish, and that price rises toward USD 150 for the same outline. Volume orders drive price per piece down fast once panels fill the full 18 × 24 inch sheet. EBest Circuit (Best Technology) gives sliding scales on each quote, so design teams see break‑even points between prototype and pilot runs. The quote also lists lead time options if you need: standard and express. Express lifts cost a little but the urgent boards can be finished within 24 hours. All fees appear in one sheet—fabrication, parts, SMT set‑up—so buyers avoid hidden extras later.

What Is the Most Commonly Used PCB Material in PCB Fabrication China?

Standard FR‑4 remains the workhorse due to balanced strength, thermal limits, and price. For flex layers, PI (polyimide) is top. High‑frequency lines move toward low‑loss Rogers 4350B or Shengyi S1000-2. Ceramic boards use alumina or aluminum nitride for LED cooling. EBest Circuit (Best Technology) stocks key grades from local and global brands. A buffer stock policy keeps two weeks of common cores and coppers on hand, which shields your schedule from sudden laminate shortages.

What Is the Most Commonly Used PCB Material in PCB Fabrication China?

Why Should You Choose EBest Circuit (Best Technology) as Your PCB Fabrication China Partner?

1. It clears design snags fast. Mark points off the grid? V‑score too deep? In‑house CAM engineers spot the glitch, send a marked Gerber back within two hours, and jump to drill only after you approve.

2. It tracks every board. A laser QR at final AOI links drill bits, plating bath ID, and solder mask batch. If a field failure occurs, you view root data at once. That cuts RMA cycles and builds end‑customer trust.

3. It levels up assembly. Fabrication and SMT share one floor, so panels stay indoors. Parts pass X‑ray, then SPI, then reflow in a nitrogen oven. Mixed‑tech builds place BGA on side A, then through‑hole on side B, soldered by selective wave. A final functional jig runs power‑up and boundary scan.

4. It guards quality. Certifications cover ISO 9001, ISO 13485, IATF 16949, and AS9100D. Audits by medical and aerospace clients verify processes each year.

Why Should You Choose EBest Circuit (Best Technology) as Your PCB Fabrication China Partner?

In summary, choosing a PCB fabrication china partner is no longer a game of rock‑bottom price. True value lies in smart planning, reliable quality, and rapid prototyping that keep your design moving. EBest Circuit (Best Technology) answers each of your demands—plan shifts, design hurdles, and traceability—through an MES backbone, on‑site assembly, and a culture of open talks. Offering high-quality PCBs is the prerequisite for us to gain the trust of both potential clients and regular customers. And good and prompt service is our soft skill. Reach out to us and share your Gerbers with us at sales@bestpcbs.com, and feel the difference on your very next project.
