High Frequency PCB Materials, High-Frequency Materials PCB​
Wednesday, October 22nd, 2025

High frequency PCB materials form the bedrock of today’s advanced electronic systems. From 5G infrastructure to radar and satellite communications, the right materials make all the difference. This guide explores their types, selection criteria, and design best practices to help you achieve optimal performance in your PCB projects.

Tired of battling signal loss, heat, and unpredictable performance in your high frequency PCB design?

  • ​Unexpected Signal Degradation:​​ Signals weaken or distort across the board, ruining performance.
  • ​Impedance Mismatches:​​ Poor control over impedance leads to signal reflections and data errors.
  • ​Heat Management Issues:​​ Components overheat because the PCB substrate can’t dissipate thermal energy effectively.
  • ​Manufacturing Inconsistencies:​​ Even with great materials, the final board fails to meet design specifications due to fabrication flaws.
  • ​Cost-Performance Trade-offs:​​ Selecting a material that is either over-specified and expensive or under-performing for the application.

The good news is that these challenges have real solutions. Here’s how a specialized manufacturer can help:

  • ​Ensuring Signal Integrity:​​ Precise fabrication maintains signal strength and clarity from start to finish.
  • ​Guaranteeing Impedance Control:​​ Advanced processes deliver consistent trace geometry and material properties for perfect impedance matching.
  • ​Implementing Effective Thermal Management:​​ Expertise in materials like aluminum backed PCB and ceramics efficiently draws heat away from critical components.
  • ​Maintaining High Quality PCB Standards:​​ Rigorous process controls ensure every board produced matches the design intent perfectly.
  • ​Optimizing for Value:​​ Guiding you to the most cost-effective material choice for your specific frequency, power, and environmental needs.

In summary, by combining intelligent material selection with expert manufacturing, you can overcome the obstacles. BEST Technology combines deep material knowledge with state-of-the-art manufacturing capabilities for high volume PCB manufacturing, serving industries from automotive to aerospace. Pls don’t hesitate to contact us at sales@bestpcbs.com, if you have any high-frequency materials PCB inquires.

High Frequency PCB Materials

Why High Frequency PCB Materials Matter for Your Designs?​

​In high-frequency designs, the PCB laminate is far from inert packaging. Its intrinsic electrical properties become fundamental parameters in your circuit, directly influencing signal speed, integrity, and power efficiency.

Performance hinges on two key properties:

  • ​Dielectric Constant (Dk):​​ Controls signal propagation velocity and impedance. An unstable Dk causes impedance mismatches, signal reflections, and timing delays.
  • ​Dissipation Factor (Df):​​ Measures signal energy lost as heat. A lower Df is non-negotiable for minimizing attenuation in high-speed channels.
    As clearly illustrated in the figure below, the signal loss characteristics vary significantly across different material grades. For instance, Ultra Low Loss materials exhibit a loss factor at 10GHz that is several times lower than that of standard materials. This superior performance is critical for ensuring signal integrity over long-distance transmissions.

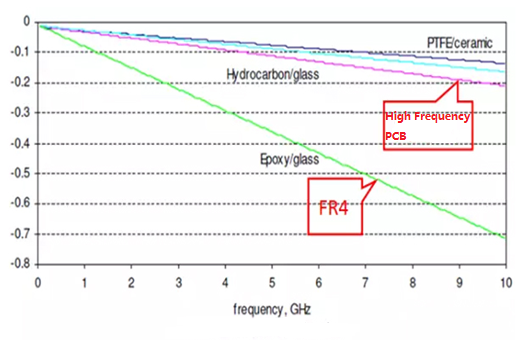

High-Frequency vs. High-Speed: A Material Focus Divergence​

  • ​High-Frequency (RF/Microwave) Focus:​​ Prioritizes ​Dk stability. Applications include power amplifiers and radar systems (e.g., 24/77GHz). For demanding frequencies, PTFE-based materials are often essential.
  • ​High-Speed Digital Focus:​​ Prioritizes ​low Df absolute values. Materials are tiered by Df: Standard Loss, Low Loss, Very Low Loss, etc., to match specific data rate requirements (e.g., 56G PAM4).

Beyond the Laminate: Copper and Manufacturing Synergy​

  • ​Copper Foil Roughness (Rz):​​ The “skin effect” at high frequencies makes foil roughness a primary source of loss. Low-loss designs require Very Low Profile (VLP) copper.
  • ​Precision Fabrication:​​ Material potential is unlocked only through specialized processes.
    • ​Tight Etch Tolerances:​​ Coupled linewidths may require control to ​​±0.01mm.
    • ​Plasma Treatment:​​ PTFE materials need plasma treatment for reliable hole plating, unlike standard FR-4.
    • ​Controlled Lamination:​​ Strict protocols prevent delamination in multilayer boards.

​To sum up, selecting high-frequency materials is a holistic decision integrating electrical requirements, material science, and manufacturing capability. The optimal laminate, when paired with precision fabrication, transforms from a simple substrate into the foundation of your product’s competitive edge.

What Are High Frequency PCB Materials and How They Influence Performance?

So, what exactly sets these materials apart? Standard FR-4 epoxy-glass laminates exhibit significant signal loss (dissipation factor) and less stable dielectric constant (Dk) at higher frequencies. This makes them unsuitable for demanding applications. High frequency PCB materials are engineered to overcome these limitations.

They primarily fall into several categories:

  • ​PTFE-Based Composites:​​ Materials like Rogers RO3000® series. PTFE (Teflon™) offers exceptionally low loss, making it ideal for extremely high-frequency applications like millimeter-wave radar. Its softness, however, requires specialized processing skill.
  • ​Ceramic-Filled PTFE Composites:​​ These materials, such as Rogers RO4000® series, blend PTFE with ceramic particles. This improves the Dk stability and mechanical properties for easier fabrication, offering a great balance of performance and manufacturability.
  • ​Hydrocarbon-Based Ceramic Composites:​​ Materials like Arlon’s 25N or Isola’s Tachyon® series. They provide excellent electrical properties and are more compatible with standard FR-4 multi-layer lamination processes, often reducing cost.
  • ​Specialized Substrates:​​ This includes aluminum backed PCB for excellent thermal management, and polyimide-based materials for high temperature environments.

The performance influence is profound. A low dissipation factor minimizes energy converted to heat, allowing signals to travel farther with less loss. A stable Dk ensures consistent impedance, which is the cornerstone of high frequency PCB design. Furthermore, these materials must withstand the high temperatures involved in assembly and operation. Ultimately, the theoretical advantages of these materials are only realized through a manufacturer’s ability to process them without compromising their inherent properties.

High Frequency PCB Design Guidelines: From Material Selection to Layout

Designing a successful high-frequency board requires a holistic approach. Your material selection and layout rules are deeply intertwined. Here are some essential high frequency pcb design guidelines to consider:

  • ​Prioritize Impedance Control:​​ This is non-negotiable. Your design must specify controlled impedance for critical traces. Work with your manufacturer early to determine the correct trace width and spacing for your chosen material’s Dk and board stack-up.
  • ​Minimize Dielectric Loss:​​ Select a material with a low dissipation factor (Df) for your target frequency. The higher the frequency, the lower the Df needs to be to avoid excessive signal attenuation.
  • ​Manage Trace Geometry:​​ Avoid sharp 90-degree bends; use curved or 45-degree traces instead to prevent impedance discontinuities and signal reflection.
  • ​Plan Your Layer Stack-up Carefully:​​ Use a symmetric stack-up to prevent warping. Shield sensitive signal layers with ground planes to contain electromagnetic fields and reduce crosstalk.
  • ​Consider Thermal Expansion:​​ Ensure the materials used in your PCB (copper, substrate) have compatible Coefficients of Thermal Expansion (CTE) to prevent delamination or broken vias during thermal cycling.

These guidelines highlight a critical point: material selection and design rules are a package deal. A manufacturer’s experience is what allows these design principles to be successfully implemented. They can advise on manufacturability, suggest stack-up adjustments, and ensure the final product matches your high frequency circuit design intent.

Selecting the Right PCB Material for High Frequency Applications

Choosing the optimal material is a balancing act between electrical performance, thermal requirements, mechanical needs, and cost. There is no single “best” material, only the best for your specific application. Ask these key questions:

  • Above 10 GHz, low-loss PTFE-based materials are often necessary. Between 1-10 GHz, ceramic-filled PTFE or hydrocarbon ceramics may offer a better cost-to-performance ratio.
  • High-power designs generate heat. You may need a material with high thermal conductivity, like an aluminum backed PCB or a specialized thermally conductive laminate.
  • Will the board face extreme temperatures, humidity, or harsh chemicals? This may necessitate a material rated for high temperature or with low moisture absorption.
  • If you need a complex multi-layer board, consider materials that are compatible with FR-4 in a hybrid construction to manage costs.
  • For hybrid board material selection, high-frequency materials should be chosen according to customer requirements, with focus on dielectric constant and dissipation factor.
  • For the FR-4 material, medium-high Tg grades should be selected, also focusing on Dk and Df – with priority given to S1000-2M and IT180A materials for hybrid constructions.
  • For products with PIM requirements, special attention must be paid to the material’s PIM performance (typically -110 to -115 dBm).

A seasoned manufacturer has seen what works and what fails in real-world conditions. They can provide invaluable guidance, ensuring your material selection is not just theoretically sound but also practically optimal for manufacturing and long-term reliability.

SupplierMaterial ModelTg (℃)Td (℃)Z-CTE (%)Water Absorption (%)Dk (@1GHz)Df (@1GHz)
ShengyiS1000H≥150≥3482.80.094.60.011
S1000-2≥170≥3452.80.14.80.013
S1000-2M≥170≥3402.40.084.60.018
TaiguangEM825≥150≥3403.20.14.30.016
EM827≥175≥3502.60.124.20.019
ITEQIT158≥150≥3453.30.084.30.016
IT180A≥170≥3452.70.124.40.015

Common High Frequency PCB Materials and Their Applications

Different materials shine in different applications. Here’s a brief look at some common high frequency PCB materials and where you’ll find them:

  • ​Rogers RO4350B® (Ceramic-filled PTFE):​​ A popular workhorse for power amplifiers, filters, and low-noise amplifiers in cellular infrastructure and automotive radar. It offers a good blend of electrical performance and ease of fabrication.
  • ​Rogers RO3003® (PTFE-based):​​ With an ultra-low loss tangent, it is ideal for demanding applications like satellite receivers, point-to-point radio links, and aerospace systems operating at Ka-band and above.
  • ​Arlon 25N (Hydrocarbon Ceramic):​​ Often used in GPS antennas, cellular base station antennas, and other applications where performance and cost-effectiveness are key. It laminates well with FR-4.
  • ​Taconic TLY (PTFE-based):​​ Known for its consistent Dk and low loss, it is frequently specified in critical phased-array radar systems and high-frequency test equipment.
  • ​Aluminum Backed PCBs (Metal Core PCBs):​​ While the metal core is typically aluminum, the circuit layer uses a high-frequency dielectric. These are essential for high-power LED lighting, RF power amplifiers, and any application where heat dissipation is a primary concern.

The choice of material directly impacts the final product’s high-frequency performance and field reliability. Selecting a material outside its optimal window can lead to premature failure or underperformance.

ManufacturerModelZ-CTE (ppm/°C)Water Absorption (%)Dk (10 GHz)Df (10 GHz)
RogersRO4350B320.053.480.0037
RO4003C460.043.380.0027
RO4730G330.30.152.980.0029
RO3003250.0430.001
RO3006240.026.150.002
RT/duroid 58801730.022.330.0012
RT/duroid 58702370.022.20.0009
TaconicRF-10250.0810.20.0025
RF-35640.023.50.0018
TLX-81400.022.550.0019
TLY-51400.022.20.0019
ShengyiS7136300.063.420.003
SCGA-500 GF2202170.012.20.0009
SCGA-500 GF2551450.012.550.0014
SCGA-500 GF265950.0130.002
SG52202170.012.20.0009

Why Choose Best Technology for Your High Frequency PCB Needs?

At BEST Technology, we understand that your success depends on getting every detail right. We are more than a board fabricator; we are your partner in high frequency PCB design and manufacturing. Our commitment to excellence is backed by:

  • ​Advanced Manufacturing Infrastructure:​​ We operate state-of-the-art equipment capable of handling the most delicate high-frequency laminates with precision.
  • ​Rigorous Process Control:​​ Our MES (Manufacturing Execution System) tracks every order in real-time, ensuring repeatability and traceability. We hold ISO 9001, IATF 16949, and AS9100D certifications, reflecting our unwavering commitment to quality.
  • ​Expertise in High-Frequency Fabrication:​​ Our engineering team possesses deep knowledge in precise lamination, impedance control (with tolerances as tight as ±5% or better), and low-loss processing techniques specific to high frequency PCB materials.
  • ​High-Volume Capability Without Compromise:​​ We are equipped for high volume PCB manufacturing, delivering consistent quality across large production runs.

We bridge the gap between material science and manufacturing excellence. We take the inherent advantages of your chosen high frequency materials and translate them into a high-performance, reliable finished product.

Case of High Frequency Materials PCB Fabrication by Best Technology​

In the realm of high-frequency applications, signal integrity is paramount. Best Technology leverages advanced manufacturing techniques and a comprehensive material portfolio to deliver specialized PCB solutions for demanding wireless and high-speed digital products, ensuring superior performance and reliability.

​Primary Applications:​​

  • ​Wireless Communication Infrastructure:​​ 5G/6G base stations, antenna arrays (e.g., AAUs), RF/microwave modules, satellite communication equipment.
  • ​Automotive Electronics:​​ Advanced Driver-Assistance Systems (ADAS), automotive radar (e.g., 77GHz), vehicle-to-everything (V2X) systems.
  • ​Aerospace & Defense:​​ Radar systems, avionics, navigation equipment, electronic warfare systems.
  • ​High-Speed Data Communication:​​ Network servers, routers, switches, optical transceivers.
  • ​High-Performance Computing (HPC):​​ AI/ML accelerator cards, supercomputers.

​Key Technical Parameters & Process Capabilities for High-Frequency PCBs:​​

CategoryStandard Process Capability (Prototype/Production)Advanced Process Capability (Limited to Prototype)
​Core Materials​
• ​PTFE-Based​
• ​Ceramic-Filled
• ​Low-Loss/Speed Materials
​Layer Count​1 – 50 LayersUp to 100 Layers (≥50 layers require engineering review)
​Board Thickness​0.4mm – 6.0mm0.15mm – 10.0mm
​Copper Thickness (Outer)​​0.5oz – 2ozUp to 3oz
​Copper Thickness (Inner)​​0.5oz – 1ozUp to 2oz
​Min. Line/Space (Outer, 1oz)​​3.5mil / 4mil3mil / 3mil
​Min. Laser Drill Diameter​0.10mm (Aspect Ratio ≤ 1:1)0.070mm (Aspect Ratio ≤ 1:1)
​Min. Mechanical Drill Diameter​0.15mm0.15mm
​Impedance Control Tolerance​±10% (for impedance ≥50Ω)±6% (for impedance ≥50Ω)

​In a nutshell, Best Technology possesses end-to-end manufacturing capabilities for high-frequency PCBs, from material selection and precision patterning to lamination and final finishing. We focus on maintaining the stability of dielectric constant (Dk) and dissipation factor (Df), supported by stringent impedance control and advanced drilling technologies to provide reliable, high-performance circuit boards for cutting-edge applications. Our engineering team is available for consultation on specific requirements or special processes.

In conclusion, high frequency PCB materials are the critical starting point for any successful high-speed electronic device. Choosing the right substrate and partnering with a manufacturer who can faithfully build your design is the proven path to success. At BEST Technology, we provide the material guidance, manufacturing precision, and quality assurance you need to bring your most advanced products to market. Pls feel free to contact our experts at sales@bestpcbs.com for any high frequency materials PCB inquiries.

FAQs

Q1: What Tg values can your PCBs support? What are the benefits of high-Tg materials?​​
We commonly fabricate boards with Tg130, Tg150, and Tg170. We also have the capability to produce boards with high-Tg materials up to Tg260.

Generally, a Tg above 130°C is standard, while high-Tg is classified as above 170°C, and mid-Tg is above 150°C. An increased Tg value enhances the board’s properties, including:

  • Heat resistance
  • Moisture resistance
  • Chemical resistance
  • Overall stability

Higher Tg is particularly important for lead-free HASL processes, as it ensures the board can withstand higher temperatures.

​Q2: What is the maximum board size you can produce?​​
Our standard maximum finished board size is ​610mm x 610mm.

​Q3: What is the maximum number of layers you can achieve in a PCB?​​
We can manufacture multilayer PCBs with up to ​32 layers.

​Q4: What is the minimum thickness you can achieve for different layer counts?​​
Our standard minimum thickness capabilities are as follows:

  • ​Single/Double-sided boards:​​ 0.15mm ±0.1mm
  • ​4-layer boards:​​ 0.38mm ±0.1mm
  • ​6-layer boards:​​ 0.5mm ±0.1mm

​Q5: What is the smallest hole size you can drill?​​
We can drill micro-vias with a minimum finished diameter of ​0.1mm.

​Q6: Which PCB laminate brands do you commonly use?​​
We regularly work with several major, high-quality laminate brands, including:

  • Shengyi (Shenyi)
  • Kingboard (KB)
  • ITEQ
  • GDM

We can also source other brands based on your design requirements.

High Frequency PCB Materials, High Frequency Circuit Design
Thursday, August 21st, 2025

Have you ever faced such problems when design a PCB that used in high speed application?

  • Is your high-speed design bleeding signal strength?
  • How to solve poor thermal management in high-frequency systems to ensure stability and reliability?
  • How to effectively suppress severeEMI and meet EMC standards in high-frequency circuits?

At Best Technology, we fabricate high frequency PCB that can solve these problems. We use:

  • High quality materials with low loss and better shielding performance.
  • Utilize ground via array, densely arranging ground vias around radiation sources such as microstrip lines to form a “wall”.
  • Design multi-layer boards and adopt dedicated ground layers through reasonable stack-up design, provide a complete reference ground plane for high-frequency signals.

High frequency PCBs are essential in applications such as automotive radar, aerospace communication, medical imaging, 5G and satellite systems. These boards must handle signals above 100 MHz and, in many cases, well into the GHz range. At such speeds, signal losses, impedance mismatches, and electromagnetic interference (EMI) can cause severe degradation. Best Technology, a leading expertise in high frequency pcb manufacturing, can help to optimize your design and manufacture such board for you!

What is a High Frequency PCB?

A high frequency PCB is a printed circuit board designed to transmit signals above 500 MHz, often extending into 10 GHz, 30 GHz, or even higher depending on the application. Some applications, like automotive radar, require PCBs that perform stably at 77 GHz or more.

These boards are not limited to one sector. They are used in:

  • Wireless base stations and antennas
  • Radar for defense and vehicles
  • Satellite communication modules
  • High-speed computing and servers
  • Precision medical imaging devices

The key challenge is that as frequency rises, signals become more vulnerable to losses, reflections, and interference. A standard FR4 PCB cannot handle these issues beyond a certain point, which is why high frequency laminates and designs are essential.

High Frequency PCB Materials, High Frequency Circuit Design

High Frequency PCB Material

The choice of material determines how well a PCB will perform in high frequency environments. Engineers usually evaluate three main parameters:

  • Dielectric Constant (Dk): This defines how signals propagate through the material. A stable, low Dk improves signal speed and reduces delay.
  • Dissipation Factor (Df): Also called the loss tangent, this defines how much energy is lost as heat. Lower values are better for long-distance signal transmission.
  • Thermal Performance: Materials must handle fluctuating temperatures without expansion or deformation, especially in aerospace and automotive environments.

Common Materials Used in High Frequency PCB

  • PTFE (Teflon-based laminates): Offers extremely low loss and stable dielectric properties. Perfect for microwave and RF circuits, though harder to process during manufacturing.
  • Rogers laminates: Popular choices like RO4350B and RO3003 are widely used in communication devices due to their balance between cost and performance.
  • Arlon and Taconic: Trusted for aerospace and military-grade systems.
  • Ceramic-filled PTFE: Combines the benefits of PTFE with improved thermal stability, suitable for radar and satellite applications.
  • FR4: Economical, but only practical for low GHz applications, as losses rise sharply at higher frequencies.

When comparing FR4 to Rogers or PTFE, the difference is like comparing regular tires to high-performance racing tires. Both work, but only one is built for extreme conditions.

What is the Best PCB Material for High Frequency?

The “best†material depends on the actual use case. For example:

  • Up to 3 GHz: Rogers RO4350B provides stable performance at a manageable cost, widely used in RF applications.
  • Microwave range (10–30 GHz): PTFE laminates such as Taconic TLY or Rogers RO3003 give superior low-loss performance.
  • 5G antennas: Low Dk and Df materials like Rogers RO4835 are chosen for consistent performance in outdoor environments.
  • Automotive radar (77 GHz): Ceramic-filled PTFE materials are the only reliable solution due to their high thermal and frequency stability.

Cost also matters. PTFE offers the lowest insertion loss but requires advanced processing, increasing manufacturing cost. Rogers materials are easier to fabricate and balance cost and performance, which is why they are widely used.

High Frequency PCB Characteristics

High frequency PCBs stand out due to specific characteristics:

  • Stable dielectric constant across wide frequencies
  • Low signal loss
  • Thermal durability
  • Controlled impedance
  • Dimensional stability

These boards are engineered not just to survive but to deliver reliable, repeatable performance in demanding environments.

High Frequency PCB Design Guidelines

Designing a high frequency PCB is a delicate balance of precision, material choice, and layout strategy. Even small mistakes in design can cause significant signal loss, reflection, or interference at gigahertz frequencies. Below are the key guidelines that engineers follow to ensure high performance.

1. Controlled Impedance Design

At high frequencies, the impedance of each trace must be carefully calculated and maintained. Variations in trace width, thickness, or dielectric spacing can cause reflections and signal degradation. Designers usually rely on simulation software to calculate controlled impedance for microstrip, stripline, or coplanar waveguide structures. The target impedance is often 50Ω for single-ended signals or 100Ω for differential pairs.

2. Minimize Trace Lengths

Signal paths should be as short as possible. Long traces increase insertion loss, cause delay, and may introduce unwanted reflections. In applications like RF communication or 5G antennas, even small increases in trace length can degrade signal integrity significantly.

3. Reduce the Number of Vias

Each via acts as a small inductance and capacitance, which can reflect high-frequency signals. Limiting via usage and optimizing via placement is essential. When vias are unavoidable, designers often use via stitching or back-drilling techniques to reduce parasitic effects.

4. Ground Planes and Reference Layers

A continuous, solid ground plane beneath signal traces improves return paths and minimizes electromagnetic interference (EMI). Multiple ground planes can be used in multilayer boards to enhance shielding and reduce noise coupling. Proper stacking ensures that signal layers are adjacent to reference planes, which stabilizes impedance and improves signal quality.

5. Differential Pair Routing

Differential pairs are widely used in high-speed digital and RF circuits. These pairs carry complementary signals, which improves noise immunity and reduces crosstalk. Designers maintain strict control over trace spacing, length matching, and symmetry to preserve signal integrity.

6. Stack-Up Optimization

The stack-up, or layer arrangement, determines how signal layers, power planes, and ground planes interact. Proper stack-up design can reduce cross-talk, improve thermal management, and control impedance. High frequency PCBs often use hybrid stack-ups with PTFE or ceramic layers to balance performance and manufacturability.

Every decision—from material choice to trace width, via placement to ground plane configuration—directly impacts signal integrity. A high frequency PCB is not just about connecting components; it is about managing signals, controlling impedance, and reducing loss to ensure reliable, precise performance in the gigahertz range.

High Frequency PCB Design Guidelines

High Frequency PCB Manufacturer – Best Technology

Not all manufacturers are capable of producing high frequency PCBs. Handling PTFE and ceramic materials requires different lamination temperatures, drilling techniques, and plating processes compared with FR4.

At Best Technology, we bring specialized expertise in:

  • Fabricating Rogers, Taconic, PTFE, and hybrid PCB stack-ups.
  • Maintaining strict dimensional tolerances for impedance control.
  • Advanced inspection to measure dielectric thickness, copper roughness, and loss factors.
  • End-to-end MES traceability to ensure every board can be tracked back to its source materials and processes.

This combination of material knowledge, certified systems, and engineering support makes Best Technology a trusted partner for customers who need more than just a standard PCB.

Insertion Loss Comparisons of Common High Frequency PCB Constructions

MaterialFrequency (10GHz)Insertion Loss (dB/inch)Notes
FR4~10GHz0.7 – 1.0 dBHigh loss, not recommended
Rogers RO4350B~10GHz0.2 – 0.3 dBCost-effective, reliable
Rogers RO3003~10GHz0.1 – 0.15 dBExcellent for microwave use
PTFE Ceramic~10GHz0.05 – 0.1 dBPremium choice for radar/5G

This table clearly shows why FR4 is avoided for RF designs. At high GHz levels, FR4 can lose more than three times the signal strength compared with PTFE laminates.

High Speed vs High Frequency PCB – What is the Difference?

The terms “high speed†and “high frequency†are often confused, but they describe different challenges:

  • High Speed PCB: Concerned with digital signals, rise times, and data rates. Examples: DDR memory boards, data centers, and Ethernet.
  • High Frequency PCB: Concerned with analog and RF signals in the GHz range. Examples: radar, antennas, and satellite communication.

In practice, many designs overlap. For instance, a 5G base station board must support high-speed data processing and high-frequency RF transmission simultaneously. This is why engineers often require both high-speed and high-frequency design expertise.

High Speed vs High Frequency PCB – What is the Difference?

Why Do We Need High Frequency?

High frequency PCBs enable many of the technologies that define modern life:

  • 5G base stations and smartphones: Delivering ultra-fast, low-latency communication.
  • Automotive radar: Assisting advanced driver-assistance systems and autonomous driving.
  • Satellite communication: Providing global coverage for navigation and broadcasting.
  • Defense and aerospace: Supporting secure, high-performance radar and communication systems.
  • Medical devices: Enabling accurate imaging through MRI, CT, and ultrasound.

Without these boards, the next generation of communication and smart systems would not be possible.

Who Should Not Get High Frequency?

Not every project needs high frequency PCBs. For example:

  • A consumer product with simple sensors may not justify the extra cost.
  • Low-speed devices below 500 MHz can rely on FR4.
  • Cost-sensitive projects without high bandwidth needs should avoid high frequency laminates.

Choosing the right PCB type should always balance performance needs vs. budget.

FAQs

1. What frequency is considered high frequency in PCBs?

Any PCB designed to work above 500 MHz is typically considered high frequency, with advanced boards operating up to 60 GHz or more.

2. How does dielectric constant affect PCB performance?

A stable dielectric constant ensures signals propagate at predictable speeds and maintain impedance control, crucial for RF circuits.

3. Can FR4 be used for high frequency PCB?

FR4 works only up to around 1 GHz. Beyond that, losses become too high for reliable performance.

4. What are the challenges in manufacturing high frequency PCB?

Processing PTFE materials, achieving impedance accuracy, reducing insertion loss, and handling copper roughness are common challenges.

5. How to reduce signal loss in high frequency PCB design?

Use low-loss laminates, design shorter traces, avoid unnecessary vias, and apply smooth copper surfaces to reduce resistance.
