What is MCPCB LED plate? This guide explores its construction, applications, design principles, manufacturing, and cost factors for optimal thermal management solutions.

Are you worried about these problems?

• Does your lamp lose 30% brightness after half a year of use?
• Is the chip scrapped due to deformation of the substrate?
• Does the micro-pitch LED below P1.0 have local overheating due to insufficient heat dissipation?

Best Technology can provide solutions:

• 1.2W/m·K high thermal conductivity aluminum substrate + 5mil ceramic insulation layer, junction temperature reduced by 18℃, actual measured data, free thermal imaging testing service.
• Pre-oxidation aluminum substrate (CTE16ppm/℃) ±0.08mm laser cutting process, 200+ customers verified 99% yield.
• Nano-ceramic coating technology (thermal resistance <1.0K·cm²/W), supports 0.5mm pad spacing design, has passed 10,000 hours accelerated aging test.

Welcome to contact us if you have any request for metal core PCB: sales@bestpcbs.com.

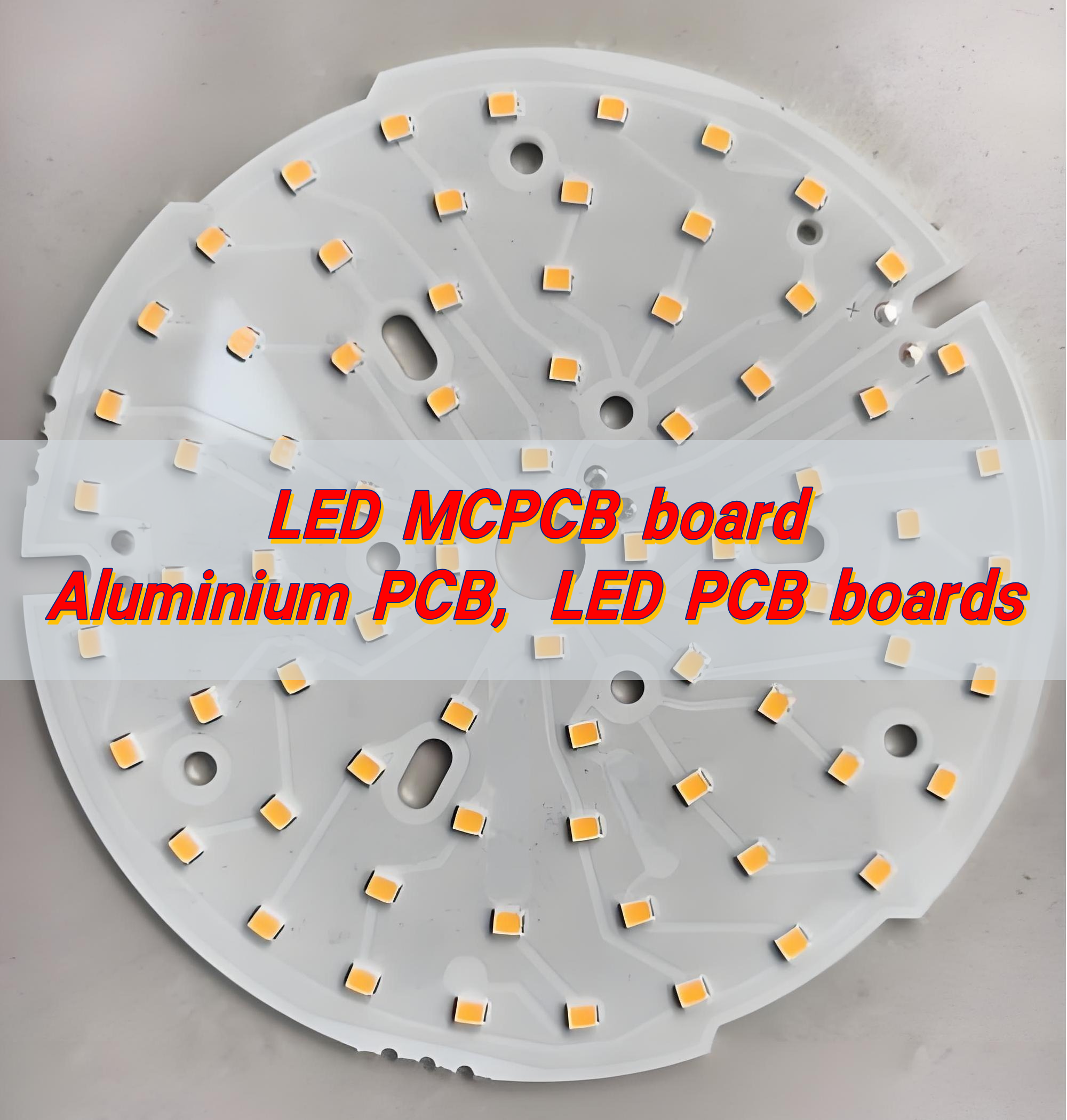

What Is the Meaning of MCPCB LED Plate?

A MCPCB LED plate refers to a Metal Core Printed Circuit Board (MCPCB) specifically engineered for LED lighting applications. It features a metal base (typically aluminum or copper) as the core material, bonded with a thermally conductive dielectric layer and a copper circuit layer. Designed to efficiently dissipate heat generated by high-power LEDs, it ensures optimal performance, reliability, and longevity of LED modules, fixtures, or displays by preventing overheating. Commonly used in automotive lighting, streetlights, and high-brightness LED systems.

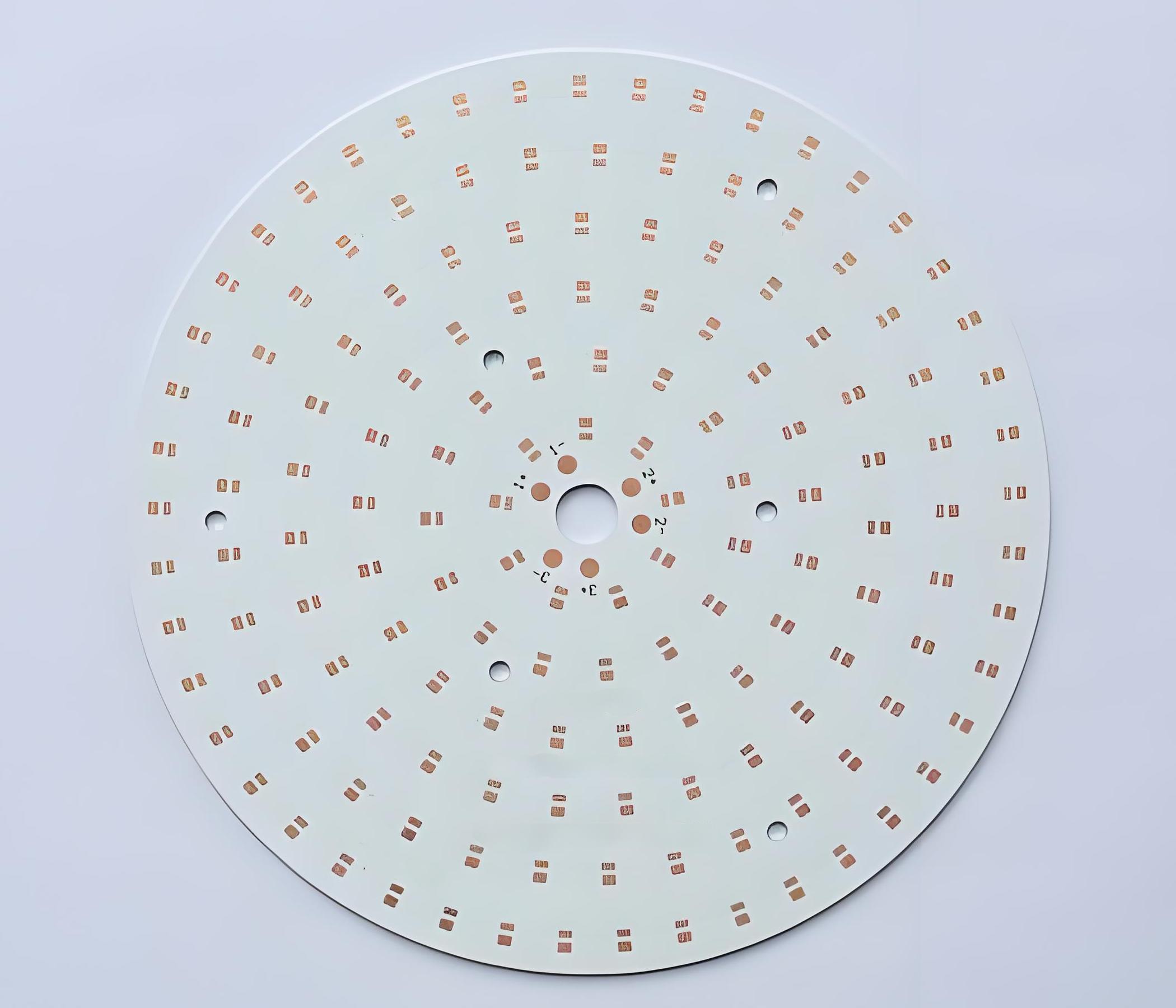

MCPCB LED PCB Construction

Metal Base Layer

• Material: Aluminum (most common) or copper.
• Function: Acts as a heat sink, drawing thermal energy away from LEDs to prevent overheating and extend component lifespan.

Dielectric Layer

• Material: Thermally conductive epoxy or ceramic-filled prepreg.
• Function: Electrically isolates the metal base from copper traces while enabling efficient heat transfer (thermal conductivity: 1–8 W/m·K).

Copper Circuit Layer

• Thickness: 1–10 oz (35–350 µm).
• Function: Transmits electrical signals and power to LEDs; thicker copper (≥2 oz) supports high-current applications (>3A per trace).

Solder Mask Layer

• Material: Epoxy-based or polyimide coating.
• Function: Protects copper traces from oxidation, solder bridging, and environmental contaminants (e.g., moisture, dust).

Surface Finish

• Options: HASL (cost-effective), ENIG (flat surface for fine-pitch SMT), or OSP (organic solderability preservative).
• Function: Ensures reliable solder joints during assembly and prevents corrosion.

How Does the MCPCB LED Plate Work?

• Heat Generation: LEDs convert electrical energy into light, generating waste heat (typically 50–70% of input power).
• Thermal Conduction: Heat transfers from LED junctions through solder joints to the copper circuit layer.
• Dielectric Layer Transfer: The thermally conductive dielectric (epoxy/ceramic) rapidly channels heat from copper traces to the metal base.
• Metal Base Dissipation: Aluminum/copper base acts as a heat sink, spreading heat across its surface area and radiating it into the environment.
• Cooling Efficiency: Reduces LED junction temperature by 20–40% compared to FR4 PCBs, preventing lumen degradation and color shift.
• Performance Impact: Maintains LED efficacy (>90% initial brightness) and lifespan (>50,000 hours) by avoiding thermal runaway.

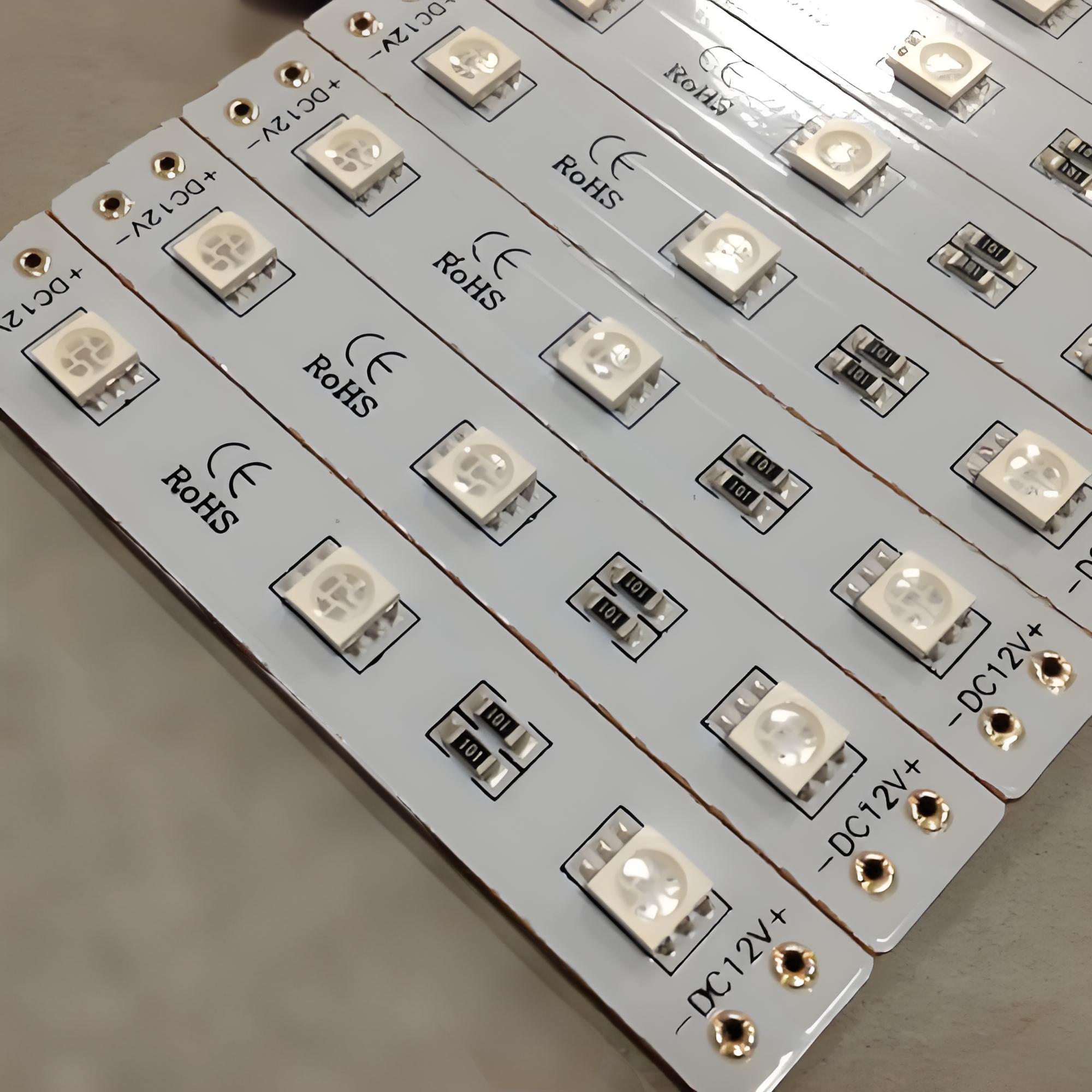

What Are Application of MCPCB LED Board?

• Automotive Lighting – Headlights, brake lights, DRLs. Ensures reliability in high-temperature engine environments.
• Outdoor Street Lighting – Solar-powered streetlights, floodlights. Enables compact, weather-resistant designs with minimal maintenance.
• Industrial High-Bay Lighting – Warehouses, factories. Stabilizes performance in dusty/hot conditions, cutting energy costs.
• Horticultural Grow Lights – Vertical farming, indoor agriculture. Maintains spectral accuracy for faster plant growth.
• UV LED Systems – Curing, medical sterilization. Prevents wavelength shifts from overheating, ensuring precision.
• Consumer Electronics Backlighting – TVs, laptops, smartphones. Enables thin profiles while preserving brightness and battery life.

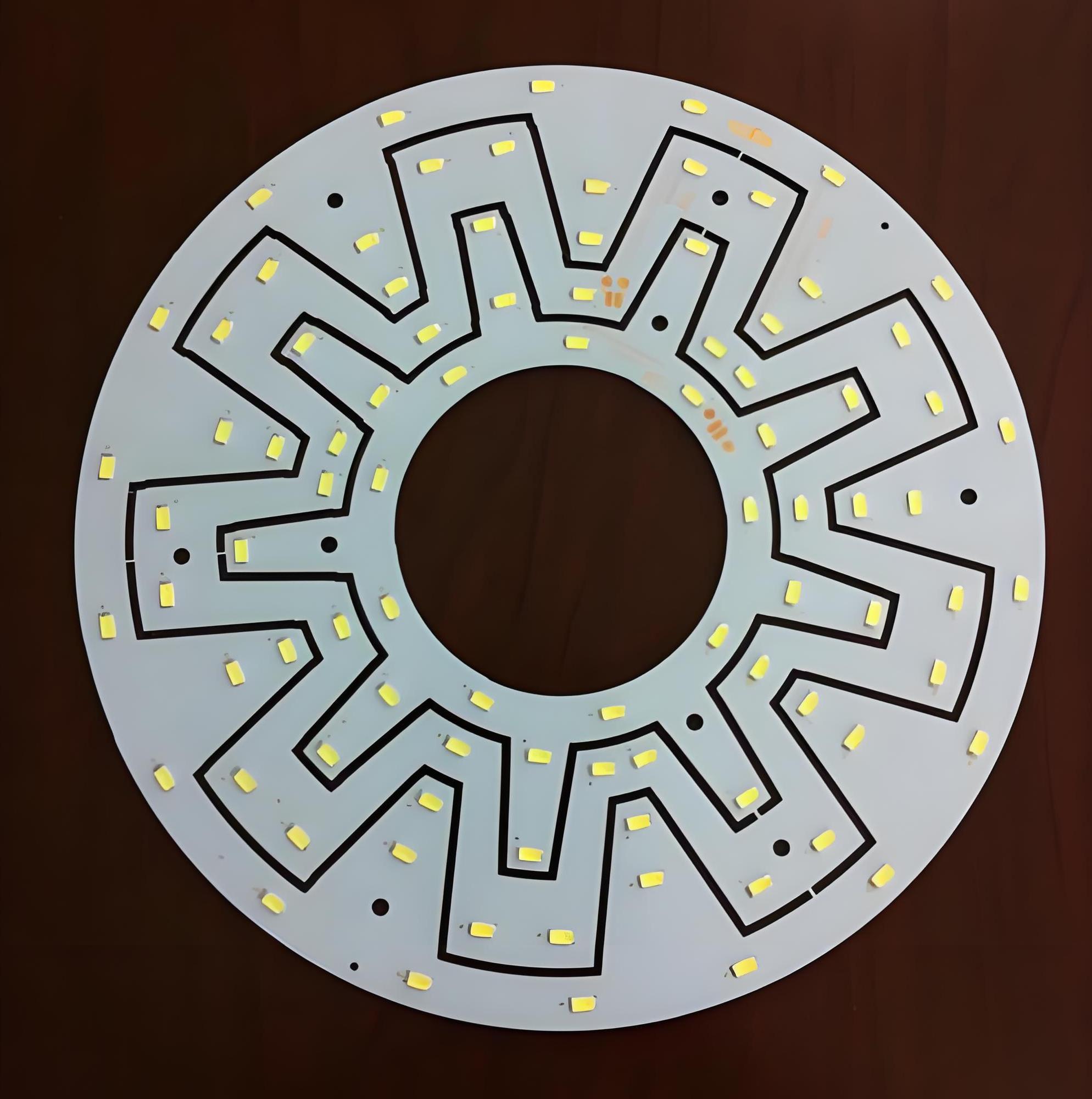

MCPCB LED Plate Design Guide

Below is MCPCB LED plate design guideline:

1. Metal Base Selection

• Aluminum (6061/5052): Lightweight, cost-effective, ideal for general LED lighting (streetlights, indoor fixtures).
• Copper: Higher thermal conductivity (3–4× aluminum) for ultra-high-power applications (automotive headlights, UV curing).
• Avoid: Steel (poor thermal performance) or overly thick metals (increases cost/weight without proportional gains).

2. Circuit Layer Design

• Copper Thickness: Use ≥2 oz (70 µm) for currents >3A/trace; ≥4 oz (140 µm) for >5A.
• Trace Width: Follow IPC-2221 standards (e.g., 10 mm width for 5A at 10°C rise).
• Via Design: Place thermal vias (0.3–0.5 mm diameter, 1:1 pitch) under LED pads to channel heat to the metal base.

3. Dielectric Layer Optimization

• Thermal Conductivity: Aim for ≥2 W/m·K (e.g., ceramic-filled epoxy). Avoid low-conductivity fillers (<1 W/m·K).
• Thickness: Keep ≤100 µm to balance insulation and heat transfer. Thicker layers reduce thermal efficiency.

4. Thermal Management Integration

• Heat Sink Attachment: Use thermal gap pads (1–5 W/m·K) or direct metal-to-metal bonding for passive cooling.
• Active Cooling: For >50W/cm² heat loads, add embedded heat pipes or miniature fans (requires PCB hole design).

5. Surface Finish

• ENIG (Electroless Nickel/Immersion Gold): Best for fine-pitch SMT assembly (e.g., 0.4 mm pitch LEDs).
• HASL (Hot Air Solder Leveling): Cost-effective for through-hole components; avoid for high-frequency signals.

6. Design Verification

• Thermal Simulation: Use ANSYS Icepak to model junction temperatures before prototyping.
• Testing: Validate under worst-case conditions (e.g., 85°C ambient, 100% load) to ensure ≤10°C delta between junction and case.

Metal Core PCB LED Plate Manufacturing Processes

MCPCB LED plate manufacturing processes:

1. Material Cutting

• Metal Base: Cut aluminum (5052/6061) or copper sheets to panel size (e.g., 12″×18″).
• Copper Foil: Slice thin copper sheets (1–4 oz thickness) to match metal base dimensions.

2. Surface Pretreatment

• Metal Base: Ultrasonic clean + chemical etch (e.g., NaOH) to remove oils/oxides, improving adhesion.
• Copper Foil: Micro-etch (H2SO4 + H2O2) to roughen surfaces for better dielectric bonding.

3. Dielectric Layer Application

• Coating: Roll-coat ceramic/epoxy-based thermal interface material (TIM) onto the metal base (thickness ≤100 µm).
• Curing: UV or thermal curing (150–180°C, 30–60 mins) to solidify the layer.

4. Copper Foil Lamination

• Stacking: Align pre-treated copper foil over the cured dielectric layer.
• Pressing: Hot-press (180–200°C, 40–60 kg/cm²) to bond copper foil to the dielectric, forming a single-layer structure.

5. Circuit Formation

• Dry Film Lamination: Attach photosensitive film to copper foil.
• Exposure & Development: UV image transfer to define traces; alkaline wash removes unexposed film.
• Etching: Chemical removal (CuCl2 + HCl) of unprotected copper, leaving precise circuitry.

6. Drilling

• Mechanical Drilling: CNC drill via holes (diameter ≥0.2 mm) for LED mounting and thermal vias.
• Deburring: Remove drilling residues to ensure clean hole walls.

7. Surface Finish

• Electroless Nickel/Immersion Gold (ENIG): Apply 3–5 µm Ni + 0.05–0.1 µm Au for fine-pitch SMT soldering.
• HASL (Hot Air Solder Leveling): Tin coating for through-hole components (cost-effective alternative).

8. Testing & Inspection

• Electrical Test: Flying probe/AOI to detect shorts/opens.
• Thermal Validation: Simulate 85°C operation to verify heat dissipation (junction temp ≤120°C).

9. Cutting & Final QA

• Routing: CNC milling to separate panels into individual boards.
• Visual Inspection: 100% check for defects (e.g., scratches, incomplete plating).

10. Packaging & Shipping

• Vacuum Packaging: Moisture-resistant bags + desiccant to prevent oxidation.
• Labeling: Include lot number, RoHS compliance, and thermal performance specs.

How to Choose a Reliable MCPCB Manufacturer?

Methods about how to choose a trusted MCPCB LED plate Manufacturer:

Verify Certifications:

• Confirm ISO 9001/IATF 16949 (quality), UL (safety), and RoHS compliance.
• Cross-check certificates via official databases (e.g., UL’s online portal).

Inspect Material Quality:

• Request datasheets for thermal conductivity (e.g., aluminum: 1.0–4.0 W/m·K) and dielectric layer specs (thermal resistance <0.1°C·cm²/W).
• Ask for third-party lab reports or in-house test results (e.g., ion contamination checks).

Assess Production Equipment:

• Ensure factories use automated lines, CNC machines, and environmental testing chambers (e.g., thermal shock chambers).
• Check for advanced capabilities like laser drilling (microvias <0.1mm) or thermoelectric separation.

Evaluate Customization Flexibility:

• Confirm support for 1–8 layers, hybrid designs (FR4 + MCPCB), and surface finishes (ENIG, HASL, OSP).
• Inquire about rapid prototyping (e.g., 24-hour turnaround for single-layer boards).

Check Lead Time & MOQ:

• Confirm delivery timelines: 4–21 days for prototypes, 10–15 days for bulk orders (>1,000 pcs).
• Prioritize low MOQ (5–10 pcs) to minimize inventory risk.

Review Reputation:

• Prioritize suppliers with >10 years of MCPCB experience (e.g., E-CER: 30 years).
• Request client references (e.g., automotive or LED OEMs) and check online reviews.

Confirm Technical Support:

• Ensure engineers review Gerber files and provide DFM (Design for Manufacturability) feedback.
• Verify failure analysis capabilities (e.g., X-ray inspection, cross-sectioning).
• Clarify warranty terms (e.g., 1–2 years for material defects).

Compare Pricing Transparency:

• Request itemized quotes (material, labor, tooling) and avoid hidden fees (e.g., NRE costs).
• Negotiate volume discounts (10–30% off for orders >500 pcs).

How Much Does A MCPCB LED Board Cost?

MCPCB LED Board Price Range

• Standard Aluminum PCB (Single-layer, 1oz Cu): Around $0.05–$0.15/cm² (basic LED lighting).
• High-Thermal Copper PCB (Multi-layer, 2oz+ Cu): Around $0.30–$0.80/cm² (automotive/high-power applications).
• Prototype Costs (Small Batch): Around $50–$200/board (engineering fees included).

MCPCB LED Board Cost Influencers

• Substrate Material: Copper-based boards cost 2–3x aluminum due to superior thermal conductivity
• Layer Count: Multi-layer designs increase costs by 30–50% vs. single-layer
• Copper Thickness: 3oz heavy copper adds ~$0.08/cm²
• Surface Finish: Gold plating (ENIG) costs 20–40% more than HASL
• Order Volume: Bulk orders (>1,000pcs) reduce unit costs by 30–50%
