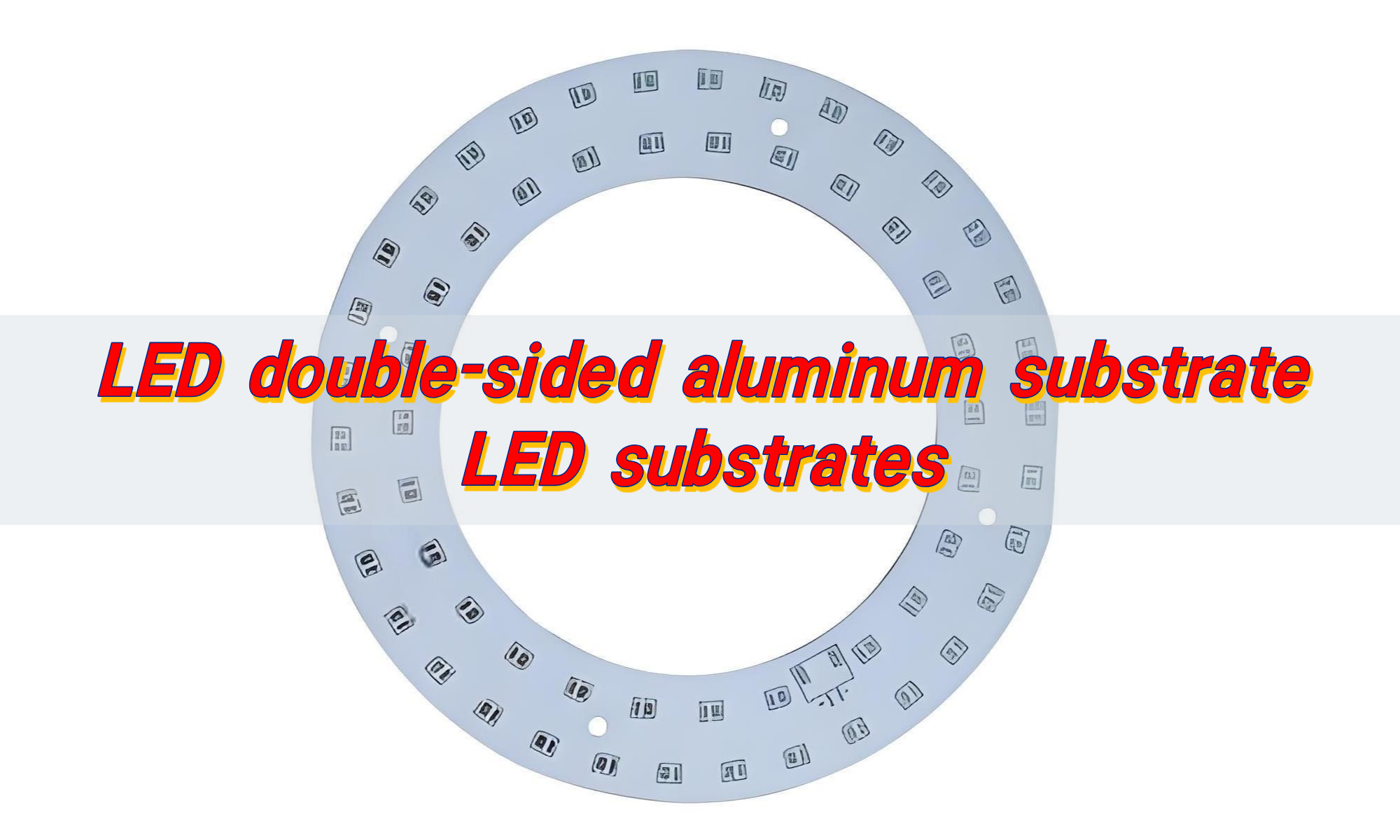

LED double-sided aluminum substrate, LED substrates

Friday, August 22nd, 2025

LED double-sided aluminum substrate is a high thermal conductivity circuit board with copper wiring on both sides of the aluminum substrate. LEDs are soldered on one side and drive or control circuits are carried on the other side. The aluminum core in the middle dissipates heat quickly, allowing high-power lamp beads to operate stably in a smaller space. It has been widely used in automotive headlights, street lights and high-density backlight modules.

LED double-sided aluminum substrate, LED substrates

Are you curious about Best Technology’s LED double-sided aluminum substrate?

Will double-sided wiring lead to short circuits or signal distortion due to inaccurate interconnections?

Is heat dissipation balanced on both sides, preventing localized overheating that could affect the life of the lamp?

Will the copper foil easily peel off after repeated soldering?

Does the cost of double-sided processing justify the performance improvement?

Best Technology’s LED double-sided aluminum substrate can answer these questions.

Using high-precision drilling and alignment processes, interconnect holes are precisely positioned, providing reliable insulation and preventing short circuits or signal issues.

The double-sided aluminum base design, with its symmetrical heat dissipation path, ensures even heat conduction, reduces localized overheating, and extends the life of the lamp.

The copper foil and aluminum base are tightly bonded through a high-temperature pressing process, resistant to soldering heat shock and maintaining stable adhesion after repeated soldering.

The double-sided design increases circuit density and heat dissipation efficiency. Process costs are optimized through large-scale production, and the performance improvements far outweigh the cost increases.

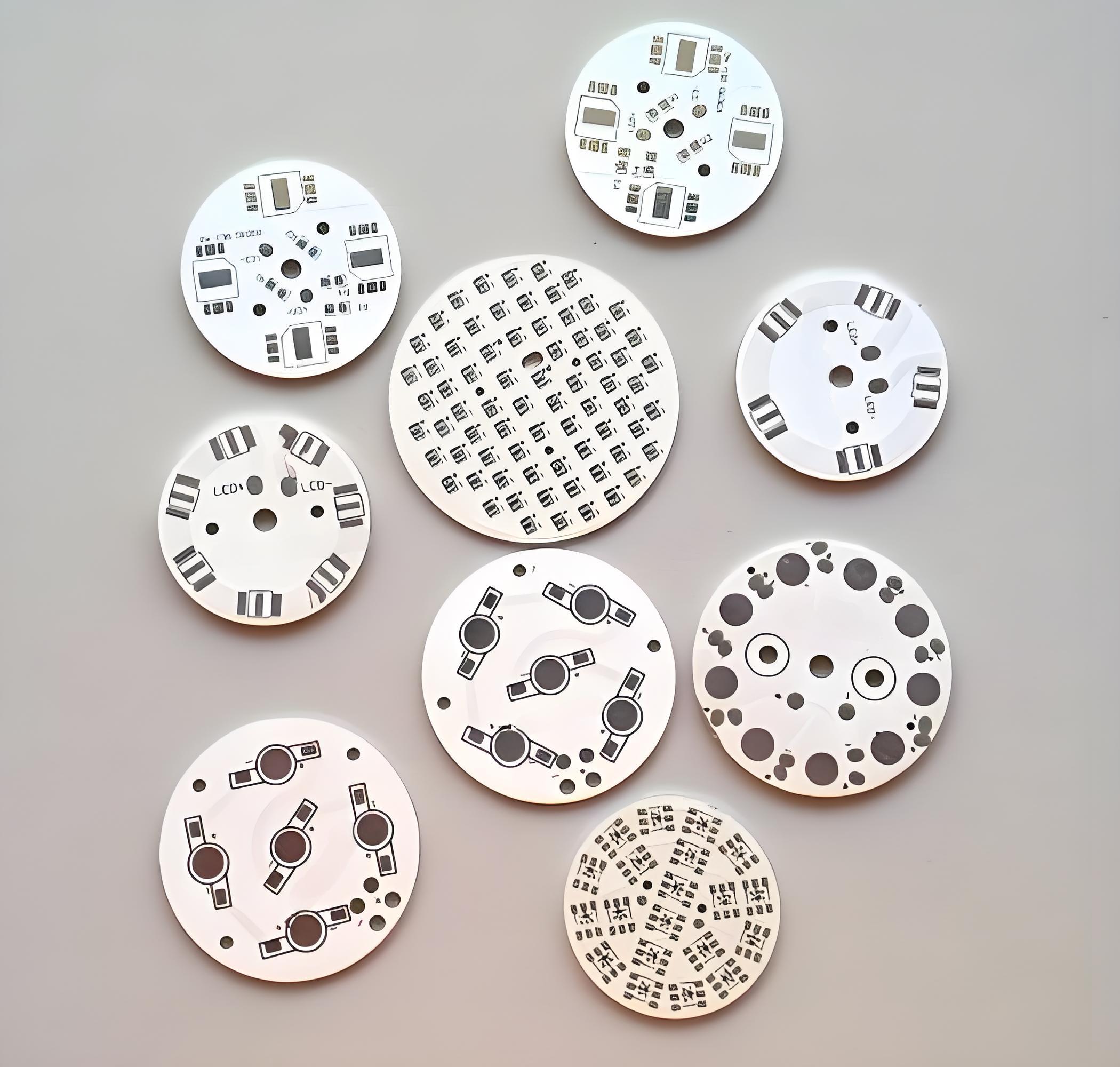

What is double sided aluminum PCB?

Double-sided aluminum PCB is a printed circuit board with aluminum as its base material, featuring copper layers on both sides. It includes an insulating dielectric layer between the copper and aluminum base. This design enables routing on both sides, unlike single-sided boards that only allow traces on one side.

Because aluminum offers excellent heat dissipation, these boards are widely used in high-power LED lighting. They prevent overheating, which can damage LEDs or reduce their lifespan.

With two conductive layers, double-sided boards also allow more complex circuits, making them ideal for advanced LED assemblies.

Types of double-sided aluminum PCB

Double-sided aluminum PCBs come in different forms, depending on application needs. The most common types include:

Standard Double-Sided Aluminum PCB: These have two copper layers and a dielectric layer between the aluminum base. They are simple yet effective for medium-power applications.

Hybrid Double-Sided PCB: This type of substrate combines the benefits of two different materials, such as aluminum and ceramic, to provide improved thermal conductivity and electrical performance.

Flexible Double-Sided PCB: This type of substrate is made of a flexible material and has a layer of aluminum on both sides. It is commonly used in applications where flexibility is required, such as in wearable electronics.

High-frequency double-sided aluminum PCB: This type of substrate is designed for high-frequency applications and has a low dielectric constant, which helps to reduce signal loss.

Each type serves a specific purpose. Choosing the right one depends on thermal requirements, circuit complexity, and mechanical needs.

How does a double-sided aluminum PCB differ from a single-sided one?

Single-sided aluminum PCB has one copper layer for circuit routing, limiting its complexity. A double-sided board, on the other hand, has two copper layers, allowing for denser component placement and more advanced designs.

Another major difference is thermal management. Both provide excellent heat dissipation thanks to the aluminum base, but double-sided boards handle higher power loads better. This is crucial for high-brightness LED systems where heat can build up quickly.

Lastly, cost and assembly differ. Double-sided boards may cost slightly more.

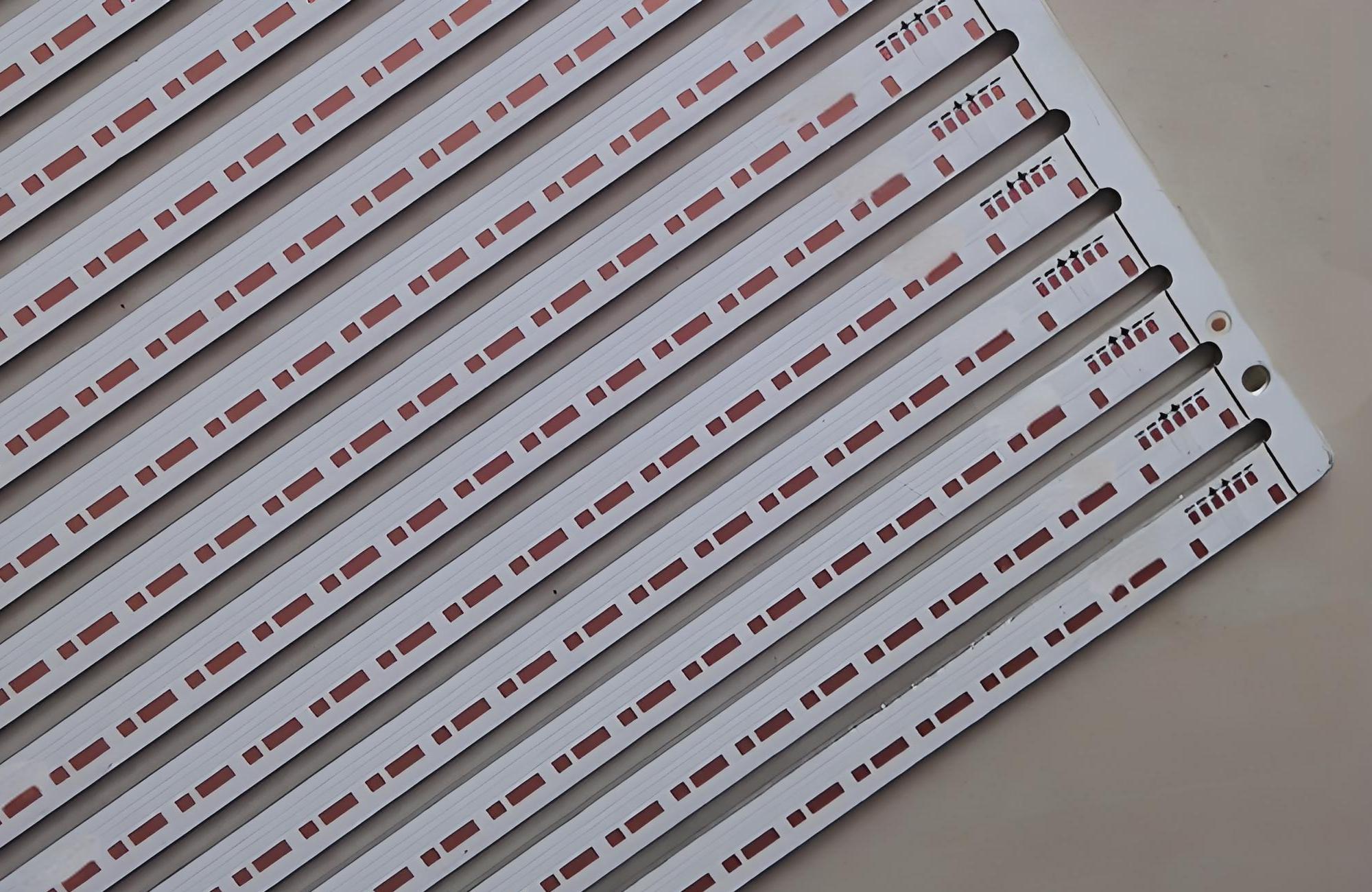

What materials are used in LED double-sided aluminum substrates?

LED double-sided aluminum substrate typically consists of:

Aluminum Base Layer: Provides structural strength and excellent thermal conductivity.

Dielectric Layer: Acts as an insulator between the aluminum base and copper layer while offering high thermal performance.

Copper Foil: Present on both sides for circuit routing. Thickness varies depending on current requirements.

Solder Mask: Protects the copper from oxidation and prevents short circuits.

Silkscreen Layer: Used for labeling components and guiding assembly.

Some boards may also include surface finishes like ENIG (Electroless Nickel Immersion Gold) for better solderability and corrosion resistance.

What are the advantages of using double-sided LED substrates over FR4?

Compared to FR4 boards, double-sided aluminum substrates have multiple advantages:

Superior Heat Dissipation: Aluminum conducts heat away from LEDs quickly, reducing thermal stress.

Enhanced Durability: Aluminum-based boards are more resistant to mechanical stress than FR4.

Better Power Handling: Perfect for high-power LED applications where FR4 cannot manage heat efficiently.

Longer LED Lifespan: Lower operating temperatures mean LEDs last longer, reducing replacement costs.

Compact Design: Double-sided routing allows smaller, more efficient layouts.

While FR4 is common in electronics, it cannot match aluminum substrates for thermal and structural performance in LED systems.

What thickness options are available for double-sided LED aluminum boards?

Thickness plays a vital role in thermal performance and strength. Typical options include:

Aluminum Base Thickness: 1.0 mm, 1.2 mm, 1.5 mm, and 2.0 mm.

Copper Thickness: Usually 1 oz (35 μm), 2 oz (70 μm), or even higher for high-current applications.

Dielectric Layer: Often between 75 μm and 150 μm, depending on thermal needs.

Choosing the right thickness ensures proper heat dissipation without adding unnecessary weight.

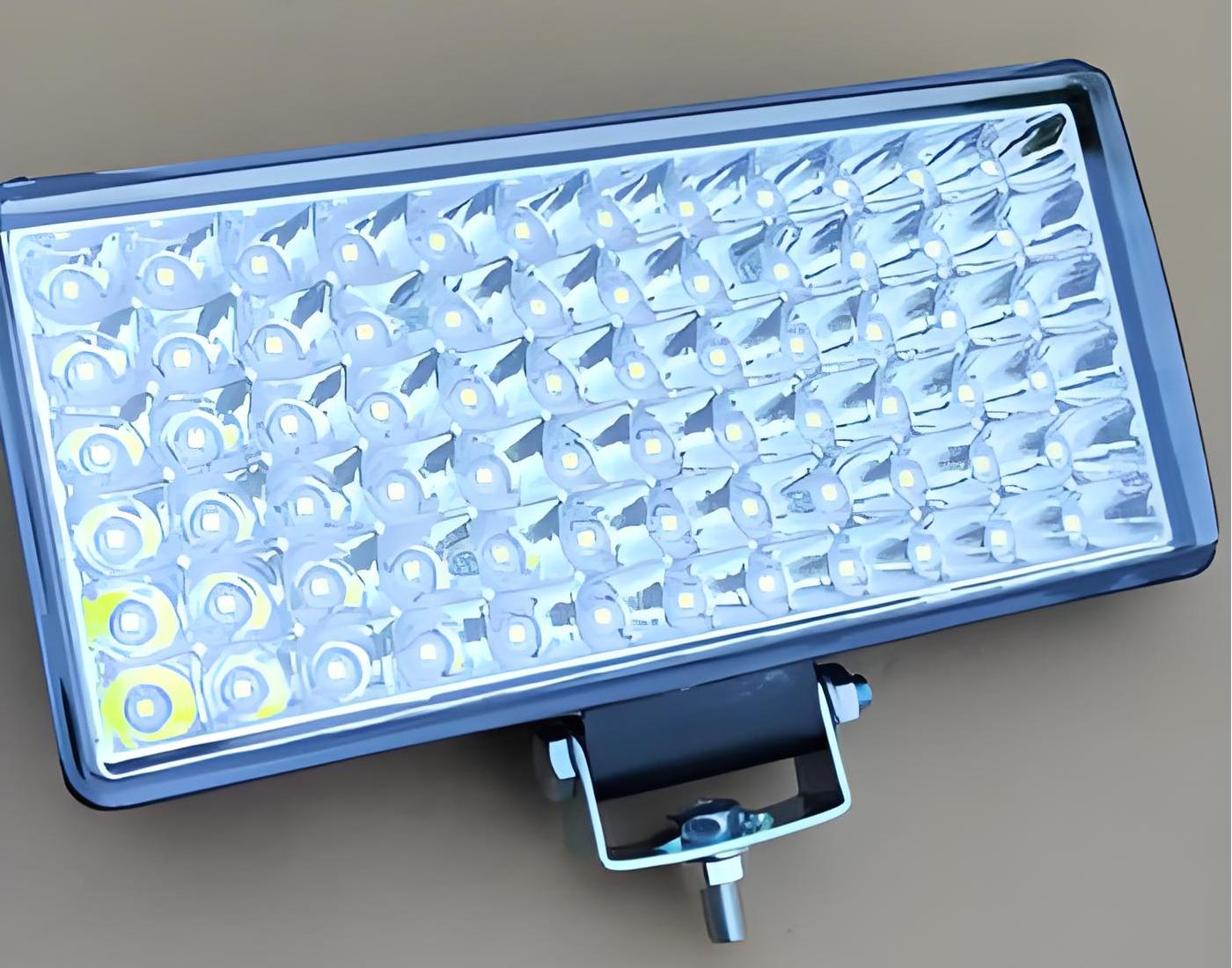

Where is the double-sided aluminum substrate used?

Double-sided aluminum substrates are versatile. Common applications include:

LED Lighting Systems: Indoor, outdoor, and industrial lighting where thermal management is critical.

Automotive Lighting: Headlights, tail lamps, and dashboard lighting.

Consumer Electronics: Devices that require compact yet heat-resistant boards.

Medical Devices: Surgical lights and diagnostic equipment that must stay cool for safety.

Power Electronics: High-power converters and power supplies where heat is a major concern.

The ability to handle high power and maintain stability under heat makes these substrates essential for advanced applications.

How is a double-sided aluminum PCB manufactured?

The manufacturing process involves several precise steps:

Aluminum Base Preparation: The base is cleaned and treated to improve adhesion.

Dielectric Layer Application: A thermally conductive but electrically insulating layer is added.

Copper Foil Lamination: Copper is laminated on both sides under heat and pressure.

Circuit Patterning: Copper layers are etched to create circuit paths.

Drilling and Plating: Holes are drilled and plated to connect layers.

Surface Finish: ENIG, HASL, or other finishes are applied for better solderability.

Solder Mask and Silkscreen: Applied for protection and labeling.

Testing: Each board undergoes electrical and thermal testing to ensure quality.

Precision is key to achieving tight tolerances and long-lasting performance.

What are the applications of double-sided aluminum PCB?

These boards power a wide range of industries:

LED Lighting: Streetlights, floodlights, and smart lighting solutions.

Displays and Signage: High-brightness displays that run for long hours.

Telecommunication Equipment: Devices where heat control is essential for reliability.

Aerospace and Defense: Applications requiring extreme durability and stability.

Renewable Energy: Solar inverters and power control systems that demand high thermal performance.

Wherever heat and reliability matter, double-sided aluminum PCBs are the go-to solution.

Conclusion:

Double-sided aluminum substrates for LEDs are able to handle high power, dissipate heat efficiently, and support compact designs without compromising performance. Their advantages over FR4 make them the best choice for demanding applications.

If you need custom LED aluminum substrates for your projects, Best Technology is here to help. We provide premium-quality aluminum PCBs, strict quality control, and fast delivery. Contact us today at sales@bestpcbs.com

Tags:double sided led strip, LED double-sided aluminum PCB, led substrates
Posted in best pcb, bestpcb, mcpcb, Metal Core PCB | No Comments »

What is an LED lighting aluminum substrate?

Wednesday, August 20th, 2025

LED lighting aluminum substrate is a circuit board with aluminum as the base, on which the LED chip is directly soldered, which is both conductive and acts as a heat sink. Aluminum’s high thermal conductivity instantly dissipates heat, preventing LED overheating and light decay, allowing high-power LEDs to maintain a long lifespan and continuous high brightness.

What is an LED lighting aluminum substrate?

Are you curious about BEST Technology’s aluminum substrates for LED lighting?

Does the thermal conductivity meet the cooling requirements?

Do the dimensions match the fixture’s installation requirements?

Can the material and craftsmanship withstand high temperatures?

Is the performance and cost-performance ratio reasonable?

Does BEST Technology offer customization and after-sales service?

BEST Technology’s aluminum substrates for LED lighting can answer these questions.

Compatible. The aluminum base and ceramic-filled insulation layer design offers far superior thermal conductivity compared to traditional substrates, rapidly dissipating heat from the LED and ensuring stable operation.

Compatible. Standard sizes and full customization (non-standard shapes and thicknesses) are available. Small batches and samples can be delivered quickly, and the product is compatible with diverse lamp structures.

Performance. The insulation layer has undergone high and low temperature cycling tests to ensure no delamination, and its long-term operating temperature reaches 150°C. The thermal expansion coefficient is optimized for the LED chip, providing strong resistance to thermal stress.

Reasonable. The zoned heat dissipation design saves costs, improves thermal conductivity by hundreds of times, and is priced lower than international brands, balancing longevity and affordability.

Support. Full customization is provided (design, materials, and craftsmanship). After-sales service includes a 48-hour response time, free repairs during the warranty period, and 24-hour delivery for expedited orders.

What is the substrate of LED lights?

In simple terms, the substrate is the base material that supports the LED chip. It provides structure, stability, and heat management. Think of it as the “backbone” of the LED light.

LED chips generate light when electricity passes through them. But they also produce heat at the same time. If the heat isn’t managed, it can shorten the life of the LED and lower its performance. That’s where the substrate plays a critical role.

Among many options, aluminum substrates stand out as the preferred choice for LED lighting. They are designed not only to hold the LED components but also to transfer heat away quickly, ensuring the light stays cool and lasts longer.

Why use aluminum substrates for LED lighting?

LEDs are sensitive to high temperatures. Excessive heat can cause them to fade, fail early, or lose brightness. Aluminum substrates prevent this problem.

Aluminum is an excellent conductor of heat. When used as a substrate, it helps channel heat away from the LED chip to the surroundings. This ensures consistent performance and protects the LEDs from damage.

Besides thermal benefits, aluminum substrates also offer strong mechanical support. They are lightweight yet durable, making them perfect for modern LED designs. Whether used in a slim LED panel or a high-power street light, aluminum substrates ensure efficiency and reliability.

What materials are LED lights made of?

LED lights are more than just chips and covers. Several layers and materials come together to create the final product:

LED chip: The tiny semiconductor that produces light.

Substrate: The base material, often aluminum, that supports and cools the chip.

Circuit layer: Usually made of copper, it carries the electrical signals.

Dielectric layer: Provides insulation while allowing heat to pass through.

Lens or cover: Shapes the light and protects the chip.

Among these, the LED lighting aluminum substrate is one of the most critical parts. It combines electrical insulation with thermal conduction, two qualities rarely found together.

Can LED lights go on metal?

Yes, LEDs can be mounted on metal, and aluminum is the most common choice. In fact, many LED assemblies are designed specifically for metal bases.

When LEDs are mounted on aluminum, they gain improved heat dissipation. This is essential for applications like automotive lighting, industrial lamps, and high-brightness panels where heat is a big concern.

Unlike bulky cooling systems, aluminum substrates provide natural thermal management.

How does LED aluminum improve heat dissipation?

Heat dissipation is the most important function of aluminum substrates. Without it, LEDs would overheat and fail quickly.

Aluminum has high thermal conductivity. It pulls heat away from the LED chip and spreads it across the substrate. From there, the heat is released into the air.

Compared to traditional substrates, aluminum is far superior in thermal management. For example, FR4 (a common PCB material) cannot handle high heat as well.

In short, LED aluminum substrates work as natural heat spreaders. They extend the lifespan of LEDs, maintain brightness, and allow lights to perform at their best even in challenging conditions.

Why are aluminum substrates better than FR4 for LEDs?

FR4 is a widely used PCB material made of glass fiber and epoxy resin. While it works for many electronic devices, it struggles when used in LED lighting.

Here’s why aluminum substrates are superior:

Better heat conduction: Aluminum conducts heat up to 10 times faster than FR4.

Higher durability: Aluminum substrates can handle higher temperatures without damage.

Stronger support: They provide a stable base for high-power LED chips.

Longer lifespan: LEDs last longer when mounted on aluminum compared to FR4.

Because of these advantages, aluminum substrates are the first choice for most LED lighting products. FR4 may still be used in low-power LED designs, but for serious performance, aluminum is the winner.

What makes LED aluminum durable and reliable?

Reliability is everything in lighting. Aluminum is naturally strong and resistant to cracking. It also handles environmental stress well, such as vibration, impact, and moisture. This makes it ideal for outdoor and industrial LED applications.

The dielectric layer used in aluminum substrates also ensures electrical insulation. It prevents short circuits while allowing heat transfer.

In addition, LED lighting aluminum substrates resist thermal aging. They maintain their properties over time, even under constant heat. This means consistent performance, longer lifespans, and fewer replacements.

Where are LED lighting aluminum substrates applied?

The use of aluminum substrates in LED lighting is nearly endless. From household lights to industrial equipment, they are everywhere. Some common applications include:

Street lights: High-power LEDs need aluminum substrates to stay cool.

Automotive lighting: Headlights, brake lights, and interior lights benefit from aluminum’s durability.

Consumer electronics: Backlighting in TVs, displays, and smartphones.

Industrial lamps: Used in warehouses and factories where reliability is key.

Medical devices: Precision lights where stable output is essential.

Architectural lighting: Decorative LEDs that need consistent brightness.

Wherever LEDs are used, aluminum substrates play a key role in making them efficient and reliable.

Why are LED lighting aluminum extrusions important?

In addition to substrates, LED lighting aluminum extrusions are often used for housing and thermal management. These extrusions are aluminum profiles designed to protect LEDs and spread heat.

When combined with aluminum substrates, extrusions create a complete thermal solution. They not only manage heat but also improve the appearance and durability of LED products.

Conclusion:

The LED lighting aluminum substrate is the foundation of reliable LED technology. It supports the chip, improves thermal management, and ensures durability. Compared to FR4, aluminum is far superior in heat conduction and reliability. That’s why it’s the top choice for everything from street lights to smartphones.

In short, aluminum substrates make LEDs brighter, cooler, and longer-lasting. If you are looking for high-quality LED lighting aluminum substrates, reach out to us at sales@bestpcbs.com
