What is an MCPCB?
An MCPCB, short for Metal Core Printed Circuit Board, is a type of PCB that has a base metal material as its core. Unlike traditional FR4 boards, MCPCBs are built on aluminum or copper substrates, which help transfer heat away from critical components.
They are designed to improve heat dissipation, reduce component failure, and extend the lifespan of electronics. This makes them ideal for high-power applications such as LED lighting, telecom equipment, and automotive electronics.

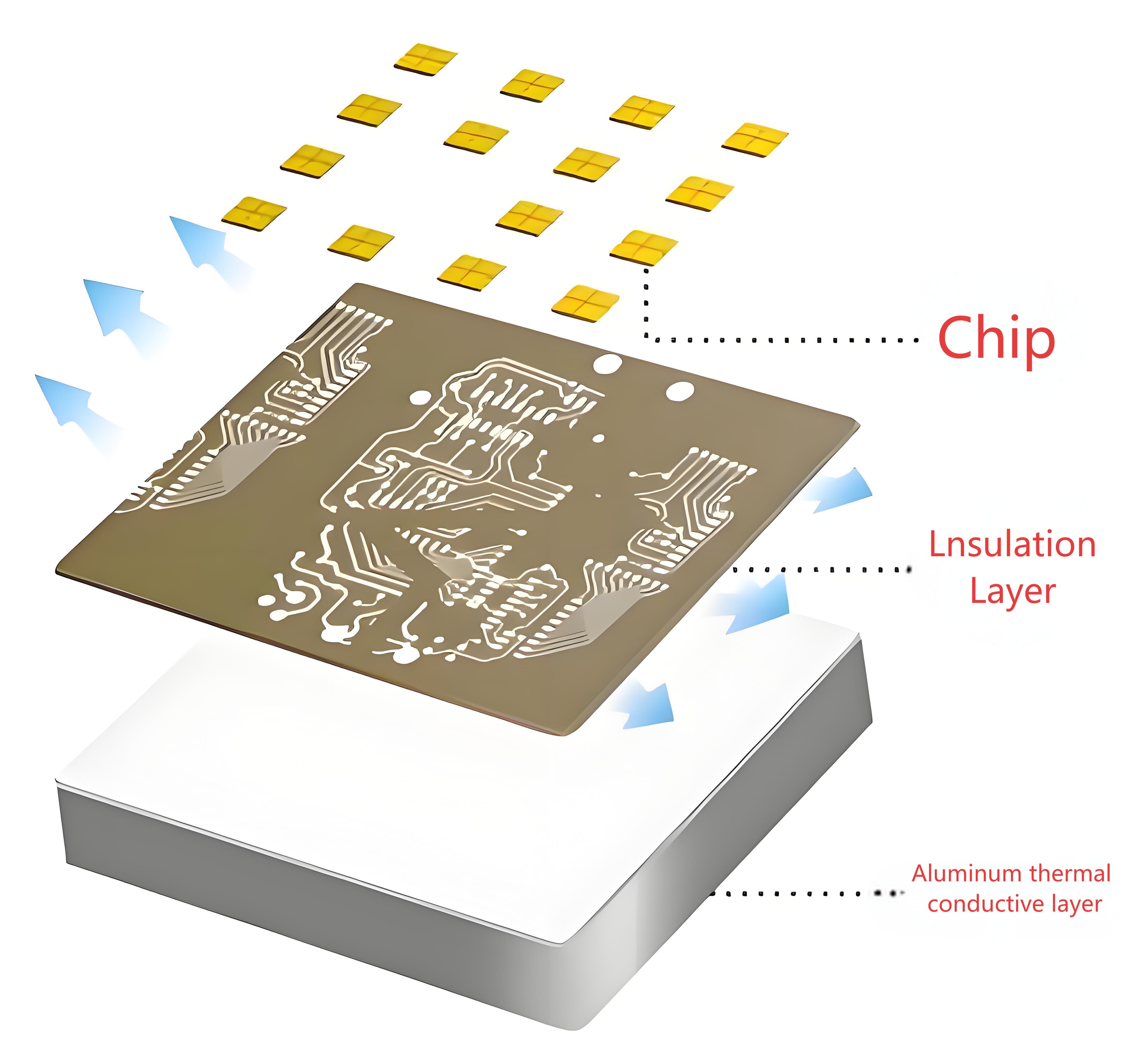

The structure typically includes a thermal insulating layer, a metal base (usually aluminum or copper), and a copper circuit layer. Some even include multiple layers for more complex functions.
Advantages of Metal Core PCB
- First, heat dissipation. Traditional PCBs struggle to manage the heat from high-power components. MCPCBs, thanks to their metal base, dissipate heat quickly and keep components cool.
- Second, mechanical stability. The metal core adds strength and reduces deformation, especially in environments with high temperatures or mechanical stress.
- Third, compact design. With improved heat management, components can be placed closer together without the risk of overheating. This reduces the overall size of your product.
- Fourth, longer lifespan. When components run cooler, they last longer.
- Fifth, cost efficiency. While slightly more expensive than standard FR4 boards, MCPCBs often reduce the need for heat sinks and other cooling methods, which can actually lower overall costs in the final product.
What matters most in MCPCB design?
Here are the key things that matter in MCPCB design:
- Thermal management: You need to calculate heat flow properly. Choose the right core material (aluminum or copper) based on your power needs.
- Layer structure: Decide whether a single, double, or multilayer board fits your application.
- Trace width and spacing: For high currents, traces must be wider. But spacing still needs to meet safety standards.
- Dielectric layer: This insulation layer between the metal base and the copper circuit should be thin for good thermal transfer, but strong enough for durability.
- Solder mask and surface finish: High-temperature-resistant materials ensure the board doesnât peel or degrade under stress.
Partnering with a reliable MCPCB manufacturer ensures your design is optimized for performance, manufacturability, and cost.
How is MCPCB manufacturing done?
At BEST Technology, our MCPCB manufacturing process is built for quality and efficiency.
- Material Selection: We begin with the right metal baseâaluminum or copperâdepending on your needs.
- Lamination: The dielectric layer is applied over the metal base, followed by a copper foil layer.
- Circuit Imaging: A photoresist is applied and exposed to UV light through a mask that outlines your circuit.
- Etching: Unwanted copper is removed, leaving the desired circuit paths.
- Drilling: Holes for vias or mounting are precisely drilled.
- Plating: Copper plating is added where needed for conductivity.
- Solder Mask: A protective layer is added to shield the circuits.
- Surface Finish: We use finishes like HASL, ENIG, or OSP to improve solderability.
- Testing: Every board undergoes strict electrical and visual tests to ensure zero defects.
With over 19 years of experience, our 30,000㥠factory and 229+ team members ensure your order is handled with care, from start to finish.
How do I identify SMD components on MCPCBs?
SMD parts are mounted directly on the surface. They are usually smaller than through-hole components and donât require holes in the board. On an MCPCB, youâll typically find:
- Flat rectangular resistors
- Small IC chips with legs around the sides
- Tiny capacitors shaped like pills or boxes
- Diodes with a stripe to indicate polarity
Most components are labeled with part numbers or codes. In some cases, silkscreen text on the board helps identify each part.
A good LED MCPCB manufacturer like BEST Technology will make these markings clear and organized, ensuring your assembly and repair processes are smooth and error-free.
Copper vs AAluminum core boards: Which is better?
Aluminum core boards are more common. They are cost-effective, easy to process, and offer good heat dissipation. Ideal for LED lighting, audio devices, and power supplies.
Copper core boards offer better thermal conductivity and mechanical strength. They are used in more demanding applications like automotive, aerospace, or heavy industrial equipment.
In short:
- If you’re building consumer products or LED lights, aluminum is perfect.
- If you need maximum heat performance and durability, copper is worth the investment.
BEST Technology offers both options and can guide you through the best choice for your application.
What is an MC-PCB used for?
MCPCBs are everywhere. They are widely used in:
- LED lighting systems (street lights, automotive headlights, backlight units)
- Power supplies (adapters, converters)
- Telecom and networking equipment
- Automotive electronics
- Audio systems
- Industrial control panels
- Medical devices
The metal core allows these applications to run cooler, last longer, and remain stable in harsh environments.
How to choose a MCPCB manufacturer?
Selecting the right MCPCB manufacturer is crucial.
- Experience: Long-standing expertise shows reliability. BEST Technology has specialized in MCPCB since 2006.
- Certifications: Look for standards like UL, ISO9001, ISO13485, IATF16949, and SGS. These ensure quality control and international compliance.
- Factory capability: A large, modern factory means faster delivery, better consistency, and high capacity. Our 30,000㥠site handles up to 100,000 PCBs per day.
- Technical support: We provide one-on-one sales assistance and 48-hour technical responses.
- Turnkey service: From design to assembly, all processes are concentrated in one manufacturer, which can reduce costs and delays.
- Competitive pricing: You shouldnât have to trade quality for cost. We optimize production to offer the best value for your investment.
Who is the best manufacturer of MCPCB in China?
BEST Technology has proudly earned the trust of global clients across Europe, America, Israel, and India. With nearly two decades of focus on MCPCBs, we offer:
- Fast lead times
- Reliable quality
- Full certifications
- Custom design services
- Turnkey assembly
- Strong after-sales support
From prototype to mass production, weâre committed to helping you achieve your goals with efficiency and care.
Conclusion:
Choosing the right MCPCB manufacturers is very important. BEST Technology combines 19+ years of expertise, advanced facilities, and a client-first approach to deliver high-quality, cost-effective metal core PCBs.
Whether you’re developing LED lighting, automotive systems, or industrial electronics, weâre here to support you every step of the way.
