automated optical inspection (AOI) is a non-contact inspection method used in bare PCB fabrication and PCBA assembly. It combines industrial cameras, controlled lighting, motion hardware, and image-processing software to identify visible defects.
For bare boards, AOI checks copper patterns, pads, spacing, and etched features. For assembled boards, it verifies component presence, orientation, placement, polarity, and visible solder quality.
AOI is fast and repeatable, but it does not prove that a board works electrically. It cannot see hidden BGA joints, measure resistance, confirm firmware, or validate product performance. Buyers should therefore treat AOI as one layer of a wider inspection plan rather than a complete quality guarantee.
What Is Automated Optical Inspection?
Automated optical inspection compares images of a PCB or PCBA against programmed reference data. That reference may come from Gerber data, CAD files, component libraries, dimensional rules, or a verified golden board.
Unlike manual visual inspection, AOI applies the same inspection logic to every board. It can check thousands of features without asking an operator to scan the entire assembly by eye.
The terms automated optical inspection and automatic optical inspection are commonly used for the same process. In electronics manufacturing, both usually refer to AOI equipment installed in a PCB fabrication or SMT line.
How Does Automated Optical Inspection Work?

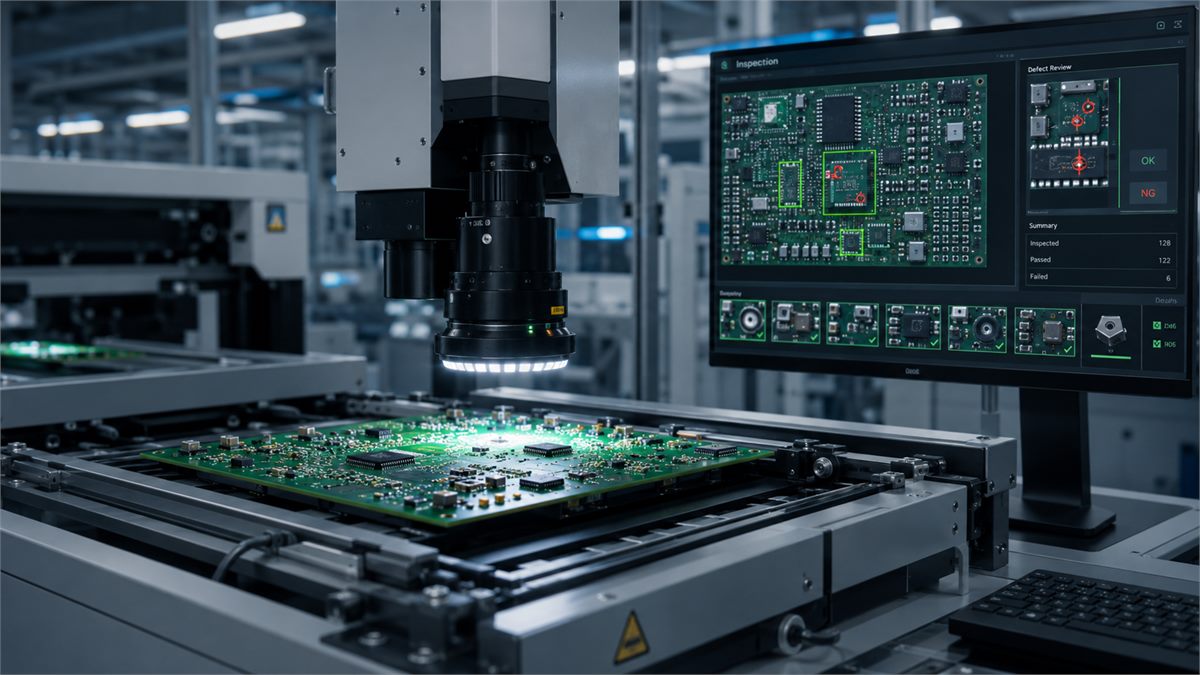

The automated optical inspection working principle follows a straightforward sequence:
- The board enters the inspection area and is positioned by a conveyor, fixture, or motion platform.
- Controlled lighting highlights component edges, markings, solder fillets, copper traces, and surface irregularities.
- Cameras capture 2D images or, in a 3D system, image and height data.
- Software checks position, color, shape, rotation, height, contrast, and solder coverage.
- Results are compared with programmed tolerances.
- Suspect locations are sent to an operator for confirmation.
- Inspection results may be linked to a batch number or board serial number.
The quality of the result depends heavily on programming. If tolerances are too tight, the system creates excessive false calls. If they are too loose, real defects can pass. Reliable AOI depends as much on a well-built inspection library as it does on camera resolution.
Manufacturers generally program AOI in one of three ways:
- CAD-based programming imports design and placement data, making it efficient for new products.
- Golden-board programming learns from a verified assembly, although the reference board must be checked carefully.
- Library-based programming uses stored component dimensions, polarity references, and inspection rules.
In practice, production lines often combine all three and then refine the limits during first-article inspection.
What Components Make Up an AOI System?
Automated optical inspection systems normally include the following elements:
- Industrial cameras: Capture the board surface at a resolution suitable for the smallest inspected feature.
- Inspection lenses: Control focus and image distortion. Telecentric lenses are useful where dimensional accuracy matters.
- Controlled lighting: Uses direct, coaxial, side, ring, or multi-angle lighting to reveal different surface conditions.
- Motion hardware: Positions the board and camera consistently.
- Inspection software: Defines inspection windows, tolerances, component models, and defect rules.
- Review station: Allows an operator to confirm defects and classify false calls.
- Traceability interface: Stores images, board IDs, inspection results, and process records.
Higher camera resolution does not automatically produce better inspection. Poor lighting, board movement, inaccurate component data, or weak programming can still undermine the result.
Where Is AOI Used in PCB Manufacturing?
AOI can be installed at several production stages.
Inner-Layer Bare PCB Inspection
Before multilayer lamination, AOI checks etched inner layers for opens, shorts, copper residue, missing features, and dimensional deviations. Catching a defect here prevents a bad inner layer from being laminated into a finished board.
Outer-Layer Bare PCB Inspection
After outer-layer etching, AOI compares visible traces, pads, clearances, and copper geometry with the design data.
Pre-Reflow PCBA Inspection
Pre-reflow AOI checks whether components are present, correctly placed, and properly oriented before the solder paste melts. It can reduce rework, but it cannot assess the final solder joint.
Post-Reflow PCBA Inspection
Post-reflow AOI is the most common arrangement in SMT assembly. It checks component position, polarity, tombstoning, lifted leads, bridges, and visible solder fillets after reflow.
Its location also makes the data useful for process control. For example:
- Repeated solder bridges may point to excessive solder paste or stencil issues.
- Recurring component shifts may indicate feeder, placement, or reflow problems.
- Frequent polarity errors may reveal incorrect placement data or feeder setup.
AOI provides more value when defect trends are reviewed by line, product, and batch rather than handled as isolated inspection failures.
Through-Hole and Wave-Solder Inspection
AOI may inspect visible lead presence, component orientation, solder bridges, and solder coverage. Dense connectors, tall parts, and shadowed joints may still require manual or X-ray inspection.

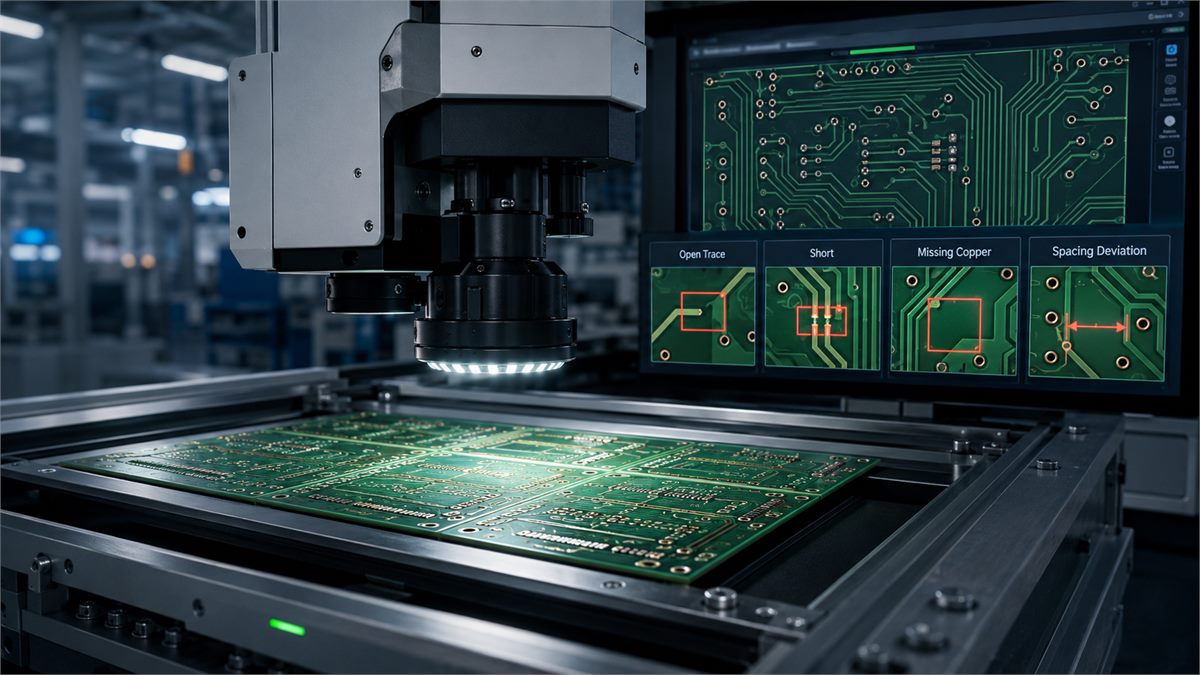

What Bare PCB Defects Can AOI Detect?
Bare PCB AOI focuses on visible copper geometry.
| Defect | What AOI identifies |
|---|---|
| Open circuit | Broken or incomplete trace |
| Short circuit | Unwanted copper between conductors |
| Copper protrusion | Copper extending beyond the intended pattern |
| Missing copper | Incomplete pad, annular feature, or trace |
| Trace-width deviation | Conductor outside the programmed width limit |
| Spacing violation | Clearance below the programmed value |
| Pinhole | Small unwanted opening in a copper area |
| Etching residue | Copper left where it should have been removed |
| Incomplete pad | Missing or malformed pad geometry |
| Surface scratch | Visible damage across copper or laminate |
AOI can flag a suspected open or short, but bare-board electrical testing is still required. Optical inspection sees the surface pattern; PCB testing confirms continuity and isolation.

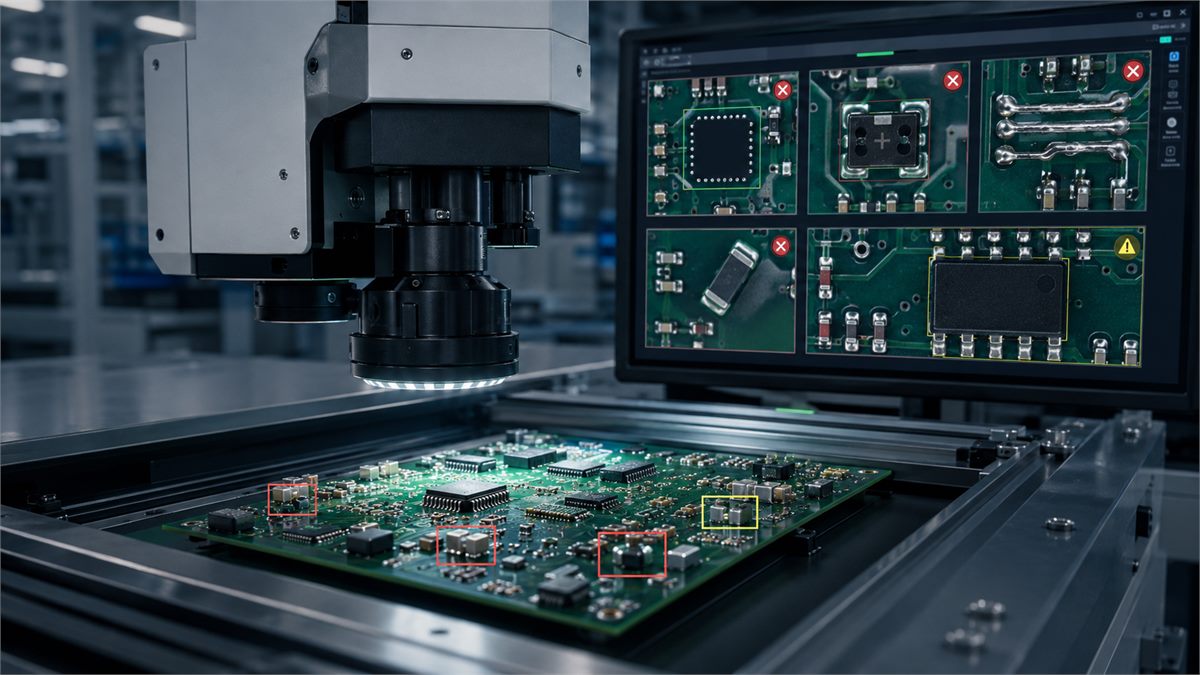

What PCBA Defects Can AOI Detect?
On an assembled board, AOI checks both components and visible solder joints.
Component-Related Defects
Common findings include:
- Missing or misplaced components
- Excessive rotation
- Reversed polarity
- Wrong package type
- Tombstoned or billboarded passive components
- Lifted gull-wing leads
- Shifted connectors
- Incorrect IC, diode, or capacitor orientation
AOI may read top markings, but this is not always dependable. Equivalent parts can carry different codes, while small, reflective, or faint markings may be difficult to capture consistently.
Visible Solder Defects
AOI can also flag:
- Solder bridges
- Insufficient or excessive solder
- Open visible joints
- Poorly wetted leads
- Solder balls
- Irregular solder fillets
- Lifted leads
Detection confidence depends on visibility. A gull-wing lead is easier to inspect than a joint hidden below a QFN, LGA, or BGA.

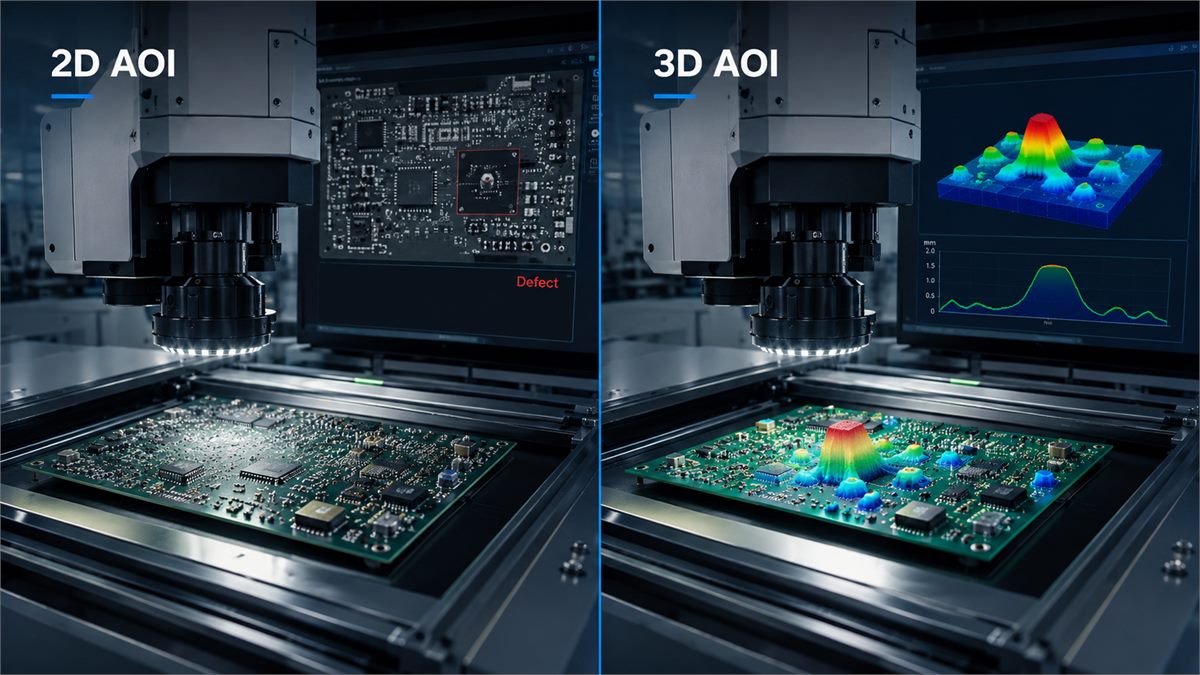

2D AOI vs. 3D AOI: What Is the Difference?
The practical question is whether the application needs image comparison only or actual height measurement.
| Comparison | 2D AOI | 3D AOI |
|---|---|---|
| Main data | Flat surface image | Image plus height profile |
| Presence and position | Yes | Yes |
| Rotation and polarity | Yes | Yes |
| Height measurement | Limited | Yes |
| Lifted-lead detection | Lighting-dependent | Usually more reliable |
| Coplanarity | Limited | Measurable |
| Solder profile | Limited | Better characterization |
| Programming effort | Lower | Higher |
| Equipment cost | Lower | Higher |
| Best fit | Standard SMT assemblies | Fine-pitch or complex assemblies |
A stable product with visible joints may not need 3D AOI. It becomes more useful for lifted leads, coplanarity, board warpage, and height-sensitive defects.
It still cannot see through a package, so 3D AOI does not replace X-ray inspection.
What Can AOI Not Detect?
AOI is restricted by line of sight. It cannot directly verify:
- Hidden BGA or LGA solder joints
- Voids under QFNs or thermal pads
- Internal PCB layer defects
- Cracks inside plated holes
- Internal via-barrel defects
- Electrically incorrect but visually identical components
- Firmware problems
- Intermittent electrical faults
- Power-sequence or signal-integrity failures
- Functional performance
- Long-term reliability under heat, vibration, humidity, or load
A resistor can be present and well soldered yet still have the wrong value. A BGA may look correctly placed while containing an open joint underneath. These risks require electrical testing, X-ray, functional testing, or reliability testing.

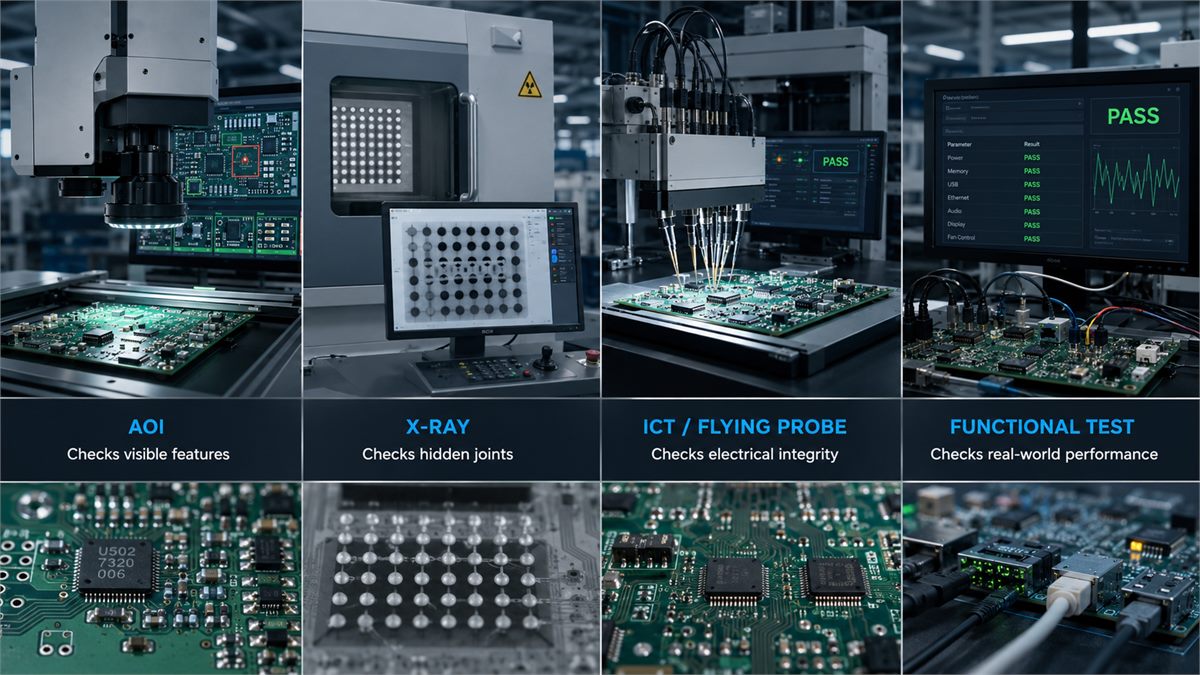

AOI vs. SPI, X-Ray, ICT, and Functional Testing
Each inspection method answers a different question.
| Method | Main target | Typical stage |
|---|---|---|
| SPI | Solder paste height, area, position, and volume | After printing |
| AOI | Visible components and solder joints | Before or after reflow |
| X-ray or AXI | Hidden solder joints and voids | After reflow |
| ICT | Nets and component-level electrical faults | After assembly |
| Flying probe | Continuity, isolation, and selected values | Prototype or low volume |
| Functional test | Powered product behavior | Final test |
The right plan depends on package type, board density, product risk, production volume, and customer requirements.
A simple prototype with visible joints may need AOI plus flying-probe testing. A dense BGA assembly may also require X-ray and functional testing. Adding every inspection method to every project increases cost without necessarily improving the decision value.
What Causes False Calls and Missed Defects in AOI?
False calls and missed defects usually come from a small group of process issues:
- Reflective surfaces: Solder, shields, and exposed metal can change appearance with the lighting angle.
- Component variation: Approved parts may differ in color, marking, edge shape, or finish.
- Board warpage: Changes focus, height readings, and apparent component position.
- Tall components: Create shadows around nearby parts and solder joints.
- Weak libraries: Incorrect body dimensions, polarity references, or lead locations cause repeated errors.
- Poor tolerance settings: Tight limits reject good boards, while loose limits allow defects through.
- Golden-board mistakes: A flawed reference board can normalize an actual defect.
What Are the Benefits of AOI in PCB Quality Control?
AOI is most valuable when its data is used to improve the process, not merely sort boards at the end.
Key benefits include:
- Consistent inspection criteria across every board
- Faster detection of recurring placement or solder problems
- Full-board coverage without relying entirely on manual inspection
- Clear defect images for troubleshooting
- Better traceability by batch or serial number
- Yield data for stencil, feeder, placement, and reflow analysis
- Less downstream rework when faults are found early
The return depends on how well the inspection program is maintained. An AOI machine that produces a high false-call rate can slow production and distract reviewers from real defects.
How Should PCB Buyers Evaluate AOI Capability?
Asking whether a supplier “has AOI” is not enough. Buyers should ask how the equipment will be used for their specific board.
Useful questions include:
- Is AOI applied to bare PCBs, assembled PCBAs, or both?
- Is inspection performed before reflow, after reflow, or at both stages?
- Is the system 2D or 3D?
- What component sizes and feature dimensions can it inspect reliably?
- How are false calls reviewed and recorded?
- Are images linked to serial numbers or production batches?
- Can AOI records be supplied?
- How are BGA, QFN, and LGA joints checked?
- Is X-ray available for hidden joints?
- Can AOI be combined with flying probe, ICT, programming, or FCT?
- Which workmanship standard and acceptance criteria are used?
A supplier cannot price meaningful AOI, X-ray, or electrical testing from Gerber data alone. Customers should provide:
- Gerber or ODB++ data
- BOM with manufacturer part numbers
- Pick-and-place file
- Assembly drawing
- Polarity and orientation notes
- Approved component substitutions
- Required inspection standard
- X-ray and electrical test requirements
- Traceability or report requirements
- Order quantity and delivery target
For PCB prototypes, ask whether AOI programming is included in the assembly charge and whether a formal report is required. A one-off, two-board build may not justify a detailed custom AOI report. A 50-piece pilot run, however, can benefit from recorded defect data before volume release.
Fine-pitch ICs, polarized parts, dense connectors, and bottom-terminated packages should be identified during quotation because they influence the inspection route.
At EBest Circuit, we can combine AOI with SPI, X-ray, flying-probe testing, ICT, programming, or functional testing according to the package mix and customer files. The aim is not to add every inspection method, but to cover the actual risks in the design.
FAQs About Automated Optical Inspection
Is AOI the same as visual inspection?
No. Both methods examine visible conditions, but AOI uses programmed cameras, lighting, and software to inspect predefined locations. Manual visual inspection depends more heavily on operator experience and attention.
Is automated optical inspection destructive?
No. AOI is a non-contact, non-destructive inspection method. It captures surface images without cutting, stressing, or electrically powering the board.
When is AOI performed in PCB assembly?
AOI may be performed after component placement and before reflow, but post-reflow inspection is more common. Some production lines use both positions for high-risk or high-volume assemblies.
Can AOI inspect BGA solder joints?
It can verify the BGA package position, orientation, marking, and visible perimeter conditions. It cannot inspect solder balls hidden underneath the package. X-ray inspection is normally required for those joints.
What is the difference between 2D and 3D AOI?
A 2D system analyzes flat surface images. A 3D system also measures height and surface geometry, making it more capable of detecting lifted leads, coplanarity problems, and irregular solder profiles.
Can AOI detect incorrect component values?
Sometimes, but not reliably in every case. AOI may identify a value from readable component markings. It cannot electrically measure an unmarked component or distinguish visually identical parts with different values.
Does AOI replace X-ray inspection?
No. AOI examines visible surfaces, while X-ray inspection reveals hidden solder joints and internal package features. The two methods address different defect risks.
Does AOI replace electrical testing?
No. AOI cannot confirm circuit continuity, resistance, voltage, firmware behavior, or product function. Electrical testing is still needed when those requirements matter.
What is the difference between SPI and AOI?
SPI measures solder paste before component placement. AOI checks component placement and visible solder conditions before or after reflow.
Is AOI suitable for PCB prototypes?
Yes. AOI can identify assembly errors quickly, especially on prototypes with fine-pitch or polarized components. However, programming effort and inspection cost should be considered for very small quantities. Flying-probe testing or targeted X-ray may provide greater value for certain prototype designs.
Conclusion
Automated optical inspection is effective for visible copper, placement, polarity, and solder defects, but it cannot verify hidden joints or electrical performance. Buyers should evaluate where AOI is used, whether the system is 2D or 3D, how false calls are handled, and which additional tests cover the remaining risks.
For an inspection plan and quotation, send your Gerber files, BOM, pick-and-place data, test requirements, and order quantity to sales@bestpcbs.com.
