When it comes to protecting your PCB from environmental hazards, mechanical stress and premature failure youâre likely weighing conformal coating vs potting but which one delivers the right balance of protection, cost and practicality for your project? As an electronics engineer with over a decade of experience designing and testing PCB protection solutions Iâve seen firsthand how the wrong choice leads to costly field failures, missed deadlines and frustrated clients.
In this guide Iâll break down conformal coating vs potting in simple straightforward terms, comparing their processes, materials, protection levels, repairability and cost so you can make an informed decision that aligns with your projectâs unique needs. Weâll cover everything from application steps to real-world use cases and common mistakes to avoid, ensuring you get the most value from your PCB protection investment.
What Are Conformal Coating and Potting and Why Do PCBs Need Them?
PCBs are the backbone of nearly every electronic device from consumer gadgets to industrial machinery but they are delicate and susceptible to damage from moisture, dust, chemicals, vibration and temperature extremes. Without proper protection these threats cause corrosion, short circuits, solder joint failures and component damage, leading to reduced product lifespan, increased warranty claims and safety hazards.

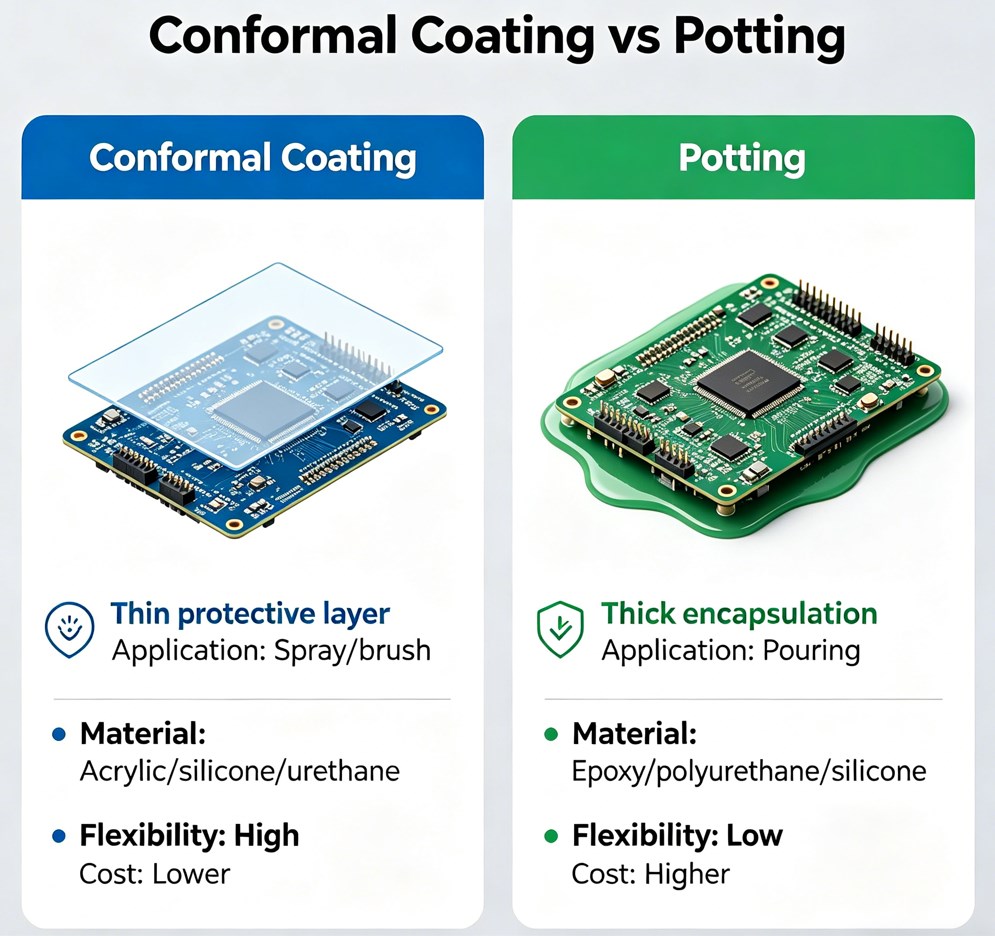

Conformal coating and potting are the two most common PCB protection methods each designed to shield boards but with distinct approaches. Conformal coating is a thin protective film applied directly to the PCB surface, conforming to component shapes to create a barrier against contaminants.
Potting involves completely encapsulating the PCB in a thick solid resin, forming an impenetrable shield against harsh conditions. Both methods are critical for ensuring PCB reliability, but choosing the right one depends on your applicationâs environment, size, weight and budget constraints.
How Do Conformal Coating and Potting Differ in Application Process?
The application processes for conformal coating and potting are fundamentally different, with distinct steps, equipment and preparation requirements. Conformal coating is a simpler, faster process ideal for high-volume production, while potting is more labor-intensive and suited for applications requiring maximum protection.
Below is a detailed comparison of their application processes to help you understand what each entails.
| Process Step | Conformal Coating | Potting |
| Prep Work | Clean the PCB with isopropyl alcohol to remove flux residue dust and oils. Mask areas that should not be coated such as connectors test points and gold fingers using tape or liquid masking agents. | Thoroughly clean and dry the PCB to remove all contaminants. Place the PCB in a mold or housing that fits its size and shape ensuring all components are properly positioned. |
| Application Method | Common methods include spraying dipping brushing or selective automated coating. Spraying is ideal for large volumes while brushing works for small batches or touch-ups. | Mix two-part resin (epoxy polyurethane or silicone) per manufacturer instructions. Pour or inject the resin into the mold covering the PCB completely without air bubbles. |
| Curing | Cures at room temperature (24-48 hours) or with heat (60-80°C for 30-60 minutes) depending on the material. UV-curable coatings cure in seconds with UV light for faster production. | Requires longer curing time (24-72 hours at room temperature) or heat curing (80-100°C for 1-2 hours). The mold must remain undisturbed during curing to avoid defects. |
| Post-Application | Remove masking materials. Inspect for coverage gaps bubbles or uneven coating using a magnifying glass or microscope. Touch up any missed areas as needed. | Remove the PCB from the mold once fully cured. Trim excess resin and inspect for voids cracks or incomplete encapsulation. No touch-ups are possible without damaging the potting. |
Which Offers Better Environmental Protection: Conformal Coating vs Potting?
Environmental protection is the primary goal of both conformal coating and potting, but their effectiveness varies significantly based on the threat level. Potting provides superior environmental protection as it completely encapsulates the PCB, creating an impenetrable barrier against moisture, dust, chemicals and extreme temperatures.
Conformal coating offers good protection for moderate environments but cannot match pottingâs resistance to harsh conditions. The table below breaks down their performance against common environmental threats to help you determine which is right for your application.
| Environmental Threat | Conformal Coating | Potting | Winner |
| Moisture/Humidity | Blocks light moisture and humidity but may fail if the coating is cracked or uneven. Not suitable for submersion or high-humidity industrial environments. | Completely seals the PCB preventing any moisture ingress even in submersion (IP67/IP68 ratings) or high-humidity conditions. | Potting |
| Dust/Particulates | Covers the PCB surface blocking dust and debris but may not seal gaps between components where particles can accumulate. | Encases the entire PCB leaving no gaps for dust or particulates to enter providing complete protection. | Potting |
| Chemicals/Solvents | Resistant to mild chemicals but may degrade when exposed to harsh solvents (e.g. industrial cleaners oils). | Highly resistant to harsh chemicals solvents and oils depending on the resin type (epoxy offers the best chemical resistance). | Potting |
| Temperature Extremes | Performs well in moderate temperatures (40°C to 125°C) with silicone coatings offering wider ranges (60°C to 200°C). | Handles extreme temperatures (50°C to 200°C) with silicone potting compounds providing the best thermal stability for high-heat applications. | Potting |
Why Is Repairability a Key Consideration Between Conformal Coating and Potting?
Repairability is a critical factor when choosing between conformal coating and potting because it directly impactsmaintenance costs and project timelines. Conformal coating is easily repairable, making it ideal for projects where PCBs may need troubleshooting or component replacement.
Potting is nearly impossible to repair without destroying the PCB, as the solid resin cannot be removed without damaging components. For example, if a component fails on a conformal coated PCB, you can simply strip the coating from the affected area, repair or replace the component, and reapply the coating.
On a potted PCB, you would need to break open the resin, which often damages surrounding components, rendering the entire board useless. This makesrepairability a non-negotiable consideration for projects with long lifespans or high maintenance requirements, such as consumer electronics or medical devices.
How Do Conformal Coating and Potting Impact PCB Weight and Size?
PCB weight and size are critical for compact applications such as wearables, consumer electronics and aerospace devices, andconformal coating and potting have vastly different impacts on both. Conformal coating adds minimal weight and size as it is a thin layer (25-250 microns) that conforms to the PCBâs shape.
It adds less than 5% to the PCBâs total weight and no noticeable bulk, making it ideal for small, lightweight designs. Potting adds significant weight and size because it requires a thick resin layer (1-15mm+) and often a mold or housing to contain the resin.
It can increase the PCBâs weight by 50-200% and double its size depending on the resin thickness and mold design. The table below summarizes their impact on weight and size for quick reference.
| Factor | Conformal Coating | Potting |
| Layer Thickness | 25-250 microns (thin film) | 1-15mm+ (thick solid resin) |
| Weight Impact | Adds <5% of PCB weight | Adds 50-200% of PCB weight |
| Size Impact | No noticeable bulk; maintains PCBâs original footprint | Increases size by 50-100%; requires additional space for mold/housing |
| Ideal For | Compact lightweight designs (wearables consumer electronics) | Applications where size/weight are not critical (industrial machinery outdoor sensors) |
Which Is More Cost-Effective for My Project: Conformal Coating vs Potting?
Cost-effectiveness depends on your projectâs volume, protection needs and long-term maintenance. Conformal coating is more cost-effective for most projects, especially high-volume production, with lower material, labor and maintenance costs due to its thin layers, fast application and easy repairability.
Potting is more expensive upfront (higher resin, labor and mold costs) and long-term (failed PCBs must be replaced). Potting is worth the cost for small-batch or maximum-protection projects; conformal coating is better forhigh-volume or cost-sensitive ones.
The table below breaks down cost factors between conformal coating vs potting.
| Cost Factor | Conformal Coating | Potting |
| Material Cost | Low; thin layers require minimal material | High; thick resin layers and mold materials add cost |
| Labor Cost | Low; fast application (automated options available for high volume) | High; labor-intensive mixing pouring and curing steps |
| Maintenance Cost | Low; easy repairability reduces replacement costs | High; failed PCBs must be replaced entirely |
| Total Cost (High Volume) | Significantly lower (30-50% less than potting) | Higher due to material and labor expenses |
What Materials Are Used for Conformal Coating vs Potting and How Do They Compare?
Both conformal coating and potting use similar resin materials but they are formulated differently to suit their respective applications. Thekey materials for each method and their performance characteristics are critical to choosing the right protection.
Below is a detailed comparison of the most common materials used for conformal coating vs potting.
| Material Type | Conformal Coating Use | Potting Use | Key Characteristics |
| Acrylic | Most common; used for general-purpose protection | Rare; only for low-stress applications | Low cost easy to apply easy to repair. Poor chemical resistance; not suitable for harsh environments. |
| Silicone | Used for high-temperature or flexible applications | Common; used for high-temperature or vibration-prone applications | Excellent temperature range (60°C to 200°C) flexible. Good moisture resistance; lower mechanical strength. |
| Polyurethane | Used for chemical or moisture-prone applications | Common; used for general-purpose potting | Good chemical and moisture resistance. Flexible; moderate temperature range (40°C to 125°C). |
| Epoxy | Rare; used for high-strength applications | Most common; used for maximum protection | High mechanical strength excellent chemical resistance. Rigid; poor repairability; temperature range (40°C to 150°C). |
When Should I Choose Conformal Coating Over Potting for My PCB?
Choose conformal coating over potting in the following scenarios, where its unique advantages align with your project needs:
- Compact size and lightweight design: Ideal for wearables, smartwatches, portable consumer electronics, or drone flight control boards. Conformal coating adds minimal bulk and weight (less than 5% of the PCBâs total weight), maintaining the PCBâs original footprint without compromising protection for moderate environments.
- High-volume production and cost-effectiveness: Suitable for mass-produced consumer electronics, basic household appliances, or low-cost IoT devices. Conformal coating has lower material and labor costs, with faster application times (including automated spraying options) that support large-scale manufacturing without sacrificing quality or efficiency.
- Repairability as a priority: Perfect for medical devices (like portable heart rate monitors), telecommunications equipment, or any PCB that may need troubleshooting, component replacement, or maintenance after installation. Conformal coating can be easily stripped from specific areas, repaired, and reapplied without damaging the board or surrounding components.
- Post-installation component access: For PCBs with test points, connectors, gold fingers, or USB ports. Conformal coating can be precisely masked in these areas to keep them accessible for testing, calibration, or connection, while still protecting the rest of the PCB from light moisture and dust.
- Moderate environmental conditions: Suitable for indoor electronics, office equipment, or devices not exposed to harsh chemicals, submersion, or extreme vibration. Conformal coating provides adequate protection against light moisture, dust, and moderate temperature fluctuations (40°C to 125°C) for these applications.
- Flexible or vibration-prone PCBs: Ideal for automotive electronic control units (ECUs), portable medical devices, or industrial automation sensors. Flexible conformal coatings (like silicone-based options) can withstand temperature changes and mechanical stress without cracking, ensuring long-term reliability.
- Fast-turnaround protection: Perfect for prototype PCBs, small-batch production runs, or emergency repairs. Conformal coating cures quicklyâUV-curable options cure in seconds, while standard coatings cure in 24-48 hoursâallowing for faster project completion compared to pottingâs 24-72 hour curing time.
- Low- to medium-voltage PCBs: Suitable for consumer electronics, basic IoT sensors, or small power supplies. Conformal coating provides sufficient electrical insulation for these applications without the added cost and bulk of potting.
- Strict size constraints: Ideal for aerospace components (where weight and space are critical), compact wearables, or miniaturized medical devices. Conformal coatingâs thin layer (25-250 microns) ensures it does not add noticeable bulk, making it ideal for space-limited designs.
- Post-protection visual inspection: For applications where visual inspection of the PCB is necessary, such as quality control checks or troubleshooting. Most conformal coatings are transparent or translucent, allowing you to visually inspect components, solder joints, and traces without removing the protective layer.
When Is Potting a Better Choice Than Conformal Coating for Harsh Environments?
Choose potting over conformal coating in harsh environments or scenarios where maximum protection is non-negotiable, including the following:
- Submersion or high humidity: For outdoor sensors, subsea instrumentation, marine electronics, or devices used in damp industrial settings. Potting provides an impenetrable seal that meets IP67 or IP68 ratings, preventing any moisture ingress that could cause corrosion, short circuits, or component failure.
- Harsh chemicals, solvents, or oils: Ideal for factory machinery, chemical processing equipment, or automotive under-hood components. Potting resinsâespecially epoxyâoffer superior chemical resistance that conformal coating cannot match, protecting the PCB from degradation, swelling, or breakdown caused by exposure to harsh substances.
- Extreme vibration or mechanical stress: Suitable for automotive engine components, heavy industrial machinery, construction equipment, or aerospace devices. The thick solid resin of potting absorbs vibration, stabilizes components, and reinforces solder joints, reducing the risk of mechanical damage and premature failure.
- High-temperature environments: Perfect for aerospace components, industrial heaters, power electronics, or devices operating near heat sources. Silicone potting compounds handle extreme temperatures (50°C to 200°C) and provide better thermal stability than most conformal coatings, ensuring consistent performance even in prolonged high-heat conditions.
- Tamper resistance required: For military electronics, security devices, proprietary equipment, or medical devices with sensitive circuitry. Potting encases the entire PCB in a solid resin barrier, making it difficult to access, modify, reverse engineer, or tamper with, protecting intellectual property and ensuring device integrity.
- Heavy dust or particulate matter: Ideal for construction site sensors, mining equipment, or outdoor industrial controls. Potting completely seals the PCB, leaving no gaps for dust or particulates to enter, preventing clogging, short circuits, or component wear caused by debris accumulation.
- High-voltage applications: Suitable for power supplies, industrial transformers, or high-voltage control systems. Potting provides superior electrical insulation and arc suppression compared to conformal coating, preventing arcing between components and reducing the risk of electrical failures or safety hazards.
- Long-term outdoor use: Perfect for outdoor lighting controls, agricultural sensors, or remote monitoring devices. Pottingâs durable resin barrier resists UV radiation, weathering, and environmental degradation, ensuring the PCB maintains reliability for 10-20 years or longer, even in unprotected outdoor settings.
FAQ: Common Questions About Conformal Coating vs Potting
Q1: Which provides better thermal management: conformal coating or potting?
A1: Potting is better, especially with thermally conductive resins. Its thick layer dissipates heat more effectively than thin conformal coating. Silicone potting is optimal for thermal management; conformal coating has limited heat dissipation, unsuitable for high-heat components.
Q2: What common mistakes should I avoid when choosing between them?
A2: Avoid choosing potting for compact/repairable applications and conformal coating for harsh environments. Donât skip surface preparation or overlook resin-component compatibility.
Q3: Can I use both conformal coating and potting?
A3: Yes, for enhanced protection in extreme environments (e.g., coat first, then pot). Itâs common in aerospace/military but adds cost, weight and complexity.
Q4: Is potting better for high-voltage PCBs?
A4: Yes. Potting offers superior electrical insulation and arc suppression, critical for high-voltage use. Conformal coating is only suitable for low to medium-voltage PCBs.
Q5: How long do they last on a PCB?
A5: Conformal coating lasts 5-10 years (acrylic 5-7 years, silicone/polyurethane 7-10 years). Potting lasts 10-20+ years. Proper prep and material selection extend lifespan.
