The standard 10k resistor color code is brown-black-orange for a 3-band value reading. A common 4-band 10k resistor is brown-black-orange-gold, meaning 10,000 ohms with ±5% tolerance.
A common 5-band 10k resistor is brown-black-black-red-brown, meaning 10,000 ohms with ±1% tolerance.
A 10k resistor equals 10,000 ohms, or 10 kΩ. It is one of the most widely used resistor values in PCB circuits for pull-up, pull-down, voltage dividers, sensor inputs, timing networks, biasing circuits, and signal conditioning.
What Is a 10k Resistor?
A 10k resistor is a passive electronic component with a resistance value of 10,000 ohms. The letter k means kilo, so 10kΩ = 10 × 1,000Ω = 10,000Ω. In a circuit, a 10k resistor limits current, divides voltage, sets logic levels, or stabilizes input signals.
Why Is the 10k Resistor Color Code Important?
The 10k resistor color code is crucial to identify the resistor value before soldering, testing, repair, or replacement. Wrong resistor values can cause incorrect voltage levels, unstable sensor readings, MCU boot failure, weak pull-up signals, timing errors, or excessive current.
How Does a Resistor Color Code Work?
A resistor color code works by using colored bands to represent digits, multipliers, tolerance, and sometimes temperature coefficient.
| Color | Digit | Multiplier | Common Tolerance |
|---|---|---|---|
| Black | 0 | ×1 | – |
| Brown | 1 | ×10 | ±1% |
| Red | 2 | ×100 | ±2% |
| Orange | 3 | ×1,000 | – |
| Yellow | 4 | ×10,000 | – |
| Green | 5 | ×100,000 | ±0.5% |
| Blue | 6 | ×1,000,000 | ±0.25% |
| Violet | 7 | ×10,000,000 | ±0.1% |
| Gray | 8 | ×100,000,000 | ±0.05% |
| White | 9 | ×1,000,000,000 | – |
| Gold | – | ×0.1 | ±5% |
| Silver | – | ×0.01 | ±10% |
What Is the 4-Band 10k Resistor Color Code?

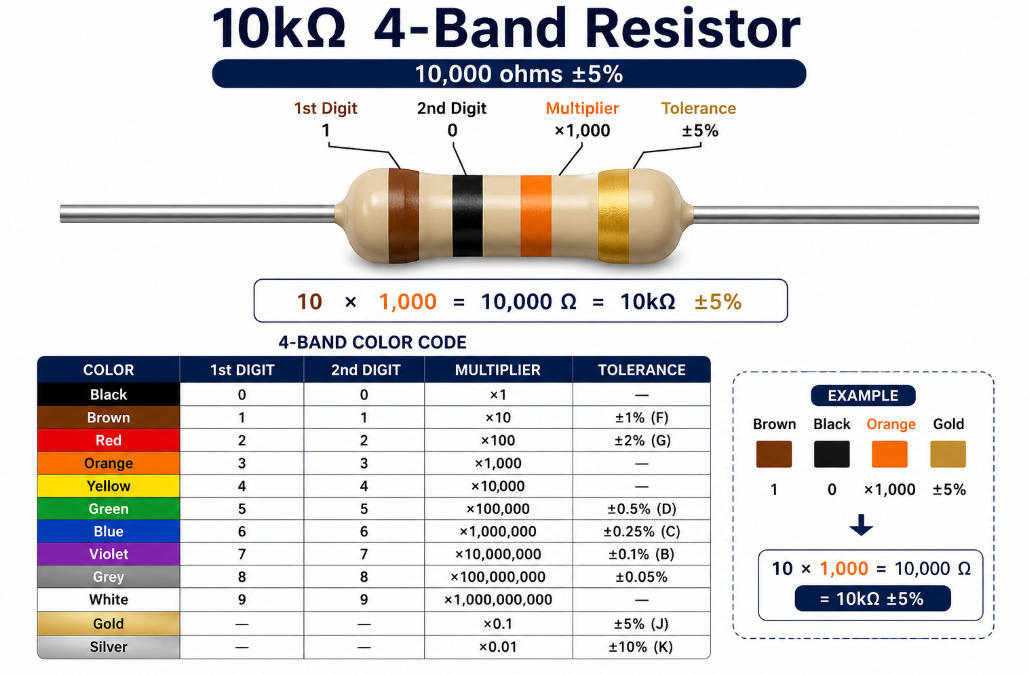

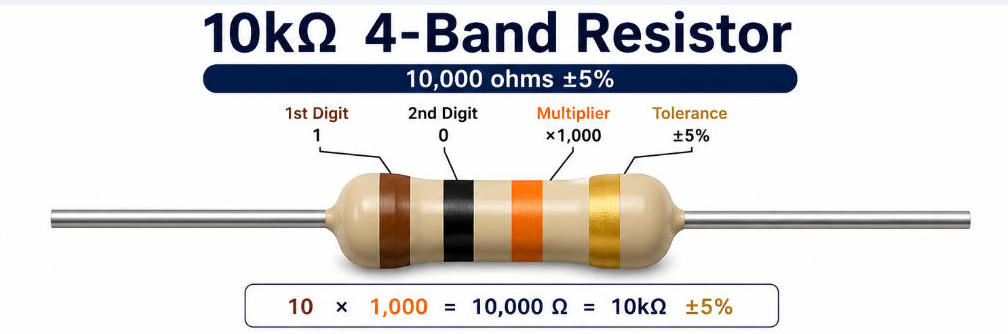

The 4-band 10k resistor color code is brown, black, orange, gold for a ±5% resistor. Calculation: 10 × 1,000 = 10,000Ω = 10kΩ.
What Is the 5-Band 10k Resistor Color Code?

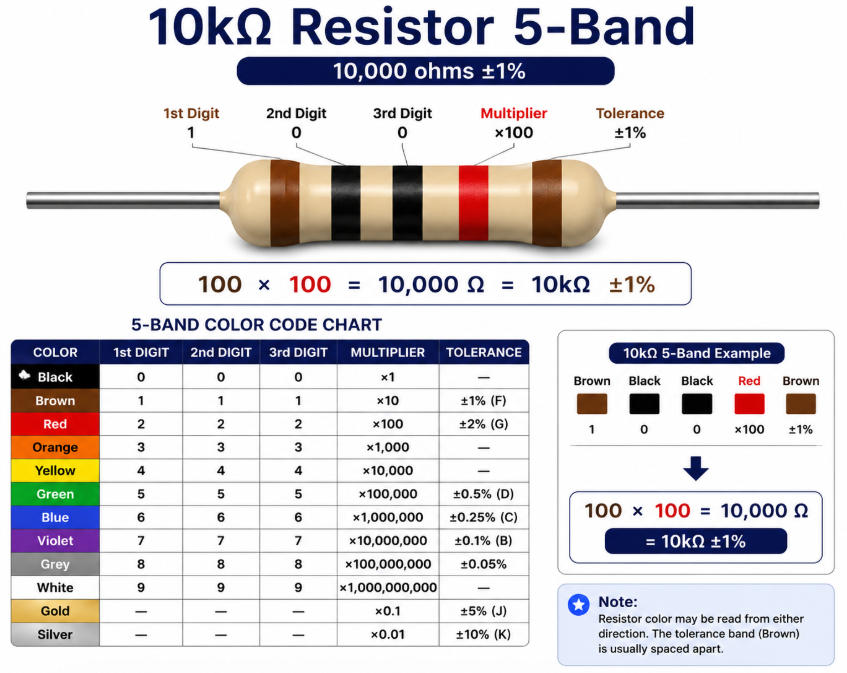

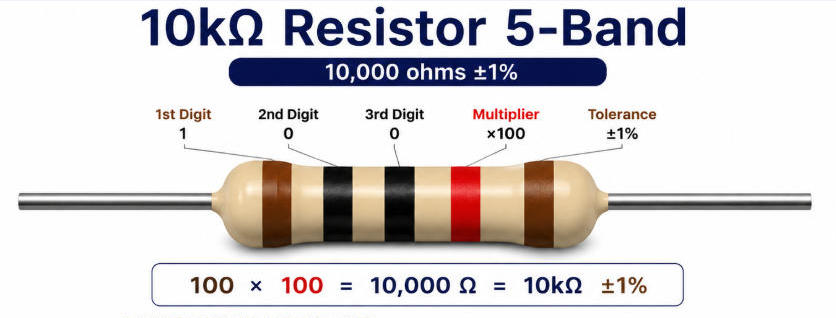

The 5-band 10k resistor color code is brown, black, black, red, brown for ±1% precision. Calculation: 100 × 100 = 10,000Ω = 10kΩ.
10k Resistor Color Bands Compared: 4-Band vs 5-Band
| Type | Color Bands | Value | Tolerance | Best Use |
|---|---|---|---|---|
| 4-band | Brown-black-orange-gold | 10kΩ | ±5% | General pull-up, pull-down, LED signal circuits |
| 5-band | Brown-black-black-red-brown | 10kΩ | ±1% | Precision sensor, reference voltage, industrial control |
| 6-band | Value bands + tolerance + TCR band | 10kΩ | Depends | Temperature-sensitive circuits |
How to Read a 10k Resistor Color Code Correctly?
Place the tolerance band on the right, read left to right. For brown-black-orange-gold, brown=1, black=0, orange=×1,000, gold=±5%, resulting in 10kΩ ±5%.
What Is the 10k Surface Mount Resistor Code?
Common SMD markings: 103 (10+3 zeros = 10kΩ) or 1002 (100+2 zeros = 10kΩ).
Materials, Features, and Advantages
10k resistors may be carbon film, metal film, thick film SMD, thin film SMD, or wirewound. Features: 10kΩ value, ±5% or ±1% tolerance, through-hole or SMD packages, moderate power rating, widely applicable.
Applications in PCB Design
Used for pull-up/pull-down circuits, voltage dividers, sensor interfaces, timing, transistor bias, communication line biasing, and general PCB logic stabilization.
Procurement and Manufacturing Tips
Check BOM, package, tolerance, power rating, and source reliability. Use AOI and electrical testing in mass production. Confirm resistor value to avoid wrong placements or rework.
Testing and Quality Standards
Verify with multimeter, LCR meter, flying probe, or functional testing. Factory quality standards include component inspection, IPC workmanship, solder joint inspection, and traceability.
Common Failures and How to Avoid Them
Failures include wrong value, cracked body, poor solder, overheating, color misreading. Avoid by BOM confirmation, correct reel loading, process verification, and first-article inspection.
FAQs About 10k Resistor Color Code
What is the 10k ohm resistor color code? Brown-black-orange for 3-band; brown-black-orange-gold for 4-band ±5%.
What is the 4 band 10k resistor color code? Brown, black, orange, gold; 10 × 1,000 = 10kΩ ±5%.
What is the 5 band 10k resistor color code? Brown, black, black, red, brown; 100 × 100 = 10kΩ ±1%.
What does brown black orange gold resistor mean? 10kΩ ±5%, standard 4-band through-hole resistor.
What are the 10k resistor colors? Brown, black, orange for value; gold for ±5% tolerance; 5-band: brown-black-black-red-brown.
How do you read a 10k resistor color code? Place tolerance band right, read left-to-right, convert colors to digits, apply multiplier.
What is the 10k surface mount resistor code? 103 or 1002 markings; 10kΩ SMD resistor.
Is a 103 resistor the same as a 10k resistor? Yes, 103 = 10kΩ.
What is a 10k linear potentiometer pinout? Three pins: two ends of resistive track, middle wiper; wiper output changes as shaft rotates.
Can I replace a 10k resistor with another value? Only after circuit verification; different values may alter voltage, bias, timing.
Conclusion
The 10k resistor color code varies with 4-band or 5-band type: 4-band is brown-black-orange-gold, 5-band is brown-black-black-red-brown. SMD markings include 103 or 1002. For precision applications, choose appropriate tolerance and material type.
