Difference between Standard PCB and Advanced HDI PCB

What is advanced HDI PCB? This blog covers structural differences, thermal performance, applications, and selection strategies between standard PCBs and advanced HDI PCBs.

What Is Advanced HDI PCB?

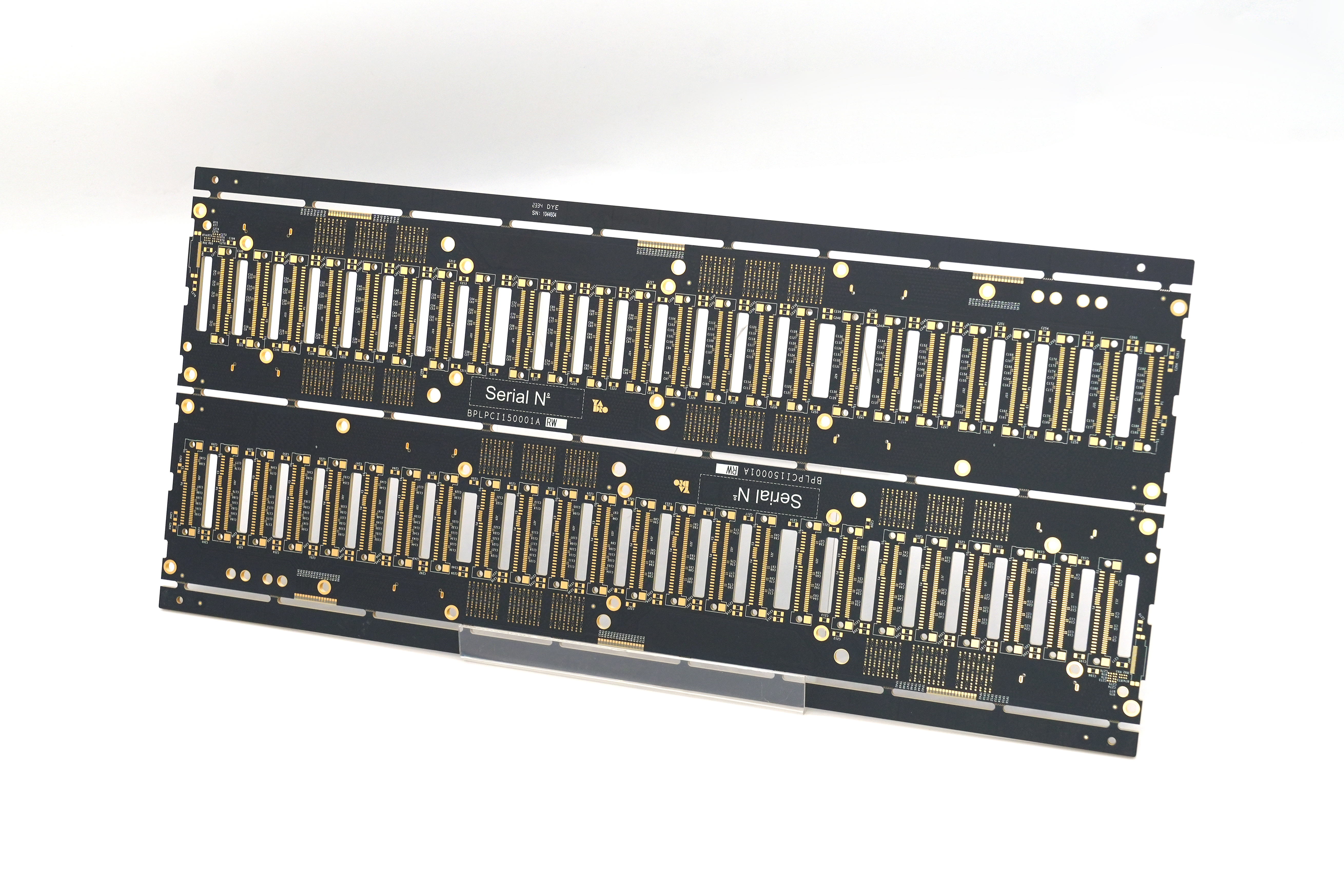

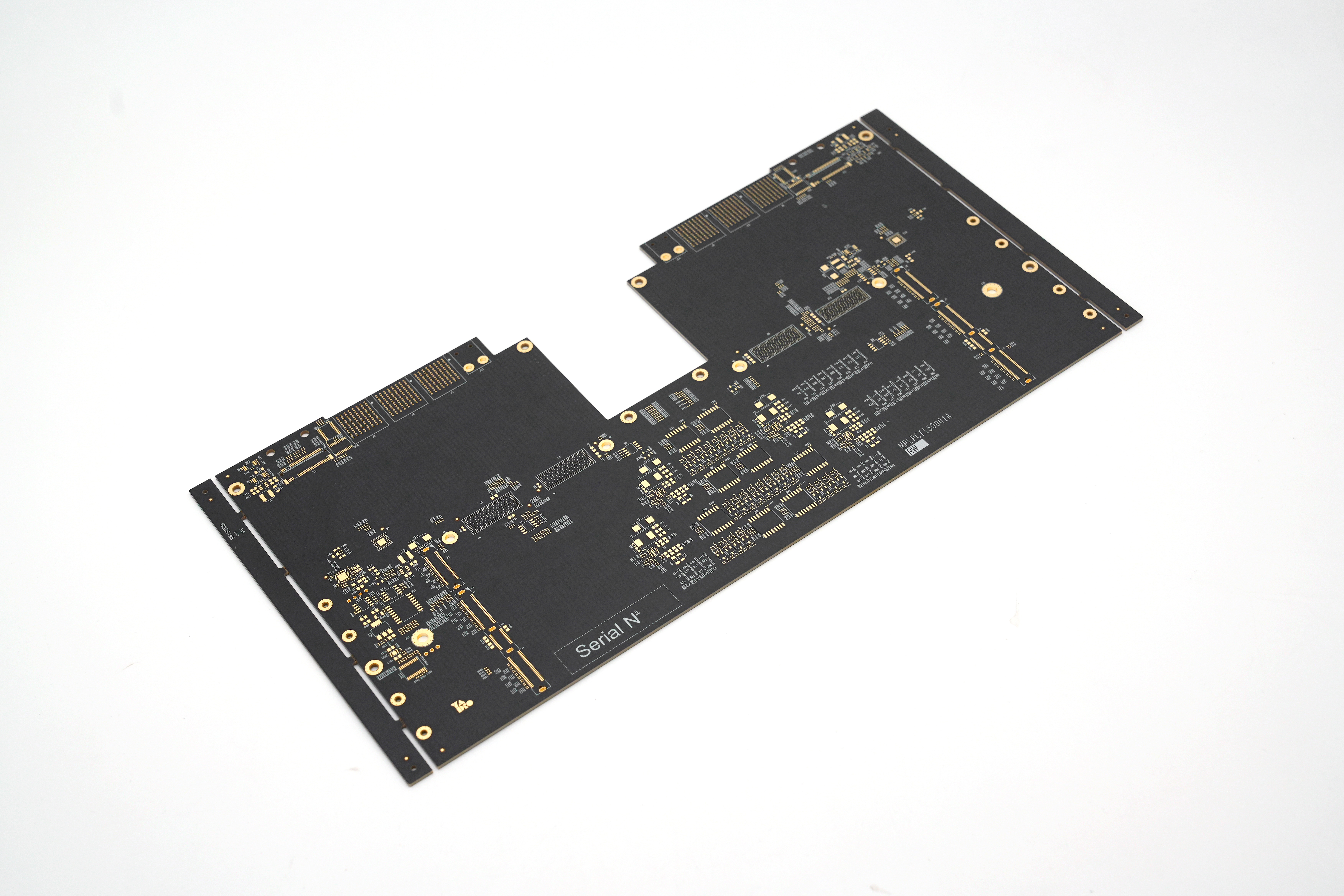

Advanced HDI PCB (High-Density Interconnect Printed Circuit Board) is a multilayer circuit board technology characterized by ultra-fine wiring (under 100μm), microvias (blind/buried types), and high-density component placement. It achieves miniaturization through sequential lamination and laser-drilled microvias, enabling complex interconnections in compact spaces. This technology can supports high-speed signal transmission with controlled impedance and reduced parasitic effects.

What Is Standard PCB?

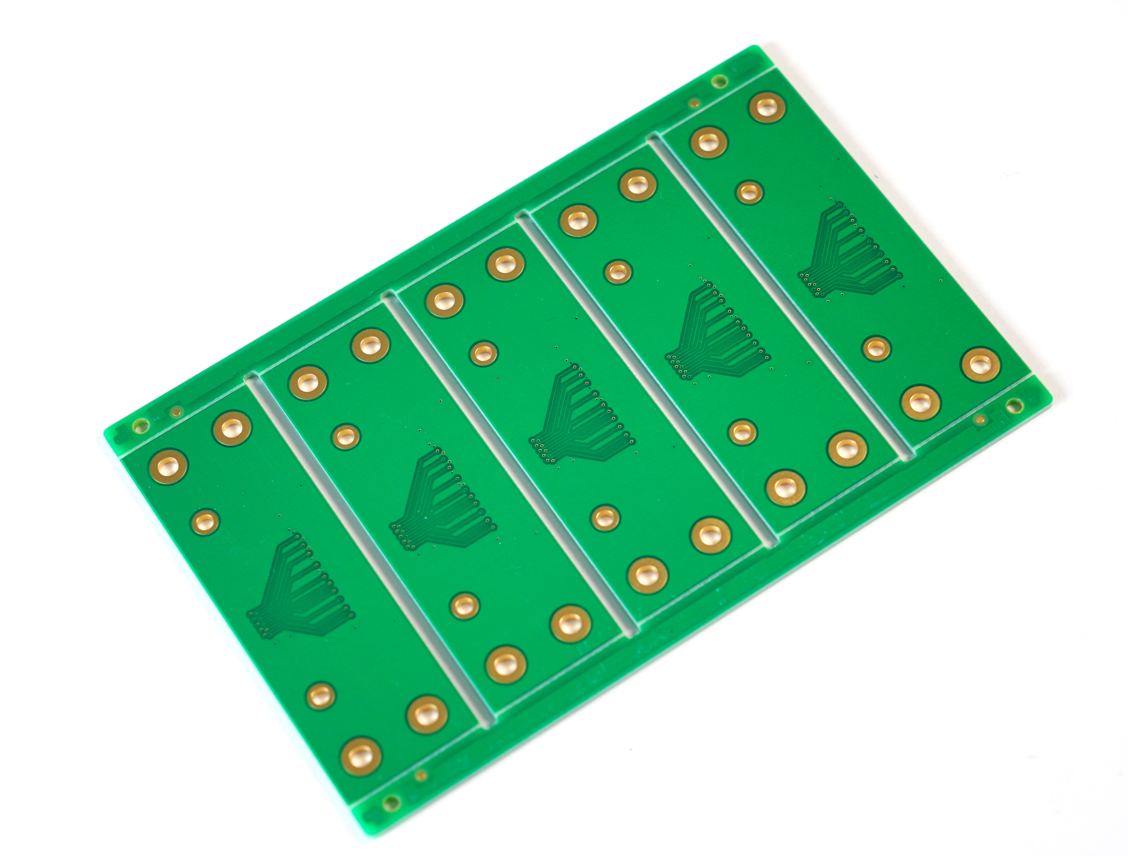

Standard PCB refers to a conventional printed circuit board constructed with 1-16 conductive copper layers laminated with FR-4 epoxy substrate. Characterized by trace widths exceeding 0.15mm and through-hole interconnections, it accommodates components via surface-mount (SMT) or through-hole (THT) assembly methods. This cost-efficient design prioritizes manufacturability over high-density integration, serving as the baseline solution for mainstream electronics requiring reliable electrical connectivity without advanced miniaturization.

Difference Between Standard PCB and Advanced HDI PCB

1. Size and Weight

• Advanced HDI PCB: Typical thickness reduced to 0.4mm (e.g., smartphone motherboards), with weight reduction exceeding 30%. For example: Apple Watch S6 uses HDI technology, reducing motherboard area by 20% compared to previous models.
• Standard PCB: Conventional thickness ≥1.0mm, 10-layer board weight ≈ 120g/m² (e.g., power management boards in industrial control cabinets).

2. Component Density

• Advanced HDI PCB: Supports 20+ components/cm² (line width/spacing ≤40μm). For example, iPhone 17 Pro motherboard integrates over 1,000 components.
• Standard PCB: Density typically ≤5 components/cm² (line width/spacing ≥100μm), e.g., Arduino development boards accommodate only dozens of components.

3. Drilling Technology and Layer Count

• Advanced HDI PCB: Laser microvia diameter 50-100μm (mechanical drilling limit 200μm), with blind/buried vias accounting for >60%. Case: Huawei 5G base station RF module uses 8-layer HDI with 3-stage stacked vias, replacing traditional 16-layer designs.
• Standard PCB: Mechanical through-hole diameter ≥0.2mm, 6-layer through-hole boards cost 15% more than equivalent HDI boards (due to higher layer count requirements).

4. Manufacturing Cost

• HDI PCB: Unit price 30-50% higher, but system-level savings: Dell XPS laptops reduce PCB layers by 2 using HDI, cutting total costs by 12%.
• Standard PCB: 4-layer bulk price $0.5-2/sheet, but high-density needs require layer increases (each additional 2 layers raise costs by 35%).

5. Manufacturing Complexity

• HDI PCB: Requires 5+ lamination cycles (standard PCB: 1-2 cycles), with microvia copper filling defect rates <0.1% requiring nanoscale plating control.
• Standard PCB: Through-hole plating yield >98% (mature process),

6. High-Frequency and Thermal Management

• HDI PCB: Dielectric constant Dk ≤3.5 (high-frequency materials like Megtron 6), supporting 28GHz millimeter-wave. Case: Tesla autopilot modules reduce thermal resistance by 15℃/W using HDI embedded resistors.
• Standard PCB: FR-4 material Dk ≥4.5, with significant losses above 10GHz, relying on external metal layers for heat dissipation.

7. Reliability Data

• HDI PCB: Microvia thermal cycling test (-55℃~125℃) passes 3,000 cycles (JEDEC standard), but copper thickness inconsistencies cause 15% early failures.
• Standard PCB: Through-hole structures pass 1,500 thermal cycles, with typical failure mode being hole wall cracking (0.5% incidence).

Applications: Standard PCBs vs Advanced HDI PCBs

Standard PCB Applications

• Industrial Controls & Power Systems: Used in PLCs, motor drives, and power distribution units Automotive Electronics: Dashboards, engine control units (ECUs), and basic infotainment systems where space is less constrained.
• Consumer Appliances: Washing machines, refrigerators, and HVAC systems requiring simple circuit layouts.
• Low-Speed IoT Devices: Smart home sensors, basic monitors, and peripheral devices with minimal signal complexity.

Advanced HDI PCB Applications

• Mobile & Wearable Tech: Smartphones, smartwatches, and AR/VR devices demanding micro-sized components and high-speed connectivity.
• Medical Electronics: Implantable devices, portable ultrasound machines, and lab-on-a-chip systems requiring precision and miniaturization.
• 5G & Telecom Infrastructure: Base stations, mm Wave antennas, and data center interconnects for ultra-fast signal transmission.
• Aerospace & Defense: Avionics, radar systems, and satellite components needing lightweight, high-reliability circuits.
• AI & High-Performance Computing: Servers, GPUs, and neural processors requiring dense interconnects for efficient power delivery and thermal management.

Which Has Better Heat Dissipation: Standard PCB and Advanced HDI PCB?

Substrate Thermal Conductivity

• Standard PCB: Uses FR-4 substrate (0.3 W/m·K), relying on copper thickness (35–70μm) for heat dissipation.
• Advanced HDI PCB: Adopts high-thermal-conductivity resins/ceramic-filled substrates (1.0–2.0 W/m·K), though fine lines (<0.1mm) reduce copper cross-section.

Structural Heat Dissipation Efficiency

• Standard PCB: Thick copper layers enable horizontal heat spreading, suitable for <15W applications.
• Advanced HDI PCB: Microvia copper filling creates vertical thermal channels, reducing thermal resistance by 15–20% and cutting high-frequency temperature rise by 30% (ΔT 18°C vs. 22°C).

Thermal Accumulation Risk

• Standard PCB: Direct thermal paths in low-layer designs; multi-layer setups risk localized overheating.
• Advanced HDI PCB: 12+ layer stacks require rigorous thermal simulation, using embedded heat pipes/thermal via arrays to suppress interlayer thermal coupling.

Scenario Adaptability

• Standard PCB: Cost-effective, excels in <15W natural convection scenarios (7–10°C lower temp rise).
• Advanced HDI PCB: Optimizes high-density zones (e.g., 5G RF/GPU areas) via material + structural tweaks, limiting hotspot temp rise to <15°C.

Performance and Reliability: Standard PCB vs Advanced HDI PCB

Electrical Performance Differences

• Signal Integrity: Advanced HDI PCBs reduce signal path length by 30-50% through microvia/blind via technology, minimizing crosstalk and latency for 5G/high-frequency applications. Standard PCBs are better suited for low-frequency, simple circuits.
• Impedance Control: HDI’s laser-drilled microvias achieve ±3% precision (vs. ±10% for mechanical drilling in standard PCBs), ensuring stable high-frequency signal transmission.

Reliability Comparison

• Interlayer Connection: HDI’s Every Layer Interconnect (ELIC) technology reduces failure rates to 0.02% (vs. 0.1% for standard PCBs), doubling product lifespan.
• Thermal Stability: HDI uses high-Tg materials (≥180°C) and uniform copper thickness, reducing failure rates by 40% in high-temperature environments compared to standard PCBs.

Space & Cost Efficiency

• Miniaturization: HDI enables 60% higher component density for wearables/smartphones. Standard PCBs require larger board sizes (increasing costs by 15-20%).
• Long-Term Cost: HDI’s 30% higher upfront cost is offset by reduced layer counts (e.g., 8-layer HDI replacing 12-layer standard) and lower repair rates, achieving ROI within 2 years.

Production Flexibility

• Design Iteration: HDI supports 0.1mm line/space (vs. 0.15mm for standard), accelerating complex design iterations and cutting time-to-market by 1-2 months.
• Supply Chain Compatibility: Standard PCBs fit traditional equipment upgrades; HDI requires supplier capability assessment (only 12% of Chinese PCB factories excel in advanced HDI).

Environmental Compliance

• Material Standards: HDI commonly uses halogen-free substrates (IPC-4101E compliant), aiding EU RoHS 3.0 certification. Standard PCBs may require additional compliance costs.

How to Choose between Standard PCB and Advanced HDI PCB?

Design Complexity and Layer Count

• Standard PCB: Suitable for linear circuits with ≤10 layers and line width ≥100μm (e.g., industrial control boards). FR-4 substrate with traditional through-hole technology ensures short design cycles and controllable costs.
• HDI PCB: Ideal for high-density routing with ≥12 layers and line width ≤150μm (e.g., smartphone motherboards). Laser microvias and blind/buried via technology support high-pin-density BGA packaging.

Signal Performance

• High-frequency/high-speed scenarios (≥1GHz): HDI reduces parasitic capacitance/inductance by ~40%, enhancing signal integrity. Example: 28GHz mmWave module eye diagram margin improves from 0.3UI to 0.6UI.
• Low-frequency circuits (e.g., LED driver boards): Standard PCB’s through-hole technology meets requirements, with EMI issues optimized via ground layers.

Space & Component Density

• Space-constrained scenarios: HDI achieves 50μm line width/spacing, supporting BGA packages with >1500 pins, reducing area by 60% and thickness by 40%.
• Space-relaxed scenarios: Standard PCB’s 150μm line width/spacing lowers manufacturing difficulty and reserves space for heat sinks.

Cost & Lead Time

• Standard PCB: Unit cost ~$110-160/m², lead time 3-5 days. Bulk production (100k units) reduces total cost by ~40% compared to HDI.
• HDI PCB: Laser drilling and sequential lamination increase unit price, but reducing total layers (e.g., 8-layer HDI vs. 12-layer standard) cuts costs by ~15% while boosting signal speed by 50%. Lead time requires an additional 2-3 weeks.

Manufacturing & Design

• HDI Design: Adheres to “3-layer sequential lamination” limits; requires 3D simulation for via fill rate validation.
• Standard PCB Design: Supports relaxed DRC rules (line width tolerance ±20%), suitable for rapid prototyping.

Why Choose Best Technology as Advanced HDI PCB Manufacturer?

Reasons why choose us as advanced HDI PCB manufacturer:

• 19 Years HDI Expertise: Specialized in high-complexity HDI manufacturing for 19 years, with 100,000+ batches delivered for 5G, medical, and automotive sectors, mastering microvia filling and layer alignment.
• 48-Hours Rapid Prototyping: Fast-track line ensures samples ship within 48 hours from design approval, speeding up validation for consumer electronics and automotive projects.
• Stringent Quality Certifications (ISO9001, ISO13485, and IATF16949): Ensures product consistency and compliance with global standards.
• Competitive Pricing: Affordable pricing without compromising quality, ideal for cost-sensitive projects.
• Six Layer Quality Inspection: Strict AOI, X-ray, and impedance testing reduce defects to <1%, meeting IPC-6012 Class 3 and ISO 9001:2015 standards.
• Free DFM Analysis: Complimentary design checks identify trace compliance, blind via feasibility, and thermal risks upfront to boost yields.
• Expert Technical Support: Senior engineers provide end-to-end guidance on HDI challenges like signal loss and thermal stress.
• Eco-Compliant Manufacturing: RoHS compliant processes and ISO certification support global environmental standards.
• Custom Application Solutions: Tailored designs address aerospace heat resistance, medical biocompatibility, and automotive vibration needs for precise performance.

Welcome to contact us if you have need any help for advanced HDI PCB board: sales@bestpcbs.com.
