What is DK and DF in PCB? A Completed Guide for High-Frequency & High-Speed Designers

In RF, microwave, and high-speed digital engineering, DK and DF are two of the most important material parameters. They determine how fast signals propagate, how much loss occurs at higher frequency, and how clean your impedance remains across the entire channel. Whether you are building 5G radios, radar modules, mmWave sensors, or 28Gbps backplanes, understanding dk and df in PCB is essential.

This complete guide explains DK, DF, how they affect PCB performance, and how to choose materials for advanced designs.

What Is DK in PCB?

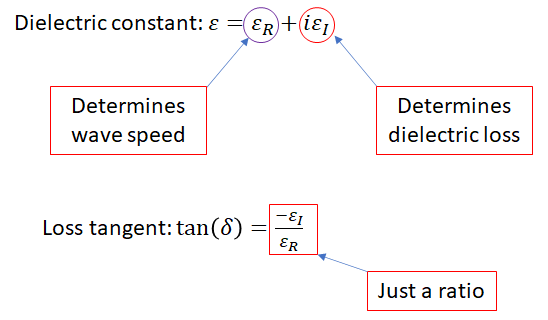

When engineers ask what is DK in PCB, they refer to the dielectric constant of the laminate material. DK tells us how much electric energy the material can store when a high-frequency signal travels through it.

• Higher DK → slower signal propagation
• Lower DK → faster signal propagation

The numeric value is important, but stability matters even more:

• DK must remain stable across temperature
• DK must remain stable across humidity
• DK must remain stable across frequency range

If DK shifts too much, the impedance changes. This causes timing errors, tuning drift, or degraded RF performance.

Why DK matters:

• Controls impedance for microstrip and stripline traces
• Influences signal delay and phase velocity
• Affects antenna tuning and RF filter accuracy
• Impacts coupling, resonant frequency, and trace dimensions

For radar, satellite RF, or 112Gbps SerDes, DK stability is critical.

What Is a Good DK Value for High-Frequency PCB Design?

A “good” DK depends on your application. Below are typical recommended DK ranges:

Frequency Range	Suggested DK Range	Notes
1–3 GHz	3.2–4.5	FR4 may still work for some designs
3–10 GHz	2.9–3.7	Rogers RO4000 series is popular
10–40+ GHz	2.0–3.2	PTFE, RO3000 series, Megtron materials

Common examples:

• RO3003 (DK = 3.0) → excellent for RF/microwave/mmWave
• RO4350B (DK ≈ 3.48) → great for mixed RF + digital systems
• RT5880 (DK ≈ 2.2) → premium for mmWave (24–80 GHz)

Mid-range DK around 2.9–3.5 is ideal for most RF and high-speed digital designs.

What Is DF in PCB?

When engineers ask what is DF in PCB, they refer to the dissipation factor, also known as:

• loss tangent
• tan δ
• dielectric loss factor

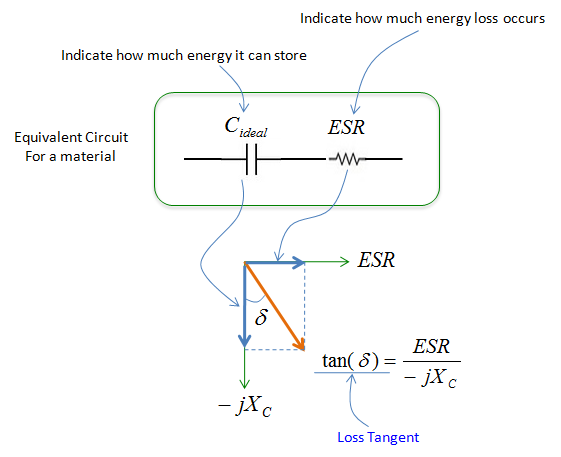

DF shows how much of the signal energy turns into heat as it travels through the dielectric.

• Low DF → low loss → high-frequency performance is cleaner
• High DF → more loss → signals fade faster

DF matters more as frequency increases.

For example:

• FR4 DF ≈ 0.015
• RO3003 DF ≈ 0.001
• PTFE DF ≈ 0.0009

This small numeric difference creates a huge difference at 10 GHz or 28Gbps.

Why Does DF Impact Insertion Loss?

Total insertion loss comes from:

1. Conductor loss
2. Dielectric loss (directly tied to DF)
3. Radiation loss
4. Copper roughness

Higher DF means the dielectric absorbs more power, raising insertion loss and degrading signal integrity.

Effects of high DF:

• Closed eye diagrams at 10–28Gbps
• Significant attenuation in RF feedlines
• Reduced antenna efficiency
• Shorter allowable routing lengths

That’s why high-performance systems use materials like RO3003, PTFE, Megtron 6, or RO4350B.

DK and DF in PCB Formula

Engineers often search for DK and DF in PCB formula to understand how materials influence signal behavior.

1. Phase Velocity

2. Dielectric Loss Approximation

3. Impedance Relation

• Higher DK → lower impedance
• Lower DK → higher impedance

These formulas guide stack-up planning and impedance modeling.

Why DK and DF Matter in PCB Design?

DK and DF are the foundation of RF and high-speed performance:

Parameter	DK Influence	DF Influence
Impedance	Very strong	Minimal
Insertion loss	Moderate	Strong
Propagation delay	Strong	Minimal
RF matching	Strong	Moderate
Channel length limits	Low impact	Huge impact

For high-speed digital circuits:

→ DF dominates, because loss determines signal integrity.

For RF/microwave circuits:

→ DK dominates, because it controls tuning and impedance.

For mmWave systems:

→ Both DK and DF must be extremely stable.

Typical DK and DF Values of Common PCB Materials

(Values at ~10 GHz; may vary by test method.)

Material Type	DK	DF	Notes
Standard FR4	4.2–4.8	0.015–0.02	Not suitable for >3–5 GHz
High-TG FR4	4.1–4.3	0.010–0.014	Better stability
Rogers RO4003C	3.38	0.0027	Very popular RF material
Rogers RO4350B	3.48	0.0037	Mixed RF + high speed
Rogers RO3003	3.00	0.001	Ultra-stable laminate
PTFE (Teflon)	2.1–2.3	0.0009	Ideal for microwave/mmWave
Megtron 6	3.3–3.7	0.002–0.003	Excellent for 28G–112G SI
Ceramic-filled hydrocarbon	2.9–3.5	0.0015–0.003	Good for compact 5G modules

How DK and DF Influence Impedance and Stack-Up Design?

1. Impact on Impedance

• Higher DK → narrower traces needed
• Lower DK → wider traces

Even tiny DK variations (±0.02) can change impedance significantly at GHz speeds.

2. Impact on Routing Length

• Higher DF → higher attenuation → shorter allowable trace lengths
• Lower DF → longer, cleaner channels

3. Impact on Layer Stack-Up

Stack-ups must account for:

• dielectric thickness stability
• resin/glass ratio
• copper roughness
• prepreg behavior
• weaves (spread vs standard)

A well-designed stack-up reduces tuning cycles and improves yield.

How to Choose the Right PCB Material for High-Speed & RF Projects?

Use these guidelines:

Below 3 GHz

• High-TG FR4 often acceptable

3–10 GHz

• Rogers RO4003C
• Rogers RO4350B
• Panasonic Megtron 4

10–40+ GHz

• RO3003
• RO3035
• RT5880
• PTFE-based laminates
• Megtron 6 or Megtron 7 for digital

Consider these factors:

• Required bandwidth
• Acceptable insertion loss
• Channel length
• Operating temperature
• Fabrication constraints
• Material availability

DF < 0.003 is recommended for mmWave or 28Gbps+ channels.

Best Technology provides stack-up design, DFM review, material selection support, and impedance simulations to ensure successful builds.

FAQs About DK and DF in PCB

1. Are DK and dielectric permittivity the same concept?

Yes. DK is the relative permittivity. Datasheets express it as DK because it directly relates to PCB performance.

2. Does copper roughness influence DK/DF performance?

Yes. Rough copper:

• Increases conductor loss
• Raises effective DK
• Degrades high-frequency performance

Smooth copper (e.g., reverse-treated) improves SI and RF behavior.

3. Which materials offer the lowest DF for mmWave PCB builds?

• PTFE composites
• Rogers RO3003
• Rogers RO3035
• RT/duroid 5880

These materials support 24–80 GHz mmWave designs.

4. How do I read DK and DF on a laminate datasheet?

Check:

• Frequency of measurement (must match your design)
• Test method (IPC-TM-650 recommended)
• Tolerance and DK stability

5. Is lower DK always better for RF antenna design?

Not always. Low DK reduces size control. Many antennas need mid-range DK for stable tuning.

6. How much DF is acceptable for 10Gbps or 28Gbps routing?

• 10Gbps: DF < 0.008 acceptable
• 25/28Gbps: DF < 0.004 recommended
• 56/112Gbps: DF < 0.002 preferred

Why Choose Best Technology as Your High-Frequency & High-Speed PCB Manufacturer?

Best Technology specializes in RF, microwave, and high-speed PCB fabrication with strict control of DK, DF, and dielectric thickness.

Our advantages:

Engineering Support:

• Stack-up design and optimization
• Impedance modeling and verification
• DFM for RF and high-speed structures
• Prototype to mass-production capability

If your project requires stable DK and DF in PCB materials, Best Technology provides the expertise and manufacturing precision needed for 5G, radar, satellite RF, and high-speed digital systems.
