FPC vs FFC Connector: How to Choose?

Which is better? FPC vs FFC connector? This guide provides a detailed comparison of their specifications, durability, cost, and reliable suppliers, along with an FAQ section, to empower your design and procurement decisions for optimized performance and reliability.

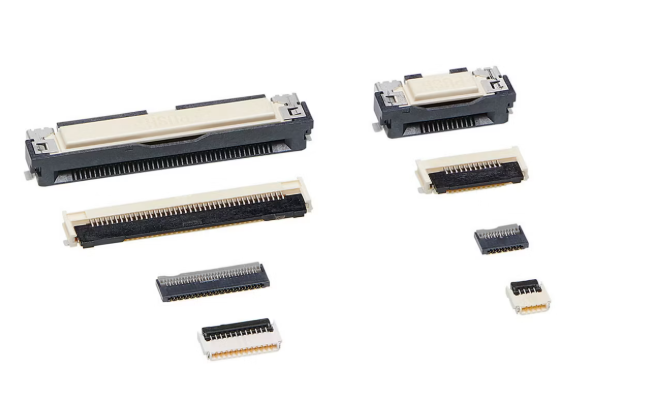

What Is A FPC Connector?

A FPC connector is designed to link flexible printed circuits to a rigid PCB or module. It creates a stable electrical interface between thin copper traces on the flexible board and the main circuit. The structure is compact, while the landing area remains very narrow, which helps engineers handle tight mechanical designs. Furthermore, these connectors offer different orientations—top contact, bottom contact, or dual-contact, so designers can manage signal flow based on the device layout.

Because flexible printed circuits bend without stressing the copper, FPC connectors become common in cameras, mobile devices, wearables, and modules with curved surfaces. Additionally, their latch systems, pin counts, and pitch sizes vary widely, giving engineers more room to fine-tune the interface. As devices continue shrinking, these connectors support high-density routing in limited areas without sacrificing electrical performance.

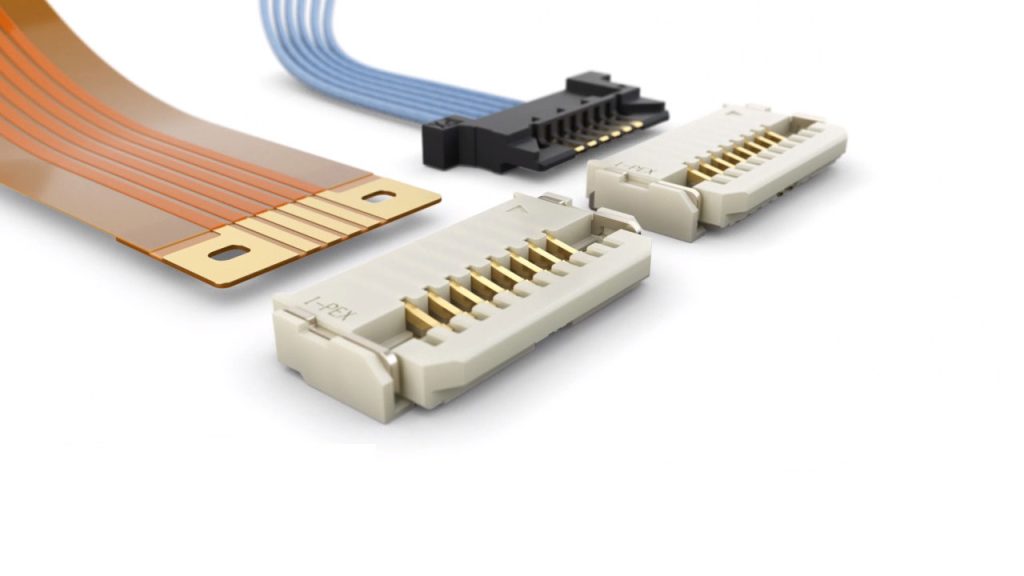

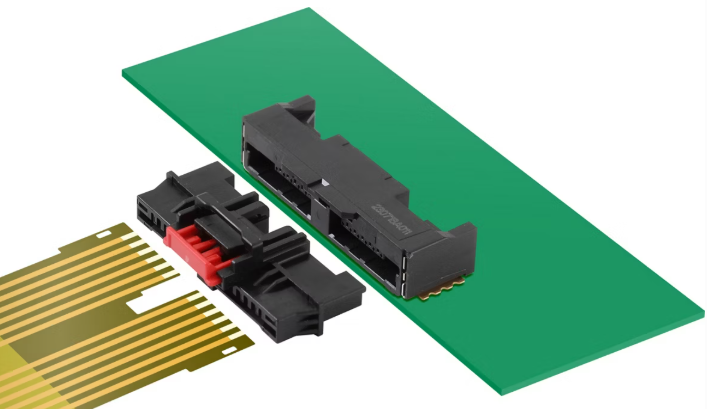

What Is A FFC Connector?

A FFC connector mates with a flat flexible cable instead of a patterned flexible circuit. The cable uses thin copper strips laminated between insulation layers, forming a ribbon-like shape. While the form is simple, the structure supports stable current flow across short distances with minimal signal loss. Because of this, FFC connectors remain popular in printers, displays, household electronics, vehicle dashboards, and small automation units.

Moreover, the connector body usually adopts a lightweight design with sliding or flip-lock actuators. Engineers can plug and secure the cable with ease during assembly. Pitch options, length choices, and cable thickness also stay diverse, allowing the solution to suit compact or mid-size modules. As a result, FFC connectors deliver consistent performance for devices that require repeatable, low-profile interconnects.

FPC vs FFC Connector: How to Choose?

Below is a detailed selection guide: FPC vs FFC Connector:

1. Electrical Performance Priority Scenario Selection Strategy

• High-Frequency Signal Scenarios (≥5GHz): Prioritize FPC connectors, with impedance control accuracy up to ±5Ω, supporting 56Gbps PAM4 transmission (e.g., Molex 502430 series). FFC connectors exhibit ±20Ω impedance deviation, unsuitable for high-frequency requirements.
• High-Current Transmission Scenarios (≥2A/pin): Recommend FFC connectors, with conductor thickness ≥0.05mm (FPC typically 0.035mm), achieving ≤10mΩ contact resistance via IDC terminals (e.g., TE 1775170).
• Mixed Signal Design Scenarios: Adopt FPC connectors, enabling integration of resistors/capacitors for rigid-flex boards, effectively avoiding crosstalk risks from parallel FFC lines.

2. Mechanical Environmental Adaptability Selection Logic

• Dynamic Bending Requirements (>100,000 cycles): Must select FPC connectors, with PI substrate bending life up to 500,000 cycles and ZIF connectors (e.g., Hirose FH12 anti-dislodging design). FFC PET substrate bending life ≤50,000 cycles, prone to fatigue fracture.
• High-Vibration Scenarios (Automotive/Aerospace): Recommend FPC connectors, with beryllium copper terminals resisting 15G vibration (compliant with USCAR-2). FFC IDC interfaces risk loosening under vibration.
• High-Temperature Environments (>105°C): Both options viable. FPC with PI substrate withstands 260°C (e.g., JAE FX26). FFC requires custom PI substrate version (+30% cost).

3. Space and Integration Complexity Decision Points

• Ultra-Thin Design (≤0.8mm): Select FPC connectors, compressible to 0.3mm thickness (e.g., I-PEX 20473). FFC inherently thicker (≥0.6mm) due to insulation-conductor structure.
• 3D Wiring Requirements: Must adopt FPC connectors, customizable for complex structures like foldable hinge applications. FFC limited to planar routing.
• Quick Plug-and-Play Maintenance: Recommend FFC connectors, with IDC solder-free interfaces (e.g., Amphenol 20021121). FPC ZIF insertion requires specialized tools.

4. Cost and Supply Chain Economic Analysis

• Strict Cost Control Scenarios: Prioritize FFC connectors, priced $0.01−$0.05/pin(FPC: $0.03-$0.15/pin). PET material accounts for 60% of FFC costs vs. 30% for FPC materials.
• Small-Batch Customization Scenarios: Suitable for FPC connectors, with 1-week prototype cycles and laser cutting replacing FFC stamping dies ($5K+ tooling cost).
• Automotive-Grade Certification Requirements: Both viable. FPC offers AEC-Q200 certified products (e.g., JAE FX26). FFC provides IP67-sealed options (e.g., TE 1775170).

5. Risk Mitigation and Reliability Enhancement Measures

• High-Frequency Signal Attenuation Risk: Select FPC connectors with ≤0.3mm pitch and gold-plated terminals for impedance matching.
• Bending Fracture Risk: Avoid sharp bends <1mm radius (PI substrate minimum bending radius = thickness ×10).
• Contact Oxidation Issues: Use gold-plated terminals (≥0.2μm) instead of tin in humid environments for enhanced corrosion resistance.
• Insufficient Insertion-Extraction Life: Optimize for FPC connectors with 100,000-cycle certifications (e.g., Hirose FH43).

6. Industry Best Practice References

• Consumer Electronics: Mobile screen applications prefer FPC (Hirose FH12) for space optimization and bending advantages.
• Industrial Equipment: PLC module interconnections use FFC (Molex 052331) for $0.02/pin cost efficiency.
• Medical Endoscopy: FPC (Omron XG5M) recommended for gamma sterilization resistance.
• Automotive ECU: FPC (TE 1473005) selected for vibration and high-temperature composite tolerance.

FFC vs FPC Connector Specification Comparison

Specification	FFC Connector	FPC Connector
Pitch	0.5mm, 1.0mm, 1.25mm, 2.54mm (Standardized)	0.1mm~0.5mm (Customizable)
Conductor Thickness	0.035mm, 0.05mm (Tin-plated copper)	0.012mm~0.035mm (Etched copper foil)
Temperature Resistance Range	PET substrate: -40°C~105°C; PI substrate: -269°C~260°C	PI substrate: -269°C~260°C (Mainstream)
Current Carrying Capacity	0.5A/pin (0.05mm thickness)	0.3A/pin (0.035mm thickness)
Flex Life	Dynamic: 10,000~50,000 cycles; Static: Permanent	Dynamic: 100,000~500,000 cycles (PI substrate)
Impedance Control	±20Ω (High-frequency signal distortion)	±5Ω (Controlled impedance design)
Connector Type	ZIF/LIF (20%); IDC insulation displacement (80%)	ZIF (90%); LIF (10%)
Typical Cost	$0.01~0.05/pin (PET substrate)	$0.03~0.15/pin (Single-layer PI substrate)
High-Frequency Performance	Attenuation >3dB @ 500MHz	Attenuation <1dB @ 5GHz

Which Is More Durable: FPC vs FFC Connectors?

Durability depends on how the connector interacts with the device’s mechanical movement. FPC connectors typically show stronger endurance in continuous bending environments. This is due to the flexible printed circuit’s design, which spreads mechanical stress across the circuit. Furthermore, the laminated copper patterns can be reinforced at bending points to extend service life.

FFC connectors also deliver solid durability but in environments with moderate flexing. Their flat-ribbon shape remains stable for repeated insertions or maintenance cycles. They shine in display panels, office electronics, test equipment, and home devices where the cable holds a predictable bending path.

So, when a device involves dynamic flex cycles or curved profiles, FPC solutions feel more durable. But when the application centers on straight, repetitive assembly, FFC connectors become reliable long-term options.

Top FPC and FFC Connector Suppliers

Brand	FFC Representative Model	FPC Representative Model	Technical Advantages
Hirose	DF14 Series	FH12/FH43 Series	0.3mm ultra-narrow pitch; Self-locking mechanism prevents dislodging
JAE	FI-R/FM Series	FX26/FX23 Series	Automotive-grade high-temperature resistance; Optional metal shielding
TE	1775170	1473000	Industrial-grade vibration resistance; Gold plating ≥0.2μm
Molex	052331	502430	Supports 56Gbps PAM4; High automatic assembly compatibility

How to Select A Reliable FPC and FFC Connector Supplier?

1. Quality Certifications & Regulatory Compliance

• Global Certification Standards: Prioritize suppliers with certifications like ISO 9001, UL, CE, and RoHS to ensure products meet international market entry requirements. Key metrics must be validated by authoritative tests, including contact resistance (milliohm level), insulation resistance, voltage withstand, and environmental robustness (e.g., -40°C to +85°C wide temperature range, high humidity/dust resistance).
• Third-Party Testing Reports: Require independent lab reports to verify signal integrity, impedance matching, insertion/extraction lifespan (e.g., 5000+ cycles), and other critical performance parameters, minimizing cross-border quality disputes.

2. Production Capacity & Technical Maturity

• Scalability & Equipment: Evaluate suppliers’ production scale, automation level (e.g., precision molds, laser cutting systems), and technical expertise. Optimize for partners with large-scale automated facilities to ensure rapid response to high-volume orders.
• Technical Expertise: Focus on suppliers with proven success in consumer electronics, automotive, and industrial control sectors, as well as niche strengths in high-speed transmission, high-current applications, and precision connectivity.

3. Technical Support & After-Sales Service

• End-to-End Technical Assistance: Suppliers should offer full-cycle support from product selection, design optimization, to troubleshooting. For instance, Best Technology provides 24/7 technical response, 48-hour rapid delivery, and customized solutions like circular push-pull self-locking connectors for medical/industrial scenarios.
• Warranty & Training: Clarify warranty terms (e.g., 1-year free warranty for main units), repair timelines (2-7 business days), and on-site training to ensure seamless post-sale support.

4. Price and Cost-Effectiveness Analysis

• Cost Transparency: Compare quotations from different suppliers, and comprehensively evaluate based on product performance, quality stability, and long-term usage costs. For example, there is a significant price difference between ordinary consumer-grade FPCs and high-end products; the optimal cost-effective solution should be selected based on the project budget.
• Supply Chain Optimization: Prioritize original manufacturers to reduce intermediate costs, while ensuring sufficient inventory and stable delivery cycles.

5. Logistics & Supply Chain Resilience

• Global Logistics Network: Assess suppliers’ logistics capabilities, including multi-modal transport (air/sea), customs clearance efficiency, and real-time tracking systems. International clients should prioritize partners with multi-regional warehouses (e.g., in East/South Asia) and contingency plans for disruptions (e.g., pandemics, geopolitical risks).
• Supply Chain Diversification: Select suppliers with geographically distributed networks to reduce dependency risks and enhance resilience against supply chain interruptions.

6. Client Testimonials & Industry Reputation

• Case Studies & Awards: Reference supplier reviews, industry accolades, and collaborations with renowned enterprises. Best Technology, for instance, is recognized as a “Specialized & Innovative” leader, trusted by global clients across 68 countries for its industrial-grade solutions.
• Reputation Validation: Gather feedback via industry associations, B2B platforms, or trade fairs, prioritizing suppliers with consistent positive evaluations from long-term partners.

7. Sustainability & Social Responsibility

• Eco-Friendly Practices: Examine suppliers’ environmental policies (e.g., energy efficiency, waste management), labor standards, and certifications like SA8000. Optimize for partners aligned with global sustainability trends to enhance brand reputation.
• Long-Term Partnership Potential: Evaluate investments in green production and circular economy initiatives to ensure collaborations meet ESG (Environmental, Social, Governance) expectations.

8. Export Experience and International Cooperation Capabilities

• Cross-border Transaction Capabilities: Prioritize suppliers with extensive export experience, possessing the ability to handle cross-border transactions, language communication, time zone differences, and cultural adaptation. For example, some suppliers support multilingual services and localized technical support.
• Compliance and Risk Management: Ensure suppliers are familiar with the laws and regulations of the target market and possess risk warning and emergency response mechanisms.

FAQs of FPC vs FFC Connector on Reddit

Q1: How do I tell if my board needs an FPC connector or an FFC connector?

A1: Most Redditors say: check the cable type first.
• If you’re using a flex circuit with copper traces, you need an FPC connector.
• If you’re using a flat ribbon cable, you need an FFC connector.
They look similar, but the mating surfaces are different, so match the connector to the cable type.

Q2: Are FPC connectors worth the extra cost compared to FFC for small devices?

A2: Usually yes if the device bends or has tight space limits. FPC circuits allow custom routing, thin stacks, and curved shapes. However, if the connection is just point-to-point and the cable doesn’t move, Reddit users often choose FFC because it’s cheaper and easier to replace.

Q3: Which one is better for repeated plugging/unplugging?

A3: FFC connectors tend to handle repeated connections better because the ribbon is uniform and easier to reseat. FPC circuits can also be reconnected, but they’re more sensitive to handling and alignment. For repair-friendly devices, Reddit’s general preference is FFC.

Q4: Can I run high-speed signals through FFC, or should I stick to FPC for that?

A4: You can run moderate-speed signals through FFC, and many displays do exactly that. But for anything where impedance control matters, like high-speed digital lanes or RF traces, Reddit engineers typically recommend FPC because you can customize copper width, spacing, and thickness.

Q5: Is FPC actually more durable, or is that just marketing?

A5: It depends on the type of movement. FPC is more durable in dynamic flexing where the cable bends thousands of times. FFC is durable in static or single-bend setups where the cable stays in one defined path. So both are durable, but for different scenarios.
