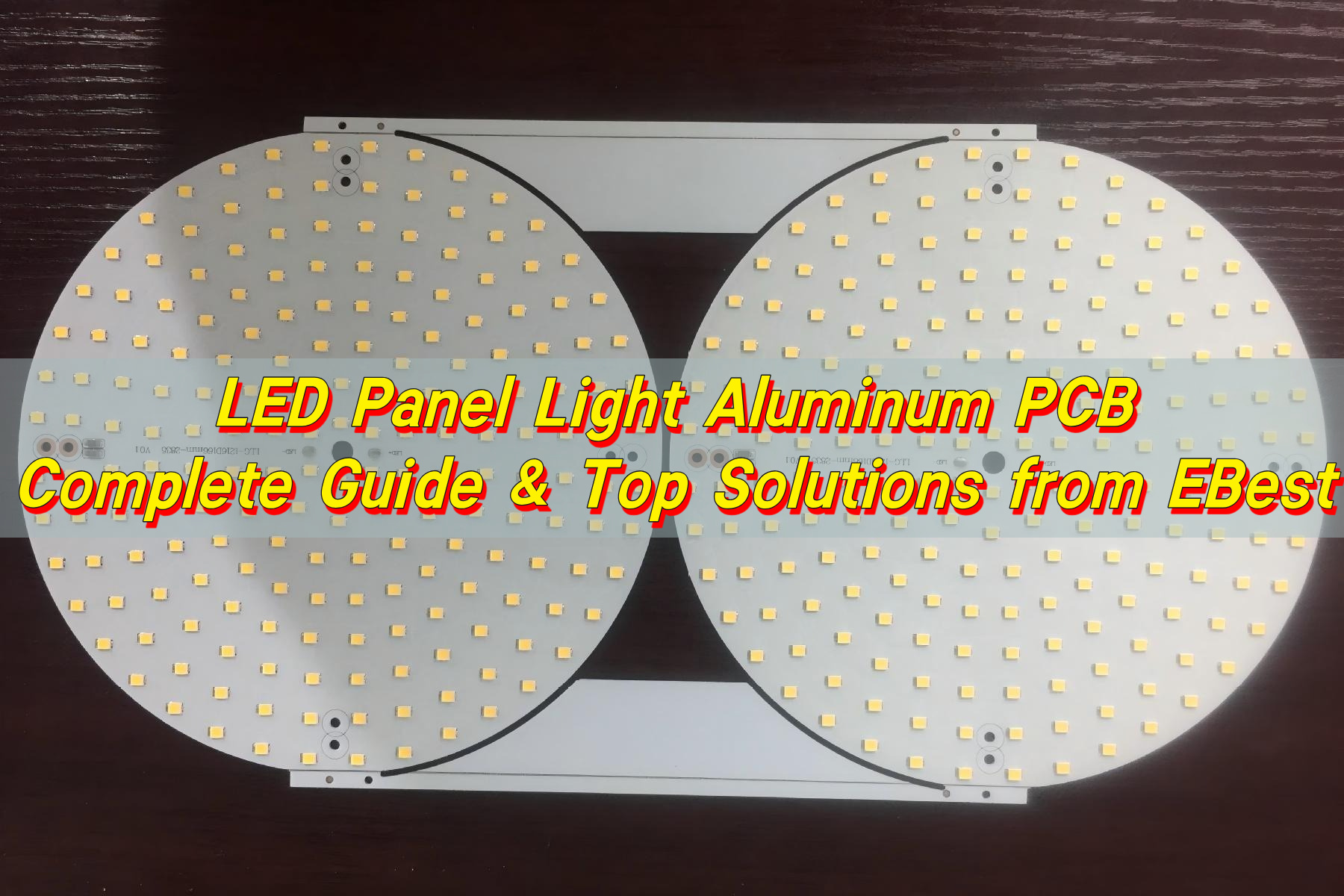

Why Choose EBest for Your LED Panel Light Aluminum PCB?
EBest is your first choice for high-performance LED Panel Light Aluminum PCB, with core parameters designed to meet the strictest industry standards. Our LED Panel Light Aluminum PCB features thermal conductivity of 1.0-4.0 W/(m路K), copper thickness of 1oz-4oz, board thickness of 0.8mm-3.0mm, and operating temperature range of -40鈩 to 125鈩.
We offer custom solutions for all LED panel light applications, ensuring stable performance and long service life. For your next LED Panel Light Aluminum PCB project, choose EBest鈥攚e deliver reliability you can count on. Contact us to place your order today.
Why Choose Us for LED Panel Light Aluminum PCB?
Quality: Our LED Panel Light Aluminum PCB undergoes 100% full inspection before delivery, with strict adherence to international quality standards and advanced production processes to ensure stable performance and low failure rates.
Delivery: With a monthly production capacity of 260,000 square feet, we offer expedited service鈥攗rgent LED Panel Light Aluminum PCB orders can be shipped within 24 hours, ensuring you meet tight project deadlines.
Service: We provide one-stop solutions, from custom design and component sourcing to assembly and after-sales support, tailored to your unique LED Panel Light Aluminum PCB needs.
Supply Chain: Our stable and perfect supply chain ensures consistent access to high-quality materials for LED Panel Light Aluminum PCB, eliminating delays and supply risks.

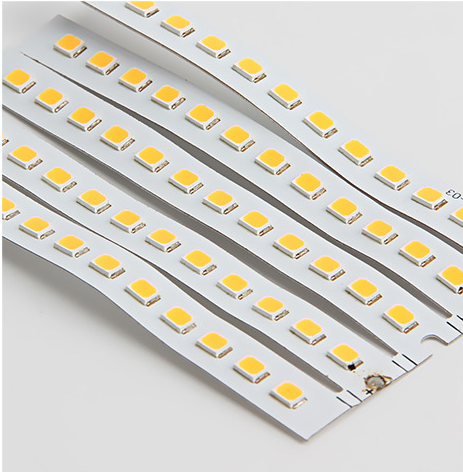

What Are the Key Advantages of LED Panel Light Aluminum PCB?
LED Panel Light Aluminum PCB offers three core advantages that make it superior to standard PCBs for LED lighting applications. First, its excellent thermal conductivity (1.0-4.0 W/(m路K)) efficiently dissipates heat from LED chips, reducing light decay and extending product life.
Second, it features lightweight and high mechanical strength, making it easy to install and suitable for various LED panel light designs. Third, it supports integrated design, reducing component count and simplifying production processes.

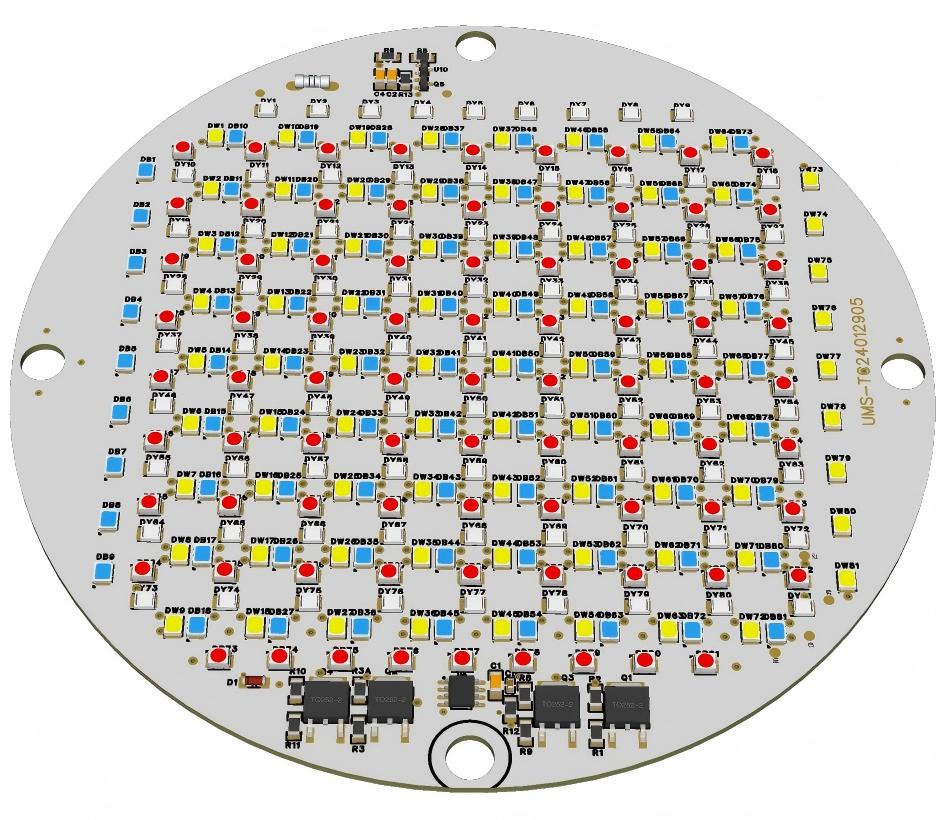

How to Design LED Panel Light Aluminum PCB for Optimal Performance?
To optimize LED Panel Light Aluminum PCB performance, start with thermal management鈥攗se 2oz copper thickness for high-power LED panels and add sufficient heat-dissipating vias (0.3mm瀛斿緞, 1.5mm spacing) to enhance heat transfer.
Separate digital and analog grounds, with ground line width 鈮50mil, to avoid signal interference. Arrange components in a grid pattern and ensure power line width matches current requirements (e.g., 1.7mm width for 2A current with 1oz copper).
Avoid placing mounting holes near component edges and add clear polarity marks for LED chips and power sockets to prevent assembly errors.
What Are the Common Pain Points of LED Panel Light Aluminum PCB and How Do We Solve Them?
Many users face challenges with LED Panel Light Aluminum PCB, but EBest has proven solutions to every key pain point. We address these issues head-on to deliver reliable, high-performance products that meet your needs.
Pain Point 1: Poor Heat Dissipation Leading to Light Decay
Solution: Our LED Panel Light Aluminum PCB uses high-quality aluminum substrates and optimized copper layout, including extended heat pads and “plugged via + copper cladding” technology, to ensure efficient heat dissipation and reduce light decay by 30%.
Pain Point 2: Solder Joint Failure Due to Oxidation
Solution: We use nitrogen-protected soldering and special flux to prevent aluminum oxidation, ensuring strong, stable solder joints. All LED Panel Light Aluminum PCB products undergo strict solder joint inspection to eliminate defects.
Pain Point 3: Inconsistent LED Brightness and Color
Solution: We design independent current-limiting circuits for each LED (or each color channel) and use high-precision constant current ICs (current accuracy 卤3%) to ensure uniform brightness and color consistency across the entire panel.
Pain Point 4: Supply Chain Delays and Material Quality Issues
Solution: Our stable supply chain ensures consistent access to high-grade aluminum substrates and components. We conduct strict incoming material inspections to guarantee the quality of every LED Panel Light Aluminum PCB we produce.
For hassle-free, high-quality LED Panel Light Aluminum PCB solutions that solve these pain points, choose EBest鈥攜our trusted partner for all PCB needs.
Which Industries Benefit Most from LED Panel Light Aluminum PCB? 4 Real-World Cases
LED Panel Light Aluminum PCB is widely used across industries that require efficient, reliable LED lighting. Below are four popular industries and our successful project cases.

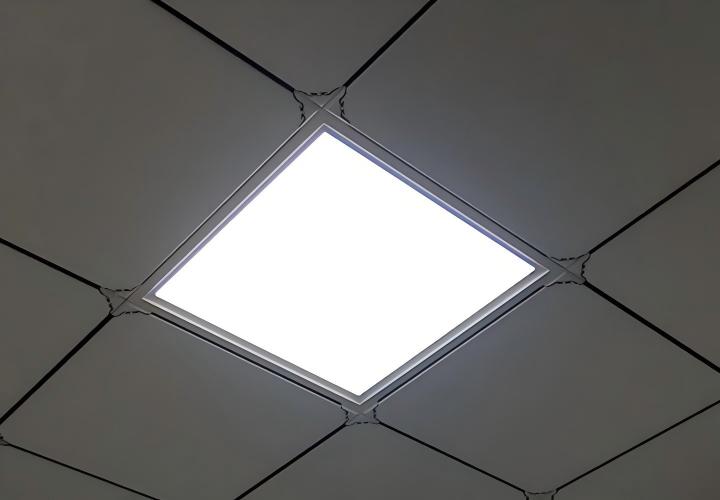

1. Commercial Lighting Industry
Case: We supplied LED Panel Light Aluminum PCB for a large shopping mall in Europe, with 3000K warm white light and 80+ CRI. The PCBs featured 2oz copper thickness and optimized thermal design, ensuring 50,000+ hours of service life with minimal light decay.
2. Industrial Lighting Industry
Case: For a manufacturing plant, we designed dust-proof, high-temperature resistant LED Panel Light Aluminum PCB with IP65 protection. The PCBs supported 10W high-power LEDs and stable operation in environments up to 85鈩.
3. Residential Lighting Industry
Case: We provided custom LED Panel Light Aluminum PCB for a residential lighting brand, featuring slim design (1.0mm board thickness) and energy-saving performance. The PCBs integrated driver circuits, reducing installation complexity for homeowners.
4. Automotive Lighting Industry
Case: Our LED Panel Light Aluminum PCB was used in automotive interior lighting, meeting IATF 16949 standards. The PCBs had excellent vibration resistance and thermal stability, ensuring reliable performance in harsh automotive environments.
How Does LED Panel Light Aluminum PCB Compare to FR4 PCB? A Detailed Comparison
| Comparison Factor | LED Panel Light Aluminum PCB | FR4 PCB |
|---|---|---|
| Thermal Conductivity | 1.0-4.0 W/(m路K), excellent heat dissipation | 0.2-0.5 W/(m路K), poor heat dissipation |
| Suitable LED Power | 1-10W (medium to high power) | <0.5W (low power, indicators only) |
| Mechanical Strength | High, lightweight,resistant to warping | Medium, prone to warping at high temperatures |
| Design Flexibility | Supports integrated design, suitable for slim panels | Limited, requires additional heat sinks for high power |
| Application Scope | Commercial, industrial, residential, automotive lighting | Low-power indicators, simple electronic devices |
What Are the Key Design Rules for LED Panel Light Aluminum PCB?
Follow these key design rules to ensure your LED Panel Light Aluminum PCB performs optimally and avoids common errors.
- Power line width: 鈮50mil for digital power lines; calculate width based on current (line width (mm) = current (A) / (copper thickness (oz) * 1.378) + 0.2mm margin).
- Via parameters: 50mil outer diameter, 28mil inner diameter for outdoor panels; at least 40mil outer diameter, 24mil inner diameter for indoor panels.
- Silk screen: Mark board parameters, polarity, and connection direction clearly; avoid overlapping silk screen with solder pads.
- Static protection: Add TVS diodes at power inputs and ESD protection diodes for signal lines to prevent electrostatic damage.
How to Choose the Right Copper Thickness for LED Panel Light Aluminum PCB?
The right copper thickness for LED Panel Light Aluminum PCB depends on LED power and current requirements. For low-power panels (鈮1W), 1oz (35渭m) copper thickness is sufficient.
For medium-power panels (1-5W), 2oz (70渭m) copper is recommended to enhance heat dissipation and current-carrying capacity. For high-power panels (>5W), 3oz-4oz copper thickness is ideal to handle higher currents and reduce heat buildup.
What Surface Treatments Are Best for LED Panel Light Aluminum PCB?
The best surface treatments for LED Panel Light Aluminum PCB balance corrosion resistance, solderability, and thermal performance. Here are the top options:
1. Anodizing
Improves corrosion resistance and hardness, suitable for outdoor LED panel lights exposed to harsh environments.
2. HASL (Hot Air Solder Leveling)
Enhances solderability, ideal for panels with complex component layouts and high-volume production.
3. ENIG (Electroless Nickel Immersion Gold)
Provides excellent conductivity and corrosion resistance, suitable for high-precision, high-reliability applications like automotive lighting.
What Quality Certifications Does EBest Hold for LED Panel Light Aluminum PCB?
EBest holds a full range of international quality certifications, ensuring our LED Panel Light Aluminum PCB meets the highest industry standards for quality and reliability.
| Certification Name | Applicable Scope for LED Panel Light Aluminum PCB |
|---|---|
| IATF 16949 | Automotive-grade LED panel light PCBs, ensuring compliance with automotive industry quality requirements |
| ISO 9001:2015 | General quality management system, covering all LED Panel Light Aluminum PCB production processes |
| ISO 13485:2016 | Medical-grade LED panel light PCBs, suitable for healthcare lighting applications |
| AS9100D | Aerospace-grade PCBs, for high-reliability LED panel lights in aerospace applications |
| REACH | Compliance with EU chemical regulations, ensuring safe materials for LED Panel Light Aluminum PCB |
| RoHS | Restriction of hazardous substances, making our PCBs environmentally friendly |
| UL | Safety certification, ensuring our LED Panel Light Aluminum PCB meets global safety standards |
What Services Does EBest Offer for LED Panel Light Aluminum PCB?
EBest provides one-stop solutions for LED Panel Light Aluminum PCB, covering every stage of your project from design to delivery.
- PCB Fabrication: Custom LED Panel Light Aluminum PCB prototypes and low-volume production, with support for special substrates and materials.
- Component Sourcing: Stable supply of all electronic components (SMD, BGA, QFN, QFP) for your PCB assembly needs.
- Assembly Services: BGA Assembly, Through-Hole Assembly, and Full Turnkey PCB Assembly, with 100% full inspection before delivery.
- Value-Added Services: Injection molding, CNC Machining, and Sheet Metal services to support integrated LED panel light production.
- Expedited Service: Urgent LED Panel Light Aluminum PCB orders shipped within 24 hours to meet tight deadlines.
FAQ: Common Questions About LED Panel Light Aluminum PCB (Answered)
1. What is the typical service life of EBest鈥檚 LED Panel Light Aluminum PCB?
The typical service life of our LED Panel Light Aluminum PCB is 50,000+ hours. This is achieved through high-quality materials, optimized thermal design, and strict quality control, ensuring minimal light decay and stable performance over time.
2. Can EBest provide custom LED Panel Light Aluminum PCB designs?
Yes, EBest specializes in custom LED Panel Light Aluminum PCB designs. We work with you to understand your project requirements (size, power, thermal needs, and application) and deliver tailored solutions that meet your exact specifications.
3. How long does it take to deliver LED Panel Light Aluminum PCB orders?
Standard LED Panel Light Aluminum PCB orders are delivered within 3-7 business days. We also offer expedited service, with urgent orders shipped within 24 hours to help you meet tight project deadlines.
4. Does LED Panel Light Aluminum PCB require special soldering processes?
Yes, LED Panel Light Aluminum PCB requires special soldering processes to prevent aluminum oxidation. We use nitrogen-protected soldering and special flux to ensure strong, reliable solder joints and consistent performance.
5. How to test the thermal performance of LED Panel Light Aluminum PCB?
To test thermal performance, we measure the LED junction temperature during operation using thermal imaging tools. Our LED Panel Light Aluminum PCB is designed to keep junction temperatures below 85鈩, ensuring minimal light decay and long service life.
6. Can EBest produce LED Panel Light Aluminum PCB for outdoor applications?
Yes, we produce LED Panel Light Aluminum PCB for outdoor applications. These PCBs feature waterproof, dust-proof, and corrosion-resistant designs, with surface treatments like anodizing to withstand harsh outdoor environments.
7. What is the maximum power capacity of EBest鈥檚 LED Panel Light Aluminum PCB?
Our LED Panel Light Aluminum PCB can handle up to 10W per LED, with support for high-power LED panels. We use 3oz-4oz copper thickness and optimized thermal design to handle higher currents and heat buildup.
What Are the Latest Trends in LED Panel Light Aluminum PCB Technology?
The latest trends in LED Panel Light Aluminum PCB focus on efficiency, integration, and intelligence. One key trend is the development of high-thermal-conductivity aluminum substrates (up to 4.0 W/(m路K)) for better heat dissipation.
Another trend is integrated design, combining LED chips, drivers, and sensors on a single LED Panel Light Aluminum PCB for smart lighting applications. Additionally, lightweight and slim designs are becoming more popular for residential and commercial lighting.
How to Ensure LED Panel Light Aluminum PCB Meets Industry Standards?
To ensure LED Panel Light Aluminum PCB meets industry standards, we follow strict quality control processes at every stage. This includes incoming material inspection, in-process testing (DRC, solder joint inspection), and final full inspection before delivery.
We also adhere to all relevant certifications (IATF 16949, ISO 9001:2015, RoHS, etc.) and conduct regular audits to maintain compliance with industry standards.
We provide high-quality LED Panel Light Aluminum PCB solutions, including custom design, fabrication, assembly, and expedited delivery. Whether you need prototypes or mass production, EBest has the expertise and capacity to meet your needs. Place your order today by emailing us at sales@bestpcbs.com
