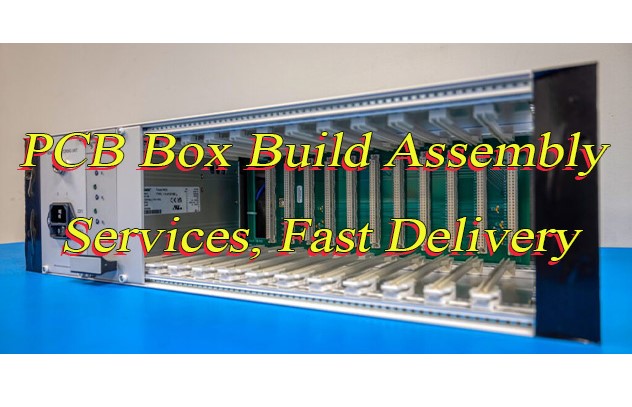

What Are PCB Box Build Assembly Services?

PCB Box Build Assembly Services refer to the system integration of printed circuit boards (PCBs) with electronic components, mechanical structures, power modules, connecting cables, software, and enclosures to form complete and usable electronic devices or systems.

This service is provided by Electronic Manufacturing Services (EMS) companies and is applicable to consumer electronics, industrial control, medical devices, and communication equipment. Its advantages include reducing the logistics and equipment costs associated with customer self-assembly, providing a turnkey solution from design to finished product, ensuring rapid time-to-market and compliance with industry standards (such as RoHS, CE, UL, etc.).

What Does PCB Box Building Assembly Service Include?

PCB Box Build Assembly Services Includes:

• PCB Assembly: Soldering components onto the bare PCB.
• Wire Harness/Cable Assembly: Fabricating and installing connecting cables and harnesses.
• System Integration: Installing the assembled PCB into the chassis/enclosure.
• Peripheral Component Installation: Installing power supplies, fans, displays, switches, connectors, panels, etc.
• Cable Management: Organizing and securing internal cables.
• Software Burning/Basic Testing: Loading the program and performing preliminary functional tests.
• Final Assembly and Testing: Completing the overall equipment assembly and performing comprehensive functional, performance, and safety tests.
• Packaging: Packaging the finished product for shipment.

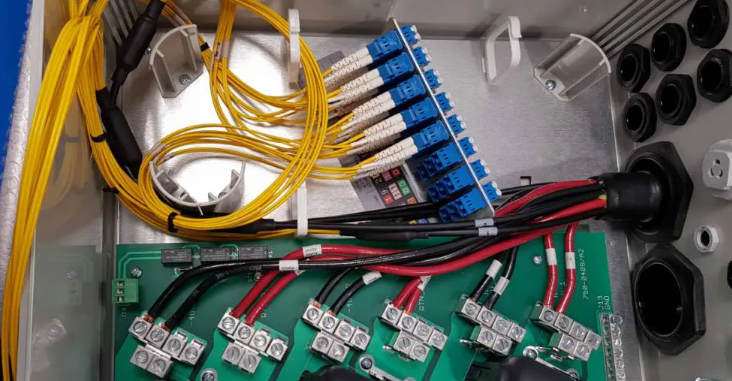

Why Choose PCB Box Build Assembly Services?

Benefits of PCB Box Build Assembly Services:

• Single-Source Accountability: Eliminate interface delays by having one supplier manage PCB fabrication, component procurement, assembly, and enclosure integration. All communication and quality control are centralized, saving coordination time.
• Accelerated Time-to-Market: Integrated manufacturing processes reduce handoffs between multiple vendors. Parallel workflow execution, such as mechanical housing preparation alongside PCB assembly, which cuts lead times by 30-50%.
• Design for Manufacturability (DFM) Insights: Receive valuable early feedback on your design from a production and system integration standpoint, helping to optimize for manufacturability and testability from the start.
• Supply Chain Simplification: We consolidate sourcing of components, connectors, cables, and enclosures. Bulk purchasing power and vetted supplier networks ensure material availability while reducing procurement overhead.
• Risk Mitigation Through Testing: Full functional testing (including burn-in, EMI, and environmental stress screening) occurs at final assembly stage. This prevents field failures and reduces warranty claims by validating complete system performance.
• Scalability Flexibility: Support volumes from prototype batches (10-50 units) to mass production (10,000+ units). Flexible capacity planning accommodates demand spikes without compromising delivery schedules or unit cost efficiency.
• Lifecycle Cost Optimization: Reduced logistics complexity, minimized rework cycles, and consolidated supplier management typically lower total project costs by 15-25% compared to multi-vendor approaches.

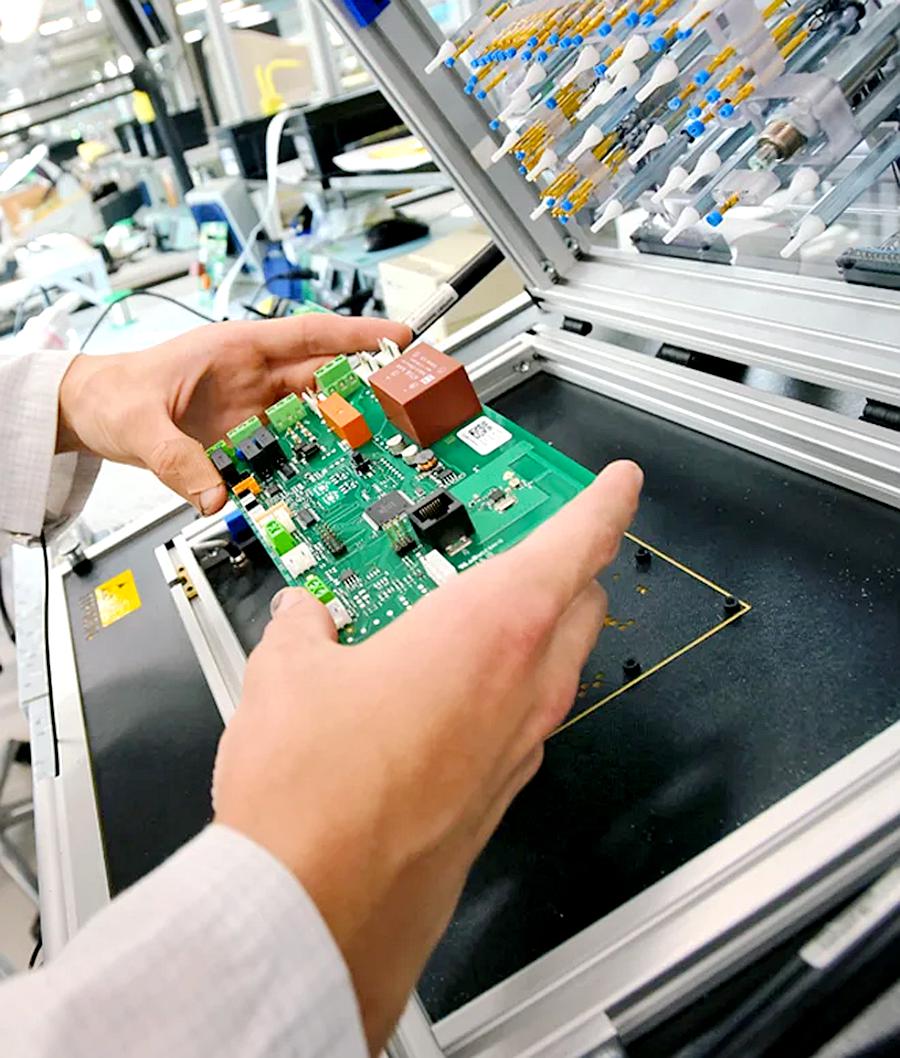

PCB Box Build Assembly Process

1. Design and Planning Phase

• Requirement refinement: Clarify product functional parameters, interface types, mechanical dimensions, and thermal requirements. Develop a detailed BOM list and assembly flowchart.
• 3D modeling verification: Use CAD software to simulate the assembly relationship between the housing and PCBA, checking for spatial interference, thermal pathways, and electromagnetic shielding design rationality.
• Design for Manufacturing (DFM): Evaluate PCB pad design and component layout process feasibility, optimize cable routing paths to reduce signal interference.

2. Material Procurement and Quality Inspection

• Supplier management: Select ISO-certified suppliers to ensure components meet RoHS/REACH environmental standards. Critical components must provide material certificates and test reports.
• Incoming material inspection: Use X-ray for BGA package integrity checks, multimeters for resistance/capacitance value verification, and dimensional measurements to ensure mechanical part precision (e.g., screw hole tolerance ±0.1mm).
• Inventory management: Track material batches via ERP systems to avoid mixing risks, maintain safety stock to address supply chain fluctuations.

3. PCBA Manufacturing Process

• SMT Surface Mount:
• Solder paste printing: Laser-cut stencils control paste thickness (50-100μm), SPI detects paste coverage uniformity.
• Component placement and reflow: High-precision pick-and-place machines handle micro-components (e.g., 01005), nitrogen-protected reflow ovens reduce oxidation, temperature profiles comply with IPC standards.
• DIP Through-Hole and Wave Soldering: Manual insertion of through-hole components followed by wave soldering, clip height controlled at 1.5-2.0mm to prevent cable insulation damage.
• Inspection and repair: AOI detects solder joint defects, X-ray inspects BGA solder ball voids, rework stations perform manual soldering or component replacement.

4. System Integration and Cable Connection

• Modular assembly: Physically connect PCBA, power modules, and interface boards via connectors (e.g., HDMI, USB) to ensure signal integrity.
• Cable management: Use shielded cables to reduce EMI interference, secure cable bundles with ties to prevent vibration wear, maintain minimum bend radius >3× cable diameter.
• Interface protection: Install dust plugs and waterproof gaskets to meet IP ratings (e.g., IP67 requires water immersion testing).

5. Mechanical Assembly and Housing Installation

• Structural fixation: Secure PCBA to aluminum heat dissipation base using stainless steel screws (grade 8.8 or higher), apply thermal silicone evenly (0.2-0.5mm thickness).
• Thermal design: Install heat sinks and fans (2000-5000RPM), ensure temperature rise stays within design thresholds (e.g., CPU core ≤85°C).
• Appearance finishing: Coat housing with UV-cured paint for wear resistance, install acrylic windows to protect displays, apply nameplates smoothly without bubbles.

6. Functional Testing and Reliability Validation

• Functional testing (FCT): Simulate real-world scenarios to verify communication, display, and power management functions using logic analyzers for signal waveforms.
• Burn-in testing: 72-hour high-temperature/high-humidity (85°C/85% RH) powered operation to monitor current changes and component temperature rise.
• Environmental testing: Pass vibration table (sine wave 5-500Hz) for transport shock simulation, temperature chambers (-40°C to 125°C) for weather resistance, salt spray tests for metal corrosion resistance.

7. Assembly Precautions and Quality Control

• ESD protection: Use ESD-safe equipment (wrist straps, mats) throughout the process, maintain workshop humidity at 40%-60% to reduce static.
• Soldering quality: Avoid cold/dry joints; solder joints should be smooth and conical with appropriate solder volume. BGA solder ball voids must be ≤10%.
• Cable protection: Add rubber grommets at sharp edges to prevent cable cuts, secure bundles ≤100mm apart to avoid shaking.
• Thermal management: Ensure full contact between heat sinks and hot components to prevent heat accumulation. Regularly clean fan dust to maintain cooling efficiency.
• Traceability: Record assembly personnel, test data, and material batches for each device to facilitate quality tracking and issue analysis.

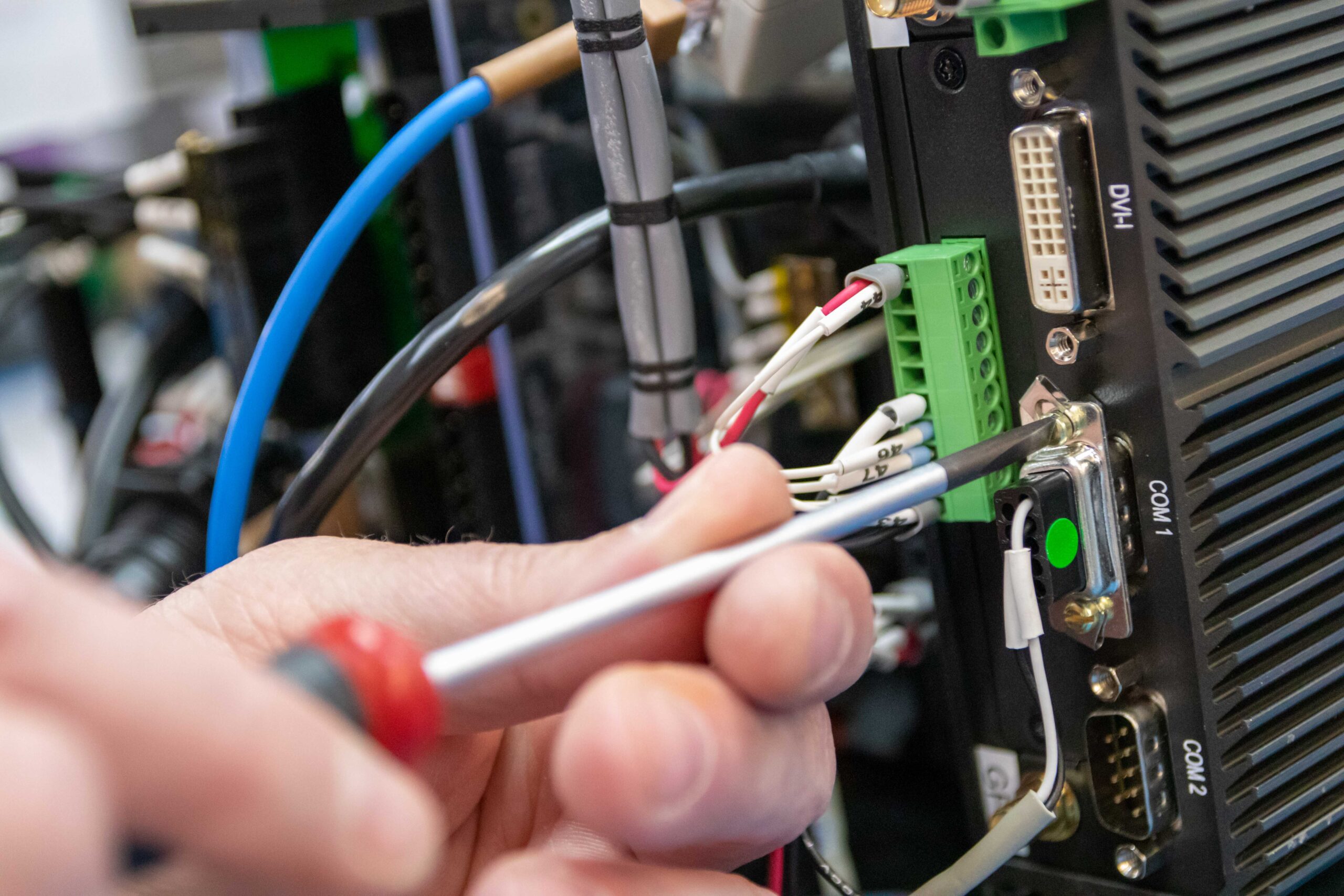

Difference Between PCB Box Building Assembly and PCBA Service

Assembly Scope

• PCBA: Focuses on electronic component-level assembly, including SMT placement, DIP insertion, and functional testing, ultimately outputting a complete single circuit board.
• Box Building: Expands to system-level integration, including structural assembly (e.g., enclosures, brackets), wiring harness routing, heat sink installation, and power module integration, ultimately forming an independently operational complete product.

Technical Verification

• PCBA: Requires solder joint reliability testing (e.g., X-ray inspection, AOI optical inspection), signal integrity verification (e.g., impedance matching, flying probe testing) to ensure electrical performance compliance.
• Box Building: Requires additional mechanical assembly tolerance verification (e.g., snap-fit coordination, screw torque control), system-level EMC/EMI testing, thermal management verification (e.g., heat sink thermal conductivity matching), and whole-unit vibration testing (e.g., ISTA 1A standard) to ensure both mechanical and electrical reliability.

Supply Chain and Cost Control

• PCBA: Supply chain focuses on electronic component procurement (e.g., ICs, resistors, capacitors) and precision placement processing, with cost structure dominated by electronic materials and manual soldering.
• Box Building: Involves cross-domain material procurement (e.g., sheet metal parts, injection-molded parts, wiring harnesses) and multi-process collaboration (e.g., CNC machining, laser cutting), requiring balance between mechanical and electronic component material costs while considering transportation packaging design impact on costs.

Lead Time and Risk Control

• PCBA: Production cycle is shorter (typically 3-7 days), with risks concentrated on electronic component shortages and soldering defects.
• Box Building: Production cycle is longer (typically 1-4 weeks) due to multi-process integration, with risks including mechanical assembly tolerance out-of-spec, system-level testing failures (e.g., power module compatibility issues), and transportation packaging failures.

Certification and Compliance Requirements

• PCBA: Must comply with electronic assembly standards such as IPC-A-610, with high-reliability fields requiring J-STD-001 soldering certification.
• Box Building: Must meet whole-unit safety specifications (e.g., IEC 60950, UL/CE certifications), covering structural safety (e.g., sharp edge protection), electromagnetic compatibility (e.g., FCC Part 15), and environmental adaptability (e.g., RoHS, REACH).

Failure Analysis and Traceability

• PCBA: Failure analysis focuses on electrical parameter anomalies (e.g., open/short circuits, impedance drift), with traceability path from component batch to soldering parameters to test data.
• Box Building: Failure requires combined mechanical and electrical dimensions, such as whole-unit startup failure possibly caused by power module contact issues or structural deformation leading to internal shorts, requiring simultaneous investigation of assembly logs and test records.

Tips for Selection Assembly Service

• PCBA: Preferred during pure electronic design verification stages for rapid circuit functionality validation and design optimization.
• Box Building: Mandatory during complete product delivery stages to ensure full-chain reliability from electronic modules to whole units, while meeting client requirements for packaging, transportation, and after-sales support.

Why Choose Best Technology for Box Build Assembly Services?

Reasons Why Choose Us for Box Build Assembly Services:

• Seamless Transition from Rapid Prototyping to Mass Production: Small-batch production allows for rapid response to design changes, supporting a smooth transition from prototype verification to mass production and reducing communication costs associated with repeated modifications by designers.
• Customized Mechanical Design Capabilities: Providing customized mechanical assembly services such as non-standard shell adaptation and heat dissipation module integration, directly addressing the pain points of overseas engineers in structural matching.
• Transparent Pricing: Pricing is broken down by project stage, with full disclosure of everything from BOM optimization suggestions to assembly and testing cost details, helping engineers accurately control project budgets.
• Modular Assembly Process: Supports adjustments to the process according to customer-specified assembly sequence and testing nodes, adapting to different product iteration rhythms and avoiding the limitations of a one-size-fits-all industrial process that restricts design innovation.
• Compatibility Testing Laboratory: Equipped with test chambers simulating various environmental conditions, capable of performing reliability verifications such as temperature shock and vibration durability tests, exposing design flaws early and reducing the risk of rework later.
• Rapidly Responsive Spare Parts Inventory: Establishing a spare parts inventory of commonly used components in cooperation with regional distributors ensures that production can be initiated within 24 hours for urgent orders, meeting the stringent delivery cycle requirements of overseas customers.
• Design Defect Prediction Service: Provides free DFM service to proactively identify manufacturability issues in design drawings (such as insufficient pad spacing or unreasonable heat dissipation paths) and provide optimization suggestions before production.

Types of PCB Box Build Assembly Services By Best Technology

System-Level Assembly

• Integration of multiple PCBs, electronic modules, and mechanical components into complete systems or devices (e.g., industrial control boxes, medical equipment hosts).
• Includes wire harness connections, cable assembly, interface integration (e.g., USB, HDMI), and functional testing to ensure interoperability of components.

Sub-Level Product Assembly

• Secondary assembly of semi-finished or modular components, such as power modules, control units, or sensor arrays, with independent packaging and testing.
• Suitable for scenarios requiring phased production or customized sub-modules, e.g., automotive electronic sub-control units, consumer electronics accessories.

Packaging & Labeling

• Design of finished product packaging, application of anti-static/shock-resistant materials, and printing/application of barcodes/QR codes.
• Complies with environmental standards like RoHS, supports customized branding, user manual embedding, and logistics label matching.

Testing & Validation

• Functional tests (e.g., circuit continuity, signal integrity), environmental tests (temperature/humidity, vibration), burn-in testing, and software/firmware validation.
• Some providers offer failure analysis (FA) to identify production defects or design issues.

Software Loading & Configuration

• Firmware burning, OS installation, parameter configuration, and UI customization.
• Supports batch firmware flashing, personalized feature settings, and reserved remote debugging interfaces.

Electro-Mechanical Integration

• Precision assembly combining electronic components with mechanical structures (e.g., sheet metal enclosures, plastic casings) to ensure structural robustness and thermal performance.
• Involves screw fixation, adhesive bonding, waterproof sealing, etc., applicable to outdoor equipment or high-reliability scenarios.

Supply Chain & Logistics Coordination

• Component procurement, inventory management, global transportation coordination, and customs clearance support.
• Some enterprises offer end-to-end services covering raw materials to finished products with full logistics tracking.

How to Get A Quote For PCB Box Build Assembly Services?

Material List Required for PCB Box Build Assembly Services Quotation:

• Product Specifications: PCB size, number of layers, substrate type (e.g., FR4, high-frequency materials), surface treatment process (e.g., HASL, ENIG), and special structural requirements (e.g., blind/buried vias, impedance control).
• BOM and Bill of Materials: Complete component list (including model, brand, and quantity), clearly specifying whether self-procurement or supplier outsourcing is required, along with component specifications or alternative material plans.
• Design Document Package: Gerber files, PCB panel layout, schematic diagram, 3D model (if available), assembly instructions, and special process annotations (e.g., BGA balling, thermal pad placement).
• Assembly Process Requirements: SMT placement accuracy requirements (e.g., 0.1005/0.3mm pitch), through-hole type, mixed assembly ratio, connector soldering method, and enclosure integration details (e.g., wire harness length, heatsink module installation).
• Testing and Verification Requirements: AOI/X-RAY inspection level, ICT/FCT test coverage, aging test conditions (temperature/duration), functional verification process and certification standards (e.g., CE, UL, RoHS).
• Quantity and Delivery Time: Annual demand, initial order quantity, tiered pricing, expedited delivery time and logistics methods (e.g., air freight/sea freight/local delivery).
• Additional Service Options: Conformal coating specifications, laser marking content, packaging material type (anti-static/moisture-proof), software programming requirements and after-sales service policy.
• Engineering Support Requirements: DFM analysis feedback, BOM optimization suggestions, alternative material verification and production feasibility assessment report.
