Flex Circuit Prototype Manufacturer in Washington

How to choose Washington flex circuit prototype manufacturer? This blog mainly covers selection guide and manufacturer list for flex circuit board manufacturer in Washington.

Are you troubled with these problems?

  • How to shorten the flexible circuit prototype design iteration cycle to 3 days for deliverable test samples?
  • How to ensure signal attenuation ≤3% after 5,000 bending cycles in flexible circuits?
  • How to reduce prototype costs by 15% while maintaining performance, given high R&D budget proportions?

As a flexible circuit prototype manufacturer, Best Technology can provide you service and solutions:

  • Standardized Rapid Prototyping Process – Optimized process nodes and automated scheduling enable 72-hour delivery from design files to testable prototypes, accelerating design validation.
  • Precision Process Control – Laser micro-hole positioning and dynamic stress compensation technologies ensure signal stability with attenuation ≤3% after 5,000 bending cycles.
  • Cost Optimization Strategy – Tiered material configuration proposals based on client needs (e.g., optimized polyimide substrate and flexible copper foil ratios) achieve 15% cost reduction without compromising electrical performance.

Welcome to contact us if you have any request for flex circuit board prototype: sales@bestpcbs.com.

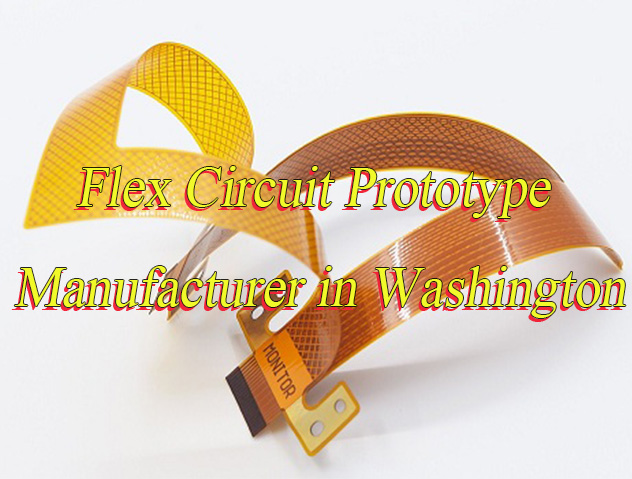

Why Choose Flex Circuit Prototype Manufacturer in Washington?

Reasons why choose flex circuit prototype manufacturer in Washington:

  • Quality and Reliability Assurance: US manufacturers utilize international leading equipment and rigorous quality management systems (e.g., ISO 9001, IPC standards) to ensure high precision, bending resistance, and signal stability of flex circuits. For instance, laser micro-cutting and nano-coating technologies achieve micrometer-level line precision, reducing short-circuit risks and extending product lifespan, directly lowering customer after-sales costs.
  • Rapid Prototyping and Time-to-Market Acceleration: Local production enables 7-10 day rapid prototyping, 30-50% shorter than overseas factories. Through local supply chain collaboration (e.g., nearby sourcing of high-reliability copper-clad laminates) and 24-hour automated production lines, customers can quickly validate designs and seize market opportunities.
  • In-Depth Technical Support and Customization: US engineering teams provide end-to-end support from material selection (e.g., PI/PET substrates), impedance matching to thermal management design. For medical wearable devices, customized solutions with high-temperature and chemical-resistant flex circuits are available, along with DFM optimization advice to minimize R&D trial costs.
  • Compliance Certifications and Legal Risk Mitigation: US manufacturers commonly hold UL safety certifications, RoHS compliance, and FDA medical-grade standards, ensuring products meet North American, EU, and other market access requirements. Medical device customers can obtain ISO 13485-compliant flex circuit solutions, avoiding delays or legal disputes caused by compliance issues.
  • Supply Chain Transparency and Risk Control: Local production ensures full traceability from raw materials to finished products, reducing international logistics losses and delays. Real-time monitoring systems track production data to ensure stable lead times and quality consistency, ideal for supply chain-sensitive industries like aerospace and automotive electronics.
Why Choose Flex Circuit Prototype Manufacturer in Washington?

Top Flex Circuit Prototype Manufacturer in Washington

Summit Interconnect

    • Main Business: Provides a full range of printed circuit board manufacturing services from rapid prototyping to mass production, covering high-density interconnect (HDI), rigid-flex boards, RF/microwave PCBs, and semiconductor test boards.
    • Advantages: Owns 8 high-tech factories in the United States, with ITAR registration and AS9100D certification, capable of providing rapid turnaround (as fast as 24 hours) and complex multilayer board manufacturing capabilities for high-reliability industries such as aerospace, defense, and medical.

    FLEX LTD.

      • Main Business: Provides end-to-end design, prototyping, production, and after-sales support, covering flexible circuits, rigid-flex boards, and electronic assembly services, widely used in automotive, medical, communications, and consumer electronics fields.
      • Advantages: As a leading global manufacturing solutions provider, it possesses a strong global supply chain and advanced material handling capabilities, enabling it to provide customers with one-stop services from concept to mass production and support rapid iterative prototyping development.

      Cirexx International

        • Main Business: Focuses on flexible circuits, rigid-flex boards, thick copper PCBs, and rapid prototyping manufacturing, while also providing electromechanical assembly and RF/microwave PCB services.
        • Advantages: Possesses full-process in-house production capabilities, completing everything from design optimization to final assembly in its own factory, ensuring strict quality control and rapid response; particularly adept at handling high-performance materials and complex multilayer designs, supporting R&D and emergency projects.

        All Flex Solutions

          • Main Business: Specializes in the design and manufacturing of flexible circuits and rigid-flex boards, and provides rapid prototyping and small-batch production services.
          • Advantages: The company has deep expertise in flexible technology, enabling it to provide highly customized solutions and has extensive application experience in fields such as medical, aerospace, and industrial electronics.

          Epec, LLC

            • Main Business: Provides comprehensive electronic manufacturing services including flexible circuits, rigid-flex boards, membrane switches, and plastic injection molding, and supports full collaboration from prototyping to mass production.
            • Advantages: Possesses years of engineering experience and technical expertise, enabling it to provide value-added services such as design consultation, material selection, and process optimization to ensure optimal product performance and cost.

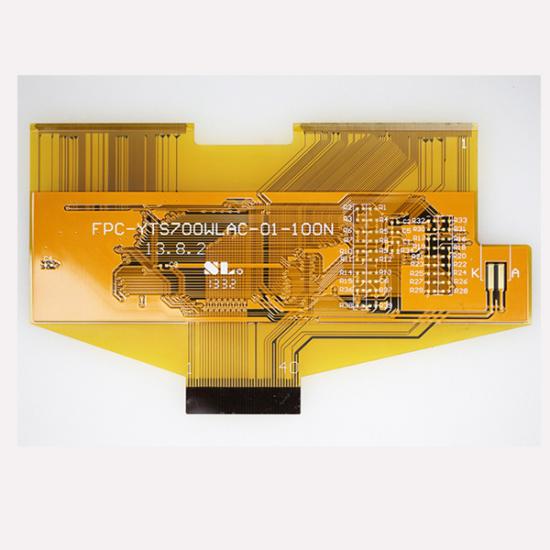

            Lead Time for Washington Flex Circuit Prototype

            Lead time for flexible circuit prototypes in Washington varies significantly depending on process complexity, number of layers, and order volume: Fast lead time supports delivery of double-sided boards or simple multilayer prototypes in 24 hours to 3 days; standard lead time is 5–16 business days, with increased layers extending the lead time (e.g., 5–16 days for 2 layers, 6–18 days for 4 layers); complex designs (such as rigid-flex boards, special impedance control, or large-volume sampling) require 2–3 weeks, and mass production requires 8–12 weeks. Actual lead time needs to be determined based on specific design requirements and supplier capacity, generally ranging from 24 hours to 3 weeks.

            Lead Time for Washington Flex Circuit Prototype

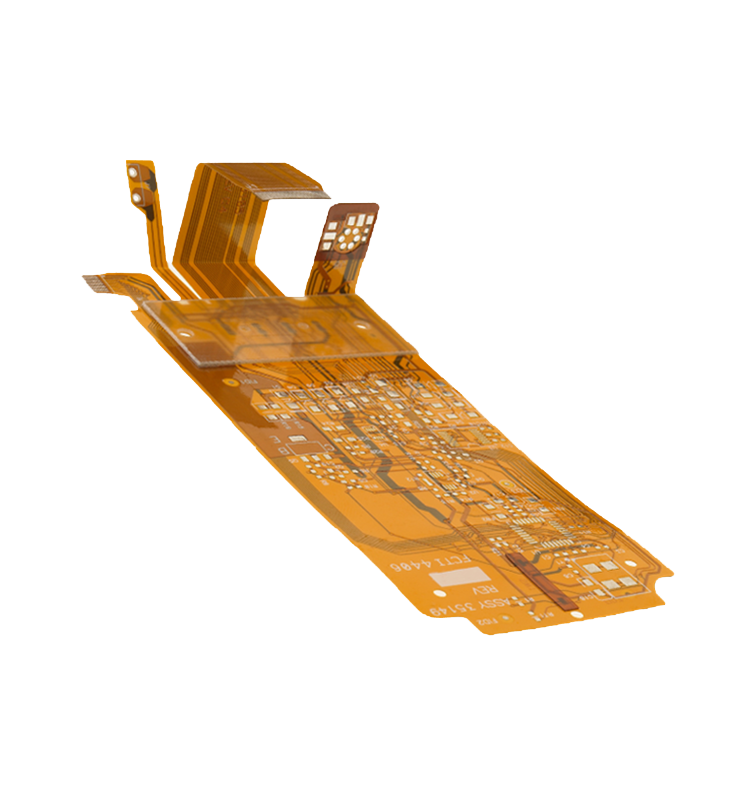

            How to Choose Washington Flex Circuit Prototype Manufacturer?

            1. Clarify Prototype Requirements

            • Parameter Specification: Define critical parameters including layer count, trace width/spacing, materials (polyimide, PET, etc.), bending cycles, and operating temperature. For example, medical implants require biocompatible materials with signal integrity maintained via ≥0.1mm trace widths, while aerospace applications demand polyimide with -65℃~150℃ thermal stability and ≥100,000 bending cycles for foldable devices.
            • Quick-Turn Prototyping: Prioritize vendors offering rapid services like Flex PCB’s 24-hour double-layer board delivery or PCB Trace Technologies’ 3-day multi-layer prototyping, ideal for iterative R&D phases to avoid project delays.

            2. Select U.S.-Based Suppliers with Local Capacity

            • Regional Logistics Advantage: Opt for manufacturers with facilities in Washington or neighboring states (e.g., ACT International in California for 2-3 day West Coast ground transport, All Flex Solutions in Minnesota via rail networks achieving ≤3-day delivery). This minimizes customs risks and enables in-person consultations.
            • Supplier Highlights: Flex PCB’s California plant supports U.S.-based small-batch customization; PCB Trace Technologies specializes in medical-grade circuits with localized 24-hour technical support, reducing communication latency.

            3. Validate Process Capabilities and Certifications

            • Certification Standards: IPC-6013 ensures compliance with over 200 electrical/mechanical performance criteria for flex circuits. Medical devices require ISO 13485 (including ISO 10993 biocompatibility tests), while ISO 9001 guarantees process traceability and quality consistency.
            • Complex Design Verification: Rigid-Flex hybrids need stress distribution testing at rigid-flex junctions to prevent delamination. HDI technology requires 50Ω impedance control with ±5% tolerance, validated via laser-drilled 0.05mm traces for high-speed signal integrity.

            4. Assess Prototype-to-Volume Transition Compatibility

            • Process Consistency: Case studies show mismatched materials (e.g., 0.1mm vs. 0.12mm polyimide thickness) between prototype and volume phases caused lamination misalignment and yield drops. Using identical soft tooling maintains ±3% impedance stability versus ±10% with rigid tooling.
            • Production Scaling Strategy: Flex PCB offers dual-channel production—prototyping in U.S. facilities for fast validation, scaling to Southeast Asian plants for cost efficiency, ensuring seamless transition.

            5. Obtain and Compare Quotes

            • Quote Breakdown: Costs typically include 30-50% material fees, 40-60% processing, and test/certification charges (e.g., $200-500 for RoHS reports). Beware of low-ball quotes hiding missing tests or downgraded materials.
            • Value-Added Services: PCB Trace Technologies provides free DFM analysis to preempt etching issues (e.g., 0.08mm trace width adjusted to 0.1mm saves 30% rework costs). ACT International includes impedance reports to avoid 50% yield losses during scaling.

            6. Evaluate Design Collaboration Support

            • DFM Impact: DFM identified a 0.08mm trace etching risk, suggesting 0.1mm adjustment to cut 30% rework costs. Another case revealed impedance deviations corrected pre-production, avoiding 50% yield loss.
            • Soft Tooling Benefits: Soft tooling allows rapid parameter adjustments (e.g., lamination temperature) for small batches, reducing 70% tooling costs and setup time to <2 hours versus rigid molds.

            7. Review Delivery Records and Feedback

            • Third-Party Ratings: PCBDirectory cites Flex PCB’s 98% on-time delivery with medical clients praising stability and responsive support. VIASTION highlights All Flex Solutions’ 95% problem-resolution rate, particularly in Rigid-Flex expertise.
            • Industry References: Aerospace clients chose ACT International for Rigid-Flex boards passing -55℃~125℃ thermal cycling. Medical firms selected PCB Trace Technologies for ISO 13485-certified implantable circuits.

            8. Initiate Low-Volume Pilot Production

            • Pilot Goals: Validate 10-50 unit batches for production consistency (e.g., ≤±5% impedance variation), environmental robustness (≥95% pass rate in humidity/thermal tests), and refine quality thresholds.
            • Long-Term Planning: Pilot data informs supply chain agreements (MOQ, lead times) and capacity planning (monthly output, inventory turnover), ensuring cost-controlled volume production scaling.
            How to Choose Washington Flex Circuit Prototype Manufacturer?

            Why Do Washington Clients Choose Chinese FPC Manufacturer Best Technology?

            Reasons why choose us as flexible circuit prototype manufacturer in China:

            • Full-Service Solution: One-stop service covering design verification to mass production, eliminating the need for multi-vendor coordination and reducing communication costs by over 30%.
            • Free DFM Analysis: Free design-for-manufacturing analysis identifies design flaws early, minimizing post-revision costs and achieving 98% first-pass success rate.
            • Multi-Domain Certification Credibility: Simultaneous compliance with ISO quality systems, IATF automotive standards, medical-grade certifications, and ROHS environmental standards, enabling seamless entry into consumer electronics, automotive, and medical markets.
            • 19 Years of Technical Expertise: Accumulated production knowledge from millions of data points allows rapid realization of complex structural designs and shortens new product development cycles by 50%.
            • Cost-Sensitive Design Optimization: Leveraging 19 years of production error database, we provide end-to-end cost optimization from substrate selection to process refinement, achieving 15%-25% total cost reduction compared to conventional solutions.
            • 24-Hour Rapid Prototyping: Emergency orders receive sample delivery within 24 hours, complemented by free DFM analysis to compress design iteration cycles by 40%.
            • 99.2% On-Time Delivery Rate: Smart production scheduling and global logistics network ensure full-chain timeline control from raw material procurement to final delivery, guaranteeing supply chain stability.
            • 100% Batch Inspection Quality Control: Strict quality management with ISO 19001, IATF 16949, medical-grade certification, and ROHS compliance. Defect rates are controlled below 0.05% through full-batch inspection protocols.

            Our Flex PCB Manufacturing Capabilities

            ItemCapabilities
            Layers Count1-10L
            Max Board Dimension:1L:500*2000mm; 2L:250*1380mm
            Conductor Thickness:1/3 OZ (12 um) – 4OZ (140um)
            Min Line Width/Line Space:2/2mil
            Min Hole Spacing:NPTH:16mil; PTH:20mil
            Hole Position Deviation:±4mil (0.10mm)
            Outline Tolerance:Laser: +0.15mm/-0.05mm;
            Die Punch: +0.10/-0.20 mm
            Surface Treatment:ENIG(Au 4u”), Hard Gold Plating (Au 50u”), Immersion Silver, Immersion Tin, OSP, ENEPIG

            Lead Time for Our Flex PCB Prototyping

            LayersNormal ServiceFastest Service
            14 Days24 H
            214 Days168 H
            421 DaysTBD

            How to Get A Quote for Flex Circuit Prototypes?

            Materials List Required for Flex Circuit Prototype Quotation

            Design Files

            • Gerber files (including layered files for circuit traces, coverlay, and stiffener)
            • Drilling files (.drl/.txt format, specifying hole sizes and copper plating requirements)
            • Stack-up diagram (annotating material sequence, total thickness, and tolerances)

            Material Specifications

            • Substrate: Polyimide (PI) or polyester (PET) film thickness (e.g., 12.5μm, 25μm, 50μm)
            • Copper foil: Rolled annealed (RA) or electrolytic (ED) copper thickness (e.g., 17μm, 35μm, 70μm)
            • Coverlay: Window positions, dimensional accuracy (±0.05mm), and adhesive thickness control (e.g., ≥15μm after lamination)

            Process Requirements

            • Surface finish: ENIG, immersion tin, or immersion silver (specifying thickness, e.g., nickel 3μm + gold 0.05μm)
            • Impedance control: ±10% tolerance range and testing requirements
            • Special tests: High-voltage testing, bending life test (e.g., no fractures after 100,000 bending cycles)

            Other Critical Information

            • Stiffener materials: FR4, PI, stainless steel, or aluminum sheets (specifying bonding methods and tolerances)
            • Quantity & lead time: Sample quantity, batch requirements, and expected delivery timeline
            • Inspection standards: IPC-6013 Class 2/3 or custom criteria

              Welcome to contact us if you want to get a free quote for flex circuit prototype: sales@bestpcbs.com.
