What Is Annular Ring In PCB?

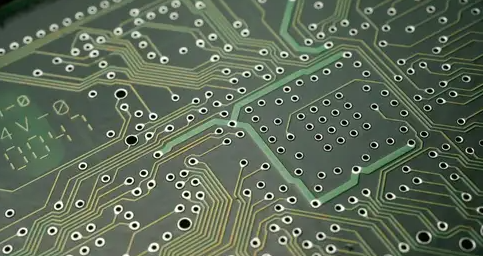

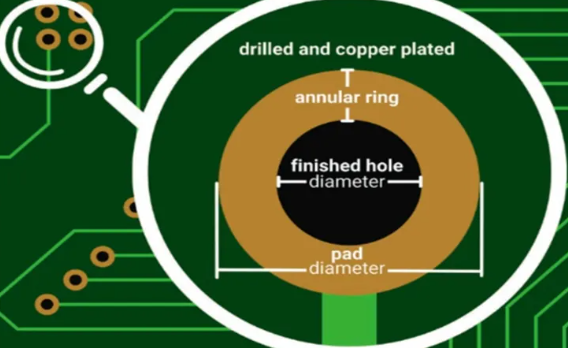

Annular ring in PCB refers to the copper pad area that surrounds a drilled hole, typically used for vias or component mounting. It is the conductive material that connects the hole to the surrounding traces or planes. The annular ring is a critical aspect of PCB design, as it ensures proper electrical connectivity and mechanical stability for components and vias.
Why Is the Annular Ring PCB Important?
The annular ring plays a vital role in PCB functionality and reliability. Here’s why it matters:
- Electrical Connectivity: Ensures reliable connections between holes (e.g., via, component pins) and surrounding circuitry by maintaining sufficient copper contact around drilled holes.
- Mechanical Stability: Reinforces the structural integrity of holes, reducing risks of pad lift-off or breakage during assembly, thermal cycling, or mechanical stress.
- Manufacturing Tolerance Compensation: Acts as a buffer for drilling misalignment, ensuring the hole remains within the conductive pad area even with slight positional deviations.
- Signal Integrity: Minimizes impedance discontinuities and reflections by maintaining consistent copper coverage around high-speed/high-frequency signals.
- Current-Carrying Capacity: A wider annular ring supports higher current loads by increasing the copper cross-sectional area, preventing overheating or track failure.
- Weldability & Solder Joint Quality: Provides a sufficient solder anchor point for through-hole components, ensuring robust mechanical and electrical bonds during wave soldering or hand assembly.
- Design Rule Compliance: Facilitates adherence to industry standards (e.g., IPC-6012) for minimum annular ring widths, ensuring manufacturability and long-term reliability.
- Layer-to-Layer Connection Integrity: In multilayer boards, intact annular rings prevent via defects (e.g., “necking” or barrel cracks) that could compromise interlayer conductivity.
- Thermal Management: Enhances heat dissipation for high-power components by providing a low-resistance thermal path from the hole to the copper plane.
- Design for Excellence (DFX): Enables design flexibility for features like tear-drop pads, which strengthen weak points where traces meet pads, reducing fracture risks.
Applications of Annular Ring PCB
- Applications of Annular Rings in PCB Design
- Component Mounting: Secure through-hole parts (e.g., connectors, switches).
- Vias: Connect layers in multi-layer boards (e.g., smartphones, IoT devices).
- High-Speed Circuits: Maintain signal integrity in 5G/RF designs.
- Power Delivery: Support high-current paths for motor drivers.
- Flexible PCBs: Prevent pad cracking in bending zones.
- Automotive/Aerospace: Withstand vibration and thermal stress.
- Medical Devices: Ensure reliability in critical applications.
- Thermal Management: Link to heat sinks via thermal vias.
Design Considerations for Annular Ring
When designing PCBs, it’s essential to consider the following factors related to annular rings:
- Width: Maintain ≥0.15mm (6 mils) for reliability; increase for high-stress areas.
- Drill Size: Balance hole size with pad space; avoid oversizing to prevent weakness.
- Layer Alignment: Ensure precise registration (±0.075mm tolerance) for multilayer boards.
- Material Thickness: Thicker boards require wider rings (≥0.2mm) for connectivity.
- Thermal/Mechanical Stress: Use tear-drop pads or wider rings (≥0.25mm) for durability.
- Signal Integrity: Keep widths consistent for high-speed circuits; avoid impedance variations.
- Assembly Clearance: Leave ≥0.2mm between rings and adjacent components for soldering.
- Cost vs. Quality: Adjust widths based on application (e.g., 0.1mm for economy designs).
- Testing: Validate rings via cross-section analysis and electrical tests.
Common Issues with Annular Ring PCB
- Breakout: Misaligned drilling causes holes to exceed pad boundaries, weakening connections.
- Weak Connections: Insufficient width leads to poor solder joints or pad lift-off.
- Signal Integrity Problems: Inconsistent widths create impedance discontinuities.
- Thermal Stress Fractures: Narrow rings crack under repeated heating/cooling cycles.
- Drill Deviation: Worn tools or poor registration enlarge holes, reducing annular ring margins.
- Plating Voids: Uneven copper deposition in holes weakens annular ring conductivity.
- Over-Etching: Excessive chemical etching undercuts pads, narrowing annular rings.
- Mechanical Stress: Vibration or bending tears thin annular rings in rigid-flex designs.
- Material Thickness Mismatch: Thick boards with small rings increase breakout risks.
- Design Rule Violations: Ignoring IPC standards (e.g., minimum width) causes manufacturing failures.
How to Optimize Annular Ring in PCB Design
Below are ways to how to optimize annular ring in PCB design:
- Adhere to Standards: Follow IPC-2221/IPC-6012 for minimum width (e.g., 0.05mm for Class 3 boards).
- Design Software Tools: Use EDA tools (e.g., Altium, KiCad) for DRC checks and 3D visualization.
- Material Selection: Choose for high-TG laminates to reduce thermal expansion affecting annular rings.
- Thermal Management: Increase ring width or add thermal vias for heat-generating components.
- Signal Integrity: Maintain consistent impedance by controlling trace-to-ring spacing.
- Cost-Quality Balance: Widen rings for critical circuits; use narrower rings for non-critical areas.
- DFM Checks: Validate designs for drill registration, copper weight, and aspect ratio.
- Laser Drilling: For microvias, ensure annular rings ≥0.075mm to prevent breakout.
- Tear-Drop Pads: Strengthen trace-to-pad junctions in high-flex or high-vibration applications.
- Test Protocols: Use microsectioning and flying probe tests to verify annular ring quality.
- Documentation: Clearly annotate ring requirements on fabrications drawings for manufacturers.
