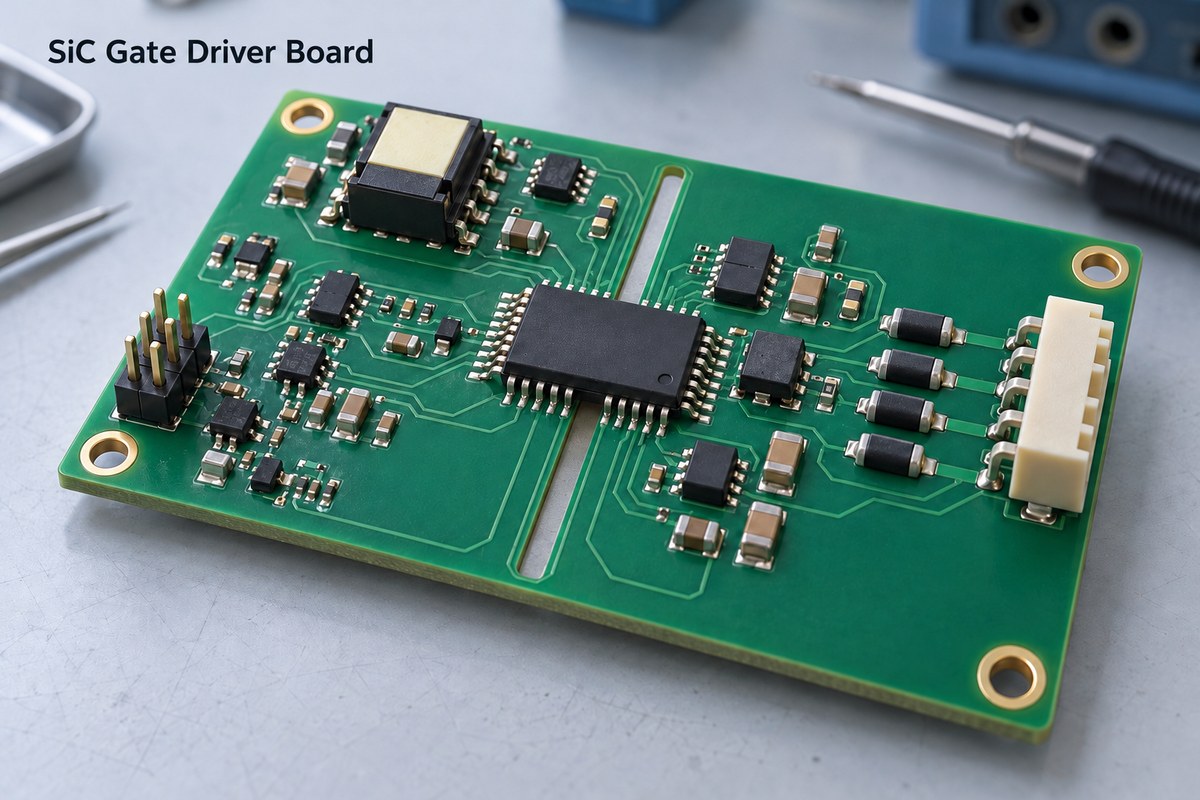

A custom SiC gate driver board connects control signals with the gate-drive circuitry required by a silicon carbide MOSFET or power module. Successful manufacturing depends on preserving the approved isolation geometry, producing the specified PCB construction and assembling the correct components consistently.
EBest Circuit supports custom SiC gate driver board projects with FR4 and high-Tg PCB fabrication, fine-line processing, SMT and through-hole assembly, and project-specific functional testing. Our engineering review, component sourcing and inspection services help connect board production with assembly requirements. Email sales@bestpcbs.com with your Gerber files, BOM and quantities for a manufacturing review and quotation.
SiC Gate Driver Board Manufacturing and Assembly at EBest Circuit
EBest Circuit provides PCB fabrication, component sourcing and assembly for customer-designed gate driver boards. The manufacturing scope can cover bare PCBs, assembled prototypes and subsequent production builds using approved fabrication and assembly data.
SiC gate driver designs take several forms. The following are common configurations for project assessment; they are not presented as completed EBest Circuit customer projects.
| Board Type | Key Features | Typical Application |
|---|---|---|
| Single-Channel SiC Gate Driver Board | One drive channel for a specified switching device | Individual switch evaluation or dedicated power-stage control |
| Half-Bridge SiC Gate Driver Board | High-side and low-side channels with separate drive paths | Half-bridge switching stages in converters and inverters |
| SiC Power Module Driver Board | Driver connections matched to a selected module interface | Power converters built around packaged SiC modules |
| Integrated SiC Gate Driver PCB | Gate-drive circuitry combined with other board functions | Compact assemblies combining control and gate-drive functions |
The service scope follows the actual design: isolated power supplies, gate resistors, connectors and protection components are assembled where specified in the approved BOM. Board fabrication and assembly support do not, by themselves, establish the electrical performance of the finished power converter.

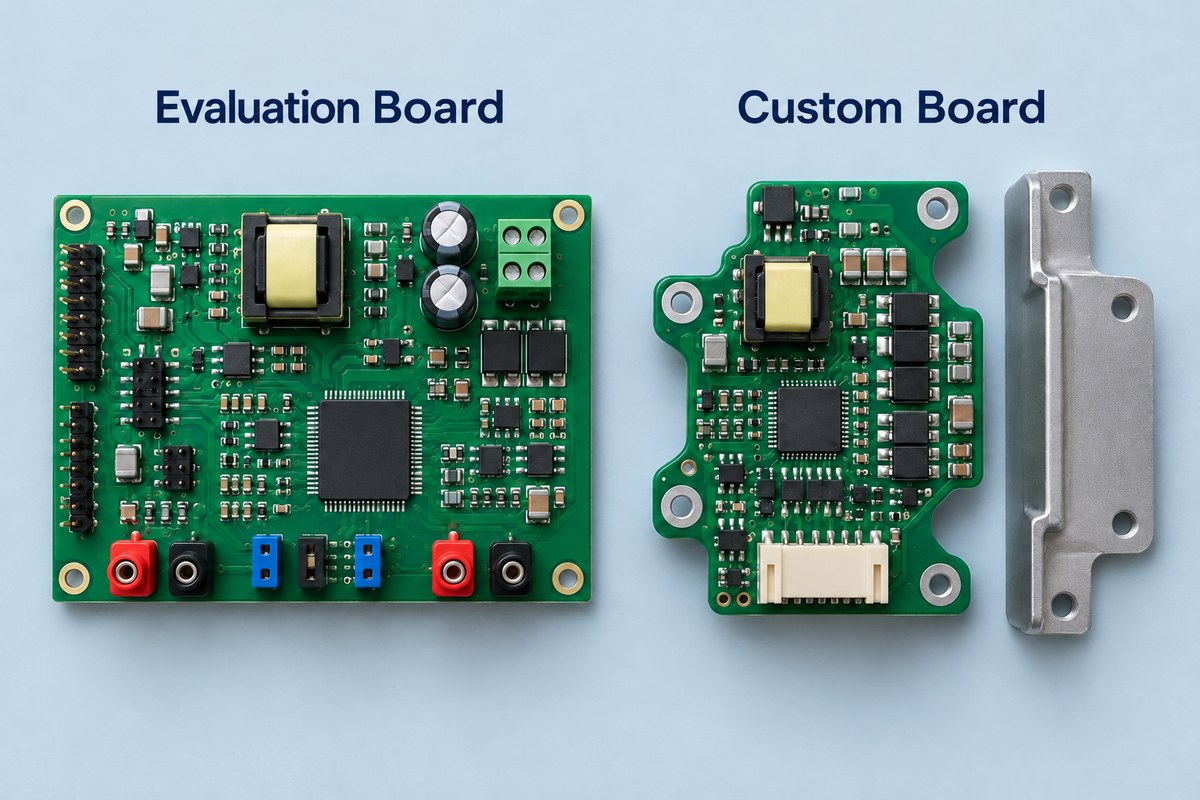

Evaluation Boards vs. Custom SiC Gate Driver Boards
An evaluation board provides a predefined platform for investigating a device or driver circuit. A custom SiC gate driver board adapts the circuit, mechanical interface and manufacturing documentation to a particular product.
| Comparison Item | Evaluation Board | Custom SiC Gate Driver Board |
|---|---|---|
| Primary purpose | Device evaluation and application development | Integration into a defined product architecture |
| Mechanical interface | Predetermined outline and connector positions | Outline and interfaces matched to the equipment |
| Circuit configuration | Supplier-defined circuit and component selection | Project-approved circuit, protection features and BOM |
| Manufacturing data | Availability depends on the board supplier | Fabrication and assembly files controlled for the project |
| Supply planning | Depends on evaluation-product availability | Procurement planned around the approved component list |
| Initial investment | Often reduces early hardware development effort | Requires engineering, prototype and validation effort |
An evaluation board can be appropriate for early testing, and some may suit an end application after the necessary assessment. Custom manufacturing becomes valuable when the enclosure, power-module connections, assembly process or repeat-order requirements demand a project-specific board. It does not automatically deliver lower cost or better performance.
Custom SiC Gate Driver PCB Manufacturing Capabilities
EBest Circuit’s PCB process capabilities cover multilayer FR4 construction, fine-line routing, plated holes and routed insulation features. The parameters below distinguish standard processing from special processes where the capability tables make that distinction.
| Manufacturing Item | EBest Circuit Capability |
|---|---|
| PCB layer count | Standard: 1–10 layers; special processing: 10–32 layers |
| FR4 material grades | Low-Tg: 130–140°C; mid-Tg: 150°C; high-Tg: 170–180°C |
| Copper thickness | Standard inner layers: 0.5–5 oz; standard outer layers: 1–5 oz |
| Minimum outer-layer trace width / spacing | At 1 oz copper: 4/4 mil standard; 3/3 mil special processing |
| Minimum finished hole diameter | 0.20 mm standard; 0.15 mm special processing |
| Board thickness by surface finish | OSP, ENIG, immersion silver/tin and ENEPIG: 0.4–3.5 mm; HASL: 0.6–3.5 mm |
| Plated-through-hole diameter tolerance | ±3 mil standard; ±2 mil special processing |
| Board outline tolerance | ±5 mil standard processing |
| Non-plated slot length / width tolerance | ±4 mil standard processing |
| Surface finish options | OSP, ENIG, ENEPIG, immersion silver, immersion tin and HASL |
These capabilities must be reviewed as a combination. Layer count, copper weight, hole size and board thickness cannot be selected independently from every listed limit. The documented process requires high-Tg material for boards with eight or more layers, and layer construction further constrains achievable board thickness.
Minimum manufacturing spacing is also different from an electrical insulation requirement. A board may be manufacturable at a fine spacing while still requiring much larger distances between isolated circuits.
PCB Materials, Stackup and Insulation Requirements
Material and stackup selection depends on operating temperature, insulation requirements, copper weight, board thickness and circuit layout. EBest Circuit’s material options allow these requirements to be addressed within the approved PCB construction.
| Material / Stackup Option | Key Characteristic | Suitable Application |
|---|---|---|
| Standard FR4 | Conventional glass-reinforced epoxy construction | Designs meeting thermal and insulation requirements with standard laminate |
| High-Tg FR4 | Higher glass-transition temperature than standard grades | Multilayer designs or assemblies requiring higher Tg |
| Higher-CTI laminate options | CTI 400–600 options listed under special processing | Designs requiring a specified tracking-resistance material class |
| Two-layer PCB | Limited routing and reference-plane flexibility | Simpler circuits with adequate space for routing and isolation |
| Four-layer PCB | Additional routing and reference-plane allocation | Compact driver designs needing more controlled return paths |
| Higher-layer-count PCB | Additional layers for more complex interconnections | Dense assemblies with multiple channels or integrated functions |
- Creepage and Clearance: Required distances depend on the applicable insulation design, voltage conditions, environment and material properties. Fabrication must preserve the approved distances and slot geometry.
- Isolation Boundaries: Copper, vias and conductive features must respect the defined isolation zones across all relevant layers. DFM review helps identify manufacturing features that could conflict with those zones.
- Copper and Stackup: Copper thickness affects achievable trace geometry, while layer allocation affects routing and return paths. More layers do not automatically improve a gate driver’s electrical behavior.
- Thermal Requirements: Tg is not a continuous operating-temperature rating. Laminate selection must also account for actual temperature exposure, assembly conditions and the material’s relevant thermal properties.
PCB Layout and DFM Support for SiC Gate Driver Boards
EBest Circuit’s engineering review focuses on translating the approved layout into a manufacturable, inspectable assembly. The review addresses PCB construction and assembly risks before they become production problems.
- Trace and Copper Compatibility: Check fine features against copper thickness and process limits, especially around densely routed driver ICs and protection components.
- Holes, Slots and Board Edges: Review finished-hole dimensions, slot tolerances and copper-to-feature relationships. Isolation-related geometry remains subject to design approval.
- Footprints and Solder Access: Check land patterns, component spacing, polarity identification and exposed-pad arrangements against the intended assembly process.
- Panelization and Handling: Review tooling access, board support and depaneling locations to reduce handling difficulties near connectors and edge-mounted components.
- Inspection and Test Access: Assess access to visible joints, hidden connections and designated test points so the agreed inspection plan can be implemented.
Gate-loop geometry, Kelvin-source connections and protection timing remain electrical design considerations. A manufacturing-driven layout change affecting these areas should return to the design owner for approval rather than be treated as a routine production adjustment.
Component Sourcing and PCB Assembly Services
EBest Circuit supports turnkey, partial-turnkey and consigned assembly, with SMT and through-hole processes for the approved component mix. PCB production, procurement and assembly can be coordinated within the same project.
- Component Sourcing: Purchase against the approved BOM through manufacturers or authorized distributors, with incoming material checks. Proposed substitutions require approval before use.
- SMT Assembly: Apply stencil printing, solder paste inspection, component placement and reflow soldering. Reflow profiling supports a controlled process for the actual assembly.
- Through-Hole Assembly: Assemble applicable connectors and leaded components using the selected soldering process. Mixed-technology boards can combine surface-mount and through-hole operations.
- Hidden-Joint Inspection: Use X-ray inspection where package geometry prevents effective visual assessment, including applicable BGA and bottom-terminated connections. AOI addresses accessible assembly features.
- Functional Testing: Implement the agreed test procedure using suitable fixtures, equipment and acceptance criteria. The test scope is established for the project.
- Turnkey Coordination: Connect PCB fabrication, material procurement, assembly and agreed inspection around the same approved production revision.
This coordination helps resolve footprint, board-finish and component-handling issues across fabrication and assembly. It also reduces the number of supplier handoffs a customer must manage when moving from bare boards to completed PCBAs.

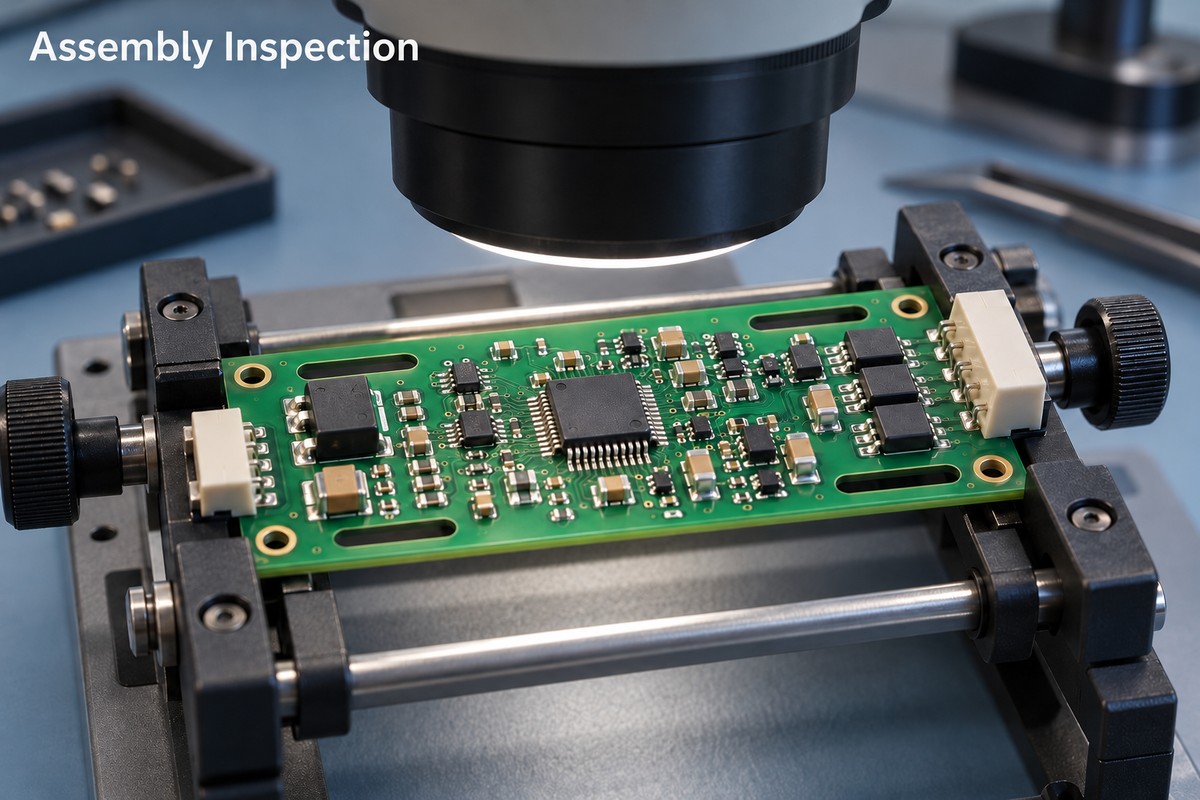

Quality Control and Customer-Specified Testing
EBest Circuit uses electrical testing and assembly inspection methods to check manufacturing quality at different production stages. Documented equipment includes bare-board electrical testers, flying-probe equipment, 3D SPI, 3D AOI and an AX8200 X-ray inspection system.
| Inspection Method | Inspection Focus | Applicable Stage |
|---|---|---|
| Bare-board electrical testing | Opens and shorts against the board’s electrical data | PCB fabrication, before assembly |
| Visual inspection | Visible board, component and workmanship defects | Incoming, in-process and final inspection |
| 3D solder paste inspection | Paste volume, area, height and placement | After printing, before component placement |
| First-article inspection | Component values, placement and assembly conformity | Initial assembly setup |
| Automated optical inspection | Missing parts, polarity and detectable solder defects | After soldering at applicable assembly stages |
| X-ray inspection | Hidden solder connections, bridging and voiding | Selected assembled components and packages |
| Agreed functional testing | Responses defined by the approved test procedure | Assembled board testing |
These methods serve different purposes. SPI evaluates paste deposition; AOI examines optically accessible features; X-ray reveals internal joint characteristics. None alone establishes that a SiC switching stage meets its complete operating specification.
System-level validation is a separate scope. High-voltage insulation testing, double-pulse testing and short-circuit protection validation are not assumed to be included in standard assembly. Any such work requires separately confirmed facilities, procedures and responsibilities.
SiC Gate Driver Board Manufacturing Cost and Lead Time
The cost and schedule of a SiC gate driver board depend on both PCB construction and the driver circuit’s component requirements. Isolated driver ICs, isolated power supplies and project-specific testing can affect the quotation as much as the bare board.
- Driver and Power-Supply Components: Availability of the selected driver ICs, DC-DC converters and protection components can determine the purchasing schedule.
- Laminate and Construction: Higher-CTI materials, additional layers or combinations requiring special processing can change material availability and fabrication routing.
- Mechanical Precision: Tight hole, slot or outline tolerances may require additional process review, especially where the board mates with a power module or connector assembly.
- Assembly and Inspection Scope: Mixed SMT/THT processing, hidden-joint inspection and extra handling steps affect production effort.
- Test Preparation: Dedicated fixtures and new functional procedures add setup work, particularly for an initial build.
- Production Quantity: Setup costs are distributed differently across prototype and repeat-production quantities; component purchasing quantities also affect unit cost.
EBest Circuit reviews fabrication, procurement, assembly and agreed testing together when preparing the quotation. A useful cost comparison keeps those scopes consistent, so a lower unit price is not simply the result of omitted inspection or testing.
Why Choose EBest Circuit for Your SiC Gate Driver Board Project?
EBest Circuit combines documented PCB process capabilities with component sourcing, assembly and inspection services. For a custom gate driver project, the value lies in connecting these services to the approved design and production requirements.
- Engineering Review Before Fabrication: Our team reviews board construction, critical dimensions and assembly data before production, helping resolve manufacturability issues while changes are still practical.
- PCB Fabrication and Assembly Coordination: Bare-board production, component sourcing and SMT/THT assembly can be managed within one project, reducing communication gaps between manufacturing stages.
- Material and Process Options: Standard and high-Tg FR4, multilayer construction and specified special processes provide options for matching the PCB build to the design’s requirements.
- Inspection Across Assembly Stages: SPI, AOI and X-ray address different defect types, giving the inspection plan more coverage than a final visual check alone.
- Flexible Component Supply Arrangements: Turnkey, partial-turnkey and consigned assembly allow customers to retain control of selected components while outsourcing other procurement and production work.
- Prototype-to-Production Support: PCB fabrication and assembly services support prototype review and later production builds, with approved revisions providing the basis for repeat manufacturing.
How to Get a Quote for Custom SiC Gate Driver Boards
Send the manufacturing package and intended build quantity to EBest Circuit for a combined PCB and assembly review. Clear revision identification allows engineering and procurement to assess the same design.
- PCB Files: Gerber or other accepted fabrication data, drill files and the board drawing.
- Construction Requirements: Layer stackup, material specification, copper thickness, surface finish and critical dimensional tolerances.
- Assembly Files: BOM, component placement data and assembly drawings, including any unpopulated positions.
- Order Scope: Prototype or production quantities, turnkey or consigned supply, and the required delivery date.
- Inspection and Testing: Any project-specific acceptance criteria, functional procedures and fixture requirements.
The quotation can then identify the applicable manufacturing processes, component availability and agreed inspection scope, with technical questions resolved before production release.
FAQs about SiC Gate Driver Board
The following answers address practical design-transfer and purchasing questions that can arise before a custom board enters production.
Does a SiC gate driver board require conformal coating?
Not every design requires it. Coating depends on environmental exposure and the insulation strategy; applying a coating does not automatically permit reduced creepage or clearance distances.
Can EBest Circuit assemble customer-supplied gate driver ICs?
Yes. Consigned and partial-turnkey assembly allow customer-supplied components, with incoming checks and handling arrangements matched to the approved parts and packaging.
Can the PCB manufacturer modify isolation slots in my design?
Changes affecting isolation geometry should not be made without the design owner’s approval. If a slot cannot be manufactured as drawn, the proposed revision must be reviewed for both manufacturability and its effect on the insulation design.
What happens if a SiC gate driver IC becomes unavailable during production?
The sourcing review can identify available supply or propose an alternative for approval. Matching a footprint is insufficient: a replacement may change drive characteristics, protection behavior or isolation specifications and require design validation.
Can the same PCB be assembled with different component variants?
Yes, where the board design supports them. Each variant needs an unambiguous assembly BOM, unpopulated-position list and applicable test configuration to prevent parts from being mixed between versions.
Can all SiC MOSFETs use the same gate-drive voltage?
No. Recommended gate-drive levels and absolute gate-voltage limits depend on the specific device, so the driver supply and associated components must follow the selected MOSFET’s requirements.
For a project review, email sales@bestpcbs.com with your PCB files, BOM, quantities and testing scope. EBest Circuit can assess the manufacturing and assembly requirements and prepare a quotation for your custom SiC gate driver board.
