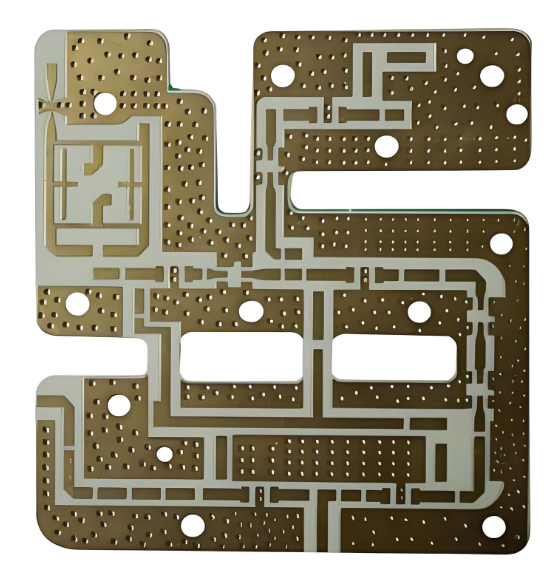

Rogers 5880 is a premium PTFE-based high frequency laminate developed for low-loss RF and microwave circuits. If you are building antennas, power dividers, couplers, radar boards, or broadband RF structures, RT5880 is one of the most trusted materials on the market because it combines a very low dielectric constant, very low loss, low moisture absorption, and stable electrical behavior over a wide frequency range.

At EBest, we manufacture rogers 5880 pcb solutions for customers who need dependable RF performance, controlled impedance, and production support from prototype to volume. Whether you are searching for the rogers 5880 datasheet, comparing rogers 5880 thickness options, or checking the rogers 5880 dielectric constant for your next layout.

Rogers 5880 PCB Material

Why Choose Rogers 5880 PCB for RF Design?

When frequency increases, the limitations of standard materials become very clear. Signal attenuation rises quickly, impedance becomes harder to control, and performance starts to drift with temperature and environment.

Rogers 5880 solves these issues from the material level:

Ultra-low loss (Df ~0.0009)

Helps maintain signal strength over long RF transmission paths

Low dielectric constant (Dk 2.20)

Enables stable impedance and easier transmission line design

Uniform dielectric structure

Eliminates fiber weave effect and improves signal consistency

Low moisture absorption (0.02%)

Keeps performance stable in humid or outdoor environments

High-frequency capability

Suitable for applications above 10 GHz and even millimeter-wave

Compared with FR4, this is not a small improvement. It is a shift from “usable” to “reliable” in RF design.

What Is Rogers 5880 Material?

Rogers 5880, also called rogers duroid 5880 or RT5880, is part of the RT/duroid laminate family. It is a high frequency substrate made from PTFE reinforced with randomly oriented glass microfibers. That reinforcement helps maintain dielectric constant uniformity from panel to panel and across frequency, which is one reason this material is widely used in precision RF designs.

This material is especially suitable for:

RF antennas
microwave circuits
microstrip and stripline designs
point-to-point digital radio antennas
millimeter-wave structures
military radar related circuitry
commercial airline broadband antenna systems

Rogers 5880 Datasheet Overview

Parameter	Value	Test Condition / Notes
Dielectric Constant (Dk)	2.20 ± 0.02	Process value, @10 GHz
Design Dielectric Constant	2.20	Typical design value
Dissipation Factor (Df)	0.0009	@10 GHz
Dissipation Factor	0.0004	@1 MHz
Thermal Coefficient of Dielectric Constant	-125 ppm/°C	Typical
Volume Resistivity	2 × 10⁷ MΩ·cm	Typical
Surface Resistivity	3 × 10⁷ MΩ	Typical
Moisture Absorption	0.02%	Very low moisture uptake
Specific Heat	0.96 J/g/K	Typical
Density	2.2 g/cm³	Nominal
Thermal Conductivity	0.20 W/m/K	Typical
Coefficient of Thermal Expansion, X-axis	31 ppm/°C	Typical
Coefficient of Thermal Expansion, Y-axis	48 ppm/°C	Typical
Coefficient of Thermal Expansion, Z-axis	237 ppm/°C	Typical
Tensile Modulus	1070 MPa	Machine direction
Tensile Modulus	860 MPa	Cross direction
Dimensional Stability	< 0.5 mm/m	After etch + E2/150°C
Peel Strength	8.5 pli (1.5 N/mm)	1 oz ED copper, after solder float
Flammability	V-0	UL 94
Operating Temperature	Up to high-temperature RF use	Commonly used in demanding RF/microwave environments

Rogers 5880 Thickness & Stack-Up Options

rogers 5880 thickness is not just a mechanical choice. It directly affects impedance, signal confinement, and manufacturability.

Common thickness options:

5 mil (0.127 mm)
10 mil (0.254 mm)
20 mil (0.508 mm)
31 mil (0.787 mm)
62 mil (1.575 mm)

Typical design approach:

Thin cores → RF signal layers
Thicker cores → structural support
Hybrid stack-up → Rogers + FR4 for cost optimization

In real projects, engineers rarely use Rogers 5880 across the entire board. Instead, it is applied strategically where RF performance matters most.

Typical Applications of RT5880

RT5880 is used in products where the electrical performance of the PCB material directly affects signal quality, range, or accuracy. These are usually applications operating at high frequency, high data integrity requirements, or both.

Common applications include:

RF antennas

Used in antenna boards where dielectric stability affects resonance, matching, and radiation efficiency.

5G communication equipment

Suitable for high frequency transmission paths where FR4 loss becomes too high.

Satellite communication systems

Chosen for low loss and dependable signal behavior across demanding environments.

Automotive radar

Often used in radar modules where stable dielectric properties support accurate detection.

Aerospace and defense electronics

Applied in systems that require both electrical consistency and long-term reliability.

Microwave circuits

Used in couplers, filters, amplifiers, and other circuits where signal loss must stay low.

This is why RT5880 appears so often in advanced RF products. Once the circuit becomes sensitive to loss, dielectric variation, or transmission precision, this material moves from optional to highly practical.

Rogers 5880 PCB Manufacturing at EBest Circuit

Even the best laminate cannot compensate for poor manufacturing control. In RF PCB production, the final performance depends not only on the material itself, but also on drilling accuracy, etching control, lamination quality, and impedance management.

At EBest Circuit, we support rogers 5880 pcb manufacturing for both prototypes and volume production. We also help customers evaluate whether a full Rogers build or a hybrid Rogers + FR4 structure makes more sense for the project.

Our manufacturing capability includes:

1–32 layer PCB fabrication
Rogers + FR4 hybrid stack-up support
Controlled impedance production
Fine trace processing
RF-oriented DFM review
Prototype and mass production support

What customers usually need from us:

Material selection suggestions
Stack-up optimization
Cost-performance balancing
Better manufacturability for RF structures
Faster transition from design to production

For high frequency boards, engineering support before fabrication often matters as much as the fabrication itself.
