SMT Stencil & Solder Paste Stencil

We also provide stencil for SMT, and most of them are laser cutting. (Etching stencil also available). State-of-art make us win the satisfactory from customers, including Emerson, Flextronis, for our stencil.

Standard Technolog for All Stencils

• Fast delivery: 1 working from receipt of order (refer offer conditions), cut-off time: AM 12:00, GMT+8, Beijing/Hong Kong Time
• Direct input of data through customers’ electrical files (Gerber, PCB, CAD, Protel, etc) minimizes the chance of errors
• Cheap cost: To save your cost. For 370*470mm framed, laser cutting stencil, only $100.

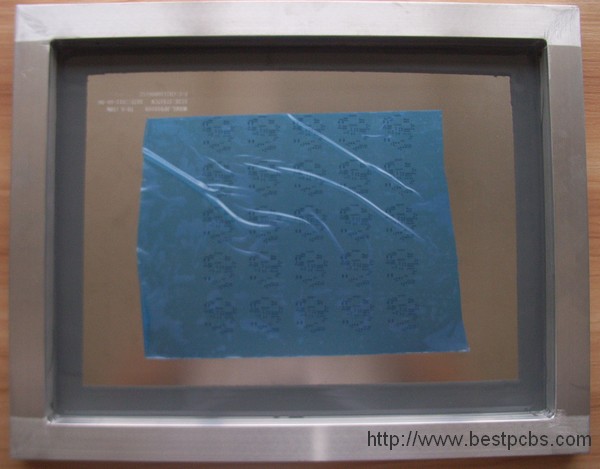

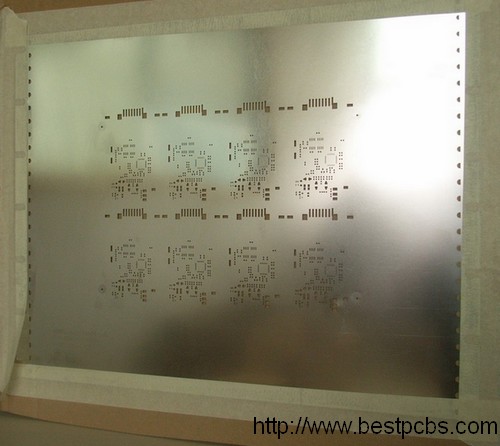

• Framed stencil and unframed stencil available
• High accuracy: tolerance ≤ ± 4 μm
• High smoothness of PAD opening walls ensures easy release of solder paste; reduce the cleaning times and increase SMT efficiency; Roughness ≤ ±2 μm
• All laser cut stencils are electro-polished
• Made of stainless steel (PE stencil also available)
• Fiducial marks can be made virtually anywhere on every side
• Tapered pad walls help the adhesion of solder paste to PCB
• Printing errors are reduced due to our technology processes and attention to detail
• Unlimited number of opening
• Various thickness available: 0.10mm, 0.12mm, 0.15mm, up to 0.60mm
• Suitable package make sure no damage during transportation
• Cheap freight charge: Special Discount for FedEx
• Short transportation period: FedEx/UPS/DHL/TNT ship stencil to you fast, one day for Asian; two days for European and American & Canada, three days for most of other countries

Special Technology Available (Optional)

• Different scale for different components: 1:1 for normal components, 0.9:1 for BGA area
• Step-down & up technology: make various thicknesses for certain area, to meet the different requirements of Tin volume during population. Click here to see Step UP & Down stencil.

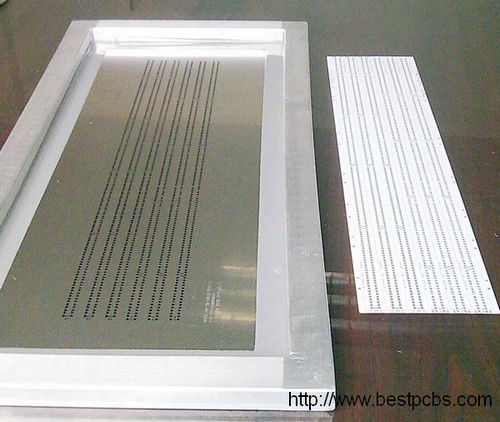

• Stencil for long strip LED Metal Core PCB
• BGA Ball Mouting stencil

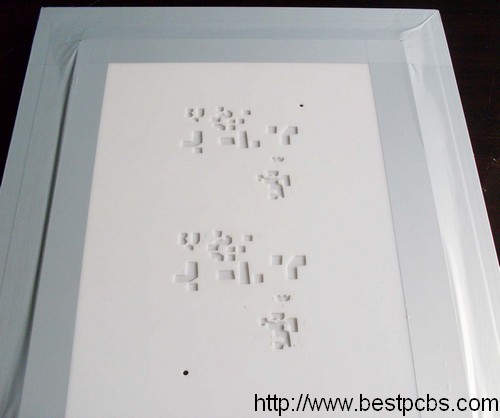

• PE Stencil
