Notes for cleaning PCBA

PCBA includes components assembly and DIP plug-in, in the whole process, there will be reflow soldering, wave soldering, manual soldering, due to the current Electronic products are getting smaller and smaller, and the size requirements of PCBA are getting smaller and smaller, but the requirements for quality (including product reliability and stability, etc.) are getting higher and higher. Many customers require PCBA boards with conformal coating to increase stability and reliability and ensure product quality and performance. But the PCBA board must be cleaned before with conformal coating.

Because there will be a variety of flux residues on the soldered MCPCB board, some of which are acidic, soluble and corrosive, etc., if these residues are not cleaned, the coating will also cause very great damage to the product. In this blog I’d like to share some notes for cleaning PCBA.

  1. PCBA board after soldering, should be cleaned as soon as possible (flux residue will produce corrosion over time), cleaning residual flux and other pollutants on PCBA board.

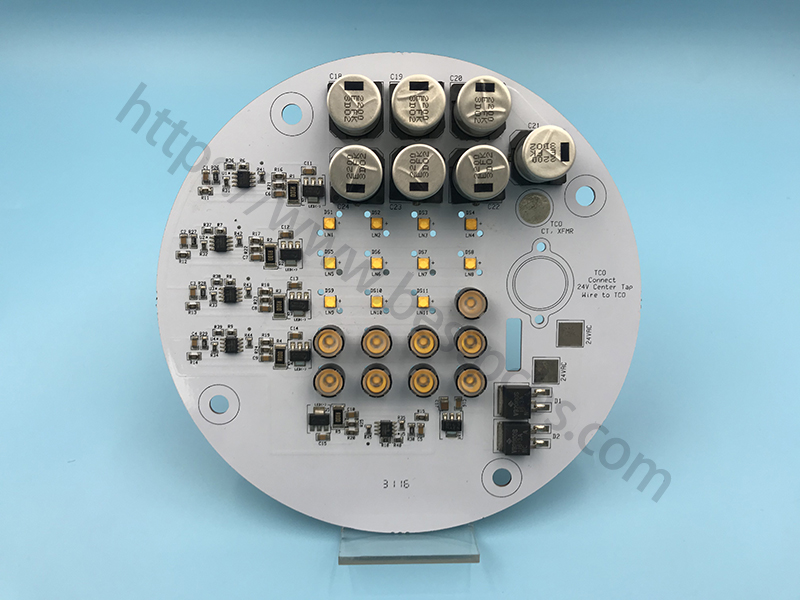

Copper Core PCB
  • When cleaning the PCBA board, prevent the cleaning agent from intruding into the unsealed components to avoid damage to the components. After cleaning, it should be placed in the oven at about 30-50 degrees, baked for about half an hour, and then removed after drying PCBA board.

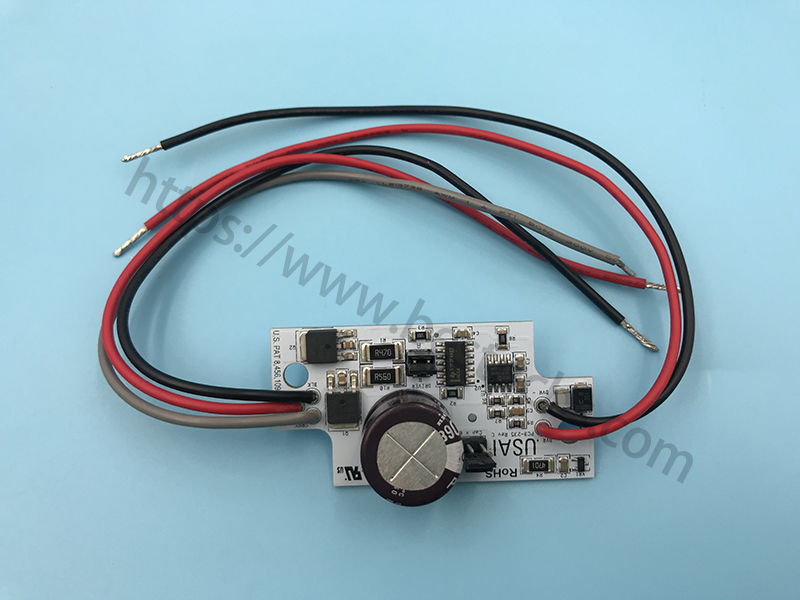

FR4 PCB
  • When cleaning the PCBA board, protect the components and labels on the board. Otherwise, the mounted and welded PCBA board will be wasted.

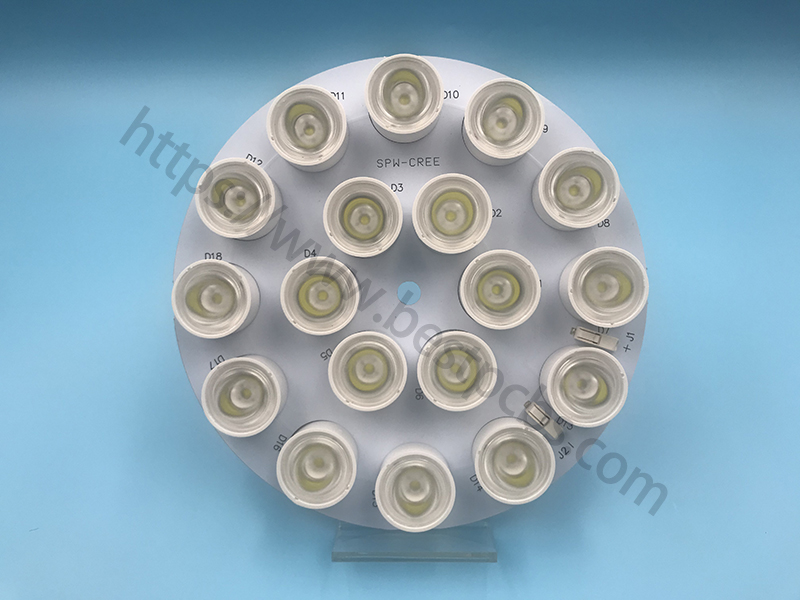

Aluminum Core PCB

Cleaning PCBA board affects the life and reliability of electronic products. Some of PCBA boards are not cleaned, which may lead to short circuit and leakage, leading to unqualified products and many failures, increasing the cost of recovery and maintenance, so it is not worth the loss to clean PCBA boards.


Best Technology has own SMT factory and can help our customers to buy the components at the same time. If you have any new inquiry of PCBA, welcome to send it to me then I can send you the quotation for comparison with your other suppliers.
