Ceramic Multilayer PCBs: Advantages and Disadvantages

The primary advantage of ceramic multilayer PCBs lies in their thermal properties. The most significant of these is thermal conductivity, which outperforms traditional materials by a tremendous margin. In the table below, the most used board material, FR4, is compared with the ceramic multilayer board in a number of important categories.

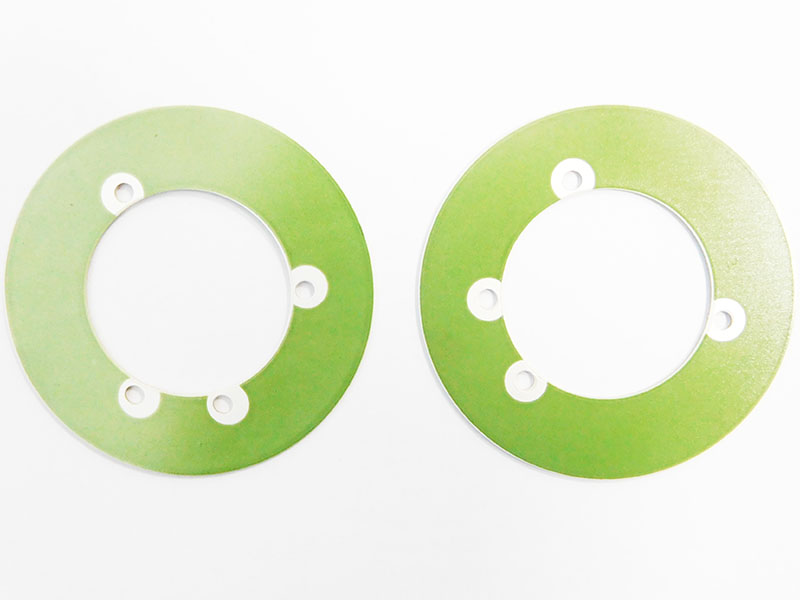

ceramic pcb

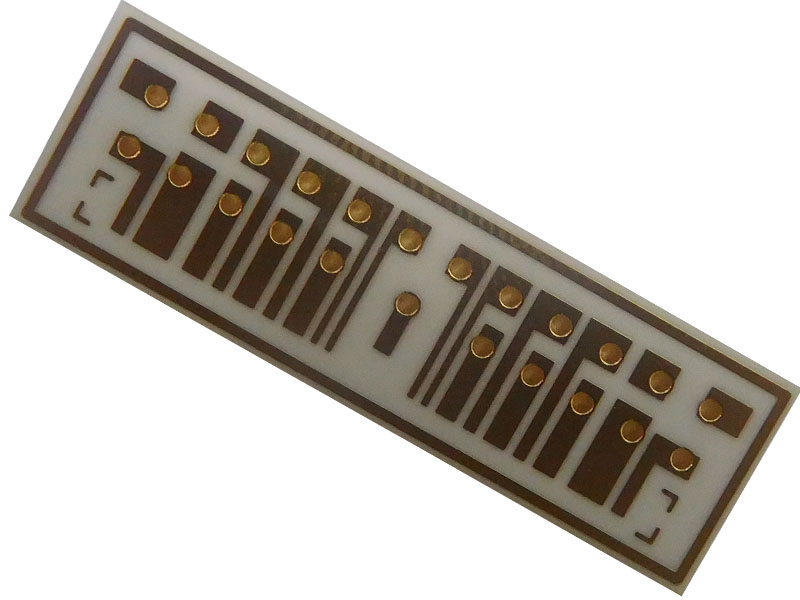

ceramic pcb

MULTILAYER PCB MATERIAL COMPARISON

CeramicVersusFR4
28 – 280Thermal Conductivity (Wm-K)0.8 – 1.1
Component ComparableCoefficient of Thermal Expansion (CTE)Component Comparable
HighFrequency PerformanceLow – Mid
FragileHandlingEasy
LowAvailabilityHigh
Mid – HighCostLow – Mid

As shown above, ceramic multilayer PCBs have advantages and disadvantages as compared to FR4. However, the advantages point to a continued increase in the use of ceramic boards for high-speed and high-power applications that are criteria for more functionality in smaller packages.
