Tiny Pad for the Single Side Ceramic Board

  In order to become the most creditable partner of customers, Best Technology is dedicated to develop the products that can meet the market all the time.The ceramic board has good prospects in the market because of its advantages. To begin with, it has resistance in very high or very low temperature (-55℃-850℃). What’s more, it is good in dissipation and thermal.

  For providing customers with the most suitable products and the most satisfactory services, Best Technology made a new single side ceramic board currently. It has a layer white solder mask in front and 1.0mm aluminum nitride in the back. Maybe it seems like aluminum substrate from the obverse side, but turning around you can know it is a ceramic board.

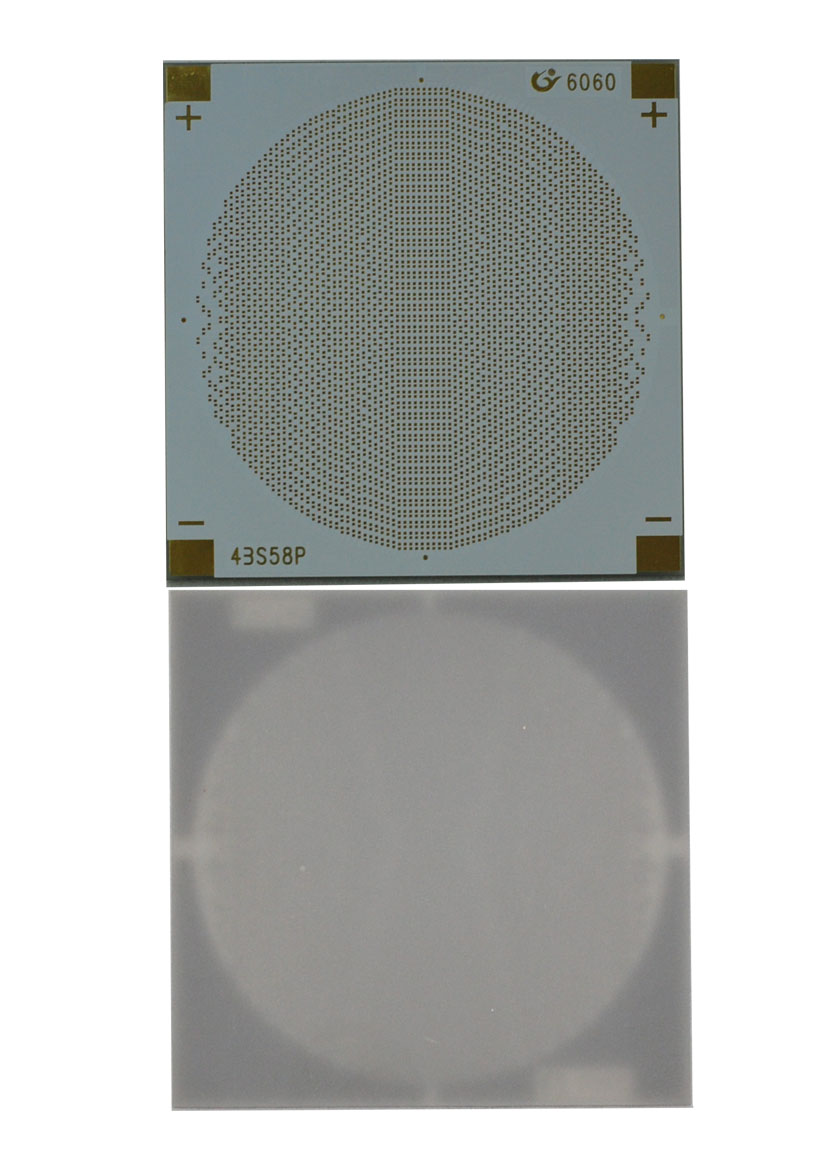

The obverse and the reverse side of the sample

Picture1:The obverse and the reverse side of the sample

  The most distinctive feature of it is that the pads on the surface are very tiny, and each small pad is combined into a circle just like the earth. Compared with other ceramic boards, the circuit of it is very small, too.

  The ceramic board has various advantages, it also can be applied in high power LED, solid state relay, electric power transmitter modules and so on.

  The specifications as below:

  The thickness of the copper: 35um

  1.0mm aluminum nitride

  ENIG

  Application temp: -55℃-850℃

  If you want to know more details about the ceramic board, please visit our website: https://www.bestpcbs.com/products/ceramic-pcb.htm
